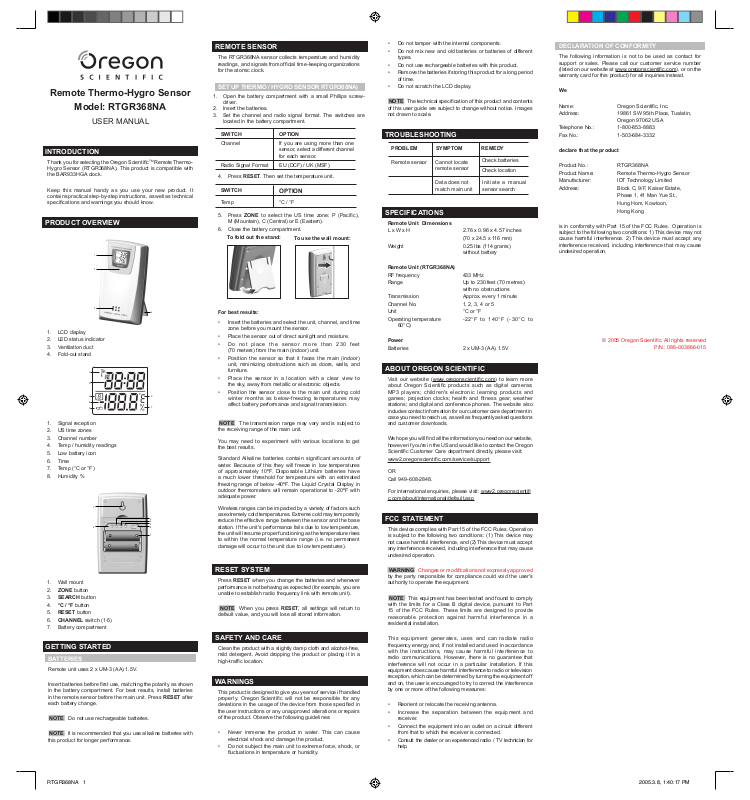

Remote Thermo-Hygro Sensor
Model: RTGR368NA
USER MANUAL
INTRODUCTION
Thank you for selecting the Oregon Scientifi c
Hygro Sensor (RTGR368NA). This product is compatible with
the BAR933HGA clock.
Keep this manual handy as you use your new product. It
contains practical step-by-step instructions, as well as technical
specifi cations and warnings you should know.
PRODUCT OVERVIEW
1
2
3
1. LCD display
2. LED status indicator
3. Ventilation duct
4. Fold-out stand
1
2
3
4
5
1. Signal reception
2. US time zones
3. Channel number
4. Temp / humidity readings
5. Low battery icon
6. Time
7. Temp (°C or °F)
8. Humidity %
1
2
TM
Remote Thermo-
4
6
7
3
4
5
6
7
REMOTE SENSOR
The RTGR368NA sensor collects temperature and humidity
readings, and signals from offi cial time-keeping organizations
for the atomic clock.
SET UP THERMO / HYGRO SENSOR RTGR368NA)
1. Open the battery compartment with a small Phillips screw driv er.
2. Insert the batteries.
3. Set the channel and radio signal format. The switches are
lo cat ed in the battery compartment.
SWITCH OPTION
Channel If you are using more than one
Radio Signal Format EU (DCF) / UK (MSF)
4. Press RESET. Then set the temperature unit.
SWITCH
Temp °C / °F
5. Press ZONE to select the US time zone: P (Pacifi c),
M (Mountain), C (Central) or E (Eastern).
6. Close the battery compartment.
To fold out the stand:
For best results:
• Insert the batteries and select the unit, channel, and time
zone before you mount the sensor.
• Place the sensor out of direct sunlight and moisture.
• Do not place the sensor more than 230 feet
(70 meters) from the main (indoor) unit.
• Position the sensor so that it faces the main (indoor)
unit, min i miz ing obstructions such as doors, walls, and
fur ni ture.
• Place the sensor in a location with a clear view to
the sky, away from metallic or electronic objects.
• Position the sensor close to the main unit during cold
winter months as below-freezing temperatures may
affect battery performance and signal transmission.
NOTE The transmission range may vary and is subject to
the receiving range of the main unit.
You may need to experiment with various locations to get
the best results.
Standard Alkaline batteries contain sig nifi cant amounts of
water. Be cause of this they will freeze in low temperatures
of approximately 10ºF. Disposable Lithium bat ter ies have
a much lower threshold for tem per a ture with an estimated
freezing range of below -40ºF. The Liquid Crystal Display in
out door ther mom e ters will remain operational to -20ºF with
ad e quate power.
Wireless ranges can be impacted by a variety of factors such
as extremely cold temperatures. Extreme cold may temporarily
reduce the effective range between the sensor and the base
station. If the unit's performance fails due to low temperature,
the unit will resume proper functioning as the temperature rises
to within the normal temperature range (i.e. no permanent
damage will occur to the unit due to low temperatures).
sensor, select a different channel
for each sensor.
OPTION
To use the wall mount:
• Do not tamper with the internal components.
• Do not mix new and old batteries or batteries of different
types.
• Do not use rechargeable batteries with this product.
• Remove the batteries if storing this product for a long period
of time.
• Do not scratch the LCD display.
NOTE The technical specifi cation of this product and contents
of this user guide are subject to change without notice. Images
not drawn to scale.
TROUBLESHOOTING
PROBLEM SYMPTOM REMEDY
Remote sensor
Cannot locate
remote sensor
Data does not
match main unit
Check batteries
Check location
Initiate a manual
sensor search
SPECIFICATIONS
Remote Unit Dimensions
L x W x H 2.76 x 0.96 x 4.57 inches
(70 x 24.5 x 116 mm)
Weight 0.25 lbs (114 grams)
without battery
Remote Unit (RTGR368NA)
RF frequency 433 MHz
Range Up to 230 feet (70 metres)
with no obstructions
Transmission Approx. every 1 minute
Channel No. 1, 2, 3, 4 or 5
Unit °C or °F
Operating temperature -22°F to 140°F (-30°C to
60°C)
Power
Batteries 2 x UM-3 (AA) 1.5V
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientifi c.com) to learn more
about Oregon Scientifi c prod ucts such as dig i tal cameras;
MP3 players; chil dren's elec tron ic learning products and
games; projection clocks; health and fi tness gear; weather
sta tions; and digital and con fer ence phones. The website also
includes con tact information for our customer care de part ment in
case you need to reach us, as well as frequently asked questions
and customer downloads.
We hope you will fi nd all the information you need on our website,
however if you're in the US and would like to contact the Oregon
Scientifi c Customer Care department directly, please visit:
www2.oregonscientifi c.com/service/support
OR
Call 949-608-2848.
For international enquiries, please visit: www2.oregonscientifi
c.com/about/international/default.asp
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harm ful interference, and (2) This device must accept
any interference received, including interference that may cause
undesired op er a tion.
DECLARATION OF CONFORMITY
The following information is not to be used as contact for
support or sales. Please call our customer service number
(listed on our website at www.oregonscientifi c.com), or on the
warranty card for this product) for all in quir ies instead.
We
Name: Oregon Scientifi c, Inc.
Address: 19861 SW 95th Place, Tualatin,
Oregon 97062 USA
Telephone No.: 1-800-853-8883
Fax No.: 1-503-684-3332
declare that the product
Product No.: RTGR368NA
Product Name: Remote Thermo-Hygro Sensor
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1, 41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
is in conformity with Part 15 of the FCC Rules. Operation is
subject to the following two con di tions: 1) This device may not
cause harmful interference. 2) This device must accept any
interference received, including interference that may cause
undesired operation.
© 2005 Oregon Scientifi c. All rights reserved
P/N.: 086-003866-015
WARNING Changes or modifi cations not expressly approved
by the party re spon si ble for compliance could void the us er's
authority to operate the equipment.
NOTE This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful in ter fer ence in a
residential installation.
This equipment generates, uses and can ra di ate radio
frequency energy and, if not in stalled and used in accordance
with the instructions, may cause harmful interference to
radio com mu ni ca tions. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harm ful interference to radio or television
re cep tion, which can be determined by turning the equip ment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equip ment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the re ceiv er is connected.
• Consult the dealer or an experienced radio / TV technician for
help.
1. Wall mount
2. ZONE button
3. SEARCH button
4. °C / °F button
5. RESET button
6. CHANNEL switch (1-5)
7. Battery compartment
GETTING STARTED
BATTERIES
Remote unit uses 2 x UM-3 (AA) 1.5V.
Insert batteries before fi rst use, matching the polarity as shown
in the battery compartment. For best results, install batteries
in the remote sensor before the main unit. Press RESET after
each battery change.
NOTE Do not use rechargeable batteries.
NOTE It is recommended that you use alkaline batteries with
this product for longer performance.
RESET SYSTEM
Press RESET when you change the batteries and whenever
performance is not behaving as expected (for example, you are
unable to establish radio frequency link with remote unit).
NOTE When you press RESET, all settings will return to
default value, and you will lose all stored information.
SAFETY AND CARE
Clean the product with a slightly damp cloth and alcohol-free,
mild detergent. Avoid dropping the product or placing it in a
high-traffi c location.
WARNINGS
This product is designed to give you years of service if handled
properly. Oregon Scientifi c will not be responsible for any
deviations in the usage of the device from those specifi ed in
the user instructions or any unapproved alterations or repairs
of the product. Observe the following guidelines:
• Never immerse the product in water. This can cause
electrical shock and damage the product.
• Do not subject the main unit to extreme force, shock, or
fl uctuations in temperature or humidity.
RTGR368NA 1 2005.3.8, 1:40:17 PM
