User’s Manual
Proximity Card Reader
2
Table of Contents
1. Important Safety Instructions................................................................3
2. General.....................................................................................................3
3. Features...................................................................................................4
4. Specification............................................................................................4
5. Identifying Supplied Parts......................................................................5
4. Installation...............................................................................................5
5. Wire Color Table of the RF TINY............................................................6
6. Wire Connection to Controller...............................................................6
7. Operation.................................................................................................7
8. FCC Registration Information................................................................8
9. Warranty Policy and Limitation of Liability..........................................9
3
1. Important Safety Instructions
When using your Proximity Card Reader, basic safety precautions should always be followed to
reduce the risk of fire, electrical shock, and injury to persons. In addition, the following should also be
followed:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. If necessary, use mild
soap.
4. Do not use this product near water, such as bath-tub, wash bowl, kitchen sink, laundry tub, in a wet
basement, or swimming pool.
5. This product should be operated only from the type of power source indicated on the marking label. If
you are not sure of the type of power supplied to your installation site, consult your dealer or local
power company.
6. Never push objects of any kind into this product or through the cabinet slots as they may touch
voltage points or short out parts that could result in fire or electric shock. Never spill liquid of any kind
on the product.
7. To reduce the risk of electric shock, do not disassemble this product by yourself, but take it to
qualified service whenever service or repair is required. Opening or removing the covers may expose
you to dangerous voltages or other risks. Also, incorrect reassembly can cause electric shock when
the unit is subsequently used.
8. Unplug this product from the Direct Current (DC) power source and refer to qualified service
personnel under these conditions:
a. When the power supply cord or plug is damaged or frayed.
b. If liquid has been spilled on the product.
c. If the product does not operate normally after following the operating instructions in this manual.
Adjust only those controls that are covered by the operating instructions in this manual. Improper
adjustment of other controls that are not covered by this manual may damage the unit and will
often require extensive work by a qualified technician to restore normal operation.
d. If the product exhibits a distinct change in performance.
2. General
The Star RF TINY is an elegant looking and an attractive 4" read range proximity reader which can be
mounted to metal door frame (mullion) or any flat wall surface. The Star RF TINY uses the same
electronics module in epoxy potting that ensures you successful operation even in harsh environments.
The different bezels allow you to interchange the bezel for different applications or wall conditions.
4
3. Features
- 125KHz Proximity Card Reader
- PSK Modulation (IDTECK Format)
- Read Range: Up to 4 inches (10 cm)
- User Format Available
- 26bit Wiegand and RS232 (Default), ABA Track II (Optional) Output Format
- Dual Reading Technology Reader (Active and Passive Cards)
- Easy to Install on Metal Door Frame or Mullion
- External LED Control and External Buzzer Control
- Solid Epoxy Potted
- Waterproof (IP65/IP66)
- Reverse Polarity Protection
- Lifetime Warranty
- Options: Supervisory Signal
- Compatible Controllers: iCON100, iTDC, Standalone Controllers, Third-Party Controllers
4. Specification
Model RF TINY
CPU
8bit Microprocessor
IDK50 / IMC125: Up to 2 inches (5 cm)
IDC80: Up to 2.8 inches (7 cm)
Passive Type
IDC170: Up to 4 inches (10 cm)
Read
Range
Active Type
IDA150 / IDA200 Compatible
Reading Time (Card)
30ms
Power / Current
DC 12V / Max.180mA
Input Port
2 Ports (External LED Control, External Buzzer Control)
Output Format
26bit Wiegand (Default), RS232 and ABA Track II (Optional)
LED Indicator /
Beeper
2 Color LED (Red and Green) / Piezo Buzzer
Operating Temperature
-35° to +65°C ( -31° to +149°F )
Operating Humidity
10% to 90% relative humidity non-condensing
Color / Material
Dark Pearl Gray / Polycarbonate
Weight /
Dimension (W x H x T)
80g (0.18lbs)
/ 45mm x 85mm x 15.5mm
(1.77” x 3.35” x 0.6”)
Certification
FCC, CE, MIC
5

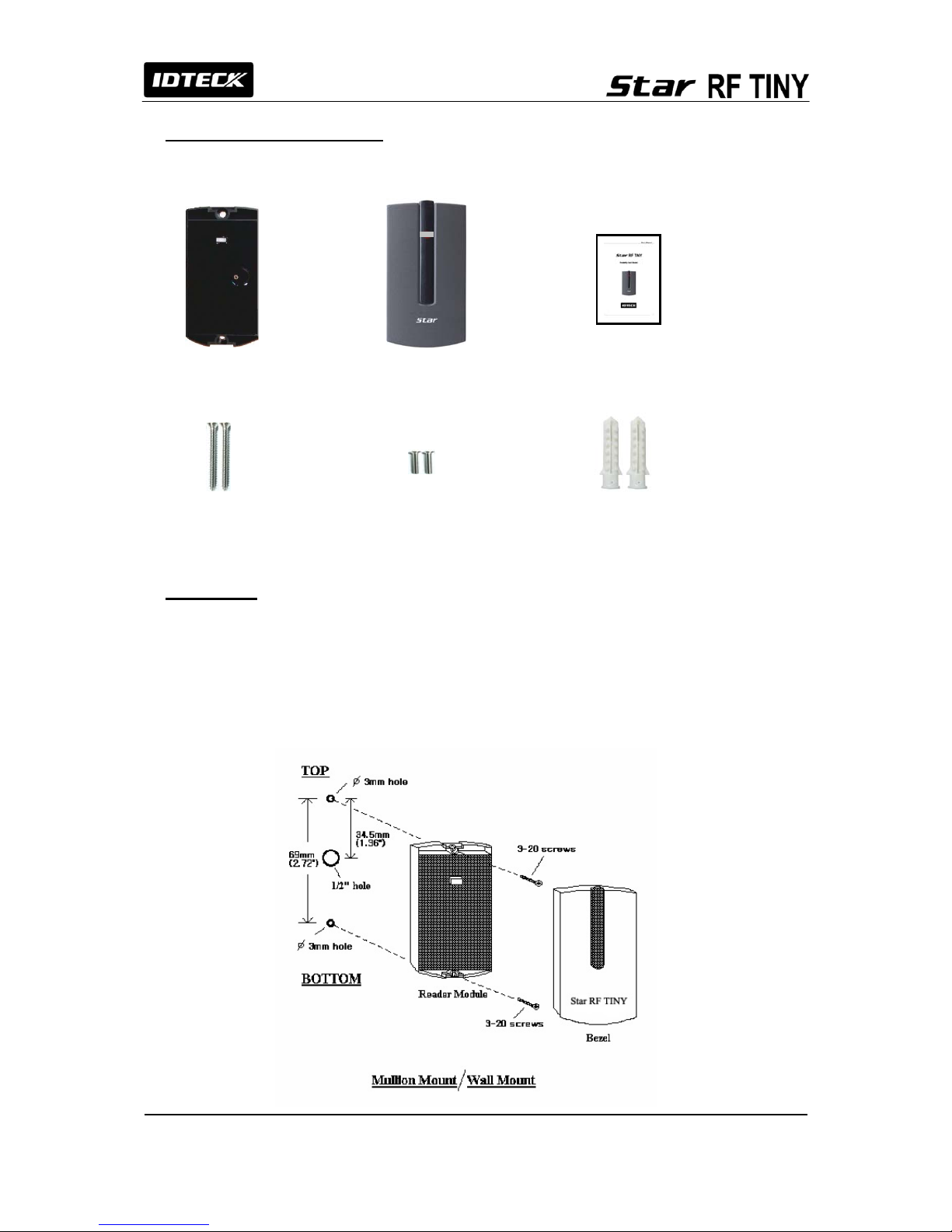

5. Identifying Supplied Parts
Please unpack and check the contents of the box.
Reader Module RF TINY Bezel User’s Manual
(1ea) (1ea) (1copy)
3.0*40 Screw 3.0*12 Screw Anchor Bolt
(2ea) (2ea) (2ea)
4. Installation
4-1. Mullion/Wall Mount
Drill two 3mm holes 2.72"(69mm) apart in vertical and drill one 1/2" hole for the controller cable
1.36"(34.5mm) apart from the top hole.
4-2. Put reader cable into the center hole and install the reader module by using two 3-20 screws.
4-3. Put bezel into the reader module then push bezel until you hear the locking sound.
6

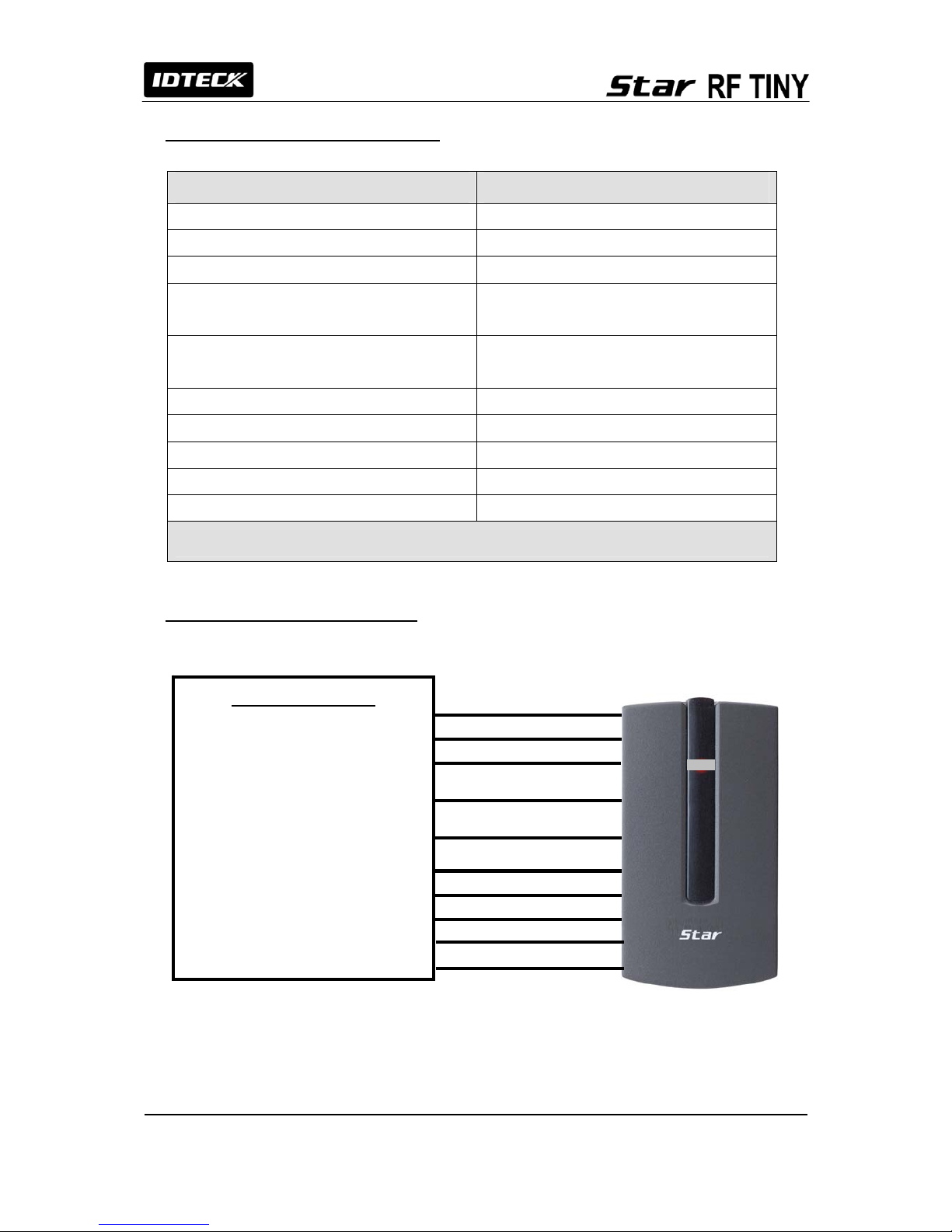

5. Wire Color Table of the RF TINY
6. Wire Connection to Controller
SIGNAL COLOR
Main Power (+12V) Red
Power Ground (GND) Black
ABA Track II CP Out Orange
Wiegand Data 0 Out /
ABA Track II Data Out
Green
Wiegand Data 1 Out /
ABA Track II Clock Out
White
Buzzer Control In Blue
LED Control In Yellow
RS232 (TX) Purple
Not Connect Brown
Not Connect Gray
* Please cut out tail connector before installation.
Red
Black
Orange
Green
White
Purple
Blue
Yellow
Brown
Gray
Access Controller
Main Power (+12V)
Power Ground (GND)
ABA Track II CP Out
Wiegand Data 0 Out /
ABA Track II Data Out
Wiegand Data1 Out /
ABA Track II Clock Out
RS232 (TX)
Buzzer Control In
LED Control In
Not Connect
Not Connect
7
7. Operation
7-1. If it supplies a power, it displays red color that indicates in standby reader.
7-2. Present RF card to the product until you hear beeper sound.
The LED of RF TINY changes color to green simultaneously.
If the product sends RF card data to the controller, LED changes color to red again for next
reading.
7-3. LED Control
To change the LED colors, you may connect LED Control Input (Yellow wire) to GND.
The next LED displays green color that indicates in standby reader.
If you make RF card present, the LED of product changes color to red simultaneously.
And then it turns green again for next reading.
7-4. Buzzer Control
When the product reads RF card, only one beeping sounds in normal operating mode.
Whether the access is granted or denied, the product sounds more beeping to distinguish.
To sound more beeping, you may control the Buzzer Control Input (Blue wire) to GND.
Then you can turn beeper on while you connect Buzzer Control Input to GND.
8
8. FCC Registration Information
FCC REQUIREMENTS PART 15
Caution: Any changes or modifications in construction of this device which are not expressly
approved by the responsible for compliance could void the user's authority to operate the equipment.
NOTE: This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
1. This device may not cause harmful interface, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class A Digital Device,
pursuant to Part 15 of the FCC Rules. These limits are designed to this equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the radio or television off and on, the user is encouraged to try to correct interference by
one or more of the following measures.
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on another circuit.
4. Consult the dealer or an experienced radio/TV technician for help.
9
9. Warranty Policy and Limitation of Liability
IDTECK warrants this product against defects in material and workmanship for the period specified
below from the date of purchase under normal customer use. This Warranty doesn’t apply: 1) to any
product which has been dismantled without authorization of IDTECK or/and has a damaged or detached
QC label on its back side; 2) to any losses, defects, or damages caused by improper testing, operation,
installation, maintenance, modification, alteration, or adjustment; 3) to any product with a damaged or
faded serial number on it; or 4) to any losses, defects, or damages caused by lightning or other
electrical discharge, natural disaster, misuse, accident or neglect.
This Limited Warranty is in lieu of all other warranties, obligations, or liabilities on the part of IDTECK,
and IDTECK DISCLAIMS ANY AND ALL WARRANTY, WHETHER EXPRESS OR IMPLIED, OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.IDTECK does not, and cannot,
know who is present, what property is located, where this product will be used; it would be extremely
difficult to determine the actual damages that may result from a failure of the product to perform as
anticipated; and the low price of this product is based upon the nature of the product provided and the
limited liability that IDTECK assumes. IDTECK IS NOT RESPONSIBLE FOR ANY PERSONAL INJURY,
PROPERTY DAMAGE OR LOSS, DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES,
OR OTHER LOSS, AND IDTECK’S MAXIMUM LIABILITY SHALL NOT IN ANY CASE EXCEED THE
PURCHASE PRICE OF THE PRODUCT.
To obtain repair or replacement under the terms of this warranty, visit IDTECK’s Website
(http://www.idteck.com) and place an online RMA request. After an RMA code is issued, return the
product along with the authorization RMA code.
>> Warranty Period
Product Category
Warranty
Period
1 RF CARD (Active type) 1 year
2 RF READER / FINGERPRINT READER
3 STANDALONE CONTROLLER
4 CONTROL PANEL
5 FINGERPRINT CONTROLLER
3 years
6
MOLDED RF READER
(RF10, RF20, RF30, RF TINY, IP10, IP20, IP30, SR10E, SR10UE, SR10SE, SR10RWE,
SR10BE)
7
RF CARD (Passive type)
(IDC80, IDC170, IDK50, IMC125, LXK50, IPC80, IPC170, IPK50, ISC80, ISC80S, ISK50,
IMC135, IHC80, IP100, IP200)
Lifetime
10
IDTECK accepts only on-line RMA requests on our Website (www.idteck.com). Please provide us
with basic information in the below form so that we can understand your problems better. Send us
back this form with your products after an RMA code is issued on our Website. This form is not
compulsory.
RMA Authorization Code :
1. Company Name
2. Model Name
3. Serial No.
4. Original Invoice No.
5. Distributor
6. Purchasing Date
7. RMA Request Date
Please check your problems.
□ Card Reading □ Power .. □ Keypad
□ Communication . □ Relay . □ LCD
□ LED & Buzzer □ Registration
□ Others :
IDTECK RMA Center >>
3F, 10/10-1/10-2, Dodang-Dong, Weonmi-Gu, Bucheon-Si, Gyeonggi-Do 157-030, Korea
Telephone: 82.2.2659.0055 (HQ) / 82.32.671.5642 (RMA Center)
Fax: 82.2.2659.0086 (HQ) / 82.32.671.5641 (RMA Center )
Website: www.idteck.com
e-Training Center: www.idtecktraining.com
RMA REQUEST FORM
11
MEMO
Sep. 2008 Copyright ©2008 IDTECK Co., Ltd.
MARTINYHE2X
The specifications contained in this manual are subject to change without notice at any time.
5F, Ace Techno Tower B/D, 684-1, Deungchon-Dong,
Gangseo-Gu, Seoul, 157-030, Korea
Tel : +82-2-2659-0055
Fax : +82-2-2659-0086
