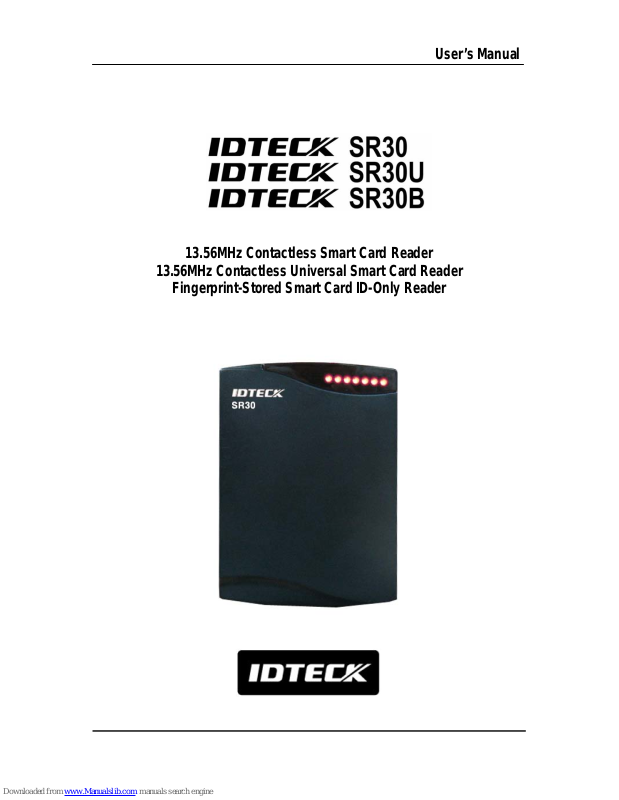

User’s Manual
13.56MHz Contactless Smart Card Reader
13.56MHz Contactless Universal Smart Card Reader
Fingerprint-Stored Smart Card ID-Only Reader
Table of Contents
1. Important Safety Instructions...................................................................3
2. General........................................................................................................4
3. Features......................................................................................................4
4. Identifying Supplied Parts.........................................................................5
5. Specification...............................................................................................6
6. Installation..................................................................................................8
7. Wire Color Table.........................................................................................9
8. Output Format..........................................................................................10
9. Wire Connection to Access Controller...................................................11
11. Appendix.................................................................................................12
12. FCC Registration Information...............................................................13
13. Warranty Policy and Limitation of Liability..........................................14
2
1. Important Safety Instructions
When using the 13.56MHz [MIFARE] Contactless Smart Card Reader (SR30) / 13.56MHz
Contactless Universal Smart Card Reader (SR30U) / Fingerprint Stored Smart Card ID Only
Reader (SR30B), basic safety precautions should always be followed to reduce the risk of fire, electrical
shock, and injury to persons.
1. Fully read and understand all instructions and follow them completely.
2. Follow all warnings and instructions marked on the product.
3. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. If necessary, use mild soap.
4. Do not use this product near water.
5. Only operate this product using the type of power source indicated. If you are not sure of the type
of power supplied to your installation site, consult your dealer of local power company.
6. Never insert objects of any kind into the product or through the cabinet slots as they may touch
voltage points and/or short circuit parts possibly resulting in fire or electric shock.
Never spill liquid of any kind on the product.
7. Never disassemble this product by yourself; take the unit to a qualified service center whenever
service or repair is required. Opening or removing the covers may expose you to dangerous
voltages or other risks. Also, incorrect reassembly can cause electric shock when the unit is
subsequently used.
8. Unplug this product from the Direct Current (DC) power source and refer to qualified service
personnel under these conditions:
z When the power supply cord or plug is damaged or frayed.
z If liquid has been spilled on the product.
z If the product does not operate normally after following the operating instructions in this
manual.
Adjust only those controls that are covered by the operating instructions in this manual.
Improper adjustment of other controls that are not covered by this manual may damage
the unit and will often require extensive work by a qualified technician to restore normal
operation.
z If the product exhibits a distinct change in performance.
3
2. General
The IDTECK SR30/SR30U/SR30B Smart Card Reader is a proximity reader with the read range of
up to 4 inches (10cm) and can be installed on any doorframe or mounted on any wall.
IDTECK SR30 reads the serial number stored on the Philips Mifare™ card (ISO14443 Type A) and
transmits the data to the controller in various formats.
IDTECK SR30U reads the serial number stored on the ISO14443 Type A/B card and transmits the data
to the controller in various formats.
IDTECK SR30B reads the IDs stored on the user cards that have been issued using the PRG2000B
and transmits the data to the controller in various formats.
Seven 2-color LED indicators (red and green) and a built-in Piezo buzzer will guarantee you accurate
and reliable system operations.
3. Features
9 Common
- 13.56MHz [MIFARE] Contactless Smart Card Reader
- Read Range: Up to 4 inches (10cm)
- 7-Array LED Indicators (Red and Green) and a Buzzer
- External LED Control
- External Buzzer Control
- Easy to install on Mullion Mounting suitable
- Reverse Polarity Protection
9 SR30
- ISO 14443 type A compatible
- Serial Number Read only
- 34bit Wiegand (default) / RS232, ABA Track II (optional) Output Format
- Compatible Controller: iCON100SR, iTDC-SR, Third Party Controller
9 SR30U
- ISO 14443 type A/B compatible
- Serial Number Read only
- 34bit Wiegand (default) / RS232, ABA Track II (optional) Output Format
- Compatible Controller: iCON100SR, iTDC-SR, Third Party Controller
4
9 SR30B
- Read Encrypted ID of Smart Card that is written by PRG2000B
- 26bit Wiegand (default) / RS232, ABA Track II (optional) Output Format
- Compatible Controller: iCON100, iTDC, FINGER007SRB, Third Party Controller.
- Compatible Reader: SR10B, SRK101B, FGR006SRB, FINGER006SRB
4. Identifying Supplied Parts
Please unpack and check the contents of the box:
Reader Module SR30/SR30U/SR30B Bezel User Manual
(1ea) (1ea) (1 copy)
3.5*40 screw 3.5*25 screw Anchor Bolt
(2ea) (2ea) (2ea)
5
5. Specification
Model SR30 SR30U SR30B
Type A
ISK50 / IMC135: Up to 2 inches (5cm)
ISC80: Up to 4 inches (10cm)
Read Range
Ty pe B N/A
ISC80B: Up to 2
inches (5cm)
N/A
Card Reading Time 30ms
Power / Current DC 12V / Max. 150mA
Input Port 2 Input Ports (External LED Control, External Buzzer Control)
34bit Wiegand (Default)
26bit Wiegand
(Default)
Output Format
RS232,ABA Track II (Selectable)
LED Indicator / Buzzer 3 Array LED Indicator(Red, Green) / Piezo Buzzer
Operating Temperature
-35° ~ +65℃ (-31° ~ +149℉)
Operating Humidity 10% ~ 90% Relative Humidity non-condensing
Color / Material Dark Peal Gray / Polycarbonate
Dimensions (W x H x T) 47mm X 115mm X 22 mm (1.8’’ X 4.5’’ X 0.88’’)
Weight 150g (0.33lbs)
Index of Protection IP65 / IP66
Certification FCC, CE, MIC
6
Card Read Range of each Contactless Smart[Mifare] Reader
Model ISC80 ISC80B ISK50 IMC135 IHC80
SR10 /
SR30 /
SRK101
Up to 4
inches
(10cm)
Up to 2 inches (5cm)
SR10B /
SR30B /
SRK101B
Up to 4
inches
(10cm)
Up to 2 inches (5cm)
SR10U /
SR30U /
SRK101U
Up to 4
inches
(10cm)
Up to 2 inches (5cm)
SR10RW /
SR30RW /
SRK101RW
Up to 4
inches
(10cm)
Up to 2 inches (5cm)
FINGER007SR(B)
FINGER006SR(B)
FGR006SR(B)
Up to 4
inches
(10cm)
Up to 2 inches (5cm)
SR505
Up to 4
inches
(10cm)
Up to 2 inches (5cm)
Read
Range
FACE007SR
FACE006SR
Up to 4
inches
(10cm)
Up to 2 inches (5cm)
7
6. Installation
6-1. Drilling Screw Holes
Drill two 6-32 or M3 screw holes 3.3" (8.38cm) apart vertically, and drill one 1/2" hole for the
reader cable between the two holes (see the diagram below).
6-2. Installing the Reader Module
Put the reader cable into the center hole and hold the reader module using two 6-32 or M3 screws.
6-3. Snapping the Bezel into Place
Put the bezel on the reader module, then press it until it clicks into place.
6-4. Installation Considerations
1. When installing a reader on a metal wall
The read range may get reduced if the reader is installed on a metal surface. To prevent
such a read range reduction, install a Spacer between the metal surface and the reader.
8
2. When installing more than two readers side by side or back to back
The read range may get reduce if more than two readers are installed side by side or back to
back. Also, when a card is presented to one of the readers, the other reader may wrongly
recognize the card as well. To prevent such interference, make sure the distance between
readers is at least 20cm.
7. Wire Color Table
Signal Color
Main Power (+12V) Red
Power Ground (GND) Black
ABA Track II CP Out Orange
Wiegand Data 0 Out /
ABA Track II Data Out
Green
Wiegand Data 1 Out /
ABA Track II Clock Out
White
Buzzer Control In Blue
LED Control In Yellow
†34/26bit Wiegand Select In Gray
RS232 (TX) Purple
RS232 (RX) Brown
* Cut out the tail connector before installation.
†Applicable to SR30 only.
9
8. Output Format
8-1. Wiegand Output Format
Data Format (34-bit /26-bit)
Bit 1 / Bit 1 : Even Parity Bit of Bit 2 to Bit 17 / Bit 2 to Bit 13
Bit 2 to Bit 33 / Bit 2 to Bit 25 : 4-byte ID number / 3-byte ID number
Bit 34 / Bit 26 : Odd Parity Bit of Bit 18 to Bit 33 / Bit 14 to Bit 25
Timing Diagram
8-2 RS-232C(Option) Data Format
START(0x02H) DATA(10 or 8 char’s) END(0x03H) LRC
Baud Rate: 9600bps
DATA: With 4 bytes(34bits), 10 characters,
With 3 bytes(26bits), 8 characters.
LRC: One single value of XOR from ‘START’ to ‘END’.
10
9. Wire Connection to Access Controller
Make sure the wire connections are correctly done.
†SR30 only
10. Operation
10-1. After the reader is powered on and becomes ready, the red LED will be lit.
10-2. Bring a card close to the reader until the green LED is lit and the buzzer beeps. Then, the reader
transmits the RF card data to the controller and changes the LED color to red for next reading.
10-3. LED Control
To change the LED color, you may connect the LED Control Input (Yellow wire) to the ground.
Then, the green LED changes to red when a proximity card is presented to the reader and, when
the reading is completed, the green LED comes back on for next reading.
10-4. Buzzer Control
When the reader reads a proximity card, only one beep is generated. However, for better
distinction between the OK and Error status, you can set the reader to generate additional beeps.
In order to do that, you may connect the Beeper Control Input (Blue wire) to the ground. While the
Buzzer Control Input wire is connected to the ground, one more beep is generated.
11
10-5. 4-byte(34bit) / 3-byte(26bit) Select In (SR30 Only)
The reader transmits the serial number of a card which is a 4-byte number. It is possible to set
the reader to transmit only 3 bytes with the first one byte removed. It is useful when the
connected controller supports 3-byte data only. To use this function, connect the 34-bit / 26-bit
selection input (Gray wire) to ground.
CAUTION: It is unavoidable that some card numbers are duplicated in 3-byte output.
e.g.
34bits – 0x21 0x97 0x32 0xBC : Hexa
0563557052 : Decimal
26bits – 0x32 (FAC) 0x97 0x21 (ID number) : Hexa
050(FAC) 38689 (ID number) : Decimal
11. Appendix
Troubleshooting
Cards won’t be read properly.
Cause Voltage other than DC12V is used, or the type of the card is different.
Solution
1. Check the standard voltage in the manual or catalog.
2. See if the card is ISO14443 Type A or B type.
=> 125KHz cards can’t be used. But, 13.56MHz cards can be used if they are
ISO15693 compatible.
(Contact the place where you purchased the cards.)
3. If the problem still persists, contact the service center.
When powered on, the reader beeps and the LED is dimly lit.
Cause
The power adapter being used is not capable of meeting the current consumption
level of the reader, or the power cable is too long for sufficient power to reach the
reader.
Solution
1. Make sure to use an adapter with a capacity that is larger than the current
consumption level of the reader. If more than one reader is connected to one
single adapter, make sure that the capacity adapter can support the current
consumption of each reader multiplied by the number of the connected readers.
2. Even if the power source has sufficient capacity, the cable may not be
usual power cable (i.e. communication cable, UTP cable, etc.) or the length is so
long that there is lots of power loss. In this case, replace the cable with a power
cable, or reinforce the cable.
3. If the problem still persists, contact the service center.
12
The read range of cards varies every time a card is read.
Cause
Even if the cards are of the same type, they might be produced by different
companies and, therefore, have different characteristics.
(IDTECK cards are made according to the MIFARE card of Philips.
Solution
1. Depending on the card manufacturer and special manufacturing processes, the
characteristics of the card may vary. Therefore, make sure if the cards are
manufactured by one company.
If the cards are manufactured by different companies, it is natural that they have
varying read ranges.
2. If the read range of the cards manufactured by a single company varies, contact
the service center.
12. FCC Registration Information
FCC REQUIREMENTS PART 15
Caution: Any changes or modifications in construction of this device which are not expressly
approved by the manufacturer for compliance could void the user's authority to operate
the equipment.
NOTE: This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B Digital Device,
pursuant to Part 15 of the FCC Rules. These limits are designed to this equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the radio or television off and on, the user is encouraged to try to correct
interference by one or more of the following measures.
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on another circuit.
4. Consult the dealer or an experienced radio/TV technician for help.
13
13. Warranty Policy and Limitation of Liability
IDTECK warrants this product against defects in material and workmanship for the period specified
below from the date of purchase under normal customer use. This Warranty doesn’t apply: 1) to any
product which has been dismantled without authorization of IDTECK or/and has a damaged or detached
QC label on its back side; 2) to any losses, defects, or damages caused by improper testing, operation,
installation, maintenance, modification, alteration, or adjustment; 3) to any product with a damaged or
faded serial number on it; or 4) to any losses, defects, or damages caused by lightning or other
electrical discharge, natural disaster, misuse, accident or neglect.
This Limited Warranty is in lieu of all other warranties, obligations, or liabilities on the part of IDTECK,
and IDTECK DISCLAIMS ANY AND ALL WARRANTY, WHETHER EXPRESS OR IMPLIED, OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.IDTECK does not, and cannot,
know who is present, what property is located, where this product will be used; it would be extremely
difficult to determine the actual damages that may result from a failure of the product to perform as
anticipated; and the low price of this product is based upon the nature of the product provided and the
limited liability that IDTECK assumes. IDTECK IS NOT RESPONSIBLE FOR ANY PERSONAL INJURY,
PROPERTY DAMAGE OR LOSS, DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES,
OR OTHER LOSS, AND IDTECK’S MAXIMUM LIABILITY SHALL NOT IN ANY CASE EXCEED THE
PURCHASE PRICE OF THE PRODUCT.
To obtain repair or replacement under the terms of this warranty, visit IDTECK’s Website
(http://www.idteck.com) and place an online RMA request. After an RMA code is issued, return the
product along with the authorization RMA code.
>> Warranty Period
Item
Warranty
Period
1 RF READER / FINGERPRINT READER
2 RF CARD (Active type)
3 STANDALONE CONTROLLER
4 CONTROL PANEL
5 FINGERPRINT CONTROLLER
2 years
6
MOLDED RF READER
(RF10, RF20, RF30, RF TINY, IP10, IP20, IP30, SR10E, SR10UE, SR10SE, SR10RWE,
SR10BE)
7
RF CARD (Passive type)
(IDC80, IDC170, IDK50, IMC125, LXK50, IPC80, IPC170, IPK50, ISC80, ISC80S, ISK50,
IMC135, IHC80, IP100, IP200)
Lifetime
14
RMA REQUEST FORM
IDTECK accepts only on-line RMA requests on our Website (www.idteck.com
). Please provide us
with basic information in the below form so that we can understand your problems better. Send us
back this form with your products after an RMA code is issued on our Website. This form is not
compulsory.
Authorization RMA Code :
1. Company Name
2. Model Name
3. Serial No.
4. Original Invoice No.
5. Distributor
6. Purchasing Date
7. RMA Request Date
Please check your problems.
□ Card Reading □ Power .. □ Keypad
□ Communication . □ Relay . □ LCD
□ LED & Buzzer □ Registration
□ Others :
IDTECK RMA Center >>
3F, 10/10-1/10-2, Dodang-Dong, Weonmi-Gu, Bucheon-Si, Gyeonggi-Do 157-030, Korea
Telephone: 82.2.2659.0055 (HQ) / 82.32.671.5642 (RMA Center)
Fax: 82.2.2659.0086 (HQ) / 82.32.671.5641 (RMA Center )
Website: www.idteck.com
e-Training Center: www.idtecktraining.com
15
The specifications contained in this manual are subject to change without notice at any time.
5F, Ace Techno Tower B/D, 684-1, Deungchon-Dong,
Gangseo-Gu, Seoul, 157-030, Korea
Tel : +82-(2)-2659-0055
Fax : +82-(2)-2659-0086
E-mail : webmaster@idteck.com
16
MARSR30HK3X
MARSR3UHK1X
MARSR3BHK3X
Feb 2008 Copyright ©2008 IDTECK Co., Ltd.
Loading...
