(C) Copyright International Display Technology 2007 All Rights reserved.
December 5,2007 CAS I-914P-L01 1/35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Sales Support
www.panelook.com
Global LCD Panel Exchange Center
Customer's Acceptance Specification
i Contents
iContents
iiRecord of Revision
1.0Handling Precautions
2.0General Description
2.1Characteristics
2.2Functional Block Diagram
3.0Absolute Maximum Ratings
4.0Optical Characteristics
4.1Luminance Uniformity
5.0Signal Interface
5.1Connectors
5.2Interface Signal Connector
5.3Interface Signal Description
5.3.1 E-EDID
5.4Interface Signal Electrical Characteristics
5.4.1 Signal Electrical Characteristics for LVDS Receiver
5.4.2 LVDS Receiver Internal Circuit
5.4.3 Recommended Guidelines for Motherboard PCB Design and Cable Selection
5.5Signal for Lamp connector
6.0Pixel format image
7.0Parameter guide line for CFL Inverter
8.0Interface Timings
8.1Timing Characteristics
8.2Timing Definition
9.0Power Consumption
10.0 Power ON/OFF Sequence
11.0 Mechanical Characteristics
12.0 National Test Lab Requirement

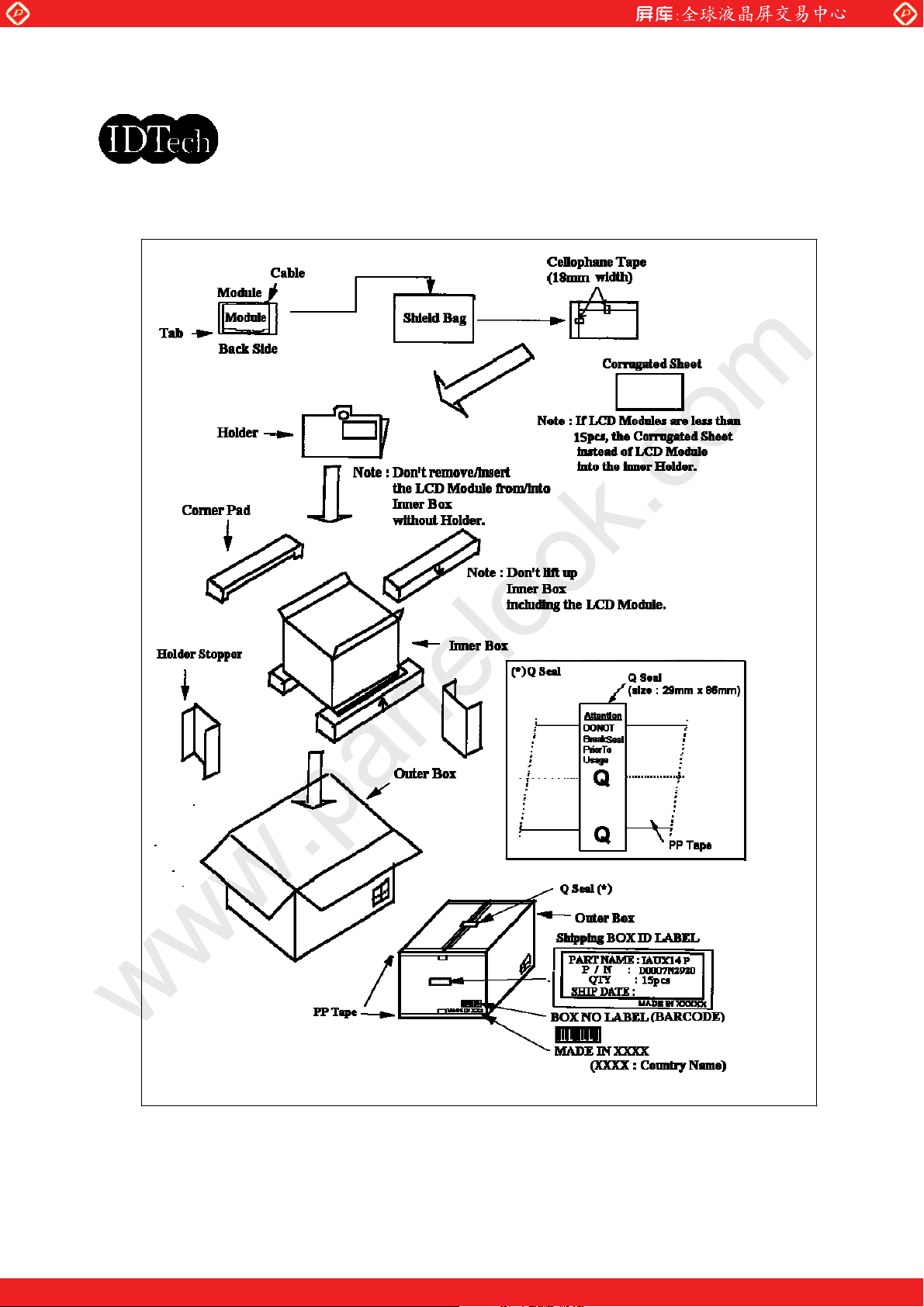

13.0 Packaging Specification
14.0 Label
www.panelook.com
(C) Copyright International Display Technology 2007 All Rights reserved.
December 5,2007 CAS I-914P-L01 2/35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Customer's Acceptance Specification
ii Record of Revision
DateDocument RevisionPageSummary
December 5,2007CAS I-914P-L01AllFirst Edition for LG Electronics Inc.
www.panelook.com
Based on Engineering Spec. OEM I-914P-01.
(C) Copyright International Display Technology 2007 All Rights reserved.
December 5,2007 CAS I-914P-L01 3/35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Customer's Acceptance Specification
1.0 Handling Precautions
If any signals or power lines deviate from the power on/off sequence, it may cause shorten the life of the
LCD module.
TheLCD panel and the CFL are made of glass and may break or crack if dropped on a hard surface, so
please handle them with care.
CMOS-ICs are included in the LCD panel. They should be handled with care, to prevent
electrostatic discharge.
Do not press the reflector sheet at the back of the LCD module to any directions.
Do not stick the adhesive tape on the reflector sheet at the back of the LCD module.
Please handle care when mount in the system cover. Mechanical damage for lamp cable and
for lamp connector may cause safety problems.
Small amount of materials having no flammability grade is used in the LCD module. The
LCDmodule shouldbesuppliedbypowercompliedwithrequirementsofLimitedPower
Source (2.5, IEC60950 or UL60950),orbeappliedexemptionconditionsofflammability
requirements(4.7.3.4,IEC60950or UL60950) in an end product.
The LCD module is designed so that the CFL in it is supplied by Limited Current Circuit (2.4, IEC60950 or
UL60950).
The fluorescent lamp in the liquid crystal display(LCD) contains mercury. Do not put it in trash that is
disposed of in landfills. Dispose of it as required by local ordinances or regulations.
Never apply detergent or other liquid directly to the screen.
Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth; do not use solvents or
abrasives.
Do not touch the front screen surface in your system, even bezel.
www.panelook.com
The information contained herein is presented only as a guide for the applications of
our
products.
Technologyforany infringements of patents or other right of the third partied which
may result from its use. No license is granted by implication or otherwise under any patent or
patent rights of International Display Technology or others.
Noresponsibility
isassumedby
InternationalDisplay
(C) Copyright International Display Technology 2007 All Rights reserved.
December 5,2007 CAS I-914P-L01 4/35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Customer's Acceptance Specification
2.0 General Description
This specification applies to the Type 15.0 Color TFT/LCD Module '15-UXGA'.
This module is designed for a display unit of notebook style personal computer.
The screen format and electrical interface are intended to support the UXGA (1600(H) x 1200(V)) screen.
Support color is native 262K colors(RGB 6-bit data driver).
All input signals are LVDS(Low Voltage Differential Signaling) interface compatible.
This module does not contain an inverter card for backlight.
2.1 Characteristics
The following items are characteristics summary on the table under 25 degree C condition:
CHARACTERISTICS ITEMSSPECIFICATIONS
Screen Diagonal[mm]381
www.panelook.com
Pixels H x V1600(x3) x 1200
Active Area [mm]304.8(H) x 228.6(V)
Pixel Pitch[mm]0.1905(per one triad) x 0.1905
Pixel ArrangementR,G,B Vertical Stripe
Weight [grams]690 Typ., 725 Max.
Physical Size[mm]317.3(W) x 242.0(H) x 7.2(D) Typ./7.5(D) Max.
Display ModeNormally Black
Support ColorNative 262K colors(RGB 6-bit data driver)
White Luminance[cd/m2] (center)200 Typ.
Contrast Ratio400 : 1 Typ.
60 Typ., 150 Max.Optical Rise Time + Fall Time[msec]
Temperature Range [degree C]
Operating
Storage (Shipping)
(C) Copyright International Display Technology 2007 All Rights reserved.
December 5,2007 CAS I-914P-L01 5/35
4.5 Typ.,(W/o inverter loss)
5.0 Max.,(W/o inverter loss)
7.4 Typ., 8.8 Max.(W /o inverter loss)
0to+50
-20 to +60
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Customer's Acceptance Specification
2.2 Functional Block Diagram
Thefollowing diagram shows the functional block of this Type 15.0 Color TFT/LCD Module.
The first LVDS port transmits even pixels while the second LVDS port transmits odd pixels.
www.panelook.com
X-Driver
Y-Driver
< 8 pairs LVDS >
6bit color data
for R/G/B
(even/odd)
DTCLK(even/odd)
DSPTMG
Vsync
Hsync
EEDID
V
CLKEEDID
EEDID
Data
VDD
GND
LCD-DRIVE Connector
JAE FI-XB30S-HF10 (30pin)
EVEN
PIXEL
ODD
PIXEL
Dual LVDS
RECEIVER
G/A
EEDID
Chip
LCD
DRIVE
CARD
LCD
Controller
DC-DC
Converter
Ref circuit
TFT ARRAY/CELL
1600(R/G/B) x 1200
Backlight Unit
Lamp Connector
JST BHSR-02VS-1 (2pin)
(C) Copyright International Display Technology 2007 All Rights reserved.
December 5,2007 CAS I-914P-L01 6/35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Customer's Acceptance Specification
3.0 Absolute Maximum Ratings
Absolute maximum ratings of the module is as follows :
ItemSymbol
Logic/LCD Drive VoltageVDD-0.3+4.0V
Input Signal VoltageVIN-0.3VDD+0.3V
www.panelook.com
MinMaxUnitConditions
CFL Ignition VoltageVs-+1,600Vrms
(Note 2)
CFL CurrentICFL-8mAms
CFL Peak Inrush CurrentICFLP-20mA
Operating TemperatureTOP0+50deg.C
Operating Relative HumidityHOP895%RH
Storage TemperatureTST-20+60deg.C
Storage Relative HumidityHST595%RH
(Note 1)
(Note 1)
(Note 1)
(Note 1)
Vibration1.510-200GHz
Shock5018GmsRectangle wave
Note :
1.
Maximum Wet-Bulb should be 39 degree C and No condensation.
2.
Duration : 50msec Max. Ta=0 degree C
(C) Copyright International Display Technology 2007 All Rights reserved.
December 5,2007 CAS I-914P-L01 7/35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Customer's Acceptance Specification
4.0 Optical Characteristics
The optical characteristics are measured under stable conditions as follows under 25 degree C condition:
ItemConditions
Viewing Angle
(Degrees)
K:Contrast Ratio
Contrast ratio400-
(ms)Falling30-
Color
Chromaticity
(CIE)
White Luminance (cd/m2)200 Typ.170 Min.
www.panelook.com
Specification
Typ.Note
Horizontal(Right)
K 10(Left)
Vertical(Upper)
K 10(Lower)
Rising30-Response Time
Redx0.569+0.030
Redy0.332+0.030
Greenx0.312+0.030
Greeny0.544+0.030
Bluex0.149+0.030
Bluey0.132+0.030
Whitex0.313+0.030
Whitey0.329+
85
85
85
85
-
-
-
-
0.030
(C) Copyright International Display Technology 2007All Rights reserved.
December 5,2007 CAS I-914P-L01 8/35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Customer's Acceptance Specification
The following is the note for the Optical Characteristics:
Viewing or Measuring
Direction
www.panelook.com
Z
Viewing or Measuring
Direction
-v+h
LEFT
LOWER
X
CENTER OF LCD
(X=0,Y=0,Z=0)
w
Chromaticity and White Balance are defined as the C.I.E. 1931 x,y coordinates at the center of
UPPER
RIGHT
Y
LCD. The Standard Equipments are as shown below table.
ItemStandard Equipment
Viewing AngleMCPD-7000 by Ohtsuka Elec
ContrastMCPD-7000 by Ohtsuka Elec
Response TimeBM5A by TOPCON OPTICAL Co.,Ltd.
White LuminanceMCPD-7000 by Ohtsuka Elec
Luminance UniformityMCPD-7000 by Ohtsuka Elec
ChromaticityMCPD-7000 by Ohtsuka Elec
White BalanceMCPD-7000 by Ohtsuka Elec
The measurement is to be done after 30 minutes of Power-on ofBackLight.
Unless otherwise specified, the ambient conditions are as following.
(C) Copyright International Display Technology 2007 All Rights reserved.
December 5,2007 CAS I-914P-L01 9/35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Customer's Acceptance Specification
4.1 Luminance Uniformity
When the backlight is on with all pels in the unselected state (white), the luminance uniformity is defined as
follows;
Average luminance is defined as follows.
www.panelook.com
Average Luminance =
L1 + L2 + L3 + L4 + L5
5
Luminance variation is measured by dividing the maximum luminance values of the 13 or 5 test points by the
minimum luminance of the 13 or 5 test points.
Luminance Uniformity
Maximum Luminance 13 Points (L1-L13)
Minimum Luminance 13 Points (L1-
1.65
L13)
Luminance
Uniformity
Maximum Luminance 5 Points (L1-L5)
Minimum Luminance 5 Points (L1L5)
1.25
Figure. Average luminance and Luminance uniformity test points
L6 L7
L9
L11
L1 L2
L5
L3
L12 L13
L4
L8
L10
300
600
900
400
10mm
(C) Copyright International Display Technology 2007All Rights reserved.
December 5,2007 CAS I-914P-L01 10/35
800
1200
10mm
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Customer's Acceptance Specification
5.0 Signal Interface
5.1 Connectors
Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be following components.
Connector Name / DesignationFor Signal Connector
ManufacturerJAE
Type / Part NumberFI-XB30S-HF10
Mating Receptacle ManufactureJAE
www.panelook.com
Mating Receptacle/Part Number
Connector Name / DesignationFor Lamp Connector
ManufacturerJST
Type / Part NumberBHSR-02VS-1
Mating Type / Part NumberSM02B-BHSS-1
FI-X30M
(C) Copyright International Display Technology 2007 All Rights reserved.
December 5,2007 CAS I-914P-L01 11/35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
