VersaClock® 3S - 5P35023 Evaluation Board

User Manual

Introduction

The evaluation board is designed to help the customer evaluate the 5P35023 device, the latest addition to the family of programmable
devices in IDT's Timing portfolio. When the board is connected to a PC running IDT Timing Commander™ software through a USB, the
device can be configured and programmed to generate different combinations of frequencies.

Board Overview

Use Figure 1 and Table 1 to identify: USB connector and the input and output frequency SMA connectors.

Figure 1. EVK5P35023 Evaluation Board

1©2017 Integrated Device Technology, Inc. June 8, 2017

Table 1. Evaluation Board Labels and Fu nctions

VersaClock® 3S - 5P35023 Evaluation Board User Manual

Label

Number

Name

1 DIP Switch SW1

On-board Connector

Label

Function

This is used to set outputs enable/disable on the IC and switches DFC
in different configurations.

2 Reference Output REF This is the reference or buffered output from the crystal.

Differential Clock Input CLKIN/CLKINB A differential clock can be connected as source for the device.

3

Single-ended Clock Input CLKINB

A Single-ended clock can be connected as source for the device using
CLKINB only.

4 Crystal, 25MHz This crystal is used as a reference source for the clock signal.

5 USB Connector J3 Connect this USB to your PC to run IDT Timing Commander.

A Differential Output #2 DIFF_T2/C2

This can be a differential pair, or two single-ended outputs. By default,
it’s an LPHCSL differential output.

B Output-enable Connector OE3 This port can be used in Pro-active Power Saving (PPS) mode.

C Single-ended Output SE_3

D Differential Output #1 DIFF_T1/C1

This is the single-ended output. By default it’s an LVCMOS
single-ended output.

This can be a differential pair, or two single-ended outputs. By default,
it’s LPHCSL differential output.

E Output-enable Connector SMA_OE1 This port can be used in Pro-active Power Saving (PPS) mode.

F Single-ended Output SE_1

G Single-ended Output SE_2

This is the single-ended output. By default it’s an LVCMOS
single-ended output.

This is the single-ended output. By default it’s an LVCMOS
single-ended output.

H Output enable Connector OE2 This port can be used in Pro-active Power Saving (PPS) mode.

I Output Voltage Selector E1, E2, E3, E4, E5

This is a four-way header used to select an output voltage. Connect
center pin to GND, and then the respective voltage (3.3V as default).

J Input Selector JP5, JP6 This is used to configure input from USB or external power supply.

Board Power Supply

Power Supply Options

The core voltage includes a digital voltage V

▪ USB Power Supply only – When the board is connected to a PC through a USB cable, on-board voltage regulators will generate a

3.3V for the device. In this case, place the jumper as shown in Figure 2. See the JP5 jumper position for the on-board voltage
regulators in the following figure. USB power source is recommended because it's readily available right from your laptop.

and an analog voltage V

DD33

. Both core voltages can be powered by USB as default.

DDA

2©2017 Integrated Device Technology, Inc. June 8, 2017

VersaClock® 3S - 5P35023 Evaluation Board User Manual

Figure 2. JP5 Jumper Position (pins 1 & 2) for the On-Board Voltage Regulators

Jumping to the pin configuration as shown will select the power source from on-board voltage regulators powered by USB.

Output Clock Voltages

Like V

DDA

and V

having two sources, each output voltage is also provided with two sources to choose from: bench power supply or

DD33

powered from USB. The selection is made by a 4-way header as shown in Figure 3 below.

The jumper can be used to select a voltage for E1, E2, E3, E4, and E5 respectively. The on-board voltage regulators powered by USB are

1.8V, 2.5V and 3.3V; V

Note: Each output voltage can be individually selected. Use the label on the evaluation board: E1 for V
V

Figure 3. Jumper Configuration for On-board Voltage Regulato rs

DDDIFF2

, E4 for V

DDSE2

is from bench power supply connecting to JP17 and JP18

DDOJ

and E5 for V

DDSE3

.

DDDIFF1

, E2 for V

DDSE1

, E3 for

Connecting the Board

The board is connected to a PC through a USB connector for configuring and programming the device, as shown in Figure 4 below. The
USB interface will also provide +5V power supply to the board, from which on-board voltage regulators generate various voltages for the
core as well as for each output.

Note: The USB port only supports USB 2.0; USB 3.0 is not supported at this time.

3©2017 Integrated Device Technology, Inc. June 8, 2017

VersaClock® 3S - 5P35023 Evaluation Board User Manual

Figure 4. Connecting the Board with USB Port for Communications with Timing Commander Software

On-board Crystal

A 25MHz crystal is installed on the board and is used as a source for reference frequency.

Board Default Frequency Output

Table 2. Board Default Frequency Output

Serial Output Output Frequency

1 SE_1 (Single-ended) —

2 SE_2 (Single-ended) 48MHz

3 SE_3 (Single-ended) 60MHz

4 REF (Single-ended: Reference output) 25MHz

5 DIFF_T1/C1 (Differential output) 100MHz

6 DIFF_T2/C2 (Differential output) 100MHz

4©2017 Integrated Device Technology, Inc. June 8, 2017

VersaClock® 3S - 5P35023 Evaluation Board User Manual

DIP Switch (SW1)

Table 3. DIP Switch (SW1)

Serial DIP Switch Pin Number DIP Switch Pin Name State Mode

A 1 SDA_DFCO Floating/Tri-state —

B 2 SCL_DFC1 Floating/Tri-state Software I2C

C 3, 5, 7 SMA_OE1, SMA_OE2, SMA_OE3 High or 1 —

D 4, 6, 8 OE1, OE2, OE3 High or 1 —

Configuration and Setup from I

Table 4. Configuration and Setup from I2C Port

2

C Port

Step Number Step Description Comments

1 Set SCL_OFC1 Pin (DIP switch pin 2).

2 Launch 5P35023 Timing Commander software.

3

4

Follow the “Getting Started Steps” in Timing Commander
software.

Using the Timing Commander GUI, start a new settings
file, or open a pre-optimized file.

5 Connect J3 to a USB Port using the supplied I

6

Connect to the EVB by clicking on the microchip icon
located at the right of the Timing Commander.

2

C cable.

High or 1. The default setting from the board is pull-high
internally.

Refer to 5P35023 Timing Commander User Guide, Timing

Commander software.

2

An I

C connection is established between GUI software

and VersaClock 3S device.

Configure the Timing Commander software for the
required sets of outputs.

2

C connection is established between GUI software

An I
and VersaClock 3S chip.

Once configured, new options will be available on a green

7

background indicating that the EVB has successfully
connected with the board.

8

Write the setting to the device by clicking on the write all
registers to the chip option.

9 All intended outputs should be available for measurement. —

5©2017 Integrated Device Technology, Inc. June 8, 2017

Evaluation Board Schematics

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Layout notes.

2.Do not share crystal load

3.Route power from bead through

4.Do not share ground vias. One
ground pin one ground via.

1.Separate Xout and Xin traces
by at least 3 x the trace width.

other components.

capacitor ground via with

then to clock chip Vdd pad.

through 0.1uF capacitor pad

bulk capacitor pad then

grounded but is not required.

5.Exposed pad should be

Locate near U1.6

Locate near DUT
power pin

CLKINB

CLKIN

SCL_DFC1

SDA_DFC0

SER1

SER2

SER3

SE_1

SE_2

SE_3

OE1
OE2
OE3

SER4

SE_4

SE_[4:1]

CLKIN

CLKINB

GND

CLKIN_CONN

CLKINB_CONN

CLKIN

CLKINB

OE[3:1]

OE3

OE2

DIFFRT1
DIFFRC1

DIFFRC2

DIFFRT2

OE1

DIFF_T1
DIFF_C1

DIFF_C2

DIFF_T2

DIFF_T[2:1]

DIFF_C[2:1]

DIFF_T[2:1]

DIFF_C[2:1]

VDDSE2

VDDSE3

Node#3

VDDA_VDDD1

SE_[4:1]

OE[3:1]

DIFF_T[2:1]

DIFF_C[2:1]

VBAT_PS VDDD VDDA

VDDSE1

VDDSE2

VDDSE3

VDDDIFF1

VDDDIFF2

VBAT_PS

GND

VDDDIFF1

VDDDIFF2

VDDSE1

VDDSE2

VDDSE3

VDDA

GND

GND

VDDD

SDA_DFC0

2,3

SCL_DFC1

2,3

VDDSE1

1,3,4

VDDSE2

1,3,4

VDDSE3

1,3,4

VDDDIFF1

4

VDDDIFF2

4

VDDA_VDDD1

3,4

VDDSE1

1,3,4

VDDSE2

1,3,4

VDDSE3

1,3,4

VDDDIF1

4

VDDDIF2

4

VDDD

4

Size

Document Number Re v

Date: Sheet

of

C1

Integrated Device Technology

A

14Friday, November 04, 2016

5L35023/5P35023

San Jose, CA

Size

Document Number Re v

Date: Sheet

of

C1

Integrated Device Technology

A

14Friday, November 04, 2016

5L35023/5P35023

San Jose, CA

Size

Document Number Re v

Date: Sheet

of

C1

Integrated Device Technology

A

14Friday, November 04, 2016

5L35023/5P35023

San Jose, CA

R8
0_NP

1 2

U1
5P53023

VDDA

1

VDDD

9

VBAT

6

CLKINB/X2

5

CLKIN/X1

4

SDA/DFC0

2

SCL/DFC1

3

OE2

10

OE1

15

OE3

21

NC

7

VDDSE1

13

SE1

14

VDDSE2

11

SE2

12

VDDSE3

20

SE3

19

REF

8

VDDDIFF1

16

DIFF1

18

DIFF1B

17

VDDDIFF2

22

DIFF2

24

DIFF2B

23

TPAD125TPAD226TPAD327TPAD428TPAD529TPAD630TPAD731TPAD832TPAD9

33

R4 33

1 2

R59

2.2

1 2

J1

CON SMA4

12
3
4
5

FB4

BLM18AG601SN1D

1 2

C25

0.1 uF

12

C42

0.1 uF

12

C26
10 uF

12

C48

0.1 uF

12

R80 33

1 2

C33

0.1 uF

12

C30

0.1 uF

12

C54 10 uF

12

R1 33

1 2

R79 33

1 2

C16.8 pF

12

R2 33

1 2

FB5

BLM18AG601SN1D

1 2

C26.8 pF

12

R3 33

1 2

C50 0.1 uF

12

J2

CON SMA4

12
3
4
5

C31

0.1 uF

12

GNDGND

Y1

25 MHz 8 pF

4

1

2

3

R81 33

1 2

C53

0.1 uF

12

R5

0_NP

1 2

C34

0.1 uF

12

R82 33

1 2

R6

49.9_NP

1 2

C37

0.1 uF

12

LOGO1

R7

49.9_NP

1 2

C43
10 uF

12

Evaluation board schematics are shown on the following pages.

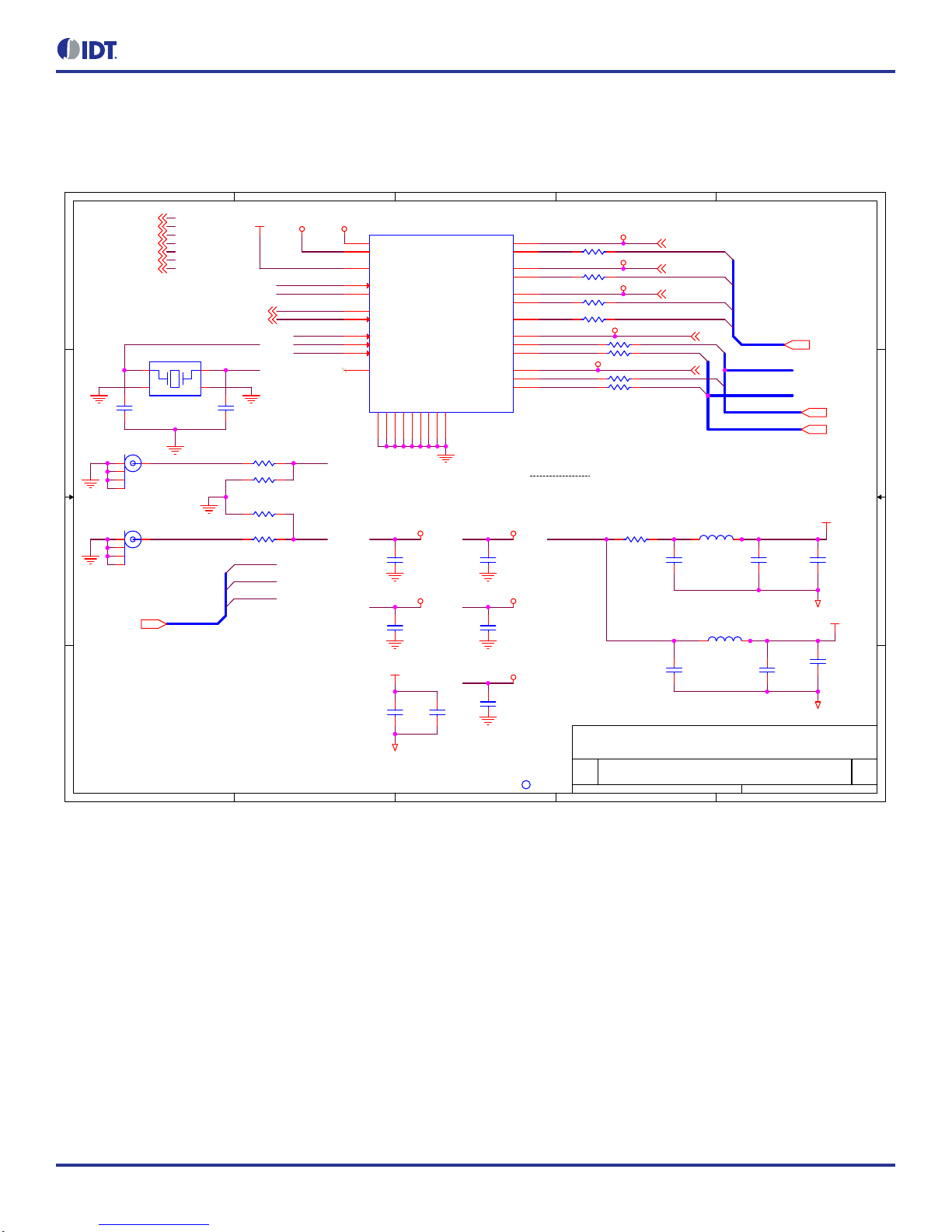

Figure 5. Evaluation Board Schematic (1)

VersaClock® 3S - 5P35023 Evaluation Board User Manual

6©2017 Integrated Device Technology, Inc. June 8, 2017

Figure 6. Evaluation Board Schematic (2)

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

AADVARK

I2C

I2C HW SEL

HW SEL

3V3_USB

SI_WUB

3V3_USB

Pin2_D-

XTIN

VCC2232

AVCC

3V3_USB

FTDI_SCL

EEDATA

Pin3_D+

USBDM

Pin1_VBUS

VCC2232

FTDI_SDA

XTOUT

USBDP

Node#2

RSTOUT#

SDA_AARDVARK

SCL_AARDVARK

SDA_AARDVARK

SI_WUA

Node#1

FB1_JP8

SDA_DFCO

Node#7

Node#8

3V3_USB

GND

GND

GND

GND

GND

GND

GND

3V3_USB

GND

VDDO_J

3V3_USB

GND

GND

USB_5V

4

SDA_DFC0

1,3

SCL_DFC1

1,3

FTDI_SDA

2

FTDI_SCL

2

FTDI_SDA 2

VDDD

1,3,4

FTDI_SCL 2

Title

Size

Document Number R ev

Date: Sheet

of

C1

IDT_5L35023/5P35023 EVB_BOARD_REVC

B

24Friday, November 04, 2016

Title

Size

Document Number R ev

Date: Sheet

of

C1

IDT_5L35023/5P35023 EVB_BOARD_REVC

B

24Friday, November 04, 2016

Title

Size

Document Number R ev

Date: Sheet

of

C1

IDT_5L35023/5P35023 EVB_BOARD_REVC

B

24Friday, November 04, 2016

R14 27

12

C7 10 uF

1 2

J3

USB PORT

VBUS

1

D-

2

D+

3

GND

4

C14 30pF

12

C4 0.1 uF

1 2

TP15

U2

ft2232_chip

EESK

1

EEDATA

2

VCC

3

RESET#

4

RSTOUT#

5

3V3OUT

6

USBDP

7

USBDM

8

GND

9

SI/WUA

10

GPIOH3

11

GPIOH2

12

GPIOH1

13

VCCIOA

14

GPIOH0

15

GPIOL3

16

GPIOL2

17

GND

18

GPIOL1

19

GPIOL0

20

TMS/CS

21

TDO/DI

22

TDI/DO

23

TCK/SK

24

GND

25

SI/WUB

26

UNUSED11

27

UNUSED10

28

UNUSED9

29

UNUSED8

30

VCCIOB

31

UNUSED7

32

UNUSED6

33

GND

34

UNUSED5

35

UNUSED4

36

UNUSED3

37

UNUSED2

38

UNUSED1

39

UNUSED0

40

PWREN#

41

VCC

42

XTIN

43

XTOUT

44

AGND

45

AVCC

46

TEST

47

EECS

48

EPAD149EPAD250EPAD351EPAD4

52

C11

0.1 uF

12

Y2 6MHz

12

C56 100pF NP

12

JP3
CON2

1

2

C12

33 uF

12

R83

0_NP

1 2

C6
10 uF

12

R15 27

12

R17

4.7K

1 2

R19
10K

1 2

JP2
CON2

1

2

R84

0_NP

1 2

C10 0.1 uF

12

U12

TC7SZ125FE

2 4

5

1

R21
10K

1 2

C8 10 uF

1 2

C3 10nF

1 2

LD2

Green

TP12

FB2
BLM18AG601SN1D

1 2

R12 475

12

R20 10K

12

LD1

Green

JP1

Header_10Pin

1
3
5
7
9

2
4
6
8
10

R91

0_NP

1 2

R13

10K

12

C5 0.1 uF

1 2

R11

10K

12

R89 1K

12

TP13

R92

0_NP

1 2

+

C57

220 uF

12

C13 30pF

12

JP6
Header_3Pin

123

R10 1K

12

FB1

BLM18AG601SN1D

2 1

C9 0.1 uF

1 2

FB3

BLM18AG601SN1D

2 1

VersaClock® 3S - 5P35023 Evaluation Board User Manual

7©2017 Integrated Device Technology, Inc. June 8, 2017

Figure 7. Evaluation Board Schematic (3)

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

107 ohms was used for BOM item reduction
Normally 100 ohms recommended

DIFF_T2

DIFF_C2

DIFF_T1

DIFF_C1

SE_3

SE_2

SE_1

DIFF_T[2:1]

DIFF_C[2:1]

SE_[4:1]

OE_R1

OE_R3

OE_R2

D1

D2

SE_4

SDA_DFC0
SCL_DFC1

INV_OE2

INV_OE1

SW6

SW5

SW4

SW3

SW2

INV_OE1

INV_OE2

INV_OE3

INV_OE3

OE1

OE2

OE3

SW1

SW7

SW8

SMA_OE1

OE2

OE3

OE[3:1]

OE3

OE2

OE1

OE1

SMA_OE1

DIFF_T[2:1]

DIFF_C[2:1]

SE_[4:1]

OE[3:1]

VDDD

VDDSE1

VDDSE2

VDDSE3

VDDSE1

VDDSE2

VDDSE3

SDA_DFC0

1,2

SCL_DFC1

1,2

VDDD
VDDSE1
VDDSE2
VDDSE3

Title

Size

Document Number Re v

Date: Sheet

of

Outputs C1

5L35023/5P35023 Eval Board

A

34Friday, November 04, 2016

Title

Size

Document Number Re v

Date: Sheet

of

Outputs C1

5L35023/5P35023 Eval Board

A

34Friday, November 04, 2016

Title

Size

Document Number Re v

Date: Sheet

of

Outputs C1

5L35023/5P35023 Eval Board

A

34Friday, November 04, 2016

U5

TC7SZ125FE

2 4

5

1

R68

0_NP

1 2

R31 10K

1 2

J10

CON SMA4

1 2

3
4
5

U4

TC7SZ125FE

2 4

5

1

R36 10K

1 2

SW1

DIP_SW8

VCC

1

VEE

8

s8

9

s7

10

s6

11

s5

12

s4

13

s3

14

s2

15

s1

16

HDR-2x2_NP

J12

IO2

2

IO4

4

GND1

1

GND3

3

J11

CON SMA4

1 2

3

4

5

R48

200K

12

J4

CON SMA4

1 2

3
4
5

TP8

C17

4.7pF_NP

12

R66

0_NP

1 2

R25

1 2

R27

49.9_NP

1 2

TP7

R41

200K

1 2

TP5

J6

CON SMA4

1 2

3
4
5

C22

2 pF

1 2

HDR-2x2_NP

J15

IO2

2

IO4

4

GND1

1

GND3

3

R38

0_NP

1 2

R24

33

1 2

TP16

R42

49.9_NP

1 2

U3

TC7SZ125FE

2 4

5

1

R37 10K

1 2

R28 107_1%

1 2

R22

33

1 2

R30 107_1%

1 2

TP10

TP17 TP9 C20

2 pF

1 2

J14

CON SMA4

1 2

3

4

5

R67

0_NP

1 2

R43

49.9_NP

1 2

R90

0_NP

1 2

R32

0_NP

1 2

R26

49.9_NP

1 2

R44

49.9_NP

1 2

R29

49.9_NP

1 2

TP11

R46

200K

12

TP6

J20

CON2_NP

1
2

TP18

TP4

C15

4.7pF_NP

12

C19

2 pF

1 2

C21

2 pF

1 2

R34 10K

1 2

R39

200K_NP

1 2

J7

CON SMA4

1 2

3
4
5

R40

200K

1 2

J21

CON2_NP

1
2

R35 10K

1 2

R65

0_NP

1 2

J5

CON SMA4

1 2

3
4
5

C18

4.7pF_NP

12

C16

4.7pF_NP

12

R47

200K

12

J22

CON2_NP

1
2

J16

CON SMA4

1 2

3
4
5

J9

CON SMA4

1 2

3
4
5

R45

0_NP

1 2

JP4
CON2

1

2

J13

CON SMA4

1 2

3
4
5

R23

33

1 2

J23

CON2_NP

1
2

J8

CON SMA4

1 2

3
4
5

R33 10K

1 2

VersaClock® 3S - 5P35023 Evaluation Board User Manual

8©2017 Integrated Device Technology, Inc. June 8, 2017

Figure 8. Evaluation Board Schematic (4)

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

VDDA_J VDDA_REG

GND

VDDO_J

VDD_J

2.5 v and 3.3 volt regulators not
populated for 5L35023

For 5L35023 populate with 1x3 header.

R78 VALUE
5P35023 = 402 Ohms 1%
5L35023 = 107 Ohms 1%

VADJ_VDD1

VDDSE1

VADJ_VDD2

VADJ_VDD3

VDDSE3

VDDA_VDDD1

VDDA_VDDD_REG_OPT

GND_J

GND

VDD_J

VDDOJ

VADJ_VDD4

VDDDIFF1

VADJ_VDD5

USB_5V

VDDA_VDDD1

VDDOJ

VDDOJ

VDDOJ

VDDOJ

VDDOJ

VDDSE2

VDDDIFF2

VDDA_VDDD1

USB_5V

VDD1_1.8V

VDD2_2.5V

VDD3_3.3V

VDD1_1.8V

VDD1_1.8V

VDD1_1.8V

VDD1_1.8V

VDD1_1.8V

VDD2_2.5V

VDD2_2.5V

VDD2_2.5V

VDD2_2.5V

VDD2_2.5V

VDD3_3.3V

VDD3_3.3V

VDD3_3.3V

VDD3_3.3V

VDD3_3.3V

GND

VDD_J

GND GND

VDDO_J

GND

VBAT_PS

VDDA_VDDD_REG_OPT

USB_5V

2

VDDA_VDDD1

1

VDDSE1

1,3

VDDSE2

1,3

VDDSE3

1,3

VDDDIFF1

1

VDDDIFF2

1

Title

Size

Document Number R ev

Date: Sheet

of

<Doc> C1

5L35023/5P35023 Eval Board

B

44Tuesday, November 15, 2016

Title

Size

Document Number R ev

Date: Sheet

of

<Doc> C1

5L35023/5P35023 Eval Board

B

44Tuesday, November 15, 2016

Title

Size

Document Number R ev

Date: Sheet

of

<Doc> C1

5L35023/5P35023 Eval Board

B

44Tuesday, November 15, 2016

C24
10 uF

12

J18

Banana Jack_RED

571-0500

1

2

R76

402_1%

1 2

TP2TPTP1

TP

JP5

Header_3Pin

123

TP21

R77

402_1%

1 2

C27
10 uF

12

C23
10 uF

12

C36
10 uF

12

R61

POT_500

13

2

C35
10 uF

12

C38
10 uF

12

C28
10 uF

12

C32
10 uF

12

C40
10 uF

12

R78

402_1%

1 2

R88

POT_500

13

2

C52
10 uF

12

C45

0.1 uF

12

C55
10 uF

12

J26

CON2

1

2

R69
243_1%

12

C49
10 uF

12

J25

CON2

1

2

TP22

R51

POT_500

13

2

C39
10 uF

12

TP14

E3

B5S

1

2

3

4

5

R70
243_1%

12

C51
10 uF

12

C44
10 uF

12

U7

LM317A/SO-223

VD1

2

VD2

4

VIN

3

ADJ

1

R74

243_1%

1 2

R54

POT_500

13

2

E5

B5S

1

2

3

4

5

J24

CON2

1

2

TP23

E2

B5S

1

2

3

4

5

E4

B5S

1

2

3

4

5

R71
243_1%

12

R75

107_1%

1 2

C29
10 uF

12

R85

0_NP

1 2

C46
10 uF

12

C41

0.1 uF

12

U10

LM317A/SO-223

VD1

2

VD2

4

VIN

3

ADJ

1

R72
243_1%

12

U9

LM317A/SO-223

VD1

2

VD2

4

VIN

3

ADJ

1

R86

0_NP

1 2

J17

Banana Jack_RED

571-0500

1

2

TP19

U11

LM317A/SO-223

VD1

2

VD2

4

VIN

3

ADJ

1

C47

0.1 uF

12

U8

LM317A/SO-223

VD1

2

VD2

4

VIN

3

ADJ

1

R73
243_1%

12

R87

0_NP

1 2

TP20

E1

B5S

1

2

3

4

5

J19

Banana Jack_BLK

571-0100

1

2

R64

POT_500

13

2

VersaClock® 3S - 5P35023 Evaluation Board User Manual

9©2017 Integrated Device Technology, Inc. June 8, 2017

VersaClock® 3S - 5P35023 Evaluation Board User Manual

DIFF_T1/C1

DIFF_T2/C2

Signal Termination Options

Termination options for differential output 1–2 in the evaluation board are displayed in Figure 9. The termination circuits are designed to
optionally terminate the output clocks in LVPECL, LVDS, LVCMOS and HCSL signal types by populating (or not-populating) some
resistors. DC or AC coupling of these outputs are also supported.

Table 5 and Table 6 tabulates component installations to support LVPECL, LPHCSL, LVCMOS and LVDS signal types for output 1–2,

respectively. Note that by doing so, the output signals will be measured and terminated by an oscilloscope with a 50Ω internal
termination.

Figure 9. Output Termination Options

Table 5. Termination Options for Differential Output 1 (DIFF_T1/C1)

Resistor Network

Signal Type

Series Resistors:

R79, R80

Series Capacitors:

C19, C20

R26, R29 R27 R25, R32

**LPHCSL 33Ω 2pF Not installed Not installed Not installed

Table 6. Termination Options for Differential Output 2 (DIFF_T2/C2)

Resistor Network

Signal Type

Series Resistors:

R81, R82

Series Capacitors:

C21, C22

R42, R44 R43 R38, R45

**LPHCSL 33Ω 2pF Not installed Not installed Not installed

As noted, 4-resistor network is not installed in Table 5 and Table 6 because oscilloscope with internal 50Ω termination is utilized for signal
termination and measurement. If an AC-coupled, stand-alone LVPECL output is needed (without oscilloscope connections), the 4-resistor
network needs to be installed accordingly.

Table 7. Termination for Single-ended Output 1 (SE_1)

Signal Type Series Resistors: R1 Series Capacitors: C16

*LVCMOS 33Ω Not installed

10©2017 Integrated Device Technology, Inc. June 8, 2017

VersaClock® 3S - 5P35023 Evaluation Board User Manual

Table 8. Termination for Single-ended Output 2 (SE_2)

Signal Type Series Resistor: R2 Series Capacitors: C17

*LVCMOS 33Ω Not installed

Table 9. Termination for Single-ended Output 3 (SE_3)

Signal Type Series Resistor: R3 Series Capacitors: C18

*LVCMOS 33Ω Not installed

Table 10. Termination for Single-ended REF Output (REF)

Signal Type Series Resistor: R4 Series Capacitors: C15

*LVCMOS 33Ω Not installed

Table 11. Termination for Differential and Single-ended Clock Input (CLKIN\CLKINB)

Signal Type Series Resistor: R8 Series Resistor: R15

Differential Clock Input Not installed Not installed

Single-ended Clock Input Not installed Not installed

Note: **The differential output is applicable to LPHCSL which is the default configuration of the board.

*The single-ended output is applicable to LVCMOS which is the default configuration of the board.

Contact IDT if user wants to change termination configuration to support ot her output signal types.

Ordering Information

Table 12. Orderable Part Number

Part Number Description

EVK5P35023 Evaluation board with all differential outputs terminated as LPHCSL; single-ended terminated as LVCMOS.

11©2017 Integrated Device Technology, Inc. June 8, 2017

Revision History

Table 13. Revision History

Revision Date Description of Change

VersaClock® 3S - 5P35023 Evaluation Board User Manual

June 8, 2017

▪ Updated user manual to new format.
▪ Updated all images and made several textual changes throughout.
▪ Updated Evaluation Board Schematics drawings.

May 27, 2016 Initial release.

Corporate Headquarters

6024 Silver Creek Valley Road
San Jose, CA 95138 USA

www.IDT.com

DISCLAIMER Integrated Device Technology, Inc. (IDT) and its affiliated companies (herein referred to as “IDT”) reserve the right to modify the products and/or specifications described herein at any time,
without notice, at IDT’s sole discretion. Performance specifications and operating parameters of the described products are determined in an independent state and are not guaranteed to perform the same
way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability
of IDT's products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not
convey any license under intellectual property rights of IDT or any third parties.

IDT's products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be rea­sonably expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.

Integrated Device Technology, IDT and the IDT logo are trademarks or registered trademarks of IDT and its subsidiaries in the United States and other countries. Other trademarks used herein are the property
of IDT or their respective third party owners. For datasheet type definitions and a glossary of common terms, visit www.idt.com/go/glossary. Integrated Device Technology, Inc.. All rights reserved.

Sales

1-800-345-7015 or 408-284-8200

Tech Support

www.IDT.com/go/support

Fax: [phone]

www.IDT.com/go/sales

12©2017 Integrated Device Technology, Inc. June 8, 2017
