Integrated Device Technology Inc IDT54823ATEB, IDT54823ATL, IDT54823ATLB, IDT54823ATP, IDT54823ATPB Datasheet

IDT54/74FCT821AT/BT/CT, 823/825AT/BT/CT/DT
HIGH-PERFORMANCE CMOS BUS INTERFACE REGISTERS MILITARY AND COMMERCIAL TEMPERATURE RANGES

6.21 1

Integrated Device Technology, Inc.

1

HIGH-PERFORMANCE
CMOS BUS
INTERFACE REGISTERS

The IDT logo is a registered trademark of Integrated Device Technology, Inc.

IDT54/74FCT821AT/BT/CT

IDT54/74FCT823AT/BT/CT/DT

IDT54/74FCT825AT/BT/CT

FEATURES:

• Common features:

– Low input and output leakage ≤1µA (max.)
– CMOS power levels
– True TTL input and output compatibility

– VOH = 3.3V (typ.)
– V

OL = 0.3V (typ.)

– Meets or exceeds JEDEC standard 18 specifications
– Product available in Radiation Tolerant and Radiation

Enhanced versions

– Military product compliant to MIL-STD-883, Class B

and DESC listed (dual marked)

– Available in DIP, SOIC, SSOP, QSOP, CERPACK

and LCC packages

• Features for FCT821T/FCT823T/FCT825T:

– A, B, C and D speed grades
– High drive outputs (-15mA IOH, 48mA IOL)
– Power off disable outputs permit “live insertion”

DESCRIPTION:

The FCT82xT series is built using an advanced dual metal
CMOS technology. The FCT82xT series bus interface regis­ters are designed to eliminate the extra packages required to
buffer existing registers and provide extra data width for wider
address/data paths or buses carrying parity. The FCT821T
are buffered, 10-bit wide versions of the popular FCT374T
function. The FCT823T are 9-bit wide buffered registers with
Clock Enable (EN) and Clear (

CLR

) – ideal for parity bus
interfacing in high-performance microprogrammed systems.
The FCT825T are 8-bit buffered registers with all the FCT823T
controls plus multiple enables (OE1, OE2, OE3) to allow multi­user control of the interface, e.g., CS, DMA and RD/WR. They
are ideal for use as an output port requiring high I

OL/IOH.

The FCT82xT high-performance interface family can drive
large capacitive loads, while providing low-capacitance bus
loading at both inputs and outputs. All inputs have clamp
diodes and all outputs are designed for low-capacitance bus
loading in high-impedance state.

MILITARY AND COMMERCIAL TEMPERATURE RANGES AUGUST 1995

1995 Integrated Device Technology, Inc 6.21 DSC-4202/5

FUNCTIONAL BLOCK DIAGRAM

D

CP

Q

Q

CL

D

CP

Q

Q

CL

D

0

D

N

Y

0

Y

N

EN

CLR

CP

OE

2567 drw 01

IDT54/74FCT821AT/BT/CT, 823/825AT/BT/CT/DT
HIGH-PERFORMANCE CMOS BUS INTERFACE REGISTERS MILITARY AND COMMERCIAL TEMPERATURE RANGES

6.21 2

PIN CONFIGURATIONS

FCT821 10-BIT REGISTER

2567 drw 04

2567 drw 03

FCT823 9-BIT REGISTER

2567 drw 02

INDEX

D2

Y2
Y3
Y4
NC
Y

5

OE

D

1

NC

V

CC

Y0

D8

GND

CP

Y

9

Y8

LCC

TOP VIEW

32

20
19

1

4
5
6
7
8

1817161514

9
10
11

1213

L28-1

D3
D4

NC

D

5

D6
D7

D0

Y1

Y6
Y7

21

22

23

24

25

262728

D9

NC

INDEX

D

2

Y

2

Y

3

Y

4

NC
Y

5

OE

D

1

NC

V

CC

Y

0

LCC

TOP VIEW

32

20
19

1

4
5
6
7
8

1817161514

9
10

11

1213

L28-1

D

3

D

4

NC

D

5

D

6

D

7

D

8

GND

CP

EN

Y

8

D

0

Y

1

Y

6

Y

7

21

22

23

24

25

262728

CLR

NC

INDEX

D1

Y1
Y2
Y3
NC
Y

4

D

0

NC

VCCOE

3

LCC

TOP VIEW

32

20
19

1

4
5
6
7
8

1817161514

9
10
11

1213

L28-1

D

2

D3

NC

D

4

D5
D6

D

7

GND

CP

EN

Y

7

OE

2

Y

0

Y5
Y6

21

22

23

24

25

262728

CLR

NC

OE

1

OE

D

0

D

1

D

2

D

3

D

4

D

5

D

6

D

7

GND

Y

0

Y

1

Y

2

Y

3

Y

4

Y

6

CP

Y

5

Y

7

V

CC

1
2
3
4
5
6
7
8
9
10

13

14

15

16

17

18

19

20

P24-1

D24-1
SO24-2
SO24-7
SO24-8

&

E24-1

11
12

21

22

23

24

D

8

CLR

Y

8

EN

DIP/SOIC/SSOP/QSOP/CERPACK

TOP VIEW

OE

D

0

D1
D2
D3
D4
D5
D6
D7

GND

Y

0

Y1
Y2
Y3
Y4

Y6

CP

Y

5

Y7

VCC1
2
3
4
5
6
7
8
9
10

13

14

15

16

17

18

19

20

P24-1

D24-1
SO24-2
SO24-7
SO24-8

&

E24-1

11
12

21

22

23

24

D

8

D9

Y8
Y9

DIP/SOIC/SSOP/QSOP/CERPACK

TOP VIEW

FCT825 8-BIT REGISTER

OE1

D0
D1
D2
D3
D4
D5
D6
D7

GND

Y

0

Y1
Y2
Y3
Y4

Y6

CP

Y

5

Y7

VCC1
2
3
4
5
6
7
8
9
10

13

14

15

16

17

18

19

20

P24-1

D24-1
SO24-2
SO24-8

&

E24-1

11
12

21

22

23

24

DIP/SOIC/QSOP/CERPACK

TOP VIEW

OE2

CLR

OE3

EN

IDT54/74FCT821AT/BT/CT, 823/825AT/BT/CT/DT
HIGH-PERFORMANCE CMOS BUS INTERFACE REGISTERS MILITARY AND COMMERCIAL TEMPERATURE RANGES

6.21 3

FUNCTION TABLE

(1)

PIN DESCRIPTION

2567 tbl 01

ABSOLUTE MAXIMUM RATINGS

(1)

CAPACITANCE (TA = +25°C, f = 1.0MHz)

Symbol Rating Commercial Military Unit

VTERM

(2)

Terminal Voltage
with Respect to
GND

–0.5 to +7.0 –0.5 to +7.0 V

VTERM

(3)

Terminal Voltage
with Respect to
GND

–0.5 to

V

CC +0.5

–0.5 to

VCC +0.5

V

TA Operating

Temperature

0 to +70 –55 to +125 °C

TBIAS Temperature

Under Bias

–55 to +125 –65 to +135 °C

TSTG Storage

Temperature

–55 to +125 –65 to +150 °C

PT Power Dissipation 0.5 0.5 W
IOUT DC Output

Current

–60 to +120 –60 to +120 mA

NOTES:

1. Stresses greater than those listed under ABSOLUTE MAXIMUM RAT­INGS may cause permanent damage to the device. This is a stress rating
only and functional operation of the device at these or any other conditions
above those indicated in the operational sections of this specification is
not implied. Exposure to absolute maximum rating conditions for
extended periods may affect reliability. No terminal voltage may exceed
V

CC by +0.5V unless otherwise noted.

2. Input and V

CC terminals only.

3. Outputs and I/O terminals only.

NOTE:

1. This parameter is measured at characterization but not tested.

2567 lnk 03

2567 lnk 04

Symbol Parameter

(1)

Conditions Typ. Max. Unit

CIN Input

Capacitance

VIN = 0V 6 10 pF

COUT Output

Capacitance

VOUT = 0V 8 12 pF

Inputs

Internal/
Outputs

OEOECLR

CLRENEN

DI CP QI YI

Function

H
H

H
H

L
L

L

H

↑
↑

L

H

Z
Z

High Z

H

L

L
L

X
X

X
X

X
X

L
L

Z
L

Clear

H

L

H
H

H
H

X
X

XXNC

NCZNC

Hold

H
H

L
L

H
H
H
H

L
L
L
L

L

H

L

H

↑
↑
↑
↑

L

H

L

H

Z
Z
L

H

Load

Names I/O Description

DI I The D flip-flop data inputs.

CLR

I When the clear input is LOW and OE is

LOW, the Q

I outputs are LOW. When

the clear input is HIGH, data can be
entered into the register.

CP I Clock Pulse for the Register; enters

data into the register on the LOW-to­HIGH transition.

YI O The register 3-state outputs.

EN

I Clock Enable. When the clock enable is

LOW, data on the D

I input is transferred

to the Q

I output on the LOW-to-HIGH

clock transition. When the clock enable
is HIGH, the Q

I outputs do not change

state, regardless of the data or clock
input transitions.

OE

I Output Control. When the OE input is

HIGH, the Y

I outputs are in the high-

impedance state. When the OE input is
LOW, the TRUE register data is present
at the Y

I outputs.

NOTE: 2567 tbl 02

1. H = HIGH
L = LOW
X = Don’t Care
NC = No Change
↑ = LOW-to-HIGH Transition
Z = High Impedance

IDT54/74FCT821AT/BT/CT, 823/825AT/BT/CT/DT
HIGH-PERFORMANCE CMOS BUS INTERFACE REGISTERS MILITARY AND COMMERCIAL TEMPERATURE RANGES

6.21 4

DC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE

Following Conditions Apply Unless Otherwise Specified:
Commercial: TA = 0°C to +70°C, VCC = 5.0V ± 5%; Military: TA = –55°C to +125°C, VCC = 5.0V ± 10%

Symbol Parameter Test Conditions

(1)

Min. Typ.

(2)

Max. Unit

V

IH

Input HIGH Level Guaranteed Logic HIGH Level 2.0 — — V

V

IL

Input LOW Level Guaranteed Logic LOW Level — — 0.8 V

I

I H

Input HIGH Current

(4)

VCC = Max. VI = 2.7V — —

±

1

µ

A

I

I L

Input LOW Current

(4)

VI = 0.5V — —

±

1

I

OZH

High Impedance Output Current VCC = Max. VO = 2.7V — —

±

1

µ

A

I

OZL

(3-State Output pins)

(4)

VO = 0.5V — —

±

1

II Input HIGH Current

(4)

VCC = Max., VI = V

CC

(Max.) — —

±

1

µ

A

V

IK

Clamp Diode Voltage VCC = Min., I

IN

= –18mA — –0.7 –1.2 V

V

H

Input Hysteresis

—

— 200 — mV

I

CC

Quiescent Power Supply Current VCC = Max., VIN = GND or V

CC

— 0.01 1 mA

2567 lnk 05

OUTPUT DRIVE CHARACTERISTICS FOR FCT821/823/825T

Symbol Parameter Test Conditions

(1)

Min. Typ.

(2)

Max. Unit

VOH Output HIGH Voltage VCC = Min.

V

IN = VIH or VIL

IOH = –6mA MIL.
I

OH = –8mA COM'L.

2.4 3.3 — V

IOH = –12mA MIL.
I

OH = –15mA COM'L.

2.0 3.0 — V

VOL Output LOW Voltage VCC = Min.

V

IN = VIH or VIL

IOL = 32mA MIL.
I

OL = 48mA COM'L.

— 0.3 0.5 V

IOS Short Circuit Current VCC = Max., VO = GND

(3)

–60 –120 –225 mA

IOFF Input/Output Power Off Leakage

(5)

VCC = 0V, VIN or VO ≤ 4.5V — — ±1 µA

2567 lnk 06

NOTES:

1. For conditions shown as Max. or Min., use appropriate value specified under Electrical Characteristics for the applicable device type.

2. Typical values are at Vcc = 5.0V, +25°C ambient.

3. Not more than one output should be shorted at one time. Duration of the short circuit test should not exceed one second.

4. The test limit for this parameter is ±5µA at T

A = –55°C.

5. This parameter is guaranteed but not tested.

IDT54/74FCT821AT/BT/CT, 823/825AT/BT/CT/DT
HIGH-PERFORMANCE CMOS BUS INTERFACE REGISTERS MILITARY AND COMMERCIAL TEMPERATURE RANGES

6.21 5

POWER SUPPLY CHARACTERISTICS

Symbol Parameter Test Conditions

(1)

Min. Typ.

(2)

Max. Unit

∆ICC

Quiescent Power Supply Current
TTL Inputs HIGH

VCC = Max.
V

IN = 3.4V

(3)

— 0.5 2.0 mA

ICCD Dynamic Power Supply Current

(4)

VCC = Max.
Outputs Open

OE

= EN = GND
One Input Toggling
50% Duty Cycle

V

IN = VCC

V

IN = GND

— 0.15 0.25 mA/

MHz

IC Total Power Supply Current

(6)

VCC = Max.
Outputs Open
f

CP= 10MHz

50% Duty Cycle

V

IN = VCC

V

IN = GND

— 1.5 3.5 mA

OE

= EN = GND
One Bit Toggling
at fi = 5MHz
50% Duty Cycle

VIN = 3.4V
V

IN = GND

— 2.0 5.5

VCC = Max.
Outputs Open
f

CP= 10MHz

50% Duty Cycle

V

IN = VCC

V

IN = GND

— 3.8 7.3

(5)

OE

= EN = GND
Eight Bits Toggling
at fi = 2.5MHz
50% Duty Cycle

VIN = 3.4V
V

IN = GND

— 6.0 16.3

(5)

2567 tbl 07

NOTES:

1. For conditions shown as Max. or Min., use appropriate value specified under Electrical Characteristics for the applicable device type.

2. Typical values are at V

CC = 5.0V, +25°C ambient.

3. Per TTL driven input (V

IN = 3.4V). All other inputs at VCC or GND.

4. This parameter is not directly testable, but is derived for use in Total Power Supply Calculations.

5. Values for these conditions are examples of the I

CC formula. These limits are guaranteed but not tested.

6. I

C = IQUIESCENT + IINPUTS + IDYNAMIC

IC = ICC + ∆ICC DHNT + ICCD (fCP/2 + fiNi)
I

CC = Quiescent Current

∆I

CC = Power Supply Current for a TTL High Input (VIN = 3.4V)

D

H = Duty Cycle for TTL Inputs High

N

T = Number of TTL Inputs at DH

ICCD = Dynamic Current Caused by an Input Transition Pair (HLH or LHL)
f

CP = Clock Frequency for Register Devices (Zero for Non-Register Devices)

f

i = Input Frequency

N

i = Number of Inputs at fi

All currents are in milliamps and all frequencies are in megahertz.

IDT54/74FCT821AT/BT/CT, 823/825AT/BT/CT/DT
HIGH-PERFORMANCE CMOS BUS INTERFACE REGISTERS MILITARY AND COMMERCIAL TEMPERATURE RANGES

6.21 6

SWITCHING CHARACTERISTICS OVER OPERATING RANGE

FCT821/823/825AT FCT821/823/825BT

Com'l. Mil. Com'l. Mil.

Symbol Parameter Condition

(1)

Min

.

(2)

Max. Min

.

(2)

Max. Min

.

(2)

Max. Min

.

(2)

Max. Unit

t

PLH

t

PHL

Propagation Delay
CP to Y

I

(OE = LOW)

CL = 50pF

R

L

= 500

Ω

1.5 10.0 1.5 11.5 1.5 7.5 1.5 8.5 ns

CL = 300pF

(4)

RL = 500

Ω

1.5 20.0 1.5 20.0 1.5 15.0 1.5 16.0

t

SU

Set-up Time HIGH or LOW
D

I

to CP

CL = 50pF

R

L

= 500

Ω

4.0 — 4.0 — 3.0 — 3.0 — ns

t

H

Hold Time HIGH or LOW
D

I

to CP

2.0 — 2.0 — 1.5 — 1.5 — ns

t

SU

Set-up Time HIGH or LOW

EN

to CP

4.0 — 4.0 — 3.0 — 3.0 — ns

t

H

Hold Time HIGH or LOW

EN

to CP

2.0 — 2.0 — 0 — 0 — ns

t

PHL

Propagation Delay,

CLR

to Y

I

1.5 14.0 1.5 15.0 1.5 9.0 1.5 9.5 ns

t

REM

Recovery Time

CLR

to CP

6.0 — 7.0 — 6.0 — 6.0 — ns

t

W

Clock Pulse Width
HIGH or LOW

7.0 — 7.0 — 6.0 — 6.0 — ns

t

W

CLR

Pulse Width LOW

6.0 — 7.0 — 6.0 — 6.0 — ns

t

PZH

t

PZL

Output Enable Time OE to Y

I

CL = 50pF

R

L

= 500

Ω

1.5 12.0 1.5 13.0 1.5 8.0 1.5 9.0 ns

CL = 300pF

(4)

RL = 500

Ω

1.5 23.0 1.5 25.0 1.5 15.0 1.5 16.0

t

PHZ

t

PLZ

Output Disable Time

OE

to Y

I

CL = 5pF

(4)

RL = 500

Ω

1.5 7.0 1.5 8.0 1.5 6.5 1.5 7.0 ns

CL = 50pF

R

L

= 500

Ω

1.5 8.0 1.5 9.0 1.5 7.5 1.5 8.0

NOTES: 2567 tbl 08

1. See test circuit and waveforms.

2. Minimum limits are guaranteed but not tested on Propagation Delays.

3. This parameter is guaranteed but not tested.

4. This condition is guaranteed but not tested.

IDT54/74FCT821AT/BT/CT, 823/825AT/BT/CT/DT
HIGH-PERFORMANCE CMOS BUS INTERFACE REGISTERS MILITARY AND COMMERCIAL TEMPERATURE RANGES

6.21 7

SWITCHING CHARACTERISTICS OVER OPERATING RANGE

FCT821/823/825CT FCT823DT

Com'l. Mil. Com'l.

Symbol Parameter Condition

(1)

Min

.

(2)

Max. Min

.

(2)

Max. Min

.

(2)

Max. Unit

t

PLH

t

PHL

Propagation Delay
CP to Y

I

(OE = LOW)

CL = 50pF

R

L

= 500

Ω

1.5 6.0 1.5 7.0 1.5 5.0 ns

CL = 300pF

(4)

RL = 500

Ω

1.5 12.5 1.5 13.5 1.5 8.5

t

SU

Set-up Time HIGH or LOW
D

I

to CP

CL = 50pF

R

L

= 500

Ω

3.0 — 3.0 — 2.0 — ns

t

H

Hold Time HIGH or LOW
D

I

to CP

1.5 — 1.5 — 1.0 — ns

t

SU

Set-up Time HIGH or LOW

EN

to CP

3.0 — 3.0 — 3.0 — ns

t

H

Hold Time HIGH or LOW

EN

to CP

0—0— 0 — ns

t

PHL

Propagation Delay,

CLR

to Y

I

1.5 8.0 1.5 8.5 1.5 5.0 ns

t

REM

Recovery Time

CLR

to CP

6.0 — 6.0 — 3.0 — ns

t

W

Clock Pulse Width
HIGH or LOW

(3)

6.0 — 6.0 — 3.0 — ns

t

W

CLR

Pulse Width LOW

(3)

6.0 — 6.0 — 3.0 — ns

t

PZH

t

PZL

Output Enable Time OE to Y

I

CL = 50pF

R

L

= 500

Ω

1.5 7.0 1.5 8.0 1.5 4.8 ns

CL = 300pF

(4)

RL = 500

Ω

1.5 12.5 1.5 13.5 1.5 9.0

t

PHZ

t

PLZ

Output Disable Time

OE

to Y

I

CL = 5pF

(4)

RL = 500

Ω

1.5 6.0 1.5 6.0 1.5 4.0 ns

CL = 50pF

R

L

= 500

Ω

1.5 6.5 1.5 6.5 1.5 4.0

NOTES: 2567 tbl 09

1. See test circuit and waveforms.

2. Minimum limits are guaranteed but not tested on Propagation Delays.

3. This parameter is guaranteed but not tested.

4. This condition is guaranteed but not tested.

IDT54/74FCT821AT/BT/CT, 823/825AT/BT/CT/DT
HIGH-PERFORMANCE CMOS BUS INTERFACE REGISTERS MILITARY AND COMMERCIAL TEMPERATURE RANGES

6.21 8

PULSE WIDTH

SWITCH POSITION

ENABLE AND DISABLE TIMES

PROPAGATION DELAY

SET-UP, HOLD AND RELEASE TIMES

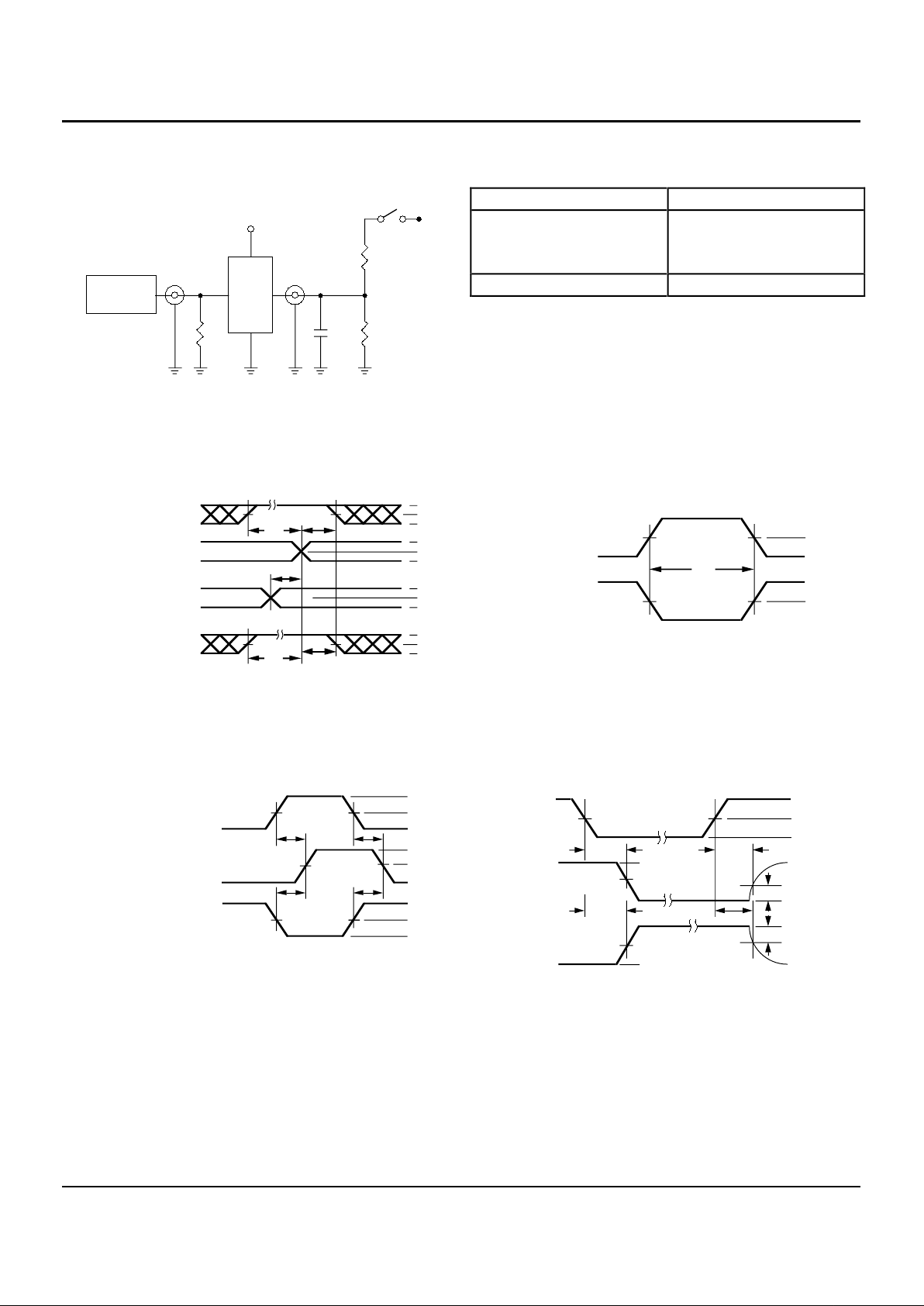

TEST CIRCUITS AND WAVEFORMS
TEST CIRCUITS FOR ALL OUTPUTS

Pulse

Generator

R

T

D.U.T.

V

CC

V

IN

C

L

V

OUT

50pF

500

Ω

500

Ω

7.0V

3V

1.5V
0V

3V

1.5V

0V
3V

1.5V
0V

3V

1.5V

0V

DATA

INPUT

TIMING

INPUT

ASYNCHRONOUS CONTROL

PRESET

CLEAR

ETC.

SYNCHRONOUS CONTROL

t

SU

t

H

t

REM

t

SU

t

H

HIGH-LOW-HIGH

PULSE

LOW-HIGH-LOW

PULSE

t

W

1.5V

1.5V

SAME PHASE

INPUT TRANSITION

3V

1.5V
0V

1.5V

V

OH

t

PLH

OUTPUT

OPPOSITE PHASE

INPUT TRANSITION

3V

1.5V
0V

t

PLH

t

PHL

t

PHL

V

OL

CONTROL

INPUT

3V

1.5V
0V

3.5V

0V

OUTPUT

NORMALLY

LOW

OUTPUT

NORMALLY

HIGH

SWITCH
CLOSED

SWITCH
OPEN

V

OL

0.3V

0.3V

t

PLZ

t

PZL

t

PZH

t

PHZ

3.5V

0V

1.5V

1.5V

ENABLE DISABLE

V

OH

PRESET

CLEAR

CLOCK ENABLE

ETC.

NOTES:

1. Diagram shown for input Control Enable-LOW and input Control Disable­HIGH

2. Pulse Generator for All Pulses: Rate ≤ 1.0MHz; t

F ≤ 2.5ns; tR ≤ 2.5ns

Test Switch

Disable Low

Enable Low

Closed

All Other Tests

Open

Open Drain

DEFINITIONS:

C

L= Load capacitance: includes jig and probe capacitance.

R

T = Termination resistance: should be equal to ZOUT of the Pulse

Generator.

2567 drw 05

2567 drw 06

2567 drw 07

2567 drw 08

2567 drw 09

2567 lnk 10

IDT54/74FCT821AT/BT/CT, 823/825AT/BT/CT/DT
HIGH-PERFORMANCE CMOS BUS INTERFACE REGISTERS MILITARY AND COMMERCIAL TEMPERATURE RANGES

6.21 9

ORDERING INFORMATION

XX

Temp. Range

XXXX

Device TypeXPackage

X

Process

Blank
B

P
D
E
L
SO
PY
Q

821AT
823AT
825AT
821BT
823BT
825BT
821CT
823CT
825CT
823DT

Commercial
MIL-STD-883, Class B

Plastic DIP
CERDIP
CERPACK
Leadless Chip Carrier
Small Outline IC
Shrink Small Outline Package
Quarter-size Small Outline Package

10-Bit Non-Inverting Register
9-Bit Non-Inverting Register
8-Bit Non-Inverting Register

54
74

–55°C to +125°C
0°C to +70°C

IDT

2567 drw 10
