Digital Encoder Plus

Audio Processor

User Manual

Abbreviations

Some of the abbreviations used in this manual may not be familiar to all readers:

A/D Analogue to Digital converter AES Audio Engineering Society AF Alternatives Frequencies AGC Automatic Gain Control BNC Type of RF connector CD Compact Disc CE European certification CEM Electro Magnetic Compatibility COM Serial data communication port CT Clock Time D/A Digital to analogue converter DB9 Type of connector SUB-D in 9 points dBfs Decibel Full scale = level concerning the maximum level (digital stream only) dBm Level allowing to deliver 1mW / 600ohm dBr Level concerning a reference DBT Directive Low Voltage dBu Decibel ( unloaded ) = dBm in an impedance of some load DHCP Dynamic Host Control Protocol DI Decoder Information DSP Digital Signal Processor E/S Entrée/Sortie EBU European Broadcasting Union EMI electromagnetic interference FFT Fast Fourier Transform FM Frequency modulation GPI/O General purpose input/output Hz Hertz I/O Input/Output IEC International Electric Standard IP Internet Protocol ITU International Telecommunications Union ITU-R Sector of the ITU dedicated to the Radio kHz Unit of measure expressed in kilo Hertz LCD Liquid Crystal Display LED Light-Emitting Diode MAC Address of the network card MPX Composite MS Music/Speech PC Personal Computer PI Program Identification PPM Pulsation per minute PS Program Service name PTY Program Type RAM Random Access Memory RBDS Radio Broadcasting Data Service RDS Radio Data System RF Radio Frequency

ROM Read Only Memory RT Radio Text RTC Real Time Clock RX Receiver SUB-D Type of connector multipoint TA Traffic Announcement TCP/IP Communication Protocol THD Total Harmonic Distortion TP Traffic Program TX Transmitter UECP Universal Encoder Communication Protocol V Volt Vcc Volt Crete Crete Vpp Volt peak to peak Vrms Effective volt XLR Style of 3-conductor audio connector

I - INTRODUCTION

After years of success on the digital sound market with the DVP IDT decided to go further by proposing fully equipped, highly efficient processors taking up a minimum of space at the best price possible.

The 1U range from IDT has been designed to meet the needs of broadcasters by proposing powerful processors using Sharc DSPs ® from Analog Devices ®, a technology which gained the « Cool Stuff Award » award for IDT at the NAB, Las Vegas in 2000. This range proposes IU rack processors, thus using a minimum amount of space but with the power of a rack 3, 4 U or even more! Thanks to the up-gradable nature of the processors, both hard and software wise, they are without doubt the most complete and cost-effective solution on the broadcast market today.

The Digital Encoder Plus @ FM is full digital.

This manual will guide you through the set up of the DEP that you have just received.

 WEEE

1. This symbol indicating separate collection for electrical and electronic equipment consists of the crossed-out wheeled bin, mean that the product is covered by the directive 2002/96/EC.

2. The electric and electronic elements must be separately cast in containers foreseen for that purpose by your municipality.

3. The preserve, protect, improve the quality of the environment and the protect of human health.

4. For more information concerning the elimination of your former device, please contact your city hall, the service of the waste of your municipality or still the salesman or the distributor where you bought this product.

II - INSTALLATION

Dedicate one hour to the installation.

WARNING

respected.

 Physical Installation

As you will have noticed all IDT products are of a 19 inch format so that it fits into dedicated racks. The following indications must be respected.

We advise using a rack-mount; however, the front panel was designed to be sturdy enough to be self-supporting with the four screws firmly implanted.

The ventilation of your processor: the ventilation has been studied to make sure that all heat generated is evacuated. Air is sucked in by two ventilators, placed on the right and is expired at the rear and to the left of the unit. These ducts should absolutely not be obstructed. Make sure that your processor is placed where hot air can be evacuated. The ideal location is in an open rack, dry area where, ideally, it is not exposed to high temperatures (behind a window with bright sunshine, a radiator, amplifier etc).

IDT processors have been tested to work in environments where the temperatures go from 0°C to 45°C. IDT Sound Processing Corporation cannot guarantee that its processors work perfectly outside these temperatures.

: IDT declines all liability should the rules of installation below not be

 Electrical Installation

Good grounding: IDT processors are CEM certified guaranteeing that the

equipment can function in an electro-static environment. The key is to make sure that the equipment is properly grounded as results please fix all 4 screws of the front panel to the rack to allow. All IDT processors also have a ground connector at the rear of the unit which allows a connection to the rack.

NB: don’t forget to connect the ground link of the rear panel to the rack!

The right fuses: The fuses in the power supply are fuses with high power of cut

(ceramic body), 2AT 250V. In case of use on a 115 Vac. Network they should ideally be changed for fuses with high power of cut (ceramic body) 4AT 250V. The equipment needs an AC power supply of 115Vac or 230Vac 50/60Hz and must be properly earthed. There is an earth screw on the equipment for that purpose. Should the equipment not be in use for a certain period it should be unplugged.

The right Cable: IDT are supplied with standard IEC AC cables. The cables are French standard. This cable should be changed to respect the electrical standards of your country. IDT Sound Processing Corporation cannot guarantee any breakdowns should a non-standard cable be used.

II-1 - Connections

XLR audio in / Out

The I/Os of the DEP are linked by" XLR 3 Pin" connectors The wiring is the following:

Pin number 1 = Ground Pin number 2 = Hot Point

in number 3 = Cold Point P

 XLR Input

As with any professional audio unit the inputs are female so you need to use a male XLR to bring the audio into the DEP.

The DEP has a balanced electronic input. IMPORTANT: the input can receive balanced and imbalanced signals

 XLR Output

The audio output connectors are male so you need female XLRs to take the signal out of the DEP.

As for the input the DEP has a balanced electronic output. IMPORTANT: the output is protected against unbalancing (cold point to ground), so if needs be you can use this type of link.

 Specifications:

Input:

Type Electronically balanced Cabling Ground=1, Hot point=2, Cold point=3 Impedance 10 K Maximum level + 24 dB

Output:

Type Electronically balanced Cabling Ground=1, Hot point=2, Cold point=3 Impedance 600 Ohms Maximum level + 24 dB

XLR AES / EBU In / Out

 XLR Input

As with any professional audio unit the inputs are female so you need to use a male XLR to bring the digital audio into the DEP.

 XLR Output

The audio output connectors are male so you need female XLRs to take the signal out of the DEP.

The DEP has an advanced synch mode. To ensure a perfect synchronisation, whatever the digital chain, you can configure your DEP in the following ways;

• Synch Master

• Synch Slave

In the first case the DEP will act as transmitter and will deliver the synch frequency to the other units in the digital chain.

In the second case the DEP will act as a receiver and will be controlled by an external clock.

 BNC Synchro I/O

The DEP has a female input socket so you will need a male BNC to link up to the synch.

 Specifications

Input:

Type Balanced on transformer

ES type Cabling Ground=1, Hot point=2, Cold point=3 Impedance 110 Ohms Maximum Level 0 dBfs

Output:

Type Balanced on transformer

ES type Cabling Ground=1, Hot point=2, Cold point=3 Impedance 110 Ohms Maximum Level 0 dBfs

ES 3 Professional

RS 232 - RS 232 Modem

The DEP has 2 types of RS 232 standard serial inputs:

The possibility of leaving a modem connected permanently:

As you can see one of the serial ports is called "RS 232 / Modem". This port allows the use of a modem to facilitate its set up. This port is optimized for use with a modem but can still be used for normal communication use.

 Specifications

Port: RS 232

Connector type Male Cabling 2=RX 3=TX 5=Ground Max Length 10 metres

Port: RS 232 / Modem

Connector type Female Cabling 1=DCD 2=TX 3=RX 4=DTR 5=Ground 7=RTS 9=RING Max Length. 10 metres

Port Ethernet

The DEP has an RJ45 Ethernet port available for an IP link (internet Protocol). LEDs can be viewed next to the connector to show the state of the network.

Connector type RJ45 Cabling 10 Base T Leds TX=data out RX=data in Col=Collision Max Length. 100 metres

Local Switches/GPIO

The "Local Switches & Alarms" is aimed at switching presets by local switch and the feeding of the LEDs. On the DEP the connector is a SUB D 25 points.

The DEP allows the switching between presets. This is done by the grounding of one of the 8 pins of the connector. The switching can be done by a continuous contact or by a fugitive contact.

The DEP can also set off alarms (which can be parameterised by the Master Gate) on the 24 pins.

Access the « Local Switch » window in the Master Gate, go to the « SETUP » menu then select « LOCALSWITCH – GPI/O ».

When you have placed your cursor on one of the pins of the connector it will change colour to show which pin has been selected. .

When you click it you will access the various programmable functions of the connector. In the example below we will set pin 1 of the connector to switch a preset.

Window of the programmable commands.

The next window shows that pin n°1 of the connector is programmed to switch to the preset Mid + APC + HF Opt.

In the same way you can programme outgoing information or alarms. In the example below we have programmed the pin n° 14 of the connector an alarm

will be set off if the TX1 Level goes over 75 kHz.

The window below indicates the programmation of the pin n° 14 that we have just done as well as other programmations.

When a command is effective or an alarm has been set off this will be indicated by a red LED on the connector.

In the example above an alarm shows that the modulation of the TX2 is under that fixed by the TX2 programmation.

Below the list of actions available for the Local Switches of the unit.

 Specifications

Connector type SUB D 25 point female

Pin1=Preset1 Pin2=Preset2 Pin3=Preset3... up to16

Cabling

Max Length. 10 metres

Port « Data »

Le DEP has a supplementary RS 232 port called « Data », aimed at receiving data from the UECP protocol (SPB490 standard) where a flow of dynamic RDS can be received (WARNING this flow is not legal in all countries!)

Connector type Male Cabling 2=RX 3=TX 5=Ground Max Length. 10 metres

Pin 19=alarme1 Pin 20=alarme2 … up to 24 Pin25=Masse

TX1 & TX2

The DEP has 2 multiplex outputs "TX1 et TX2" which can be set separately via the Master Gate.

The connectors are female BNCs.

WARNING: as the MPX signal is quite "fragile", we advise you to use the shortest

cables possible. A standard cable will measure 2metres. For any length over this use the highest quality cable.

 Specifications for TX1 & TX2

Connector type BNC female Cabling Ground=body of the connector, Hot point= central Pin Impedance 75 Ohms Level delivered From - the infinity to + 22 dB Length of cable

advised

SUB

The DEP has two SUB inputs. This one are independently allocated for the one to the TX 1 output and the other one to the TX 2 output. These two inputs work in Unitarian level, consequently no access in regulation of level is accessible since the control software. These two inputs can beings used for the insertion of signals RDS, SCA, SWIFT, DARC...

2 meters

AC Input

In order to ensure that the processor is protected from all disturbances the DEP is protected by an extremely efficient power supply filter. This filter also has 3 other functions.

• ON/OFF SWITCH

• Container of the fuses

• IEC standard cable socket

WARNING: as you will have seen there are ventilation outlets just next to the filter. To ensure optimized ventilation never obstruct these outlets.

WARNING: to guarantee an optimized protection to respect the Low Power Directives standards we advise you to always use ceramic temporized fuses.

The DEP has a direct ground link and we advise you, wherever possible, to use this to ensure perfect grounding. The DEP has a wide band power supply meaning it can take from 115 or 230 volts in 50 or 60 Hz with no need for any manual change. We advise you to use fuses with high power of cut (ceramic body) T2A 250V for use on a 230V network and T4A 250V for 115V.

 Specifications

Connector type IEC Fuse Type Pour 115V : 4AT 250V Pour 230V : 2AT 250V

Power Consomption 110V - 240V = 130 VA

From 88 to 132 VAC / 176 to 264 VAC (automatic switch)

II-2 – The Front Panel of the DEP

 The settings of the DEP are to be made via the Master Gate software,

by connection RS 232 or by TCP/IP.

Vu-meters and LEDS allow you to check the input level, the work of the AGC and the limiting of the modulation levels on the TX outputs.

 Supplementary RS 232 port:

To facilitate the access to the DEP when it is rack mounted and when you cannot stay linked to the processor permanently IDT has placed a supplementary RS 232 port on the front panel.

Connector type Male Cabling 2=RX 3=TX 5=Ground Max.length 10 metres

II-3 – Installing the « Master Gate » software

WARNING:

The « Master Gate » software is compatible with the following operating systems:

Windows 2000 Windows XP

IDT Sound Processing Corporation cannot guarantee that the software will run under other OSs.

Installation:

Insert the CD-Rom in your computer The install programme will start up:

Click « next ».

Read the user licence carefully, accept the terms and click « next ».

You can also install the configuration tool for the Ethernet cards, if you have this option installed in your processor, and place an icon for the application and/or the upgrade on your desk-top or in the « Quick Launch ®» bar.

Then click « next ».

Choose the folder where the programme will be located by default « C:\Program Files\IDT Sound Processing »), and click « next ».

You can modify where you will find the shortcuts in the Start menu of Windows. Then click « Install ».

The programme begins its installation, which can take a few minutes. You can keep an eye on the progress by clicking « More info ». Wait for the completion of the installation.

You should restart your computer to make sure that the programme is properly installed. You can always restart later but the programme may not work properly if you don’t do it.

You have correctly installed the « Master Gate ». All you have to do now is link up to the processor.

II-4 – Connecting your processor to a PC

There are several ways to connect your PC to an IDT processor:

 Direct connection (Serial port RS232) Connect the serial cable (supplied) to the RS232 serial port of the PC (female

connector) and to the male RS232 port of your processor. (front or rear of the unit). Warning: DO NOT MISTAKE THIS PORT FOR THE MODEM PORT!

 By Modem Connect the Modem to the « modem » port of the processor. The necessary cable

is not supplied by IDT Sound Processing Corporation. IDT Sound Processing Corporation can only guarantee that the modem connection works correctly with modems that are HAYES compatible (US robotics for example).

 By TCP/IP If you have taken the Ethernet option with your processor you can connect via

TCP/IP. In this case fix an RJ45 class 5 cables to the RJ45 port on the rear of your processor. You can use a straight cable to link to a hub or a Switch or a to link directly to the network card of your PC or your router (ADSL for example).

Configuring the connections

The first thing to do is to launch the « Master Gate ». To do so click one of the icons created during the installation of the programme.

A screen will appear and the programme will look for the processors connected to the serial ports of your computer.

1. Direct connection

Normally, nothing has to be done to get the connection. When the application is first launched the programme will display the processors connected to the serial ports of the computer.

Choose the processor you want to link up to and double click its name. If you want to re-launch the detection of the processors click the « Serial Port »

icon on this screen.

If the connection doesn’t work make sure your serial ports are configured as follows;

To access these parameters go to the Peripherals Management window and double-click the COM port that you want to parameter.

Different configurations can work but IDT Sound Processing Corporation cannot guarantee that everything will be without problem.

2. Connection by Modem

To link up by modem, click the « Modem » icon on the Welcome screen of the Master Gate. The following screen will appear which is a kind of phone book of the processors you can connect to.

By clicking « New Entry », you can add a processor by entering the name of the programme, the town where the equipment is located and, above all, the phone number to call.

NB: IDT processors automatically reply when there is a call on the line connected to the modem. Make sure you are well protected by passwords.

3. Connection by TCP/IP

To link up by TCP/IP, as for the modem, you can click on the « IP Connection » icon of the Welcome screen of the Master Gate. « IP book » is displayed and the phone book of the processors you are connected to by TCP/IP.

By clicking « New Entry », you can add a processor by entering the name of the program, the town where the equipment is located and, above all, the IP address of the Ethernet card.

NB: As for a modem connection, the processors reply to each request, so think about protecting them with passwords!

To link up via TCP/IP, you need to know the IP address of your processor.

 DHCP

By default, the Ethernet cards supplied by IDT Sound Processing Corporation are configured to always request an IP address from DHCP server on the network you’re linked to. You should then ask the network administrator to give you the IP address attributed to your processor, and possibly to create a DHCP reservation for this address to make sure it’s never changed.

If your processor has a fixed address attributed to it and you wish to return to an automatic configuration of the TCP/IP parameters, you should follow the following steps and select « Dynamic addressing (DHCP) » in the Address Parameter screen of the processor.

 Attribution of a fixed IP address for your processor.

If your network does not have a DHCP server and you connect directly (by a crossed RJ45 cable) to the processor, or if this is imposed by your administrator you can attribute a fixed address to your processor.

To do so you must have installed the « IP Remote Manager » software. Connect your PC to the RS232 serial port located next to the RJ45 of your processor.

Launch « IP Remote Manager » via the shortcut in the Start menu: « programs, IDT Sound Processing, Tools, IP Remote Manager ».

Click the Serial Port button ». The software will scan all the serial ports of your PC to find the processor. The software will then display the results of the search:

Select your processor and click « next ».

NB: This window can be useful for your network administrator. He can read the MAC addresses of your processors, essential to create DHCP reservations.

On this window you’ll be able to give your processor a name (NETBIOS) and a fixed IP address. Ask your administrator to give you the other parameters (Subnet mask, gateway…) to ensure that communication can be established between your PC and the processor. This window will also allow you to return to a dynamic address assigned by a DHCP server.

By default, the TCP communication of our processors is 5001. This parameter can be changed. Ask your network administrator before making any modifications. This port can be re-directed via a firewall or a router for remote internet connections. Here again your administrator can help configure the equipment for this kind of connection.

 Firewall / Access control :

The IDT Sound Processing Corporation Ethernet cards have a simplified firewall which accepts or refuses connections coming from several IP addresses. These parameters should be set up with your network administrator.

To finish click « End ».The programme will then send the configuration to your processor after you have confirmed.

The processor can now communicate via TCP/IP by using the fixed address.

 SNTP synchronization

The Ethernet cards of IDT Sound Processing Corporation processors allows the synchronization SNTP (Simple Network Time Protocol). This function so allows synchronizing the hour of your processor as well as the integrated functions as the RDS.

On this screen, you specify the Time Zone, the IP address of the SNTP server, the interval of synchronization in minutes then the activation or not of the synchronization.

II-5 – Additional software

1. IP Remote Manager

Put back you in the section « Attribution of a fixed IP address for your

processor »

2. Broadcaster Rights Manager

The tool «Broadcaster Rights Manager» allows the access to various parameters or regulations of your processor to a private broadcaster or to an administrator of a site of broadcasting.

The Broadcaster Rights Manager allows you to create a generic file that you can load into all the processors of your fleet in order to limit the access to the parameters of your IDT units.

Install the software by clicking the section « type of installation » in the installation programme of the Master Gate.

An icon has been created in the START menu (« Programmes, IDT Sound Processing, Tools »). Click here.

The programme will be launched:

On this screen you can create a file or modify an existing file. Click on Create:

The programme will ask you to enter a password that you will use as « broadcaster » manager for your processors. Define the password (WARNING, 4 figures only!) and click next.

The following window will allow you to choose the functions the broadcasters will be able to access and those where access will be forbidden. Choose from the list and click « Finish »

The programme will allow you to save the file with all the information in the area you choose.

To load the file in the processors: Double click it or slide the file onto the « Master Gate ». The Master Gate will be launched, scan the ports as with a normal launch and will

then ask which processor you want to be linked to. Double click the processor you want to apply the rights to.

The Master Gate will then display the following dialogue box:

The « broadcast » password and the access rights have been changed. You can quit or stay connected to the equipment.

The processor will ask you now every connection for your password and for the access mode which you want to use:

This password (but not the associate’s rights) is also changeable by the menu « password » of Master Gate.

3. User Rights Manager

In the same way as to authorize you certain rights for a broadcaster you can define in the same way rights for users.

The User Rights Manager software allows you to create a generic file that you can load into all the processors of your fleet in order to limit the access to the parameters of your IDT units.

Install the software by clicking the section « type of installation » in the installation programme of the Master Gate.

An icon has been created in the START menu (« Programmes, IDT Sound Processing, Tools »). Click here.

The programme will be launched:

Click « create » to start defining your passwords.

The first stage is to create a « User » password which will allow you to access the main functions of your processor. Some parameters can be blocked to avoid any error of use and to ensure that broadcast standards are respected.

Define a 4 figure password and click « next ».

The next stage will allow you to define a « Preset », password which will allow you to protect the presets that you are going to create. Here, again, you must create a four figure password which will allow you to protect the presets that you have created. Click « End » to save the file.

The programme will allow you to choose the place you want to store the file:

To load the file in the processors: Double click or slide the file into the « Master Gate » icon. Double click it or slide the file onto the « Master Gate ». The Master Gate will be launched, scan the ports as with a normal launch and will

then ask which processor you want to be linked to. Double click the processor you want to apply the rights to.

The Master Gate will then display the following dialogue box:

The « user » password and the access rights have been changed. You can quit or connect to the equipment

Each time the processor is launched you will be asked for a password and the access mode you want to use:

This password can be changed in the « password » menu of the Master Gate.

4. Digital Virtual Upgrader II

The « Digital Virtual Upgrader II » software has been specially designed to aid the upgrading of your 1U processors (DEP, DBP and VVP) from the IDT Sound Processing Corporation.

This software is included in the standard installation programme which has been delivered with your unit. An icon is created in the start up menu « programs, IDT Sound Processing, Tools ».

Click this icon to launch the upgrade process of your processor. The following Window will appear;

Click the « serial port connection » (the other connection options are ‘faded’ and will be available later).

As when you launch the Master Gate the programme will scan all the serial ports.

Once the search has been finished the programme will display the various processors you can upgrade.

Select the processor to upgrade then click next:

The programme will then display the various files available on your processor to be upgraded. By selecting a file you will see, in the information window to the right, the corrections that have been brought by this upgrade.

Once the right file has been selected click next. The programme will then analyse your processor for the upgrade.

The Upgrader will display the information concerning the progression of the upgrade. NB: Most of the upgrades include the reprogramming of the components of the

unit. There will be a cut in the audio during the upgrade. Make sure, then, that your processor is not on air while it is being upgraded.

The upgrades also have an effect on the firmware of the unit and will delete

all the data stored in the processor. IDT Sound Processing Corporation has tried, as much as possible, to maintain the compatibility of presets between 2 versions but this is not always possible. We, therefore, strongly recommend you test the presets created before putting them on air.

Click next if you accept the warnings displayed.

The programme will then undertake the operations requested. This process can take up to 10 minutes depending on the number of operations and the power of your PC.

If the software does not display this window then close down and restart your processor then start the process from the beginning. Should the operation fail again call the IDT Sound Processing Corporation Hotline immediately.

5. IP Upgrader

The « IP Upgrader » software has been specially designed to aid the upgrading of the IP board from the IDT Sound Processing Corporation.

This software is included in the standard installation programme which has been delivered with your unit. An icon is created in the start up menu « programs, IDT Sound Processing, Tools ».

To make this update, you have to use the connector RS 232 of the IP board. Click this icon to begin the process of update of your IP BOARD. The following Window will appear :

The ended installation the following screen displays.

Click the icon " Serial Port Connection " the following screen displays.

Select the processor to be updated and click on “ Next “ button.

When the IP board was updated the following screen displays.

Click "Finish" then on "Yes" or "No" according to if you have another card IP to be updated.

6. Live Recall

The Live Recall is a programme utility allowing you to switch from far the presets of your 1U processors by a serial RS 232 or TCP / IP connection.

This software is included in the standard installation programme which has been delivered with your unit. An icon is created in the start up menu « programs, IDT Sound Processing, Tools ».

Addressing of the processor Launch the application « Live Recall Setup » the following screen displays.

Click on « New » to add the processor to be used, the following screen displays.

Click the field « Name » New processor by default and enter the Name of the processor to be used. In the type field you can indicate for example a location.

In the field « Transport » select the type of connection to be used. In the example above « IP ». Then in the field « Parameters » enter the IP address of the processor to be used.

Make the same thing to add others processors then click on « Ok » to validate the parameters and leave the application Live Recall Setup.

Launch the application « Live Recall » the following screen displays.

A simple click on the field allows you to select the preset to use as shows in the screen below.

III - SETTINGS

III-1 – Quick Start Up

First launch of the software:

Once you have chosen the connection you want to use and the processor you want to link up to click its name.

The software will start with this Welcome Window;

If the time and date on your PC are not the same as the DEP the software will suggest synchronizing the 2.

Choose to put the DEP at the same time as the PC or not and ENTER

The main Window of the control software will appear. Take a few minutes to get familiar with this window as it will be your companion throughout your work on the DEP.

Here are the main aspects of the Control Window:

 Menu bar  Vu-meters  Icons  Main Window  State Bar  Quick Compare and other screens to the right.

1. The Tools Tips

When you move your cursor over the titles of each function an information

cursor will appear. By doing a right click you will obtain the information

concerning the action and the function of the element selected.

A zoom on the AGC gain range function.

2. Menu bar

To ensure optimized ergonomics all the main accesses have been centralized in the central icon bar. The menu bar regroups secondary accesses which are less frequently required by the user. The main accesses are the following:

 File: Save and retrieving presets, the calibration, general parameters and

full back-up of the equipment. Exiting the software.

 Set Up: Name of the processor, Phase Scrambler, Auto Back Up,

Configuration AES/EBU, Advanced settings (AES Errors, Compensation Sub, Calibration, signal generator), interne clock, Configuration of the local switches/GPIO. Password for manage the various accesses to your processor (User,



Presets, View only and Broadcaster).



Help: Loading plug-ins, Loading a license, About (information on the

processor). System Informations : This information is available from the Master Gate software in the menu "HELP"

About.

3. The vu-meters

The top part of the screen is dedicated to the vu-meters. Everything has been done to guarantee an optimized vision so, from left to right, you can view, instantly the following parameters:

 "DEP Input"

Input AGC"

 "  "

Audio Limiter"

 "HF Limiter"  Mono modulation "L + R"  Stereo modulation L - R"  Pilot Level "19 kHz"  "Digital Output" level  "TX Output» level

4. Central Icon bar

The central icon bar allows access to the main control screens of the DEP. Located in the centre optimised ergonomics are guaranteed;

• Preset: Access to the "Factory Presets" and "User Presets».

• Process: Access to the heart of processing and allows you to sculpt your

sound.

• St Generator: Access to the parameters of the stereo coder.

• Level: Access to all the I/O levels of the DEP.

• Plug In : Access to the various plug-ins you have inserted in the DEP.

• Bypass: Access the By-pass of each function of the DEP.

• Diagram: Via a diagram, you can visualize, assign and fix the parameters

of the pre-emph, de-emph and the position of the phones.

5. The central window

Located just below the main icon bar, the central window displays the various screens accessible and regulated by the icon bar. It’s here that you will take full control of all the parameters of the DEP. Below the Process window of the DEP.

6. State bar

Located just below the main window the state bar displays, permanently, essential information and allows you 2 instant access commands.

The displays:

• Stand By: Lit if the processor is in standby mode. Setting the level of the

standby is accessible from « Key tools ».

• Analog in: Lit if the active preset is using an analogue input.

• Digital in: Lit if the active preset is using the AES input.

• Overload: An overload can create distortion so this is your protection.

7. The other tags

The MPX Guard Window This window is only active when the plug-in has been

loaded. Refer to the section that deals with this plug-in.

Quick Compare Window

Allows the rapid switch between your presets and for you to compare between them.

III-2 – The first settings

The first thing to do is to set the levels to correspond to you transmitter and to the standards applied in your country.

1. Setting the levels

WARNING ! ! !

Do not make these modifications while the DEP is linked to a transmitter. Make the settings with the TX1&2 unplugged or you could have over modulation.

 Setting the TX level

Click the « Level » icon in the central bar. Adjust the reference levels of TX1 and TX2

Then adjust the TX output level depending on the legal modulation levels of your country (generally 75 KHz).

IDT understood that you could need to parameter the second TX output to send the reference 19 KHz to an RDS encoder, for example. You can, thus choose a back-up multiplex output with this option.

If these results do not correspond to the levels measured by external equipment consult « Calibration of your processor ».

 Setting the analogue and digital levels

Still in the « Level » window, adjust the analogue and digital I/O levels to avoid any distortion of the sound before processing.

If your DEP is in a processing chain and that you are using the analogue or digital outputs of your processor don’t forget to set the output levels depending on the equipment your DEP is linked to. .

In this way you will avoid any peaks into or out of the DEP.

2. The Presets

The Digital Encoder Plus @ FM is delivered with a list of Factory Presets. These presets constitute the departure point for your sound settings and correspond to different radio programme categories. You can go, quite simply to the category that corresponds to your programme type but we strongly advise or to go through the different categories of Factory Presets to have a full idea of what is on offer.

Processing on the we call a which correspond.

WARNING: as the product evolves there are new Factory Presets which will

always refer to a version of layer even if we do all we can to ensure

compatibility between the various layers.

Layer. Each Layer has a version number and a list of Factory Presets

DEP @ FM works on an upgradeable algorithmic platform that

The Preset explorer – Use

Just below the display of the vu-meters you will see the icon bar which allows access to each function. To access the Factory Presets click the Preset icon. To the left you will see the explorer for the DEP @ FM.

At the top of the tree you will find 2 folders in the Digital Virtual Processor, Factory

Presets and User Presets. The Factory Presets Folder:

This folder contains all the Presets

supplied by IDT. To avoid any confusion between the Factory Presets and the User Presets, we have identified them by different icons: Factory Presets with the logo IDT and an orange triangle for the User Presets.

The User Presets folder:

This folder can contain up to 60 Presets and is located directly in the memory of the DEP @ FM.

1. To load a Factory Preset into the User Presets folder:

There are 2 ways, Choose the one you prefer.

• Select the Preset you want to load from one of the folders

Drag and drop into User Presets or:

• Select the Preset you want to load from one of the folders

Click it and then Copy Click the User Presets folder

Right click PASTE

2. To rename a User Preset :

When you load a Factory Preset in the list of User Presets it will keep its original name. Once it is in the list of User Presets you can rename it as you want. To do so proceed as follows: Select the Preset you want to rename: Right click and select RENAME Type the name you want to give to your Preset

Factory Presets

3. To delete a User Preset :

It is, of course, possible to delete a User Preset from the memory of the DEP: Select the Preset you want to delete Right click and Delete You will be asked to click OK to Delete or Cancel

4. To put a User Preset ON AIR :

To put a User Preset ON AIR do the following: Select the Preset you want to put on air.

Double click and the icon of the Preset will become . The Preset is now On Air

5. Basic rules for presets :

By a right click you can access a full menu:

By this menu you can rename your preset, make a copy (before modifying for example), copy to a clipboard (to paste elsewhere, on your Windows desktop for example,), delete it (unless it’s On Air). You also have other functions « copy to disk », so you can copy it to a hard disk and the « Local Switch », so you can allocate a pin from the Local Switch / GPIO.

An arrow in the column « input mode » allows you, by a scrolling list, to allocate an analogue or digital input

Useful information; the latest modification or the Factory Preset of origin is also displayed.

III-3 - Calibration process

To ensure that standards are met and to conform to other equipment in your audio chain our processors can be calibrated.

This process is quite simple and will take just a few minutes of your time Calibration is advisable when there are measurement discrepancies, when the

machine has not been used for some time or when there has been an electrical problem.

WARNING! This process will cut the audio signal and will replace it by a « sinus »! Don’t start this ON AIR.

Start by clicking « Calibration process» in the «Advanced » sub-menu of the « Setup » menu.

A series of windows will appear to help you through the process. Before starting link up TX1 and TX2 to measurement equipment. The

measurements can be in dBs, Volt peak to peak or in Volts.

To calibrate the processor click « Next », and the next screen will appear.

The first stage is to calibrate the main TX, (TX1). To set the DC, you have to first obtain 0V DC. 2 cursors allow you to obtain this measurement, « Coarse », and « Fine », to get the precise value. Then click « next ».

The next 2 stages are similar but concern the TX2.

Once you’ve adjusted the levels click « quit ». We advise you to save the calibration file on your hard drive or floppy so you can access it immediately.

Warning:

- A calibration file is dedicated to one processor. You will not be able to transfer file to another processor.

- Moreover the measurements may differ from one machine to another.

It is, imperative then to do a full calibration on each unit.

NOTA BENE:

Decibels (dB) Volts Peak to Peak

(Vcc/Vpp)

-6 dB 1.10 Vpp (Vcc) 0.388 Vrms

-4 dB 1.38 Vpp (Vcc) 0.489 Vrms

Volts RMS (Vrms)

-2 dB 1.74 Vpp (Vcc) 0.615 Vrms 0 dB 1.95 Vpp (Vcc) 0.774 Vrms

+2 dB 2.76 Vpp (Vcc) 0.975 Vrms +4 dB 3.47 Vpp (Vcc) 1.227 Vrms +6 dB 4.37 Vpp (Vcc) 1.545 Vrms

+8 dB 5.50 Vpp (Vcc) 1.945 Vrms +10 dB 6.93 Vpp (Vcc) 2.448 Vrms +12 dB 8.72 Vpp (Vcc) 3.082 Vrms

IV – THE PLUG-INS

IDT processors have an open and modular architecture which is open to receive plug-ins. These plug-ins are available from IDT Sound Processing Corporation and can be activated by a simple software upgrade.

There are 4 plug-ins available today. The IDT team regularly develops new plug-ins for your processors and we invite you to visit our web-site regularly or to subscribe to our « newsletter » to be among the first to be aware of new functions for your processors.

If you have not ordered a plug-in with your processor, or you want to test one that you don’t have all you have to is contact IDT Sound Processing Corporation for an evaluation which is limited to 30 days..

WARNING: the plug-in from IDT can only be tested once and only once and the 30 day trial period starts from the day it is loaded into the unit. Please make sure, then, to be ready for the test!

To install the plug-ins in your processor nothing could be more simple: In the « Help » menu, click « Load Plugin » and select the file of the plug-in that IDT has supplied.

Here are the plug-ins available from IDT and their features:

IV-1 -THE STEREO BOOST

The "Stereo Boost" Plug-In is displayed in the central screen.

The "Stereo Boost" Plug-In allows you to optimize the width of your stereo image without adding an external hardware enhancer.

Installation:

WARNING :

The Plug-In which has been sent to you corresponds exactly with the serial number of your processor as well as the software layers that it

uses. As a result it will only work with the machine that you specified with your order.

To install the "Stereo Boost" Plug-In:

1. Follow the instructions that are given to you along with the despatch of this Plug-In to install on your PC.

2. Launch the Master Gate software as usual.

3. Click "Load Plug In" in the Help menu.

4. The following window will be displayed :

5. Select the Plug-In that you want to load (In the example below: "STEREO BOOST")

6. Click "Open" at the bottom of the window.

Loading window for "Plug-Ins".

To switch the "Stereo Boost" ON/OFF:

1. Click the mode A or B above the Stereo Boost inscription in the top right hand corner of the screen:

2. The button is placed where you want it and shows it has been activated.

3. Do the same by clicking "OFF" to deactivate the enhancer.

• The A mode amplifies the difference in level between the left and right

channels.

• The B mode inserts a delay between the left and right channels

Enhance:

This function defines the delay time between the 2 channels.

NB :

When you use the Stereo Boost in A mode, you no longer have access to the Enhance command as this mode does not insert any delay.

To adjust the enhancement:

1. Place your mouse on the yellow triangle located to the right of the "Enhance" scale.

2. Stay clicked on your mouse and move the cursor up or down to get the desired value which will be displayed to the right of the cursor, (in the above example: 11 %)

3. By double clicking the value , you can enter a value from your digital keyboard.

Diffusion:

This function allows you to set the amplitude of the effect.

To adjust the diffusion:

1. Place your mouse on the yellow triangle located to the right of the "Diffusion" scale.

2. Stay clicked on your mouse and move the cursor up or down to get the desired value which will be displayed to the right of the cursor, (in the above example: 22 %)

3. By double clicking the value , you can enter a value from your digital keyboard.

Stereo Limiter:

To switch ON / OFF the enhancer:

1. Click "ON" above the Stereo Limiter inscription in the top right hand corner of the screen:

2. The button activated.

3. Do the same for "OFF" to deactivate the limiter.

Efficiency:

To adjust the efficiency of the breadth of the stereo image:

1. Place your mouse on the yellow triangle located to the right of the "Efficiency" scale.

2. Stay clicked on your mouse and move the cursor up or down to get the desired value which will be displayed to the right of the cursor, (in the above example: 11 %)

3. By double clicking the value , you can enter a value from your digital

keyboard.

is placed where you want it and shows it has been

Stereo Enhance Effect:

This scale displays, in real time, the percentage of the enhance effect on the stereo image, thus he efficiency of the enhancer.

Stereo Limitation Effect:

This scale displays, in real time, the percentage of the limiting effect on the stereo image, thus he efficiency of the limiter.

Final Stereo Image:

This scale displays, in real time the real breadth of the stereo image at the output of the processor.

IMPORTANT :

In FM the stereo signal is transmitted by a carrier which takes care of the L+R information and a sub-carrier modulated by the difference L-R. This means of transmission, called Multiplex is, as a rule, robust. However when there are multi-path problems of the high frequency signal (generally due to an indented geographical situation) receivers (e.g. car radios) can find it difficult to get a clear signal. If you give to much breadth to the "Stereo Boost" Plug-

In you can increase significantly these multi-path problems.

IV-2 - THE MPX GUARD

The "MPX Guard" Plug-In is displayed in the central screen.

Your processor has modular software architecture. This allows us to add components called "Plug-Ins", depending on your specific needs... Our MPX Guard allows you to, not only set the level of MPX power desired, but to follow constantly effect on the MPX, displayed in an icon in the main screen. The control of the MPX power respects absolutely the ITU-R 412-7 standard.

Installation:

WARNING :

The Plug-In which has been sent to you corresponds exactly with the serial number of your processor as well as the software layers that it uses. As a

result it will only work with the machine that you specified with your order.

To install the "MPX Guard" Plug-In:

1. Follow the instructions that are given to you along with the despatch of this Plug-In to install on your PC.

2. Launch the Master Gate software as usual.

3. Click "Load Plug In" in the Help menu.

4. The following window will be displayed :

5. Select the Plug-In that you want to load (In the example below: "MPX GUARD")

6. Click "Open" at the bottom of the window.

Loading screen for "Plug-Ins".

The Settings of the MPX Guard:

To put the MPX Guard ON:

1. Click "ON" above the order "MPX Guard".

2. The selector places itself on "ON", which shows that the command has been recorded.

3. Click "OFF" to deactivate the MPX Guard.

To set the desired MPX Power:

1. Set the arrow of your mouse on the yellow triangle located to the right of the "Target" scale.

2. Stays clicked on your mouse and move the cursor up or down to get the

desired value. This value will be displayed to the right of the cursor. (In the example above: 6 dBr)

3. Simple click on the value , it will be selected and you can set the value desired from your digital keyboard.

To adjust the integration time of the deviation measurement:

1. Set the arrow of your mouse on the yellow triangle located to the right of the "User Time" scale

2. Stays clicked on your mouse and move the cursor up or down to

get the desired value. This value will be displayed to the right of the cursor. (In the example above: 15 mn)

3. Double click on the value , it will be selected and you can set the value desired from your digital keyboard.

The Displays of the MPX Guard:

The MPX Guard Plug-In has 3 horizontal display scales which allow you to control with precision all the parameters.

MPX Attenuation: This scale graded from right to left, indicates the instantaneous rate of

attenuation applied to the power by the MPX Guard. The value is displayed

digitally above and the red liner moves in real time from right to left to show you the applied rate.

The maximum point attained by the line stays displayed by a red vertical bar. You can, thus, leave the MPX Guard "in surveillance" mode and know the maximum level of attenuation applied while you are away.

To reset to the red bar indicating the maximum value attained to zero click "Reset" located to the right of the "MPX Attenuation" scale.

MPX Power Fast: This scale indicates the power at the output of the Processor instantaneously. The

value is displayed digitally above and the yellow line moves in real time to indicate the current value.

The maximum point attained by the line remains on display by a red vertical bar. As a result you can let the "MPX Guard" watch over the signal and find the maximum value obtained while you were away.

To reset to zero the red bar shows the maximum value attained then click on "Reset" located to the right of the "MPX Power Fast" scale.

MPX Power User: This scale shows the power averaged by the integration time fixed by the

"Integration" command. The value is displayed digitally above and the yellow line also shows you the current value.

The maximum point attained by the line stays on display as a vertical bar. As a result you can let the "MPX Guard" watch over the signal and find the maximum value obtained while you were away.

To reset to the red bar indicating the maximum value attained to zero click "Reset" located to the right of the "MPX User" scale.

Tags :

If the resolution of your screen allows you a 1024 x 768 display the tags can stay on the screen. These tags give a certain amount of important information and give you rapid access to a great deal of features of your processor. See also: MPX Guard Tag.

The "MPX Guard Tag" allow you to conserve the most important information of the MPX Guard Plug-In in the general display of Master

Gate. The 3 scales described above are part of the tags.

"MPX Guard" tag

IV-3 – THE RDS PLUG-INS

The BASIC RDS Plug-In:

The "Basic RDS" is displayed in the central screen.

Your processor has a modular software architecture which allows you to add components called "Plug-Ins", depending on your specific needs. The "Basic RDS" Plug-In allow you to generate the main RDS information without having to turn to an external encoder.

Installation:

WARNING :

• The Plug-In which has been sent to you corresponds exactly with the

serial number of your processor as well as the software layers that it uses. As a result it will only work with the machine that you specified with your order.

To install the "Basic RDS" Plug-In:

1. Follow the instructions that are given to you along with the despatch of this Plug-In to install on your PC.

2. Launch the Master Gate software as usual.

3. Click on "Load Plug In" in the Help menu.

4. Click "Load Plug In" in the Help menu.

5. Select the Plug-In that you want to load (In the example below: "BASIC RDS")

6. Click "Open" at the bottom of the window.

The loading window "Plug-Ins".

To switch the RDS code ON or OFF:

1. Click "ON" above the RDS inscription at the top left hand side of the window :

2. The button is placed where you want it and shows it has been activated.

3. Do the same by clicking "OFF" to deactivate the coder.

To enter the PI code:

1. Click the "PI" field.

2. If necessary use "Del" and/or "Ret." to delete the existing number.

3. Enter the 4 character PS code which has been allocated to you.

To enter the PS code:

1. Click the "PS" field.

2. If necessary use "Del" and/or "Ret." to delete the existing number.

3. Enter the 8 character PS code which has been allocated to you.

To transmit the date and time into the RDS code: NB: It is the date and time of the processor’s internal clock that are transmitted .See

also: Link clock to PC.

1. Click "ON" above the Time & Date inscription:

2. The button is placed where you want it and shows it has been activated.

3. Do the same by clicking "OFF" to deactivate the transmission.

To choose the programme type:

1. Click the scrolling menu "PTY".

2. Choose the type that best suits the programme of your station.

3. The scrolling menu will disappear.

To send Radio Text:

1. Click "ON" above the Radio Text inscription:

2. The button is placed where you want it and shows it has been activated.

3. Do the same by clicking "OFF" to deactivate the transmission.

To enter or modify the Radio Text sent:

1. Click the "RT" field.

2. If necessary use "Del" and/or "Ret." to delete the existing number.

3. Enter the text you wish to send.

To activate the TP function:

1. Click "ON" above the TP inscription:

2. The button activated.

3. Do the same by clicking "OFF" to deactivate the function.

New features:

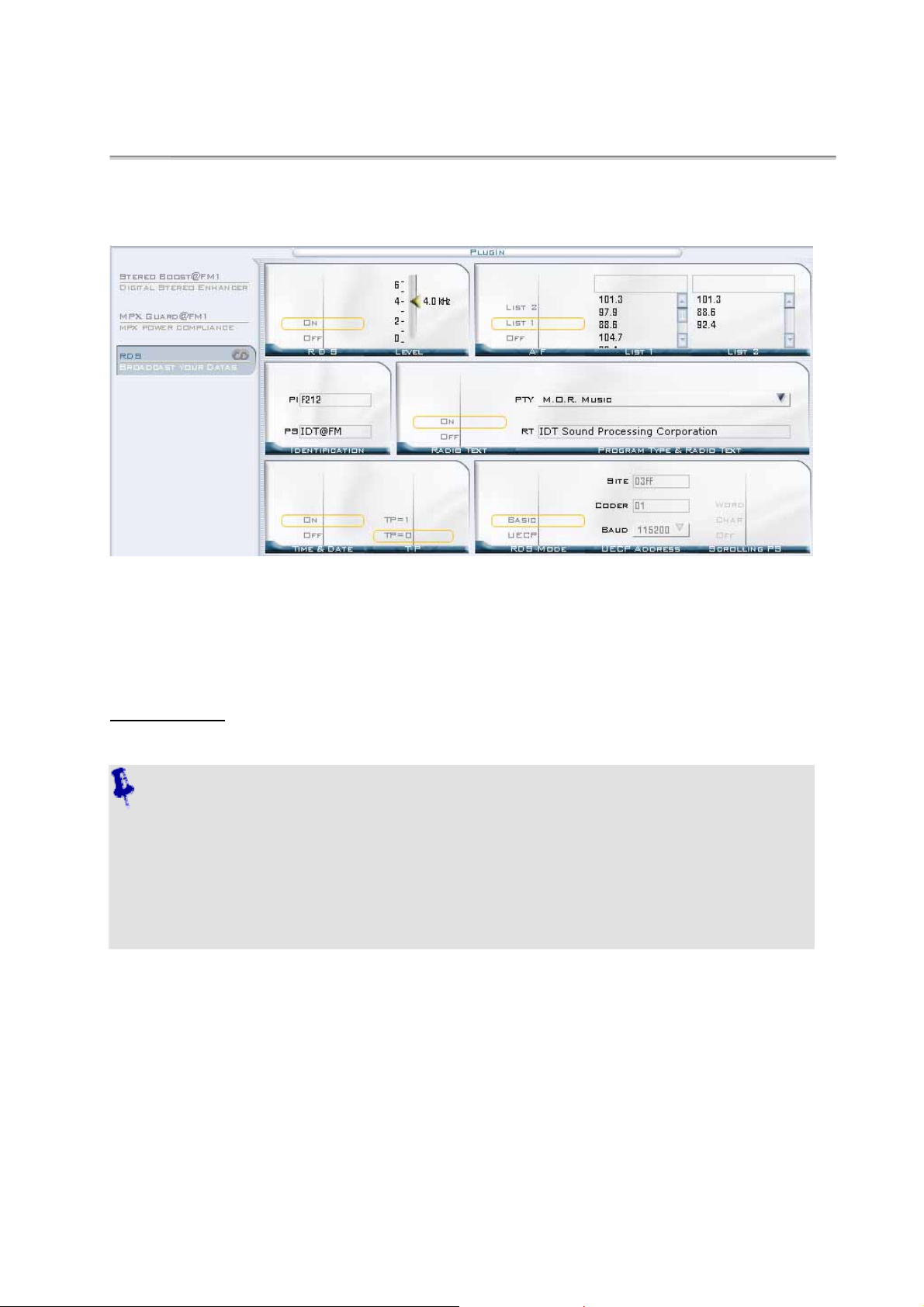

The new version of the RDS @ FM1 coder allows a management of the AF list, used notably in the case of a grouping of broadcasting stations not diffusing the same program. You thus have the possibility during local or advertising unhooking to modify this list by means of Local Switche.

The list AF 1 being the main list and the list AF 2, the one that you will use during your unhooking. This new function will allow you to assure a quality of reception with your mobile auditors.

is placed where you want it and shows it has been

Majorities:

In general rules, the first frequency of the AF list is the main frequency of the broadcasting station, that or is installed the RDS coder.

In the case of a switching of list, it is desirable that this frequency is also at the head of list if you delete the rest of the list.

To add Alternate Frequencies :

1. Click the square field of the LIST 1.

2. Enter the frequency to add and click Enter on your keyboard :

"Alternate Frequencies" Menu.

To delete an alternate frequency:

1. Click the frequency to delete; this will be displayed in « bright ».

2. Press the « DEL » key of your keyboard.

«Alternate Frequencies" menu.

To modify the order of a frequency in the ‘’List 1’’:

1. Click the frequency you want to move by keeping your finger down on the mouse.

2. Slide the selected frequency to where you want to place it.

Alternate frequencies of the ‘’List 2’’: As a general rule the list "List 2" resumes partially the AF list "List 1". You

have the possibility to duplicate the list "List 1".

1. Click on the first frequency of the list "List 1" and make the command "Ctrl A" on your keyboard, to select the entire list.

2. Make slide the selection towards "List 2".

3. Delete then the frequencies not wished of the "List 2".

Switching of lists:

1. By the software, click on "List 1" or "List 2".

2. By means of the Local Switche.

The Dynamic RDS Plug-In:

The "Dynamic RDS" plug-in is displayed in the central screen.

To install the "Dynamic RDS" Plug-In:

1. Follow the instructions that are given to you along with the despatch of this Plug-In to install on your PC.

2. Launch the Master Gate software as usual.

3. Click "Load Plug In" in the Help menu.

4. The following window will be displayed :

5. Select the Plug-In that you want to load (In the example below: "FULL RDS")

6. Click "Open" at the bottom of the window.

Loading window for "Plug-Ins".

To switch the RDS code ON or OFF:

1. Click "ON" above the RDS inscription at the top left hand side of the window :

2. The button is placed where you want it and shows it has been activated.

3. Do the same by clicking "OFF" to deactivate the coder.

To switch the UECP coder ON:

1. Click "UECP" below RDS Mode inscription at the bottom left of the window

2. The button is placed where you want it and shows it has been activated.

UECP Address: In dynamic mode it is necessary to give an address to the coder. Here, you will

define:

- the address of the site (hexadecimal number from 0 to 3FF),

- the address of the coder (hexadecimal number from 0 to 3FF),

- the speed of transmission from 2400 to 115200 bauds... Scrolling PS: WARNING: this function is not allowed in a number of countries. The «Dynamic RDS «allows the RDS to scroll so the information that is normally sent

by Radio Text (RT) will be sent in PS. The scrolling PS allows 2 ways of working;

The "Char" mode:

- scrolling is character by character,

The "Word" mode:

- scrolling is done word by word automatically for words over 8 characters long. To use this mode text must be preformatted with at least 8 characters.

Text information to be sent in Scrolling PS is delivered to the processor via the data port with the UECP (SPB490) protocol.

NB: radio text transmission is automatically deactivated when a scrolling text mode is activated.

Transmission of UECP data:

1. The data is delivered to the coder via the "Data" DB9 connector located on the

back panel of the processor.

List of functions:

- PI

- PS

- DI

- TA/TP

- MS

- PTY

- RT

- AF

- EON-AF

- Link

- Real Time Clock

- CT On/Off

- RDS On/Off

- Site Address

- Encoder Address

- Make PSN list

- PSN enable/disable

- Communication port configuration speed

- Scrolling PS

All these functions are compatible with the EN 50067 (1998), NRSC US RDBS (1998) and SPB 490 version 5.1 (1997) standards. So, simplify your life and stop stacking racks of equipment by loading this plug-in directly into your IDT processor.

Simplified bloc diagram of the DEP

Examples of uses of DEP @ FM:

General specifications:

Frequency response: +0 / - 0.4dB, 10-20000Hz (Bypass mode). System distortion: < 0.01% THD, de-emphasised Signal to Noise: 92 dB unweighted, 20 Hz - 20 kHz I/O Delay: ~3 milliseconds

General specifications

Internal sample rate: 96 kHz Internal resolution: 40 bit floating point I/O resolution: 24 bit Maximum Overshoot: 0.1 dB Phase Response: Linear 20 Hz - 20 kHz Process Architecture: Wide band AGC / Final limiter APC® overdrived DSP: 4 Sharc 21065, Maximum number of Factory Presets: 10 Maximum number of User Presets: 10 Remote contact closure: 8 inputs and 12 outputs

Analogue Audio Input:

Configuration: Stereo Impedance: > 6 kOhms Type: Electronically balanced Maximum Input Level: +25 dBu, for THD + N < 0.01% Equivalent Input Noise: < - 84 dBu Common Mode Rejection Ratio: 90 dB Connector: Two XLR female AD Conversion: 24 bit 128X oversampled

Digital Audio Input:

Configuration: Stereo per AES/EBU (AES3), 16, 18, 20 or 24 bit resolution. Impedance: 110 ohms Sampling Rate: 32, 44.1, 48, 96 kHz autodetect Status bits: Input channel status is decoded for control. Input User bits are optionally passed through the output Connector: XLR female, EMI-suppressed Filtering: RFI filtered. Effective 0.5-1000MHz

Digital Audio Output:

Configuration: Stereo per AES/EBU (AES3), 20 or 24 bits resolution. Impedance: 110 ohms Sampling Rate: Software selectable, free running at 32 kHz +/- 10 PPM, 44.1 kHz +/- 10 PPM, 48 kHz +/- 10 PPM, 96 kHz +/- 10 PPM. Synchronisation mode: Internal free running or external or delivery mode for 32, 44.1, 48, 96 kHz Word Length: Selectable 18, 20, 24 bits. Jitter: Less than 5 ns rms. Status bits: Output channel status can be generated. Input User bits are optionally passed through the output Connector: XLR female, EMI-suppressed Filtering: RFI filtered. Effective 0.5-1000MHz

Digital Sync Input / Output:

Configuration: Two mode, input to provide sync, Output to deliver sync Impedance: 75 ohms Sampling Rate for Input mode : 32, 44.1, 48, 96khz Sampling Rate for Output mode : Software selectable , 32kHz +/- 10 PPM, 44.1kHz +/- 10 PPM, 48kHz +/- 10 PPM, 96kHz +/- 10 PPM. Connector: BNC female,

Digital Stereo Generator:

Frequency Response: +/- 0.1 dB 20Hz - 15 kHz Configuration: Two independently controlled output TX1: Multiplex signal TX2: Programmable (multiplex or 19 kHz) Source impedance: 75 ohms Load Impedance: 75 ohms or greater Level: Adjustable max 15 Vpp (100% modulation ~ -3 dBFS) Connector: BNC Pre-emphasis: 50 or 75μs Stereo separation: More than 90dB, 20Hz - 15 kHz Main to Sub crosstalk, Sub to Main crosstalk : < -85 dB Audio Filtering: 80 dB rejection at 19 kHz Pilot stability: +/- 0,2 Hz

RDS / RDBS: (optional)

Basic RDS/RDBS: PI, PS, AF, PTY, RT, RTC Dynamic RDS/RDBS: via port data UECP (Universal Encoder Communication Protocol) Data port: RS232 manual selection baud rate 9600 to 115200

Remote computer interface:

Configuration : Two RS 232 Connector : One Sub-D 9 pin female and one Sub-D 9 pin male on the back side and one Sub-D 9 pin female on the front panel Baud rate : Auto selectable baud rate 9600 to 115200 bauds

Remote control

Configuration: Fully remote controllable by external modem or with the TCP/IP (optional) Rate: 9600 to 115200 baud

Local Switch GPI/O:

Configuration: 8 inputs and 12 outputs software controllable

Power: Voltage: 80 to 265 VAC, 50 - 60 Hz, 130 VA Connector: IEC, EMI-suppressed Safety Standard: CE / DBT

Environmental and Dimensions:

Operating Temperature: 0° to 50° C or 32° to 122° F Humidity: 0 to 95% RH, non condensing Size: 19'', One rack unit high. Weight: 6 Kg - 13.2 lb.

IDT Sound Processing Corporation reserves the right to make changes without previous notification. Illustrations,

tions and characteristics are not contractually binding and not engage the responsibility of the manufacturer.

descri

IDT – SOUND PROCESSING CORPORATION – TECHNOPARC – 5 Allée Moulin Berger – 69130 ECULLY – France

Tel +33/(0) 472.18.19.20 - Fax +33/(0) 472.18.19 .21 - Web www.idt-fr.com – e-mail : mail@idt-fr.com

IDT Digital Encoder Plus User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important Warning :

Location of the equipment :

Power Supply :

SOMETHING TO READ BEFORE SETTING UP !

Test or loan period of the equipment:

Packaging and return of the equipment.

Maintenance of your Processor.

Storing your equipment for a long period without use

EU declaration of Conformity

User Manual

MENU

Abbreviations

I - INTRODUCTION

 WEEE

II - INSTALLATION

 Physical Installation

 Electrical Installation

II-1 - Connections

XLR audio in / Out

 Specifications:

XLR AES / EBU In / Out

 XLR Input

 BNC Synchro I/O

 Specifications

RS 232 - RS 232 Modem

 Specifications

Port Ethernet

Local Switches/GPIO

 Specifications

Port « Data »

TX1 & TX2

 Specifications for TX1 & TX2

AC Input

 Specifications

II-2 – The Front Panel of the DEP

 Supplementary RS 232 port:

II-3 – Installing the « Master Gate » software

Installation:

II-4 – Connecting your processor to a PC

Configuring the connections

1. Direct connection

2. Connection by Modem

3. Connection by TCP/IP

 DHCP

 Attribution of a fixed IP address for your processor.

 Firewall / Access control :

1. IP Remote Manager

2. Broadcaster Rights Manager

3. User Rights Manager

4. Digital Virtual Upgrader II

5. IP Upgrader

6. Live Recall

III - SETTINGS

III-1 – Quick Start Up

First launch of the software:

1. The Tools Tips

2. Menu bar

3. The vu-meters

4. Central Icon bar

5. The central window

6. State bar

7. The other tags

III-2 – The first settings

1. Setting the levels

 Setting the TX level

 Setting the analogue and digital levels

2. The Presets

The Preset explorer – Use

The User Presets folder:

1. To load a Factory Preset into the User Presets folder:

2. To rename a User Preset :

3. To delete a User Preset :

4. To put a User Preset ON AIR :

5. Basic rules for presets :

III-3 - Calibration process

IV – THE PLUG-INS
