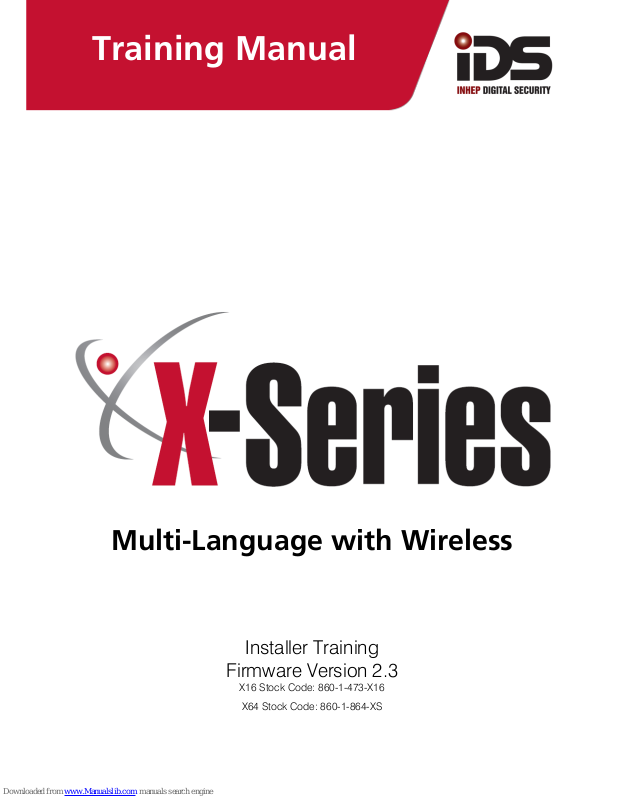

Page 1
Multi-Language with Wireless
Installer Training
Firmware Version 2.3
X16 Stock Code: 860-1-473-X16
X64 Stock Code: 860-1-864-XS
Training Manual
Page 2
2
Contents | IDS X Series Training V2.3
Page 3
IDS X Series Training V2.3 | Contents
3
Contents
Contents ________________________________________________________________________________________________3
Features ________________________________________________________________________________________________4
Hardware _______________________________________________________________________________________________5
Wireless Device Hardware setup ____________________________________________________________________________8
Entering Data __________________________________________________________________________________________ 10
Reading Numerical Values Stored in Locations via an LED Keypad _____________________________________________ 10
Programming __________________________________________________________________________________________ 11
Location Definitions _____________________________________________________________________________________ 12
Zone Types and Their Values _____________________________________________________________________________ 15
Global Settings ________________________________________________________________________________________ 16
Daylight Savings _______________________________________________________________________________________ 21
Advanced Miscellaneous Settings _________________________________________________________________________ 23
Communication Settings ________________________________________________________________________________ 24
Zone Properties ________________________________________________________________________________________ 27
Auto Arm and Alarm ____________________________________________________________________________________ 28
Security Options _______________________________________________________________________________________ 30
Partition Options _______________________________________________________________________________________ 32
Keypad Configuration ___________________________________________________________________________________ 35
Wireless ______________________________________________________________________________________________ 38
Reporting Codes _______________________________________________________________________________________ 43
Extending Contact ID Zone Reporting ______________________________________________________________________ 45
Triggering Outputs _____________________________________________________________________________________ 46
Event Reporting Codes __________________________________________________________________________________ 52
Appendix _____________________________________________________________________________________________ 56
Contact ID Zone Reporting _______________________________________________________________________________ 57
Default 5 ______________________________________________________________________________________________ 59
Default 6 ______________________________________________________________________________________________ 63
Features Grouped by Locations __________________________________________________________________________ 67
User Menu ___________________________________________________________________________________________ 70
Keypad Key Descriptions ________________________________________________________________________________ 71
Standard User Functions ________________________________________________________________________________ 72
Standard Master User Functions __________________________________________________________________________ 75
Setting the Time and Date _______________________________________________________________________________ 83
Master Mode menu _____________________________________________________________________________________ 83
Alarm Memory _________________________________________________________________________________________ 84
New Partition Menu on LCD keypads ______________________________________________________________________ 85
Trouble conditions ______________________________________________________________________________________ 86
Quick Guide ___________________________________________________________________________________________ 87
Page 4
4
Features | IDS X Series Training V2.3
Features
1. Auto arm / disarm
a. Per partition
b. By day of week
c. Pre-determined time
d. No movement
2. Four reporting numbers
a. Dual reporting
b. Split reporting
3. Medical Alarm on no movement
4. Maintenance code
a. Siren time and delay
b. Keypad lockout
c. Day light savings
d. No movement auto arm / disarm
e. Auto arm
5. Selectable bypass via user code
6. Dynamic battery test
7. Low battery cut out
8. Improved power supply
9. Programmable zone loop response
10. Up & downloadable via software
11. Fax defeat to bypass fax / answering machines
12. Optional tamper reporting per zone
13. Non-volatile memory
14. Voice reporting and DTMF control
15. Wireless Integration
16. Multi-Language: English, Afrikaans, Portuguese, Spanish, Greek, Italian
This manual incorporates the X16 & X64 alarm panels. References are to both and depending on
the system you are working on will depend on how to interpret the information.
Example: If zones above 16 are mentioned then X64 is being described.
Training must be done with X64 panels as some of the exercises are not suitable for X16.
Page 5
IDS X Series Training V2.3 | Hardware
5
Hardware
1. Kick Start Jumper
When connecting to a battery, without 16VAC connected, the X-Series will
not power up until the kick start jumper has been shorted for a second. This
feature has been included so that if the battery voltage starts fluctuating and
goes below 10.5 volts, without AC, the panel switches off, stopping the
alarm from entering any undesirable states that could compromise the
integrity of the system. When AC is applied the alarm will power up
automatically.
2. Default button & 3. Panel Status LED
To default the panel, physically remove power from the unit and press down the
default button. Replace power whilst still holding down the button. Wait until the
panel status LED flashes once and then release the button.
The status LED indicates the condition of the operating system.
4. Serial Output
The serial output is for connecting the voice module, serial communicators and direct download device.
1. Kick Start
7. Connectors
5. Outputs
3. Status LED
Figure 1 X-Series Alarm Panel
6. Onboard
Expander Connector
4. Serial Out
K/START
2. Default Button
Serial Connector
Ground
Rx
Tx
Default Button
Panel Status LED
Page 6
6
Hardware | IDS X Series Training V2.3
5. Outputs
Five positively triggered outputs that can supply 80mA of current.
6. Onboard expander connection
The X-Series can be expanded via expanders. Zones 9 to 16 are added by plugging the onboard
expander onto the PCB via this connector.
Onboard Expander
8 pin connect Standoff mounting hole
7. X-Series Connectors
The above figure shows how the X-Series connectors are laid out. Each connection is briefly discussed,
but more detailed information can be found at the end of the manual in appendix 1. Please note that
devices, especially between different manufacturers, are different and the manuals should be thoroughly
read and understood before attempting installation.
7.1 AC Power
The X-Series Alarm Panel requires 16V AC to be connected
to the AC connector on the board. The minimum
recommended transformer is a 16V 32VA, but the
recommended transformer is a 16V 40VA transformer.
7. 2 TX
The Tx connection can supply enough power for radios up to 15 watts.
NOTE: Please use cable with a minimum of 0.5mm copper core
depending on the distance between system and radio transmitter.
Page 7
IDS X Series Training V2.3 | Hardware
7
7.3 Aux 12V
The X-Series Alarm Panel can supply 750mA of power to all buswired peripherals, including keypads, expanders and remote
receivers, etc.
7.4 Siren
The siren connects directly to the siren output and can drive up to a 30 watt
siren.
Note: The siren must be self-driven and cannot be a speaker, etc.
7.5 Keypad Bus
The devices connected to the bus should be connected in a daisy
chain formation for the best results.
The keypad has a programmable output (PGM). The PGM functions
the same as the onboard programmable outputs, except that it
triggers with 5V and not 12V.
The zone works exactly like a normal zone with an end-of-line
resistor. When using the zone it will replace the zone that it has been
programmed as. E.g. if the keypad zone has been programmed as
zone 10, zone 10 on the board will be shut down and cannot be
used.
7. 6 Zones
No Tamper Tamper
Devices that are connected to zones are divided into two
categories, normally open (NO) or normally closed (NC).
Some devices have both and the installer can select either,
depending on their preference.
NOTE: The end of line resistor must be 3K3Ω (Ω = ohm)
For a tamper installation a 12kΩ and a 4K7Ω
End of Line 3k3 Ohm 12K & a 4k7 Ohm resistor
resistor
Page 8
8
Wireless Device Hardware setup | IDS X Series Training V2.3
7.7 Panic Zone
The dedicated panic zone is end-of-line supervised and for safety reasons,
if this resistor is not detected the system will not arm.
7.8 Telephone Connections
The line coming into the building must go directly to the alarm panel and
then onto any telephones. This will stop any attempt to disrupt
communication by taking the phone off the hook.
Wireless Device Hardware setup
Note: The import thing to remember is that when you have chosen the supervision time of 3Hrs
on the X-Series is to make sure the detectors are also set to 90min.
The correct hardware must be used as the older Duevi wireless detectors will not learn to
the integrated receiver
Duevi Outdoor Wireless Dual Head PIR - 866-DX-OPWF
Note: To learn the dual PIR to the X-Series first get both PIR heads to detect movement then press
the tamper switch when in location 260 sub-location 1 and the correct zone number has
been selected
Dip Sw
Function
Enable /Disable
Description
1
Double Pulse
Off = Disabled
When enabled the upper head must
trigger twice within 25 seconds before
an activation is sent
On = Enable
2
IR Sensitivity
Off = High
On = Low
3
AND Mode
Off = Normal
Directional means that the lower head
must trigger first for the device not to
send an alarm signal.
On = Directional
4
Test Mode
Off = Normal
Enables head LEDs and buzzer for
testing. ( JP4 must be closed for
buzzer to sound)
On = Test Mode
5
Supervision
Off = 90 minutes
This is the interval that the device waits
between supervision signals that are
sent to the X-Series alarm
On = 12 Hours
6
Continuous
detection
Off = Quiet time
Once the device has triggered it will
wait 30 seconds before triggering
again. If during the 30 seconds
movement is seen the 30 seconds is
reset and the countdown starts again
On = Continuous
Page 9
IDS X Series Training V2.3 | Wireless Device Hardware setup
9
Duevi Wireless Door Contact including input - 866-DX-PWF
Inputs 1 and 4 can be used but the serial number must be entered via keypad into location 260 sublocation 1.
JP2 jumper: On = 12Hrs Off = 90min
Tamper On = Disabled Off = Enabled
Note: To learn the door contact to the X-Series press the tamper switch when in location 260 sub
location 1 and the correct zone number has been selected.
Duevi Wireless Indoor Wireless pet tolerant (18kg) PIR - 866-DX-PWF
SPV jumper: On =12Hrs Off = 90min
Note: To learn the indoor PIR to the X-Series press the tamper switch when in location 260 sub
location 1 and the correct zone number has been selected.
Duevi Outdoor E-Wall with PIR & Microwave - 866-DX-EWF
Note: To learn the door contact to the X-Series press the tamper switch when in location 260 sub-
location 1 and the correct zone number has been selected.
Dip Sw
Function
Enable /Disable
Description
1
Mode
Off = Test Mode
On = Normal
2
Pulse
Off = 1 pulse
On = 2 pulse
3
Tamper
Off = Enabled
On = Disabled
4
LED
Off = No LED
On = LED
Dip Sw
Function
Enable /Disable
Description
1
Tamper
Off = Enabled
On = Disabled
2
Sensitivity
Off = High
Door installation
On = Low
Window installation
3
Transmission
Off = Normal
In test mode the device will transmit
every time it is triggered
On = Test
4
Supervision
Off = 90 minutes
This is the interval that the device waits
between supervision signals that are
sent to the X-Series alarm
On = 12 hours
1 2 3 4
Input 1
Serial No: + 2
Input 2
Common
Input 3
Parallel to
reed switch
Serial No:
Input 4
Serial No: + 1
Page 10
10
Entering Data | IDS X Series Training V2.3
Entering Data
Below is a description of the keys to be used when entering data:
Feedback while entering data
1. Single extended beep = correct entry
2. 3 beeps = incorrect entry
Reading Numerical Values Stored in Locations via an LED Keypad
When using an LED keypad, values will be displayed in Binary format. Every zone is given a value which
needs to be added together to makeup the value in the location.
Units
Zone
Value
1
1
2 2 3
4
4
8
Example:
Thousands
Zone
Value
13
1000
14
2000
15
4000
16
8000
Hundreds
Zone
Value
9
100
10
200
11
400
12
800
Tens
Zone
Value
5
10 6 20 7 40
8
80
Zone
Value
3 4 6
20 9 100
Total
124
Zone
Value
1 1 4
8
Total
9
Enter Key
The * key has two functions
1. To save the data that has been
entered
2. To scroll through locations with
data already entered
Clear / Exit Key
The # key has two functions:
1. If data is entered incorrectly press
the # key to clear what was entered.
2. If no data is to be entered and you
want to exit the location or installer
mode
Scroll keys >> &<<
When in a menu >> will scroll forward
through the menu and << will scroll
you backward.
LCD keypad only
Mode Key
Use the mode key to enter
Hexadecimal numbers
The value is 9
The value is 124
+
=
+ + =
Page 11
IDS X Series Training V2.3 | Programming
11
Reading Time Locations via an LED Keypad
When reading time on an LED keypad remember that time is always in the 24 hour format, (mm:ss,
hh:mm), therefore each digit has four zone LEDs associated to it. Example, zone 1 to 4 belong to digit 1,
zone 5 to 8 belong to digit 2, etc. as shown below. As with calculating any value each zone is given a
value, zone 1/5/9/13 have a value of 1, zone 2/6/10/14 have a value of 2, zone 3/7/11/15 have a value of 4
and zone 4/8/12/16 have a value of 8.
H = Hour m = minutes s = seconds
Value
1
2
4
8
m m s s
H H m m
Example:
Programming
Installer Mode
Installer mode is where all program settings can be changed to suit any installation requirements.
The default installer code is “9999”.
Note: Please remember to change the installer code when you have completed the installation.
(Location 197)
Exercise:
Entering the installer code.
Instructions
Key presses
Clear any previously pressed keys that maybe in memory
[#]
Enter the installer code and confirm with a * (Default is 9999)
[9] [9] [9] [9] [*]
The ready LED will begin to flash indicating installer mode
m m s s
2 1 4 0
The time in this location is:
21 minutes and 40 seconds
Page 12
12
Programming | IDS X Series Training V2.3
Location Definitions
A location is an area of memory that holds a value. Each location is associated to a function that the alarm
needs to operate correctly. These locations have options, other locations or different data that can be
entered, to allow for customisation depending on the property being protected and on the monitoring
company.
1. Standard Location
A standard location is an area of memory that holds a value only.
2. Extended Location
An extended location is a location that has multiple sub-locations within it.
3. Bitmap
A bitmapped location is a location that has more than one option in it and each option needs to be
enabled or disabled depending on the requirements.
Programming Standard Locations
A standard location is an area of memory that holds a value only.
To program a standard location:
1. Enter Installer mode [#] [9] [9] [9] [9] [*] (This step is only required if you are not already in installer
mode)
2. Then press the keys that represent the location number followed by the [*] key
3. Now enter the data value that needs to be in the location followed by the [*] key
4. You can enter the next location or press the [#] key to exit Installer mode
Programming Extended Locations
Sub-location Method
The sub-location method programs each sub-location within a location individually.
Entering data in the sub-location format:
1. Enter Installer mode [#] [9][9][9][9] [*] (This step is only required if you are not already in installer mode)
2. Then press the keys that represententer the location number followed by the [*] key
3. Then press the keys that represententer the sub-location number followed by the [*] key
4. Now enter the data value that needs to be in the location followed by the [*] key
5. You can enter the next sub-location or press the [#] key to exit the location
6. You can enter the next location or press the [#] key to exit Installer mode
String Method
The string method programs all sub-locations within a location at once.
Entering data in the string format:
1. Enter the location (E.g. [1] [*] )
2. Now enter the complete string of data (E.g. [0][1] [0][2] [0][4] [0][4] [0][4] [1][0] [0]5] [0][3] [*])
3. When the [*] key is pressed at the end of the string, you will be removed out of the location and the
data saved. If there is an error you will hear 3 error beeps, and will remain in the location to re-enter
the data.
Page 13
IDS X Series Training V2.3 | Programming
13
Programming Bitmap Locations
A bitmapped location holds many options within a single location that have to be selected or deselected.
Bitmapped locations can also be sub-locations.
1. Enter Installer mode [#] [9][9][9][9] [*] (This step is only required if you are not already in installer mode)
2. Then press the keys that represent the location number followed by the [*] key
3. Below is a diagram of what you may see when entering a bitmapped location or sub-location
4. To enable or disable an option, press the number corresponding to the option, then press the [*]
key, the number will come on if it was off or go off if it was on.
5. On the LCD keypad when the [*] key is pressed you will be taken to the option you have chosen.
This will show you the current value and if you want to then change the value, press the [*] key
(You can also scroll through the options using the scroll keys [>>] [<<])
6. Continue with any other options you wish to change
7. When complete, press the [#] key to exit the location or sub-location.
Review:
Location Type
Keys Presses
Entering the Installer Code
[#] [9] [9] [9] [9] [*]
Standard Location
[Location Number] [*] [Value] [*]
Bitmap Location
[Location Number] [*] [Option] [*] [Option] [*]....[#]
Sub-location method
[Location Number] [*] [Sub-location Number] [*] [Value] [*]
String method
[Location number] [*] [all values to be entered] [*]
LED Keypad
LCD Keypad
Enabled option – number is on
Disabled option – number is off
Y – Option Enabled
N – Option Disabled
Page 14
14
Locations | IDS X Series Training V2.3
Locations
Location 0: Defaults
Location Type: Standard
This location is used for defaulting the alarm system.
Value
Action
0
Default the complete system back to factory settings
1
Will default the Primary Master User Code back to 1234 - or 123456 if 6 digits are being used.
Master User Code properties will also be defaulted.
2
Defaults ALL user codes and their properties.
3
Defaults ALL keypads.
4
Remove Missing Devices.
Any missing devices (keypads, for example), will have its address freed up, making its address
available for a new device when it is enrolled. This MUST be performed when replacing a faulty device.
(You must wait for 10 seconds.)
5
“Central Monitoring Mode” default setting change. Defaults some settings to factory default and
changes some others.(Implemented in vers.2 please see appendix for complete listing)
6
“Private Reporting Mode” settings change. Defaults some settings to factory default and changes some
others (Implemented in vers.2 please see appendix for complete listing)
7
Defaults all wireless zones and settings
Exercise: Defaulting back to factory settings
Location 1 to 8: Zone Type
Location Type: Extended Sub-Location
Can be programmed using the string method.
Loc
Zone Types
[1]
Z1
Z2
Z3
Z4
Z5
Z6
Z7
Z8
01
02
04
04
04
04
04
04
2
Z9
Z10
Z11
Z12
Z13
Z14
Z15
Z16
--
--
--
--
--
--
--
-- 3 Z17
Z18
Z19
Z20
Z21
Z22
Z23
Z24
--
--
--
--
--
--
--
-- 4 Z25
Z26
Z27
Z28
Z29
Z30
Z31
Z32
--
--
--
--
--
--
--
-- 5 Z33
Z34
Z35
Z36
Z37
Z38
Z39
Z40
--
--
--
--
--
--
--
-- 6 Z41
Z42
Z43
Z44
Z45
Z46
Z47
Z48
--
--
--
--
--
--
--
-- 7 Z49
Z50
Z51
Z52
Z53
Z54
Z55
Z56
--
--
--
--
--
--
--
-- 8 Z57
Z58
Z59
Z60
Z61
Z62
Z63
Z64
--
--
--
--
--
--
--
--
As can be seen in the table above, Loc [1] has a square bracket around it, indicating that it is a root
location. This means that, zone types can be entered in the string method, for zones 1 to 8 or the sublocation method for all 64 zones.
Instructions
Key presses
Enter installer mode
[#] [9] [9] [9] [9] [*]
Enter location zero
[0] [*]
Enter a value of zero
[0] [*]
The keypad will begin to beep until all locations have been reset. The LEDs on the
keypads will flash indicating that they have no IDs and the system is defaulted.
The table on the right shows each location
and the defaults programmed into them at
the time of manufacture.
Zones 1 to 8 are the only zones
programmed with zone types.
All other zones must be programmed and
allocated to a partition, as described below.
Root Location:
Page 15
IDS X Series Training V2.3 | Locations
15
Zone Types and Their Values
The value indicated in the left column of the table, is the information that must be entered. Each zone must
have a type associated to it, for the alarm to react accordingly when violated. Think of a sports team each
player is given a function, defender, attacker, etc. This allows them to function within the game which is the
same with each zone; their function is what causes them to work correctly for the security that is needed.
Exercise:
Value
Zone Type
Description
00
DISABLED
This disables the zone.
01
PRIMARY ENTRY
/ EXIT ZONE
An Entry/Exit zone is used to determine if the occupants have left the building once
the arming procedure is initiated. Violating an Entry/Exit zone when armed will initiate
the entry delay. If a valid User Code is not entered before the entry delay period
expires, an alarm condition will be registered. Failure to exit through an Entry/Exit zone
after arming will cause the panel to Stay Arm.
This zone may also function as an Entry/Exit zone that is COMMON to two partitions.
In such a case, should a user violate this zone and then disarm his partition, the
OTHER partition will re-arm after the entry delay.
02
FOLLOWER
ZONE
A violation of a Follower zone is ignored during the Entry/Exit delay period (this allows
the user to enter/exit via the Follower zone). A Follower zone will behave as an Instant
zone if the panel is armed and an Entry/Exit zone is not violated prior to violation of the
Follower zone.
03
PANIC /
PRIORITY ZONE
Regardless of whether the panel is armed or not, a violation of a Priority zone will
cause the control panel to register a panic condition. This zone type CANNOT be
bypassed.
04
INSTANT ZONE
When the panel is armed the violation of an Instant zone will cause the control panel to
register an alarm condition.
05
ARM / DISARM
ZONE
The violation of an Arm/Disarm zone will cause the panel to toggle between (away)
armed and disarmed. It is typical to connect a momentary key-switch, or non-latching
remote control unit to this zone.
08
SECONDARY
ENTRY / EXIT
ZONE
The Secondary Entry delay will be activated if this zone is violated when the panel is
armed.
09
INSTANT FIRE
ZONE
The zone will trigger on the first violation of the smoke detector
10
FIRE ZONE
Violation of a Fire Zone will cause the siren to sound regardless of whether the panel is
armed or not. The siren will sound intermittently (one second on, one second off). For
correct operation, a programmable output programmed as a fire detector power
output must be used to control power to the fire detector.
11
TAMPER ZONE
Violation of this zone will be reported to the base station regardless of whether the
panel is armed or disarmed. If the panel is armed, the siren will be activated.
12
24 HOUR
ALARM ZONE
This works the same as a Panic zone – with the exception that it is able to be
bypassed.
13
WARNING ZONE
When the panel is armed, violation of a Warning zone will cause the siren to beep. The
violation is logged in the event log but it is not reported to the base station. Warning
zones may be included and will be counted when used as part of the cross-zone
15
OUTDOOR
INSTANT ZONE
When the panel is armed the violation of an Outdoor Instant zone will cause the panel
to register an alarm condition the only difference compared to instant zone is the
contact ID code sent to the control room.
Page 16
16
Global Settings | IDS X Series Training V2.3
1. Programming zones using both the string and bitmapped methods.
a. Let‟s program zones 9 to 16 using the string method and zones 17 to 24 using the bitmapped sub-
locaton method
b. The table describes what type of zone each one will be
Zone
Type
Value
Zone
Type
Value
9
Secondary Entry / Exit
08 17
Entry / Exit
01
10
Follower
02 18
Follower
02
11
Follower
02 19
Instant
04
12
Instant
04 20
Instant
04
13
Instant
04 21
Follower
02
14
Outdoor Instant
15 22
Follower
02
15
Outdoor Instant
15 23
Outdoor Instant
15
16
Panic
03 24
Panic
03
c. To program zones 9 to 16 into the system via the string method:
Instructions
Key presses
Enter installer mode
[#] [9] [9] [9] [9] [*]
Enter the location 2
[2] [*]
Type in the complete string of information for all
zones
[0][8] [0][2] [0][2] [0][4] [0][4] [1][5] [1][5] [0][3] [*]
d. Programming zones 7 and 8 using the sub-location method:
Instructions
Key presses
Enter location 1
[1] [*]
Enter the sub-location number for zone 7 and press the [*] key
[7] [*]
Enter the value for an external instant zone followed by the [*] key.)
[1] [5] [*]
Now zone 8
[8] [*]
Panic zone
[0] [3] [*]
To exit location 1 press the [#] key
[#]
Note: You will still be installer mode
Global Settings
Location 10: Zone Shutdown Count
Location Type: Standard
This option monitors the zone for the number of times it violates when the system is armed. Once the
number of violations reaches the number entered in this location, the zone is automatically bypassed.
Each partition has an option to enable any zones belonging to the partition that were bypassed due to this
option in locations 221 to 228 depending on the partition.
Valid Range: 1 - 15
Default: 5
Location 11: Programmable Zone Loop Response Time
Location Type: Standard
This is the time that the zone must be violated before the zone will register a violation.
Valid Range: 1 - 255
Default: 2
Page 17
IDS X Series Training V2.3 | Global Settings
17
Value
Response Time
Value
Response Time
Value
Response Time
1
12 ms
12
144 ms
120
1.44 seconds
2
24 ms
13
156 ms
135
1.62 seconds
3
36 ms
14
168 ms
150
1.80 seconds
4
48 ms
15
180 ms
165
1.98 seconds
5
60 ms
16
192 ms
180
2.16 seconds
6
72 ms
30
360 ms
195
2.34 seconds
7
84 ms
45
540 ms
210
2.52 seconds
8
96 ms
60
720 ms
225
2.70 seconds
9
108 ms
75
900 ms
240
2.88 seconds
10
120 ms
90
1.08 seconds
255
3.06 seconds
11
132 ms
105
1.26 seconds
The table shows a representation of the values. If the value you want to use is not in this table see below.
To work out a response time:
1. Take a value from 1 to 255.
2. Multiply the value by 0.012
Example: Value of 66 x 0.012 = 792 ms
Location 12: Cross-zone Delay Time
Location Type: Standard
Zones can be set to trigger only after a two sets of options have been fulfilled. These are, Time (Location
12) & number of violations (Location 13), the number of violations must happen in the time set. If this does
not happen the system will reset both.
Cross-zone delay time is the time that the violations must take place within, before a violation is triggered.
Data Format: mmss
Valid Range: 0000 - 5959
Default: 0030
Note: Each zone must be enabled to be part of the cross-zone group. (Location 101 to 164
depending on the zone number)
Example:
If the cross-zone delay time is set for 30 seconds and location 13 cross-zone delay count, below,
is set to 2, then when the zone violates the first time the system begins a 30 second timer waiting
for the second violation. If the second violation does not happen the timer resets waiting for the
next violation to start the countdown. But if the second violation does happen within the 30 second
count down the alarm will be triggered.
Location 13: Cross-zone Delay Count
Location Type: Standard
This is the number of times the zone must violate within the time set in location 12, Cross-zone delay time,
above.
Valid Range: 1 -15
Default: 3
Note: Each zone must be enabled to be part of the cross-zone group. (Location 101 to 164
depending on the zone number)
Page 18
18
Global Settings | IDS X Series Training V2.3
Location 14: Global Options
Location Type: Bitmap
These options are global to the alarm system and affect all partitions
LED
Default
Action
Description
1
ON
Cancel the siren
This will allow any user from any partition to enter their code to stop the siren
2
OFF
Keypad trouble
beep
When this option is enabled and the system detects a trouble condition, the
keypad will beep intermittently to alert the users
3
OFF
Telephone line
monitoring
This will look for the telephone line voltage and if the telephone line voltage
goes missing a trouble condition will be logged and if another form of
communication is available this will be communicated if option 3 is enabled in
location 571
4
OFF
Keypad beep on
communication
Whenever the alarm successfully communicates via telephone, the keypad will
beep to indicate a successful transfer of information
5
ON
Keypad Fire,
Medical and
Panic keys
The keypad has a F for fire, M for medical and P for panic keys and this option
enables or disables these keys
6
ON
Display of
bypassed zones
when armed
When the alarm is armed and this option is enabled, will display all zones that
have been bypassed. If disabled then none will be shown
7
OFF
Siren delay
This will delay any sound coming from the siren for a period entered into
location 18. The alarm will still communicate instantly
8
ON
Box tamper
monitoring
If you have a switch on the alarm panel housing so that if anyone opens the
housing and the switch is triggered, the panel will log an event and send a
tamper signal if option 8 in location 571
9
ON
Siren tamper
monitoring
This looks for a load on the siren port, if the load goes missing then a tamper is
triggered and logged. If option 4 in location 571 is enabled a tamper will be
sent to the monitoring company
10
OFF
Peripheral tamper
monitoring
For monitoring tampering on other devices on the systems communication
bus. If option 1 in location 572 is enabled a message will be sent to the
monitoring station
11
OFF
Onboard
dedicated panic–
silent
On the panel next to zone 8 there is a panic zone. If a silent panic is required
enable this option
12
ON
Low battery
monitoring
This option will allow the panel to test the battery every 30 min. If the battery is
faulty or low, an event will be logged and with option 8 in location 572 enabled,
a signal will be sent to the control room
13
ON
Low battery cut
out
This option enables the alarm system to monitor the battery voltage and when it
reaches 10.5V it will shut the system down. When AC is restored the alarm will
switch back on and begin to charge the battery
14
OFF
Bypassing with
user code
If the area that is being protected is a high security area this forces a user to
insert their code before zones can be bypassed
15
OFF
Dedicated panic
bypass
This option will allow users to bypass the dedicated onboard panic zone
16
OFF
Cancel panic via
a remote Tx
If a panic has been triggered this option will allow or deny panic violations to be
reset via the arm/disarm button on the remote Tx. If off only a user code
entered on a keypad will cancel the panic condition
Location 15: AC Fail / Restore Reporting
Location Type: Standard
This is the time the system waits before reporting that the electricity has been disconnected.
Data format: hhmm
Valid Range: 0001 - 1800
Default: 0004
Note: AC restoral waits for one minute before reporting the restoral.
Page 19
IDS X Series Training V2.3 | Global Settings
19
Location 16: Trouble Display
Location Type: Bitmap
When the alarm system detects any of the trouble conditions are enabled in the table below, the power
light on the keypad flashes and can be set in location 14, option 2, to beep. To view the trouble condition:
Press and hold the [7] key down until the beep.
When the trouble condition has been corrected, pressing and holding [7] until the beep, and then press
the [#] key to clear the power LED trouble condition. Some troubles will clear themselves, E.g. AC Fail
LED
Default
Action
Description
1 ON
AC fail trouble display
This trouble condition monitors the AC that powers the
Alarm Panel and will register a trouble condition after the
time programmed in location 15. This will only clear when
AC is restored
2 OFF
R
eporting c
omms fail trouble
display
This is if the panel tries to communicate and fails to
communicate after trying the number of times in location
47
3 OFF
Phone line trouble display
A trouble condition will be displayed when telephone line
goes down.
4 ON
Siren tamper trouble display
This option looks for a load and when this load goes
missing a trouble is indicated
5 ON
Low battery detection trouble
display
The alarm system tests the battery every 30 min. If a
trouble is encountered a condition will be shown
6 OFF
Aux. 12V trouble display
When there is a short or some sort of trouble that causes
the 12V output to fail
7 OFF
Engineer‟s reset trouble display
If this option is set in partition options (location 211 to 218)
and the alarm triggers, this option will show and the alarm
can only be armed again once the installer code has been
entered.
8 ON
Box tamper trouble display
If the alarm control box is fitted with a switch that is
connected to the tamper pins on the control board and
enabled in location 14 and the door of the box is opened
a trouble will be displayed
9 OFF
Peripheral tamper trouble display
If any peripheral‟s tamper have been set and any tampering will
cause this option to be displayed
10 OFF
485 bus fail trouble display
This will display when a device attached to the system via
the bus fails and stops communicating
11 OFF
P
eripheral low power/ battery
display
If an expander detects low power on the 12V terminal a
trouble condition will be displayed
12 OFF
Wireless battery low
When a wireless device‟s battery needs to be replaced the
device will send a battery low signal and trigger a trouble if
enabled
13
OFF
Wireless supervision Monitoring
Each wireless device will check in and if a device does not a
trouble is triggered
14
OFF
Wireless RF jam
If an unknown signal that can interfere with signals from
wireless is detected a trouble will be triggered
15
OFF
Wireless low RSSI
RSSI is signal strength measurement and if lower than 20% a
trouble will be logged
16
OFF
Zone tamper
If a zone is monitored for tamper and then a tamper signal is
detected by the alarm a trouble will be triggered.
Page 20
20
Global Settings | IDS X Series Training V2.3
Location 17: Siren Time Out
Location Type: Standard
This is the time the siren will sound after an alarm is registered
Data format: mmss
Valid Range: 0001 - 5959
Default: 0200
Location 18: Siren Delay
Location Type: Standard
The siren can be delayed not to sound for a specific time after an alarm is registered. For the siren delay to
take effect location 14 sub-location 7 must be enabled.
Data format: mmss
Valid Range: 0001 - 5959
Default: 0200
Location19: Extra Global Options
Location Type: Bitmap
These options are global to the alarm system and affect all partitions
LED
Default
Action
Description
1
OFF
Wireless Zone Supervision
This option enables or disables wireless supervision failures
from triggering alarms. Supervision monitors the wireless
devices to make sure that they remain communicating with the
system.
NB: This feature is only available when using wireless expanders v1.07 or higher
Location 20: Keypad Lockout Count
Location Type: Standard
If a user code is entered incorrectly the number of times entered in this location the keypad will lock-up for
the time entered in location 21
Valid Range: 2 - 16
Default: 4
Note: Keypad lockout must be enabled under extra partition options.
(Location 221 to 228 option 4 depending on the partition the keypad belongs too.)
Location 21: Keypad Lockout Time
Location Type: Standard
This is the time the keypad will not respond to any key presses except for the panic button.
Data format: mmss
Valid Range: 0001 - 5959
Default: 0030
Page 21
IDS X Series Training V2.3 | Daylight Savings
21
Location 22: Keypad Sleep Delay
Location Type: Standard
If the keypad is set in location 251 to 258, depending on the keypad‟s ID, to go into sleep mode, this
location is how long after the last key press does the keypad wait to switch of all its LEDs.
Data format: mmss
Valid Range: 0001 - 5959
Default: 0500
Location 23: User, Installer, Maintenance Code Number of Digits
Location Type: Standard
By default all codes are made up of four digits. This location can change the number of digits that make
up a code to six digits.
If the number of digits is changed to six, then:
Code
Old four-digit
code
New six-digit
code
Installer Code
9999
999999
Maintenance Code
8888
888888
Master User Code 1
1234
123456
User Codes 2-128
XXXX
XXXX00
Valid Range: 4 or 6
Default: 4
Location 24: Account Code Number of Digits
Location Type: Standard
The reporting account codes can be increased to six digits from four.
Valid Range: 4 or 6
Default: 4
Daylight Savings
Daylight savings is practiced in some countries in summer where they advanced their time to increase
daylight in the evenings and back in autumn.
Location 25: Month to Start Daylight Savings
Location Type: Standard
Select the month that daylight savings begins
Value
Month
Value
Month
Value
Month
0
Disabled
5 May 9
September
1
January
6 June 10
October
2
February
7 July 11
November
3
March 8
August
12
December
4
April
Location 26: Day of the Week to Start Daylight Savings
Location Type: Standard
Select the day that daylight savings begins
Value 1 2 3 4 5 6
7
Day
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
Page 22
22
Advanced Miscellaneous Settings | IDS X Series Training V2.3
Location 27: Week of the Month to Start Daylight Savings
Location Type: Standard
Select the week in the month that daylight savings begins
Value 1 2 3 4
5
Week
Week 1
Week 2
Week 3
Week 4
Week 5
Location 28: Month to End Daylight Savings
Location Type: Standard
Select the month that daylight savings ends
Value
Month
Value
Month
Value
Month
0
Disabled
5 May 9
September
1
January
6 June 10
October
2
February
7 July 11
November
3
March 8
August
12
December
4
April
Location 29: Day of the Week to End Daylight Savings
Location Type: Standard
Select the day that daylight savings ends
Value 1 2 3 4 5 6
7
Day
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
Location 30: Week of the Month to End Daylight Savings
Location Type: Standard
Select the week in the month that daylight savings ends
Value 1 2 3 4
5
Week
Week 1
Week 2
Week 3
Week 4
Week 5
Location 31: Daylight Savings Time Offset
Location Type: Standard
This is the value that the time must be offset by when daylight savings is enabled.
Data Format: mmm
Valid Range: 1 - 250
Default: 060
Page 23
IDS X Series Training V2.3 | Advanced Miscellaneous Settings
23
Advanced Miscellaneous Settings
Location 32: Auto Test Interval
Location Type: Standard
The time between test signals that are sent back to the monitoring company. Every time an auto test is
done the event is automatically and sequentially numbered, the counter starts at 0 and increments to 255.
Value
Time Period
Value
Time Period
Value
Time Period
Value
Time Period
0
Every hour
6 Every 12 hours
11
Every 5 days
16
Every 10 days
1
Every 2 hours
7 Every 1 days
12
Every 6 days
17
Every 11 days
2
Every 3 hours
8 Every 2 days
13
Every 7 days
18
Every 12 days
3
Every 4 hours
9 Every 3 days
14
Every 8 days
19
Every 13 days
4
Every 6 hours
10
Every 4 days
15
Every 9 days
20
Every 14 days
5
Every 8 hours
Location 33: Auto Test Time
Location Type: Standard
This is the time of day that the test signal, set in location 32, must be transmitted
Data Format: hhmm
Valid Range: 0000 - 2359
Default: 0010
Location 34: Download Code Default Disable
Location Type: Standard
The download code is a security code to stop any illegal connection and changing of data via external
connections, using IDSwift software. If this option is enabled then defaulting the system will have no effect
on the download code.
Valid Range: 0 or 10
Location 35: Hardware Default Switch Disable
Location Type: Standard
Every system has a hardware default switch which is activated by removing power from the system and
powering up while holding the switch down until the status LED flashes. If this option is enabled then the
only way to default is via the installer code and location 0.
Value
Action
0
Enable defaulting of the download code
10
Disable the defaulting of the download code
Location 36: Zone Status Verify Time
Location Type: Standard
This is the time a zone is monitored for a restore. If the zone does not restore, the system will wait the time
entered in this location after the siren timeout before sending another burglary event after the siren has
timed out.
Data Format: mmss
Valid Range: 0001 to 5959
Default: 1000 (10 min)
Value
Action
0
Enable Download code defaulting
10
Disable Download code defaulting
Status LED
Default Switch
Page 24
24
Communication Settings | IDS X Series Training V2.3
Location 37: Zone Status Verify Count
Location Type: Standard
The number of times a burglary event will be sent if the zone does not restore once the siren times out.
After the number in this location is reached the zone will be ignored until it restores.
Valid Range: 0 to 16
Default: 0
Communication Settings
Location 40: Serial Communication Format
Location Type: Standard
This is to configure the X-Series alarm system to communicate to the serial device using the correct format
Note: For serial communication jumper J1 must be shorted / closed.
J1 open = direct download enabled; closed = serial reporting
Location 41 to 44: Communication format
Location Type: Standard
This is the language the Alarm Panel must transmit for the equipment in the control room to understand
what is being reported. Each phone number can be enabled to communicate in a different format.
Note: For Contact ID and SIA formats, their event reporting codes are automatically entered into
reporting locations. Locations 501 to 588 enable or disable reporting for Contact ID and SIA.
All other formats, the reporting codes must be entered manually into location 300 to 373.
Location 45: Communication Delay
Location Type: Standard
This is the time the alarm will wait before reporting an event; it must be enabled under partition options in
locations 221 to 228.
Data Format: mmss
Valid Range: 0001 to 5959
Default: 0000
Value
Format Name
Description
0
Ademco Express
Dual Tone HS, DTMF
1
FBI 4 x 2 ( With Parity)
1.8kHz TX, 2.3kHz HS, 40PPS
2
FBI 4 x 2 (No Parity)
1.8kHz TX, 2.3kHz HS, 20PPS
3
Silent Knight 4 x 2 Fast
1.9kHz TX, 1.4kHz, 20PPS
4
Silent Knight 4 x 2 Slow
1.9kHz TX, 1.4kHz, 20PPS
5
Contact ID
Dual Tone HS, DTMF
7
SIA Reporting
Bell 103 FSK, HS
Value
Format Name
Description
0
Ademco Express
Dual Tone HS, DTMF
1
FBI 4 x 2 ( With Parity)
1.8kHz TX, 2.3kHz HS, 40PPS
2
FBI 4 x 2 (No Parity)
1.8kHz TX, 2.3kHz HS, 20PPS
3
Silent Knight 4 x 2 Fast
1.9kHz TX, 1.4kHz, 20PPS
4
Silent Knight 4 x 2 Slow
1.9kHz TX, 1.4kHz, 20PPS
5
Contact ID
Dual Tone HS, DTMF
7
SIA Reporting
Bell 103 FSK, HS
Page 25
IDS X Series Training V2.3 | Communication Settings
25
Location 46: Reporting Options
Location Type: Bitmap
These options setup how the alarm system will communicate with the telephone system and how many
numbers it will dial to report any events
LED
Default
Action
Description
1
ON
Tone Dialling
Depending on the telephone system will depend on the choice. Modern
systems use Tone
2
OFF
Keep Two Separate
Telephone Numbers
24 digits can be entered into a telephone number location. If this is not
enough telephone number locations can be joined to form one 48 bit
number
3
OFF
Dual Reporting
Dual reporting allows the system to report to two numbers every time an
event happens
4
OFF
Alternate Reporting
Off = will alternate between telephone numbers for the number of dial
attempts.
On = will dial 1st number until all dial attempts are exhausted, then will try the
2nd phone number for the amount of dial attempts
Note: The panel can be programmed to report to 4 different phone numbers. Phone numbers 1 and 2,
3 and 4 are grouped together for dual and split reporting.
Dual reporting is when the alarm will report to both numbers to make sure the signal gets
through to the control room, in case there is a problem reporting on one of the numbers, it will
try the second number and go back to the first after it has succeeded with the second number.
Split reporting is when certain events are programmed to report to certain groups of phone
numbers and each group has two numbers for dual reporting in each group.
Location 47: Number of Dial Attempts
Location Type: Standard
If the alarm cannot report on the first attempt, this location tells the system how many times to try. The
default is 6 attempts, and can be changed to a maximum of 9. (0 will disable dialling)
Valid Range: 1 - 9
Default: 6
Location 48: Download Options
Location Type: Bitmap
The IDS X-Series alarm system can be up / downloaded with IDSwift software over a standard phone line,
via an IDS modem. The following options help the system to deal with incoming calls.
Location 49: Number of rings to answer
Location Type: Standard
When the panel detects this number of rings on a phone line it will automatically pick up the phone if
automatic pickup is enabled in location 48.
Valid Range: 1 - 15
Default: 15
LED
Default
Action
1
ON
Fax Defeat
The system monitors the line and if the phone rings twice and stops, then 10
seconds later rings again, the panel will answer before any other device that
may be on the line
2
ON
Forced
Answer
By pressing and holding down the [8] key for 3 seconds will force the alarm
system to pick up the telephone line
3
ON
Auto Pickup
By default if the telephone line rings 15 times the alarm will pick up the line.
Location 49
Page 26
26
Communication Settings | IDS X Series Training V2.3
Location 51 to 54: Entering a telephone number
Location Type: Standard
When entering phone numbers please follow the following instructions:
To dial a “*” enter [MODE] [1]
To dial a “#” enter [MODE] [2]
For a “12-second pause” enter [MODE] [3] (On the LCD keypad it will be displayed as a “+”)
For a “8-second pause” enter [MODE] [4] (On the LCD keypad it will be displayed as a “=”)
For a “4-second pause” enter [MODE] [5] (On the LCD keypad it will be displayed as a “-“)
Note: [MODE] [0] will clear the phone number
Exercise:
The control room‟s phone number is 0860105937. The alarm is installed in a building with a
switchboard and 0 has to be dialled to get a line and then must wait 4 seconds before dialling.
Instructions
Key presses
Enter location 51
[5][1] [*]
Enter the value needed to dial
[0] [mode] [5] [0] [8] [6] [0] [1] [0] [5] [9] [3] [7] [*]
Location 55: Serial Reporting Telephone Number
Location Type: Standard
The telephone number the serially connected device must dial to report any signals.
Note: This option is only entered if the serial device has this option built in.
Location 61 to 68: Primary Account Codes per Partition
Location Type: Standard
The account code is what identifies the alarm system to the security company so that they can respond to
the correct customer. It is by default a four digit number but can be changed in location 24 to a six digit
number.
Exercise:
Enter an account code 0123
Instructions
Key presses
Enter location 61
[6][1] [*]
Enter the account Code
[0] [1] [2] [3] [*]
Note: If the account code is 0000 no reporting will take place. This also allows you to configure
which partitions report and which do not.
Location 71 to 78: Secondary Account Codes
Location Type: Standard
The secondary account code is used if double dual report dial is enabled and the second telephone
dialleddial must have a different account code to the primary account code.
Note: If the account code is 0000 no reporting will take place. This also allows you to configure
which partitions report and which do not.
Page 27
IDS X Series Training V2.3 | Zone Properties
27
Zone Properties
Location 101 to 164: Setting Zone Properties
Location Type: Bitmap
1. Zone properties are individually setup for each zone
2. There are 8 options that can be chosen
Option
Default
Description
Explanation
1
OFF
Tamper
This option allows the monitoring of devices, even when the alarm
is not active, for any interference, Note requires double end of line
resistors.
2
OFF
Cross-zone
This is when the device has to be triggered a predetermined
number of times within a set time period before the alarm will be
activated. Also known as double knock. (I.e. The zone must trigger
twice in 20 seconds)
3
OFF
Shutdown Zone
This option monitors the zone for violations and if the set number of
violations is reached whilst the alarm is on, the zone will be
bypassed. (There is an option to try and re-enable the zone when the
alarm does its auto test, if the zone is not violated, under extra partition
options. Locations 221 to 228)
4
OFF
Silent Zone
This will not set off an audible alarm, but will alert the armed
response company if the alarm has been configured to do so
5
OFF
Chime Zone
This will cause the keypad to beep 5 times when violated in an
unarmed state. This can also be done via the user menu
6
ONOFF
Zone Bypassable
Enable or disable the zone from being bypassed
9 Profile 1
10 Profile 2
11 Profile 3
12 Profile 4
OFF
Stay Profile
This is to allocate the zone to a stay profile so that if that profile is
activated the zone will be bypassed. A stay profile is used to
deactivate certain zones when the alarm is active, allowing
movement within those zones. Different, or the same zones, can be
allocated to 4 different profiles allowing for different situations that
may arise. (This can also be set via the user menu)
13 Profile 1
14 Profile 2
15 Profile 3
16 Profile 4
OFF
Buzz Profile
Again this is an option to allocate zones to a buzz profile. A buzz
zone only works in the stay mode, allowing the zone to be violated
for 30 seconds before triggering the alarm. During the 30 seconds,
the keypad will sound the buzzer as an audible warning to alert the
person that the zone has been violated. As with stay profiles,
different or the same zones can be allocated to 4 different profiles
allowing for different situations that may arise. (This can also be set
via the user menu.) Buzz profile 1 is associated with stay profile 1,
etc.
Exercise:
Zone 16 is a panic zone, let‟s make it a silent panic so that the siren will not trigger alerting the
intruder, but will send the signal to the monitoring company.
Instructions
Key Presses
Enter location 116
[1][1][6] [*]
Select the silent zone option
[4] [*]
LED 4 will come on
Exit the location
[#]
Page 28
28
Auto Arm and Auto Alarm | IDS X Series Training V2.3
Auto Arm and Auto Alarm
Each partition can be set to automatically arm or alarm with a medical signal if no movement is detected
within a certain time period.
Arm on no Movement
Each partition can be set to automatically arm if no movement is detected within a certain time period.
There are 3 steps that need to be completed:
Location 165: Auto Arm Time Out
Location Type: Extended
There is a sub-location for each of the 8 partitions.
This is the time the panel will wait before beginning to arm, once all movement has stopped.
If movement is detected within this time, the system resets and waits for the movement to stop.
Format: HHMM
Default: 0000
Valid range: 0000 to 2359
Location 166: Auto Arm Start Time
Location Type: Extended
There is a sub-location for each of the 8 partitions.
The time entered here in the 24 hour format (HHMM) is when the system will start to monitor for no
movement.
Format: HHMM
Default: 0000
Valid range: 0000 to 2359
Location 167: No movement auto arm stop time
Location Type: Extended
There is a sub-location for each of the 8 partitions.
If movement has not stopped when this time (HHMM) has been reached the system stops monitoring for
no movement.
Format: HHMM
Default: 0000
Valid range: 0000 to 2359
Medical Alarm on No Movement
Each partition can be set to monitor for no movement and if movement is not detected within a certain
period of time, an alarm can be triggered to alert someone of the situation.
There are 3 steps that need to be completed:
Location 168: No movement Medical Alarm Time Out
Location Type: Extended
There is a sub-location for each of the 8 partitions.
This is the time the panel will wait before triggering the alarm, once all movement has stopped.
If movement is detected within this time, the system resets and waits for all movement to stop again.
Format: HHmm
Default: 0000
Valid range: 0000 to 2359
Page 29
IDS X Series Training V2.3 | Auto Arm and Auto Alarm
29
Location 169: No movement Medical Alarm Start Time
Location Type: Extended
There is a sub-location for each of the 8 partitions.
The time entered here in the 24 hour format (HHMM) is when the system will start to monitor for movement
to stop
Format: HHmm
Default: 0000
Valid range: 0000 to 2359
Location 170: No movement Medical Alarm Stop Time
Location Type: Extended
There is a sub-location for each of the 8 partitions.
If movement has not stopped when this time has been reached the system stops monitoring for no
movement.
Format: HHmm
Default: 0000
Valid range: 0000 to 2359
Location 171 to 178: Days to no movement auto arm / Medical Alarm
Location Type: Bitmap
NOTE: These locations contain both no movement auto arm and no movement alarm days of the
week.
LED
ARM Days of the Week
LED
Alarm Days of the Week
1
Monday
9
Monday
2
Tuesday
10
Tuesday
3
Wednesday
11
Wednesday
4
Thursday
12
Thursday
5
Friday
13
Friday
6
Saturday
14
Saturday
7
Sunday
15
Sunday
All OFF
(Arm Day Disabled)
All OFF
(Disarm Day Disabled)
To set the partition to arm on a Friday, Saturday and Sunday
Auto Arm and Disarm
Each partition can be set to automatically arm or disarm at a certain time and on specific days.
Location 180: Auto Arm
Location Type: Extended
There is a sub-location for each of the 8 partitions.
Time that the partition must auto arm entered in 24 hour format (HHMM H=hour, M=minute)
Instructions
Key presses
Enter location 181
[1][8][1] [*]
Enter the partition number
[1] [*]
Enter the days for the partition to auto arm
[5] [*] [6] [*] [7] [*]
To exit
[#]
Instructions
Key presses
Enter location 180
[1][8][0] [*]
Enter the partition number
[1] [*]
Enter the time for the partition to auto arm
[2] [0] [3] [0] [*]
Page 30
30
Security Options | IDS X Series Training V2.3
Location 181 to 188: Days to auto arm / disarm
Location Type: Bitmap
NOTE: These locations contain both auto arm and disarm days of the week
LED
ARM Days of the Week
LED
Alarm Days of the Week
1
Monday
9
Monday
2
Tuesday
10
Tuesday
3
Wednesday
11
Wednesday
4
Thursday
12
Thursday
5
Friday
13
Friday
6
Saturday
14
Saturday
7
Sunday
15
Sunday
All OFF
(Arm Day Disabled)
All OFF
(Disarm Day Disabled)
Location 189: To auto disarm
Location Type: Extended
There is a sub-location for each of the 8 partitions.
This option sets the time the partition must disarm automatically.
Format: HHmm
Default: 0000
Valid range: 0000 to 2359
NOTE: This option must be enabled in the partition options, location 211 to 218
And To set the days to auto arm / disarm in locations 181 to 188 must be set.
Location 190: Auto Delay
Location Type: Standard
This location sets the delay period for the keypad buzzer warning, before the panel auto arms. At the
completion of the Auto Arm Delay, the panel will arm. A valid user code entered during the delay period
will cancel the auto arming.
Format: mmss
Default: 0200
Valid range: 0000 to 5959
Security Options
These are the security codes that protect the panel‟s programming from being changed without the
correct authorization.
Location 197: Installer code
Location Type: Standard
This is the installer code we have been using throughout the training to change settings in locations.
Default: 9999
Valid range: 0001 to 9999
Note: It is important to change the installer code to minimise the risk of someone changing any
settings.
Instructions
Key presses
Enter location 189
[1][8][9] [*]
Enter the partition number
[1] [*]
Enter the days for the partition to auto arm
[0] [8] [0] [0] [*]
To exit
[#]
Instructions
Key presses
Enter location 197
[1][9][7] [*]
Enter the new installer code
[8] [4] [2] [1] [*]
Page 31
IDS X Series Training V2.3 | Security Options
31
Location 198: Download code
Location Type: Standard
This code protects the system from unwanted external connections via the telephone line. (To connect
successfully you must have the installer code and the download code.)
Default: 9999
Valid range: 0001 to 9999
Location 199: Maintenance code
Location Type: Standard
The maintenance code is for a super user to be able to change some settings, using the location method
as an Installer would.
Note: No settings can be changed that would compromise communication with the security
company.
Panel functions that can be edited in maintenance mode are:
Siren time
Siren delay
Keypad lockout count
Keypad sleep delay
All daylight savings settings
All partition auto arm settings
All no zone activity auto arm settings
All no zone activity alarm settings
Default: 8888
Valid range: 0001 to 9999
Instructions
Key presses
Enter location 197
[1][9][8] [*]
Enter the new installer code
[9] [6] [3] [1] [*]
Instructions
Key presses
Enter location 197
[1][9][9] [*]
Enter the new installer code
[4] [3] [2] [1] [*]
Page 32
32
Partition Options | IDS X Series Training V2.3
Partition Options
The X-Series alarm panels have eight partitions that can have a number of zones and users allocated to
them. A partition is a separately controlled group of zones. Zones can be unique to the partition or can be
shared between partitions for areas that are common.
Location 201 to 208: Placing Zones into a Partition
Location Type: Bitmap
By default only the first eight zones are placed into partition one and any added zones must be allocated
to a partition.
Valid Range: 01 - 64
Exercise:Zones 10 to 16 need to be programmed into partition 2
Instructions
Key presses
To allocate all the zones that we configured in sections c and d
to partition 1 enter location 201
[2][0][2] [*]
The green READY LED should be on the and ARM, AWAY and
POWER LEDs should be off
This is a bitmapped location so data is entered by entering the
zone number of the zone you want to allocate to the partition
[9] [*] [1][0] [*] [1][1] [*] [1][2] [*] [1][3]
[*] [1][4] [*] [1][5] [*] [1][6] [*]
Zone 9 to 16 LEDs should now be on
Exit location 202
[#]
Note: When using an LED keypad to gain access to zones 17 onwards press the [*] key to page
to the next sixteen zones.
The diagrams below show which page is being displayed via the keypad LEDs and which
zones they represent for the X64
Curve keypad LEDs
Zones: 1 to 16 17 to 32 33 to 48 49 to 64
Classic keypad LEDs
Location
Partition
Default
Zones
Location
Partition
Default
Zones
Location
Partition
Default
Zones
201
1
1 to 8
204
4 207 7
202
2 205
5 208 8
203
3 206
6
Location
Partition
Default
Zones
Location
Partition
Default
Zones
Location
Partition
Default
Zones
201
1
1 to 8
204
4 207 7
202
2 205
5 208 8
203
3 206
6
Page 33
IDS X Series Training V2.3 | Partition Options
33
Location 211 to 218: Partition Configuration
Location Type: Bitmap
These options are to set how the system must behave when the partition needs to be armed.
LED
Default
Action
Description
1
OFF
Instant Arm
Instant arm allows the alarm to arm without an exit delay
2
ON
Instant Key-switch arm
When using a zone to arm or disarm this will enable or
disable the alarm to arm without an exit delayexit delay
3
ON
Quick Arm Key
This is to enable/disable the pressing of the 1 key to
start the arm cycle instead of inserting a user code
4
ON
Quick Stay Arm Key
This is to enable/disable the pressing of the 5 key to stay
arm
5
ON
Auto Stay Arm if No Exit Zone is
Triggered
When arming with a user code and no entry/exit zone is
triggered then the alarm will automatically arm in stay
mode
6
OFF
Auto Stay Arm if No Exit Zone is
Triggered When Arming with a Keyswitch
When arming with a remote transmitterusing an
arm/disarm zone and no entry/exit zone is triggered then
the alarm will automatically arm in stay mode
7
OFF
Disable Forced Arming
This will bypass any triggered zone allowing the system
to be armed even though there are triggered zones
8
ON
Zone Bypassing
This enables or disables the ability for a user to bypass
faulty zones using the 9 key.
9
OFF
Arm with Zones in the Entry Route
Violated
This allows movement to take place in a follower zone
and the entry / exit zone to be violated when you are
about to arm
10
OFF
Siren Toot on Arm
When the alarm arms in the away mode the siren will
give one toot to indicate that it has armed
11
OFF
Siren Toot on Disarm
When the alarm disarms from being away armed it will
toot twice
12
ON
Entry Beep
This will silence the keypad when the entry zone is
triggered to start the entry cycle
13
ON
Exit Beep
This will silence the keypad when the alarm starts to arm
14
OFF
Engineer's Reset
This option will lock the alarm system, until the installers
code has been entered, when an alarm has occurred.
15
OFF
Auto Disarm
When enabled the alarm will automatically disarm and
the time set in locations 189
16
OFF
Open & Close Reporting
This is a global enable or disable of opening &
closing user reporting. By default all users are
enabled by default. Enabling this option and all
user codes will begin reporting opens and closes
Exercise:
Let us enable siren toot on arm and disarm so the customer will know if the alarm is armed when
using a remote transmitter.
Instructions
Keypad presses
Enter the partitions location
[2][1][1] [*]
Option 10 and 11 need to be enabled
[1][0] [*] [1][1] [*]
Exit the location
[#]
Page 34
34
Partition Options | IDS X Series Training V2.3
Locations 221 to 228: Extra partition options
Location Type: Bitmap
These are more partition options that can be set
LED
Default
Action
Description
1
OFF
Automatic Re-enabling of
Shutdown Zones at the Time of
the Dialler test
If a zone is disabled due to reaching the number of
triggers in location 10 when armed, the alarm will try and
re-enable those zones at auto test
2
OFF
Bypassing of Common Zones
If zones are in more than one partition and the zones may
need to be bypassed at some time this option must be
enabled in all partitions it belongs to
3
OFF
Delay Before Communications
This option will delay any communication for the time set
in location 45. Except for panic or duress signals
4
OFF
Keypad Lockout
If a person enters a wrong code the number of times set
in location 20 the keypad will stop responding to any key
presses, for the amount of time set in location 21
5
OFF
Disable Silent Keypad Panic
This will stop the siren from sounding if the P key on the
keypad is pressed and a panic is triggered
6
OFF
Toot on Successful
Communication
When closing reporting is enabled and this option is on
the siren will only toot once the system is armed and has
communicated that to the security company successfully.
7
OFF
Stay zone reporting
When enabled and stay closing is enabled all zones
bypassed will be reported to the security company when
using 4x2 reporting
8
OFF
Zone restoral signal sending
option
When enabled a zone restoral will only be sent once the
siren time out period has completed
Location 230: Exit delay
Location Type: Extended
There is a sub-location for each of the 8 partitions.
This is the time the alarm waits before fully arming. During this time any zones that are entry/exit or follower
zones are disabled and only when the exit delay is finished do these zones become active. By default the
exit delay is indicated by the keypad beeping.
Format: mmss
Default: 0030
Valid range: 5959 to 5959
Exercise:
Location 231: Primary Entry delay
Location Type: Extended
There is a sub-location for each of the 8 partitions.
This is the time the alarm will allow a person from triggering the primary entry/exit zone to entering a valid
disarm code before sounding the alarm. When the entry/exit zone triggers, it automatically disables the
follower zones.
There is a secondary entry delay (location 232) for a different entry times.
Format: mmss
Default: 0030
Valid range: 5959 to 5959
Instructions
Keypad presses
Enter the location 230
[2][3][0] [*]
Enter partition 1‟s sub-location
[1] [*]
Change the 30 sec default to 10sec (mmss)
[0][0] [1][0] [*]
Exit the location
[#]
Page 35
IDS X Series Training V2.3 | Keypad Configuration
35
Exercise:
Location 232: Secondary Entry delay
Location Type: Extended
There is a sub-location for each of the 8 partitions.
This is the time the alarm will allow a person from triggering the secondary entry/exit zone type to entering
a valid disarm code before sounding the alarm. When the entry/exit zone triggers, it automatically disables
the follower zones.
Format: mmss
Default: 0030
Valid range: 5959 to 5959
Keypad Configuration
Each X-Series system can have eight LCD or LED keypads controlling it. Keypads can be in any partition.
NOTE: By default all keypads, when registered, belong to partition 1 and factory defaults apply.
To register a keypad:
When a new keypad or after a factory or keypad default, all the keypad‟s LEDs will flash. By
pressing the [#] key the keypad will ask the system for an ID. The first available ID will be given to
the keypad. To clear the keypad ID hold down the 1 and 3 keys on power up.
Location 240: Keypad and partitions
Location Type: Extended
There is a sub-location for each of the 8 keypads.
Each keypad when registered will belong to partition 1.
Valid range: 1 – 8
Default: 1
Exercise: Add keypad 1 to partition 1, keypad 2 to partition 2, 3 to partition 3 and 4 to 4.
Instructions
Keypad presses
Enter the location 231
[2][3][1] [*]
Enter partition 1‟s sub-location
[1] [*]
Change the 30 sec default to 1 min 30sec (mmss)
[0][1] [3][0] [*]
Exit the location
[#]
Instructions
Key presses
Enter location 240
[2][4][0] [*]
Now enter the string for each of the keypads and the keypads not installed
leave as default by leaving them in partition 1
[1] [2] [3] [4] [1] [1] [1] [1] [*]
When the [*] key is entered the data will be saved and you will be exited
out of the location
Page 36
36
Keypad Configuration | IDS X Series Training V2.3
Location 241: Keypad Display Start Zone
Location Type: Extended
There is a sub-location for each of the 8 keypads.
The LED keypad can only show 16 zones at a time, therefore on an LED keypad you can set the keypad to
start at any zone.
This allows you to set what physical zone the LED keypad will display as zone 1. For example, by setting
the keypad to start at zone 20, zone 1, printed on the keypad, will now represent the physical zone 20.
Exercise: Let us now make keypad number 2 start displaying from zone 9.
Default: 01
Valid range: 01 – 64
Location 242: Keypad zone
Location Type: Extended
There is a sub-location for each of the 8 keypads.
On each keypad is a physical zone which can be mapped to any zone on the alarm, it does not have to be
physically connected. The physical zone that the keypad zone is mapped to, on the panel or expander, will
be switched off. For example if I make keypad 3‟s zone, zone number 8. Zone 8 on the panel will be no
longer be in operation, but the zone on the keypad will display and report as zone 8.
Default: 00
Valid range: 01 - 64
Exercise:
Instructions
Key presses
If not in installer mode enter into installer
[#][9][9][9][9] [*]
To enable the keypad zone go to location 242
[2][4][2] [*]
Again we are only changing keypad 3 so we will use the bitmap method
[3] [*]
Enter the zone that this keypad‟s zone will represent
[8] [*]
Exit from the location
[#]
To exit programming
[#]
You could also map the keypad zone to zone 33 even though you don‟t have an expander with zone 33
physically connected.
NOTE: Please remember that you still need to give the zone a zone type and place it into a
partition for it to work.
Instructions
Key presses
If you are not in installer mode, enter into installer
[#][9][9][9][9] [*]
Keypad display start zone is in location 241
[2][4][1] [*]
Only keypad 2 is changing so we will use the bitmapped method
[2][*]
Enter the start zone number
[0][9] [*]
As you enter * your data is saved and you are exited back into location 241
To exit out of location 241
[#]
To exit installer mode
[#]
Instructions
Key presses
If you are not in installer mode, enter into installer
[#][9][9][9][9] [*]
Keypad display start zone is in location 241
[2][4][1] [*]
Only keypad 2 is changing so we will use the bitmapped method
[2][*]
Enter the start zone number
[0][9] [*]
As you enter * your data is saved and you are exited back into location 241
To exit out of location 241
[#]
To exit installer mode
[#]
Zone 20
21
22
23
Zone 32
33
34
35
Page 37
IDS X Series Training V2.3 | Keypad Configuration
37
Location 243: Keypad ID
Enter this location physically on the keypad that you want to know the ID for.
Location 251 to 258: Keypad Options
Location Type: Bitmap
Each keypad can be set with the following options:
Option
Default
Action
Description
1
ON
The keypad will timeout
back to its default partition
after it has been used to
view another partition
If a keypad is made global, i.e. The keypad will be able to view
other partitions on the system. This option will automatically
return the keypad to its home partition which was programmed
into location 240
2
OFF
Keypad sleep mode
If this is enabled, the keypad will switch all its LEDs off after the
time programmed into location 22. Press any key to wake it up.
3
OFF
Global keypad status
If this is enabled the keypad can view any partition on the
system. This option ties in with option 1.
4
OFF
Show all Zones
If the keypad is set to global this option determines if the user
sees all zones, ON or only the zones that belong to the partition
5
OFF
Partition Menu
Shows all partitions if any of the following keys are pressed:
1-Quick Arm Key, 5-Stay Arm Key, 6-Stay and Go Key
6
OFF
Stay Menu
This option will ask for a profile number when the stay key,[5] is
pressed to arm in the stay profile
Exercise:
Configure keypad 1, to be a global keypad with the partition menu active
Instructions
Key presses
Enter the location for keypad 1
[2][5][1] [*]
Option 3 must be enabled
[3] [*]
Enable partition menu
[5] [*]
Exit the location
[#]
Page 38
38
Wireless | IDS X Series Training V2.3
Wireless
Note: Older wireless hardware devices will not work with the X-Series, Duevi integration. Please
make sure that you have the correct devices.
IDS & Duevi integration PCB:
1. DIP switch operation
The Dipswitch currently has only two operations. The first is to set the device address on the XSeries bus. This is done in binary the same as was done for the wired expander save for one
difference. That is that these expanders each cater for 16 zones and not 8 like the wired expander.
Dip 1 Dip 2 Dip 1&2 Dip 3 Dip 5 Dip 6
Zones 1 – 16 Zones 17 – 32 Zones 33 – 48 Zones 49 – 64 PGM 1 PGM 2
RF JAM Supervision Loss
Programmable Output
Note: When dip switch 5 and 6 are:
OFF the outputs are then programmable.
ON the outputs are by default set to output 1 RF jam and output 2 supervision loss
2. Default
The second operation is a standalone default feature. If all Dip-switches are ON during power-up
then the unit will default. Please power down after, set appropriate address and power up to
resume normal operation.
LED operation
There are 3 LEDs on the board marked “MODE”, “RF RX” and “STATUS”.
STATUS: LED that will indicate whether the receiver is connected and communicating.
ON indicates good bus communication with the system.
RF RX: LED that will indicate when the receiver received a message from a learnt detector
MODE: Indicates current operating errors. Errors are indicated much the same as the wired expander.
If the LED is ON continuously then there are no errors. However if there are errors it will start pulsing
the error number. These error pulses will be separated by a 1sec pause with the LED off.
Pulse error number:
1. Duevi receiver module not responding
2. No activity on the X-Series serial bus
3. No X-Series messages detected
Tamper
Dip Switches
LEDs
Page 39
IDS X Series Training V2.3 | Wireless
39
4. No messages for this peripheral detected from X-Series
5. Not used
6. Expander not yet registered on the X-Series
7. Expander tamper violated
8. Unsupported DIP address configured
Location 260: Wireless Configuration
Location Type: Extended
Location 260 has a four sub locations listed in the table below:
Sub Location
Description
1
Add Wireless Device
2
Delete Wireless Device
3
Wireless Device Signal Strength
4
Supervision Interval Time
Note: Depending if you have an LED or LCD keypad will depend on the feedback you can expect
to receive while programming. The following instructions will be broken up into LED keypad
LED Keypad Instructions
Upon Location entry the user will notice the following:
a. Ready LED ON, Armed LED ON, Away LED flashing.
b. Menu system now only awaiting sub location selection.
i. User must enter [number][*] to advance into “sub menu”.
c. When entering sub menus, I.e. add wireless device or delete wireless device.
Zones that are wireless zones will be on.
d. [#] will return user to Installer menu location entry.
LCD Keypad Instructions
Upon location entry the following will be displayed
Scroll backwards using Scroll forward using
using the Medical key the Panic key
Press * key
to enter
[#] will return user to Installer menu location entry
Sub Location 1: Add Wireless Detector
Upon Sub menu entry the user will notice the following:
When working with more than 16 zones on an LED keypad to page through to the next 16 zones
press the [*] key.
Note: Each time a new page of zones are shown the Pwr, Rdy, Arm and Away LEDs will change
to show which zones are being displayed.
Zones 1 to 16 Zones 17 to 32 Zones 33 to 49 Zones 49 to 64
Example:
LED
LCD
On
On
Flashing
LED
Page 40
40
Wireless | IDS X Series Training V2.3
Press
On On
Zones 1 to 16 Zones 17 to 32
Wireless zones 10 & 11 Wireless zones 19, 21 & 29
1. Zone LEDs will be ON if the zone already has a wireless detector assigned.
The menu is now waiting for user to select to which zone to add a detector. If the user selects a
pre-allocated zone then the keypad will sound 3 error beeps and wait for a valid zone entry.
Note: Detectors may only be added on LED keypads via the tamper method.
2. Upon valid zone selection the keypad will sound an OK (single beep) and set the zone LED
selected to start flashing. The system is now waiting for the new detector to be tampered.
When the user triggers the tamper the system will receive a notification and determine whether
the detector has already been assigned to any other zones. If this is the case the user will be
notified by 3 error beeps and the menu will keep waiting for a tamper from an unassigned
detector.
If the detector has not been assigned then it will be automatically added to the system. The
user will be notified via keypad by a LONG OK beep as well as the Zone LED previously
flashing will now be ON.
3. The system will now wait for a new zone to be selected.
4. [#] key at any time will return the user back to the sub menu selection menu.
Upon Sub menu entry the user will notice the following:
Scroll using Medical or Panic Keys, Enter with [*] key
Or enter the zone number followed by the [*] key
[#] will return user to sub menu selection entry.
Example: If the zone name is still default or changed to “Main Lounge”
1. Upon selecting a zone that is not already a wireless zone the user will be presented with the
following.
2. Press enter to confirm zone selection
The user must now either trigger the tamper on the detector or key in the serial number of the
device.
When the user triggers the tamper the system will receive a notification and determine whether
the detector has already been assigned to any other zones. If this is the case the user will be
notified by 3 error beeps and the menu will keep waiting for a tamper from an unassigned
detector.
Incorrect or pre-allocated serial numbers will also result in a 3 beep error tone and the menu
will keep waiting for a valid entry.
3. Upon valid Serial Number entry or tamper the user will be presented with the following.
LCD
Page 41
IDS X Series Training V2.3 | Wireless
41
Press [*] to confirm the serial number is correct
Sub Location 2: Delete Wireless Detector
Upon Sub menu entry the user will notice the following:
Note: Each time a new page of zones are shown the Pwr, Rdy, Arm and Away LEDs will change to
show which zones are being displayed. Pages are scrolled using the [*] key.
Zones 1 to 16 Zones 17 to 32 Zones 33 to 49 Zones 49 to 64
Pages are scrolled using the [*] key.
1. Zone LEDs will be ON if the zone already has a wireless detector assigned.
The menu is now waiting for user to select which zone they want to delete a detector from.
Note: The user MAY select a zone that is not pre-allocated.
2. Zone LED will turn OFF on zone selection.
3. [#] key at any time will return the user back to the sub menu selection menu.
Upon entering location 260 and scrolling to or entering option 2 the following will be displayed:
Scroll using Medical or Panic Keys, Enter with [*] key
1. Enter [*] to enter the delete sub location to have the following displayed:
Scroll using Medical or Panic Keys, Enter with [*] key
Or enter the zone number followed by the [*] key
2. Enter the zone number or scroll to the zone.
Sub Location 3: Signal Power of Receiver
NOTE: This menu is active for the LCD keypad only. The user will need to either trigger the tamper or zone
to get a signal power update.
Upon entering location 260 and scrolling to or entering option 3 the following will be displayed:
Scroll using Medical or Panic Keys, Enter with [*] key
1. Enter [*] to enter signal strength testing
Scroll using Medical or Panic Keys, Enter with [*] key
Or enter the zone number followed by the [*] key
2. Enter or scroll to the zone to be deleted
Scroll using Medical or Panic Keys, Enter with [*] key
Indicates that this zone is a wireless zone
3. Press the [*] key to select the zone
LED
LCD
LCD
Page 42
42
Wireless | IDS X Series Training V2.3
4. Trigger the device and the display will show the signal strength on the first row.
Signal strength displayed in percentage
Sub Location 4: Supervision monitoring
Supervision is the monitoring of wireless devices to make sure that they remain communicating with the
system. In this sub location you can choose the time that the alarm waits before raising a trouble condition
if it has not received a signal from a device.
Note: When entering this sub-location the first supervision time displayed is the entered time
Upon entering location 260 and entering option 4 the following will be displayed
3 Hr Check-in
12 Hr Check-in
Flashing
1. Enter the supervision time required by entering the correct option from the following table.
Option
Description
1
3 Hours
2
24 Hours
Upon entering location 260 and scrolling or entering option 4 the following will be displayed:
Scroll using Medical or Panic Keys, Enter with [*] key
1. Enter by pressing the [*] key
Scroll using Medical or Panic Keys, Enter with [*] key
2. Enter the option
Option 1 Option 2
OR
3 hours 24 hours
Default: 2 (24 hour)
Valid range: 1 – 2
Note: All devices must be set to the correct supervision time corresponding to the selection in the
supervision monitoring sub-location. Please appendix for hardware supervision settings
LCD
LED
Page 43
IDS X Series Training V2.3 | Reporting Codes
43
Reporting Codes
In the following locations, 261 to 335, the value of the reporting codes are entered for reporting formats
other than SIA and Contact ID. For example formats like, FBI 4x2.
[INSTALLER CODE] [*] [LOCATION] [*] [SUB-LOCATION] [*] [REPORTING CODE] [*]
Location 261 to 264 Stay Zone Reporting Codes
Location Type: Extended
Each location represents a set of16 zones.
Locations to enter reporting codes if you want to report stay zones to the control room. This is for formats
other than Contact ID and SIA.
Location
Profile
Zones
Location
Profile
Zones
261
1
1 to 16
263
3
33 to 48
262
2
17 to 32
264
4
49 to 64
Default is 00
Valid Range: 00 - FF
Location 300 Global Reporting
Location Type: Extended
Location 301 Global reporting
Location Type: Extended
Sub-Loc
Description
Explanation
1
AC Fail
Enter the code that is to be reported when the main electrical supply has
failed and the system is running on the backup battery
2
AC Restore
This reporting code is sent when the main electrical supply is restored
3
Communication Fail
The X-Series can be programmed to try and communicate a number of
times via the phone line. When these attempts have been exhausted a
communication fail is sent.
4
Communication Restored
When communication is restored the code is sent
5
Phone line tamper
If the phone line is tampered with and the line voltage goes missing an alert
is sent
6
Phone line restore
When the line voltage is restored a reporting code is sent alerting the
security company
7
Siren tamper
The X-Series monitors the siren and if it goes missing a signal is sent
8
Siren tamper restore
Once the siren has been restore the security company is alerted
Sub-Loc.
Description
Explanation
1
Battery Low
After AC has failed and the system detects that the battery voltage has
reached 10.5V this code is sent to warn the company that it is about to
switch off because of the lack of power
2
Battery Restore
Once charged a restore will be sent to confirm the battery is charged
3
Auxiliary 12V Fuse failed
If the fuse protecting the auxiliary 12V output latches off a code can be
sent to alert the security company
4
Auxiliary 12V Fuse restored
When the fault is corrected a restore is sent
5
Installer reset required
If this option is enabled in location 211 to 218 and the alarm is tripped in
the partition that it is enabled in, the alarm cannot be armed until the
installer code is entered.
6
Installer reset restored
Once the installer code has been entered after an alarm has tripped a
restoral will be sent
7
Box tamper
On the alarm panel is a connector that a switch can be connected to
Page 44
44
Reporting Codes | IDS X Series Training V2.3
Location 302 Global reporting
Location Type: Extended
Sub Loc.
Description
Explanation
1
Bus device tamper
When a device that is connected to the keypad bus registers a tamper this
code is sent to the alarm company
2
Bus device tamper
restore
When the device on the bus registers that the tamper condition has been
restored it will send this code
3
Bus peripheral
Communication fail
When a device that has been registered on the bus stops communicating the
control panel will send this code to alert the company monitoring the alarm
4
Bus peripheral
Communication
restore
Once the communication between the control panel and the missing device is
corrected a restoral is sent to the alarm company
5
Bus peripheral
power/battery low
A device that has the ability to monitor its power detects that it‟s power is low a
message can be sent
6
Bus peripheral
power/battery restore
Once the power is restored a signal alerting the monitoring company can be
sent
7
Wireless detector
battery low
Wireless devices monitor their batteries and when a battery needs changing
this low battery code is sent
8
Wireless detector
battery restore
After changing the battery a restoral is sent
Location 303 Global reporting
Location Type: Extended
Sub Loc.
Description
Explanation
1
Wireless detector
supervision failure
Each device checks in with the controller at a predetermined time and if this signal
is not received, the alarm company is alerted that it has gone missing
2
Wireless detector
supervision restore
When the wireless device starts communicating after being missing a restoral is
sent
3
Wireless receiver
signal jam
If the receiver detects a signal that could block effective communication from the
devices that it is monitoring an alert is sent to the monitoring company
4
Wireless receiver
signal restore
When the signal causing the jam has been removed a restoral is sent
5
Wireless Detector
RSSI low
Each detectors signal strength is checked and if the signal strength drops below
20% a low RSSI is sent
6
Wireless Detector
RSSI restore
Once the signal strength of a device increases above 20% a RSSI restore is sent
7
Dedicated Panic
On board is a dedicated panic zone, when triggered this code is sent
8
Test report
The X-Series can be programmed to send test signals to confirm that it is still alive
9
Download report
code
After the system has been connected to by IDSwift software a code is sent.
Location 304 to 335: Zone reporting
Location Type: Extended
Each location represents a set of 16 zones:
Location 304 is zones 1-16
Location 305 is zones 17-32
Location 306 is zones 33-48
Location 307 is zones 39-64
monitor the box that it is in so it cannot be opened without notifying the
security company
8
Box tamper restore
When the box is closed a restore is sent
Page 45
Location
Sub
Loc.
Description
Explanation
304 to 307
1 to 16
Zone alarm reporting
When the system is armed, a 24Hr zone or a panic zone is triggered
this code is reported
308 to 311
1 to 16
Zone alarm restoral
When the zone restores after being violated this code is sent
312 to 315
1 to 16
Zone tamper reporting
If the tamper monitoring option is enabled and a tamper signal is
received this code is sent
316 to 319
1 to 16
Zone tamper restoral
Once the tamper condition is corrected a restoral is sent
320 to 323
1 to 16
Zone bypass reporting
If a zone is bypassed and the alarm is armed this code is sent to
report which zones are inactive
324 to 327
1 to 16
Forced Arming
If the system is programmed to automatically bypass zones that are
violated when arming, this code is sent to alert the monitoring
company of inactive zones
328 to 331
1 to 16
Swinger shutdown
reporting
If swinger shutdown has been enabled and the alarm automatically
shuts down a zone that has violated the swinger shutdown settings
332 to 335
1 to 16
Swing shutdown restore
The system can be set to try and restore a zone that has been
disabled by the swing shutdown option and if it is able to restore the
zone this code is sent
Extending Contact ID Zone Reporting
Location Type: Extended
Locations 304 to 335 can be programmed with a value that will change the contact ID reporting code for
each zone to extend what can be connected to each zone and what is reported to the control room.
Example: If a gas detector is connect to zone 8
By entering 26 into location 304 sub-location 8, whenever zone 8 triggers a contact ID code, 151 (Gas
detected), is sent to the control room.
Please see Appendix at the end of the manual for all values.
Value
CID
Description
Value
CID
Description
01
100
Medical Zone
3C
303
RAM Checksum bad Zone
02
101
Personal Emergency Zone
3D
304
ROM checksum bad Zone
26
151
Gas detected Zone
3E
305
System reset Zone
28
153
Loss of heat Zone
3F
306
Panel programming changed Zone
Location 336 to 340: Partition reporting codes
Location Type: Extended
There is a sub-location for each of the 8 partitions.
[INSTALLER CODE] [*] [LOCATION] [*] [SUB LOC] [*] [REPORTING CODE] [*]
Loc
Sub Loc
Description
Explanation
336
1 to 8
Duress reporting
A user code can be programmed to send a duress signal to alert the security
company of a life threatening situation causing the user to disarm the alarm with
this code
337
1 to 8
Keypad panic
Each keypad has a panic button which when pressed can send a code alerting the
monitoring company of a situation
338
1 to 8
Fire alarm
If a fire is detected or the fire key is pressed this code will be reported
339
1 to 8
Medical Key
A medical code is sent alerting the monitoring company to send an ambulance
340
1 to 8
Keypad lockout
If a code is entered incorrectly the keypad can be set to lock for a period of time
and sent this code to alert the monitoring company
Page 46
46
Triggering Outputs | IDS X Series Training V2.3
Location 342 to 373: User reporting codes
Location Type: Extended
Each location represents a set of 16 users:
Location 342 are users 1-16
Location 343 are users 17-32
Location 344 are users 33-48
Location 345 are users 39-64
Location 346 are users 65-80
Location 347 are users 81-96
Location 348 are users 97-112
Location 349 are users 113-128
[INSTALLER CODE] [*] [LOCATION] [*] [SUB LOC] [*] [REPORTING CODE] [*]
Loc
Sub Loc
Description
Explanation
342 to 349
1 to 16
Close reporting
Every time a user arms the alarm this code is sent
350 to 357
1 to 16
Stay close reporting
If the user arms in stay mode this code is sent
358 to 365
1 to 16
Open reporting
Every time a user disarms the alarm this code is sent
366 to 373
1 to 16
Siren cancel reporting
When a user enters their code to cancel the siren this code is sent
Location 374: Quick Close Reporting codes per Partition
Location Type: Extended
There is a sub-location for each of the 8 partitions.
These reporting codes are sent when someone away arms the system using the quick arm key, ([1])
Location 375: Quick Stay Reporting codes per Partition
Location Type: Extended
There is a sub-location for each of the 8 partitions.
These reporting codes are sent when someone stay arms the system using the quick Stay arm key, ([5]).
Triggering Outputs
Outputs are normally used to trigger communication devices like radios, with a voltage. All outputs on the
panel and expanders are positive 12 volt outputs. The output can be either pulsed or latched.
Definition:
i. Pulse is when the output will go from no voltage up to 12 volts and with no intervention goes back
to no voltage. Like a spring if you compress it and then leave it alone and it will automatically start
uncompressing
ii. Latch is when the output will go from zero to 12 volts and stay there until something else tells it to
go back to zero volts, like a light switch.
Defaults:
Output
Event
Action
1
Panic and Duress
Pulse to 12V
2
Burglary
Pulse to 12V
3
Arm
Latch to 12V
4
Disarm
Unlatch to 0V
Page 47
IDS X Series Training V2.3 | Triggering Outputs
47
The X-Series alarm panel has 5 physical outputs on the main board, each expander has 2 and the X64
system can have up to 6 expanders. Each of the possible 8 keypads has an output. Below shows the
number assigned to each of the available outputs.
Number
Physical Outputs
Number
Physical Outputs
00
Disabled
13
Zone expander 4 output 2
01
Onboard output 1
14
Zone expander 5 output 1
02
Onboard output 2
15
Zone expander 5 output 2
03
Onboard output 3
16
Zone expander 6 output 1
04
Onboard output 4
17
Zone expander 6 output 2
05
Onboard output 5
34
Keypad 1 output
06
Zone expander 1 output 1
35
Keypad 2 output
07
Zone expander 1 output 2
36
Keypad 3 output
08
Zone expander 2 output 1
37
Keypad 4 output
09
Zone expander 2 output 2
38
Keypad 5 output
10
Zone expander 3 output 1
39
Keypad 6 output
11
Zone expander 3 output 2
40
Keypad 7 output
12
Zone expander 4 output 1
41
Keypad 8 output
When allocating an output to an event, an action must also be entered so that the system knows what to
do when triggered.
The action can be either a pulse or latch as discussed before. Below are the values for the actions.
Value
Output Action
ACTION
00
Set Output High (Set)
From 0V to 12V
01
Set Output Low (Reset)
From 12V to 0V
02
Pulse Output High
From 0V to 12V back to 0V
03
Pulse Output Low
From 12V to 0V back to 12V
When entering the value into the location follow the following steps:
1. Enter the output number that is to be triggered. [0][5]
2. Then enter the action to be performed. [0][2]
3. Only once the output number and the action have been entered press [*]
Outputs can be triggered by many different events and we will discuss the most common first.
Location 380: Clear Programmable Onboard Outputs on Disarm
Location Type: Bitmap
Any outputs enabled in this location will be reset when the alarm system is disarmed.
The onboard outputs are 1 to 5.
Default: OFF
Location 381 to 386: Clear Programmable Zone Expander Outputs on Disarm
Location Type: Bitmap
Any outputs enabled in this location will be reset when the alarm system is disarmed.
The zone expander outputs are:
Expander
1 2 3 4 5
6
Output
6 7 8 9 10
11
12
13
14
15
16
17
Default: OFF
Page 48
48
Triggering Outputs | IDS X Series Training V2.3
Location 389: Clear Programmable Keypad Outputs on Disarm
Location Type: Bitmap
Any outputs enabled in this location will be reset when the alarm system is disarmed.
The keypad outputs are:
Keypad
1 2 3 4 5 6 7 8 Zone No.
34
35
36
37
38
39
40
41
Default: OFF
Partition dependant events:
Location Type: Extended
There is a sub-location for each of the 8 partitions.
Loc
Event
Description
390
Close Programmable Output
Enter the output and action to be performed when the alarm is away
armed
391
Stay Close Programmable Output
When the alarm is armed in the stay mode, someone is staying on the
premises and internal zones are automatically bypassed
392
Open Programmable Output
Open means disarmed from either away or stay armed
393
Cancel Programmable Output
By disarming the partition an output can be turned off
394
Alarm Restoral Programmable Output
This is when a device has triggered and comes back to the normal
working state
395
Bypass Programmable Output
When a zone is disabled using the bypass key [9]
396
Forced Arm Programmable Output
If forced arm has been enabled and zones have been automatically
bypassed by the system to allow the panel to arm
397
Zone Tamper Programmable Output
If tamper has been enabled on a zone and the tamper switch on the
device is triggered
398
Zone Tamper Restoral Programmable
Output
When the tamper switch goes back to normal
399
Zone Shutdown Programmable
Output
If enabled and a zone does get bypassed
400
Zone Shutdown Restoral
Programmable Output
When the zone is un-bypassed at the auto test time if enabled to do
so
401
Keypad Panic Programmable Output
When the panic on the keypad is pressed
402
Keypad Fire Programmable Output
When the fire button on the keypad is pressed
403
Keypad Medical Programmable
Output
When the medical button on the keypad is pressed
404
Keypad Lockout Programmable
Output
If someone randomly presses keys and all parameters are met in
locations 20 and the keypad options menu (251 to 258) the keypad
will lock for the time specified in location 21
405
Duress Programmable Output
A duress code can be programmed into the system to mimic a user
code but will send a duress (panic) signal to the control room
406
Verifies Cross-Zone Trigger
Programmable Output
This output when programmed will trigger when an alarm is caused by
zones that are cross zoned. I.e. The number of triggers in the time
allocated is exceeded.
407
Burglary Programmable Output
Triggered when the alarm is armed and a zone is triggered
408
Panic Programmable Output
If any panic event is triggered
409
Fire Programmable Output
If a fire zone is triggered
410
Tamper Zone Programmable Output
If a zone is set to be of the zone type tamper
Page 49
IDS X Series Training V2.3 | Triggering Outputs
49
The following events do not need an action as they either follow an the event or are preprogramedaction.
Loc
Event
Description
411
Siren Programmable Output
Follows the dedicated siren output in every way
412
Strobe Programmable Output
Will set the output until a valid user code is entered
413
Chime Programmable Output
The output triggers when a chime zone is violated
414
Arm Follow Programmable Output
The output mimics the arm LED on the keypad
Note: When programming output 411 to 414, enter an output number only, as they mimic
other devices or actions.
Exercise: When the fire button on keypad 1, in partition 1, is pressed output 4 will pulse
Instruction
Key presses
Enter location 402
[4][0][2][*]
We are working in partition 1
[1][*]
The rule is output first then the action: output 4 then pulse
[0][4][0][2][*]
Exit location
[#]
Zone triggered outputs
A zone can be set to trigger an output when it is violated. If the zone is a zone that will only trigger when
the alarm is armed, then it will only trigger the output when all conditions are met. For example, an instant
zone will only trigger when the system is armed, but a 24-hour zone is always active, therefore, even if
the system is unarmed and the zone is triggered the output will trigger.
Location 415 to 422: Zone triggered outputs
Location Type: Extended
[Installer Code] [*] [4] [1] [5] [*] [Output No.] [*] [Output] [Action] [*]
Location
Zones
Locations
Zones
Locations
Zones
[415]
1 to 8 418
25 to 32
421
49 to 56
416
9 to 16
419
33 to 40
422
57 to 64
417
17 to 24
420
41 to 48
Data format: 0000
Valid Range: 0000 - 4103
Default: 0000
Globally triggered outputs
Location Type: Extended
These events do not depend on a partition but are system related.
Loc
Sub-
loc
Event
Description
423
1
AC Fail Programmable Output
By default the system monitors the 16V AC and will trigger
these outputs if there are any changes
2
AC Restore Programmable Output
3
Low Battery Programmable Output
The battery is monitored constantly
4
Low Battery Restore Programmable
Output
5
Auto Test Programmable Output
The system can be set to do a test at different intervals as
programmed into location 32
6
Download Programmable Output
When someone has connected to the alarm via the
download software
7
Siren Tamper Programmable Output
If siren monitoring is enabled and the siren goes missing
8
Aux 12V Trouble Programmable
Output
The 12V output on the panel is monitored constantly
Page 50
50
Configuring pulse length | IDS X Series Training V2.3
Loc
Sub-
loc
Event
Description
424
1
Reserved
2
Bus-wired Peripheral Tamper
Programmable Output
This is any device that connects to the system via the
communication bus
3
Bus-wired Peripheral Fail
Programmable Output
If the actual communication bus fails
4
Box Tamper Programmable Output
The alarm panel has a 2 pin connector that can be
connected to a switch to monitor the door of the panel box
5
Dedicated Panic Programmable
Output
Onboard next to zone 8 is a dedicated panic connector for
panic buttons
6
Communication Fail Programmable
Output
If the system cannot communicate and deliver an event via
phone after the number of tries programmed into location 47
7
Telephone Line Tamper
Programmable Output
The telephone line voltage is monitored and if this changes
then the output will trigger
8
Telephone Line Restore
Programmable Output
Set this to restore the output of option 7 if it was set to latch
Loc
Sub-
loc
Event
Description
425
1
RF Jam
If a signal is detected that interferes with the receiver a jam
will be logged and an output can be triggered and reset
when the jamming signal stops
2
RF Jam Reset
3
RF Supervision Fail
Each device is set to send a signal, either every 90min or 12
hours to confirm it is still available. If the system does not
receive the signals a supervision fail is logged
4 RF Detector Battery Low
When the wireless device detects that its battery voltage is
low it will inform the system and the system can set the
output to warn the occupants and restores when battery is
replaced
5
RF Detector Battery Restore
6 RF Receiver Battery
If the receiver‟s battery goes low an output can be triggered
and reset when restored
7 RF Receiver Battery restore
Loc
Sub-
loc
Event
Description
426
1
Wired Zone Expander Low Battery
Programmable Output
When a powered expanders battery voltage drops below
11V a low battery will be reported
2
Wired Zone Expander Battery
Restore Programmable Output
Once the battery is recharged a restore will be reported
3 Fire Sensor Power Programmable
Output
Fire sensors need to be reset when they have been
triggered. This option allows the system to reset the device
4 Dual Reporting Programmable
Output
When the system has been set to dual reporting and the
second number is dialled, this option will trigger the output
Configuring pulse length
The pulse duration can be lengthened if needed.
Location 428: Onboard Outputs Pulse Length
Location Type: Extended
Each of the five onboard outputs can be lengthened or shortened.
[Installer Code] [*] [4] [2] [8] [*] [Output No.] [*] [m] [m] [s] [s] [*]
Data format: mmss
Valid Range: 0000 – 5959
Default: 0002
Page 51
IDS X Series Training V2.3 | Scheduled Output triggers
51
Location 429 to 434: Zone Expander Outputs Pulse Length
Location Type: Extended
Each of the six zone expanders has two outputs.
[Installer Code] [*] [location] [*] [Output No.] [*] [m] [m] [s] [s] [*]
Data format: mmss
Valid Range: 0000 – 5959
Default: 0002
Location 437: Keypad Outputs Pulse Length
Location Type: Extended
Each of the eight keypads has an output.
[Installer Code] [*] [4] [3] [7] [*] [Output No.] [*] [m] [m] [s] [s] [*]
Data format: mmss
Valid Range: 0000 – 5959
Default: 0002
Scheduled Output triggers
An output can be scheduled to turn on or off by time and day
Location 448: Onboard Output Scheduling
Location Type: Extended
This location has 5 sub-locations representing Ooutputs 1 to 5 on the main system board.
[Installer Code] [*] [4] [4] [8] [*] [Output No.] [*] [h] [h] [m] [m] [*]
Data format: hhmm
Valid Range: 0000 – 2359 (2400 disables)
Default: 2400
Location 449 to 454: Zone Expander Output Scheduling
Location Type: Extended
This location has 2 sub-locations representing Each the 2 outputs on each expander.zone expander has
two outputs.
[Installer Code] [*] [location [Output No.] [*] [h] [h] [m] [m] [*]
Data format: hhmm
Valid Range: 0000 – 2359 (2400 disables)
Default: 2400
Location 457: Keypad Output Scheduling
Location Type: Extended
This location has 8 sub-locations representing Each keypad has an output that can be triggeredthe output
on each keypad.
[Installer Code] [*] [4] [5] [7] [*] [Output No.] [*] [h] [h] [m] [m] [*]
Data format: hhmm
Valid Range: 0000 – 2359 (2400 disables)
Default: 2400
Page 52
52
Event Reporting Codes | IDS X Series Training V2.3
Location 458 to 498: Output On / Off Days
Location Type: Bitmap
Each output can be scheduled to switch on or off on certain days of the week.
Manually triggered
Only the 5 onboard outputs can be triggered via the keypad, by pressing and holding the [MODE] key
until you hear a beep (about 3 seconds) then pressing [3][*]. Enter the [output number] [*] (LCD keypad
press [*] again).
Follow the same procedure to turn the output off.
Event Reporting Codes
When using contact ID and SIA formats all event codes are programmed into the X-Series alarm system
and only need to be enabled or disabled in the following locations. The first eight options are to enable or
disable the reporting and the second 8 are to select which group of phone numbers to use.
Location 501 to 564 Global Split Reporting
Location Type: Bitmap
These locations are for each of the zones, 501 is for zone 1, 502 is for zone 2, 503 is for zone 3, etc.
LED
Default
Action
Explanation
Split
Reporting
Option
Default
1
ON
Zone alarm reporting
If this option is selected whenever a zone is
violated the alarm reports via telephone
9
OFF
2
OFF
Zone alarm restore
When the zone restores the alarm reports via
telephone
10
OFF
3
OFF
Zone bypassing
When a zone is bypassed it is reported via
telephone
11
OFF
4
OFF
Zone force
bypassing
When the system is set to bypass zones that
are violated when arming it reports that it was
forced to arm by bypassing zones
12
OFF
5
OFF
Zone tamper
When tamper has been set for a zone and
the tamper signal is received it will be
reported via telephone
13
OFF
6
OFF
Zone tamper restore
When the tamper restores a report is sent via
telephone
14
OFF
7
OFF
Zone swinger
shutdown
A zone shuts down because it has exceeded
the shutdown count and the system will
report via telephone
15
OFF
8
OFF
Zone swinger
shutdown restore
At the auto test report, the system will try and
restore the zone if it is not violated and this
will be reported via telephone
16
OFF
Option
ON Days
Option
OFF Days
1
Monday
9 Monday
2
Tuesday
10
Tuesday
3
Wednesday
11
Wednesday
4
Thursday
12
Thursday
5
Friday 13
Friday
6
Saturday
14
Saturday
7
Sunday
15
Sunday
8
Disabled
16
Disabled
Page 53
IDS X Series Training V2.3 | Event Reporting Codes
53
Location 571 Global Split Reporting
Location Type: Bitmap
Location 572 Global Split Reporting
Location Type: Bitmap
LED
On/Off
Action
Explanation
Split
Reporting
Option
Default
1
ON
Bus-wired peripheral
tamper reporting
Any device connected on the keypad bus is
tampered with this option will send a report
9
OFF 2 ON
Bus-wired peripheral fail
reporting
A device on the keypad bus fails and stops
communicating a report is sent
10
OFF
3
OFF
Bus-wired peripheral low
battery reporting *
If a device is powered by a battery because
of a power failure and the battery has
reached a critical level a low battery signal
is sent
11
OFF
4
ON
Wireless Detector Battery
Low
When a wireless device‟s battery needs
replacing a battery low signal will be sent
12
OFF
5
OFF
Wireless Detector
Supervision fail
If a device stops communicating after a set
amount of time a supervision failure is sent
13
OFF
6
OFF
Wireless Receiver Signal
Jammed
When a signal is detected that could block
signals from the wireless detectors a jam is
reported
14
OFF
7
OFF
Wireless Detector RSSI
Low
RSSI is the monitoring of signal strength
from detectors and if the signal drops
below 20% a message will be sent to alert
the security company
15
OFF
8
ON
AC Restored
After AC is restored a message can be sent
16
OFF
LED
Default
Action
Explanation
Split
Reporting
Option
Default
1
ON
AC fail reporting
After the wait time set in loc?? The AC failure will be
reported
9
OFF
2
OFF
Communication fail
reporting
If the system cannot report a failure to report
message is sent
10
OFF 3 ON
Telephone line tamper
reporting
The alarm monitors the voltage on the telephone
line and if that it goes missing a tamper is reported
11
OFF 4 ON
Siren fail reporting
The siren output monitors the load on the output
and if it goes missing then a tamper is reported
12
OFF
5
ON
Panel low battery fail
reporting
When AC is off and the battery voltage drops to
10.5V a battery low signal is sent, warning that the
system is close to shutting down
13
OFF 6 ON
Enable aux 12V fuse
fail reporting
If a short circuit or too much current is drawn from
the auxiliary 12V the fuse will shut off and send a
signal warning of a problem
14
OFF
7
OFF
Installer Reset
Required
If installer reset is enabled in loc.211 to 218 and the
alarm is triggered the system will not arm until the
installer code is entered. This alerts the security
company of this
15
OFF
8
ON
Box tamper reporting
The alarm has an input that monitors a switch that
monitors if the housing that it is in is opened
16
OFF
Page 54
54
Event Reporting Codes | IDS X Series Training V2.3
Location 573 Global Split Reporting
Location Type: Bitmap
LED
Default
Action
Explanation
Split
Reporting
Option
Default
1
OFF
Comms Restored
When the system is able to communicate
after a failure a restoral is sent
9
OFF 2 OFF
Comms Tamper
Restore
If the lines went down and when they start
working again a restore is sent
10
OFF 3 OFF
Siren Restore
If the siren went missing and is reconnected
a restore will be sent
11
OFF
4
OFF
Battery Restore
After a battery low is reported and the
battery is changed or charged a restore will
be sent
12
OFF 5 OFF
Aux 12V Restored
After a short circuit or too much current
being drawn is fixed the fuse will restore
and send a signal
13
OFF
6
OFF
Installer Reset restored
After an installer reset required condition is
reset a signal will be sent
14
OFF 7 ON
Box tamper restored
When the box that the system is housed is
closed a restore is sent
15
OFF
8
ON
Bus device tamper
restored
When the device on the keypad bus that
was tampered is restored a signal will be
sent
16
OFF
Location 574 Global Split Reporting
Location Type: Bitmap
LED
Default
Action
Explanation
Split
Reporting
Option
Default
1
OFF
Bus device comms
restored
When a device has stopped communicating on
the bus and when the fault is corrected and
communication is restored a signal is sent to
confirm this.
9
OFF
2
OFF
Bus device battery
restored
A device that reported a low battery on the bus will
send a restore when the battery voltage is full and
report the restoral condition
10
OFF
3
OFF
Wireless detector
battery restored
Once the wireless devices battery is changed it
will respond by sending a restore
11
OFF
4
OFF
Wireless detector
supervision restored
When a device starts communicating after being
marked as missing by the system a supervision
restoral is sent
12
OFF
5
OFF
Wireless receiver jam
restored
After detecting a strong signal that could cause
wireless devices from communicating is switched
off a restoral will be sent
13
OFF
6
OFF
Wireless detector RSSI
low restored
A device that recorded a low signal recovers and
the signal comes up to an acceptable level a
restoral will be sent
14
OFF
7
ON
Dedicated Panic
The X-Series has a dedicated panic onboard and
if this is triggered a panic signal will be sent
15
OFF
8
ON
Test Report
The alarm can be configured to send a test report
every 6 hours to every 14 days
16
OFF
Page 55
IDS X Series Training V2.3 | Event Reporting Codes
55
Location 575 Global Split Reporting
Location Type: Bitmap
LED
On/Off
Action
Explanation
Split
Reporting
Option
Default
1
OFF
IDSwift Download
Accessed
This option reports when the system has been
communicated with by the download software
9
OFF
Location 581 - 588 Partition Split Reporting
Location Type: Bitmap
LED
On/Off
Action
Explanation
Split
Reporting
Option
Default
1
ON
Duress reporting
When a user code is made into a
duress code and is used this
enables the contact ID code to be
sent to the security company
9
OFF
2
ON
Keypad Panic Reporting
When the “P” key on the keypad is
pressed a panic signal is sent to the
security company
10
OFF
3
ON
Fire reporting
When the “F” key is pressed or a
zone is a fire zone and is violated a
fire signal is sent to the security
company
11
OFF
4
ON
Medical Reporting
When the “M” key or the option
“Medical alarm if no movement is
detected” is enable a medical signal
will be sent if this option is enabled
12
OFF
5
ON
Keypad Lockout Reporting
If this option is enabled in location
221 – 228 and an incorrect code is
entered the number of times set in
location 20 within the time set in
location 21, the signal will be sent
13
OFF
6
Reserved
7
Off
Arm without user code
Reporting
When arming with the “Quick Arm”
keys or a arm/disarm zone this
option must be enabled to send an
arm signal
15
OFF
8
Reserved
Location 600 - 616 Voice Module Reporting
Location Type: Standard
The voice module, if installed, will report programmed events to the telephone numbers entered into these
locations. Depending on the location the telephone number is entered into will depend on the partition the
person can interact with via the voice module.
Page 56
56
Appendix | IDS X Series Training V2.3
The table below shows which locations belong to which partitions.
Location
Partitions
User Slot
Location
Partitions
User Slot
600
All
609 & 610
5
50 to 59
601 & 602
1
10 to 19
611 & 612
6
60 to 69
603 & 604
2
20 to 29
613 & 614
7
70 to 79
605 & 606
3
30 to 39
615 & 616
8
80 to 89
607 & 608
4
40 to 49
Note: The user code must also be a code that belongs to the partition and entered into the correct user slot
numbers for the partition that the person needs to interact with.
Location 617: User Reporting Codes
Location Type: Bitmap
If open and close reporting is required by default all user options are enable therefore to enable reporting
the global option under partition options, Locations 211 to 218 must be enabled. In this location you can
enable or disable per user.
Option
Default
Action
Description
1
ON
Close reporting
Enable if a close signal is to me sent to the security company
2
ON
Stay Close Reporting
Enable if a stay close signal is to me sent
3
ON
Open Reporting
Enable if a open signal is to me sent
4
OFF
Siren Cancel Reporting
Enable if the siren is active and a user cancels the siren
5
Reserved
6
OFF
AC Fail Reporting
Enable if aA signal is to me sent when the electricity goes off
7
OFF
AC Restore Reporting
Enable ifA signal is to me sent when the electricity is stored
8
OFF
Low Battery Reporting
Enable if aA signal is to me sent when the battery reaches 10.5V
9
On
Auto Test Reporting
This is a signal reporting that the alarm is communicating
10
OFF
Zone Bypassing Reporting
Enable if aA signal is to me sent when zones are bypassed
Location 618: User Split Reporting
Location Type: Bitmap
Select which group of phone numbers to report the user reporting codes per code.
Option
Default
Action
Option
Default
Action
Close
OFF
Telephone Module 1
Open
OFF
Telephone Module 2
Stay Close
OFF
Telephone Module 1
Siren Cancel
OFF
Telephone Module 2
Appendix
1. Extra Contact ID Zone Reporting……………………………………………………………………..57
2. Communication Default Settings.…………………………………………………………………….59
3. Features Grouped by Location……………………………………………………………………….67
Page 57
IDS X Series Training V2.3 | Contact ID Zone Reporting
57
Contact ID Zone Reporting
This is the complete list of values that can be entered into locations 304 to 335 to extend the Contact ID reporting
Value
CID
Description
Value
CID
Description
01
100
Medical Zone
3C
303
RAM Checksum bad Zone
02
101
Personal Emergency Zone
3D
304
ROM checksum bad Zone
03
102
Fail to report in Zone
3E
305
System reset Zone
04
110
Fire Zone
3F
306
Panel programming changed Zone
05
111
Smoke Zone
40
307
Self- test failure Zone
06
112
Combustion Zone
41
308
System shutdown Zone
07
113
Water flow Zone
42
309
Battery test failure Zone
08
114
Heat Zone
43
310
Ground fault Zone
09
115
Pull Station Zone
44
311
Battery Missing/Dead Zone
0A
116
Duct Zone
45
312
Power Supply Overcurrent Zone
0B
117
Flame Zone
46
313
Engineer Reset User
0C
118
Near Alarm Zone
47
320
Sounder/Relay Zone
0D
120
Panic Zone
48
321
Bell 1 Zone
0E
121
Duress User
49
322
Bell 2 Zone
0F
122
Silent Zone
4A
323
Alarm relay Zone
10
123
Audible Zone
4B
324
Trouble relay Zone
11
124
Duress – Access granted Zone
4C
325
Reversing relay Zone
12
125
Duress – Egress granted Zone
4D
326
Notification Appliance Ckt. # 3 Zone
13
130
Burglary Zone
4E
327
Notification Appliance Ckt. #4 Zone
14
131
Perimeter Zone
4F
330
System Peripheral trouble Zone
15
132
Interior Zone
50
331
Polling loop open Zone
16
133
24 Hour (Safe) Zone
51
332
Polling loop short Zone
17
134
Entry/Exit Zone
52
333
Expansion module failure Zone
18
135
Day/night Zone
53
334
Repeater failure Zone
19
136
Outdoor Zone
54
335
Local printer out of paper Zone
1A
137
Tamper Zone
55
336
Local printer failure Zone
1B
138
Near alarm Zone
56
337
Exp. Module DC Loss Zone
1C
139
Intrusion Verifier Zone
57
338
Exp. Module Low Batt. Zone
1D
140
General Alarm Zone
58
339
Exp. Module Reset Zone
1E
141
Polling loop open Zone
59
341
Exp. Module Tamper Zone
1F
142
Polling loop short Zone
5A
342
Exp. Module AC Loss Zone
20
143
Expansion module failure Zone
5B
343
Exp. Module self-test fail Zone
21
144
Sensor tamper Zone
5C
344
RF Receiver Jam Detect Zone
22
145
Expansion module tamper Zone
5D
350
Communication trouble Zone
23
146
Silent Burglary Zone
5E
351
Telco 1 fault Zone
24
147
Sensor Supervision Failure Zone
5F
352
Telco 2 fault Zone
25
150
24 Hour Non-Burglary Zone
60
353
Long Range Radio Txmitter fault Zone
26
151
Gas detected Zone
61
354
Failure to communicate event Zone
27
152
Refrigeration Zone
62
355
Loss of Radio supervision Zone
28
153
Loss of heat Zone
63
356
Loss of central polling Zone
29
154
Water Leakage Zone
64
357
Long Range Radio VSWR problem Zone
2A
155
Foil Break Zone
65
370
Protection loop Zone
2B
156
Day Trouble Zone
66
371
Protection loop open Zone
2C
157
Low bottled gas level Zone
67
372
Protection loop short Zone
2D
158
High temp Zone
68
373
Fire trouble Zone
2E
159
Low temp Zone
69
374
Exit error alarm (zone) Zone
2F
161
Loss of air flow Zone
6A
375
Panic zone trouble Zone
30
162
Carbon Monoxide detected Zone
6B
376
Hold-up zone trouble Zone
31
163
Tank level Zone
6C
377
Swinger Trouble Zone
32
200
Fire Supervisory Zone
6D
378
Cross-zone Trouble Zone
33
201
Low water pressure Zone
6E
380
Sensor trouble Zone
34
202
Low CO2 Zone
6F
381
Loss of supervision - RF Zone
35
203
Gate valve sensor Zone
70
382
Loss of supervision - RPM Zone
36
204
Low water level Zone
71
383
Sensor tamper Zone
37
205
Pump activated Zone
72
384
RF low battery Zone
Page 58
58
Contact ID Zone Reporting | IDS X Series Training V2.3
Value
CID
Description
Value
CID
Description
38
206
Pump failure Zone
73
385
Smoke detector Hi sensitivity Zone
39
300
System Trouble Zone
74
386
Smoke detector Low sensitivity Zone
3A
301
AC Loss Zone
75
387
Intrusion detector Hi sensitivity Zone
3B
302
Low system battery Zone
76
388
Intrusion detector low sensitivity Zone
77
389
Sensor self-test failure Zone
AD
521
Bell 1 disable Zone
78
391
Sensor Watch trouble Zone
AE
522
Bell 2 disable Zone
79
392
Drift Compensation Error Zone
AF
523
Alarm relay disable Zone
7A
393
Maintenance Alert Zone
B0
524
Trouble relay disable Zone
7B
400
Open/Close User
B1
525
Reversing relay disable Zone
7C
401
O/C by user
B2
526
Notification Appliance Ckt. # 3 disable Zone
7D
402
Group O/C User
B3
527
Notification Appliance Ckt. # 4 disable Zone
7E
403
Automatic O/C User
B4
531
Module Added Zone
7F
404
Late to O/C (Note: use 453, 454 instead)
B5
532
Module Removed Zone
80
405
Deferred O/C (Obsolete-do not use )
B6
551
Dialler disabled Zone
81
406
Cancel User
B7
552
Radio transmitter disabled Zone
82
407
Remote arm/disarm User
B8
553
Remote Upload/Download disabled Zone
83
408
Quick arm User
B9
570
Zone/Sensor bypass Zone
84
409
Keyswitch O/C User
BA
571
Fire bypass Zone
85
441
Armed STAY User
BB
572
24 Hour zone bypass Zone
86
442
Keyswitch Armed STAY User
BC
573
Burg. Bypass Zone
87
450
Exception O/C User
BD
574
Group bypass User
88
451
Early O/C User
BE
575
Swinger bypass Zone
89
452
Late O/C User
BF
576
Access zone shunt Zone
8A
453
Failed to Open User
C0
577
Access point bypass Zone
8B
454
Failed to Close User
C1
601
Manual trigger test report Zone
8C
455
Auto-arm Failed User
C2
602
Periodic test report Zone
8D
456
Partial Arm User
C3
603
Periodic RF transmission Zone
8E
457
Exit Error (user) User
C4
604
Fire test User
8F
458
User on Premises User
C5
605
Status report to follow Zone
90
459
Recent Close User
C6
606
Listen- in to follow Zone
91
461
Wrong Code Entry Zone
C7
607
Walk test mode User
92
462
Legal Code Entry User
C8
608
Periodic test - System Trouble Present Zone
93
463
Re-arm after Alarm User
C9
609
Video Txmitter active Zone
94
464
Auto-arm Time Extended User
CA
611
Point tested OK Zone
95
465
Panic Alarm Reset Zone
CB
612
Point not tested Zone
96
466
Service On/Off Premises User
CC
613
Intrusion Zone Walk Tested Zone
97
411
Callback request made User
CD
614
Fire Zone Walk Tested Zone
98
412
Successful download/access User
CE
615
Panic Zone Walk Tested Zone
99
413
Unsuccessful access User
CF
616
Service Request Zone
9A
414
System shutdown command User
D0
621
Event Log reset Zone
9B
415
Dialler shutdown command received
D1
622
Event Log 50% full Zone
9C
416
Successful Upload Zone
D2
623
Event Log 90% full Zone
9D
421
Access denied User
D3
624
Event Log overflow Zone
9E
422
Access report by user
D4
625
Time/Date reset User
9F
423
Forced Access Zone
D5
626
Time/Date inaccurate Zone
A0
424
Egress Denied User
D6
627
Program mode entry Zone
A1
425
Egress Granted User
D7
628
Program mode exit Zone
A2
426
Access Door propped open Zone
D8
629
32 Hour Event log marker Zone
A3
427
Access point Door Status Monitor t
D9
630
Schedule change Zone
A4
428
Access point Request To Exit trouble
Zone DA
631
Exception schedule change Zone
A5
429
Access program mode entry User
DB
632
Access schedule change Zone
A6
430
Access program mode exit User
DC
641
Senior Watch Trouble Zone
A7
431
Access threat level change User
DD
642
Latch-key Supervision User
A8
432
Access relay/trigger fail Zone
DE
651
Reserved for Ademco Use Zone
A9
433
Access RTE shunt Zone
DF
652
Reserved for Ademco Use User
AA
434
Access DSM shunt Zone
E0
653
Reserved for Ademco Use User
AB
501
Access reader disable Zone
E1
654
System Inactivity
AC
520
Sounder/Relay Disable Zone
Page 59
IDS X Series Training V2.3 | Default 5
59
Default 5
Location 14 Global Options
LED
Factory
Default
Default
5
Action
1
ON
ON
A user assigned to any partition may cancel the siren
2
OFF
OFF
Keypad trouble beep
3
OFF
OFF
Telephone line monitoring
4
OFF
OFF
Keypad beep on successful reporting to the base station
5
ON
ON
Keypad Fire, Medical and Panic keys
6
ON
ON
Display of bypassed and stay zones when armed
7
OFF
OFF
Siren delay
8
ON
OFF
Box tamper monitoring
9
ON
OFF
Siren monitoring
10
OFF
Off
Bus-wired peripheral tamper monitoring*
11
OFF
OFF
Onboard dedicated panic – silent
12
ON
ON
Low battery monitoring**
13
ON
ON
Low battery cut-out**
14
OFF
OFF
Bypassing with user code***
15
OFF
OFF
Dedicated Panic Zone Bypassing
16
OFF
OFF
Remote transmitters are able to cancel a panic condition
Location 41 - 44 Communication Format
Factory
Default
Default 5 Format Name
Description
5
5
Contact ID
Dual Tone HS, DTMF
Location 46 Reporting Option
LED
Factory
Default
Default 5
Action
1
ON
ON
Enable Tone Dialling
2
OFF
OFF
Keep Two Separate Telephone Numbers
3
OFF
OFF
Disable Dual Reporting
4
OFF
OFF
Disable Alternate Reporting
Locations 51 – 54 Primary Telephone Numbers
Clears all numbers
Page 60
60
Default 5 | IDS X Series Training V2.3
Location 211 – 218 Partition Arm Options
LED
Factory
Default
Default 5
Action
1
OFF
OFF
Instant Arm
2
ON
ON
Instant Key-switch Arm
3
ON
ON
Quick Away Arm Key
4
ON
ON
Quick Stay Arm Key
5
ON
OFF
Auto Stay Arm if No Exit Zone is Triggered*
6
OFF
OFF
Auto Stay Arm if No Exit Zone is Triggered When Arming with a key-switch
7
OFF
OFF
Forced Arm
8
ON
ON
Zone Bypassing
9
OFF
ON
Arm with Zones in the Entry Route Violated
10
OFF
OFF
Siren Toot on Arm
11
OFF
OFF
Siren Toot on Disarm
12
ON
ON
Entry Beep
13
ON
ON
Exit Beep
14
OFF
OFF
Engineer's Reset
15
OFF
OFF
Auto Disarm
16
OFF
OFF
Opening & Closing Reporting
Locations 342 – 349 Close Reporting Codes
Clears all codes
Locations 350 – 357 Stay Close Reporting
Clears all codes
Locations 358 – 365 Open Reporting
Clears all codes
Locations 366 – 373 Siren Cancel Reporting
Clears all codes
Locations 501 – 564 Zone Split Reporting
LED
Factory
Default
Default
5
Action
LED
On/Off
Reporting Pair
1
ON
ON
Zone alarm reporting
9
OFF
Telephone module 1
2
OFF
OFF
Zone alarm restore reporting
10
OFF
Telephone module 1
3
OFF
OFF
Zone bypass reporting
11
OFF
Telephone module 1
4
OFF
OFF
Zone force arm reporting
12
OFF
Telephone module 1
5
OFF
OFF
Zone tamper reporting
13
OFF
Telephone module 1
6
OFF
OFF
Zone tamper restore reporting
14
OFF
Telephone module 1
7
OFF
OFF
Zone swinger shutdown reporting
15
OFF
Telephone module 1
8
OFF
OFF
Zone swinger shutdown restore
reporting
16
OFF
Telephone module 1
Page 61
IDS X Series Training V2.3 | Default 5
61
Location 571 Global Split Reporting 1
LED
Factory
Default
Default
5
Action
LED
On/Off
Reporting Pair
1
ON
ON
AC fail reporting
9
OFF
Telephone module 1
2
OFF
OFF
Communication fail reporting *
10
OFF
Telephone module 1
3
ON
ON
Telephone line tamper reporting
11
OFF
Telephone module 1
4
ON
ON
Siren fail reporting
12
OFF
Telephone module 1
5
ON
ON
Panel low battery fail reporting
13
OFF
Telephone module 1
6
ON
ON
Aux 12V fuse fail reporting
14
OFF
Telephone module 1 7 Reserved
15
Reserved
8
ON
ON
Box tamper reporting
16
OFF
Telephone module 1
Location 572 Global Split Reporting 2
LED
Factory
Default
Default
5
Action
LED
On/Off
Reporting Pair
1
ON
ON
Bus-wired peripheral tamper
reporting
9
OFF
Telephone module 1
2
ON
ON
Bus-wired peripheral fail reporting
10
OFF
Telephone module 1
3
OFF
OFF
Bus-wired peripheral low battery
reporting *
11
OFF
Telephone module 1
4
ON
OFF
Wireless Detector Battery Low
12
OFF
Telephone module 1
5
OFF
OFF
Wireless Detector Supervision fail
13
OFF
Telephone module 1
6
OFF
OFF
Wireless Receiver Signal Jammed
14
OFF
Telephone module 1
7
OFF
OFF
Wireless Detector RSSI Low
15
OFF
Telephone module 1
8
ON
ON
AC Restored
16
OFF
Telephone module 1
Location 573 Global Split Reporting 3
LED
Factory
Default
Default 5 Action
LED
On/Off
Reporting Pair
1
OFF
OFF
Comms Restored
9
OFF
Telephone module 1
2
OFF
OFF
Comms Tamper Restore
10
OFF
Telephone module 1
3
OFF
OFF
Siren Restore
11
OFF
Telephone module 1
4
ON
ON
Battery Restore
12
OFF
Telephone module 1
5
OFF
OFF
Aux 12V Restored
13
OFF
Telephone module 1
6
OFF
OFF
Installer Reset restored
14
OFF
Telephone module 1
7
OFF
OFF
Box tamper restored
15
OFF
Telephone module 1
8
OFF
OFF
Bus device tamper restored
16
OFF
Telephone module 1
Page 62
62
Default 6 | IDS X Series Training V2.3
Location 574 Global Split Reporting 4
LED
Factory
Default
Default 5
Action
LED
On/
Off
Reporting Pair
1
OFF
OFF
Bus device comms restored
9
OFF
Telephone module 1
2
OFF
OFF
Bus device battery restored
10
OFF
Telephone module 1
3
OFF
OFF
Wireless detector battery restored
11
OFF
Telephone module 1
4
OFF
OFF
Wireless detector supervision
restored
12
OFF
Telephone module 1
5
OFF
OFF
Wireless receiver jam restored
13
OFF
Telephone module 1
6
OFF
OFF
Wireless detector RSSI low
restored
14
OFF
Telephone module 1
7
ON
ON
Dedicated Panic
15
OFF
Telephone module 1
8
ON
ON
Test Report
16
OFF
Telephone module 1
Location 575 Global Split Reporting 5
LED
Factory
Default
Default
5
Action
LED
On/Off
Reporting Pair
1
OFF
OFF
IDSwift Download Accessed
9
OFF
Telephone module 1
Location 581 - 588 Partition Split Reporting
LED
Factory
Default
Default
5
Action
LED
On/Off
Reporting Pair
1
ON
ON
Enable duress reporting
9
OFF
Telephone module 1
2
ON
ON
Enable keypad panic reporting
10
OFF
Telephone module 1
3
ON
ON
Enable fire reporting
11
OFF
Telephone module 1
4
ON
ON
Enable medical reporting
12
OFF
Telephone module 1
5
ON
ON
Enable keypad lockout reporting
13
OFF
Telephone module 1
6
OFF
Reserved
14
Reserved
7
OFF
OFF
Disable armed without user code
reporting
15
OFF
Telephone module 1
8
OFF
Reserved
16
Reserved
Location 600 – 616 Voice Module Phone Numbers
All numbers cleared
Page 63
IDS X Series Training V2.3 | Default 6
63
Default 6
Location 14 Global Options
LED
Factory
Default
Default
6
Action
1
ON
ON
A user assigned to any partition may cancel the siren
2
OFF
OFF
Disable keypad trouble beep
3
OFF
OFF
Disable telephone line monitoring
4
OFF
OFF
Disable keypad beep on successful reporting to the base station
5
ON
ON
Enable keypad Fire, Medical and Panic keys
6
ON
ON
Enable the display of bypassed and stay zones when armed
7
OFF
OFF
Disable the siren delay
8
ON
OFF
Enable box tamper monitoring
9
ON
OFF
Enable siren monitoring
10
OFF
OFF
Disable bus-wired peripheral tamper monitoring
11
OFF
OFF
Disable onboard dedicated panic– audible
12
ON
ON
Enable low battery monitoring
13
ON
ON
Enable low battery cut-out
14
OFF
OFF
Disable bypassing with user code***
15
OFF
OFF
Disable Dedicated Panic Zone Bypassing
16
OFF
OFF
Disable remote transmitters to cancel a panic condition
Location 46 Reporting Options
LED
Factory
Default
Default 6
Action
1
ON
ON
Tone Dialling
2
OFF
OFF
Join the Telephone Numbers Together
3
OFF
OFF
Disable Dual Reporting
4
OFF
OFF
Disable Alternate Reporting
Locations 51 – 54 Primary Telephone Numbers
Clears all numbers
Page 64
64
Default 6 | IDS X Series Training V2.3
Location 211 – 218 Partition Arm Options
LED
Factory
Default
Default 6
Action
1
OFF
OFF
Instant Arm
2
ON
ON
Instant Key-switch Arm
3
ON
ON
Quick Away Arm Key
4
ON
ON
Quick Stay Arm Key
5
ON
OFF
Auto Stay Arm if No Exit Zone is Triggered*
6
OFF
OFF
Auto Stay Arm if No Exit Zone is Triggered When Arming with a key - switch
7
OFF
OFF
Forced Arm
8
ON
ON
Zone Bypassing
9
OFF
ON
Arm with Zones in the Entry Route Violated
10
OFF
OFF
Siren Toot on Arm
11
OFF
OFF
Siren Toot on Disarm
12
ON
ON
Entry Beep
13
ON
ON
Exit Beep
14
OFF
OFF
Engineer's Reset
15
OFF
OFF
Auto Disarm
16
OFF
OFF
Opening & Closing Reporting
Locations 342 – 349 Close Reporting Codes
Clears all codes
Locations 350 – 357 Stay Close Reporting
Clears all codes
Locations 358 – 365 Open Reporting
Clears all codes
Locations 366 – 373 Siren Cancel Reporting
Clears all codes
Locations 501 - 564 Zone Split Reporting
LED
Factory
Default
Default
6
Action
LED
On/Off
Reporting Pair
1
ON
ON
Zone alarm reporting
9
OFF
Telephone module 1
2
OFF
OFF
Zone alarm restore reporting
10
OFF
Telephone module 1
3
OFF
OFF
Zone bypass reporting
11
OFF
Telephone module 1
4
OFF
OFF
Zone force arm reporting
12
OFF
Telephone module 1
5
OFF
OFF
Zone tamper reporting
13
OFF
Telephone module 1
6
OFF
OFF
Zone tamper restore reporting
14
OFF
Telephone module 1
7
OFF
OFF
Zone swinger shutdown reporting
15
OFF
Telephone module 1
8
OFF
OFF
Zone swinger shutdown restore
reporting
16
OFF
Telephone module 1
Page 65
IDS X Series Training V2.3 | Default 6
65
Location 571 Global Split Reporting 1
LED
Factory
Default
Default
6
Action
LED
On/Off
Reporting Pair
1
ON
OFF
Enable AC fail reporting
9
OFF
Telephone module 1
2
OFF
OFF
Disable communication fail reporting *
10
OFF
Telephone module 1
3
ON
OFF
Enable telephone line tamper reporting
11
OFF
Telephone module 1
4
ON
OFF
Enable siren fail reporting
12
OFF
Telephone module 1
5
ON
OFF
Enable panel low battery fail reporting
13
OFF
Telephone module 1
6
ON
OFF
Enable aux 12V fuse fail reporting
14
OFF
Telephone module 1
7
OFF
OFF
Installer Reset Required
15
OFF
Telephone module 1
8
ON
OFF
Enable box tamper reporting
16
OFF
Telephone module 1
Location 572 Global Split Reporting 2
LED
Factory
Default
Default
6
Action
LED
On/Off
Reporting Pair
1
ON
OFF
Enable bus-wired peripheral
tamper reporting
9
OFF
Telephone module 1
2
ON
OFF
Enable bus-wired peripheral fail
reporting
10
OFF
Telephone module 1
3
OFF
OFF
Disable bus-wired peripheral low
battery reporting *
11
OFF
Telephone module 1
4
ON
OFF
Wireless Detector Battery Low
12
OFF
Telephone module 1
5
OFF
OFF
Wireless Detector Supervision fail
13
OFF
Telephone module 1
6
OFF
OFF
Wireless Receiver Signal Jammed
14
OFF
Telephone module 1
7
OFF
OFF
Wireless Detector RSSI Low
15
OFF
Telephone module 1
8
ON
OFF
AC Restored
16
OFF
Telephone module 1
Location 573 Global Split Reporting 3
LED
Factory
Default
Default 6 Action
LED
On/Off
Reporting Pair
1
OFF
OFF
Comms Restored
9
OFF
Telephone module 1
2
OFF
OFF
Comms Tamper Restore
10
OFF
Telephone module 1
3
OFF
OFF
Siren Restore
11
OFF
Telephone module 1
4
OFF
OFF
Battery Restore
12
OFF
Telephone module 1
5
OFF
OFF
Aux 12V Restored
13
OFF
Telephone module 1
6
OFF
OFF
Installer Reset restored
14
OFF
Telephone module 1
7
ON
OFF
Box tamper restored
15
OFF
Telephone module 1
8
ON
OFF
Bus device tamper restored
16
OFF
Telephone module 1
Page 66
66
Features Grouped by Locations | IDS X Series Training V2.3
Location 574 Global Split Reporting 4
LED
Factory
Default
Default
6
Action
LED
On/Off
Reporting Pair
1
OFF
OFF
Bus device comms restored
9
OFF
Telephone module 1
2
OFF
OFF
Bus device battery restored
10
OFF
Telephone module 1
3
OFF
OFF
Wireless detector battery restored
11
OFF
Telephone module 1
4
OFF
OFF
Wireless detector supervision restored
12
OFF
Telephone module 1
5
OFF
OFF
Wireless receiver jam restored
13
OFF
Telephone module 1
6
OFF
OFF
Wireless detector RSSI low restored
14
OFF
Telephone module 1
7
ON
ON
Dedicated Panic
15
OFF
Telephone module 1
8
ON
OFF
Test Report
16
OFF
Telephone module 1
Location 575 Global Split Reporting 5
LED
Factory
Default
Default 6 Action
LED
On/Off
Reporting Pair
1
OFF
OFF
IDSwift Download Accessed
9
OFF
Telephone module 1
Location 581 - 588 Partition Split Reporting
LED
Factory
Default
Default 6 Action
LED
On/Off
Reporting Pair
1
ON
ON
Duress reporting
9
OFF
Telephone module 1
2
ON
ON
Keypad panic reporting
10
OFF
Telephone module 1
3
ON
ON
Fire reporting
11
OFF
Telephone module 1
4
ON
ON
Medical reporting
12
OFF
Telephone module 1
5
ON
ON
Keypad lockout reporting
13
OFF
Telephone module 1
6
Reserved
14
Reserved
7
OFF
OFF
Armed without user code
reporting
15
OFF
Telephone module 1
8
Reserved
16
Reserved
Location 600 – 616 Voice Module Phone Numbers
Clears all Numbers
Page 67
IDS X Series Training V2.3 | Features Grouped by Locations
67
Features Grouped by Locations
Feature
Location
Description
Page
Entry/Exit
1 to 64
Zone type
Page 9
211 to 218
5 – Auto stay if no exit zone triggered
6 – Auto stay if no exit zone triggered when using an arm/disarm zone
9 – Arm with zones in the entry route violated
12 – Entry beep
13 – Exit beep
Page 25
230
Exit delay
Page 26
231
Entry delay
Page 26
232
Secondary exit delay
Page 27
Zones
1 to 64
Zone types
Page 9
10
Zone shutdown count
Page 11
11
Programmable zone loop response time
Page 11
12
Cross zone delay time
Page 11
13
Cross zone count
Page 12
14
Display bypassed zones when armed
Page 12
16
Zone tamper trouble
Page 13
101 to 164
Zone properties
Page 20
201 to 208
Partition zone allocation
Page 24
211 to 218
5 – Auto stay if no exit zone triggered
6 – Auto stay if no exit zone triggered when using an arm/disarm zone
8 – Zone bypassing
9 – Arm with zones in the entry route violated
12 – Entry beep
13 – Exit beep
Page 25
221 to 228
1 – Automatic enabling of shutdown zones
2 – Bypassing common zones
7 – Stay zone reporting
8 – Zone restoral signal sending option
Page 26
241
Keypad display start zone
Page 27
242
Keypad zone
Page 28
251 to 258
4 – Show all zones
Page 28
260
1 – Add wireless detector to zones
2 – Delete wireless detector from zone
Page 30
261 to 264
Stay zone reporting codes
Page 34
304 to 335
Zone reporting
Page 35
415 to 422
Zone triggered outputs
Page 40
501 to 564
Zone split reporting options
Page 42
617
10 – Zone user bypassing reporting
Page 44
Partitions
61 to 68
Account codes
Page 19
71 to 78
Secondary account codes
Page 19
165 to 178
Arming and Medical alarm on no movement
Page 21
180 to 190
Auto arm and disarm settings
Page 22
201 to 208
Zone allocation
Page 24
211 to 218
Partition configuration
Page 25
221 to 228
Extra partition options
Page 26
230
Exit delay
Page 26
231
Entry delay
Page 26
232
Secondary entry delay
Page 27
240
Keypad partition allocation
Page 27
336 to 340
Partition reporting codes
Page 36
390 to 414
Partition triggered programmable outputs
Page 38
Page 68
68
Features Grouped by Locations | IDS X Series Training V2.3
Feature
Location
Description
Page
Keypads
14
2 – Keypad trouble beep
4 – Keypad beep on successful communication
5 – Keypad fire, medical & panic keys
Page 12
16
9 – Peripheral tamper trouble display
10 – 485 bus fail trouble display
Page 13
20
Keypad lockout count
Page 14
21
Keypad lockout time
Page 14
22
Keypad sleep delay
Page 14
240
Keypad partition allocation
Page 27
241
Keypad start zone
Page 27
242
Keypad zone
Page 28
243
Keypad ID
Page 28
251 to 258
Keypad options
Page 28
302
1 – Bus device tamper
2 – Bus tamper restore
3 – Bus peripheral communication fail
4 – Bus peripheral communication restore
Page 35
337
Keypad panic reporting
Page 36
338
Keypad/zone fire reporting
Page 36
339
Keypad medical reporting
Page 36
340
Keypad lockout reporting
Page 36
389
Clear keypad outputs on disarm
Page 38
437
Keypad outputs pulse length
Page 41
457
Keypad output scheduling
Page 41
572
1 – Bus wired peripheral tamper reporting
2 – Bus wired peripheral communication fail reporting
Page 43
573
8 – Bus wired peripheral tamper restore reporting
Page 43
574
1 – Bus wired peripheral communication restore reporting
Page 44
Communication
14
3 – Telephone line monitoring
4 – Keypad beep on communication
Page 12
16
2 – Trouble communication trouble display
3 – Phone line trouble display
Page 13
24
Account code number of digits
Page 14
40
Serial communication format
Page 17
41 to 44
Communication format
Page 17
45
Communication delay
Page 17
46
Reporting Options
Page 18
47
Number of dial attempts
Page 18
48
Download options
Page 18
49
Number of rings to answer
Page 18
51 to 54
Telephone numbers
Page 19
55
Serial reporting telephone number
Page 19
61 to 68
Primary account codes
Page 19
71 to 78
Secondary account codes
Page 19
261 to 373
Reporting codes
Page 34
424
6 – Communication fail output
7 – Telephone line tamper output
8 – Telephone line tamper restore output
Page 39
426
4 – Dual reporting output
Page 40
501 to 618
Split reporting options
Page 42
Page 69
IDS X Series Training V2.3 | Features Grouped by Locations
69
Feature
Location
Description
Page
Wireless
16
12 – Wireless device battery low fault display
13 – Wireless device supervision fault display
14 – Wireless RF jam trouble display
15 – Wireless low RSSI fault display
16 – Zone tamper display
Page 13
260
Sub 1 – Add a wireless device to a zone
Sub 2 – Delete a wireless device from a zone
Sub 3 – Wireless device signal strength
Sub 4 – Wireless device supervision time
Page 30
302 to 303
Global split reporting options
Page 35
304 to 335
Zone reporting
Page 35
415 to 422
Zone triggered outputs
Page 40
425
Wireless triggered outputs
Page 40
501 to 564
Zone split reporting options
Page 42
572
4 – Wireless detector low battery split reporting
5 – Wireless supervision split reporting
6 – Wireless RF jam split reporting
7 – Wireless low RSSI split reporting
Page 43
574
3 – Wireless detector low battery restored split reporting
4 – Wireless supervision restored split reporting
5 – Wireless RF jam restored split reporting
6 – Wireless low RSSI restored split reporting
Page 44
Page 70
70
User Menu | IDS X Series Training V2.3
Multi-Language with Wireless
User Menu
Firmware Version 2.3
X16 Stock Code: 860-1-473-X16
X64 Stock Code: 860-1-864-XS
Training Manual
Page 71
IDS X Series Training V2.3 | Keypad Key Descriptions
71
Types of Keypads
Liquid Crystal Display Keypad Light Emitting Diode Keypad
(LCD) (LED)
Keypad Key Descriptions
Stay Zones
Allocating zones to
a stay profile
Stay & Go
Arms the system in
Stay and Go Mode
Bypass
Manually bypass
zones
Alarm Memory
Holds violated zone, tamper,
bypassed and event log
information from the last arm
cycle.
Clear / Exit
1. Clears last pressed
key
2. Exit out of menu
1. Used to confirm entry and save
information
2. Hold until beep, enter master
user code, and choose menu
option
3. In dealing with options that have
zone selections, the LED keypad
can only show 16 zones at a
time. To access zones above 16
press the [*] key to page to the
next 16, until the correct page
with the zone is located
Trouble view
Press and hold until
beep
Quick Away arm
Press and hold
until exit delay
begins
Buzz Zones
Allocating zones to a
buzz profile
Menu options
Hold for 3 seconds
and select menu
option
Chime
Allocating zones to
a chime profile
Quick stay
1. Press and hold until stay
armed
2. Press and hold again and
next profile is made active
Page 72
72
Standard User Functions | IDS X Series Training V2.3
Standard User Functions
The following are the functions that all users can use.
Away Arm
When the system is armed in away mode, all zones are active and ready to trigger if an intrusion is
detected.
The following zone types work a little different when the system is armed.
1. Entry / exit.
a. When arming, it is only armed once the system has completed the exit time out, giving
everyone time to exit the building.
b. When armed, and the zone is triggered, the system begins the entry countdown giving you
time to disarm
2. Follower.
a. This zone is never active during the arming or disarming time.
b. If the entry / exit zones are not triggered then this zone is active.
How to away arm the system
1. Press and hold the [1] key until the exit delay starts, and then leave the premises via the entry / exit
zone.
2. Enter a user code, the exit delay will begin, and exit via an entry / exit zone. (Eg. [2][3][3][2])
NOTE: If the entry / exit zone is not triggered, the system by default will automatically arm in the
stay mode. (This can be changed in the installer mode.)
3. Use a remote transmitter.
Stay Arm
This option is when someone is inside the premises and the system must be armed, but certain zones
must not trigger when someone enters that area. Stay arm, when setup, will automatically turn off (bypass)
those areas that will have movement once armed.
How to stay arm:
1. Press and hold the [5] key until the system arms
2. Enter a user code and do not exit
How to create stay zones
A stay zone is a zone that will automatically be bypassed when the system arms in the stay mode.
Explanation
Key Presses
Press and hold the [3] stay key until the beep
[3] Stay
Enter each zone to be bypassed until complete, then press the [#]
key to exit
[5][*][1][7][*][1][8][*][2][1][*].....[#]
There are 4 stay profiles so that different zones can be bypassed depending on different scenarios that
may arise.
Page 73
IDS X Series Training V2.3 | Standard User Functions
73
EXAMPLE:
During the early evening a family may access all the rooms in the house, but want all external zones
armed. When they go to bed all rooms except the bedrooms must be armed.
This family could have 2 profiles, one profile for early evening and another for bed time.
Only one profile is active, the others need to be activated by entering the profile and adding stay zones.
How to enable stay arm profiles:
Explanation
Key Presses
Press and hold the [5] stay arm key and then press the profile
number 1 to 4 and release
[5] then [1] or [2] or [3] or [4]
Press and hold the [3] stay key until the beep
[3] Stay
Enter each zone to be bypassed until complete, then press the
[#] key to exit
[5] [*] [7] [*] [8] [*] [2] [1] [*].....[#]
To access the next 16 zones press the [*] key, add the zones
as needed
[*]
Now zone 17 is represented by zone 1, 18 by 2, 19 by zone 3,
etc.
[1] [*] [8] [*] [1] [0] [*] [1] [5][*]
When complete press the [#] key
[#]
Toggling between the 2 stay profiles, can be done in three ways:
1. Toggle method (Note: only if there is more than one profile with stay zones)
a. Press and hold the [5] key until the system arms. (The system will arm in the profile that it
last armed in.)
b. Press and hold the [5] key again until the beep. The zones will change.
NOTE:
By pressing the [5] key in this manner will toggle through all active profiles
c. Press and hold the [MODE] key until the beep, then press the [2] key followed by the [*]
key and finally the [PARTITION NUMBERSTAY PROFILE NUMBER] followed by the [*] key.
2. Selection method
a. Press and hold the [5] key, then press the profile number and release
b. Now press and hold the [5] key until armed
3. Stay Profile Menu
a. Press the [5] key, then the keypad will ask you in which stay profile to arm. This feature only
works with an LCD keypad.
a.
Note: This option must be enabled under installer settings, location 251 – 258: Keypad Options
1 to 16
17 to 32
33 to 48
49 to 64
Zones
Curve Keypad
Classic Keypad
Page 74
74
Standard User Functions | IDS X Series Training V2.3
Buzz Zone
A buzz zone is only active during stay arms. It is a zone that when violated, when the system is stay
armed, will buzz the keypad for 30 seconds before sounding the alarm.
How to setup buzz zones.
Explanation
Key Presses
Press and hold the [4] buzz zone key until the beep
[4]
Enter each zone to be a buzz zone until complete
for zones 1 to 16
[1] [*] [2] [*] [8] [*]
To access zones 17 to 32 press the [*] key
[*]
Now zone 17 is represented by zone 1, 18 by 2, 19
by zone 3, etc.
[1] [*] [5] [*] [1] [0] [*] [1] [5] [*]
To access the next 16 zones press the [*] key, and
add the zones as needed
[*]
When complete press the [#] key
[#]
Chime Zone
A chime zone is a zone that will beep all keypads 5 times when a zone is violated in the unarmed state.
How to create chime zones:
Explanation
Key Presses
Press and hold the [2] chime zone key until the beep
[2]
Enter each zone to be a chime zone until complete for zones 1 to 16
[4] [*] [6] [*] [1] [1] [*]
To access zones 17 to 32 press the [*] key
[*]
Now zone 17 is represented by zone 1, 18 by 2, 19 by zone 3, etc.
[1] [3] [*] [1] [4] [*] [1] [6] [*]
To access the next 16 zones press the [*] key, and add the zones as
needed
[*]
When complete press the [#] key
[#]
Bypassing Zones
If a zone is faulty and is preventing the system from being armed it can be bypassed. To bypass zones
you must enter a user code.
Explanation
Key Presses
Press and hold the [9] bypass key until the beep
[9]
Enter a [USER CODE] followed by the [*] key
[1] [2] [3] [4] [*]
Enter each zone to be bypassed until complete for zones 1 to 16
[4] [*] [6] [*] [1] [1] [*]
To access zones 17 to 32 press the [*] key
[*]
Now zone 17 is represented by zone 1, 18 by 2, 19 by zone 3, etc.
[1] [3] [*] [1] [4] [*] [1] [6] [*]
To access the next 16 zones press the [*] key, and add the zones as
needed
[*]
When complete press the [#] key
[#]
The zone LED will be on
Panic zones can be bypassed if enabled in zone options location 101 to 164
Page 75
IDS X Series Training V2.3 | Standard Master User Functions
75
Alarm Memory
The alarm memory will hold information from the last time it was armed. When the alarm is armed again
the memory clears and will store information from that alarm system arm period.
The alarm memory holds information on:
2. Violated zone
a. Zones that triggered while the system was armed
3. Bypassed zones
a. Zones that where bypassed when the system armed, making them ineffective.
4. Tampered zones
a. Zones that someone may have opened and messed about with to stop it functioning
correctly.
5. Event log
a. This is a history of all system messages, going back a thousand events. Once the system
reaches the thousandth event it will start over writing from the oldest event.
User Codes
1. 128 user codes can be programmed into the system.
2. The only code pre-programmed into the system is User 1 which is a master code, and it is
defaulted to 1234.
a. A master code is the administrator of the system, which can do the following.
i. Add and delete users
ii. Configure user settings
iii. Set the time and date
iv. Teach remote transmitters to a user code
Standard Master User Functions
The master menu is for administering the system by adding, deleting users, adding remote transmitters,
etc.
To access the master menu press and hold the [*] key until the beep, about 3 seconds, then enter the
master code [1][2][3][4] followed by the [*] key.
Explanation
Key Presses
Press and hold the [0] bypass key until the beep
[0]
The violated zones will be displayed
Press the [2] for bypassed zones or the [3] key
for tampered zones or the [6] key for the event log
Option
Description
1
Violated Zones
2
Bypassed Zones
3
Tampered Zones
6
Event Log
When complete press the [#] key
[#]
Options
Summary of Programmable Options
Option 0
Allows for the addition of new user codes.
Option 1
Allows for the editing of a selected user code.
Option 2
Allows for the deletion of user codes.
Option 3
Allows for the adding/editing of slots.
Option 4
Allows for the deletion of a user code using the user code slot number.
Option 5
Allows for the viewing of the user code slot number for a selected code.
Option 10
Allows for the editing of the user code properties for a selected user code.
Option 11
Allows for the allocation of a selected user code to a designated partition(s).
Option 13
Allows for the editing of user outputs.
Page 76
76
Standard Master User Functions | IDS X Series Training V2.3
Option 0 - Adding User Codes
User codes can be added sequentially or via slot numbers. Option 0 adds users sequentially as you type
them in. If a user codes have been deleted previously and this option is used the first empty slot will be
filled, then the next.
Example:
Option 1 - Changing a User Code
To change a user code using option 1 the original user code must be known.
Example:
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code followed, by the [*] key
[1][2][3][4] [*]
Enter the value to change a user code, followed by the [*] key
[1] [*]
Now enter a new user code, followed by the [*] key
[5][8][7][9] [*]
When complete press the [#] key
[#]
This will leave you in the master menu
Option 2 - Deleting a User Code
To delete a user code the original code must be known or option 4 can be used if the slot number is
known.
Example:
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code followed by the [*] key
[1][2][3][4] [*]
Enter the value to delete a user code, followed by the [*] key
[2] [*]
Now enter the user code to be deleted, followed by the [*] key
[5][8][7][9] [*]
When complete press the [#] key
[#]
This will leave you in the master menu
Option 3 - Add a User Code to a Specific Slot
A slot is the memory location a user code is saved to. Slot 1 = user 1 up to Slot 128 = user 128.
Example:
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code followed by the [*] key
[1][2][3][4] [*]
Enter the value to add a user code to a specific slot, followed by the [*] key
[3] [*]
Enter the slot number, followed by the [*] key
[8][7] [*]
Now enter the user code to be deleted, followed by the [*] key
[2][5][8][0] [*]
When complete press the [#] key
[#]
This will leave you in the master menu
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to add a user code, followed by the [*] key
[0] [*]
Now enter a new user code, followed by the [*] key
[5][8][7][9] [*]
Keep adding the rest of the codes in the same manner
[3][2][3][2] [*]
[2][2][3][4] [*]
[1][5][9][0] [*]
When complete press the [#] key
[#]
This will leave you in the master menu
Page 77
IDS X Series Training V2.3 | Standard Master User Functions
77
Option 4 - Delete a User Code via Slot Number
If the original code is not known but the user‟s slot number is option 4 allows deleting via slot number.
Example:
Option 5 - View a User Codes Slot Number
If the user code is known but you want to know which slot that code is, this option will display the slot
number once the original code is entered.
Example:
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to call up the slot number of a user code, followed by the [*] key
[5] [*]
Now enter the user code, followed by the [*] key
[5][8][7][9] [*]
When complete press the [#] key
[#]
This will leave you in the master menu
Option 10 - Editing User Code Properties
By default when entering user codes the code is an arm disarm code. There are a number of other
options that can be added to a code. The table below describes each of these options and indicates
the value to enter to add the property.
Note: Any code between 2 & 128 that is a “master code” can only add users to the partition that it
belongs too. The default Master code can add to any partition.
Example:
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code followed, by the [*] key
[1][2][3][4] [*]
Enter the value to delete a user code via a slot number, followed by the [*] key
[4] [*]
Now enter the user code to be deleted, followed by the [*] key
[5][8] [*]
When complete press the [#] key
[#]
This will leave you in the master menu
Zone LED
Property
Explanation
1
Master User
Adds, deletes and changes user settings
2
Duress Code
A code that works exactly like a normal code, but sends a panic
signal to the control room.
3
Arm to Disarm Code [Maid‟s
Code]
This code can only disarm the system if used to arm the system
4
Arm Code
Can only arm the system
5
Disarm Code
Can only disarm the system
6
Global Arm/Disarm
Can arm or disarm any partition
7
Programmable Output Code
This option will trigger an output when entered
8
Allow bypassing
If enabled the user can bypass zones if bypass with user code is
enabled by the installer
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to edit user code properties, followed by the [*] key
[1][0] [*]
Now enter the user code, followed by the [*] key
[2][5][8][0] [*]
Below is a table of all the user properties, we will make a Duress Code (followed by the
[*] key)
[2] [*]
When complete press the [#] key
[#]
This will leave you in the master menu
Page 78
78
Standard Master User Functions | IDS X Series Training V2.3
Option 11 - User Partition Allocation
By default each user is allocated to partition one. If more partitions exist then users must be allocated to
the correct partition or multiple partitions.
Example:
Option 13 - User Outputs
Note: The user code property “Programmable Output Code” must be enabled before this option
will work
This is to allocate the output which the user code set as an output trigger code, in option 10, must
activate.
Example
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to call up the user code output allocation, followed by the [*] key
[1][3] [*]
Now enter the user code, followed by the [*] key
[2][3][6][5] [*]
Allocate the output, followed by the [*] key
[5] [*]
Allocate the action, followed by the [*] key
[2] [*]
When complete press the [#] key
[#]
This will leave you in the master menu
Below is a table of the available outputs and their corresponding values:
Note: By default there are only five outputs on the alarm panel. The other outputs are only
available if the device that has the output required is installed.
Address
Physical Outputs
Address
Physical Outputs
00
Disabled
13
Zone expander 4 output 2
01
Onboard output 1
14
Zone expander 5 output 1
02
Onboard output 2
15
Zone expander 5 output 2
03
Onboard output 3
16
Zone expander 6 output 1
04
Onboard output 4
17
Zone expander 6 output 2
05
Onboard output 5
34
Keypad 1 output
06
Zone expander 1 output 1
35
Keypad 2 output
07
Zone expander 1 output 2
36
Keypad 3 output
08
Zone expander 2 output 1
37
Keypad 4 output
09
Zone expander 2 output 2
38
Keypad 5 output
10
Zone expander 3 output 1
39
Keypad 6 output
11
Zone expander 3 output 2
40
Keypad 7 output
12
Zone expander 4 output 1
41
Keypad 8 output
The actions that can be performed by the outputs are:
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to call up the user codes partition information, followed by the [*] key
[1][1] [*]
Now enter the user code, followed by the [*] key
[2][5][8][0] [*]
Allocate the partitions to the user code, followed by the [*] key
[2] [*] [3] [*] [5] [*]
When complete press the [#] key
[#]
This will leave you in the master menu
Value
Output Action
Description
0
Set Output High (Set)
Set high or latch: The output‟s voltage will be set to 12V
1
Set Output Low (Reset)
Set low or unlatch: The output will be reset back to 0V
2
Pulse Output High
The output will be set to 12V for 3 seconds then reset back to 0V
3
Pulse Output Low
Used when the output is already at 12V. This will reset the output to 0V
and restore it to 12V after 3 seconds
Page 79
IDS X Series Training V2.3 | Standard Master User Functions
79
Adding Remote Transmitters
The system can be installed with four remote receivers and each will be allocated an ID. This is very
important as learning a remote transmitter must be done to a specific remote receiver.
There are two ways to learn remote transmitters to a user code:
1. Standard method menu option 20
a. The standard method allocates default settings to each transmitter taught
2. Advanced method menu option 21
a. Most setting have to be done during the programming of the remote
Options
Summary of Programmable Options
Option 20
Allows for the basic adding of remotes.
Option 21
Allows for the advanced adding of remotes.
Option 22
Allows for the deletion of remotes.
Option 23
Allows for the changing of the button properties.
Option 24
Allows for the changing of the relay properties.
Option 25
Allows for the changing of the relay pulse time.
Option 26
Allows for the defaulting of the receiver.
Option 27
Allows for the identification of the receiver.
Option 28
Allows for the testing of the receiver.
Option 29
Allows for the viewing of the receiver capacity.
Option 20 – Adding Remotes -Standard Method
Each remote taught using the standard method will have default settings allocated to it.
Example:
Default Button Assignment:
Button 1 = Arm / Disarm
Button 3 = Stay Arm
Any button held down for more than three seconds will cause a panic to trigger
Instruction
Key presses
All user codes must be added into the system before
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to add remotes using the standard method, followed by the [*] key
[2][0] [*]
Enter the remote receiver ID that the transmitter will be taught to, followed by the [*]
key
[1] [*]
Now enter the user code, followed by the [*] key
[2][3][6][5] [*]
Press the [*] key when ready to teach the remote transmitter
[*]
Press a button on the remote transmitter until the beep
When complete press the [#] key
[#]
This will leave you in the master menu
Arm / Disarm
Stay Arm
Page 80
80
Standard Master User Functions | IDS X Series Training V2.3
Option 21 - Adding Remotes -Advanced Method
The advanced method allows each button to be taught to different user codes as an arm / disarm button.
Management button is the button that you are teaching to a user code to be the arm / disarm button for
that user code.
Example:
IDS Remote Transmitter button number assignment:
Option 22 - Deleting Remote Transmitters
Each remote transmitter is assigned to a user code, therefore to delete a remote transmitter the user
code must be entered.
Example:
Instruction
Key presses
All user codes must be added into the system before
Press and hold the [*] key for 3 seconds
[*]
Enter the master code followed by the [*] key
[1][2][3][4] [*]
Enter the value to add remotes using the advanced method, followed by the [*] key
[2][1] [*]
Enter the remote receiver ID that the transmitter will be taught to, followed by the [*] key
[1] [*]
Now enter the user code, followed by the [*] key
[2][3][6][5] [*]
Enter the management button number, followed by the [*] key
[1] [*]
Press the [*] key when ready to teach remote transmitter
[*]
Press the button on the remote transmitter that will belong to that management button
number until the beep
When complete press the [#] key
[#]
This will leave you in the master menu Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to delete a remote transmitter, followed by the [*] key
[2][2] [*]
Enter the remote receiver ID that the transmitter is to be taught to, followed by the [*] key
[1] [*]
Now enter the user code, followed by the [*] key
[2][4][6][8] [*]
When complete press the [#] key
[#]
This will leave you in the remote receiver menu
Button 1
Button 2
Button 3
Button 4
Page 81
IDS X Series Training V2.3 | Standard Master User Functions
81
Option 23 - Button Properties
A button can be changed from the default settings by changing the properties.
Changing a button‟s property example:
Option 24 - Relay Properties
The following properties can be set:
Example:
Option 25 - Relay Pulse Time
The default pulse time is 1.5 seconds.
When entering the time, enter in the following format “mmss”.
Example:
Zone LED
Property
1
Relay 1
2
Relay 2
3
Arm / Disarm
4
Stay Arm
5
Panic
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to change the button properties, followed by the [*] key
[2][3] [*]
Enter the remote receiver ID that the transmitter will be taught to, followed by the [*] key
[1] [*]
Enter the button number, followed by the [*] key
[2] [*]
Enter the property number, followed by the [*] key
[1] [*]
When complete press the [#] key
[#]
This will leave you in the remote receiver menu
Zone
LED
Property
Description
1
Secure
When power is lost the relay rests in the opposite position. I.e. Normally closed will rest in
normally open
2
Panic
When a panic is triggered via a button, or the 3 second hold option, the relay will trigger
3
Retrigger
This stops the relay from retriggering for 20 seconds after an initial trigger
4
Pulse
The relay will trigger and then reset without any intervention
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to change the relay properties, followed by the [*] key
[2][4] [*]
Enter the remote receiver ID that the transmitter will be taught to, followed by the [*] key
[1] [*]
Enter the relay number, followed y the [*] key
[2] [*]
Enter the property number, followed by the [*] key
[2] [*]
When complete press the [#] key
[#]
This will leave you in the remote receiver menu
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to change the relay pulse time, followed by the [*] key
[2][5] [*]
Enter the remote receiver ID that the transmitter will be taught to, followed by the [*] key
[1] [*]
Enter the relay number, followed by the [*] key
[1] [*]
Enter the pulse time in mmss, followed by the [*] key
[0][0][1][0] [*]
When complete press the [#] key
[#]
This will leave you in the remote receiver menu
This table shows the properties that can be
allocated to a button
Page 82
82
Standard Master User Functions | IDS X Series Training V2.3
Option 26 - Defaulting the Remote Receiver
This will put all the settings back to factory default.
Example:
Option 30 - Zone Naming using an LCD Keypad
By default zone names are stored as, “Zone 1” for example. This can be changed to a more descriptive
name up to twelve characters.
Specialised keys
Example:
Note: When the zone names are updated with IDSwift and there are more than one LCD
keypad please do the following: [*] [master code] [*] [3][0] [*] [0][*] to force the names to all
LCD keypads
Option 31 - Language
The X-Series alarm panel firmware version 2.3, keypad version 2.02 and up can display multiple languages. The
languages that can be selected are: English, Afrikaans, Spanish, Portuguese, Italian and Greek.
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to default the remote receiver, followed by the [*] key
[2][6] [*]
Enter the remote receiver ID that is to be defaulted, followed by the [*] key
[1] [*]
Press the [*] key to proceed
[*]
When complete press the [#] key
[#]
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to edit zone names, followed by the [*] key
[3][0] [*]
Enter the zone number, followed by the [*] key
[1] [*]
Enter [*] to proceed
[*]
Enter the name of the zone (Front door), followed by the [*] key
[f][mode][r][o][n][t] [space] [d][o][o][r] [*]
When complete press the [#] key
[#]
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to select a language, followed by the [*] key
[3][1] [*]
Scroll to the language, followed by the [*] key to select
[Panic] [*]
When complete press the [#] key
[#]
Toggle between upper
and lower case
[Space][ „][ !]
Page 83
IDS X Series Training V2.3 | Setting the Time and Date
83
Setting the Time and Date
Note: Time should be set even with LED keypads as all events are logged with date and time,
and having the correct date and time will help the readability of these logs if ever needed.
Option 40 – Setting the Time
The format is the 24 hour format and the data is entered HHMM. (H = hours, M = minutes)
Example:
Option 41 – Setting the Date
When the data is entered, the format is DD/MM/YY. (DD = day, MM = month, YY = year)
Example:
Option 97 – Manual Auto Test
If you want to test that signals are being transmitted via telephone, this option will force the X-Series alarm
to transmit an auto test.
Master Mode menu
The master mode menu adds more functionality to the X64, as shown in the table below.
Note: As before the first key press must be held until a beep is heard. (Approx. 3 seconds)
Options
Summary of Programmable Options
Option 40
Allows for the editing of the time.
Option 41
Allows for the editing of the date.
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to change the time, followed by the [*] key
[4][0] [*]
Enter the time, followed by the [*] key
[1][4][5][6] [*]
When complete press the [#] key
[#]
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to change the date, followed by the [*] key
[4][1] [*]
Enter the date, followed by the [*] key
[1][8][0][7][1][0] [*]
When complete press the [#] key
[#]
Instruction
Key presses
Press and hold the [*] key for 3 seconds
[*]
Enter the master code, followed by the [*] key
[1][2][3][4] [*]
Enter the value to default the remote receiver, followed by the [*] key
[9][7] [*]
When complete press the [#] key
[#]
Option
Description
1
Change between partitions
2
Change between stay profiles
3
Toggle onboard outputs
4
Toggle between LCD alphanumeric display and LED simulation display
Page 84
84
Alarm Memory | IDS X Series Training V2.3
Changing Partitions
This option allows a user to access different partitions on a keypad.
[Mode] [1] [*] [Partition] [*]
Note: This will only be available if the keypad is a global keypad. (Keypad Options Location 251 to
258)
Changing Stay Profiles
There are four stay profiles that can be created for different requirements, for example: When staying at
home in the evening the outside detectors can be activated while the indoor detectors are bypassed.
Then when going to bed all external and internal detectors except the bedrooms are made active by
changing the profile.
[Mode] [2] [*] [Stay Profile] [*]
Setting Outputs 1 to 5
Outputs, one to five, can be manually triggered on or off, via the keypad.
[Mode] [3] [*] [Output [*]
Alarm Memory
Alarm memory holds information on zones that triggered, tampered with and bypassed for the arm cycle
that has just been disarmed. Once the system arms again this information is cleared, ready for any new
information to store.
To access this information: press and hold [0] until the beep.
Key press
Information displayed
Explanation
Hold [0] until beep
Any zones that were
violated
All zones that triggered while the system was armed will
be displayed
Press [2] [*]
Zones that were bypassed
Any zones that were bypassed for that arm cycle
Press [3][*]
Tampered zones
All zones that were fiddled with and their tamper
monitoring circuits triggered
Press [6] [*]
Event log
Press and hold
until beep
Menu
Option
Partition
Number
Press and
hold until
Stay Profile
Menu Option
Stay Profile
Number
Press and
hold until
Output
triggering Menu
Output Number
Page 85
IDS X Series Training V2.3 | New Partition Menu on LCD keypads
85
Changing between Alphanumeric Mode and LED Simulation Mode
This feature allows a quick look at all zones and what state they are in.
[Mode] [4] [*] [Option] [*]
Zone Restored This larger view shows how to distinguish between a zone that is
not violated or restored and a zone that is violated
Zone Violated
New Partition Menu on LCD keypads
When entering quick arm, stay arm or stay go and the option is enabled all partitions will be shown with
their status
Menu status options:
i. r = ready
ii. n = not ready
iii. E = entry/exit delay
iv. S = stay armed
v. A = away armed LCD Screen
vi. ! = alarm
Note: This option must be enabled under installer settings, location 251 – 258: Keypad
Options
Press and hold
until beep
LED Mode
Menu Option
1= Alphanumeric
2 =LED simulation
Zone 1 to 16
Zone 17 to 32
Zone 33 to 48
Zone 49 to 64
Partitions
Status
Page 86
86
Trouble conditions | IDS X Series Training V2.3
Trouble conditions
If a trouble condition is detected, the power LED will begin to flash. Displaying of trouble conditions are
programmable via the installer programming location 16.
To see what trouble condition has been encountered press and hold the [7] key.
The zone LEDs will indicate the trouble condition on a LED keypad, shown in the table below.
Zone
LED
Trouble Condition
Description
1
Panel AC Supply Failure
When there is no more supply voltage and the system is running on battery
2
Panel Communications
Failure
When the system has tried to send an event via telephone, but could not
reach the control room
3
Telephone Line Trouble
If the telephone line voltage is no longer detected
4
Siren Tamper
If the siren wires are cut
5
Low Battery
The system checks the battery constantly and if lower than 11V a trouble is
triggered
6
Aux 12V Resettable Fuse
Blown
If the auxiliary 12V supply is no longer supplying voltage this trouble condition
will display
7
Engineer reset
When this option is set, and an alarm condition is triggered, the alarm can
only be armed again, once the installer code has been entered
8
Box tamper
The panel has pins to connect a switch that can monitor if the box is opened
9
Peripheral Device Tamper
Any device that is tampered with that is connected to the communication bus
10
Peripheral Communications
Failure
If a device stops communicating on the communication bus
11
Peripheral Low Supply
Voltage
If a device on the communication bus detects that its voltage is less than 11V
12
Wireless battery low
When a wireless device‟s battery needs to be replaced the device will send a
battery low signal and trigger a trouble if enabled
13
Wireless supervision
Monitoring
Each wireless device will check in and if a device does not a trouble is
triggered
14
Wireless RF jam
If an unknown signal that can interfere with signals from wireless is detected a
trouble will be triggered
15
Wireless low RSSI
RSSI is signal strength measurement and if lower than 20% a trouble will be
logged
16
Zone tamper
If a zone is monitored for tamper and then a tamper signal is detected by the
alarm a trouble will be triggered.
Once the trouble has been corrected, press and hold [7] again, and [#] immediately thereafter. AC failure
will clear automatically, once AC has been restored.
Page 87
IDS X Series Training V2.3 | Quick Guide
87
Quick Guide
Description
Programming
Add a User Code
[*] [Master Code] [*] [0] [*] [New Code] [*]
Edit a User Code
[*] [Master Code] [*] [1] [*] [Old Code] [*] [New Code] [*]
Delete a User Code
by Code
[*] [Master Code] [*] [2] [*] [User Code] [*]
Add/Edit Slot
[*] [Master Code] [*] [3] [*] [Slot Number] [*] [User Code] [*]
Delete a User Code
by Slot Number
[*] [Master Code] [*] [4] [*] [Slot Number] [*]
View a Slot Number
[*] [Master Code] [*] [5] [*] [User Code] [*]
View the Slot number via the zone LEDs
Edit User Code
Properties
[*] [Master Code] [*] [1] [0] [*] [User Code] [*] [Bitmap] [*] 1 = Master 2 = Duress 3 =
Arm to Disarm Code 4 = Arm 5 = Disarm 6 = Global Arm/Disarm Code
7 = Output trigger code
Allocate a User Code
to a Partition
[*] [Master Code] [*] [1] [1] [*] [User Code] [*] [Partition] [*]
User Outputs
[*] [Master Code] [*] [1] [3] [*] [User Code] [*] [Output No.] [*] [Output Action] [*]
User RC Enable*
[*] [Master Code] [*] [1] [4] [*] [User Code] [*] [Bitmap] [*] (Firmware ver. 1.08 & below)
User RC Module*
[*] [Master Code] [*] [1] [5] [*] [User Code] [*] [Bitmap] [*] (Firmware ver. 1.08 & below)
Add Remotes –
Basic
[*] [Master Code] [*] [2] [0] [*] [Receiver No] [*] [User Code] [*] [*]
[Press RT Button]
Add Remotes –
Advanced
[*] [Master Code] [*] [2] [1] [*] [Receiver No] [*] [User Code] [*] [Management No] [*] [*]
[Press RT Button]
Delete Remote
[*] [Master Code] [*] [2] [2] [*] [Receiver No] [*] [User Code] [*]
Button Properties
[*] [Master Code] [*] [2] [3] [*] [Receiver No] [*] [Button No] [*] [Properties] [*]
Relay Properties
[*] [Master Code] [*] [2] [4] [*] [Receiver No] [*] [Relay No] [*] [Properties] [*]
Relay Pulse Time
[*] [Master Code] [*] [2] [5] [*] [Receiver No] [*] [Time] [*]
Defaulting Receiver
[*] [Master Code] [*] [2] [6] [*] [Receiver No] [*] [*]
Identifying Receiver
[*] [Master Code] [*] [2] [7] [*] [Receiver No] [*]
Testing Receiver
[*] [Master Code] [*] [2] [8] [*] [Receiver No] [*]
[Press RT Button]
Receiver Capacity
[*] [Master Code] [*] [2] [9] [*] [Receiver No] [*]
Edit Zone Name via
LCD Keypad
[*] [Master Code] [*] [3] [0] [*] [Zone No] [*] [*] [Name] [*]
Edit the Time
[*] [Master Code] [*] [4] [0] [*] [Time] [*]
Edit the Date
[*] [Master Code] [*] [4] [1] [*] [Date] [*]
Trigger an Auto Test
[*] [Master Code] [*] [9] [7] [*]
Change Partitions
[Mode] [1] [*] [Partition Number] [*]
Toggle Outputs
[Mode] [3] [*] [1, 2, 3, 4 or 5] [*]
1 – 5 is onboard outputs 1 – 5
Bypassing/Unbypassing a Zone
[9] [Master Code] [*] [Zone Number] [*]
Alarm Memory
[0] Displays zones violated.
View Trouble
Conditions
[7]
1 = AC Mains Fail
9 = Tamper on Peripheral Device
2 = No Communication
10 = Comms Loss to Peripheral Device
3 = Phone Line
11 = Loss/low Power to Peripheral Device
4 = Siren Tamper
12 = Wireless Battery low
5 = Low Battery
13 = Wireless Supervision Failure
6 = 12V Aux Fuse
14 = Wireless RF Jam
7 = Engineer Reset
15 = Wireless low RSSI
8 = Box Tamper
16 = Zone Tamper
Loading...
