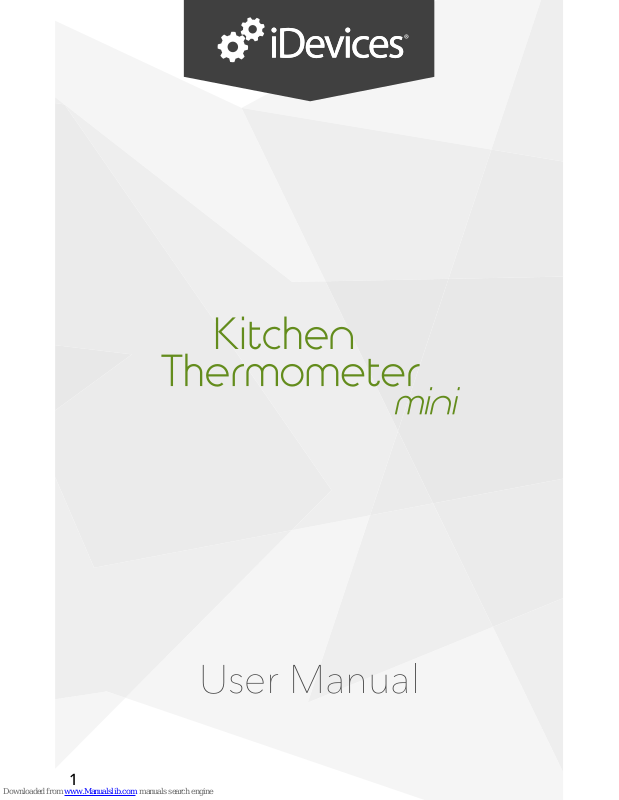

1
User Manual
2
Table of Contents
In the Box 3
Quick Start Instructions 3
Getting Started 4
iDevices Connected app 4
Battery Replacement 5
Powering On & Off 5
Connecting 6
Mounting 6
Probe Use 7
Probe Wrap Use 8
Using the Kitchen Thermometer
mini
9
Smart LED 9
Proximity Sensor 10
Custom & Preset Alarms 10
Renaming Probes 12
Timer Tool 12
Globe Tool 12
Graph Tool 12
Problem Solving 13
Frequently Asked Questions: 16
Disclaimer 18
Regulations 18
3
In the Box
Inside your Kitchen Thermometer
mini
box, you will nd:
• 1 Kitchen Thermometer
mini
• 1 Coin Cell Battery (Installed)
• 1 Meat Probe
• 1 Probe Wrap
• 1 Colored Probe Indicator
• 1 Optional Magnetic Disc
• Quick Start Guide
Quick Start Instructions
1. Download the iDevices® Connected app from the App StoreSM or
Google PlayTM store on one of the following compatible devices
• iPhone® (4S and later)
• iPad® (3rd generation and later)
• iPad miniTM (all generations)
• iPod touch® (5th generation and later)
• Many AndroidTM devices equipped with Bluetooth® 4.0 and
running Android software version 4.3 or later
2. Enable Bluetooth on your smart device under ‘Settings’.
3. Separate the Kitchen Thermometer
mini
from its base by rmly
holding the base with one hand and gently pulling the Kitchen
Thermometer
mini
top upwards with the other hand.
4. On the underside of the Kitchen Thermometer
mini
, remove the
battery door by twisting it counter-clockwise. Remove the battery
pull tab. Ensure the battery is in place and replace the battery door.
4
5. Clip the Kitchen Thermometer
mini
top back into its base.
6. Plug the Meat Probe into the probe port of the Kitchen
Thermometer
mini
.
7. Press the power button located at the center of the faceplate
for two seconds. The display will light up, indicating the Kitchen
Thermometer
mini
has powered on.
8. Open the iDevices Connected app to connect to your Kitchen
Thermometer
mini
. Tap on the iDevices logo in the gray toolbar at the
top of the app. Select your Kitchen Thermometer
mini
from the device
manager.
9. You are ready to use your Kitchen Thermometer
mini
!
Getting Started
iDevices Connected app
The iDevices Connected app provides all of the functionality and
customization you’ll need to get the most out of your Kitchen
Thermometer
mini
. The iDevices Connected app is compatible with the
following devices:
• iPhone (4S and later)
• iPad (3rd generation and later)
• iPad mini (all generations)
• iPod touch (5th generation and later)
• Many Android devices equipped with Bluetooth 4.0 and running
Android software version 4.3 or later
You must be running iOS 7+ or Android version 4.3+ on your device to
use the iDevices Connected app. Please visit the App Store or Google
Play store and search “iDevices Connected” to download the free iDevices
Connected app.
Once you’ve downloaded the app, you’ll have access to links
for instructional videos, step-by-step instructions and FAQ’s for
troubleshooting.
5
Battery Replacement
To replace your Kitchen Thermometer
mini
battery, follow these steps:
• Separate the Kitchen Thermometer
mini
from its base by rmly
holding the base with one hand and gently pull the Kitchen
Thermometer
mini
top upwards with the other hand.
• On the underside of the Kitchen Thermometer
mini
, remove the
battery door by twisting it counter-clockwise
• Replace the battery with a CR2032 coin cell battery (available at
local drugstores in the specialty battery section).
• Ensure the battery is in place and replace the battery door.
Powering On & Off
To turn on the Kitchen Thermometer
mini
, follow these steps:
• Press the power button located at the center of the faceplate.
• The Smart LED will blink blue while waiting for pairing.
To turn off the Kitchen Thermometer
mini
, follow these steps:
• Press and hold down the power button located in the center of the
faceplate for three seconds.
• The Smart LED will illuminate solid white and will then turn off.
Auto Shut-Off:
• The Kitchen Thermometer
mini
will stay powered on for ve minutes
before automatically turning off if there is no probe installed and it is
not paired to a smart device.
• The Kitchen Thermometer
mini
will stay powered on for eight hours
before automatically turning off if not paired to a smart device and
the probe is installed.
• The Kitchen Thermometer
mini
will stay powered on until the battery
is depleted if it is paired with a smart device, even if there is no
probe installed.
6
Connecting
To connect your Kitchen Thermometer
mini
to your iPhone, iPad, iPod touch
or Android device follow these steps:
• Open Settings
• Tap Bluetooth
• Set Bluetooth to On
• While turned on, place your Kitchen Thermometer
mini
next to your
smart device and open the iDevices Connected app. Your smart
device will automatically recognize any available iDevices products
and display them in the device manager. You can view your device
manager by tapping the iDevices logo at the top of the app.
• Select your Kitchen Thermometer
mini
from the device manager. You
will then be sent a pairing request. Once you accept, your smart
device will pair with the Kitchen Thermometer
mini
and you are ready
to congure your settings and start cooking!
To connect an additional Kitchen Thermometer
mini
(or other iDevices
product) to your iPhone, iPad, iPod touch or Android device follow these
steps:
• While turned on, place your Kitchen Thermometer
mini
(or other
iDevices product) next to your smart device and open the iDevices
Connected app.
• Tap on the gray bar located at the top of the screen to expose the
device manager. Select the product you would like to pair with
from the device manager. Your smart device will display a pairing
request. Once accepted, your smart device will pair with the
additional product and you are ready to congure your settings and
start cooking!
Mounting
• The Kitchen Thermometer
mini
’s base is magnetic for convenient
positioning on a cool portion of your oven, stove or other magnetic
surfaces.
• The Kitchen Thermometer
mini
can be taken out of its base, rotated
180° and set back into its base for two different viewing angles.
7
• The Kitchen Thermometer
mini
comes with an optional magnetic
disc with an adhesive on one side. This allows the Kitchen
Thermometer
mini
to magnetically mount on a non-magnetic surface.
The magnetic disc has a protective cover on its face to protect it
from being scratched.
To mount your magnetic disc, please follow these steps below:
• Clean the surface thoroughly where the magnetic disc will be
adhered to ensure proper bonding.
• Remove the protective lm covering the adhesive on the magnetic
disc.
• Adhere the magnetic disc to your desired surface.
• Let the magnetic disc bond to the surface at least 6-12 hours before
mounting your Kitchen Thermometer
mini
to the disc.
• Place your Kitchen Thermometer
mini
on the magnetic disc.
The magnetic base is not designed to withstand high heat
and it must be placed on a cool surface. If the surface is too
hot to touch, it is too hot for the Kitchen Thermometer
mini
base!
Probe Use
• Meat Probe Acceptable Temperature Range: -22°F to 572°F (-30ºC
to 300ºC)
• Pro Meat Probe and Pro Ambient Temperature Probe Acceptable
Temperature Range (sold on iDevicesinc.com): -22ºF to 620ºF (-30ºC
to 326ºC)
• The Meat Probe should always be inserted into the center of the
item being cooked for an accurate temperature reading.
• When using a standard Meat Probe, be sure to route the probe wire
where it will not be exposed to ames or temperatures exceeding
8
572° (300°C).
• The Pro Ambient Probe should be clipped between two grates
inside the oven. Ensure that the tip of the probe does not touch the
grates.
• The probe wrap allows for convenient storage of your probe
and is magnetic so that it can be stored under your Kitchen
Thermometer
mini
when not in use.
The colored probe indicator is for visual identication of the
probe within the app and cosmetic purposes only. It is not
designed for heat safety.
The probe should be cleaned by hand with a dishcloth,
standard dishwashing soap and warm water. The probe is
not dishwasher safe. Take precaution not to get the probe’s
wiring wet.
Be sure to avoid water exposure to the probes’ wiring as
well as the area where the probes’ wiring meets the probe.
The probe is not waterproof and damage may result from
water exposure. The probe should never be submersed in
water.
Temperatures below -22°F or above 572°F (-30ºC or above
300ºC) will not display in the iDevices Connected app and
will cause the probe to disappear from connection.
Probe Wrap Use
To wrap your probe:
• Hold the probe wrap so that the clip segment is on the bottom left
and the iDevices logo is legible in the center of the probe wrap.
• Snap the probe into the probe wrap’s clip, ensuring that the probe’s
body follows the contour of the probe wrap and leaves a ½ inch gap
between the probe and the wire channel of the probe wrap. The tip
of the probe should be pointed downward.
9
• Wrap your probe’s wire clockwise around the probe wrap.
• When you reach the adapter end of the probe wire, it can be
inserted into the probe wrap’s wire channel to secure the wrapping.
Using the Kitchen
Thermometer
mini
Smart LED
The Smart LED allows the Kitchen Thermometer
mini
to display the
connected probe temperature reading through the use of color. Below is a
list of all of the light combinations you will see on the Smart LED and their
associated meanings:
Connection
• Solid White: Powering off or reset complete
• Solid Blue: Conrms pairing of new device
• Blinking Blue: Awaiting pairing or no alarm set
Peak Preset
• Solid Green: Initial Temperature
• Solid Yellow: Target Temperature is 15° F away
• Solid Orange: Target Temperature is 5° F away
• Blinking Red: Target temperature reached
• Solid Red: Target temperature reached and alarm acknowledged
Range Preset
• Solid Green: Temperature inside range
• Blinking Red: Temperature outside range
10
Proximity Sensor
The use of Bluetooth Smart allows the Kitchen Thermometer
mini
to sense
when a paired smart device moves in or out of range. The Kitchen
Thermometer
mini
will automatically wake and sleep at the below distances
to conserve power:
• Sleep ~ 30 feet away
• Wake ~ 5 feet away
*Proximity function based on Bluetooth signal strength. Signal strength
is inuenced by a number of factors including the smart device
and environment.
Custom & Preset Alarms
Manage iPhone, iPad or iPod touch alarms:
If you are having issues hearing the alarms from the iDevices Connected
app, try these steps:
• Open Settings on your smart device
• Tap “Notication Center”
• Choose the iDevices Connected app and make sure to enable
notications, including “Sounds” and “Alerts”
Manage Android device alarms:
• Open Settings on your device
• Find “Apps” and search for the iDevices Connected app (This could
be located in your “Application Manager”)
• Make sure notications are enabled
Make sure the volume setting for your phone is properly set.
If your sounds are off or set at a low setting, you may not
hear the alarm properly.
11
Manage iDevices Connected app alarms:
Within the app, tap “Set Preset” to the right of a connected probe’s
running temperature. This will bring you to your “Choose Preset” options.
Preset Alarms:
The iDevices Connected app offers preset alarms for many types of meats
and cooking temperatures. Tapping a preset alarm will set it. You can also
create your own custom preset alarm for any desired temperature. There
are two different types of presets:
• Peak: Alarm will sound when probe temperature reaches set peak
temperature.
• Range: Alarm will sound when probe temperature is above the high
temperature or below the low temperature.
Creating a custom preset alarm:
• Tap “Set Preset”
• Tap “Create New”
• Name your preset
• Set temperature(s)
• Tap “Save”
Your custom preset will be saved in the “My Peak Presets”
and “My Range Presets” sections of the alarm screen.
The iDevices Connected app will not display temperatures
below -22° (-30ºC) or above 572°F (300ºC).
When your target temperature has been reached, the
Kitchen Thermometer
mini
will blink red and the iDevices
Connected app alarm will alert you with a notication.
When a temperature reading goes outside your target
range, the Kitchen Thermometer
mini
‘s Smart LED will turn red
and the iDevices Connected app alarm will alert you.
12
Renaming Probes
A probe can be renamed by tapping on the “Probe #” to the left of the
running temperature, then:
• Naming your probe under “Probe Name”
• Choose a probe color from the “Probe Color Indicator” if needed
• Tap “Save” when done
Timer Tool
The timer tool allows users to set up timers. An alert will appear when the
timer runs out.
Create a new timer:
• Under “More” located at the bottom of the screen, tap “Timers”
• Tap “Create New” to create a new timer
• Add a timer title
• Set desired time length using scroll wheels
• Tap “Save” in the top right corner of the app. Start the timer by
sliding it on in the Timers menu.
Globe Tool
The globe tool will show other users of the iDevices Connected app.
Tapping on a pin will display a user-posted message and picture*. Take a
look at what other cooks around the world have made to ignite ideas for
your next cooking adventure!
* You will only show up on the Globe if you share via Facebook.
Graph Tool
The iDevices Connected app’s Graph Tool illustrates the temperature
progression over time for your probe as you cook.
Tap on the graph to get a more detailed look of your cook. Below the
13
graph, tap “More”. You will see options to export the graph as a CSV le
or clear the history of the graph.
Clearing the history of the graph removes all data related to your cook.
Problem Solving
The following information covers some of the most common
troubleshooting issues with the Kitchen Thermometer
mini
. If you need
further assistance, please review the Kitchen Thermometer
mini
FAQ page
at idevicesinc.com/support or contact a member of our Customer Support
Team at support@idevicesinc.com.
My Kitchen Thermometer
mini
won’t turn on.
If your Kitchen Thermometer
mini
is brand new, please be sure to remove
the plastic tab located in the battery compartment so that the battery
can come into contact with the power terminals. If this does not resolve
the issue or if your Kitchen Thermometer
mini
is not brand new, please try
replacing the battery with a single brand new CR2032 coin cell battery
(available at local drugstores in the specialty battery section).
If you are still unable to turn on your Kitchen Thermometer
mini
, please
contact our Customer Support Team for further assistance by emailing
support@idevicesinc.com.
I’m having difculty pairing my Kitchen Thermometer
mini
with my
smart device.
iPhone, iPad or iPod touch:
If the Kitchen Thermometer
mini
appears in your Bluetooth settings with the
status “Not Connected”, follow these steps from your Bluetooth settings
menu:
• Tap the blue (i) the right of the Kitchen Thermometer
mini
device
name.
14
• Select the option “Forget this Device”.
• Turn Bluetooth OFF on your smart device.
• Completely shut down your smart device.
• Separate the Kitchen Thermometer
mini
from its base by rmly
holding the base with one hand and gently pull the Kitchen
Thermometer
mini
top upwards with the other hand.
• While still powered on, remove the Kitchen Thermometer
mini
battery
door and press the reset button down with a pin for ve seconds
and reinstall the battery door.
• Power up your smart device and turn Bluetooth back on.
• Tap on the iDevices logo in the gray toolbar at the top of the app.
Select your Kitchen Thermometer
mini
from the device manager. Your
smart device will pair with the Kitchen Thermometer
mini
and you are
ready to congure your settings and start cooking!
Android device:
If the Kitchen Thermometer
mini
device appears in your Bluetooth settings
but is not showing in the iDevices Connected app, follow these steps from
your Bluetooth settings menu:
• Tap on the icon to the right of the device and tap “unpair”
• Turn Bluetooth OFF on your smart device
• Completely shut down your smart device
• Separate the Kitchen Thermometer
mini
from its base by rmly
holding the base with one hand and gently pulling the Kitchen
Thermometer
mini
upwards with the other hand.
• While still powered on, depress and remove the Kitchen
Thermometer
mini
battery door, press the reset button down with a
pin for 5 seconds and reinstall the battery door.
• Replace the battery cover.
• Power up your device and turn Bluetooth back on.
• Click on the iDevices logo in the gray toolbar at the top of the app.
Select your Kitchen Thermometer
mini
from the dropdown menu. Your
15
device will pair with the Kitchen Thermometer
mini
and you are ready
to congure your settings and start cooking!
If you are having intermittent Bluetooth issues with your Android device
and want to restart Bluetooth from the app:
• Tap “More” located at the bottom of the app
• Tap “Support”
• Tap “Restart Android Bluetooth” and “Restart” when prompted
Bluetooth will restart on your Android device and you will have the ability
to pair.
If you do not see the Kitchen Thermometer
mini
in your Bluetooth settings,
please ensure that you are using the iDevices Connected app. If you
experience further problems, please contact our Customer Support Team
for further assistance.
I’m experiencing a problem with the iDevices Connected app for
my iPhone, iPad or iPod touch.
The iDevices Connected app requires iOS 7.0 or higher to operate.
If you are experiencing a problem with the iDevices Connected app for
iOS, please try following the steps below to resolve any potential problems
on the device-side:
• Make sure the Kitchen Thermometer
mini
is paired with your smart
device via Bluetooth and a temperature probe is plugged into the
unit.
• Tap the Home button on the smart device.
• From the Home screen, double tap the Home button again. This will
zoom out of the home screen and display any/all previously running
apps on your smart device.
• Swipe to locate the “iDevices Connected” app.
• Swipe the “iDevices Connected” app image upward to close the
existing session.
16
• Tap the Home button on your smart device to close the Multitasking
Bar.
• Re-open the iDevices Connected app by tapping the app icon on
the Home screen.
If you are still experiencing a problem after completing these steps, please
contact our Customer Support Team for further assistance.
I’m experiencing issues with the iDevices Connected app for my
Android device.
The iDevices Connected app requires Android version 4.3 or higher to
operate.
If you are experiencing a problem with the iDevices Connected app for
Android, please try following the steps below to resolve any potential
problems on the device-side.
• Make sure the Kitchen Thermometer
mini
is paired with your Android
device via Bluetooth and a temperature probe is plugged into the
unit.
• Go to your app manager and quit out of the iDevices Connected
app
• Re-open the iDevices Connected app by tapping the app icon.
If you are still experiencing a problem after completing these steps, please
contact our customer support team for further assistance.
I don’t have a device with which to pair my Kitchen
Thermometer
mini
, can I still use it?
Yes, the Kitchen Thermometer
mini
has a display to show its temperature
readings and it can be used to view the current temperature from the
inserted probes. The alarm settings, timer tool, globe tool, graph tool and
probe renaming features for the Kitchen Thermometer
mini
require the use
of the iDevices Connected app and a compatible Bluetooth Smart Ready
device.
17
Disclaimer
The appliance is not to be used by children or persons with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction.
Children should be supervised and instructed not to play with the
appliance.
For detailed instructions regarding the iDevices Connected app, please
download the iDevices Connected app User Manual from the iDevices
website www.idevicesinc.com.
Regulations
FCC COMPLIANCE STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
INFORMATION TO USER:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate
radio frequency energy. If not installed and used in accordance with the
instructions, it may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the distance between the equipment and the receiver
• Connect the equipment to outlet on a circuit different from that to
18
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
Canada – Industry Canada (IC)
This device complies with Industry Canada license-exempt RSS Standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil est conforme avec Industrie Canada exempts de licence
standard RSS (s). Son fonctionnement est soumis aux deux conditions
suivantes:
(1) cet appareil ne doit pas provoquer d’interférences et (2) cet appareil
doit accepter toute interference, y compris celles pouvant causer un
mauvais fonctionnement de l’appereil.
19
Loading...
