i99cl Trophy Edition Phone

Getting Started Guide

@NNTN4869A@

NNTN4869A

Introduction

Introduction

This Getting Started Guide is designed to help you on your way
to usingyour i99cl phone quickly andeasily. This guidecontains
information on:

• Your i99cl Phone Features andNavigation

• Basic Functionsof Your i99cl Phone

• Contact Information

USER TIP:On the back cover, you will find a Quick

Reference Cardthat youcan tearoffand carry
with you for future reference. The card has a
place to record your personal phone
information as you go through this guide, in
case you would like to refer to the information
later.

For more information aboutyour i99cl phone, please refer to the
i99cl Phone Us er’s Guide on the enclosed CD.

IMPORTANT: It is recommended that you read the

“Nextel Terms and Conditions of Service”
on page 38, “Safety and General
Information” on page 48 and “Driving
Safety Tips” on page 64 before using your
phone.

Valuable Services and Features

Your i99cl phone is loaded with a variety of features to make
yourlife easier.Some are highlighted below.See the i99cl Phone
User’s Guide on the enclosed CD for more information.

• Color Screen Display • Large Screen Display

• Private Calls • Alternate Line Service

• Hands-Free Speakerphone • Phonebook

• Voice-Activated Dialing • Datebook

1

Trophy Edition

•J2METMApplications

• VoiceMail • Three-WayCalling

• Two-Way Messaging • International Roaming

•NextelOnline

•411 •TextandNumericMessaging



•VoiceRecord

• Call Waiting

2

i99cl Phone Features

COVER CLOSED

Antenna

i99cl Phone Features

Volume
Control
Buttons

Push-to-Talk

(PTT) Button

Cover

Speaker
Key

Accessory and
Data Cable
Connector

Audio
Jack

TOP VIEW

COLOUR DISPLAY

Smart
Key

Status
Light

One-Line
Display
Screen

Option
Key

End/Home
Key

4-Way
Navigation
Key

Punctuation
Key

Back/Pause
Dialing Key

Microphone

Antenna

COVER OPEN

Power On/Off

BOTTOM VIEW

Earpiece

Full-Sized
Color
Display
Screen

Status
Light

Menu Key

Option Key

Send Key

Photosensor

AlphaNumeric
Keypad

Next Word/
International
Plus Dialing
Key

Accessory
and Data
Cable
Connector

3

Trophy Edition

Battery

Your i99cl phone comes with a Lithium Ion battery and charger.
After attaching the battery, you must charge it before you use it
for the first time. See page 6 for the charging times for your
phone’s battery. The first time you charge your phone’sbattery,
chargefor 30 minutesmorethan the timeshown on page 7. After
the initial charging, the battery can be charged in the timeshown
on page 7.

Remove the battery from the protective plastic safety tray
provided in the original packaging. When the battery is not
attached to the phone, store it in the original tray.

NOTE:Use only the batteries approved for this product.

Attaching the Battery

1

Slide the battery cover release button away from the
batterycover and remove the battery coverfrom the back
of the phone.

Battery cover
release button

USER TIP:Holding thebattery cover downward allows

it to fall easily from the back of the phone
without being pulled.

4

2

Insert the top of the battery into the battery area. Press the bottom of the battery to secureit.

3

Replace the battery cover and pressit gently until you hear a click.

Detaching the Battery

1

Ensure that the phone is powered off before attempting to detach the battery.

Battery

5

Trophy Edition

2

Slide the batterycover release button away from the
batterycover and remove thebattery cover fromt he back
of the phone.

3

Remove the batteryby pushingthebattery toward the antenna and lifting it out of the phone.

Charging the Battery

1

With your phone’s display screen
facing up, plug the charger’s
accessory connectorinto the leftside
of the accessory connector on the
bottom of the phone.

2

If the chargerhas folding electrical prongs,flipopenthe prongs.

3

Plug the charger into an electrical outlet.

6

Battery Charging Status

The battery strength indicator icon found on your phone’s
displayscreen shows the amount of power in the battery.

When Using Phone

Icon
Display

Battery

Battery
Strength

Low
Battery

11% to
40%

41% to
70%

Fully
Charged

A short, chirp-like sound indicates a low battery. The icon
flashesto indicate that you have approximately five minutes of
talktime remaining.

When Charging Battery

Icon
Display

Battery
Strength

1 flashing
bar

Low Battery 31% to60% 61% to90% FullyCharged

1 flashing bar,
1 continuous
bar

1 flashing bar,
2 continuous
bars

3 continuous
bars

For best results, charge the batteries within the temperature range

o

of 10

Cto40oC(50oFto104oF). Prolongedcharging is not

recommended.

Charging Lithium Ion Batteries

For optimal battery life,use a Motorola iDENApproved Lithium
Ion batterycharger with your Motorola iDEN Lithium Ion
battery.Other chargers may not fully charge your Lithium Ion
battery.

7

Trophy Edition

The table below providestheapproximate time to fully charge a
batteryusinga Motorola iDEN Approved Lithium Ion battery
charger. Check the description on your battery and charger to
determine the appropriate charging time.

Charging timesarebasedon a fully discharged battery.

MOTOROLA ChargingTimeto100%
BATTERIES

Description/
Chemistry

Rapid
Travel
Charger

Mid­Rate
Travel

Standard
Travel
Charger

Charger

Standard
Lithium Ion

Slim Lithium Ion 2hours

2hours
30 mins

5 hours 5 hours

4 hours 4 hours

30 mins

NOTE:Use only the batteries listed in the table above, as

they are compatible with the battery cover
supplied with the radio product.

These batteries can be purchased throughourweb siteat:

www.motorola.com/store/iden

NOTE:Charging timesare based on a fully discharged

battery.

Turning Your i99cl Phone On/Off

To power the phone on:

1

Open the phone cover.

2

For optimal signal strength, extend the antenna.

8

Turning Your i99cl Phone On/Off

3

Press and hold p on the keypad until the statuslight glows red and a tone briefly sounds.

4

When the Enter SIM PIN Code screen displays,enter
your SIM PIN. (See the i99cl Phone User’s Guide on the
enclosedCD for more information.)

NOTE:The default SIM card PIN is 0000. It is

recommended that youchange your PIN to
prevent fraudulent use of the SIM card (see the
i99cl Phone User’s Guide on the enclosed CD
for more information).

5

Press C under OK.

As your phone connects to
the Nextel National
Network,you willsee
Welcome To Nextel and a
connecting message.When
the idle screen appears on
the display, you are ready
to use your i99cl phone!

If your display reads No Service or doesn’t change to the idle
screen when you turn on your phone, and you know you are in a
Nextel coverage area, contact Nextel Customer Care. For details
on Nextel coverage areas, go to nextel.com.

To power the phone off:

1

Press and hold p on the keypad until you see the message Powering Off.

9

Trophy Edition

2

Close the phone cover.

3

Push down the antenna.

Enabling Over-the-Air-Radio-Service Software (OARSS) Security

To receive OARSS programming, you must enable OARSS
security the firsttime you poweron your phone orwithin 20 days
of first activation of your phone. See “Receiving Over-the-Air
Programming” on page 11.

1

When you power on your phone for the first time,after
the idle screen appears, you will be prompted to select
OK to update your browser info.

NOTE: If youpress C under LATER, you will be

prompted to enable security each time you
power on your phone until you press
OK. It is recommended that you do not choose
LATER.

2

Press C under OK.

3

You are promptedto enable security. Press C under
YES. A seriesof screens display.Ifyousubscribe to a
Nextel Online

®

service plan, your home page displays.

C under

4

Press * to return to the idlescreen.

10

Receiving Over-the-Air Programming

Receiving Over-the-Air Programming

If youhave been set uptoreceive over-the-air programming, you
must enable security (see “Enabling Over-the-Air-Radio-Service
Software(OARSS)Security”onpage10).Within24hoursof
enabling security, you will receive a Net Alert message
containing the following:

• your Private ID and Talkgroup lists for use with Direct
Connect

• your Personal TelephoneNumber (PTN)

To accept your phone programming:

1

2
3

4
5

6
7

TM

use

You will receive a Net Alert with the message New Browser Message – Receive Programming Info.

Press C under GOTO.
You are prompted to acceptchanges to yourphone’slists.

Press C under OK.
A confirmation screen displays. Press C under OK.
You are prompted againto acceptchanges to your

phone’s lists. Press C under OK.
A confirmation screen displays. Press C under OK.
Press r to return to the idle screen.

Closed-Cover Features

You can use a variety of the i99cl phone’sfeatures and functions
while the phone cover is closed.

11

Trophy Edition

With the cover closed, you can:

•answercalls

• conduct callswithspeakerphone on

•endcalls

•viewlast20calls

• place a call to a number in your last 20 calls list

• place callsto numbersinyourPhonebook using voice­activated dialing

• send incomingcalls to voice mail

• receive and dismiss call alerts,message notifications,
Datebook event reminders, and notification of missedcalls

• adjust volume of speaker, ringer, and call alert notification

• transferdata to and from your phone

Subscriber Identity Module (SIM) Card

Your phonecomes with a built-in level of security protection
through the use of the SIM (Subscriber Identity Module) card.
The SIM card is located in the SIM Card Holder on the back of
the phone, underneath the battery. You can verify that the SIM
card is in place by removing the battery and viewing the SIM
card throughthe SIM card cover. If there is no SIM card in your
phone, notify your Nextel Authorized Representative. The SIM
card stores all of your Phonebook information and your Nextel
account identification information.

NOTE:Except for making emergency calls, your phone

will not function without the SIM card.

12

Subscriber Identity Module (SIM) Card

SIM Card Personal Identification Number (PIN)

To prevent unauthorized use of your account, you can protect
your SIM card by enabling the SIM PIN securityfeature. With
the SIM PIN enabled, you must enter your PIN each time the
phone is powered on. You can change or disableyourPIN if
desired.

NOTE:It is recommended that you enable the SIM PIN

security feature to prevent fraudulent use of the
SIM card.

Enabling/Disabling the PIN Security Feature

When the PIN security feature is enabled, you are prompted to
enter your PIN each time you turn on your phone. Until a valid
PIN is entered, you can use the phone only to make emergency
calls.

Afterthe PIN is accepted,the phone registers on the networkand
the idle screen displays.

When thePINsecurity featureisdisabled, the phonecanbe used
without entering a PIN.

IMPORTANT: It is recommended that you enable the PIN

1

At theidle screen, pressq andthenpressS to scroll to Settings.

security feature to protect personal data
on your SIM card. This prevents anyone
from using your phone and accessing
your personal data.

2

Press C under SELECT. The Settingsscreen displays.

3

Press R to scroll to Security.PressC under SELECT to access the Security screen.

13

Trophy Edition

4

At the Security screen, pressR to scroll to SIM PIN.
PressC under SELECT to access the SIM PIN screen.

5

Press R to scroll to On or Of f. On enables the SIM
PIN security feature; Off disables the SIM PIN security
feature.Press C under SELECT.

6

At the Verify SIM PIN Code screen, enter the current SIM PIN and press C under OK.

NOTE:The default SIM card PIN is 0000.

Once you have enabled the SIM PIN security feature, it is
recommended that youchange yourPINto a numberknownonly
toyou(see“ChangingthePIN”inthei99cl Phone User’s Guide
on the enclosed CD).

14

Subscriber Identity Module (SIM) Card

Entering the PIN

IMPORTANT: Incorrectly enteringyourPIN three times

1

From the Enter SIM PIN
Code screen,enteryour4-to

8-digitPIN.An asterisk
appears for each character
entered.

NOTE:Other than

2

Press C under OK.

If you enter an incorrect PIN, the message SIM PIN incorrect:
Try again appears on your phone’s screen. After three

consecutive incorrectattempts, the SIM card is blocked. Once
blocked,thephonewill not allowyou to enter your PIN again,
even after powering the phone off and back on. If this happens,
see “UnblockingthePIN” in the i99cl Phone Phone User’s
Guide on the enclosed CD.

causes the SIM card to be blocked. To
unblock your SIM card, you must contact
Nextel Customer Car e at 1-8 00-639- 6111.
For more information, see the i99cl
Phone Us er’s Guide on the enclosed CD
for more information

emergency dialing,
you will be unable to
use any of the phone
functions, including
receiving phone
calls, until you enter
the PIN.

.

15

Trophy Edition

Status of Your i99cl Phone

Your i99cl phone has a status light on the top of the phone,near
the cover hinge.The statuslight indicates the status of your
connection.

Status
Light
Indicator

Solid Red Signing on to the network. Please

Flashing
Red

Flashing
Green

Solid
Green

i99cl Phone Status

wait.

No service or out of coverage area.
If you are in a coverage area, keep

your phone on and it will attempt to
connect to the networkevery two
minutes. If the phone does not
connect after 15 minutes, contact
Nextel Customer Care.

In service/Ready to use.

In use

.

Opening and Closing Phone Cover

If you are viewing information on your phone’s one-line display
screen,you can always open the phone cover to view more
detailed information on the full-sized color display screen.
However, if you are viewing information on the color display

16

Status of Your i99cl Phone

screen,closing the phone cover terminates any activity your
phone is engaged in — except poweringup, transferring data
throughacable, and runningJavaapplications.Javaapplications
will temporarily pause.

NOTE:Phone calls will not be suspended when closing

the coverwhen Flip Activation is set to ON.

Full-Sized Color Display Screen

The full-sizedcolordisplay
screen consists of:

• statusicon rows—the top

two rows displaystatus.
See “Status Icons”on
page 18.

• text displayarea—displays

up to seven lines of text
and icons. See “Text
Display Area” on page 20.

• menu icon—see “Menu Icon” on page 20.

• display options—see “ Display Options” on page 20.

One-Line Display Screen

The one-line display screen
displayslimited text and one icon
on each side of the text.

The text displayed is a shortened
version of information displayed on the full-sized screen. To see
more completeinformation, open the phone cover.

Theiconareaontheleftmaydisplay:

• signal strength icon

• call information icon

1

Status
icon
rows

Text
display
area

Menu
icon

Display
options

17

Trophy Edition

• recent call icon

•missedcallicon

• message icon

The icon area on the right may display:

• battery strength icon

• phonebook type icon for your currentcall or most recentcall

The Idle Screen

The idle screen displays any time the phone is poweredon but
not engagedin some activity.

The full-sizeidle screen displays NEXTEL, the time and date,
and any active styles (see the i99cl Phone User’s Guideon the
enclosedCD).Theone-lineidlescreendisplaysthetimeand
date. You must start at the idle screentoaccess many of your
phone’s features and functions.

When your phone cover is open, press r to access the idle
screen.

NOTE:Closing and re-opening the phone cover will also

access the idle screen.

Status Icons

Statusicons provide you with information aboutyourphone and
its functions. Theseiconsare context sensitive;meaning, the
icons that appeardepend on the t ask you are performing. Status
icons appearin the top two rows of the display screen.Some
appear at all times.Others appear only when your phone is
engaged in certainactivities or when you have activatedcertain
features.

See “i99cl Phone Icon Glossary” on page 19 for a complete list.

18

Status of Your i99cl Phone

Fax

Navigation

d

g

Menu

P

2

Line and Call Info Info

0

1

E

X

Mobile

T

Main

N

h

Work

+

Home

C

%

Other

W

Status

s

Locked

On Hold

V

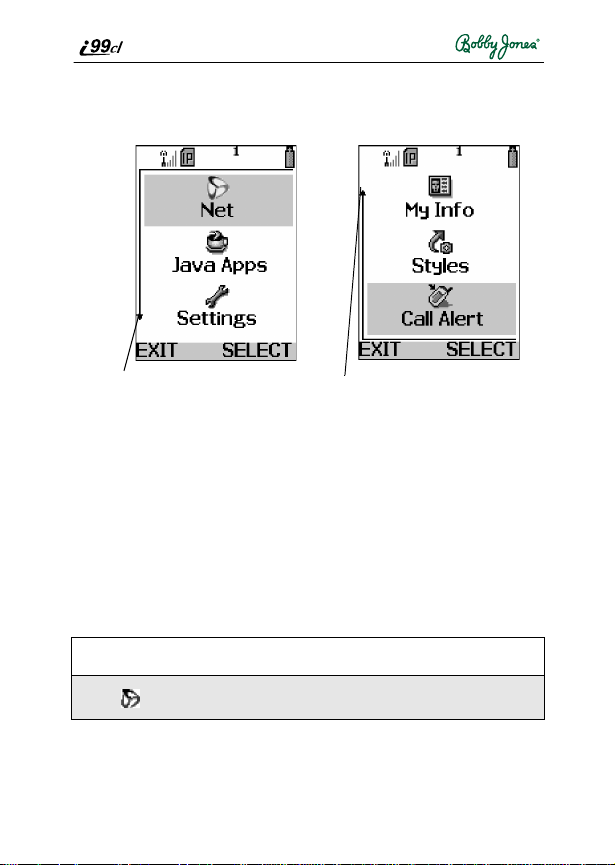

Main Menu

Net

Phonebook

Settings

VoiceRecord

Datebook

Shortcuts

My Info

Styles

Memo

Miscellaneous

S

T9 Word

#

$

T9 Alpha

w

{

-

[

\

y

K

End Call

?

Phonebook

Pager

a

Connected

u

R

Messages

Bullet

T9 Numeric

,

T9 Symbols

!

e

f

i99cl Phone Icon Glossary

You may see these icons while usingyour i99cl phone:

Voice Mail

Signal Strength

Line 1 Active

Picker Up

Text Message

Java Apps

Mobile IP

Line 2 Active

Private ID

Picker Down

Net Alert

Battery Strength

Line 1 Forward

Picker Left

Message Read

Packet Data

Packet Activity

Incoming Call

Line 2 Forward

Picker Right

Phone In Use

Outgoing Call

Up Down Arrows

Private In Use

Missed Call

Call Forward

Talkgroup In Use

T9 Uppercase

Vibrate All

Talkgroup ID

Secure Data

T9 Caps Lock

Call Timers

Recent Calls

Vibrate On

Speaker Off

IP

Voice Name

Vibrate Then Ring

Recurring Appt

Datebook Alarm

Silent On

Check Mark

Call Alert

19
