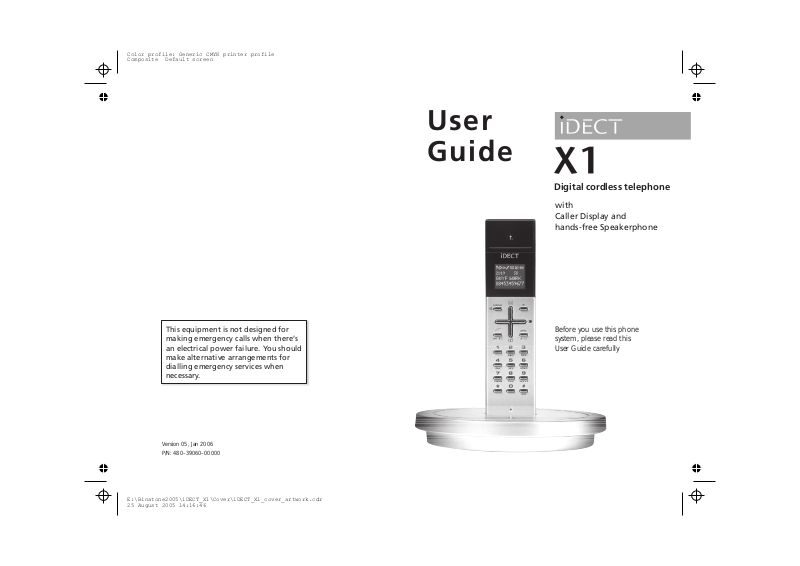

Idect X1 User Manual

Page 1

Color profile: Generic CMYK printer profile Composite Default screen

User Guide

Digital cordless telephone

with Caller Display and hands-free Speakerphone

This equipment is not designed for making emergency calls when there’s an electrical power failure. You should make alternative arrangements for dialling emergency services when necessary.

Version 05, Jan 2006 P/N: 480–39060–00000

E:\Binatone2005\iDECT_X1\Cover\iDECT_X1_cover_artwork.cdr 25 August 2005 14:16:46

Before you use this phone system, please read this User Guide carefully

Page 2

Color profile: Generic CMYK printer profile Composite Default screen

Important note — emergency calls

The iDECT X1 is not designed for making emergency calls if the mains power fails. So you should make alternative arrangements for access to Emergency Services.

(This means that you should also have a basic phone, that does not need mains power, connected to your line so that you can make calls during a power failure.)

If you need help …

The Help Line is available from 9.00 am to 5.00 pm, Monday to Friday, on

0845 345 9677

Calls are charged at Local Call rate.

Unpacking your iDECT X1 system

In the box are:

■

the cordless handset (up to four, depending on which iDECT X1 system you’ve bought)

■

the base unit

■

two batteries and a battery compartment cover for each handset

■

a telephone line cable for the base unit

■

a mains power lead and adapter for the base unit

■

up to three charger pods, each with a separate mains power lead and adapter, for multi-handset systems

Keep the packaging materials in a safe place in case you later need to transport the unit. Keep

your sales (till) receipt, which is your guarantee.

Before you can use the handset to make calls you’ll need to fit and fully charge the batteries, as described on pages 5 and 6. Please read the notes on page 4 before you install the base unit.

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:28

Page 3

Color profile: Generic CMYK printer profile Composite Default screen

Where to find it

/Caller Display (CID) button

Press during a call to increase the volume in the earpiece. Press while using Menu functions to move through the

options. Press to show the list of Caller Display records.

MENU/MUTE button

Press to start using Menu functions Press while reviewing Phonebook, Redial or Caller

Display records, to start editing. Press during a call to mute the mouthpiece so the

person on the other end can’t hear you.

button

Press when editing Phonebook, Redial or Caller Display records, to move the cursor to the left.

PHONE /SPEAKERPHONE /OK button

Press to begin, answer or end a phone call. Press to switch the speakerphone on and off. When editing or using Menu

functions, press to confirm your selection.

IN USE light

This comes on when you have a connection to the telephone line, and flashes when the unit is ringing for an incoming call.

HANDSET LOCATOR (PAGE) button

Press to make all registered handsets ring (this is useful if you've forgotten where you put a handset).

R (Recall) button

You may need the Recall function during a call if your iDECT X1 is connected to a PBX, or if you use BT’s Select Services.

Last Number Redial / /Pause button

Press to open a list of the last 10 phone numbers you called. Press when editing Phonebook, Redial or Caller Display records, to move the

cursor to the right. Press while dialling a number to insert a pause (you might need this on a PBX).

HANG UP /ON–OFF / X (Cancel) button

Press to end a call. Press and hold for 4 seconds to turn the handset on and off; or for 2 seconds to

lock and unlock the keypad. Press while editing or using Menu functions, to cancel what you’re doing and

return the display to Standby mode.

/Phone Book button

Press during a call to turn down the volume in the earpiece. Press to open the Phone Book. Press while using Menu functions to move through the options.

#/INT (Intercom) button

Press and hold for 1 second to make an intercom call (if you have more than one handset).

If the display is blank

Press the button to switch

the handset on

To subscribe to network features like Caller Display and Call Waiting, simply call your network service provider (the company that supplies your line). You don’t need to do anything special on your iDECT X1 phone to set these features up.

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:33

Page 4

Color profile: Generic CMYK printer profile Composite Default screen

Symbols on the display

The time and date

The handset’s name (the default is )

HANDSET

Signal level

Intercom call

Speakerphone

Phone

New call

Memory/ store

Battery charge level

18:44 WED

The handset’s number (if you

JANE 1

The duration of each call is shown on the display from 5 seconds after you press the PHONE button for a line, until 10 seconds after you end the call.

What the symbols mean

This is on steadily when there’s a radio link between the handset and base unit. lashes while the handset is trying to establish a link .

to the base unit

If this symbol flashes while you’re on a call, move closer to the base unit

Flashes while your handset is ringing for an intercom call, and comes on steadily when the call’s connected.

Appears when the speakerphone is turned on.

Appears when you have a connection to the outside line. Flashes when there’s an incoming call to be answered (even if the ringer is turned off).

Appears when you have missed incoming calls (if you subscribe to Caller Display).

Comes on when you’re storing numbers in memory, and when you’re making calls to stored numbers.

When this shows‘nearly empty’ ( ), put the handset on the base unit or charger pod as soon as possible, to charge the batteries. While the batteries are being charged, the symbol blinks.

It f

have more than one handset on your iDECT X1 system)

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:35

Help Line: 0845 345 9677 (Local Call rate) 1

Page 5

Color profile: Generic CMYK printer profile Composite Default screen

Contents

Read these notes first 4

Choosing a site for the base unit and charger pod 4

Radio signals between handset and base unit 4

Mains power connection 4

Installation and set-up 5

Before you start 8

Electrical safety 8 Interference 8 ‘Out of range’ warning 8

Switching on and off 9 To lock the keypad 9

Your handset’s name 10

Time and day 11

Ringer volume and melody 12

Making and answering calls 14

Using the speakerphone 14 To make a call 14 To answer a call 14 To end a call 14 Earpiece volume 15 To mute the mouthpiece 15 Last Number Redial (LNR) 15

To edit a number in the Redial list

To store a Redial number in the Phone Book 16

The Phone Book (memory dialling) 17

To store a number 17 To call a stored number 18 To edit a Phone Book entry 18 To delete a Phone Book entry 19 To delete all Phone Book entries 19

Caller Display 20

To check Caller Display records 21 To return a call 21 To store a Caller Display number in

the Phone Book 21 To edit a Caller Display record 22

Using a multi-handset system 23

To make an intercom call 23 To answer an intercom call 24 To end an intercom call 24 To transfer a call 24 To shuttle between two calls 25 To set up a three-way conference 25 New Call tone 26 To page all handsets from the

base unit 26

Handset registration 27

To register a new handset to your base unit 27

To de-register a handset 28 To register to a different brand of

base unit 29

Contents

Handset settings 30

To go into the Handset Setting menu

Earpiece volume 31 Key beep 31 Battery Low tone 32 Display language 32 Auto-answer 32 Returning to default settings 33 Handset PIN 34 Baby Call 35

To set or change the Baby Call number 35

To turn Baby Call on and off 35

Base unit settings 36

To go into the Base Setting menu 36 Returning to default settings 37 Dialling type and recall signal 37 Base unit PIN 38

Call control 39

The call timer 39 To bar certain types of call 40 To bar calls to specified numbers

40 Emergency numbers 42

Troubleshooting 43

Cleaning and care 48

Guarantee and service 49

Technical details 50

Index 51

Connection and conditions for use

You can connect your iDECT X1 to a direct exchange line (DEL) — a line connected to a local exchange, with its own phone number; to an extension socket connected to a DEL; or to an extension on an approved compatible PBX. Do not connect the iDECT X1 as an extension to a payphone.

The ringer equivalence numbers (RENs) of all instruments (phones, fax machines, etc.) connected to an exchange line must not add up to more than 4 — otherwise, one or more of them may not ring and/or answer calls correctly. The iDECT X1 has a REN of 1, and most other telephones have a REN of 1 unless marked otherwise.

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:36

Help Line: 0845 345 9677 (Local Call rate) 3

Page 6

Color profile: Generic CMYK printer profile Composite Default screen

Choosing a site for the base unit and charger pod

Radio signals between handset and base unit

Mains power connection

Read these notes first

The base unit and charger pod(s) should be placed on a level surface, in a position where:

the mains adapter plug will reach an easily accessible

■

230-V

AC switched mains supply socket — never try

to lengthen the mains power cable

the base unit’s telephone line cable will reach your

■

telephone line socket or extension socket (the charger pod does not have a telephone line connection)

it is not close to another telephone — this can cause

■

radio interference it is not close to a sink, bath or shower, or anywhere

■

else where it might get wet it is not close to other electrical equipment — fridges,

■

washing machines, microwave ovens, fluorescent lights, TVs etc.

To use your handset and base unit together, you must be able to establish a radio link between them. Be aware that:

■

Any large metal object — like a refrigerator, a mirror or a filing cabinet — between the handset and the base unit may block the radio signal.

■

Other solid structures, like walls, may reduce the signal strength.

IMPORTANT — The iDECT X1 base unit and charger pod must be used with the mains adapter supplied with the unit. Using any other adapter will result in noncompliance with EN60950, and will invalidate any approval given to this apparatus.

Make sure mains power to the base unit stays switched

on. The iDECT X1 needs electrical power for normal operation; not just for charging the batteries.

Installation and set-up

Choose a suitable

site for the base unit

See page 4

Connect the

mains power lead and the telephone line cord into the underside of the base unit

Plug the mains adapter into

a 230 V AC, 50 Hz mains socket, with the switch on the socket set to OFF

See the note on page 4

If you have one or more charger pods …

Plug the mains adapter into a 230 V AC, 50 Hz mains socket, with the switch on the socket set to OFF

Switch on at the mains socket(s)

Use the telephone line cord

supplied with your iDECT X1 — do not use any other telephone line cord

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:38

Help Line: 0845 345 9677 (Local Call rate) 5

Page 7

Color profile: Generic CMYK printer profile Composite Default screen

Installation and set-up

Fit two rechargeable batteries in

each handset

A. Insert the batteries in the

compartment, with the end of each battery facing away from the cover.

Always use the rechargeable batteries supplied — never use any other kind of batteries in the handset.

B. Carefully close the battery

compartment door, matching the symbol on the door to the symbol on the handset

C. Turn the battery compartment door

anticlockwise (try using a 5p or 1p coin) so that the symbol on the door matches the symbol on the handset

Make sure the battery compartment door is securely in place. If you have problems fitting the batteries, contact the Help Line on 0845 345 9677.

Charge the batteries for 15 hours

Before you use the handset for the first time, it’s important to charge the batteries fully.

The handset ‘beeps’ when it’s correctly in position on the charging cradle.

Leave the handset on the charging cradle for 15 hours.

Connect the base unit to the telephone line

Switch off power at the mains socket Insert the telephone line plug into

the socket as shown Switch mains power back on

Make sure the mains socket is switched on if you want to use the phone — it will not work without electrical power

NOTE: the charger pod does not have a connection to the telephone line.

The navigation buttons

In the instructions, these buttons are represented by arrows, as shown here.

Installation and set-up

LEFT

DOWN

Use the plug to raise the shutter before pushing it into the socket

The ‘battery charge level’ symbol blinks

RIGHT

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:42

Help Line: 0845 345 9677 (Local Call rate) 7

Page 8

Color profile: Generic CMYK printer profile Composite Default screen

Before you start

Electrical safety

Interference If the sound quality gets worse as you move around

‘Out of range’

warning

DON’T let the base unit or charger pod get wet.

■

Electrical equipment can cause serious injury if used while you are wet or standing in water.

If the base unit or charger pod ever falls into water,

■

DON’T retrieve it until you have unplugged the power lead from the mains and the telephone line plug from the telephone socket (base unit only); then pull it out by the unplugged cables.

NEVER use your iDECT X1 outdoors during a thunder

■

storm — unplug the base unit from the telephone line and the mains socket when there are storms in your area. Damage caused by lightning is not covered by the guarantee.

while on a call, this is probably caused by interference between the handset and the base unit, perhaps because you are too near to another phone or other electrical equipment.

Move to a different position to clear the interference. If you do not move, your call may be cut off.

Radio interference in the environment may occasion

ally cause a short break in the link between the handset and the base unit while you are on a call. The ‘signal level’ on symbol handset’s display may flash until the link is restored.

If you hear a warning tone during a call, and/or the sound in the earpiece becomes faint or distorted, you may be going out of range of the base unit. Move nearer to the base unit within 20 seconds, until the tone stops. Otherwise, your call may be cut off.

Switching on and off

To switch the handset on and off

◗

To lock the keypad

◗

Notes

■

To switch the handset off (in case you need to save battery power when the handset is away from the base unit):

Press the HANG UP button and hold it for 4 seconds

The display shows POWER OFF then goes

blank. To switch the handset back on:

Briefly press the HANG UP button, or replace the handset on the base unit or charger pod

The display briefly shows 00:00 SUN before

returning to standby mode.

Press the HANG UP button and hold it for 2 seconds

The display shows KEYPAD LOCKED

To unlock the keypad:

Press the HANG UP button and hold it for 2 seconds, or replace the handset on the base unit or charger pod

When the handset is switched off, it can’t be used for making calls, including emergency calls.

When the handset is switched off, it won’t ring for incoming calls, but the base unit will ring. To answer a call when the handset is switched off, you need to switch it back on. It may take a few moments for the handset to re-establish a radio link with the base unit.

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:42

Help Line: 0845 345 9677 (Local Call rate) 9

Page 9

Color profile: Generic CMYK printer profile Composite Default screen

To change the name

Your handset’s name

Before you start to use your iDECT X1 handset, especially if you have a multi-handset system, you’ll probably want to personalise the display with your name. The name can have up to eight characters (including spaces).

1 Press the MENU button

2 Press the â button THREE times

3 Press the PHONE/OK button

4 Press the PHONE/OK button

5 Press the á button once

6 Press the PHONE/OK button

7 Press the HANG UP button to delete

8 When you’ve finished, press the MENU/OK

9 Press the HANG UP button to go back to

The display shows PHONEBOOK

The display shows SETTING

The display shows HANDSET SETTING

The display shows ACOUSTIC SETTING

The display shows HANDSET NAME and the

current name.

The display shows ENTER NAME and the

current name.

characters from the current name, then key in your chosen name

button

standby mode

Time and day

To set the time and day:

1 Press the MENU button

2 Press the â button THREE times

3 Press the PHONE/OK button then the â

4 Press the PHONE/OK button then the â

5 Press the PHONE/OK button

6 Key in the time, as a four-digit number then

7 Use the â or á button to go to the correct

8 Press the HANG UP button to go back to

The display shows PHONEBOOK

The display shows SETTING

button

The display shows BASE SETTING

button

The display shows TIME & DAY SETTING

The display shows SET TIME and the time in

24-hour format.

press the PHONE/OK button

Remember to use the 24-hour clock and to include any 0s (zeroes) — for example, 9:30 am is

The display shows SET DAY and the day.

day then press the PHONE/OK button

standby mode

09:30; 6:05 pm is 18:05.

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:42

Help Line: 0845 345 9677 (Local Call rate) 11

Page 10

Color profile: Generic CMYK printer profile Composite Default screen

Ringer volume and melody

Handset ringer

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button THREE times

The display shows SETTING

3 Press the PHONE/OK button

The display shows HANDSET SETTING

4 Press the PHONE/OK button

The display shows ACOUSTIC SETTING

5 Press the PHONE/OK button

The display shows RINGER VOLUME LEVEL

and the current level

6 Press the PHONE/OK button

The display shows SET VOLUME LEVEL and

the handset rings at the current level. There are four volume levels — volume at

0, the handset won’t ring.

1, 2, 3 and 0. With the

7 Use the â or á button to go to the level you

prefer then press the PHONE/OK button

The display shows ACOUSTIC SETTING

8 Press the â button

The display shows RINGER MELODY and the current melody. There are six melodies, numbered

1 to 6

9 Press the á or â button to move between

the melodies. When you reach the one you prefer, press the PHONE/OK button

10 Press the HANG UP button to go back to

standby mode

Base unit ringer

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button THREE times

The display shows SETTING

3 Press the PHONE/OK button then the â

button

The display shows BASE SETTING

4 Press the PHONE/OK button

The display shows ACOUSTIC SETTING

5 Press the PHONE/OK button

The display shows RINGER VOLUME LEVEL

and the current level.

6 Press the PHONE/OK button

è The display shows SET VOLUME LEVEL and

the base unit rings at the current level. There are four volume levels — the volume set to

1, 2, 3 and 0. With

0, the base unit won’t ring

for incoming calls.

7 Use the â or á button to go to the level you

prefer then press the PHONE/OK button

The display shows ACOUSTIC SETTING

8 Press the â button

The display shows RINGER MELODY and the current melody. There are six melodies, numbered

1 to 6

9 Press the á or â button to move between

the melodies. When you reach the one you prefer, press the PHONE/OK button

10 Press the HANG UP button to go back to

standby mode

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:43

Help Line: 0845 345 9677 (Local Call rate) 13

Page 11

Color profile: Generic CMYK printer profile Composite Default screen

Making and answering calls

Using the speakerphone

To make a call1 Key in the telephone number

The speakerphone lets you hear calls without holding the handset to your ear.

You can switch between speakerphone and earpiece mode during calls at any time by pressing the PHONE/SPEAKERPHONE button. The display will show

SPEAKER PHONE ON or SPEAKER PHONE OFF

If you make a mistake, press the HANG UP button to clear digits one by one from the display.

2 Press the PHONE button

(You can dial the number after you press the PHONE button to get Dial tone if you prefer, but you can’t correct any mistakes if you do it

To answer a call

To end a call

this way. If you press the PHONE button before you dial, the display shows

When there’s an incoming call, the base unit and handset ring (unless the handset’s ringer is turned off). If you subscribe to Caller Display (see page 20) the caller’s number or name may appear on the display; otherwise , the display shows

Press any button (except HANG UP) to answer the

◗

call

The display shows ONLINE

◗ ◗

Press the HANG UP button so that the IN USE light on the base unit goes out

Or just replace the handset on the base unit

duration of the call.

<<CALL>>.

The display shows CALL END and the

ONLINE.)

Earpiece volume

To mute the mouthpiece

Last Number Redial (LNR)

To edit a number in the Redial list

During a call, to adjust the volume in the earpiece or speakerphone:

◗

Press the á or â button

There are three volume levels. After you end the call, the volume will stay at the level you’ve set.

During a call, to mute the mouthpiece so the person on the other end can’t hear you:

Press the MENU/MUTE button

To un-mute the mouthpiece, press the MENU/MUTE button again.

To make a repeat call to one of the last ten numbers you dialled (up to 32 digits):

1 Press the Redial button

2 Press the á or â button if necessary until

the number is displayed

3 Press the PHONE button to dial the number

1 Press the Redial button, then the á or â

button until the number is displayed

2 Press the MENU button

The display shows EDIT REDIAL, the entry number ( with a flashing cursor

#01 upwards) and the stored number,

3 Press the HANG UP button to delete digits,

then key in the new digits

4 When you’ve finished, press the PHONE/OK

button, then the HANG UP button to go back to standby mode

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:43

Help Line: 0845 345 9677 (Local Call rate) 15

Page 12

Color profile: Generic CMYK printer profile Composite Default screen

Making and answering calls

To store a Redial number in the Phone Book

1 Press the Redial button, then the á or â

button until the number is displayed

2 Press and hold the PHONE BOOK button for

2 seconds

The display shows ENTER NAME

3 Key in a name then press the PHONE/OK

button

The display show the name and STORED

(See the list below for which buttons to use for which characters.)

4 Press the HANG UP button to go back to

standby mode

To store a number

The Phone Book (memory dialling)

You can store up to 50 numbers in the Phone Book. Each number can have up to 32 digits, and can be stored with a name of up to 20 characters (including spaces).

1 Press the Phone Book button and hold

2 Press the PHONE/OK button

3 Key in a name** then press the PHONE/OK

it for about 2 seconds*

The display shows PHONEBOOK ADD ENTRY

The display shows ENTER NAME

button

The display shows ENTER NUMBER

Buttons to press for text characters — press the button repeatedly until you get the character you want

[space] 1-!,.:;

ABC2ДавВЖЗ

DEF3ëéèê

GHI4Ìíîï

JKL5

MNO6ЦтуфШС

PQRS7ß

TUV8ÜÙúû

WXYZ9

0Ø=<>()

*+%@&$¥£¿§

backspace/delete

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:43

4 Key in a number*** and press the MENU/OK

button

The display shows the name and STORED

5 Press the HANG UP button to go back to

standby mode

* This is a short-cut method. You can also press the

Phone Book button followed by the MENU button. Or you can press MENU—PHONE/OK—MENU.

** Refer to the diagram on page 16 if you’re not sure how to

key in text using the numbered keypad.

*** If you use Caller Display, it’s best to store the number with

the full national dialling code, even if it’s a local number. You’ll still be charged at Local rate when you call the number.

Help Line: 0845 345 9677 (Local Call rate) 17

Page 13

Color profile: Generic CMYK printer profile Composite Default screen

The Phone Book (memory dialling)

To call a stored number

1 Press the Phone Book button

Phone Book. If the number has more than nine digits, it’s shown with an arrow and you can press the à button to show the rest of the digits.

2 Press the á or â button to go to the

number you want OR you can search by pressing a button on the

numeric keypad for the first letter of the name, then using the á and â buttons if necessary.

3 Press the PHONE button to dial the number

To edit a Phone Book

1 Press the Phone Book button then the á or

â button to go to the number you want

entry

2 Press the MENU button, then the â button

3 Press the PHONE/OK button

4 To edit the name, use the HANG UP button

to delete characters, then key in the new ones

5 Press the PHONE/OK button

number.

6 To edit the number, use the HANG UP button

to delete digits, then key in the new ones

7 Press the PHONE/OK button then the

HANG UP button to go back to standby

mode

The display shows the first entry in the

» at the end,

The display shows PHONEBOOK EDIT ENTRY

The display shows EDIT NAME and the name.

The display shows EDIT NUMBER and the

To delete a Phone Book entry

To delete all Phone Book entries

The Phone Book (memory dialling)

1 Press the Phone Book button then the á or

â button to go to the number you want

2 Press the MENU button, then the â button

TWICE

The display shows PHONEBOOK

DELETE ENTRY

3 Press the PHONE/OK button

The display shows DELETE? and the name.

4 Press the PHONE/OK button to delete the

entry, or the HANG UP button to cancel and go back one step

5 Press the HANG UP button to go back to

standby mode

1 Press the Phone Book button

2 Press the MENU button, then the â button

THREE times

The display shows PHONEBOOK DELETE ALL

3 Press the PHONE/OK button

The display shows ENTER H/S PIN The handset’s PIN is 0000 unless you have

changed it (see page 34). When you key in the PIN, the display shows it as

****

4 Key in the handset’s PIN and press the

PHONE/OK button

The display shows PHONEBOOK ALL DELETED

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:44

Help Line: 0845 345 9677 (Local Call rate) 19

Page 14

Color profile: Generic CMYK printer profile Composite Default screen

Caller Display

Here are some examples of Caller Display records:

The record number is onwards.#01

To subscribe to this feature, you need to contact your service provider, who will tell how much it will cost.

Caller Display lets you see the phone numbers of your callers on the handset’s display, before you answer. The iDECT X1 will store the numbers of the last 20 callers (whether or not you answered the call) so you can call them back later. When the Caller Display list is full, the next incoming number will overwrite the oldest one.

If you’ve got new Caller Display records, the symbol is shown on the display.

A call from someone whose name

CID #01 JENNY

CID #01 02x TUE 16:21

CID #02 07967345

(Jenny) and number are stored in your Phone Book.

Press the (HASH) button once to see the full number.

Press the button again to see more details. In this example, there have been two calls from this number ( ) and the most recent call

02x

at 4:21 pm on Tuesday. A call from someone whose name and

number are not stored in your Phone Book.

came in

678

A call from someone who withheld their

CID #03

number by dialling 141.

A call from someone whose number is

CID #06 <OUT OF AR

unavailable (for example, this may be an international call).

EA>

To check Caller Display records

1 Press the Caller Display button

The most recent record is shown onthe display.

2 To see more details, press the # (HASH) button

(Refer to the diagram on page 20.)

3 Press the á or â button to scroll through

the records

Once you’ve checked all new records, the

symbol disappears from the display.

4 Press the HANG UP button to go back to

standby mode

To return a call

1 Follow steps 1 to 3 above (step 2 is optional)

To ring back someone who’s called you:

to display the record

2 Press the PHONE button to dial the number

To store a Caller Display number in the Phone Book

1 Use steps 1 to 3 above (step 2 is optional) to

display the record

2 Press and hold the Phone Book button for

2 seconds

The display shows ENTER NAME *

3 Key in a name then press the PHONE/OK

button

The display show the name and STORED

4 Press the HANG UP button to go back to

standby mode

* If the number is already stored, after step 2 the display shows

ENTRY EXISTS OVERWRITE?

You can press PHONE/OK to carry on, or HANG UP to cancel.

Help Line: 0845 345 9677 (Local Call rate) 21

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:46

Page 15

Color profile: Generic CMYK printer profile Composite Default screen

Caller Display

Using a multi-handset system

To edit a Caller Display record

1 Press the Caller Display button, then the á

or â button if necessary, to display the record

2 Press the MENU button

The display shows EDIT CID followed by the

record number and the phone number.

3 To edit the number, use the HANG UP

button to delete digits, then key in the new ones

4 When you’ve finished, press the PHONE/OK

button

5 Press the HANG UP button to go back to

standby mode

To make an intercom call

If you have an iDECT X1 multi-handset system, you already have more than one handset registered to your base unit. You can register additional handsets — up to six per base unit. With two or more handsets, you can:

make intercom calls from one handset to another

■

transfer an outside call from one handset to another

■

shuttle between an outside call and an intercom call

■

set up a three-way conference call

■

Each handset’s number (1 to 6) is shown on its display.

Only one handset can be connected to the outside

line at once. If you try to make a call while another handset is already on the line, you’ll hear Busy tone.

There are two ways to make an intercom call. First method:

1 Press and hold the INT/# button for 2

seconds until the ‘Intercom’ symbol flashes on the display

2 Use the á or â button to scroll through

available handset numbers, then press the PHONE/OK button

The other handset rings, and its display

INTERNAL FROM # (with your handset

shows number). When the other handset user answers, you’ll be connected.

Second method:

1 Press the MENU button then the â button

TWICE

The display shows INTERNAL CALL

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:46

2 Press the PHONE/OK button

The ‘Intercom’ symbol flashes on the display, and you can carry on to select the handset number (step 2 of the first method).

Help Line: 0845 345 9677 (Local Call rate) 23

Page 16

Color profile: Generic CMYK printer profile Composite Default screen

Using a multi-handset system

To answer an intercom call

To end an intercom call

To transfer a call

The ringing tune for intercom calls is different from that for outside calls.

When someone makes an intercom call to you, your handset’s display shows number of the handset calling you.

Press any button (except HANG UP) to answer

◗

◗ ◗

1 Press and hold the INT/# button until the

2 Press the HANG UP button to hang up and

INTERNAL FROM # with the

Press the HANG UP button Or simply replace the handset on the base

unit or charger pod

When you’re talking on an outside call (a call you’ve either made or answered), you can transfer it to another handset:

‘Intercom’ symbol flashes on the display. Then key in the number of the other handset (or Ø to call all other handsets)

The outside call is put on hold and the other handset rings. When the other handset user answers, you can speak to her/him.

If the other user does not answer, you can get back to the outside call at any time by pressing

and holding the INT/# button again.

transfer the call

If you prefer, you can press HANG UP to transfer the outside call before the other handset answers your intercom call. If the user hasn’t answered after 30 seconds, the outside call will come back to you and your handset will ring.

To shuttle between two calls

To set up a three-way conference

To end the conference

Using a multi-handset system

When you have made or answered an outside call and then made an intercom call, you can shuttle from one to the other, like this:

◗

Press and hold the INT/# button for one second to speak to each in turn, putting the other on hold

You can transfer the outside call to the other handset by pressing HANG UP while you’re connected to the intercom call

If you press HANG UP while you’re connected to the outside call, you’ll disconnect it.

1 Make or answer an outside call

2 Press and hold the INT/# button then key in

the number of the other handset (or Ø to call all other handsets)

The outside call is put on hold and the other

handset rings. When the other user answers:

3 Press the Ø button for one second

EITHER

◗

Press the Ø button for one second

You stay connected to the outside call and the intercom call is put on hold. Provided the other user hasn’t hung up, you can bring her/him back into the conference by pressing the Ø button again.

OR, to drop out of the conference call, leaving the other user connected to the outside call:

Press the HANG UP button

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:46

Help Line: 0845 345 9677 (Local Call rate) 25

Page 17

Color profile: Generic CMYK printer profile Composite Default screen

Using a multi-handset system

Handset registration

New Call tone When you are on an intercom call and an

◗

To page all handsets from the base unit

◗

outside call comes in, you’ll hear New Call tone to tell you that someone is calling you.

To answer the outside call and end the intercom call:

Press the R button briefly

OR, to answer the outside call and put the intercom call on hold (so you can later use shuttle, conference or transfer):

Press the INT/# button for one second

If you now want to set up a three-way conference, simply press and hold the the Ø button for one second.

To make all registered handsets ring (this is useful if you’ve forgotten where you put a handset):

Press the HANDSET LOCATOR button on the base unit

Handsets ring for up to 30 seconds and their

displays show To stop the ringing before 30 seconds:

EITHER press the HANDSET LOCATOR button again

OR press any button (except HANG UP) on any handset

<<PAGE>>.

To register a new handset to your base unit

The handset(s) supplied with your iDECT X1 base unit are already registered to it, so you don’t need to register them. But if you’ve bought extra handsets separately, you’ll need to register them. Each iDECT X1 handset can be registered to up to four base units.

Make sure the handset you’re registering is in standby mode.

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button THREE times

The display shows SETTING

3 Press the PHONE/OK button

The display shows HANDSET SETTING

4 Press the PHONE/OK button then the â

button FOUR times

The display shows REGISTER

5 Press the PHONE/OK button

The display shows ENTER BASE PIN *. The PIN is 0000 unless you’ve set a new one

(see page 38).

6 Key in the PIN

The display shows REGISTER IN PROGRESS

7 Immediately press the HANDSET LOCATOR

button on the base unit and hold it until you hear a tone

The handset’s display flashes for a while, then

shows matically given the lowest free handset number.

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:47

continued overleaf …

Help Line: 0845 345 9677 (Local Call rate) 27

Page 18

Color profile: Generic CMYK printer profile Composite Default screen

Handset registration

Registration failed?

To de-register a handset

If registration has failed, the handset’s display will show

REGISTRATION FAILED for a few seconds then return to

standby mode. If this happens, try again, making sure you don’t leave

too long between steps. If you still can’t register the handset, contact the Help Line for advice.

You may need to do this in order to replace a faulty handset.

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button THREE times

The display shows SETTING

3 Press the PHONE/OK button then the â

button

è The display shows BASE SETTING

4 Press the PHONE/OK button

If you’ve set a new PIN for the base unit

(see page 38), the display will show

BASE PIN *

and you’ll need to key it in. If

ENTER

you’ve left the PIN at its default, you won’t be asked for it at this point.

5 Press the â button FOUR times

The display shows DEREGISTER

6 Press the PHONE/OK button

The display shows DEREGISTER HANDSET 1.

7 Press the â or á button to go to the

handset number you want to deregister then press the PHONE/OK button

The display shows DEREGISTER DONE for a

few seconds

8 Press the HANG UP button to go back to

standby mode

To register to a different brand of base unit

Handset registration

Your iDECT X1 can be registered to any GAPcompatible base unit; or your can register other GAPcompatible handsets to your iDECT X1 base unit.

But we do not guarantee that all features or display messages will be available using other manufacturers’ equipment.

1 Follow the instructions in the base unit’s User Guide to

put the base unit into registration mode (for example, step 7 on page 27).

2 Follow the instructions in the handset’s User Guide to

register the handset (for example, steps 1 to 5 on page 27). If you need to enter a PIN for the base unit, refer to the base unit’s User Guide.

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:47

Help Line: 0845 345 9677 (Local Call rate) 29

Page 19

Color profile: Generic CMYK printer profile Composite Default screen

Handset settings

To go into the Handset Setting menu

The HANDSET SETTING menu lets you customise your handset to suit your preferences. Some of the functions in this menu have been covered earlier in this User Guide.

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button THREE times

The display shows SETTING

3 Press the PHONE/OK button

The display shows HANDSET SETTING

4 Press the PHONE/OK button

If you’ve set a new PIN for the handset (page 34), the display will show

ENTER H/S PIN * and

you’ll need to key it in. If you’ve left the PIN at its default of 0000, you won’t be asked for it at this point.

5 Press then the â button to go to the option

you want, then the PHONE/OK button to select it

All instructions below follow from this step. When you’ve finished:

◗

Press the HANG UP button to go back to standby mode

You can also press the HANG UP button at any point to cancel what you’re doing and go back one step.

When you’re keying in numbers, if you make a mistake, press the HANG UP button to delete digits.

Ringer volume and melody

Earpiece volume

These are set using the ACOUSTIC SETTING option. See page 11 for details.

There are three earpiece volume levels. You can also change the earpiece volume during a call using the â or á buttons (see page 15).

1 Select the ACOUSTIC SETTING option

2 Use the â or á button to go to EARPIECE

then press the PHONE/OK button

VOLUME

The display shows SELECT VOLUME and the

current volume level.

3 Use the â or á button to go to the level you

prefer, then press the PHONE/OK button to confirm

Key beep Normally, whenever you press a button on the

handset you’ll hear a tone. You can turn this off if you prefer:

1 Select the ACOUSTIC SETTING option

2 Use the â or á button to go to KEY BEEP

then press the PHONE/OK button

The display shows SET KEY BEEP and ON or OFF

3 Use the â or á button to go to the setting

you prefer, then press the PHONE/OK button to confirm

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:47

Help Line: 0845 345 9677 (Local Call rate) 31

Page 20

Color profile: Generic CMYK printer profile Composite Default screen

Handset settings

Battery Low tone

Normally, when the handset’s batteries are running low, you’ll hear a warning tone. You can turn this off if you prefer:

1 Select the ACOUSTIC SETTING option

2 Use the â or á button to go to BATTERY

LOW TONE

ON or OFF

then press the PHONE/OK button

The display shows SET BATT LOW TONE and

3 Use the â or á button to go to the setting

you prefer, then press the PHONE/OK button to confirm

Display language

1 Select the LANGUAGE option

To change the language on the display:

è The display shows SELECT LANGUAGE and

the current language.

2 Use the â or á button to go to the

language you want

The options are

ENGLISH, GERMAN, FRENCH

or NEDERLANDS

3 Press the PHONE/OK button to select the

language

Auto-answer Normally, when there’s an incoming call, you need to

press a button on the handset to answer it. With auto-answer turned on, if a call comes in when the

handset is in place on the base unit or charger pod, you can answer the call by simply lifting the handset.

Returning to default settings

Handset settings

To turn auto-answer on and off:

1 Select the AUTOMATIC ANSWER option

The display shows SET AUTO ANSWER and

ON or OFF

2 Use the â or á button to go to the option

you prefer, then press the PHONE/OK button to confirm

The default settings for the handset are:

Ringer volume level — 3

■

Ringer melody — 3

■

Earpiece volume level —

■

Speakerphone volume level — 3

■

Key beep — ON

■

Battery Low tone — ON

■

Auto-answer — OFF

■

Handset PIN — 0000

■

Baby Mode — OFF

■

Baby Number — none

■

Handset name — HANDSET

■

Language — ENGLISH

To return all handset settings to their defaults:

1 Select the DEFAULT SETTING option

The display shows CONFIRM DEFAULT

SETTING?

2 Press the PHONE/OK button to confirm, or

the HANG UP button to cancel

The display shows DEFAULT SETTING DONE

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:47

Help Line: 0845 345 9677 (Local Call rate) 33

Page 21

Color profile: Generic CMYK printer profile Composite Default screen

Handset settings

Registration See page 27.

Handset PIN The default PIN (personal identity number, or security

code) for the handset is 0000. If you want to protect your handset’s settings, you can change the PIN to any four-digit number you’ll easily remember. Once you’ve changed it, you’ll be asked for it every time you go into

HANDSET SETTING menu.

the

To change the PIN:

1 Select the CHANGE PIN option

The display shows ENTER NEW PIN *

2 Key in your chosen new PIN then press the

PHONE/OK

The display shows CONFIRM NEW PIN *

3 Key in your new PIN again then press the

PHONE/OK

The display goes back to standby mode.

If the PINs you key in at steps 2 and 3 don’t match, you’ll hear an error tone, and you’ll need to try again from the beginning.

If you want to turn PIN protection off, follow the steps above to change the PIN back to 0000. Then you won’t be asked for it when you change the handset’s settings.

Handset settings

Baby Call With Baby Call (babysitter’s call) turned on, the handset

will automatically dial a specified number when any button (except MENU) is pressed. Before you can turn Baby Call on, you must set (programme) the Baby Call phone number to be dialled.

With Baby Call turned on, the iDECT X1 handset

can’t be used for calling Emergency Services. Make sure there’s an alternative phone available for emergencies.

To set or change the Baby Call number

To turn Baby Call on and off

1 Select the BABY CALL NUMBER option

The display shows ENTER BABY NUMBER *

2 Key in the phone number then press the

PHONE/OK

The display goes back to standby mode.

1 Select the BABY MODE option

The display shows SET BABY MODE and ON or OFF

2 Use the â or á button to go to the option

you prefer, then press the PHONE/OK button to confirm

The display goes back to standby mode,

BABY MODE shown on the middle line.

with If you try to turn Baby Call on before you’ve set

a Baby Call number, the display will show

ENTER BABY NUMBER * and you’ll need to key a

number in.

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:48

Your handset’s

See page 9.

name

Help Line: 0845 345 9677 (Local Call rate) 35

Page 22

Color profile: Generic CMYK printer profile Composite Default screen

Base unit settings

To go into the Base Setting menu

The BASE SETTING menu lets you customise your base unit to suit your preferences. Some of the functions in this menu have been covered earlier in this User Guide.

1 Press the MENU button

The display shows PHONEBOOK

2 Press the â button THREE times

The display shows SETTING

3 Press the PHONE/OK button then the â

button

The display shows BASE SETTING

4 Press the PHONE/OK button

If you’ve set a new PIN for the base unit (page

34), the display will show

ENTER BASE PIN *

and you’ll need to key it in. If you’ve left the PIN at its default of 0000, you won’t be asked for it at this point.

5 Press the â button to go to the option you

want, then the PHONE/OK button to select it

All instructions below follow from this step. When you’ve finished:

◗

Press the HANG UP button to go back to standby mode

You can also press the HANG UP button at any point to cancel what you’re doing and go back one step.

When you’re keying in numbers, if you make a mistake, press the HANG UP button to delete digits.

Ringer volume and melody

These are set using the ACOUSTIC SETTING option. See page 13 for details.

Time & day See page 10 for details.

Returning to default settings

The default settings for the base unit are:

Ringer volume level — 3

■

Ringer melody — 3

■

Time and day — 00:00 SUN

■

Dialling mode — TONE

■

Recall (flash) length — 100MS

■

Base unit PIN — 0000

■

Call timer — reset to zero

■

Call Barring — OFF

■

Emergency numbers — 999 and 112

To return all base unit settings to their defaults:

1 Select the DEFAULT SETTING option

The display shows CONFIRM DEFAULT

SETTING?

2 Press the PHONE/OK button to confirm, or

the HANG UP button to cancel

The display shows DEFAULT SETTING DONE

Dialling type and recall signal

The next option in the Base Setting menu is

TONE - 100MS

. This is for setting the dialling type and the recall (flash) signal length, and you probably won’t ever need this option.

You should always leave the dialling type at its default setting —

TONE. You should not need to

change the recall signal setting unless you’re having problems using your iDECT X1 on a PBX. Refer to page 46 for more information.

LINE SET

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:48

Help Line: 0845 345 9677 (Local Call rate) 37

Page 23

Color profile: Generic CMYK printer profile Composite Default screen

Base unit settings

Deregistering

For details of the DEREGISTER option, see page 28.

handsets

Base unit PIN The default PIN (personal identity number, or security

code) for the base unit is 0000. If you want to protect your base unit’s settings, you can change the PIN to any four-digit number you’ll easily remember. Once you’ve changed it, you’ll be asked for it every time you go into

BASE SETTING menu.

the

To change the PIN:

1 Select the CHANGE PIN option

The display shows ENTER NEW PIN *

2 Key in your chosen new PIN then press the

PHONE/OK

The display shows CONFIRM NEW PIN *

3 Key in your new PIN again then press the

PHONE/OK

The display goes back to standby mode.

If the PINs you key in at steps 2 and 3 don’t match, you’ll hear an error tone, and you’ll need to try again from the beginning.

If you want to turn PIN protection off, follow the steps above to change the PIN back to 0000. Then you won’t be asked for it when you change the base unit’s settings, although you’ll still need it when you register a new handset.

Base unit settings

Call control The CALL CONTROL options let you monitor and

control the calls made on your iDECT X1. You can:

Use the call timer to see how much time has been

■

spent making outside calls. For each handset, bar (prevent) international calls or

■

all outgoing calls. For each handset, bar calls to numbers starting with

■

specified digits — for example, if you bar calls to numbers starting with 090, you’ll bar calls to premium rate numbers; or if you bar calls to numbers starting with 0, you’ll bar calls to all non-local numbers.

Set up to four emergency numbers, which can

■

always be dialled even when other calls are barred.

The call timer To check the call timer:

1 Select the CALL CONTROL option

è The display shows CALL TIMER

2 Press the PHONE/OK button

You have three options:

TOTAL CALL DURATION — to see how much

time in total has been spent on call since the call timer was last reset.

LAST CALL DURATION — to see how long the

most recent call lasted.

RESET CALL DURATION — to reset the call

timer to zero.

3 Use the â or á button to go to the option

you want, then press the PHONE/OK button

You can go back to the

CALL TIMER screen by

pressing the HANG UP button, then select a different option.

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:48

Help Line: 0845 345 9677 (Local Call rate) 39

Page 24

Color profile: Generic CMYK printer profile Composite Default screen

Base unit settings

To bar certain types of call

To bar calls to specified numbers

1 Select the CALL CONTROL option then press

the â button

The display shows CALL LIMIT

2 Press the PHONE/OK button

The display shows SELECT H/S HANDSET 1

3 Use the â or á button to go to the

handset number you want, then press the PHONE/OK button

The display shows CALL LIMIT HANDSET 1

and the handset’s current status — either:

GLOBAL — all calls allowed NATIONAL — no international calls allowed INTERNAL — intercom calls only; no outgoing

calls

4 Use the â or á button to go to the option

you want, then press the PHONE/OK button

Before you turn barring of calls to specified numbers on and off, you need to set up to three barred numbers. Each barred number can have up to eight digits.

1 Select the CALL CONTROL option then press

the â button TWICE

The display shows CALL BARRING

2 Press the PHONE/OK button

The display shows SELECT H/S HANDSET 1

3 Use the â or á button to go to the

handset number you want, then press the PHONE/OK button

The display shows BARRING MODE

Base unit settings

4 Press the â button

The display shows BARRING NUMBER

5 Press the PHONE/OK button

The display shows SELECT BARRING NO

BARR NUM 1

. This lets you set the first barred number. There are three possible barred numbers altogether.

6 (If you want to set a different barred number

2 or 3], use the â or á button to go to it.)

[

7 Press the PHONE/OK button

The display shows BARR NUM 1 *

8 Key in the number you want to bar, then

press the PHONE/OK button

You can go on to set two more barred numbers if you wish.

Now you’ve set the barred numbers, you can turn this kind of call barring on and off:

1 Select the CALL CONTROL option then press

the â button TWICE

The display shows CALL BARRING

2 Press the PHONE/OK button

The display shows SELECT H/S HANDSET 1

3 Use the â or á button to go to the handset

number you want, then press the PHONE/OK button

The display shows BARRING MODE

4 Press the PHONE/OK button

The display shows SET BAR MODE and OFF

or ON

5 Use the â or á button to go to the setting

you want, then press the PHONE/OK button to confirm

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:49

Help Line: 0845 345 9677 (Local Call rate) 41

Page 25

Color profile: Generic CMYK printer profile Composite Default screen

Base unit settings

Emergency numbers

You can set up to four emergency (SOS) numbers, each with up to ten digits. These numbers can always be dialled using any handset, even when call barring is turned on. Emergency numbers 1 and 2 are preset as 999 and 112.

1 Select the CALL CONTROL option then press

the â button THREE times

The display shows EMERGENCY NUMBER

2 Press the PHONE/OK button

The display shows EMERGENCY NUMBER

SOS NUM

and 1, 2, 3 or 4

3 If necessary, use the â or á button to go to

the number you want

(For example, you may want to leave numbers 1 and 2 as they are, and set a new emergency number as number 3.)

4 Press the PHONE/OK button

The display shows ENTER SOS NUM 3 * (for

example) and any number that is already set.

5 Key in the new emergency number and

press the PHONE/OK button

The display goes back to EMERGENCY

and you can set another emergency

NUMBER

number if you wish.

ALWAYS check first that:

“I cannot make

or answer calls.”

Troubleshooting

The iDECT X1 must be serviced by trained engineers.

NEVER attempt any repairs or adjustments yourself — you could make the problem worse and invalidate the Guarantee.

you have followed all the steps listed on pages 5 to 7

■

to install and set up your iDECT X1 all connectors are firmly inserted in their sockets

■

mains power is switched on at the socket

■

the handset’s batteries are correctly and securely

■

installed, and are not run down

Everyday use

If the handset’s display is blank, it may be switched off. Press the HANG UP button to switch it back on.

Check that the base unit’s mains power adapter is plugged in and power is switched on. The base unit needs mains power for normal operation of the phone — not just for charging the batteries.

Make sure you’re using the telephone line cable that was supplied with your iDECT X1. Other telephone line cables might not work.

Move the handset closer to the base unit. Check the Battery Level symbol on the display. If it’s

low, replace the handset on the base unit or charger pod to recharge the batteries.

If auto-answer is turned off (page 32), you need to press any button (except HANG UP) on the handset to answer an incoming call. Turn auto-answer on if you want to answer calls by simply lifting the handset from the base unit or charger pod.

Switch off power at the mains socket, wait for a few seconds and then switch back on. This may help.

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:49

Help Line: 0845 345 9677 (Local Call rate) 43

Page 26

Color profile: Generic CMYK printer profile Composite Default screen

Troubleshooting

“I cannot make

a call.”

“When I press

keys, nothing happens.”

“When I key in a

number, it appears on the display, but I can’t make an outside call.”

“The phone

does not ring”

“There is inter

ference and noise on the line.”

The handset’s keypad may be locked (see page 9). Unlock it before you make a call.

Call barring may be set. Refer to pages 39 to 42 for details.

Make sure the batteries are correctly fitted in your handset. If the ‘battery charge level’ symbol on the display shows ‘low’, recharge the batteries.

Try moving the handset closer to the base unit. Try a different position for the base unit — somewhere

higher if possible, or further from other electrical equipment.

If you have more than one registered handset, make sure another handset isn’t already using the line.

Check that the base unit’s mains power adapter is plugged in and power is switched on. The base unit needs mains power for normal operation of the phone — not just for charging the batteries.

Make sure you’re using the telephone line cable that was supplied with your iDECT X1. Other telephone line cables might not work.

Check that the total REN value of all equipment connected to your telephone line is no more than 4 (see page 3). Disconnect one or more telephones and see whether that helps.

Move the handset closer to the base unit, or to a different position.

Try moving the base unit so that it’s not near other electrical equipment, such as a television or a computer.

“My call was cut

off when I went out of range. Now I can’t use my handset.”

“I hear ‘beeps’

from my handset while I’m on a call.”

“The Caller

Display feature isn’t working.”

“When I try to

make a call, I hear Busy tone.”

“The volume in

the earpiece is low when I’m on a call.”

Troubleshooting

You’ll get the best results if you site the base unit as high as possible. For example, in a two-storey house,

the first-floor landing is an ideal place for the base unit.

Move the handset closer to the base unit before you try again to make a call.

You may be going out of range of the base unit. Move closer, or your call may be cut off.

Check the ‘battery charge level’ symbol on the display. If it is low, recharge the batteries.

You need to subscribe to the Caller Display feature. Contact your service provider (BT or cable company).

The caller may have withheld their number by dialling

141. Or they may be calling from a network that does not transmit the Caller ID (for example, it may be an international call).

If you have more than one handset registered to your base unit, make sure that another handset isn’t already using the line.

Make sure you’re holding the earpiece correctly over your ear.

Adjust the volume using the á or â button.

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:49

Help Line: 0845 345 9677 (Local Call rate) 45

Page 27

Color profile: Generic CMYK printer profile Composite Default screen

Troubleshooting

“I can’t transfer

a call.”

“The handset‘s

batteries are running low within an hour or two.”

“I try to

recharge the batteries, but I still get a warning that they are low.”

“The Recall

function doesn’t seem to work.”

Using a multi-handset system

Make sure the other handset is in range of the base unit. Make sure you’re dialling the correct number for the

other handset (1 to 6, or Ø for all registered handsets).

Batteries

Before you first used the handset, you should have left it on the base unit or charger pod for up to 15 hours to charge the batteries fully.

You may need to replace the batteries (see below). Clean the battery charging contacts on the base unit

with a dry cloth. Check the connections between the base unit and the

mains power socket.

You need to replace the batteries. To find out how to obtain replacements, call 0845 345 9677, between

9.00 am and 5.00 pm, Monday to Friday. Dispose of used batteries safely — never burn them,

or put them where they could get punctured.

ALWAYS use the batteries supplied with your iDECT X1 — other batteries may burst, causing damage.

PBX use

You may need to change the recall signal length from its default of 100 ms. Consult your PBX documentation for help if necessary. To change the recall setting, use

BASE SETTING menu (page 37).

the

“Last Number

Redial and/or memory dialling don’t work on a PBX.”

Troubleshooting

When you first make a call, after keying in the outside line access code (e.g. 9), press and hold the Last Number Redial button until a

P appears on the

display. This inserts a pause between the access code and the telephone number. You should later be able to redial the number.

When storing numbers in memory, you can include the outside line access code (e.g. 9) with each number.

If your PBX requires you to wait for a second Dial tone before dialling the telephone number, press and hold the Last Number Redial button for a pause between the access code and the number.

If the fault persists …

Disconnect all other instruments connected to the same line as the iDECT X1 and see whether you can make a call.

Disconnect the base unit from the telephone line and plug a different phone into the master telephone socket. Try making a call. If this works, the line is OK.

If the call does not work, and you are using a two-way socket adapter, remove it and plug a telephone directly into the socket. If the call now works, the adapter may be faulty.

If you cannot make a call, the fault may be on the exchange line. Contact the service provider (the BT engineers on 151, or your cable company).

If you still cannot identify the cause of the problem, contact the Help Line on 0845 345 9677.

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:49

Help Line: 0845 345 9677 (Local Call rate) 47

Page 28

Color profile: Generic CMYK printer profile Composite Default screen

Cleaning and care

Do not clean any part of your iDECT X1 with benzene,

■

thinner or other solvent chemicals — this may cause permanent damage which is not covered by the Guar antee. When necessary, clean it with a damp cloth.

Keep your iDECT X1 away from hot, humid conditions

■

or strong sunlight, and don’t let it get wet. Every effort has been made to ensure high standards of

■

reliability for your iDECT X1. However, if something does go wrong, please do not try to repair it yourself — consult your supplier or the Help Line.

Guarantee and service

The iDECT X1 is guaranteed for 12 months from the date of purchase shown on your sales receipt. The Guar

antee does not cover damage by misuse or negligence, or by excessive voltages — for example, faults on the telephone line, or lightning.

Please keep your sales (till) receipt — this is your guarantee. You should also keep the original packaging

material. In the unlikely event that you need to return your

iDECT X1 to our Repair Centre while it is under guarantee, there will be a £5 handling charge.

While the unit is under Guarantee

1 Disconnect the base unit from the telephone line and

the mains electricity supply

2 Pack up all parts of your iDECT X1, using the original

packaging. Remember to include the mains adapter

3 Return the unit to the shop where you bought it,

making sure you take your sales receipt

After the Guarantee has expired

If the unit is no longer under Guarantee, first follow steps 1 and 2 as for repair under Guarantee. Then …

3 Call our Service Department on 0845 345 9677 and ask

for a quotation of the repair charge and details of where to send your iDECT X1 for repair

4 Make sure you include with your iDECT X1:

■

your name and address

■

a cheque or postal order for the value of the repair charge

5 Return your iDECT X1 to the address given by the

Service Department

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:49

Help Line: 0845 345 9677 (Local Call rate) 49

Page 29

Color profile: Generic CMYK printer profile Composite Default screen

Technical details

Standard Digital Enhanced Cordless

Frequency range 1.88 to 1.9 GHz (bandwidth = 20 MHz) Channel bandwidth 1.728 MHz Operating range up to 300 m outdoors; up to 50 m

Operating time standby: 100 hours approx.

Temperature range Operating 0 ºC to 40 ºC

Electrical power

rechargeable batteries

Base unit/Charger pod — input 230 V AC, 50 Hz; output

AC 9 V, 300 mA Port specification The port (connected to the mains

power supply) is a SELV port with respect to EN41003. The port (connected to the telephone line) is a TNV

port with respect to EN41003. PBX compatibility Timed break recall: adjustable to

100 ms (default), 270 ms, 380 ms or 600 ms. Pause length (using the button): 3 seconds. Signalling type: DTMF (dual-tone multifrequency, also called tone dialling); or loop disconnect (pulse dialling).

Network connection This equipment is intended to be used in the UK only. Operation on other countries’ PSTN termination points cannot be guaranteed.

Binatone Telecom plc operates a policy of continuous product improvement, and so reserves the right to make changes to the product and functions without notice.

Telecommunications (DECT)

indoors

talking: 10 hours approx. battery charge time: 12–15 hours

Storage -20 ºC to 60 ºC

Handset — two

/3 AAA 400 mAH NiMH

Index

A answering a call, 14

auto-answer, 32

B ‘battery low’ tone, 32

Baby Call, 35 base settings, 36 base unit ringer, 13 batteries

charging the handset’s batteries, 7

fitting the batteries, 6

C call barring, 40

call control, 39

barring calls to specified numbers, 40

barring certain types of call, 40

call timer, 39 emergency numbers, 42

call limit, 40 Caller Display, 20–22

checking records, 21 deleting records, 22 returning calls, 21 storing numbers in the

Phone Book, 21

cleaning and care, 48 clock setting, 11 conference calls, 25 connection and conditions

for use, 3

D day and time, 11

default settings

base unit, 37 handset, 33

de-registering handsets, 28

E earpiece volume, 15, 31

electrical power, 5–7, 50 emergency numbers, 42 ending a call, 14

G guarantee, 49

H HANDSET LOCATOR button,

26–27 handset name, 10 handset ringer, 12–13 handset settings, 30–35

I installation, 5–7

intercom calls, 23–24 interference, 4, 8

K key beep, 31

L language, 32

Last Number Redial, 15

on a PBX, 47

locking the keypad, 9

M making a call, 14

memory dialling, 17–19 multi-handset use, 23–28

N name, 10

New Call tone, 26

O ‘Out of range’ warning, 8

P the Phone Book, 17–19

calling a stored number, 18 deleting entries, 19 editing entries, 18 storing names and

numbers, 17

paging handsets, 26

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:50

Help Line: 0845 345 9677 (Local Call rate) 51

Page 30

Color profile: Generic CMYK printer profile Composite Default screen

Index

pause, 47, 50 PBX compatibility, 46, 50 PIN

base unit, 38 handset, 34

problems, 43–47

R radio signals, 4, 9

recall signal, 37 recall type, 50 registering handsets, 27–29 REN (ringer equivalence

number), 3 ringer volume and melody

base unit, 13 handset, 12

S service information, 49

shuttling between calls, 25 signalling, 50 site for the base unit, 4 site for the charger pod, 4 SOS numbers, 42 switching on and off, 9

Waste electrical products must not be disposed of with household waste. This equipment should be taken to your local recycling centre for safe treatment.

T three-way conference, 25

time and day, 11 transferring calls, 24 troubleshooting, 43–47

V volume control

handset’s earpiece, 15

E:\Binatone2005\iDECT_X1\iDECT_X1_UK_draft02a.vp 25 August 2005 16:47:51
