6mm and 14mm Slim Interface Relay
RV8 Series 6mm Width
Electromechanical Screw Terminal Solid State Spring Clamp Terminal
PRODUCT DESCRIPTION
IDEC 6mm and 14mm interface relays
provide a compact solution for general
purpose relay requirements. Available
in electromechanical and solid state
models, the RV8 series Interface relays
are ideal for PLC and electronic systems,
industrial automation, panel builders,
assembly machine applications and other
applications that require a high switching
capability in a compact space. The RV8
series interface relays can be used as
interfaces between the controller and the
actuator to switch small and medium size
loads.
6mm wide 6mm wide
SPECIFICATIONS
Models
Ratings
Number of Poles
Contact Conguration
Contact Material
Degree of Protection
Dielectric
Strength
Vibration
Resistance
Shock
Resistance
Mechanical Life
(no load)
Operating Temperature
Operating Humidity
Between Contact
and Coil
Between Pole
Operating
Extremes
Damage Limits
Operating
Extremes
Damage Limits
Electromechanical Standard/
Hazardous Location C1D2
Class I, Division 2, Groups A , B, C, D, T4A
Class I, Zone 2 AE x nA nC IIC T4
Class I, Zone 2 Ex n A nC IIC T4 X Gc
UL/c-UL Listed UL/c-UL Listed
1 Pole 1 Pole
1C (SPDT) 1A (SPST)
AgNi (Au plating) MOSFET, Transistor or Triac
IP20 IP20
4,00 0V AC for 1 minute 2,50 0V AC for 1 minute
1,000V AC for 1 minute -
Frequency 10 to 5 5Hz,
Amplitude 0.5mm (NO contact),
0.2mm (NC contact)
NO: 49m/s²
NC: 29.4m/s²
980m/s²
Over 10,000,000 operations
(operation frequency 18,000
operations per hour)
-40 to +70°C no freezing
(-40 to +55°C for AD110 and AD22 0 coil
voltages)
5 to 85% (no condensation) 5 to 85% (no condensation)
Solid State
Frequency 10 to 5 5Hz,
Amplitude 1.0mm
980m/s
-
-20 to +60°C
KEY FEATU R E S
• Class I, Division 2 and Class I, Zone 2
Hazardous Location options
(electromechanical relays only)
• Solid State relay versions available
(6mm only)
• Only 70mm in height from DIN rail
• Gold-plated contacts
(electrical mechanical relays only)
• Pre-assembled relay and DIN mount
socket
• Universal screw terminals (at and
phillips) or spring clamp terminals
• Universal AC/DC socket with built-in
surge suppression and green LED
• 6A-16A contact rating
(electromechanical relays only)
• Lever for easy locking and removal of
relay
• Operating temperature of -40ºC ~ +70°C
2
(-20°C ~ +60°C for SSR)
• RoHS compliant
(when using combination
of RV relay and SV socket)
Weight (approx.)
Screw Terminal: 30g,
Spring Clamp Terminal: 26g
Screw Terminal: 30g,
Spring Clamp Terminal: 26g
1
RV8 Series 14mm Width
Top View
with
Marking
Plate
Electromechanical
Screw Terminal
Electromechanical
Spring Clamp Terminal
PRODUCT DESCRIPTION
14mm interface relays are ideal for panels with limited room,
these low-prole relays provide up to a 40% reduction in
DIN rail space when compared with standard plug-in relays.
RV8 relays are good for higher load switching applications,
panels with high I/O content and commercial HVAC panels.
UL listed when paired with a corresponding socket.
(when using combination
of RV relay and SV socket)
14mm wide
SPECIFICATIONS
Number of Poles 1 Pole 2 Pole
Class I, Division 2, Groups A , B, C, D, T4
Ratings
Class I, Zone 2 AE x nA nC IIC T4
Class I, Zone 2 Ex n A nC IIC T4 X Gc
UL/c-UL Listed
Contact Conguration
Contact Material
Degree of Protection
Between contact
and coil
Dielectric
strength
Between contacts
of the same pole
Between contact
sets
Vibration
Resistance
Shock
Resistance
Operating extremes
Damage limits
Operating extremes
Damage limits
Electrical Life - Screw terminal
Electrical Life - Spring Clamp
terminal
Mechanical Life (no load)
Operating Temperature
1C (SPDT) 2C (DPDT)
AgNi AgNi (Au-plated)
IP20 IP20
5,000V AC for 1 minute
1,000V AC for 1 minute
- 2,50 0V AC for 1 minute
Frequency 10 to 5 5Hz,
Amplitude 0.75mm (NO contact), 0.175mm (NC contact)
980m/s² 980m/s²
AC load:30,000 operations minimum
(250V AC, 16A resistive load, operation frequency 360 operation per hour)
AC load:30,000 operations minimum
(250V AC, 12A resistive load, operation frequency 36 0 operation per hour)
Over 10,000,000 operations
(Operation frequency 18,000 operations per hour)
RV8H-1L1-D6, D9, D12, D18, D24, AD12, AD18, AD24, AD48, AD60, A D110
: -40 to +70°C (Contact current 12A max, 6A per terminal) no freezing
: -40 to +55°C (Contact current 16A max, 8A per terminal) no freezing
RV8H-1L1- AD220
: -40 to +55°C (Contact current 16A max, 8A per terminal) no freezing
RV8H-1S1-D6, D9, D12, D18, D24, AD12, AD18, AD24, AD48, AD60, AD110
: -40 to +70°C (Contact current 12A max, 6A per terminal) no freezing
RV8H-1S1- AD220
: -40 to +55°C (Contact current 12A max, 6A per terminal) no freezing
Amplitude 0.75mm (NO contact), 0.1mm (NC contact)
Frequency 10 to 5 5Hz,
NO: 98m/s²
NC: 24.5m/s²
AC load:100,000 operations minimum
(250V AC, 8A resistive load, ozperation frequency 360 operation per hour)
AC load:100,000 operations minimum
(250V AC, 6A resistive load, operation frequency 360 operation per hour)
Over 10,000,000 operations
(Operation frequency 18,000 operations per hour)
RV8H-2L-D6, D9, D12, D18, D24, AD12, AD18, AD24, AD4 8, AD60, AD110
: -40 to +70°C (Contact current 6A max) no freezing
: -40 to +55°C (Contact current 8A max) no freezing
RV8H-2L- AD220
: -40 to +55°C (Contact current 8A max) no freezing
RV8H-2S-D6, D9, D12, D18, D24, AD12, AD18, AD24, AD4 8, AD60, AD110
: -40 to +70°C (Contact current 6A max) no freezing
RV8H-2S- AD220
: -40 to +55°C (Contact current 6A max) no freezing
Operating Humidity
Weight (approx.)
Screw Terminal: 52g
Spring Clamp Terminal: 49g
5 to 85% (no condensation)
Screw Terminal: 52g
Spring Clamp Terminal: 49g
2
PART NUMBERS
6mm Electromechanical Relay
Screw Terminal Spring Clamp Terminal
Input Voltage General Purpose Hazardous Location (C1D2) General Purpose Hazardous Location (C1D2)
6V RV8H-L-D6 RV8H-L-D6-C1D2 RV8H-S-D6 RV8H-S-D6-C1D2
9V RV8H-L-D9 RV8H-L-D9-C1D2 RV8H-S-D9 RV8H-S-D9-C1D2
DC
AC/DC
12V RV8 H- L-D12 RV8 H- L-D12- C1D 2 RV8H-S-D12 RV8H-S-D12-C1D2
18V RV 8H - L-D18 RV 8H-L-D18-C1D2 RV8H-S-D18 RV8H-S-D18-C1D2
24V RV8H-L-D 24 RV8H-L-D24-C1D2 RV8H-S-D24 RV8H-S-D24-C1D2
12V RV8 H- L-AD12 R V8H-L-A D12-C1D2 RV8H-S-AD12 RV8H-S-AD12-C1D2
18V RV 8H - L-AD18 R V8H- L-A D1 8 - C1D2 RV8H-S-AD18 RV8H-S-AD18-C1D2
24V RV8H-L-A D24 RV8H-L-AD24-C1D2 RV8H-S-AD24 RV8H-S-AD24-C1D2
48V RV8 H- L-AD48 RV 8H- L-A D 4 8 - C1D 2 RV8H-S-AD48 RV8H-S-AD48-C1D2
60V RV8H-L-AD60 RV8H-L-AD60-C1D2 RV8H-S-AD60 RV8H-S-AD60-C1D2
110V - 125V R V8H-L- AD110 RV 8H-L-A D110 -C1D 2 RV8H-S-AD110 RV8H-S-AD110-C1D2
220V - 240V RV8H-L-AD220 RV8H-L-AD220-C1D2 RV8H-S-AD220 RV8H-S-AD220-C1D2
6mm Solid State Relay
Screw Terminal Spring Clamp Terminal
Input Voltage Output Voltage Part Number Part Number
24V DC, 3.5 A RV8S-L-D24-D6 RV8S-S-D24-D6
6V
DC
24V
120V
AC
240V
48V DC, 0.1A RV8S-L-D48-D6 RV8S-S-D48-D6
240V AC, 2A zero cross RV8S-L-A240Z-D6 RV8S-S-A240Z-D6
240V AC, 2A random RV8S-L-A240-D6 RV8S-S-A240-D6
24V DC, 3.5 A RV8 S-L-D24-D24 RV8S-S-D24-D24
48V DC, 0.1A RV8S-L-D48-D24 RV8S-S-D48-D24
240V AC, 2A zero cross RV8 S-L-A240 Z-D24 RV8S-S-A240Z-D24
240V AC, 2A random RV8 S-L-A240 -D24 RV8S-S-A240-D24
24V DC, 3.5 A RV8S-L-D24-A120 RV8S-S-D24-A120
48V DC, 0.1A RV8S-L-D48-A120 RV8S-S-D48-A120
240V AC, 2A zero cross RV8S-L-A240Z-A120 RV8S-S-A240Z-A120
240V AC, 2A random RV8S-L-A240-A120 RV8S-S-A240-A120
24V DC, 3.5 A RV8S-L-D24-A240 RV8S-S-D24-A240
48V DC, 0.1A RV8S-L-D48-A240 RV8S-S-D48-A240
240V AC, 2A zero cross RV8S-L-A240Z-A 240 RV8S-S-A240Z-A240
240V AC, 2A random RV8 S-L-A240 -A240 RV8S-S-A240-A240
3
14 mm Electromechanical Relay
General Purpose Hazardous Location (C1D2) General Purpose Hazardous Location (C1D2)
Screw Terminal Spring Clamp Terminal
Input
voltage
6V RV8H-1L1-D6 RV8H-2L-D6 RV8H-1L1-D6-C1D2 RV8H-2L-D6-C1D2 RV8H-1S1-D6 RV8H-2S-D6 RV8H-1S1-D6-C1D2 RV8H-2S-D6-C1D2
9V RV8H-1L1-D9 RV8H-2L-D9 RV8H-1L1-D9-C1D2 RV8H-2L-D9-C1D2 RV8H-1S1-D9 RV8H-2S-D9 RV8H-1S1-D9-C1D2 RV8H-2S-D9-C1D2
12V RV 8H-1L1-D12 RV 8 H-2 L-D12 RV8 H-1L1-D12-C 1D2 RV8H-2L-D12-C1D2 R V8H -1S1-D12 RV8H-2S-D12 RV 8H-1S 1-D12 -C1D 2 RV8H-2S-D12-C1D2
DC
18V RV 8H-1L1- D18 RV8H -2L- D18 R V8H -1L1-D18 -C1D 2 RV 8H-2 L-D18 -C1D2 RV8H -1S1-D18 RV8H-2S-D18 RV 8H-1S 1-D18 -C1D 2 RV8H-2S-D18-C1D2
24V RV8 H-1L1-D24 RV8 H-2L- D24 RV8H-1L1-D24-C1D2 RV8H-2L-D24-C1D2 R V8H -1S1-D 24 RV8H-2S-D24 RV8H-1S1-D24-C1D2 RV8H-2S-D24-C1D2
12V RV 8H-1L1-A D12 RV 8H- 2L-A D12 RV 8H-1L1-A D12-C1D 2 RV8H-2L-AD12-C1D2 RV 8H-1S 1-AD 12 RV8H-2S-AD12 RV8 H-1S1- AD12-C 1D2 RV8H-2S-AD12-C1D2
18V RV 8H-1L1- AD18 RV8H- 2L-A D18 R V8H -1L1- AD18 -C1D 2 R V8H-2 L-AD18-C1D2 RV 8H-1S1-AD 18 RV8H-2S-AD18 RV 8H-1S1-A D18- C1D2 RV8H-2S-AD18-C1D2
24V RV8 H-1L1-A D24 RV 8H- 2L-A D24 RV8H-1L1-AD24-C1D2 RV8H-2L-AD24-C1D2 RV8H -1S1-A D24 RV8H-2S-AD24 RV8H-1S1-AD24-C1D2 RV8H-2S-AD24-C1D2
48V RV 8H-1L1-A D48 R V8 H -2 L-AD4 8 RV8H -1L1-AD 48-C 1D2 R V8 H -2 L-AD4 8 - C1D2 RV8 H-1S1- AD4 8 RV8H-2S-AD48 RV 8H-1S1-AD 48- C1D2 RV8H-2S-AD48-C1D2
AC/DC
60V RV8H-1L1-AD60 RV8H-2L-AD60 RV8H-1L1-AD60-C1D2 RV8H-2L-AD60-C1D2 RV8H-1S1-AD60 RV8H-2S-AD60 RV8H-1S1-AD60-C1D2 RV8H-2S-AD60-C1D2
1 Pole 2 Pole 1 Pole 2 Pole 1 Pole 2 Pole 1 Pole 2 Pole
110V - 125V RV8H-1L1-AD110 RV8 H-2L- AD110 RV8H-1L1-AD110 -C1D2 RV8 H-2L- AD110 -C1D2 RV8H-1S1-AD110 RV8H-2S-AD110 RV8H-1S1- AD110-C1D2 RV8H-2S-AD110-C1D2
220V - 240V RV8H-1L1-AD220 RV8H-2L-AD220 RV8H-1L1-AD220-C1D2 RV8H-2L-AD220-C1D2 RV8H-1S1-AD220 RV8H-2S-AD220 RV8H-1S1-AD220-C1D2 RV8H-2S-AD220-C1D2
4
RATI N G S
6mm Electromechanical Coil Ratings
Rated Voltage
6V 35 - 170
9V 18.6 - 485 0.2
DC
AC/DC
Note 1 ±10% for 6V, 9V and 12V
12V 14.6 - 820 0.2
18V 11.6 - 1550 0.2
24V 10. 6 - 2270 0.25
12V 15.5 755 800
18V 13 .3 13 65 134 5 0.25
24V 13.7 1730 1790 0.33
48V 4 118 8 0 12230 0.2
60V 3.4 176 00 17910 0.2
110V - 125V 3.4 - 3.9 31790 - 3189 0 32450 - 329 00 0.5
220V - 240V 3.3 - 3.6 65670 - 66 070 6594 0 - 68570 0.85
±15% (mA)
6mm Electromechanical Contact Ratings
Rated Current
1
(at 23°C)
Circuit AC
Resistance
±15% ( Ω)
(at 23°C)
Circuit DC
1
Resistance
±15% ( Ω)
(at 23°C)
1
Pickup Voltage
(at 23°C)
90% max 7% min 110%
90% max 7% min 110%
Operating Characteristics
Dropout Voltage
(at 23°C)
Maximum
Allowable Voltage (at
23°C)
Power
Consumption (W)
0.21
0.2
Allowable Contact Power Resistive Load
Rated Load Resistive Load
Allowable Switching Current
Allowable Switching Voltage
Allowable Switching Power
Minimum Applicable Load
1500VA, 180W DC
250V AC 6A, 30V DC 6A
6A
400 V AC, 125V DC
1500VA, 180W DC
6V DC/10 mA
6mm Solid State Input Ratings
Type Control Voltage Range Output / Input Voltage Pickup Voltage Dropout Voltage Input Current
4.5-12V DC 24V DC / 6V DC 4.5V DC 1.5 V DC 10mA±10%(±6 VD C) 120μs 200μs
19.6 -30V DC 24V DC / 24V DC 19.6 V DC 5V DC 9mA±10%(±24VDC) 350μs 200μs
96 -132V AC 24V DC / 120V AC 96V AC 12 V AC 10mA±10% (±120 VAC ) 11m s 14ms
192-264V AC 24V DC / 240V AC 192V A C 24V AC 10mA±10%( ±240 VAC) 11m s 14ms
4.5-12V DC 48V DC / 6V DC 4.5V DC 1.5 V DC 6mA±10%(±6VDC) 40μs 300μs
19.6 -30V DC 48V DC / 24V DC 19.6 V DC 5V DC 7mA±10%(±24VDC) 40μs 300μs
96 -132V AC 48V DC / 120V AC 96V AC 12V AC 10mA±10% (±120 VAC ) 8ms 14ms
192-264V AC 48V DC / 240V AC 192V A C 24V AC 10mA±10%( ±240 VAC) 8ms 14ms
Maximum
Operation Time
Maximum Release Time
4.5-12V DC 240V AC / 6V DC 4.5V DC 2V DC 15mA±10%(±6VDC) 10 ms 10ms
19.6 -30V DC 240V AC / 24V DC 19 .6 V DC 5V DC 7mA±10%(±24VDC) 10ms 10ms
Zero
Crossing
Random
Crossing
96 -132V AC 240V AC / 120V AC 96V AC 12V AC 10mA±10% (±120VAC) 16ms 20ms
192-264V AC 240V AC / 240V AC 192V AC 24V AC 10mA ±10%(±240VAC) 16ms 20ms
4.5-12V DC 240V AC / 6V DC 4.5V DC 2V DC 15mA±10%(±6VDC) 300μs 10m s
19.6 -30V DC 240V AC / 24V DC 19 .6 V DC 5V DC 7mA±10%(±24VDC) 300μs 10m s
96 -132V AC 240V AC / 120V AC 96V AC 12V AC 10mA±10% (±120VAC) 8ms 20ms
192-264V AC 240V AC / 240V AC 192V AC 24V AC 10mA ±10%(±240VAC) 8ms 20ms
5
6mm Solid State Output Ratings
Typical Input Voltage
Output Device
Operating Voltage Range
Maximum Load Current
Minimum Load Current
Maximum Blocking Voltage
Maximum Surge Current
Maximum l2t for Fusing
Typical On-State Leakage Current
Maximum Off-State Leakage Current
Switching Conguration
24V DC 48V DC 240V AC
MOSFET Photo-transistor Triac
0-24V DC 0-48V DC 24-28 0V AC (47-63Hz)
3.5A 100m A 2A
1mA 1mA 70mA
30V DC 60V DC 600V AC
9A (10 ms) 300mA (10ms) 120A pk (16.6ms)
– – 60A² sec
0.4V 1V 1.1V (p eak )
0.001mA 0.001mA 4mA
Normally Open Normally Open Normally Open
14mm Electromechanical Coil Ratings
Rated Current
±15% (mA)
1
(at 23°C)
Rated
Voltage
DC
6V 75.0 80
9V 44.0 205 0.40 - -
12V 32.0 375 0.38 - -
DC
18V 24.0 750 0.43 - -
24V 20.0 1200 0.48 - -
12V 32.0 29.0 29.0 375 414 414
18V 24.0 24.0 24.0 750 750 75 0 0.43 0.43 0.43
24V 20.0 2 1.0 21.0 1200 114 3 114 3 0.48 0.50 0.50
48V 7. 6 9.0 9.0 6316 5333 5333 0.36 0.43 0.43
AC/DC
60V 7. 6 9.0 9.0 7895 6667 6667 0.46 0.54 0.54
110V -
220V -
Note 1: Inpu t voltages lower than 24V: ±10%
Note 2: At rated operating temper ature
4. 4~5.1 5.3-5.8 5.3-5.8 24510 2155 2 21552 0.64 0.73 0.73
125V
240V
4~4.6 4.5-5.2 4.8-5.5 52174 4 6154 43636 1.10 1.25 1.32
AC
50Hz
AC
60Hz
Circuit AC Resistance
±15% ( Ω)
1
(at 23°C)
DC
AC
50Hz
AC
60Hz
Operating Characteristics
(Against Rated Voltage)
Pickup
Voltage
(at 23° C)
80% max 7% min
Dropout
Voltage
(at 23° C)
Maximum
Allowable
Voltage
(at 23° C)
120%
110%
Operation
Maximum
Allowable
Voltage
110%2 15ms ma x
release
time
2
Power Consumption (W)
and
DC
0.45 - -
0.38 0.35 0.35
AC
(50Hz)
AC
(60Hz)
14mm Contact Ratings
Allowable contact power
Rated Load
Allowable
Switching Current
Allowable
Switching Power
Minimum Applicable Load (reference value)
Resistive load
Inductive load
Resitive load
Inductive load
Screw Terminal Spring Clamp Terminal
1 Pole 4,0 00VA 1 Pole 3,000VA
2 Pole 2,0 00VA 2 Pole 1,500VA
B300 (pilot duty) B300 (pilot duty)
1 Pole 250V AC, 16A (8A per terminal) at 55°C, 12A (6A per terminal) at 70°C 1 Pole 250V AC, 12A (6A per terminal) at 70°C
2 Pole 250V AC, 8A at 55°C, 6A at 70°C 2 Pole 250V AC, 6A at 70°C
B300 (pilot duty) B300 (pilot duty)
1 Pole 16A (8A per terminal) at 55°C, 12A (6A per terminal) at 70°C 1 Pole 12A (6A per terminal) at 70°C
2 Pole 8A at 55°C, 6A at 70°C 2 Pole 6A at 70 °C
1 Pole 4,0 00VA 1 Pole 3,000VA
2 Pole 2,0 00VA 2 Pole 1,500VA
1 Pole 6VDC 100mA 1 Pole 6VDC 100mA
2 Pole 5V DC 10mA 2 Pole 5V DC 10mA
6
ACCESSORIES
Jumper, Spacer, and Screwdriver
Jumper for 6mm Relay
(20 combs)
1, 2, 6
Jumper for 14mm Relay
(32 combs, with 2 combs per relay,
or 16 discrete relays.)
3, 4, 6
Spacer (circuit separator)
5, 6
6mm
14mm
Color Part Number
Black SV9Z-J20B
Gray SV9Z-J20W
Blue SV9Z-J20S
Black SV9Z-J232B
Gray SV9Z-J232W
Blue SV9Z-J232S
Marking Plate Part Numbers
6mm 14mm
Horizontal Orientation
Vertical Orientation
Part Number Engraving
SV9Z-PW10 blank
SV9Z-PW10-➀1-10 1-10
SV9Z-PW10-➀11-20 11-2 0
SV9Z-PW10-➀21- 30 21-30
SV9Z-PW10-➀31-40 31-40
SV9Z-PW10-➀41- 50 41-50
SV9Z-PW10-➀51- 60 51-6 0
SV9Z-PW10-➀61-70 61-70
SV9Z-PW10-➀71-80 71-80
SV9Z-PW10-➀81-90 81- 90
SV9Z-PW10-➀91-100 91-100
SV9Z-PW10-➀A-J A-J
SV9Z-PW10-➀K-T K-T
SV9Z-PW10-➀U-Z U-Z
SV9Z-PW10-➀GROUND
SV9Z-PW10-➀AC
1. In place of ➀ insert orientation code: V=Vertical, H=Horizontal
2. Each unit has 10 pieces (marking plates).
SV9Z- SA2 W
Screwdriver
BC1S- SD 0
Jumper combs come with 20 points for 6mm relays. If shorter lengths are needed,
1.
simply cut off the excess points.
Ensure that the total current to the jumper does not exceed the overall rated current
2.
(Rated current: 6A).
Jumper combs come with 16 pairs of combs for 14mm relays. If shorter lengths are
3.
needed, simply cut off the excess points.
Ensure that the total current to the jumper does not exceed the overall rated current
4.
(Rated current: 6A for spring-clamp terminals and 8A for screw type terminations).
Width of spacer: 2mm
5.
Marking Plate Placement
Locking Lever
Marking Plate
Insert
When using a cut jumper, please use a spacer on the cut side. For additional
6.
information see instruction sheet.
7
DIMENSIONS (MM)
74.2
6mm Electromechanical and Solid State Relay
6mm Screw Terminal
6mm Spring Clamp Terminal
74.2
35.0
88.0
69.6
6.1
74.2
14mm Electromechanical Relay
14mm Screw Terminal 14mm Spring Clamp Terminal
35.0
93.4
69.6
6.1
74.2
35.0
88.0
69.6
14.0
69.6
35.0
93.4
14.0
8

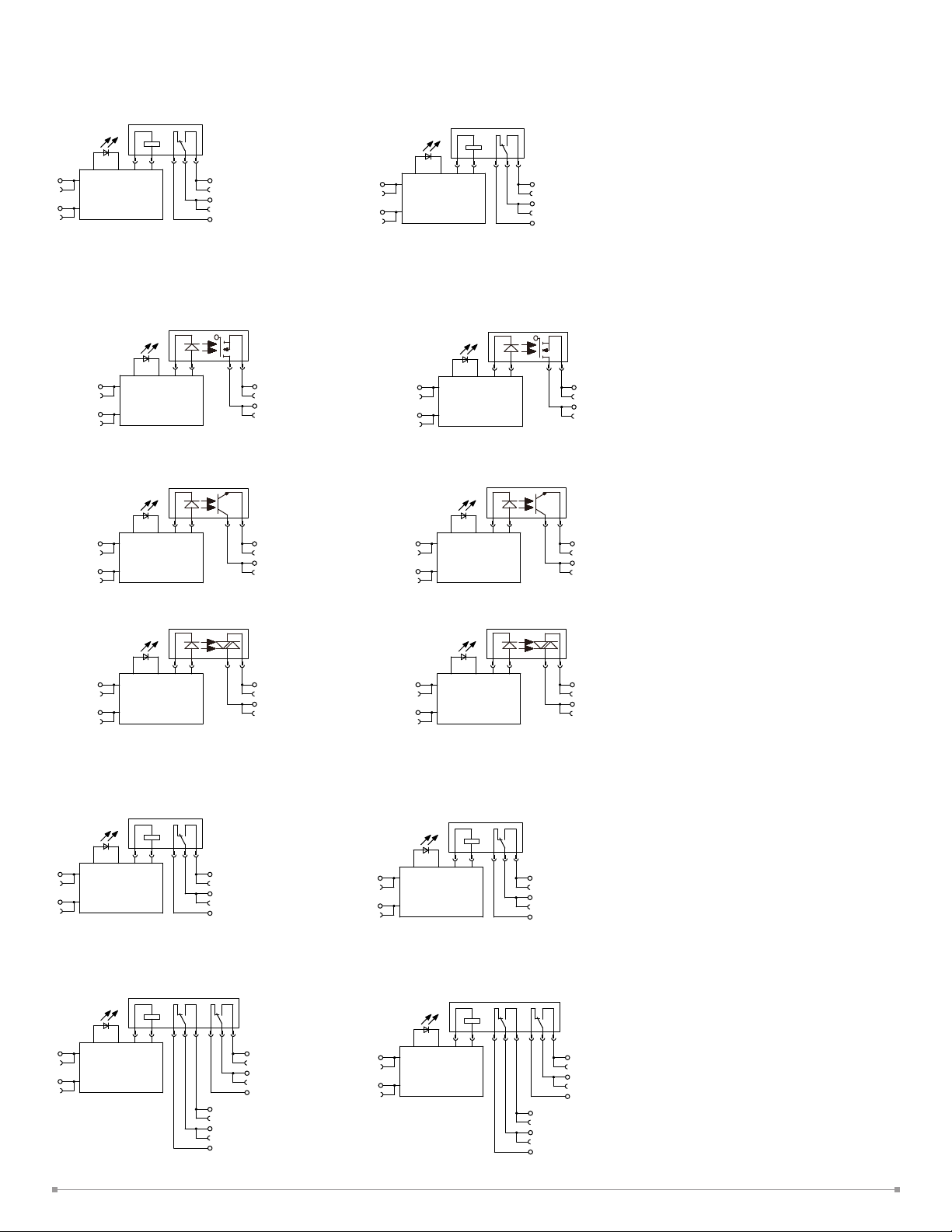

INTERNAL CONNECTIONS
6mm Electromechanical Relay
AC/DC
A1
A2
PROTECTION
AND
INDICATION
CIRCUIT
6mm Solid State Relay
INPUT : AC120V,AC240V
OUTPUT : DC24V
A1
A2
PROTECTION
AND
INDICATION
CIRCUIT
INPUT : AC120V,AC240V
OUTPUT : DC48V
A1
A2
PROTECTION
AND
INDICATION
CIRCUIT
14
11(13+)
12
14
13(13+)
14
13(13+)
DC
A1+
A2-
PROTECTION
AND
INDICATION
CIRCUIT
INPUT : DC6V,DC24V
OUTPUT : DC24V
A1+
A2-
INPUT : DC6V,DC24V
OUTPUT : DC48V
A1+
A2-
PROTECTION
AND
INDICATION
CIRCUIT
PROTECTION
AND
INDICATION
CIRCUIT
14
11(13+)
12
14
13(13+)
14
13(13+)
INPUT : AC120V,AC240V
OUTPUT : AC240V
A1
A2
PROTECTION
AND
INDICATION
CIRCUIT
14mm Electromechanical Relay 1 Pole
AC/DC
A1
A2
PROTECTION
AND
INDICATION
CIRCUIT
14/24
11/21
12/22
14mm Electromechanical Relay 2 Pole
AC/DC
A1
A2
PROTECTION
AND
INDICATION
CIRCUIT
14
11
12
14
13(13+)
24
21
22
INPUT : DC6V,DC24V
OUTPUT : AC240V
A1+
A2-
DC
A1+
A2-
PROTECTION
AND
INDICATION
CIRCUIT
DC
A1+
A2-
PROTECTION
AND
INDICATION
CIRCUIT
PROTECTION
AND
INDICATION
CIRCUIT
14
13(13+)
14/24
11/21
12/22
24
21
22
14
11
12
9
ACCESSORIES DIMENSIONS
3.0
115.9
71.4
SV9Z-PW10* Marking Plate
Cut
16.5
1.0
*Available blank or pre-marked.
SV9Z-SA2W Spacer for 6 and 14mm Relay
86.5
SV9Z-J 20 * Jumper for 6mm Relay
6.1
10.5
6.0
120.0
6.0
12.3
2.8
*Available in Black, Gray and Blue
SV9Z-J 232* Jumper for 14mm Relay
15-P 14.0
12.2
66.8
217.6
6.0
12.3
222.2
2.8
*Available in black, gray and blue.
35.0
96.7
2.0
10
CHARACTERISTICS
Contact Current (A)
Contact Voltage (V)
AC Resistive load
AC Inductive load (p. f=0.35)
Contact Current (A)
Contact Voltage (V)
DC Resistive load
DC Inductive load
(L/R = 56ms)
Load Current (Amperes)
Ambient Temperature (°C)
0 10 20 30 40 50 60
0.00
48V DC
Load Current (Amperes)
Ambient Temperature (°C)
No minimum
air gap required
0.02
0.04
0.06
0.08
0.10
0.12
48V DC
Load Current (Amperes)
Load Current (Amperes)
0 10 20 30 40 50 60
0.0
0.6
1.2
1.8
2.4
3.0
3.5
4.0
Load Current (Amperes)
Ambient Temperature (°C)
No air gap
Air gap
≥
6.2 mm
0 10 20 30 40 50 60
0.00
48V DC
Load Current (Amperes)
Ambient Temperature (°C)
No minimum
air gap required
0.02
0.04
0.06
0.08
0.10
0.12
240V AC Random Cross
Load Current (Amperes)
Ambient Temperature (°C)
0 10 20 30 40 50 60
0.0
0.3
0.7
1.0
1.3
1.7
2.0
2.3
60
0 10 20 30 40 50 60
0.00
Load Current (Amperes)
Ambient Temperature (°C)
No minimum
air gap required
0.02
0.04
0.06
0.08
0.10
0.12
Load Current (Amperes)
6mm Electromechanical Relay
Maximum Switching Power AC Maximum Switching Power DC
6mm Solid State Continuous Load Current vs. Ambient Temperature Curves
24V DC 48V DC
4.0
3.5
3.0
2.4
1.8
1.2
0.6
0.0
240V AC Zero Cross 240V AC Random Cross
2.3
2.0
1.7
1.3
1.0
0.7
0.3
0.0
Legend
No spacing required between units. Spacing of 6.2mm minimum required between units Not Recommended
No air gap
Air gap
≥
6.2 mm
0 10 20 30 40 50 60
No air gap
Air gap ≥ 6.2 mm
0 10 20 30 40 50 60
Ambient Temperature (°C)
11
0.12
0.10
0.08
0.06
0.04
0.02
0.00
0 10 20 30 40 50 60
2.3
2.0
1.7
1.3
1.0
0.7
0.3
0.0
0 10 20 30 40 50 60
No minimum
air gap required
Ambient Temperature (°C)
Ambient Temperature (°C)
60
©2017 IDEC Corporation. All Rights Reserved. RV9Y-DS400-0 7/17 5K
14mm Electromechanical Relays
Operations (x10,000 operations)
14 mm Electrical Life Curve AC Load
1000
100
10
1 Pole
2 Pole
1
0 123 4 5 8 10
14mm Contact Ratings
AC
16
10
8
1
Contact Current (A)
0.1
10 20 30 40 50 100 200 300 400 500
Contact Current (A)
Contact Voltage (V)
2 Pole
1 Pole
16
DC
1 Pole
16
10
8
2 Pole
1
Contact Current (A)
0.1
10 20 30 40 50 100 200 300 400 500
Contact Voltage (V)
12
Loading...
