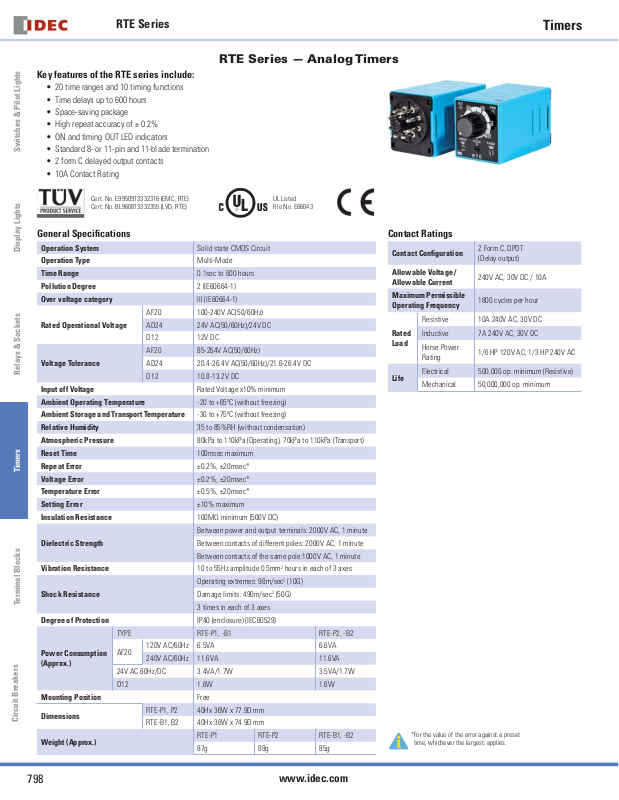

RTE Series

Key features of the RTE series include:

20 time ranges and 10 timing functions

• Time delays up to 600 hours

• Space-saving package

• High repeat accuracy of ± 0.2%

• ON and timing OUT LED indicators

• Standard 8- or 11-pin and 11-blade termination

•

Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal Blocks

2 form C delayed output contacts

• 10A Contact Rating

•

Timers

RTE Series — Analog Timers

Cert. No. E9950913332316 (EMC, RTE) Cert. No. BL960813332355 (LVD, RTE)

UL Listed File No. E66043

General Speciﬁ cations Contact Ratings

Operation System Solid state CMOS Circuit

Operation Type Multi-Mode

Time Range 0.1sec to 600 hours

Pollution Degree 2 (IE60664-1)

Over voltage category III (IE60664-1)

AF20 100-240V AC(50/60Hz)

Rated Operational Voltage

Voltage Tolerance

Input off Voltage Rated Voltage x10% minimum

Ambient Operating Temperature -20 to +65ºC (without freezing)

Ambient Storage and Transport Temperature -30 to +75ºC (without freezing)

Relative Humidity 35 to 85%RH (without condensation)

Atmospheric Pressure 80kPa to 110kPa (Operating), 70kPa to 110kPa (Transport)

Reset Time 100msec maximum

Repeat Error ±0.2%, ±20msec*

Voltage Error ±0.2%, ±20msec*

Temperature Error ±0.5%, ±20msec*

Setting Error ±10% maximum

Insulation Resistance 100MΩ minimum (500V DC)

Dielectric Strength

Vibration Resistance 10 to 55Hz amplitude 0.5mm

Shock Resistance

Degree of Protection IP40 (enclosure) (IEC60529)

Power Consumption (Approx.)

Mounting Position Free

Dimensions

Circuit Breakers

Weight (Approx.)

AD24 24V AC(50/60Hz)/24V DC

D12 12V DC

AF20 85-264V AC(50/60Hz)

AD24 20.4-26.4V AC(50/60Hz)/21.6-26.4V DC

D12 10.8-13.2V DC

Between power and output terminals: 2000V AC, 1 minute

Between contacts of different poles: 2000V AC, 1 minute

Between contacts of the same pole:1000V AC, 1 minute

hours in each of 3 axes

Operating extremes: 98m/sec2 (10G)

Damage limits: 490m/sec2 (50G)

3 times in each of 3 axes

TYPE RTE-P1, -B1 RTE-P2, -B2

120V AC/60Hz 6.5VA 6.6VA

AF20

240V AC/60Hz 11.6VA 11.6VA

24V AC 60Hz/DC 3.4VA/1.7W 3.5VA/1.7W

D12 1.6W 1.6W

RTE-P1, P2 40Hx 36W x 77.9D mm

RTE-B1, B2 40Hx 36W x 74.9D mm

RTE-P1 RTE-P2 RTE-B1, -B2

87g 89g 85g

Contact Conﬁ guration

Allowable Voltage / Allowable Current

Maximum Permissible Operating Frequency

Rated Load

Life

2 Form C, DPDT (Delay output)

240V AC, 30V DC / 10A

1800 cycles per hour

Resistive 10A 240V AC, 30V DC

Inductive 7A 240V AC, 30V DC

Horse Power Rating

Electrical 500,000 op. minimum (Resistive)

Mechanical 50,000,000 op. minimum

*For the value of the error against a preset time, whichever the largest. applies.

1/6 HP 120V AC, 1/3 HP 240V AC

798

www.idec.com

Timers

RTE Series

Part Numbering Guide

RTE series part numbers are composed of 4 part number codes. When ordering a RTE series part, select one code from each category. Example: RTE-P1AF20

RTE — P 1 AF20

j Series k Terminal

Style

Part Numbers: RTE Series

Description Part Number Code Remarks

j Series

k Terminal Style

l Function Group

m Input Voltage

RTE series RTE For internal circuits, see next page.

Pin P

Blade B

ON-delay, interval, cycle OFF, cycle ON 1 Each function group has different timing functions.

ON-delay, cycle OFF, cycle ON, signal ON/OFF delay, OFF-delay, one-shot

100 to 240V AC(50/60Hz) AF20

24V AC(50/60Hz)/24V DC AD24

12V DC D12

l Function

Group

m Input Voltage

Select one only.

2 See page 794.

Switches & Pilot Lights Display Lights Relays & Sockets Timers Terminal Blocks

Part Numbers

Voltage

12V DC RTE-P1D12 RTE-B1D12 RTE-P2D12 RTE-B2D12

24V AC/DC RTE-P1AD24 RTE-B1AD24 RTE-P2AD24 RTE-B2AD24

100-240V AC RTE-P1AF20 RTE-B1AF20 RTE-P2AF20 RTE-B2AF20

Power Triggered Start Input Triggered

8-Pin Blade 11-Pin Blade

Time Range Determined by Time Range Selector and Dial Selector

Dial 0 - 1 0 - 3 0 - 10 0 - 30 0 - 60

Second 0.1 sec - 1 sec 0.1 sec - 3 sec 0.2 sec - 10 sec 0.6 sec - 30 sec 1.2 sec - 60 sec

Minute 1.2 sec - 1 min 3.6 sec - 3 min 12 sec - 10 min 36 sec - 30 min 1.2 min - 60 min

Hour 1.2 min - 1 hr 3.6 min - 3 hr 12 min - 10 hr 36 min - 30 hr 1.2 hr - 60 hr

Range

10 Hours 12 min - 10 hr 36 min - 30 hr 2 hr - 100 hr 6 hr - 300 hr 12 hr - 600 hr

USA: 800-262-IDEC Canada: 888-317-IDEC

Circuit Breakers

799

Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal Blocks

RTE Series

RTE-P1

(~/-)(~/+)

RTE-B1

Timers

Timing Diagrams

RTE-P1, -B1

1. RTE-B1: Do not apply voltage to terminals #2, #5 & #8.

(~/-)(~/+)

2. IDEC sockets are as follows: RTE-P1: SR2P-06* pin type socket, RTE-B1: SR3B-05* blade type socket, (*-may be followed by sufﬁ x letter A,B,C or U).

A: ON-Delay 1 (power start) Set timer for desired delay, apply power to coil. Contacts transfer after preset time has elapsed, and remain in transferred position until timer is reset. Reset occurs with removal of power.

Item Terminal Number Operation

(1) 2 - 7

Power

(2) A - B

Delayed Contact

Indicator

Set Time

(1) 1 - 4, 5 - 8 (2) 1 - 7, 3 - 9

(1) 1 - 3, 6 - 8 (2) 4 - 7, 6 - 9

PWR

OUT

(NC)

(NO)

C: Cycle 1 (power start, OFF ﬁ rst) Set timer for desired delay, apply power to coil. First transfer of contacts occurs after preset delay has elapsed, after the next elapse of preset delay contacts return to original position. The timer now cycles between on and off as long as power is applied (duty ratio 1:1).

Item Terminal Number Operation

(1) 2 - 7

Power

(2) A - B

Delayed Contact

Indicator

Set Time

(1) 1 - 4, 5 - 8 (2) 1 - 7, 3 - 9

(1) 1 - 3, 6 - 8 (2) 4 - 7, 6 - 9

PWR

OUT

(NC)

(NO)

B: Interval (power start) Set timer for desired delay, apply power to coil. Contacts transfer immediately, and return to original position after preset time has elapsed. Reset occurs with removal of power.

Item Terminal Number Operation

(1) 2 - 7

Power

(2) A - B

Delayed Contact

Indicator

Set Time

(1) 1 - 4, 5 - 8 (2) 1 - 7, 3 - 9

(1) 1 - 3, 6 - 8 (2) 4 - 7, 6 - 9

PWR

OUT

(NC)

(NO)

C: Cycle 3 (power start, ON ﬁ rst) Functions in same manner as Mode C, with the exception that ﬁ rst transfer of contacts occurs as soon as power is applies. The ratio is 1:1. Time On = Time Off

Item Terminal Number Operation

(1) 2 - 7

Power

(2) A - B

Delayed Contact

Indicator

Set Time

(1) 1 - 4, 5 - 8 (2) 1 - 7, 3 - 9

(1) 1 - 3, 6 - 8 (2) 4 - 7, 6 - 9

PWR

OUT

(NC)

(NO)

Circuit Breakers

800

www.idec.com

Timers

(

)(

)

RTE Series

Timing Diagrams con’t

RTE-P2

external

start

control signal

A: ON-Delay 2 (signal start) When a preset time has elapsed after the start input turned on while power is on, the NO output contact goes on.

Item Terminal Number Operation

(A) 2 - 10

Power

(B) A - B

(A) 5 - 6

Start

(B) 2 - 5

Delayed Contact

Indicator

Set Time

(A) 1 - 4, 8 - 11 (B) 1 - 7, 3 - 9

(A) 1 - 3, 9 - 11 (B) 4 - 7, 6 - 9

PWR

OUT

(NC)

(NO)

C: Cycle 4 (signal start, ON ﬁ rst) When the start input turns on while power is on, the NO contact goes on. The output oscillates at a preset cycle (duty ratio 1:1).

Item Terminal Number Operation

(A) 2 - 10

Power

(B) A - B

(A) 5 - 6

Start

(B) 2 - 5

Delayed Contact

Indicator

Set Time

(A) 1 - 4, 8 - 11 (B) 1 - 7, 3 - 9

(A) 1 - 3, 9 - 11 (B) 4 - 7, 6 - 9

PWR

OUT

(NC)

(NO)

TTTTTTTTTa

E: Signal OFF-Delay When power is turned on while the start input is on, the NO output contact goes on. When a preset time has elapsed after the start input turned off, the NO output contact goes off.

Item Terminal Number Operation

(A) 2 - 10

Power

(B) A - B

(A) 5 - 6

Start

(B) 2 - 5

Delayed Contact

Indicator

Set Time

(A) 1 - 4, 8 - 11 (B) 1 - 7, 3 - 9

(A) 1 - 3, 9 - 11 (B) 4 - 7, 6 - 9

PWR

OUT

(NC)

(NO)

TTaTTa

external control signal

RTE-B2

start

RTE-P2, -B2

1. RTE-P2: Do not apply voltage to terminals #5, #6 & #7.

2. RTE-B2: Do not apply voltage to terminals #2, #5 & #8.

3. IDEC sockets are as follows: RTE-P2: SR3P-05* pin type socket, RTE-B2: SR3B-05* blade type socket, (*-may be followed by sufﬁ x letter A,B,C or U).

B: Cycle 2 (signal start, OFF ﬁ rst) When the start input turns on while power is on, the output oscillates at a preset cycle (duty ratio 1:1), starting while the NO contact off.

Item Terminal Number Operation

(A) 2 - 10

Power

(B) A - B

(A) 5 - 6

Start

(B) 2 - 5

(A) 1 - 4, 8 - 11 (B) 1 - 7, 3 - 9

Delayed Contact

(A) 1 - 3, 9 - 11 (B) 4 - 7, 6 - 9

PWR

Indicator

OUT

Set Time

D: Signal ON/OFF-Delay When the start input turns on while power is on, the NO output contact goes on. When a preset time has elapsed while the start input remains on, the output contact goes off. When the start input turns off, the NO contact goes on again. When a preset time has elapsed after the start input turned off, the NO contact goes off.

Item Terminal Number Operation

(A) 2 - 10

Power

(B) A - B

(A) 5 - 6

Start

(B) 2 - 5

(A) 1 - 4, 8 - 11 (B) 1 - 7, 3 - 9

Delayed Contact

(A) 1 - 3, 9 - 11 (B) 4 - 7, 6 - 9

PWR

Indicator

OUT

Set Time

F: One-Shot (signal start) When the start input turns on while power is on, the NO output contact goes on. When a preset time has elapsed, the NO output contact goes off.

Item Terminal Number Operation

(A) 2 - 10

Power

(B) A - B

(A) 5 - 6

Start

(B) 2 - 5

(A) 1 - 4, 8 - 11 (B) 1 - 7, 3 - 9

Delayed Contact

(A) 1 - 3, 9 - 11 (B) 4 - 7, 6 - 9

PWR

Indicator

OUT

Set Time

(NC)

(NO)

TTTTTTTTTTa

(NC)

(NO)

T T Ta T T Ta

(NC)

(NO)

Switches & Pilot Lights Display Lights Relays & Sockets Timers Terminal Blocks

Circuit Breakers

USA: 800-262-IDEC Canada: 888-317-IDEC

801

Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal Blocks

RTE Series

Mounting A

Temperature Derating Curves

10A

Mounting A

Allowable

Current

Derating Curve

Ambient Temperature

50ºC

Instructions

Mounting B

Allowable

Current

Derating Curve

Ambient Temperature

50ºC

Timers

Installation of Hold-Down Springs DIN Rail Mount Socket

Insert the springs into the outer slots with the projections facing inside.

Socket SR2P-05

Socket SR2P-06

Hold-down Spring (sold separately) SFA-202 (use two springs)

Special expertise is required to use Electronic Timers.

•

All Electronic Timers are manufactured under IDEC’s rigorous quality control system, but users must add a backup or fail safe provision to the control system when using the Electronic Timer in applications where heavy damage or personal injury may occur should the Electronic Timer fail.

•

Install the Electronic Timer according to instructions described in this catalog.

•

Make sure that the operating conditions are as described in the speciﬁ cations. If you are uncertain about the speciﬁ cations, contact IDEC in advance.

•

In these directions, safety precautions are categorized in order of importance under Warning and Caution.

Warnings

Warning notices are used to emphasize that improper operation may cause severe personal injury or death.

Turn power off to the Electronic timer before starting installation, removal,

• wiring, maintenance, and inspection on the Electronic Timer.

Failure to turn power off may cause electrical shocks or ﬁ re hazard.

•

Circuit Breakers

Insert the springs into the slots.

Hold-down Spring (sold separately) SFA-203 (use two springs)

Safety Precautions

Do not use the Electronic Timer for an emergency stop circuit or inter-

•

locking circuit. If the Electronic Timer should fail, a machine malfunction, breakdown, or accident may occur.

Caution

Caution notices are used where inattention might cause personal injury or damage to equipment.

The Electronic Timer is designed for installation in equipment. Do not install

• the Electronic Timer outside equipment.

Install the Electronic Timer in environments described in the speciﬁ cations. If

• the Electronic Timer is used in places where it will be subjected to high-temperature, high-humidity, condensation, corrosive gases, excessive vibrations, or excessive shocks, then electrical shocks, ﬁ re hazard, or malfunction could result.

Use an IEC60127-approved fuse and circuit breaker on the power and output

• line outside the Electronic Timer.

Do not disassemble, repair, or modify the Electronic Timer.

•

When disposing of the Electronic Timer, do so as industrial waste.

•

Switch Settings

jOperator Mode Selector kScale Selector lTime Range Selector

1. Turn the selectors securely using a ﬂ at screwdriver 4mm wide (maximum). Note that incorrect setting may cause malfunction. Do not turn the selectors beyond their limits.

2. Since changing the setting during timer operation may cause malfunction, turn power off before changing.

l k
