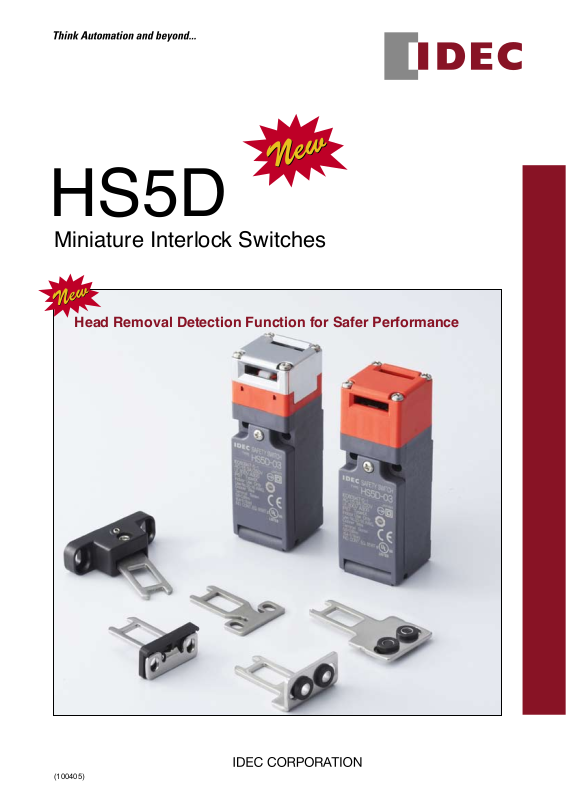

HS5D
Miniature Interlock Switches
Head Removal Detection Function for Safer Performance
(100405)
New Generation Miniature Interlock Switches
IDEC’s new unique “Head Removal Detection Function” is a new generation technology that assures safety and satisfies international safety standards.
Head Removal Detection Function
All HS5D models are equipped with “Head Removal Detection Function.” When the head is removed, such as when the head is rotated, the main circuit (11-12) turns OFF.
HS5D-12
When the actuator is removed or inserted, the operation of the main circuits (11-12, 21-22) are the same. However, when the head is removed, disparity is detected (11-12: OFF, 21-22: ON). The disparity of the contacts detects the removal of the head.
Head removal detection function Main circuit (11-12)
Actuator is removed |
Actuator is inserted |
Head is removed |
|
|
||||
••HS5D-12 |
|
|
|
|
|
|
|
|
|
|
|
When actuator is removed |
When actuator is inserted |
When head is removed |
Disparity |
||
Main circuit (NC) |
11 |
12 |
|
OFF |
ON |
OFF |
||
|
|
|
||||||
|
|
|
||||||
|
|
|
|
|
|
|
|
|
Main circuit (NC) |
21 |
22 |
|
OFF |
ON |
ON |
|
|
|
|
|
||||||
|
|
|
|
|
|
|||
Note: Head removal detection function is not a direct opening action mechanism. |
|
|
|
|||||
••Existing Interlock Switches |
|
|
|
|
|
|||
|
|
|
When actuator is removed |
When actuator is inserted |
When head is removed |
|
|
|
Main circuit (NC) |
3 |
4 |
|
OFF |
ON |
ON |
|
|
|
|
|
|
|
|
|
|
|
Monitor circuit (NC) |
1 |
2 |
|
OFF |
ON |
ON |
|
|
|
|
|
|
|
|
|
|
|
Small size with 3 contacts
••The HS5D is the same size (dimensions/mounting dimensions) as 2 contact types (HS5B). 3 contact types with dual enabling contacts and a monitor contact are available.
••Compact size. Can be installed in narrow spaces.
••M3 terminal screws make wiring easy.
••Gold-plated contact suitable for small loads.
Actuators interchangeable with HS5B/HS5E
Actuators can be selected to suit door shapes and applications.
Angle |
Straight |
Straight Actuator |
|
Actuator |
|||
Adjustable |
|||
Actuator |
|
w/rubber bushing |
|
|
|
||
Right-angle |
|
Right-angle Actuator |
|
Actuator |
|
w/rubber bushing |
Various Safety Product Accessories
|
91 mm |
|
Door Handle Actuator |
||
|
|
|
|
(HS9Z-DH5) |
|
|
|
|
Plug Actuator |
|
|
|
|
|
(HS9Z-A5P) |
|
|
|
|
|
Padlock Hasp |
Sliding Actuator |
|
|
|
|
|||
30 mm |
(HS9Z-SH5) |
||||
(HS9Z-PH5) |
30 mm
2 |
(100405) |
|
HS5D Miniature Interlock Switches
Head removal detection for safer performance.
••Head removal detection function turns OFF the main circuit (11-12) when the head of the HS5D is removed.
••The HS5D is the same size as 2 contact type interlock switches (HS5B). 3 contact types with dual enabling contacts and a monitor contact are available. Can be installed in narrow spaces. (30W × 30D × 91H mm)
••The actuator is interchangeable with HS5B and HS5E.
••Double insulation structure eliminates the need for grounding.
••The head orientation can be rotated, allowing 8 different actuator entries.
••Degree of protection (contacts): IP67 (IEC60529)
••NC contacts with direct opening action (IEC/EN60947-5-1)
••Proprietary actuators prevent invalidation of the contacts (ISO14119, EN1088).
••M3 terminal screws for easy wiring.
••Gold-plated contacts suitable for small loads.
Specifications
|
|
|
|
ISO14119 |
|
|
EN1088 |
|
|
IEC60947-5-1 |
|
Applicable Standards |
EN60947-5-1 (TÜV approval) |
|
GS-ET-15 (TÜV approval) |
||
|
UL508 |
|
|
CSA C22.2 No. 14 |
|
|
IEC60204-1/EN60204-1 |
|
|
(applicable standards for use) |
|
Operating Temperature |
–30 to +70°C (no freezing) |
|
Relative Humidity |
45 to 85% (no condensation) |
|
Storage Temperature |
–40 to +80°C (no freezing) |
|
Pollution Degree |
3 |
|
Impulse Withstand |
4 kV |
|
Voltage |
||
|
||
Contact Resistance |
50 mΩ maximum (initial value) |
|
Insulation Resistance |
Between live and dead metal parts: |
|
100 MΩ minimum |
||
(500V DC megger) |
Between terminals of different poles: |
|
|
100 MΩ minimum |
|
Electric Shock |
Class II (IEC61140) |
|
Protection Class |
||
|
||
Degree of Protection |
IP67 (IEC60529) |
|
Shock Resistance |
Damage limits: 1000 m/s2 |
|
|
Operating extremes: |
|
Vibration Resistance |
10 to 55 Hz, amplitude 0.5 mm |
|
Damage limits: |
||
|
30 Hz, amplitude 1.5 mm |
|
Actuator Operating |
0.05 to 1.0 m/s |
|
Speed |
||
|
||
Direct Opening Travel |
10 mm minimum |
|
Direct Opening Force |
50N minimum |
|
Operating Frequency |
900 operations per hour |
|
Mechanical Durability |
1,000,000 operations minimum (GS-ET-15) |
|
|
100,000 operations minimum |
|
Electrical Durability |
(AC-12 250V, 6A) |
|
1,000,000 operations minimum |
||
|
(24V AC/DC,100 mA) |
|
|
(operation frequency: 900 operations per hour) |
|
Performance of |
Mechanical damage limits: 10 operations min. |
|
Insulation resistance: 100 MΩ (initial value) |
||
Terminals 11-12 of |
||
Dielectric strength: 1000V, 1 minute |
||
Removed Head Unit |
||
(initial value) |
||
|
||
Conditional |
100A (250V) (note) |
|
Short-circuit Current |
||
|
||
Weight (approx.) |
Plastic head: 80g |
|
Metal head: 110g |
||
|
Note: Use a 250V/10A fast-blow fuse as a short-circuit protector.
Contact Ratings
Rated Insulation Voltage (Ui) |
|
300V |
|
|||
Thermal Current (Ith) |
|
10A |
|
|||
Rated Voltage (Ue) |
30V |
125V |
250V |
|||
Rated |
AC |
Resistive load (AC-12) |
10A |
10A |
6A |
|
Inductive Load (AC-15) |
10A |
5A |
3A |
|||
Current |
|
|||||
|
Resistive load (DC-12) |
8A |
2.2A |
1.1A |
||
(Ie) |
DC |
|||||
Inductive Load (DC-13) |
4A |
1.1A |
0.6A |
|||
|
|
•Minimum applicable load (reference): 5V AC/DC, 1 mA (Applicable range may vary with operating conditions and load types.)
TÜV rating: AC-15 3A/250V, DC-13 4A/30V
Type No. Development
HS5D-11 Z RN M
Circuit Code |
|
|
|
|
|
|
|
|
|
|
Gland Port |
||
|
|
||||||||||||
11: 1NO-1NC |
|
|
|
|
|
|
|
|
blank: G1/2 |
||||
02: 2NC |
|
|
|
|
|
|
|
|
|
|
|
P: |
PG13.5 |
12: 1NO-2NC |
|
|
|
|
|
|
|
|
M: |
M20 |
|||
03: 3NC |
Head Material |
|
|
|
|
|
|
|
|
Head/Housing Color |
|||
|
|
|
|
|
|
|
|
|
|||||
|
blank: Plastic |
|
|
|
|
|
|
|
|
RN: Red/Gray |
|||
|
Z : Metal |
|
|
|
|
|
|
|
|
|
|
Parts Description
Right-angle Actuator (SUS304)
M3 Terminal Screw
Angle Adjustable Actuator
(for hinged doors)
Straight Actuator (SUS304)
Straight Actuator |
Gland Port |
Right-angle Actuator |
w/rubber bushing |
(Use conduits or |
|
|
cable glands which |
w/rubber bushing |
|
can maintain IP67 |
|
|
protection.) |
|
(100405) |
|
