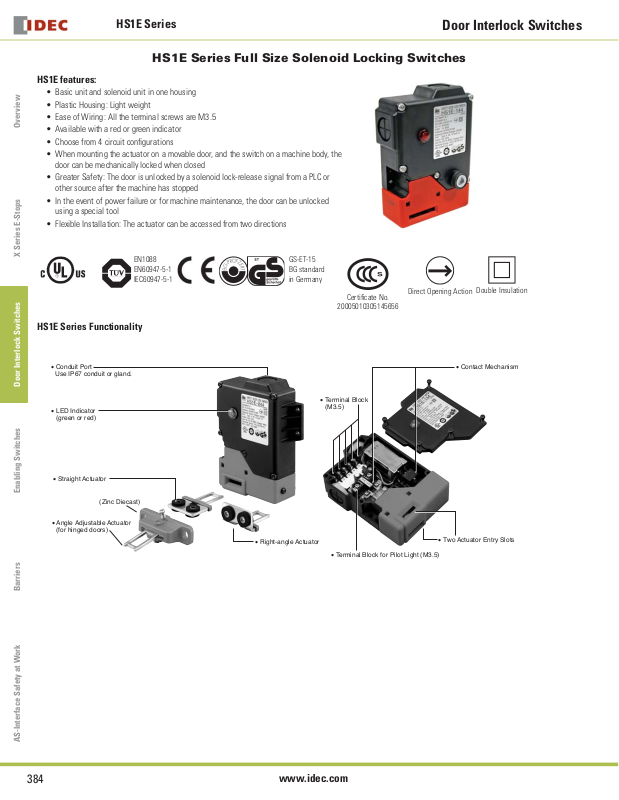

IDEC HS1E Series Catalog

HS1E features:

Basic unit and solenoid unit in one housing

•
Plastic Housing: Light weight

•
Ease of Wiring: All the terminal screws are M3.5

•

OverviewX Series E-StopsDoor Interlock SwitchesEnabling SwitchesBarriersAS-Interface Safety at Work

Available with a red or green indicator

•
Choose from 4 circuit confi gurations

•
When mounting the actuator on a movable door, and the switch on a machine body, the

•
door can be mechanically locked when closed

Greater Safety: The door is unlocked by a solenoid lock-release signal from a PLC or

•
other source after the machine has stopped

In the event of power failure or for machine maintenance, the door can be unlocked

•
using a special tool

Flexible Installation: The actuator can be accessed from two directions

•

HS1E Series

HS1E Series Full Size Solenoid Locking Switches

Door Interlock Switches

EN1088
EN60947-5-1
IEC60947-5-1

HS1E Series Functionality

• Conduit Port
Use IP67 conduit or gland.

• LED Indicator

(green or red)

• Straight Actuator

(Zinc Diecast)

• Angle Adjustable Actuator

(for hinged doors)

GS-ET-15
BG standard
in Germany

• Right-angle Actuator

Certifi cate No.

20005010305145656

• Terminal Block
(M3.5)

• Terminal Block for Pilot Light (M3.5)

Direct Opening Action

Double Insulation

• Contact Mechanism

• Two Actuator Entry Slots

384

www.idec.com

Door Interlock Switches

HS1E Series

Part Numbers

Actuator
Retention Force

1500N
(when locked)

Lock
Mechanism

Spring Lock

Contact Confi guration

Main circuit: 1NC + 1NC
Monitor circuit: 1NO/1NO

Main circuit: 1NC + 1NC
Monitor circuit: 1NO

Main circuit: 1NC + 1NC
Monitor circuit: 1NO + 1NC

1

Monitor Circuit

2

3

Main Circuit

4

5

Solenoid Power

6

Contacts are linked to
the solenoid mechanically.

1

Monitor Circuit

2

3

Main Circuit

4

5

Solenoid Power

6

Contacts are linked to
the solenoid mechanically.

1

Monitor Circuit

2

3

Main Circuit

4

+

5

Solenoid Power

6

–

Contacts are linked to
the solenoid mechanically.

Indicator

Indicator

Indicator

Conduit
Port Size

Indicator

Model

Manual
Unlock Key

Part Number

Overview X Series E-Stops Door Interlock Switches Enabling Switches Barriers AS-Interface Safety at Work

— — HS1E-40R

With —

HS1E-44R-k

G1/2

— With HS1E-40KR

7

8

With With

HS1E-44KR-k

— — HS1E-140R

With —

HS1E-144R-k

G1/2

— With HS1E-140KR

7

8

With With

HS1E-144KR-k

— — HS1E-240R

With —

HS1E-244R-k

G1/2

— With HS1E-240KR

7

8

With With

HS1E-244KR-k

1

Monitor Circuit

2

3

Main Circuit

Main circuit: 1NC + 1NC
Monitor circuit: 1NC

Contacts are linked to
the solenoid mechanically.

4

+

5

Solenoid Power

6

–

Indicator

G1/2

7

8

1. Key wrench for TORX screws (HS9Z-T1) is supplied with the interlock switch.

2. Specify color code in place of k in the part number. G: green, R: red

3. Actuator is not supplied with the interlock switch, and must be ordered separately.

4. TORX is a registered trademark of Camcar Textron.

Actuator Keys & Accessories

Item Part Number Description Item Part Number Description

HS9Z-A1

HS9Z-A2

Straight Actuator
(Mainly for sliding doors)

Right-angle Actuator
(Mainly for rotating doors)

HS9Z-T1

HS9Z-P1 Conduit Opening Plug

HS9Z-A3 Adjustable Actuator HS9Z-KEY1

Key Wrench (included with
switch)

Replacement Manual
Unlocking Key

— — HS1E-340R

With —

HS1E-344R-k

— With HS1E-340KR

With With

HS1E-344KR-k

USA: 800-262-IDEC Canada: 888-317-IDEC

385

HS1E Series

Specifi cations

Conforming to Standards

Applicable Use IEC60204-1, EN60204-1
Operating Temperature –20 to +40˚C (no freezing)
Storage Temperature –40 to +80˚C

OverviewX Series E-StopsDoor Interlock SwitchesEnabling SwitchesBarriersAS-Interface Safety at Work

Operating Humidity 40 - 85% RH (no condensation)
Altitude 2,000m maximum
Rated Insulation Voltage (Ui) 300V (between LED or solenoid and ground: 60V)
Impulse Withstand Voltage (Uimp) 4 kV (between LED or solenoid and ground: 2.5 kV)

Insulation Resistance

(measured with 500V DC megger)

Electric Shock Protection Class II (according to IEC61140)
Pollution Degree 3 (IEC60947-5-1)
Degree of Protection IP67 (IEC60529)

Vibration
Resistance

Shock Resistance 1,000 m/sec2 (approx. 100G)
Actuator Tensile Strength when Locked 1,500N minimum (per GS-ET-19)
Actuator Operating Speed 1 m/sec maximum
Positive Opening Travel 11 mm minimum
Positive Opening Force 20N minimum
Thermal Current (Ith) Main circuit: 10A, Auxiliary circuit: 3A

Rated Operating Current (Ie)

Contact Gap Main circuit: 1.7 mm min., Auxiliary circuit: 1.2 mm min.
Operating Frequency 900 operations/hour max.

Mechanical Life

Electrical Life 100,000 operations (rated load)
Conditional Short-circuit Current 100A (per IEC60947-5-1)
Recommended Short Circuit Protection 250V, 10A fuse (Type D01 based on IEC60269-1, 60269-2)

Solenoid
Unit

Indicator

Weight Approx. 500g

Operating Extremes 10 to 55 Hz, minimum (amplitude 0.35 mm)
Damage Limits 50 m/sec2 (approx. 5G)

Operating Voltage 24V DC
Current 292mA
Coil Resistance 102Ω (at 20ºC)
Pickup Voltage 20.5V maximum (at 20ºC)
DropOut Voltage 2.4 minimum (at 20ºC)
Allowable Voltage 26.4V max (continuous)
Insulation Class Class F
Operating Voltage 24V DC
Current 10 mA
Light Source LED lamp
Lens Color Red or Green (12 mm dia. Lens)

EN1088, IEC60947-5-1, EN60947-5-1(TUV), ISO14119,
GS-ET-19 (BG), UL508, CSA C22.2 No. 14 (c-UL)

Between live and dead metal parts: 100 MΩ minimum
Between live metal part and ground: 100 MΩ minimum
Between live metal parts: 100 MΩ minimum
Between terminals of the same pole: 100 MΩ minimum

Operating Voltage (Ue) 30V 125V 250V

Resistive load (AC12)

AC

Inductive load (AC15)

Main

Circuit

Circuit

Auxiliary

1,000,000 operations min. (at full rated load)
900 ops/hr (AC-12/250V, 6A)

Resistive load (DC12)

DC

Inductive load (DC13)
Resistive load (AC12)

AC

Inductive load (AC15)
Resistive load (DC12)

DC

Inductive load (DC13)

10A

10A5A6A

10A

6A
3A–0.9A––

–

3A–3A

–

3A

––0.9A––

Door Interlock Switches

Part Number Key

HS1E - 2 4 4 K R - R

Indicator Color:

R (Red)
G (Green)

Manual Unlock Key
K (with actuator)
0 (without actuator)

Indicator Rated Voltage

4 (24V DC)
Blank (without indicator)

Circuit Code

Main Circuit Auxiliary Circuit

Blank: 1NC + 1NC 1NO/1NO
1: 1NC + 1NC 1NO
2: 1NC + 1NC 1NC + 1NC
3: 1NC + 1NC 1NC

3A

3A

386

www.idec.com

Door Interlock Switches

Application Examples and Circuit Diagrams

HS1E-4 (Main Circuit: 1NC-1NC, Auxiliary Circuit: 1NO/1NO)

Status 1 Status 2 Status 3 Status 4 Unlocked Manually

Door Closed

Switch/Door
Status

Door

Circuit
Diagram

•

•

Machine ready to operate

•

Solenoid de-energized

Contacts are linked to
the solenoid mechanically

Monitor

Main

Solenoid

Door Closed

•

•

Machine cannot be started

•

Solenoid de-energized

Circuit

Circuit

Power

Contacts are linked to
the solenoid mechanically

Monitor

Circuit

Main

Circuit

Solenoid

Power

Door Opened

•

•

Machine cannot be started

•

Solenoid energized

Contacts are linked to
the solenoid mechanically

Monitor

Circuit

Main

Circuit

Solenoid

Power

Door Opened

•

•

Machine cannot be started

•

Solenoid de-energized

Contacts are linked to
the solenoid mechanically

HS1E Series

Door Closed

•

•

Machine cannot be started

•

Solenoid de-energized

Monitor

Circuit

Main

Circuit

Solenoid

Power

Contacts are linked to
the solenoid mechanically

Monitor

Circuit

Main

Circuit

Solenoid

Power

Overview X Series E-Stops Door Interlock Switches Enabling Switches Barriers AS-Interface Safety at Work

Main Circuit 3-4: Closed 3-4: Open 3-4: Open 3-4: Closed 3-4: Open
Aux. Circuit 1-2: Open 1-2: Closed 1-2: Closed 1-2: Closed 1-2: Closed
Solenoid 5-6: Power OFF 5-6: Power ON 5-6: Power ON 5-6: Power OFF 5-6: Power OFF

HS1E-14 (Main Circuit: 1NC-1NC, Auxiliary Circuit: 1NO)

Status 1 Status 2 Status 3 Status 4 Unlocked Manually

Door Closed

Switch/Door
Status

Door

Circuit
Diagram

•

•

Machine ready to operate

•

Solenoid de-energized

Contacts are linked to
the solenoid mechanically

Monitor

Circuit

Main

Circuit

Solenoid

Power

Door Closed

•

•

Machine cannot be started

•

Solenoid energized

Contacts are linked to
the solenoid mechanically

Monitor

Circuit

Main

Circuit

Solenoid

Power

Door Opened

•

•

Machine cannot be started

•

Solenoid energized

Monitor

Main

Solenoid

Contacts are linked to
the solenoid mechanically

Circuit

Circuit

Power

Door Opened

•

•

Machine cannot be started

•

Solenoid de-energized

(Note)

Contacts are linked to
the solenoid mechanically

Monitor

Circuit

Main

Circuit

Solenoid

Power

Door Closed

•

•

Machine cannot be started

•

Solenoid de-energized

Contacts are linked to
the solenoid mechanically

Monitor

Circuit

Main

Circuit

Solenoid

Power

Main Circuit 3-4: Closed 3-4: Open 3-4: Open 3-4: Open 3-4: Open
Aux. Circuit 1-2: Open 1-2: Open 1-2: Closed 1-2: Closed 1-2: Open
Solenoid 5-6: Power OFF 5-6: Power ON 5-6: Power ON 5-6: Power OFF 5-6: Power OFF

1. Main Circuit: used to enable the machine to start only when the main circuit is closed.

2. Auxiliary Circuit: used to indicate whether the machine circuit or door is open or closed.

3. Terminals 7 and 8 are used for the LED indicator, and are isolated from solenoid and door status.
