IDEC HG2G-5T Series Data Sheet
Enhanced HMI
5.7" HG2G-5T Series
Portrait Monochrome 5.7" HMI
Landscape Color 5.7" HMI
SPE C IF I CAT I ONS
Model
Rated Power Voltage
Power Voltage Range
Power Consumption
Allowable Momentary
Power Interruption
Inrush Current
Dielectric Strength
Insulation Resistance
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Pollution Degree
Vibration Resistance
Shock Resistance
Noise Immunity
Electrostatic Discharge
Corrosion Immunity
Mounting
Degree of Protection

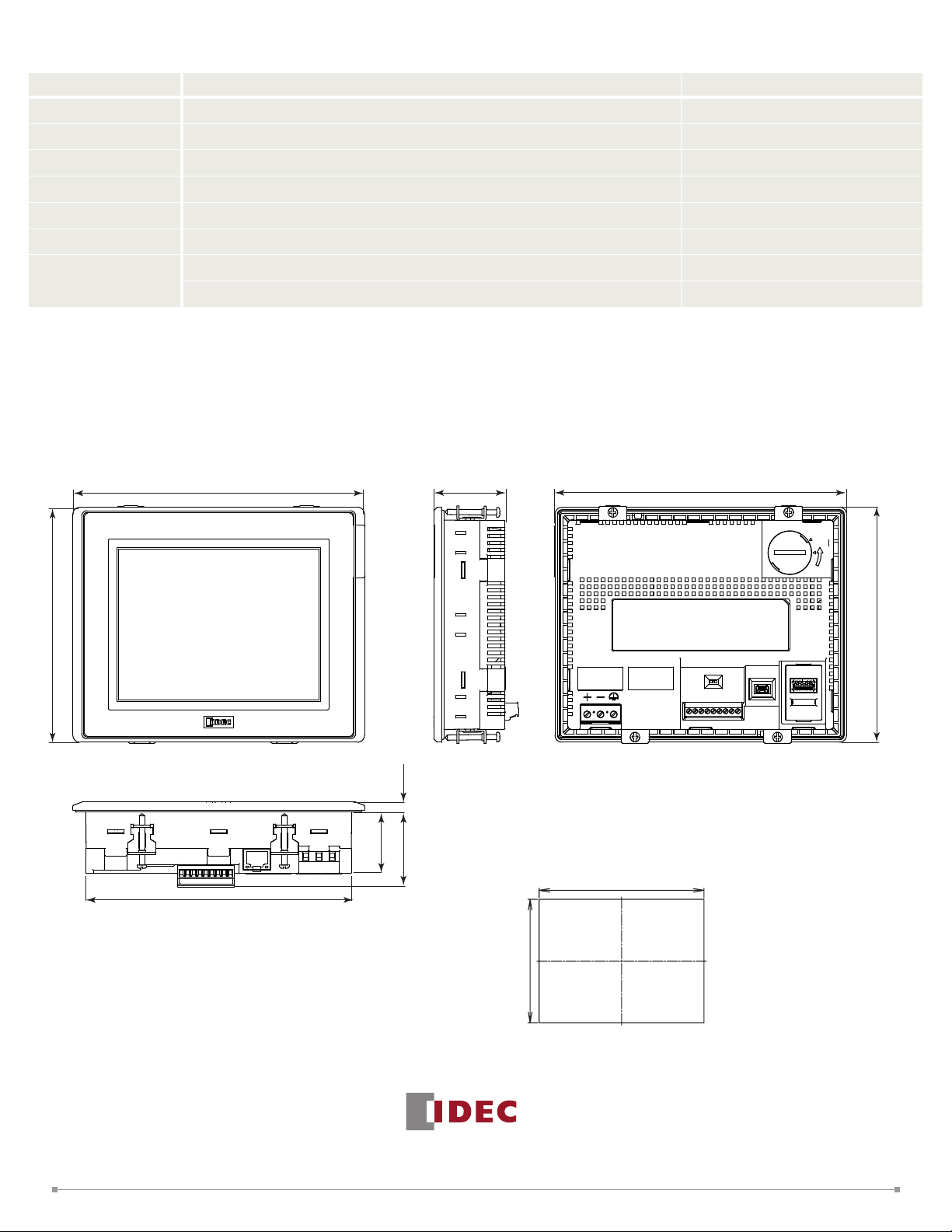

Dimensions
Weight (approx.)
Do not use the HG2G in an environment subject to strong ultraviolet rays, otherwise the LCD quality will deteriorate.
*1 Protection degree of the front surface after mounting. Operation not guaranteed
*2 Operation not guaranteed when used with certain types of oils under certain environments.
HG2G-5TT (Color) / HG2G-5TN (Monochrome)
12-24V DC
10.2 to 28.8V DC
8W maximum
4W maximum when not using USB interface (USB2)
10ms maximum (Voltage 20.4 to 28.8V DC)
1ms maximum (Voltage 10.2 to 20.4V DC)
40A maximum
1000V AC, 10 mA, 1 minute between power and FG terminals
50 MΩ minimum between power and FG terminals (500V DC megger)
-20 to +60°C (no freezing)
10 to 90% RH (no condensation)
−20 to +70°C (no freezing)
10 to 90% RH (no condensation)
2
5 to 8.4 Hz amplitude 3.5 mm, 8.4 to 150 Hz, acceleration 9.8 m/s2
10 cycles (100 minutes) on each of three mutually perpendicular axes
147 m/s2, 11 ms 5 shocks on each of three mutually perpendicular axes
Fast transient/burst test, Power terminals: ±2 kV,
Communication line: ±1 kV (IEC/EN61000-4-4)
ESD-3 (RH-1) Level 3 (Contact ±6 kV, air ±8 kV) (IEC/EN61000-4-2)
Free from corrosive gases
Panel mounting
IP66F (IEC 60529) (front part when mounted) *
167.2 W ×134.7 H × 40.9 D mm
0.5 kg
1
TYPE 4X TYPE 13 *
PRODUCT DESCRIPTION
The 5.7” HG2G Enhanced HMI is a
signicant upgrade from the previous
5.7" Basic series. Choose from a superbright 65K color TFT LCD screen with
500cd/m² or a 16 shade monochrome
version with 1100cd/m² resolution,
featuring an LED backlight life of 100,000
hours. With powerful features and the
ability to remotely access, monitor and
control applications, the new HG2G
series also supports up to four protocols
simultaneously and offers a wide operating
temperature of -20°C to 60°C, making it
ideal for harsh environments.
KEY FE AT U R ES
• 5.7-inch TFT LCD HMI
• 65K color, 16 shade monochrome
• Super-bright display:
• 500 cd/m² (color)
• 1100 cd/m² (monochrome)
• Wide range of operating temperatures:
-20°C to 60°C
• Backlight Longevity: >100,000 hours
• Remote monitor and control
• Support up to four protocols
simultaneously
• Portrait and landscape mounting
• Resistive analog touchscreen
• 2 Serial, 2 USB and Ethernet ports
• Rated Power Voltage: 12 – 24VDC
• IP 66F, Type 4X, Class I Div 2
2
1
PART NUMBERS
Display Type Bezel Color Part Number
Light Gray HG2G-5TT22TF-W
5.7" TFT Color LCD, 65536 Colors
Black HG2G-5TT22TF-B
Silver HG2G-5TT22TF-S
Light Gray HG2G-5TN22TF-W
5.7" TFT Monochrome LCD
Black HG2G-5TN22TF-B
Silver HG2G-5TN22TF-S
SOFTWARE AND PROGRAMMING CABLES
Description Part Number
Automation Organizer Software Suite (Includes WindLDR (for PLCs), WindO/I-NV2 (for HMIs),WindO/I
NV4 (new HG2G) and WindCFG (system conguration tool)
SW1A-W1C
USB Programming Cable HG9Z-XCM2 A
SPE C IF I CAT I ONS
Display
Model HG2G-5TT HG2G-5TN
Display
Color/Shade
Effective Display Area
Display Resolution
View Angle
Backlight
Backlight Life
Brightness
Brightness Adjustment
Backlight Replacement
*1 The backlight life refers to the time until the brightness reduces by half after use at 25°C.
*2 Brightness of the LCD only.
TFT Color LCD TFT Monochrome LCD
65,536 16 shades
115.2W × 86.4H mm
320W × 240H pixels
Right and left 80°,
up 80°, down 80°
Right and left 65°,
up 80°, down 60°
LED
100,000 hours minimum
500 cd/m²
*2
*1
1100 cd/m²
*2
32 levels
Not possible
Function
Screen Types
No. of Screens
User Memory
Parts
Calendar
Power Failure
Backup Data
Battery
Base screen, popup screen, system screen
Base screen: 3,000 max.
Popup screen: 3,015 max.
5 MB (including expansion fonts)
Bit Button, Word Button, Goto Screen,Print Button
Key Button, Multi Button, Keypad, Selector Switch,
Potentiometer, Numerical Input, Character Input, Pilot
Lamp, Multi-State Lamp, Picture Display, Message Display,
Message Switching Display, Alarm List Display, Alarm Log
Display, Numerical Display, Bar Graph, Trend Chart, Pie Chart,
Meter, Calendar, Bit Write Command, Word Write Command,
Goto Screen Command,Print Command Screen Script
Command, Multi Command,Timer
Year, Month, Day, Hour, Min., Sec., Day of Week
±60 sec per month (at 25°C)
Calendar, log data, keep internal relay, keep internal register
Recommended replacement span: every 4 years (at 25°C)
Operation
Switching Element
Operating Force
Mechanical Life
Acknowledgement Sound
Interface
Electrical
Characteristics
Transmission Speed
Synchronization
RS232C
Communication
Method
Control System
Serial
Interface 1
(COM1)*
Ethernet
Interface (L AN)
USB Interface
(USB2)
USB Interface
(USB1)
*RS232C and RS 422/485 can be used simultaneously.
Note: 187,500 bps is available only with SIEMENS SIMATIC S7-300/400 series (MPI port
direct connection).
Connector
Electrical
Characteristics
Transmission Speed
Synchronization
Communication
Method
EIA RS422/485
Control System
Connector
Interface
Connector
Interface
Connector
Interface
Connector
Analog resistive membrane
3N maximum
1,000,000 operations
Electronic buzzer
EIA RS232C compliant
1200, 2400, 4800, 9600, 19200, 38400,
5760 0, 115200 bps
Asynchronous
Half or full duplex
Hardware control or none
Detachable 9-pin terminal block
EIA RS422/485 compliant
1200, 2400, 4800, 9600, 19200, 38400,
5760 0, 115200, 187500 bps (Note)
Asynchronous
Half or full duplex
None
Detachable 9-pin terminal block
IEEE802.3u
(10BASE-T/100BASE-TX) compliant
Connector (RJ-45)
USB 2.0 full speed (12 Mbps)
USB Type Mini-A connector
USB 2.0 high speed (480 Mbps)
USB Type Mini-B connector
2
