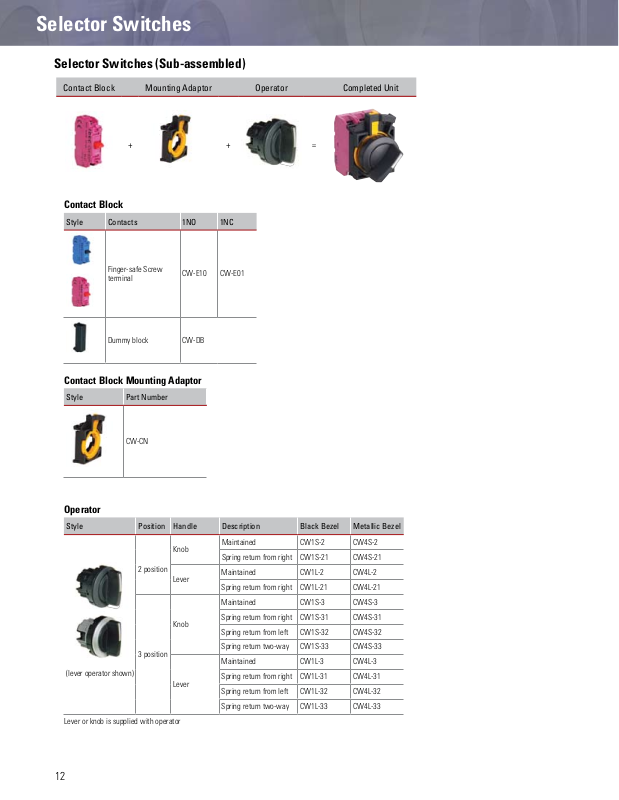

Selector Switches (Sub-assembled)

Selector Switches

Contact Block Mounting Adaptor Operator Completed Unit

+ + =

Contact Block

Style Contacts 1NO 1NC

Finger-safe Screw terminal

Dummy block CW-DB

CW-E10 CW-E01

Contact Block Mounting Adaptor

Style Part Number

CW-CN

Operator

Style Position Handle Description Black Bezel Metallic Bezel

Knob

2 position

Lever

Knob

3 position

(lever operator shown)

Lever

Lever or knob is supplied with operator

Maintained CW1S-2 CW4S-2

Spring return from right CW1S-21 CW4S-21

Maintained CW1L-2 CW4L-2

Spring return from right CW1L-21 CW4L-21

Maintained CW1S-3 CW4S-3

Spring return from right CW1S-31 CW4S-31

Spring return from left CW1S-32 CW4S-32

Spring return two-way CW1S-33 CW4S-33

Maintained CW1L-3 CW4L-3

Spring return from right CW1L-31 CW4L-31

Spring return from left CW1L-32 CW4L-32

Spring return two-way CW1L-33 CW4L-33
