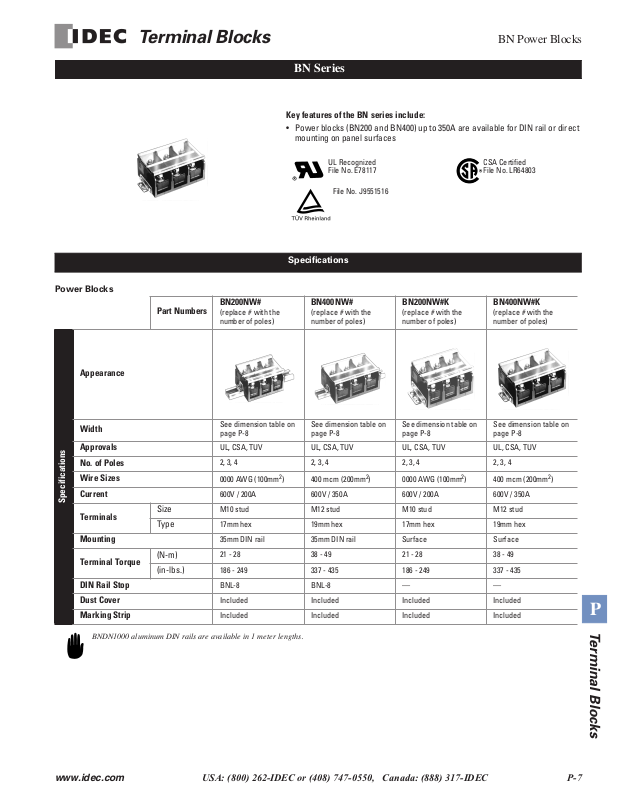

IDEC BN Series Specifications
Terminal Blocks BN Power Blocks
BN Series
Key features of the BN series include:
• Power blocks (BN200 and BN400) up to 350A are available for DIN rail or direct
mounting on panel surfaces
Power Blocks
Appearance
Width
Approvals
No. of Poles
Wire Sizes
Current
Specifications
Terminals
Mounting
Terminal Torque
DIN Rail Stop
Dust Cover
Marking Strip
BNDN1000 aluminum DIN rails are available in 1 meter lengths.
Part Numbers
Size
Type
(N-m)
(in-lbs.)
UL Recognized
File No. E78117
File No. J9551516
CSA Certified
File No. LR64803
Specifications
BN200NW#
(replace # with the
number of poles)
See dimension table on
page P-8
UL, CSA, TUV UL, CSA, TUV UL, CSA, TUV UL, CSA, TUV
2, 3, 4 2, 3, 4 2, 3, 4 2, 3, 4
0000 AWG (100mm2) 400 mcm (200mm2) 0000 AWG (100mm2) 400 mcm (200mm2)
600V / 200A 600V / 350A 600V / 200A 600V / 350A
M10 stud M12 stud M10 stud M12 stud
17mm hex 19mm hex 17mm hex 19mm hex
35mm DIN rail 35mm DIN rail Surface Surface
21 - 28 38 - 49 21 - 28 38 - 49
186 - 249 337 - 435 186 - 249 337 - 435
BNL-8 BNL-8 — —
Included Included Included Included
Included Included Included Included
BN400NW#
(replace # with the
number of poles)
See dimension table on
page P-8
BN200NW#K
(replace # with the
number of poles)
See dimension table on
page P-8
BN400NW#K
(replace # with the
number of poles)
See dimension table on
page P-8
P
Terminal Blocks
www.idec.com USA: (800) 262-IDEC or (408) 747-0550, Canada: (888) 317-IDEC P-7
BN Power Blocks Terminal Blocks
Dimensions:
Part No. Diagram
BN200NW
BN400NW
A
E
B
F
C
D
0.059"
(1.5mm)
G
H
I
Dust Cover
Part No. No. of poles Dim A Dim B Dim C Dim D Dim E Dim F Dim G Dim H Dim I
BN200NW
BN400NW
2-Pole
3-Pole
4-Pole
2-Pole
3-Pole
4-Pole
3.04"
(78mm)
4.49"
(115mm)
5.93"
(152mm)
4.41"
(113mm)
6.86"
(176mm)
9.09"
(233mm)
1.44"
(37mm)
1.44"
(37mm)
1.44"
(37mm)
2.22"
(57mm)
2.22"
(57mm)
2.22"
(57mm)
1.29"
(33mm)
1.29"
(33mm)
1.29"
(33mm)
2.03"
(52mm)
2.03"
(52mm)
2.03"
(52mm)
0.156"
(4mm)
0.156"
(4mm)
0.156"
(4mm)
0.195"
(5mm)
0.195"
(5mm)
0.195"
(5mm)
Terminal
stud M10
Terminal
stud M10
Terminal
stud M10
Terminal
stud M12
Terminal
stud M12
Terminal
stud M12
1.33"
(34mm)
1.33"
(34mm)
1.33"
(34mm)
1.48"
(38mm)
1.48"
(38mm)
1.48"
(38mm)
2.59"
(66.5mm)
2.59"
(66.5mm)
2.59"
(66.5mm)
3.18"
(81.5mm)
3.18"
(81.5mm)
3.18"
(81.5mm)
2.56"
(65mm)
2.56"
(65mm)
2.56"
(65mm)
3.12"
(80mm)
3.12"
(80mm)
3.12"
(80mm)
Part No. Diagram Mounting Hole Dimensions
A
E
H
I
0.059"
(1.5mm)
J
3.51" (90mm)
Dust Cover
M6 (4 screws)
3.51"
(90mm)
3.51"
(90mm)
3.51"
(90mm)
4.68"
(120mm)
4.68"
(120mm)
4.68"
(120mm)
BN200NW#K
BN400NW#K
Part No.
BN200NW#K
P
BN400NW#K
Terminal Blocks
G
No. of
Poles
2-
3-
4-
2-
3-
4-
L
K
F
B
C
1.17"
(30mm)
1.79"
(46mm)
+
D
1.17"
(30mm)
Dim A Dim B Dim C Dim D Dim E Dim F Dim G Dim H Dim I Dim J Dim K Dim L
3.04"
(78mm)
4.49"
(115mm)
5.93"
(152mm)
4.64"
(119mm)
6.86"
(176mm)
9.09"
(233mm)
3.9"
(100mm)
5.34"
(137mm)
6.79"
(174mm)
5.54"
(142mm)
7.76"
(199mm)
9.98"
(256mm)
4.52"
(116mm)
5.97"
(153mm
7.41"
(190mm)
6.16"
(158mm)
8.39"
(215mm)
10.61"
(272mm)
3.9"
(100mm)
5.34"
(137mm)
6.79"
(174mm)
5.54"
(142mm)
7.76"
(199mm)
9.98"
(256mm)
Terminal stud
M10
Terminal stud
M12
Ø
0.312"
(8mm)
3 holes
Ø
0.312"
(8mm)
3 holes
1.33"
(34mm)
1.48"
(38mm)
1.44"
(37mm)
2.22"
(57mm)
1.29"
(33mm)
2.03"
(52mm)
0.156"
(4mm)
0.195"
(5mm)
2.59"
(66.5mm)
3.21"
(81.5mm)
2.54"
(65mm)
3.12"
(80mm)
P-8 www.idec.com USA: (800) 262-IDEC or (408) 747-0550, Canada: (888) 317-IDEC
