Introduction
SignalTEK II comprises two hand-held units and a set of standard accessories all held in a semi-rigid
case.
Two models are available, SignalTEK II and SignalTEK II FO. Both models are capable of performing the
same range of tests. SignalTEK II has RJ45 connectivity; SignalTEK II FO has both RJ45 and Fiber
connectivity.
Fig 1 SignalTEK II components
The Near-End unit is the terminal from where all tests are run and stored. The Remote Unit is a loopback
terminal that enables performance testing. The Near-End Unit and Remote Unit are paired. When they
are both connected to the same network, the Near-End Unit will find the Remote Unit that it is uniquely
paired with, and not any other SignalTEK II Remote Unit that may be connected to the same network.
The Near-End unit may be used as a stand-alone device for wiremap testing copper network cables.
When both units are directly connected by a cable, wiremap and cable performance tests can be run.
When the Near-End Unit is connected to a network, it can be used to carry out a range of IP tests. When
both the Near-End and Remote Unit are connected to an active network, both IP tests and network
performance tests are possible.
This manual describes the operation and functions of the SignalTEK II FO. If you are using SignalTEK II
please disregard all references to fiber optics.
156810 Iss 2 SignalTEK II
Page 4 User Guide
DO NOT CONNECT ANY TELECOMMUNICATIONS
NETWORK TO ANY OF THE TESTER’S PORTS
Care of your SignalTEK II
Although light and portable, the SignalTEK II units are robust and have been designed to operate in a
protected outdoor working environment.
To ensure reliable operation:
Avoid very high or low temperatures - SignalTEK II is designed to operate between 0°C and +40°C,
although you should only charge the batteries between +10°C and +30°C. You can store the unit
safely between -20°C and +70°C.
To avoid damage, when they are not in use we recommend that you keep both SignalTEK II units
in their carrying case.
Do not use solvents, strong detergents or abrasive materials to clean SignalTEK II. Use only
cleaning agents approved for use on ABS and polycarbonate plastics.
Final Disposal
When your SignalTEK II has reached the end of its life you must dispose of both complete units in
accordance with local environmental regulations.
Safety Information
When using SignalTEK II, always take basic safety precautions to reduce the risk of fire, electric shock
and injury to persons. These include the following:
When connecting to the line, special care must be taken as high voltages may be present on the
line and there may be a danger of electrocution.
Avoid using SignalTEK II during an electrical storm - there is a remote risk of electric shock by
lightning.
Use only the mains electricity adaptor supplied with your SignalTEK II.
CLASS 1 LASER PRODUCT. Light output from the fiber optic port can damage eyesight even though it is
invisible. Never stare into open optical ports or the end of a fiber to see if light is coming out.
Connector Safety
The following connectors conform to EN60950 SELV safety status:
RJ-45 Ethernet port.
USB port.
DC inlet port.
SignalTEK II 156810 Iss 2
User Guide Page 5
The power module must be fully charged before
you use it for the first time
Power LED
Status
Green
Power ON. Battery level sufficient for use
Red
Power ON. Battery charge level low but still operational
Off
Power OFF
Power
SignalTEK II can be powered from:
A rechargeable power module,
Directly from power connected to the DC inlet built in to the power module.
From an alkaline battery pack.
The type of module or pack supplied as standard depends on the model purchased.
Power Module Management
A fully charged power module will support up to five hours of heavy, continuous use. For maximum life of
the power module it is recommended to discharge it fully and then recharge it fully at least once a month.
The power module is not user-serviceable. When it has reached the end of its life, contact your local
IDEAL representative for service.
Power Module Recharging
The power module can be fully recharged in three hours with the SignalTEK II (either unit) switched ON or
OFF. To recharge the power module, connect the supplied power adaptor to the DC inlet. For
convenience the power module may be removed from, or left attached to, the unit for charging. The
Power LED next to the DC inlet glows green to show that the battery is being charged, and flashes green
to show that it is not being charged. The Near-End Unit’s power module charge state is indicated at FULL,
2/3, 1/3 and EMPTY by the graphical power meter shown in the display’s information bar at the top of its
LCD display.
Fig 2 Power indications
The Remote Unit’s power module charge state is indicated by an LED directly below the Autotest key.
LED indications are:
Battery Pack
Battery packs accept four replaceable AA alkaline cells. These cells cannot be recharged.
156810 Iss 2 SignalTEK II
Page 6 User Guide
Switching ON and OFF
To switch ON the units, press the ON/OFF button. A splash screen showing the IDEAL logo and model
identity is shown on the display. The Near-End unit attempts to detect a network and the Remote Unit.
The home screen is then shown on the display. SignalTEK II is ready for use.
To switch OFF either unit, press and hold the Power button for approximately 1/2 second, a shutdown
message is displayed on the screen. The currently stored setup is saved. If the unit does not switch OFF
within five seconds, see Master Reset. Always switch OFF the unit before removing the battery pack or
power module.
CAUTION
Do NOT remove the battery pack or power module when the unit is switched on.
Power Saving
Near-End Unit. Power saving preferences are selected from SETUP>SYSTEM>PREF. Auto Off can be
Disabled (unit remains ON indefinitely), or set to switch the unit OFF after three, 10 or 30 minutes of
inactivity. The backlight can be set to Always On, or to dim to 50% brightness after three minutes of
inactivity. Note that when mains power is connected the display is always on full brightness and the unit
remains ON indefinitely.
Remote Unit. The remote unit remains ON indefinitely whether on battery or mains power.
Master Reset
In the unlikely event of a system lock-up which prevents the unit from being switched OFF, it may be
necessary to perform a master reset. This will not delete any stored data.
Remove the power module or battery pack to access a small aperture in the SignalTEK II (Fig 3).
Insert a paper clip into the reset hole and press the internal reset switch.
Fig 3
Replace the power module or battery pack.
SignalTEK II 156810 Iss 2
User Guide Page 7
1
RJ 45 port
9
Function keys F1 to F3
17
Link LED
2
RJ 45 activity LED
10
Escape key
18
Status LED
3
RJ 45 link LED
11
Cursor and ENTER keys
19
1000 Mb/s line rate LED
41 Optical port (SFP)
12
ON/OFF button
20
100 Mb/s line rate LED
51 Optical activity LED
132 Power module
21
10 Mb/s line rate LED
61
Optical link LED
142 Charger LED
22
Remote Autotest button
7
USB port
152 DC in connector
23
Power LED
8
LCD color display
16
Autotest button
Handset Controls, Indicators and Ports
Fig 4
1
Fig 4 items 4, 5 & 6 – SignalTEK II FO only.
2
Fig 4 item 13 shows optional power module.
Note: The top, bottom and left hand side of both units are identical.
156810 Iss 2 SignalTEK II
Page 8 User Guide
Cursor and ENTER keys. The arrowed cursor keys are
intuitively marked to move the highlighted field between all
menu icons, settings fields and drop-down menus that
appear on the display. ENTER selects the currently
highlighted option.
Escape key. Returns to previous screen or hides the
options of a drop-down menu. Note that when a value in a
settings field is changed, if the Escape key is pressed before
the soft key ‘APPLY’, the value will not be stored.
Autotest key. Immediately runs pre-stored range of tests.
The range is easily changed using the SETUP menu. The
Autotest keys on the Near-End and Remote Unit have
identical function.
Function keys. F1 to F3 are to select the corresponding
soft keys at the lower edge of the display.
Fig 5
Fig 6
When you navigate to and select a field that requires a
value or text to be entered, such as a customer’s name or a
URL, a QWERTY keyboard will be shown on the display
(Fig 6). All data is entered using the QWERTY keyboard.
Move the key that is highlighted on the keyboard using the
tester’s cursor keys. ENTER selects the currently
highlighted key which will now appear in the text window
directly above the keyboard. Key stroke errors are
corrected using the backspace key ( <− ). Press the UP
cursor key to move the cursor into the text window for
editing.
Press the QWERTY keyboard’s SHIFT key to change the
display from lower to upper case. Press SHIFT a second
time to display symbols and punctuation characters.
When the text or value has been entered, press the soft key
OK (F1). The display will return to the previous screen
which is now populated with the required data. You must
press the soft key APPLY to save the changes.
Menu Navigation
Soft Keys
The soft keys appear along the bottom edge of the display. Their function changes and is dependent on
the screen currently shown on the display.
Data entry
SignalTEK II 156810 Iss 2
User Guide Page 9
Cable mode is used for Wiremap testing and
cable route tracing using the tone generator.
When the Near-End Unit is connected to a
copper cable, with or without an Active Remote,
press the soft key DETECT (F1) to display all
options available from the Cable mode screen.
When an Active Remote is connected it will be
shown on screen (Fig 7) and its identification
number displayed. For a full description of
these options, see Tests menu description –
Cable mode.
Fig 7
Fig 8
Ethernet mode is used for a range of IP and
performance tests. There are three ways to
connect in Ethernet mode:-
(1) When the Near-End Unit and Remote Unit are
directly connected, with copper or fiber cable, press
the soft key DETECT (F1) to detect all options
available (Fig 8). In addition to wiremap tests
(copper), cable performance can be tested and
measured. For a full description of these options
see Tests menu description – Ethernet mode, page
24.
Getting started
Press the soft key DETECT (F1) and the Near-End Unit will determine the mode of operation dependent
on the services detected. The display will show a home screen with one of four connection symbols.
There are two modes of operation, Cable and Ethernet. Cable has one way of connecting, Ethernet has
three.
Modes of Operation
Cable
Ethernet
156810 Iss 2 SignalTEK II
Page 10 User Guide
(2) When the Near-End Unit is connected to an
active network, using copper or fiber cable,
press the soft key DETECT (F1) to display all
options available (Fig 9). IP tests can be run.
For a full description of these options see –
Tests menu description – Ethernet mode, page
25.
The detected services are PoE (802.3af/at),
ISDN, PBX and Unknown. The connected Port
number and LLDP Power are displayed (when
available.) The IPv4 and IPv6 addresses
assigned to the tester are displayed (when
available).
Fig 9
Fig 10
(3) When both the Near-End Unit and Remote Unit
are connected to an active network, using copper or
fiber cables, press the soft key DETECT (F1) to
display all options available (Fig 10). IP tests and
performance tests can be run. For a full description
of these options see – Tests menu description –
Ethernet mode, page 28.
The detected services are PoE (802.3af/at), ISDN,
PBX and Unknown. The IPv4 and IPv6 addresses
assigned to the tester are displayed (when
available).
SignalTEK II 156810 Iss 2
User Guide Page 11
From the home screen press the soft key
PORTS (F2), highlight the required port and
press ENTER (Fig 11).
Tick the check box to always see this screen at
startup.
NOTE
Testing over fiber is available with the
SignalTEK II FO only.
Fig 11
Ports
Replaceable insert – RJ-45 socket
To replace a damaged or worn RJ-45 socket insert proceed as follows:
Equipment required: Kit, IDEAL part number 150058 – includes Tool x1 and Replacement Insert x10.
1. Switch the SignalTEK II off.
2. Remove cables.
3. Carefully push the tool STRAIGHT into the socket. BE CAREFUL - DO NOT MOVE THE
TOOL VERTICALLY!
4. Keeping the tool STRAIGHT firmly pull the insert out from the socket.
5. Using fingers replace a new insert STRAIGHT into the socket and secure in place by firmly
pushing
3. 4. 5.
Fig 12
156810 Iss 2 SignalTEK II
Page 12 User Guide
Setup
All user-defined settings and preferences of the SignalTEK II are set from the SETUP menu. A map of the
SETUP menu is shown at Fig 12 and a description of the available settings and preferences is found on
pages 14 to 17.
Fig 12
SignalTEK II 156810 Iss 2
User Guide Page 13
From the home screen, press the soft key SETUP
(F3) to display the Setup menu shown in Fig 13.
The settings for all tests, functions and preferences
can be changed and saved from here.
Selecting any of the seven icons will produce the
options that follow:
Fig 13
Enter your name or your company’s name, address and phone number(s). The details
stored here will appear on all reports exported via a USB key.
This option enables you to manage Jobs as follows: Create new Jobs. View, edit or
delete existing Jobs. Save Jobs to a USB key. The ‘Activate’ icon selects the Job you
require to be active. See Jobs for a full description.
Sets the language for the tester. The on-screen display, and the exported results and
reports will appear in the selected language.
Sets the power saving options, the preferred units of length and the date and time
formats.
Export or import setup information to/from a USB stick. Use this function when you wish
to copy setup information from one tester to another.
Sets the current date and time. Note that the date and time are recorded against test
results and will appear on exported reports. The internal clock is autonomous of the
power module or battery pack for up to one day.
For the Near-End Unit this menu item facilitates software updates downloaded from the
IDEAL website and saved to a USB key. Select the update icon and follow the onscreen instructions. To update the Remote Unit: with unit switched OFF, insert USB key
and then PRESS and HOLD the AUTOTEST key while switching on the unit.
The LED’s will illuminate in sequence indicating that a software update is in progress.
The unit reboots when the update is complete.
Provides model, software, hardware and firmware information.
Provides the option to return all settings to the factory default. The Near-End and
Remote Unit must be paired after resetting to factory default. Refer to PAIR on page 17.
A FACTORY RESET WILL REMOVE ALL STORED DATA
AND PAIRING INFORMATION
FROM THE TESTER
Setup menu descriptions
Highlight the System icon and press ENTER to access the settings and preferences listed below:
156810 Iss 2 SignalTEK II
Page 14 User Guide
Highlight the Tests icon and press ENTER to access the settings and preferences
listed below:
The two wiretests that follow are available :-
Set the cable type and color scheme to suit the cable to be tested, crossover allowed y/n,
and NVP. NVP is preset at 72% but can be custom set anywhere in the range of 59 to
89% to suit the cable to be tested.
Select from three tones. This avoids confusion when a second or third tester is being
used on the same installation. Choose on which pin, or pin pair, to play the tone to
achieve the best results.
The six IP tests that follow are available :-
Set the target URL/Numerical address (select from up to 10 targets stored in the v4
TARGET look up table or edit the currently displayed URL),
Count (Number of times to repeat the Ping - 1 to 999999),
Pause (Interval between successive Pings - 10 to 5000 ms),
Length (Number of bytes in Ping frame payload - 8 to 1000 bytes).
Set the target URL/Numerical address (select from up to 10 targets stored in the v4
TARGET look up table or edit the currently displayed URL),
Maximum number of hops (2 to 100),
Timeout (Abort timeout for any hop: 2 to 30 secs), Use a short timeout to reduce test
time, or a long timeout to reach remote internet locations.
Protocol (ICMP or UDP as required by your network).
Select Name Lookup if supported by your network. If not required, de-select Name
Lookup to reduce test time.
Select whether the Netscan is to be Local (scan within the range of the tester’s own IP
address) or Custom (scan within the range of the IP address configured).
Set the Scan Range depending on whether a wide scan or a short test time is more
important.
Scan Range
Max Number of Hosts
Test time
Class C/24
256
Short
Class C/20
2048
Medium
Class B/16
65,536
Long
IPv6 Netscan Setup – None required (Automatically set).
Select PoE or PoE Plus to suit your network.
Set minimum power to be detected to suit the demand of your appliance.
SignalTEK II 156810 Iss 2
User Guide Page 15
IP Tests continued
Set the target URL/Numerical address (select from up to 10 targets stored in the v6
TARGET look up table or edit the currently displayed URL),
Count (Number of times to repeat the Ping - 1 to 999999),
Pause (Interval between successive Pings - 1 to 5 seconds),
Length (Number of bytes in the Ping frame payload - 8 to 1000 bytes).
Set the target URL/Numerical address (select from up to 10 targets stored in the v6
TARGET look up table or edit the currently displayed URL),
Maximum number of hops (1 to 30),
Timeout (Abort timeout for any hop - 2 to 30 secs),
Select Name Lookup if supported by your network. If not required, de-select Name
Lookup to reduce test time.
The five performance tests that follow are available:
Tick IEEE802.3 check box to set the frame failure threshold to 0 and the test duration to
10 secs. With the tick box unchecked the frame failure threshold and duration can be set
manually to suit your test. The frame size is permanently set to 1518. Frame fill is
always fixed. Select the expected Line Rate depending on the cable type.
No. of Calls (Set expected number of simultaneous calls on the network – 1 to 10,000),
Threshold (Frames) (Enter the number of errored frames acceptable – 0 to 99),
Duration (Set test duration from 1 second up to 24 hrs).
No. of sessions (Set expected number of simultaneous sessions on the network – 1 to
500),
Threshold (Frames) (Enter the number of errored frames acceptable – 0 to 99),
Duration (Set test duration from 1 second up to 24 hrs).
Definition (Set to HD or SD),
No. of Streams (Set expected number of simultaneous calls on the network – 1 to 70),
Threshold (Frames) (Enter the number of errored frames acceptable – 0 to 99),
Duration (Set test duration from 1 second up to 24 hrs).
Resolution (Set to VGA, 720p, 1080p, 3MP or 5MP),
CODEC (Set to H.264 or MJPEG),
No. of Cameras (Set the number of cameras in the system),
Threshold (Frames) (Enter the number of errored frames acceptable – 0 to 99).
Select the tests that will run every time the Near-End or Remote Unit’s Autotest button is
pressed. For details of the tests available, see Fig 33.
Select this option to enter up to 10 IPv4 targets in a look up table. The targets you save
here can be quickly selected when running Ping4 and TRoute4 tests.
Select this option to enter up to 10 IPv6 targets in a look up table. The targets you save
here can be quickly selected when running Ping6 and TRoute6 tests.
156810 Iss 2 SignalTEK II
Page 16 User Guide
Enable/disable IPv4 and set IP address as static or dynamic (DHCP) depending on
which type your network supports. If Static is selected, enter the numerical address,
Netmask, Gateway, DNS1 and DNS2.
Enable/disable IPv6 and select address type as Static, Stateless, Stateful (DCHP)
depending on which type your network supports. If Static is selected, enter numerical
IP address, Prefix (64 or 128), Gateway, DNS1 and DNS2.
The factory set MAC address of the tester is displayed.
The skew between the Ethernet pairs is displayed. Skew is the delay (ns) between the
arrival time of the four components of the Gigabit Ethernet signals. It is measured
relative to the first signal to arrive, so that the displayed skew is always zero for at least
one pair.
NOTE
Both MAC and skew data are displayed for information only.
Provides the information that follows on the SFP connected to the Optical port:
Status – Available or Not Fitted, Vendor, Part number, Rx Power (µW), Tx Power (µW).
See Supported SFP Transceivers below.
When first supplied, the Near-End and Remote units are paired. When a different or
replacement Remote Unit is used, or the Near-End Unit has been RESET to factory
default settings, select PAIR from the set up menu and press the soft key PAIR (F1).
When the message ‘Remote detected’ is shown on the display the units are paired
indefinitely.
Type
Manufacturer
Part No
Speed
Fiber
type
Wavelength
Connector
Type
SX
Avago
AFBR-5705PZ
1Gb/s
Multimode
850nm
LC Duplex
SX
Apac
LM28-C3S-TI-N-DD
1Gb/s
Multimode
850nm
LC Duplex
LX
Avago
AFCT-5705PZ
1Gb/s
Singlemode
1310nm
LC Duplex
LX
Apac
LS38-C3S-TC-N-DD
1Gb/s
Singlemode
1310nm
LC Duplex
ZX
Apac
LS48-C3U-TC-N-DD
1Gb/s
Singlemode
1550nm
LC Duplex
Supported SFP Transceivers
The SFP types that follow are supported. The use of other SFP types is possible but correct operation is
not guaranteed.
SignalTEK II 156810 Iss 2
User Guide Page 17
Tests modes
Testing with SignalTEK II falls into two modes, Cable and Ethernet.
Cable mode
Cable testing comprises of wiremap tests and a tone generator.
When no network or SignalTEK II Remote Unit is detected, the home screen information bar will read
‘Cable’. When the TESTS icon is selected, the cable tests shown in the menu map at Fig 14 are
available.
Fig 14 Tests menu map – Cable testing
Ethernet mode
Ethernet testing is divided into three categories that are dependent on the services detected by the
Near-End Unit. All available tests are illustrated in the three menu maps that follow
(1) When a SignalTEK II Remote Unit is directly connected but no active network is detected, the home
screen information bar will read ‘Ethernet’. When the TESTS icon is selected, the Ethernet tests shown in
the menu map at Fig 15 are available.
Fig 15 Tests menu map – Ethernet testing (1)
(2) When an active network is detected but no SignalTEK II Remote Unit, the home screen information bar
will read ‘Ethernet’ and when the TESTS icon is selected, the Ethernet tests shown at Fig 16 are available.
Fig 16 Tests menu map – Ethernet testing (2)
156810 Iss 2 SignalTEK II
Page 18 User Guide
Indicates test has not been
run and that the tester is
ready.
Will be displayed if the test is aborted,
or when a test has been run and a
fault detected or a network is unknown
or unreachable.
Indicates test is in progress.
This symbol is also displayed
while the tester is detecting a
port.
Indicates a test has been run with no
faults detected.
(3) When a SignalTEK II Remote Unit is detected through an active network the information bar will read
‘Ethernet’. When the TESTS icon is selected, the Ethernet tests shown at Fig 17 are available.
Fig 17 Test menu map – Ethernet testing (3)
Tests – run, setup and save
To select a test highlight its icon and press Enter. Each test has its own result screen. This is indicated
by the test name being shown in the display’s information bar. Press the soft key RUN (F1) to start the
test. The test will use the setup criteria currently stored for that test. The F1 soft key changes to STOP,
giving you the opportunity to abort the test.
When you want to change the setup criteria before a test is run, press the soft key SETUP (F3). The
display will show a screen where all variables for the test can be changed. Press the soft key APPLY (F2)
to save the changes and return to the result screen.
For all tests a symbol is displayed at the top right hand corner of the screen below the clock in the
display’s information bar.
When a test is complete the results will be displayed; the soft keys now read RUN, SAVE and SETUP.
You can save the results now or press Escape to return to the Tests screen and select another test to run.
The results of the previous test are not lost unless you wish to discard them by pressing the soft key
RESET (F1). This arrangement gives you the choice of saving the results of either one or several tests to
a single Result. To find out how Results are stored, see the description of ‘Jobs’ on page 30.
Press the soft key SAVE (F2) and the Save Results screen is displayed. Dropdown menus give you the
choice of which job and result you would like to store the test under. The remaining storage capacity is
displayed as a percentage. For a full description of the storage of test results see Jobs.
SignalTEK II 156810 Iss 2
User Guide Page 19
Fig 18
Fig 19
Fig 20
Fig 21
Tests menu description – Cable mode
When the TESTS icon from the cable mode home screen is selected, Fig 18, the available tests will be
displayed, Fig 19.
After any one of the three available tests from the menu is selected, the soft keys RUN and SETUP will
appear:

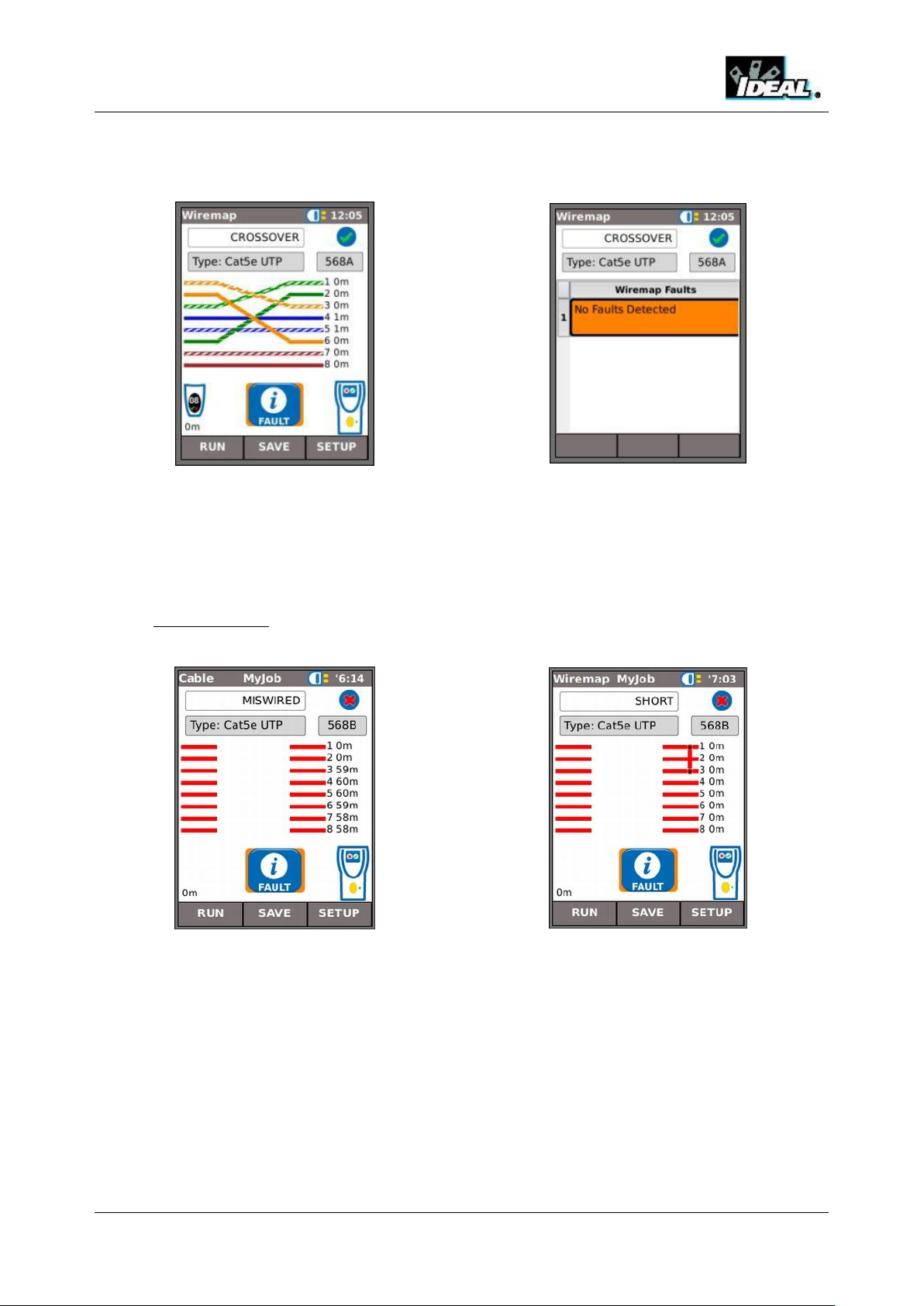

Wiremap
When the soft key RUN (F1) is pressed a wiremap test will be run on the cable currently connected to the
tester’s RJ45 port. The settings used for the test will be those that have been preset via the setup menu:
SETUP>TESTS>WIRETEST>WIREMAP.
After the test has been run, the display will show a graphical interpretation of the result (Fig 20) and an
indication of the distance to the fault or, the length of the cable. In addition, a FAULT icon and a SAVE
soft key will appear. Select the FAULT icon and the display will show a textual list of the faults detected,
Fig 21.
156810 Iss 2 SignalTEK II
Page 20 User Guide
Fig 22
Fig 23
Fig 24 Open circuit by pair
Fig 25 Short circuit by pin
Note that for the example of a Wiremap test shown above; if the option ‘XOver Allowed’ had been checked
in the Wiremap SETUP options, the results would be displayed as shown in Fig 22 and Fig 23.
The wiremap tests may be run with no termination – open, or with an Active Remote termination. When
connected, an image of an Active Remote will be shown on the display and its type identified. After a test
has been run, the length of the cable is displayed (range up to 100m (330ft)).

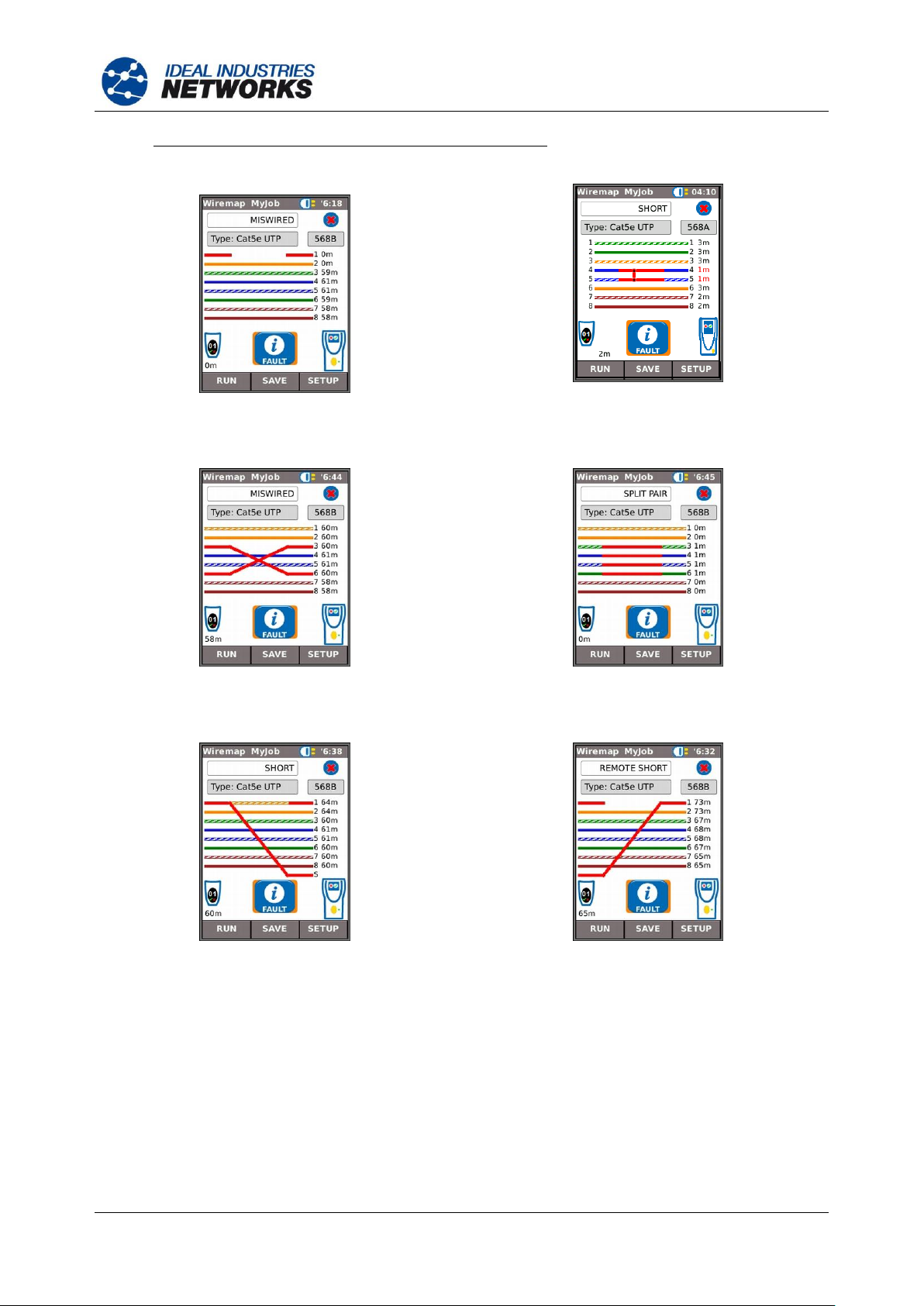

With an open termination the possible faults detected are:
SignalTEK II 156810 Iss 2
User Guide Page 21
Fig 26 Open circuit by pin
Fig 27 Short circuit by pin
Fig 28 Crossed pairs
Fig 29 Split pairs
Fig 30 Bridged shorts
Fig 31 Remote shorts
With an Active Remote or a SignalTEK II Remote Unit termination the possible faults detected are:
As with the result of the Crossover fault shown in Fig 20 and Fig 21, all wiremap test results are displayed
as a graphic that includes the FAULT icon. When the icon is selected, the faults are presented as a list.
The indications that follow appear on the Active Remote device:
Flashing green LED – Test Passed.
Flashing red LED – Test Failed.
Amber LED – DC voltage greater than 12 Volts detected – cannot perform test.
156810 Iss 2 SignalTEK II
Page 22 User Guide
Fig 32
SignalTEK II can act as a tone generator (Fig 32). Together with a compatible
tone probe, the route of a cable can be traced. A choice of three tones can be
selected. To achieve the best result, the tone may be played over one of eight
pins relative to the other seven, or over one of four pairs. The tone is started
and stopped with the F1 soft key which displays as RUN or STOP accordingly.
Press the soft key SETUP (F3) to change the tone and the pin, or pin pair, that
the tone is played on. Press the soft key APPLY (F2) for your changes to take
effect.
Autotest
Fig 33
SignalTEK II can be set up to run a predefined
range of tests when the yellow Autotest button is
pressed on either the Near-End or Remote Unit.
The range of tests is set from
SETUP>TESTS>AUTOTEST by ticking the check
boxes next to your choice, Fig 33. Press the soft
key APPLY (F2) for your changes to take effect.
Fig 34
When an Autotest is run, Fig 34, the display lists the tests that are applicable
to the current mode from the list that you selected at Setup and shows the
status of each. After the Autotest is complete, or has been stopped, each
individual test can be selected and its detailed results displayed.
In Cable mode, Autotest is limited to Wiremap.
Tone
SignalTEK II 156810 Iss 2
User Guide Page 23
Fig 35
Fig 36
Fig 37
When a cable performance test is run, back-to-back frames are
transmitted to the Remote Unit which loops them back to the Near-End
Unit where they are checked and counted.
Fig 37 shows the result screen of a successful cable test. Frame Size,
which is fixed, is stated for information. Tx states the number of frames
transmitted, the associated green indicator bar confirms that 100% of
the frames were sent. As the frame size (and fill) is fixed, the number
of frames transmitted is dependent on the duration of the test only. Rx
states the number of frames received, the green indicator bar confirms
that 100% of the transmitted frames were received. As all transmitted
frames were received, Error states 0 and its associated indicator bar
remains uncolored and shows 0%. When there is a discrepancy
between the number of transmitted and received frames, Error states
the number of errored frames and the indicator bar is partly colored red
proportional to the number of errored frames. However, the cable will
still pass the test provided the Frame Threshold is not exceeded and
the Line Rate is as expected. (see Setup page 16).
Tests menu description – Ethernet mode
When a SignalTEK II Remote Unit is directly connected but no active network is detected, select the
TESTS icon from the home screen (Fig 35) to view the tests available, Fig 36.
After any one of the three available tests is selected from the menu, the soft keys RUN and SETUP will
appear:
Wiremap and Autotest are described in Tests menu description – Cable mode. When Wiremap is run in
Ethernet mode, the only difference is that the cable to be tested is not connected to an Active Remote but
to either the Remote Unit or an active network port.
Cable performance
156810 Iss 2 SignalTEK II
Page 24 User Guide
Fig 38
Fig 39
Fig 40
PoE
When the Near-End Unit is connected to a
port it automatically detects PoE voltage
(when present). In addition, running a PoE
test will apply a resistive load and measure
the power available at the connected port.
SignalTEK II identifies which pairs are
carrying power, and displays the voltage(V),
current(mA) and power(W). The PoE test
result screen at Fig 41 shows that pair one
and two, and pair three and six are carrying
11 Watts. The port tested is capable of
powering devices that require upto 11 Watts.
The test is PASSED because the power
available is ≥ the minimum power value
entered at set up.
Fig 41
Blink
A Hub Blink test forces the connected port of a network device to blink. SignalTEK II also changes the
speed and therefore LED color (on supporting devices) making it easier to identify the correct port. Select
the BLINK icon from the Tests screen, the test is started and stopped with the soft key F1 which displays
as RUN or STOP accordingly.
When an active network is detected but no SignalTEK II Remote Unit, select the TESTS icon from the
home screen (Fig 38) and the Tests screen (Fig 39) is displayed. In addition to Autotest, (described in
Tests menu description – Cable mode) POE and Blink tests can be run from here. Select the IP TEST
icon to reach the IP tests Ping, Trace route and Netscan (Fig 40).
SignalTEK II 156810 Iss 2
User Guide Page 25
Info: READY,
IN PROGRESS, PASSED,
NO RESPONSE,
UNKNOWN HOST.
Tx: Count of transmitted
ping frames: 1 to 999999.
Rx: Count of successfully
received Ping responses:
1 to 999999.
Delay: Round trip delay in
ms between transmitting
Ping and receiving
response. Displayed as
Minimum, Average and
Maximum.
Fig 42
Select an individual hop to view its
statistics.
The soft keys PREV (F1) and
NEXT (F3) and are used to
navigate between individual hops.
Each hop is traced three times.
The time recorded during each
trace is displayed in ms as T1, T2
and T3.
Fig 43
Ping4 and Ping6
Ping will test the availability and measure the response times of devices and URLs.
The results of a successful test, both in progress and passed are shown in Fig 42. The range of possible
results are listed next to the figure.
TRoute4 and TRoute6
Trace Route will display the route and measure transit delays of frames across an IP network.
Press the soft key SETUP (F3) to enter the target or select one from the v4 or v6 TARGET look-up table,
and to view or amend the test settings.
156810 Iss 2 SignalTEK II
Page 26 User Guide
Netscan
Netscan will report the number of IPv4 hosts
and IPv6 hosts detected within the scan
range. Press the soft key SETUP (F3) to
adjust the scan settings if required.
Fig 44
SignalTEK II 156810 Iss 2
User Guide Page 27
When a SignalTEK II Remote
Unit is detected through an active
network, select the TESTS icon
from the home screen (Fig 45) to
display the Tests screen (Fig 46).
From the Tests screen select the
IP TEST icon to show the IP
Tests screen (Fig 47), or select
the DATA icon to show the
Performance Tests screen
(Fig 48). The IP Tests are as
described on pages 26 and 27.
Each of the performance tests
operate on the principle that
follows: (1) Frames transmitted
to Remote Unit at calculated
Frame Rate for specified
duration, (2) Frames looped back
by Remote Unit, (3) Received
frames checked and counted.
Before a Performance test is run,
the warning and dialogue that
follow are displayed:
This test will generate traffic
loading which may interfere
with other network users
CONTINUE? YES/NO
Select YES to continue with the
test and not display the warning
again until the next power cycle.
Select NO to not continue with
test and display the warning
again before another test is run.
Performance tests are as follows:
Fig 45
Fig 46
Fig 47 IP Tests
Fig 48 Performance Tests
VoIP
Fig 49 shows the result screen of a successful VoIP test. Frame
Size and Frame Fill are fixed, and stated for reference only. The
Information rate, IR (Mb/s), is variable and dependent on the number
of calls you have entered at set up. Tx states the number of frames
transmitted, the green indicator bar confirms that 100% of the frames
were sent. Rx states the number of frames received, the green
indicator bar confirms that 100% of the transmitted frames were
received. As all transmitted frames were received, Error states 0 and
its associated indicator bar remains uncolored and shows 0%.
Fig 49
156810 Iss 2 SignalTEK II
Page 28 User Guide
Web
Fig 50 shows the result screen of a successful Web test. Frame
Size and Frame Fill are fixed, and stated for reference only. The
Information rate, IR (Mb/s), is variable and dependent on the
number of sessions you have entered at set up. Tx states the
number of frames transmitted, the green indicator bar confirms
that 100% of the frames were sent. Rx states the number of
frames received, the green indicator bar confirms that 100% of
the transmitted frames were received. As all transmitted frames
were received, Error states 0 and its associated indicator bar
remains uncolored and shows 0%.
Fig 50
Video
Fig 51 shows the result screen of a successful Video test.
Frame Size and Frame Fill are fixed, and stated for reference
only. The Information rate, IR (Mb/s), is variable and dependent
on the number of streams entered and the definition chosen at set
up. Tx states the number of frames transmitted, the green
indicator bar confirms that 100% of the frames were sent. Rx
states the number of frames received, the green indicator bar
confirms that 100% of the transmitted frames were received. As
all transmitted frames were received, Error states 0 and its
associated indicator bar remains uncolored and shows 0%.
Fig 51
CCTV
Fig 52 shows a CCTV performance test in progress. Frame Size
and Frame Fill are fixed, and stated for reference only. The
Information rate, IR (Mb/s), is variable and dependent on the
Resolution, CODEC and number of cameras chosen at set up.
Tx shows that, so far, 72,371 frames have been transmitted
which is 92% of the total frames required to be sent in this test.
Rx shows that only 62,405 of the transmitted frames have been
received (79% of the total sent so far). Error shows the number
of errored (unreturned) frames (Approx. 12%).
When the number of errored frames is ≥ the Threshold (Frames)
that you entered at set up, the test is failed.
Fig 52
SignalTEK II 156810 Iss 2
User Guide Page 29
Jobs
SignalTEK II provides a system that enables the storage and organization of test results and statistics.
Test results can be exported via a USB key and used to produce reports.
The two elements of this storage and organization system are Jobs and Results. A Job is a named
repository for a collection of Results. A Result is a group of test results. It may contain the saved results
of one or several tests. Therefore, a Job may be understood as a folder, a Result as the file(s) held within
that folder. SignalTEK II can store up to 50 Jobs each containing 50 Results.
At any time, one Job is always ‘active’. Any existing Job can be activated, at any time, via the menu on
the Jobs Options screen. The currently active Job is indicated in the display’s information bar.
Test results are saved by pressing the soft key SAVE (F2). The Save Result screen is displayed. From
here you may choose which Job to save the test(s) to and, the prefix and serial number of the Result. If
you do not choose, SignalTEK II defaults to the active Job and assigns the next serial number.
The structure in which Jobs, Results and test results are stored is shown in Fig 53.
Fig 53 Example of Job storage structure
When creating a new Job, you can store:
General information about the cable, shelf, port etc . This information will appear on reports that
are compiled from exported test results.
A prefix (relates to all associate Results). It will appear at the front of every Result number, e.g.
ABC0001, where ABC is the user-defined prefix and 0001 is the system-allocated Result number.
The prefix must be an alphanumeric string (no spaces or punctuation). Adding a prefix for Result
numbers is optional.
A Job title (user defined). Enables Jobs to be named. The Job title must be an alphanumeric
string (no spaces or punctuation).
156810 Iss 2 SignalTEK II
Page 30 User Guide
Fig 55 Options screen
The display will show a dialogue stating:
‘MyJob is set as current job’
To change the active Job List from Acme to MyJob
Press ENTER to confirm.
The display returns to the Job List screen, and the
new active Job is now shown in the information bar.
Using the Jobs menu
From the home screen select the JOBS icon. The display will show the Job List screen, Fig 54. The Job
List screen lists all currently stored Jobs. The column ‘Tests’ indicates the number of Results saved to
each Job. The column ‘Pass %’ indicates the percentage of the total number of tests in all Results
allocated to a Job that have passed.
Change the active Job

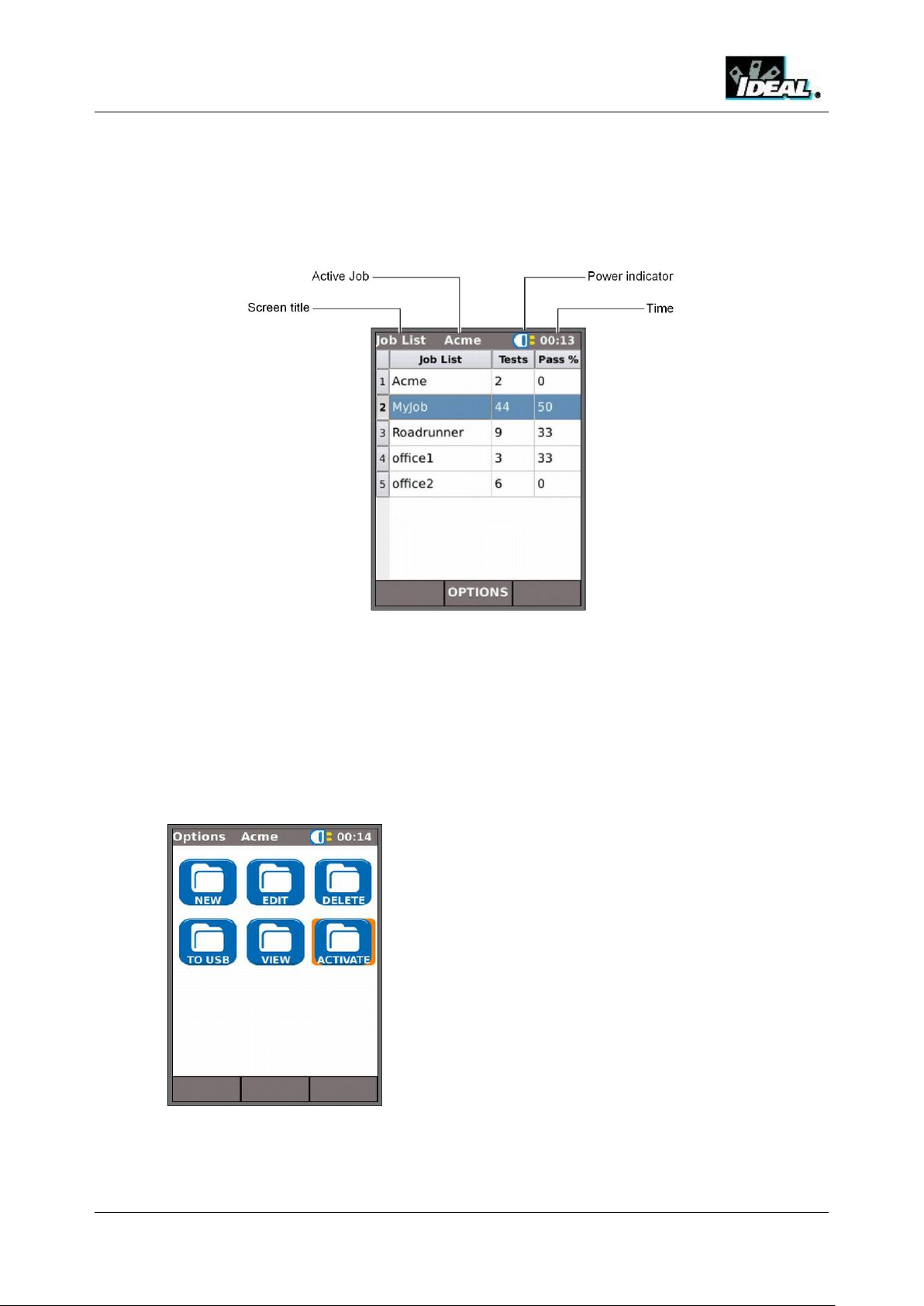

In the example of a Job List screen shown at Fig 54, the active Job is ‘Acme’ as indicated on the display’s
information bar. To change the active Job, scroll to the Job required (e.g. My Job) and press the soft key
OPTIONS (F2); the display will show the Options screen, Fig 55. Highlight the ACTIVATE icon and press
ENTER.
Fig 54 Job List screen
SignalTEK II 156810 Iss 2
User Guide Page 31
Create a new Job. Up to five Jobs can be stored. Data entry fields are:
Prefix. Enter an alphanumeric string which will be prefixed to all Results stored
under the new Job.
Job. Enter an alphanumeric string which will be the title of the new Job. For
example, your customer’s name.
Customer details. Fields are provided for – Company, Address, City, State, ZIP,
Phone No.
When a new Job is created it automatically becomes the Active Job.
Amend any details of an existing Job. Press the soft key APPLY (F2) to save the
changes.
Delete a Job and all its associated Results. When DELETE is selected, the dialogue
‘Are you sure you want to delete ‘Job’ will appear.
ONCE DELETED, A JOB CANNOT BE RESTORED
Selects the Job to be currently active. All test results are saved to the active Job. Full
details of this function are described on page 31.
When selected, the display will show the Results screen. The Results are shown as a
list and can be viewed, deleted or exported to a USB key. The soft key SHOW (F2)
toggles between Status (pass/fail), and the Date and Time that the test was saved.
Exports the active Job List to USB. Information on how to generate reports is detailed
below.
Managing Jobs
Select one of the icons from the Job List screen to manage Jobs as follows:
To rename an existing test in a particular Job
Highlight the test and press OPTIONS (F1)
Press ENTER to edit the test name, then OK
Press RENAME (F1)
To insert your own logo at the top of the reports
Create a file logo.png (max dimensions 768 x 512 pixels) on a USB key
Insert the USB key
In SETUP/SYSTEM/OWNER, press LOGO (F1)
156810 Iss 2 SignalTEK II
Page 32 User Guide
Generating Reports
Reports can be generated using test results exported via a USB key.
To generate a report:
Insert a USB key into the SignalTEK II USB port.
From the home screen select the JOBS icon. The display will show the Job List screen.
Highlight the Job to be exported and press the soft key OPTIONS (F2). The display will show the
Options screen.
Highlight the TO USB icon and press Enter. The dialogue ‘Result saved to USB’ appears.
Alternatively, an individual Result from a Job may be exported:
Insert a USB key into the SignalTEK II USB port.
From the home screen select the JOBS icon. The display will show the Job List screen.
Highlight the Job required and press ENTER. The display shows all Results contained within the
Job.
Highlight the Result you require and press the soft key TO USB (F3). The dialogue ‘Result saved
to USB’ appears.
Test results and statistics are now saved on the USB key and can be viewed as a report on any PC
installed with Microsoft Internet Explorer™ version 8, Mozilla Firefox™ version 9 or other suitable browser.
Two files are saved to the USB key, the test results are stored as an XML document and a report template
is stored as an XSLT file. Open the XML document to view the report.
SignalTEK II 156810 Iss 2
User Guide Page 33
Specifications - SignalTEK II
The specifications listed below are for the SignalTEK II FO. SignalTEK II has identical function but is fitted
with a copper (RJ45) port only.
Near-End Unit
Connectors
Test Ports
RJ45
Used for - Cable Test (With a companion Remote Unit)
- Network Test (Connected to an active network)
Connector type - Samtec Lifejack with user-replaceable contacts
Insertion Cycles - 500 min
Location - Left hand side
Optical
Used for - Cable Test (With a companion Remote Unit)
- Network Test (Connected to an active network)
Connector type - SFP socket
Location - Left hand side
System Ports
USB
Used for - Software Update
- Results transfer
Class - Host
Connector type - A
USB type - 1.1
Location - Top
Power
Used for - Battery charging
- Mains powering via adaptor
Connector type - 2.5mm pin power jack
Polarity - Centre pin positive
Voltage - 12v
Current - 2 amp
Location - Bottom of power module
(Not present in alkaline battery pack)
Controls
ON/OFF
Push button
Used for - Power ON/OFF
Location - Front
Function Keys
F1 to F3
Used for - Screen-defined functions
Location - Front
Navigation Keys
Cursor and ENTER
Used for - User interface navigation
Location - Front
(continued)
156810 Iss 2 SignalTEK II
Page 34 User Guide
Controls (continued)
Navigation Keys
Escape
Used for - Return to previous menu
Location - Front
Autotest
Used for - Launch of automatic test sequence
Location - Front
Reset
Push button
Used for - Escape from exceptional lockup condition
Location - Accessible through hole inside battery compartment using paper
clip
Displays
Screen
LCD
Used for - Display of setup functions and results
Location - Front
Size - 2.8 inch diagonal
Type - QVGA Color
Pixels - 240 x 320
LEDs
Charger LED
Used for - Indication of charging status…
Green - Battery is charging
Off (with charger connected) - Battery is charging
Green flashing - Battery is not being charged
Color - Green
Location - Bottom of Power module
(Not present in alkaline battery pack)
RJ45 Link LED
Use - ON indicates link UP
Location - Adjacent to RJ45 socket, nearest top of tester
Color - Green
RJ45 Activity LED
Use - Flashing indicates link activity
Location - Adjacent to RJ45 socket, nearest bottom of tester
Color - Green
Optical Link LED
Use - ON indicates Optical link UP
Location - Adjacent to SFP socket, nearest front of tester
Color - Green
Optical Activity LED
Use - Flashing indicates Optical link activity
Location - Adjacent to SFP socket, nearest back of tester
Color - Green
SignalTEK II 156810 Iss 2
User Guide Page 35
Ports
RJ45
Fixed Setup
Speed – Auto negotiated
Duplex – Auto negotiated
MAC – Factory set
Tests
Automatic mode selection depending on detection of Network / Remote Unit:
No-Link (No network or Remote Unit detected)
Link (Active network detected but no Remote Unit)
Link-Remote (Remote Unit detected through a network device)
Remote (Remote Unit detected but no network)
Active Remote (Active remote #1 - #12 detected)
Link Mode Tests (Active network detected but no Remote Unit)
- IPv4 Ping
- IPv6 Ping
- Traceroute v4
- Traceroute v6
- Netscan
- PoE / PoE+ Load
- Hub Blink
- Auto
IPv4 Ping
IPv6 Ping
Traceroute v4
Traceroute v6
Netscan
PoE / PoE+ Load
Remote Mode Tests (Remote Unit detected but no network)
- Double-ended Wiremap
- Cable Performance
- Auto
Double-ended Wiremap
Cable Performance
Link-Remote Mode Tests (Remote Unit detected through a network
device)
- VoIP Performance
- Web Performance
- Video Performance
- CCTV Performance
- IPv4 Ping
- IPv6 Ping
- Traceroute v4
- Traceroute v6
- Netscan
- PoE / PoE+ Load
- Hub Blink
(continued)
156810 Iss 2 SignalTEK II
Page 36 User Guide
Ports (continued)
RJ45
Tests
- Auto
VoIP Performance
Web Performance
Video Performance
CCTV Performance
IPv4 Ping
IPv6 Ping
Traceroute v4
Traceroute v6
Netscan
PoE / PoE+ Load
Active Remote Mode Tests (Active Remote #1 - #12 detected)
- Double-ended Wiremap
- Tone Generator
- Auto
Double-ended Wiremap
No-Link Mode Tests (No network or Remote Unit detected)
- Single-ended Wiremap
- Tone Generator
- Auto
Single-ended Wiremap
Service Detection
Detected Services - PoE / PoE+ (802.3af/at. Not Cisco pre-standard)
- ISDN
- PBX
- Unknown
Optical
Supported SFPs
The following SFP types are supported. Use of other types of SFP is possible but
correct operation is not guaranteed.
SFP Type SX
Manufacturer Part # - Avago AFBR-5705PZ / Apac LM28-C3S-TI-N-DD
Speed - 1Gb/s
Fiber Type - Multimode
Wavelength - 850nm
Connector Type - LC Duplex
SFP Type LX
Manufacturer Part # - Avago AFCT-5705PZ / Apac LS38-C3S-TC-N-DD
Speed - 1Gb/s
Fiber Type - Singlemode
Wavelength - 1310nm
Connector Type - LC Duplex
SFP Type ZX
Manufacturer Part # - Apac LS48-C3U-TC-N-DD
Speed - 1Gb/s
Fiber Type - Singlemode
Wavelength - 1550nm
Connector Type - LC Duplex
(continued)
SignalTEK II 156810 Iss 2
User Guide Page 37
Ports (continued)
Optical
Setup
Speed - 1Gb/s
MAC - Factory set
Indication
Optical power indicated on home screen if supported by fitted SFP
Tests
Automatic mode selection depending on detection of Network / Remote Unit:
No-Link (No network or Remote Unit detected)
Link (Active network detected but no Remote Unit)
Link-Remote (Remote Unit detected through a network device)
Remote (Remote Unit detected but no network)
Active Remote (Active remote #1 - #12 detected)
Link Mode Tests (Active network detected but no Remote Unit)
- IPv4 Ping
- IPv6 Ping
- Traceroute v4
- Traceroute v6
- Netscan
- Hub Blink
- Auto
IPv4 Ping
IPv6 Ping
Traceroute v4
Traceroute v6
Netscan
Remote Mode Tests (Remote Unit detected but no network)
- Cable Performance
- Auto
Cable Performance
Link-Remote Mode Tests (Remote Unit detected through a network
device)
- VoIP Performance
- Web Performance
- Video Performance
- CCTV Performance
- IPv4 Ping
- IPv6 Ping
- Traceroute v4
- Traceroute v6
- Netscan
- Hub Blink
- Auto
VoIP Performance
Web Performance
Video Performance
CCTV Performance
IPv4 Ping
IPv6 Ping
Traceroute v4
Traceroute v6
Netscan
156810 Iss 2 SignalTEK II
Page 38 User Guide
Cable Tests
Wiremap
Setup
Cable Type – Cat3 UTP
- Cat3 STP
- Cat5 UTP
- Cat5 STP
- Cat5e UTP
- Cat5e STP
- Cat6 UTP
- Cat6 STP
- Cat7
- USOC
- ETH S1236
- ETH S1278
- ETH U1236
- ETH U1278
- IND. M12
- COAX RG59
Color Scheme - None
- 568A
- 568B
- USOC
- TERA
Crossover Allowed - Yes
- No
NVP - Fixed 72%
- Custom 59% - 89%
Termination Types supported and identified by icon
Active Remote - #1 - #12
Remote Unit
Single-ended Wiremap Tests
Faults - Open circuit by pin
- Short circuit by pin
Length of pair - Meters / Feet (Set in System Setup)
- Range 100m / 390ft
Double-ended WiremapTests
I/D - Active Remote # / Remote icon
Indications on Active Remote - Voltage Warning (>±10v on any pins)
- Pass/Fail
Indications on Remote Unit - See below
Faults - Open circuit by pin
- Short circuit by pin
- Crossed pairs
- Split pairs
- Bridged shorts
- Remote shorts
Length of pair - Meters / Feet (Set in System Setup)
- Range 100m / 390ft
Delay Skew - Per pair (ns)
(continued)
SignalTEK II 156810 Iss 2
User Guide Page 39
Cable Tests (continued)
Tone Generator
Setup
Tones - 3
Wire I/D - Tone applied to one of 8 pins relative to the other 7
- Tone applied across one of 4 pairs
Test
Audible tone detected using compatible tone probe
Cable Performance Test
Setup
IEEE802.3
Tick-box
Ticked
Fix Failure Threshold at 0
Fix Duration at 10 secs
Unticked
Allow editing of Threshold and Duration
Frame size
Fixed 1518 bytes
Frame Fill
Fixed
Duration
User-defined (hh:mm:ss up to 24 hours. Default 10 secs)
Failure Threshold
Number of frames (0 to 9999. Default 0)
Test
- Back-to back frames transmitted to Remote for specified duration.
- Remote loops frames back
- Received frames checked and counted
Results
Test conditions
Line Rate
10 Mb/s
100 Mb/s
1000 Mb/s
Duplex
Full
Half
Frame Size
Frame Fill
Overall result
Pass (100% frames transmitted, 100% frames received and Failure
threshold not exceeded)
Fail
Transmitted Frames
Count (0 to 1012)
Percentage (0 to 100% with colored bar indication - green if 100%, red if
<100%)
Result
Pass (100%)
Fail (<100%)
(continued)
156810 Iss 2 SignalTEK II
Page 40 User Guide
Cable Tests (continued)
Cable Performance Test
Results
Received Frames
Count (0 to 1012)
Percentage (0 to 100% with colored bar indication - green if 100%, red if
<100%)
Result
Pass (100%)
Fail (<100%)
Errored Frames
Count (0 to 1012)
Percentage (0 to 100% with colored bar indication. Green if below
threshold, red if > threshold)
Result
Pass (<threshold)
Fail (> threshold)
Link-Remote Performance Tests
VoIP Performance Test
Fixed Settings
Frame size
Fixed 218 bytes
Frame Fill
Random
Setup
Number of Simultaneous Calls
User-defined. (Range 1 to 10,000 . Default 100)
Equivalent Information Rate calculated and displayed
Duration
User-defined (hh:mm:ss upto 24 hours. Default 10 secs)
Failure Threshold
Number of frames (0 to 99. Default 0)
Test
- Frames transmitted to Remote at calculated Frame Rate for specified
duration
- Frames looped back by Remote
- Received frames checked and counted
(continued)
SignalTEK II 156810 Iss 2
User Guide Page 41
Link-Remote Performance Tests (continued)
VoIP Performance Test
Results
Test conditions
Line Rate
10 Mb/s
100 Mb/s
1000 Mb/s
Information Rate Mb/s
Duplex
Full
Half
Frame Size
Frame Fill
Overall result
Pass (100% frames transmitted and Failure threshold not exceeded)
Fail
Transmitted Frames
Count (0 to 1012)
Percentage (0 to 100% with colored bar indication - Green if 100%, red if
<100%)
Result
Pass (100%)
Fail (<100%)
Received Frames
Count (0 to 1012)
Percentage (0 to 100%)
Errored Frames
Count (0 to 1012)
Percentage (0 to 100% with colored bar indication -, Green if 100%, red if
<100%)
Result
Pass (100%)
Fail (>100%))
Web Performance Test
Fixed Settings
Frame size
Fixed 1518 bytes
Frame Fill
Random
Setup
Number of Simultaneous Sessions
User-defined. (Range 1 to 500. Default 10)
Equivalent Information Rate calculated and displayed
IR = 1.8 x No of sessions (Mb/s)
Equivalent Frame Rate calculated but not displayed
FR = IR / 1518 / 8 (fps)
Duration
User-defined (hh:mm:ss upto 24 hours. Default 10 secs)
Failure Threshold
Number of frames (0 to 99. Default 0)
(continued)
156810 Iss 2 SignalTEK II
Page 42 User Guide
Link-Remote Performance Tests (continued)
Web Performance Test
Test
See VoIP Performance Test
Results
See VoIP Performance Test
Video Performance Test
Fixed Settings
Frame size
Fixed 1518 bytes
Frame Fill
Random
Setup
Definition
SD
HD
Number of Simultaneous Video Streams
User-defined. (Range 1 to 70. Default 1)
Equivalent Information Rate calculated and displayed
Duration
User-defined (hh:mm:ss upto 24 hours. Default 10 secs)
Failure Threshold
Number of frames (0 to 99. Default 0)
Test
See VoIP Performance Test
Results
See VoIP Performance Test
CCTV Performance Test
Fixed Settings
Frame size
Fixed 1518 bytes
Frame Fill
Random
Setup
Resolution
VGA
720p
1080p
3MP
5MP
CODEC
H.264
MJPEG
(continued)
SignalTEK II 156810 Iss 2
User Guide Page 43
Link-Remote Performance Tests (continued)
CCTV Performance Test
Setup
Number of Cameras
User-defined. (Range 1 to 500. Default 1)
Equivalent Information Rate calculated and displayed
Duration
User-defined (0 to 99 secs. Default 10 secs)
Failure Threshold
Number of frames (0 to 99. Default 0)
Test
See VoIP Performance Test
Results
See VoIP Performance Test
Network Setup
IPv4
Setup
Addressing - DHCP
- Static
Numerical - Address
- Netmask
- Gateway
- DNS1
- DNS2
IPv6
Setup
Addressing - Stateful (DHCPv6)
- Stateless
- Static
Numerical - 128bit HEX IP address
Network Prefix - 64 bit
- 128 bit
Network Tests
Pingv4
Setup
Target - Numerical address
- URL (Store up to 10)
Count - 1 to 999999
Pause - 1 to 5 Sec
Length - 8 to 1000 bytes.
Results
Info - READY
- IN PROGRESS
- PASSED
- NO RESPONSE
- UNKNOWN HOST
Tx Count - 1 to 999999
Rx Count - 1 to 999999
Delay(ms) - Minimum
156810 Iss 2 SignalTEK II
Page 44 User Guide
- Average
- Maximum
Pingv6
Setup
Target - IPv6 address
- URL (Store up to 10)
Count - 1 to 999999
Pause - 1 to 5 Sec
Length - 8 to 1000 bytes.
Results
Info - READY
- IN PROGRESS
- PASSED
- NO RESPONSE
- UNKNOWN HOST
Tx Count - 1 to 999999
Rx Count - 1 to 999999
Delay(ms) - Minimum
- Average
- Maximum
Traceroutev4
Setup
Target - Numerical address
- URL (Store up to 10)
Max Hops - 1 to 30
Timeout - 2 to 30 sec
Type - ICMP
- UDP
(continued)
SignalTEK II 156810 Iss 2
User Guide Page 45
Network Tests (continued)
Traceroutev4
Results
Info - READY
- IN PROGRESS
- PASSED
- NO RESPONSE
- UNKNOWN HOST
Hop - Numerical address
Delay(ms) - t1
- t2
- t3
Traceroutev6
Setup
Target - Numerical address
- URL (Store up to 10)
Max Hops - 1 to 30
Timeout - 2 to 30 sec
Type - UDP
Results
Info - READY
- IN PROGRESS
- PASSED
- NO RESPONSE
- UNKNOWN HOST
Hop - Numerical address
Delay(ms) - t1
- t2
- t3
Netscan
Setup
Address Type - Local
- Custom
IPv4 address
Scan Range - 0 (class C /24)
- 1 (class C /20)
- 2 (class B /16)
Results
- Total of IPv4 hosts
- Total of IPv6 hosts
Blink
Test
Sequence - Off/10/Off/100/Off/1000 Mb/s (RJ-45)
- Off/On (Optical)
156810 Iss 2 SignalTEK II
Page 46 User Guide
Storage
Configurations
Internal storage
Number of configurations - 2 (Current & Factory settings)
Results
Internal storage
Max Number of Jobs (Projects) - 50
Max Number of result sets per Job - 50
Max total number of result sets - Up to 2500 depending on tests performed.
Results stored
Where available
- Wiremap
- Cable Performance
- VoIP Performance
- Web Performance
- Video Performance
- Netscan
- PoE Load
- info: listening, assigned, DHCP failed
- DHCP or Static
- IPv4 Address
- IPv4 Netmask
- IPv4 Gateway
- IPv4 DNS1
- IPv4 DNS2
- info: listening, assigned, DHCP failed
- Stateful (DHCPv6) or Stateless or Static
- IPv6 Address
- IPv6 Network Prefix, 64 bit or 128 bit
- IPv6 Link Address
- IPv6 DNS
(continued)
SignalTEK II 156810 Iss 2
User Guide Page 47
Storage (continued)
Export
Port - USB
Format - .xml
PC Viewer - Any IE-compatible browser
System
Setup
Owner
Details - Name
- Company
- Address
- Phone
Preferences
Language - English
- French
- German
- Spanish
- Italian
- Portuguese
- Chinese
Auto off - Disabled
- 3 mins
- 10 mins
- 30 mins
Backlight - Always On
- Dims to 50% after 3 mins
Length Units - Meters
- Feet
Date Format - dd/mm/yy
- mm/dd/yy
Time Format - 12 hour
- 24 hour
Software update
Update - Via USB
General
Date/Time
Internal Clock
Used for -Time stamping results
Autonomy - Up to 1 day with battery removed
(continued)
156810 Iss 2 SignalTEK II
Page 48 User Guide
General (continued)
Power
Battery
Supported Types - Standard Power module (4 x AA NiMH cells)
- Optional Alkaline battery pack with 4 AA cells
Autonomy - Up to5 hours (power module only
Recharge time - 3 hours (Power module only)
Battery level Indication - Full
- 2/3
- 1/3
- Empty
Physical
Dimensions
Length - 175mm
Width - 80mm
Depth - 40mm
Weight
Unit - 0.22kg
Batteries - 0.18kg
Environmental
Temperature
Operating - 0°C to 40°C
Storage - – 20°C to 70°C
Relative Humidity
Min - 5%
Max - 90% non-condensing
Approvals
EMC
EN 55022:2006 / A1:2007
EN55024:1998 / A1:2001 / A2:2003
Safety
IEC 60950-1:2005+A1:2009/EN 60950-1:2006+A1:2010
Remote Unit
Connectors
Test Ports
RJ45
Used for - Wiremap Test (Done by a companion Near-End Unit)
- Performance Tests (Done by a companion Near-End Unit)
Connector type - Samtec Lifejack with user-replaceable contacts
Insertion Cycles - 500 min
Location - Left hand side
Optical
Used for - Performance Tests (Done by a companion Near-End Unit)
Connector type - SFP socket
Location - Left hand side
System Ports
USB
Used for - Software Update
Class - Host
Connector type - A
USB type - 1.1
Location - Top
(continued)
SignalTEK II 156810 Iss 2
User Guide Page 49
Connectors (continued)
System Ports
Power
Used for - Battery charging
- Mains powering via adaptor
Connector type - 2.5mm pin power jack
Polarity - Centre pin positive
Voltage - 12v
Current - 2 amp
Location - Bottom of power module
(Not present in alkaline battery pack)
Controls
ON/OFF
Push button
Used for - Power ON/OFF
Location - Front
Autotest
Push button
Used for - Instructing connected Near-End Unit to start its Autotest
Location - Front
Displays
LEDs
Charger LED
Used for - Indication of charging status…
Green - Battery is charging
Off (with charger connected) - Battery is charging
Green flashing - Battery is not charging
Color - Green
Location - Bottom of Power module
Power LED
Used for - Indication of battery and power status…
Green - Power ON. Buttery level sufficient for use
Red - Power ON. Battery charge level low but still operational.
Off - Power OFF
Color - Red / Green
Location - Front
RJ45 Link LED
Use - ON indicates link UP
Location - Adjacent to RJ45 socket, nearest top of tester
Color – Green
RJ45 Activity LED
Use - Flashing indicates link activity
Location - Adjacent to RJ45 socket, nearest bottom of tester
Color - Green
(continued)
156810 Iss 2 SignalTEK II
Page 50 User Guide
Displays (continued)
Optical Link LED
Use - ON indicates Optical link UP
Location - Adjacent to SFP socket, nearest front of tester
Color - Green
Optical Activity LED
Use - Flashing indicates Optical link activity
Location - Adjacent to SFP socket, nearest back of tester
Color - Green
Link LED
Use - ON indicates connection to Near-End Unit
Location - Front
Color - Green
Status LED
Use - Flashing green indicates test in progress with Near-End Unit
- Green indicates test completed and passed
- Red indicates test completed and failed
Location - Front
Color - Red/Green
10M LED
Use - ON indicates 10Mb/s line rate
Location - Front
Color - Green
100M LED
Use - ON indicates 100Mb/s line rate
Location - Front
Color - Green
1000M LED
Use - ON indicates 1000Mb/s line rate
Location - Front
Color - Green
Ports
RJ45
Fixed Setup
Speed - Auto negotiated
Duplex –- Auto negotiated
MAC - Factory set
Functions
Controlled automatically by connected Near-End Unit
Performance test with connected Near-End Unit
- Regenerate all traffic addressed to this unit’s MAC address
- Swap Source/Destination MAC
Wiremap test with connected Near-End Unit
- Function identical to Active Remote.
(continued)
SignalTEK II 156810 Iss 2
User Guide Page 51
Ports (continued)
Optical
Supported SFPs
The following SFP types are supported. Use of other types of SFP is possible but
correct operation is not guaranteed.
SFP Type SX
Manufacturer Part # - Avago AFBR-5705PZ / Apac LM28-C3S-TI-N-DD
Speed – 1Gb/s
Fiber Type - Multimode
Wavelength - 850nm
Connector Type - LC Duplex
SFP Type LX
Manufacturer Part # - Avago AFCT-5705PZ / Apac LS38-C3S-TC-N-DD
Speed - 1Gb/s
Fiber Type - Singlemode
Wavelength - 1310nm
Connector Type - LC Duplex
SFP Type ZX
Manufacturer Part # - Apac LS48-C3U-TC-N-DD
Speed - 1Gb/s
Fiber Type - Singlemode
Wavelength - 1550nm
Connector Type - LC Duplex
Fixed Setup
Speed - 1Gb/s
MAC - Factory set
Function
Performance test with connected Near-End Unit
- Regenerate all traffic addressed to this unit’s MAC address
- Swap Source/Destination MAC
Software update
Via USB stick
General
Power
Battery
Supported Types - Standard Power module (4 x AA NiMH cells)
- Optional Alkaline battery pack with 4 AA cells
Autonomy - Up to 5 hours (power module only)
Recharge time - 3 hours (Power module only)
(continued)
156810 Iss 2 SignalTEK II
Page 52 User Guide
General (continued)
Physical
Dimensions
Length - 175mm
Width - 80mm
Depth - 40mm
Weight
Unit - 0.22kg
Batteries - 0.18kg
Environmental
Temperature
Operating - 0°C to 40°C
Storage -20°C to 70°C
Relative Humidity
Min 5%
Max 90% non-condensing
Approvals
EMC
EN 55022:2006 / A1:2007
EN55024:1998 / A1:2001 / A2:2003
Safety
IEC 60950-1:2005+A1:2009/EN 60950-1:2006+A1:2010
SignalTEK II 156810 Iss 2
User Guide Page 53
Term
Description
10M-HD
10 Mb/s Half Duplex
10M-FD
10 Mb/s Full Duplex
100M-HD
100 Mb/s Half Duplex
100M-FD
100 Mb/s Full Duplex
1000M-HD
1000 Mb/s Half Duplex
1000M-FD
1000 Mb/s Full Duplex
Broadcast
Communication from single sender to all connected receivers
CCTV
Closed Circuit Television
CRC
Cyclic Redundancy Check
DHCP
Dynamic Host Configuration Protocol
DNS
Domain Name System
ICMP
Internet Control Message Protocol
IP
Internet Protocol
IPv4
Internet Protocol version 4
Static
IP address assigned manually by the operator
Dynamic
IP address assigned automatically using DHCP
IPv6
Internet Protocol version 6
Stateful
IP address assigned automatically using DHCPv6
Stateless
IP address assigned automatically using ICMPv6
Static
IP address assigned manually by the operator
LAN
Local Area Network
MAC
Media Access Control
MDI
Medium Dependent Interface
MDIX
Medium Dependent Interface Crossover
Multicast
Communication between single sender and multiple receivers
NVP
Nominal Velocity of Propagation of signals in a cable, expressed as a
percentage of the speed of light in a vacuum. Can be determined using
cable manufacturers’ data or experimentally using a known cable length.
PoE
Power over Ethernet
PoE+
Power over Ethernet which exceeds the IEEE 802.3af limit of 12.95 watts
QinQ
Ethernet frame format that allows multiple VLAN headers to be inserted
into a single frame
RJ45
Registered Jack standard for a modular connector using 8 conductors
Rx
Receive
SFP
Small Form-factor Pluggable
STP
Shielded Twisted Pair
Tx
Transmit
UDP
User Datagram Protocol
Unicast
Communication between single sender and single receiver
Glossary, abbreviations and acronyms
156810 Iss 2 SignalTEK II
Page 54 User Guide
Term
Description
URL
Uniform Resource Locator
USB
Universal Serial Bus
UTP
Unshielded Twisted Pair
VoIP
Voice over Internet Protocol
XML
Extensible Markup Language
XSLT
Extensible Stylesheet Language Transformations
Glossary, abbreviations and acronyms (continued)
SignalTEK II 156810 Iss 2
User Guide Page 55
A subsidiary of IDEAL INDUSTRIES INC.
Loading...
