Ideal VSC1303 User Manual
Product Manual
Qty
Description
1
Occ/Vac Sensor VSC1303
1
Trim Ring
1
Instruction card
VSC1303 Flush Ceiling Mount Occupancy/Vacancy Sensor
PRODUCT DESCRIPTION
The Audacy VSC1303 Occupancy/Vacancy
Sensor is a battery powered device specially
designed to detect the presence or absence
of occupants and wirelessly transmit this
information to the Audacy Gateway. The
information provided by the sensor is used
to determine whether lights should remain
on or turned off to reduce energy
consumption. The product has a 25-year
battery life design and will not require AC or
DC line power, providing building owners
and occupants placement flexibility.
KEY FEATURES
FCC and IC approved
Flexible ceiling mounting options
25+ year battery life
Small form factor with internal antenna
RoHS compliant
Factory configurable for custom
applications
Audacy®, Smart Connector® and Smart Switch® are registered trademarks of IDEAL INDUSTRIES.
All other trademarks are the property of their respective owners.
PRODUCT CONTENTS
The following items are included inside the
package:
NDXXXX-X 12/2018 Users Manual – VSC1303 Occupancy/Vacancy
Sensor Page 1
www.idealindustries.com
Product Manual
Item
Description
Radio
915 MHz Internal Antenna
Regulatory Approvals
FCC Part 15 and Industry Canada
Contains FCC ID: 2AAMXVSC1303
Contains IC: 11250A-VSC1303
Transmit Range
100 ft. indoors to an Audacy Gateway or Smart Connector in a typical
commercial office building
Power
25+ year Li battery, non-replaceable
Operating
Temperature
10°C to 32°C
Storage Temperature
-20°C to 50°C
Installation
Environment
Indoor use only
Mounting
Flush mounted (See mechanical drawing for dimensions)
Color
White
Dimensions
3”dia x 3”
Weight
6.1 oz
Warranty
1 year
VSC1303 Flush Ceiling Mount Occupancy/Vacancy Sensor
SET-UP AND OPERATION
1. Cut 2.5 in-dia hole in ceiling (drywall or ceiling tiles)
2. Insert the base of the Occ/Vac Sensor 1303 through the hole until the flange is flat
against the ceiling.
3. Screw mounting screws until the wing locking tabs are tight against the back side of the
ceiling.

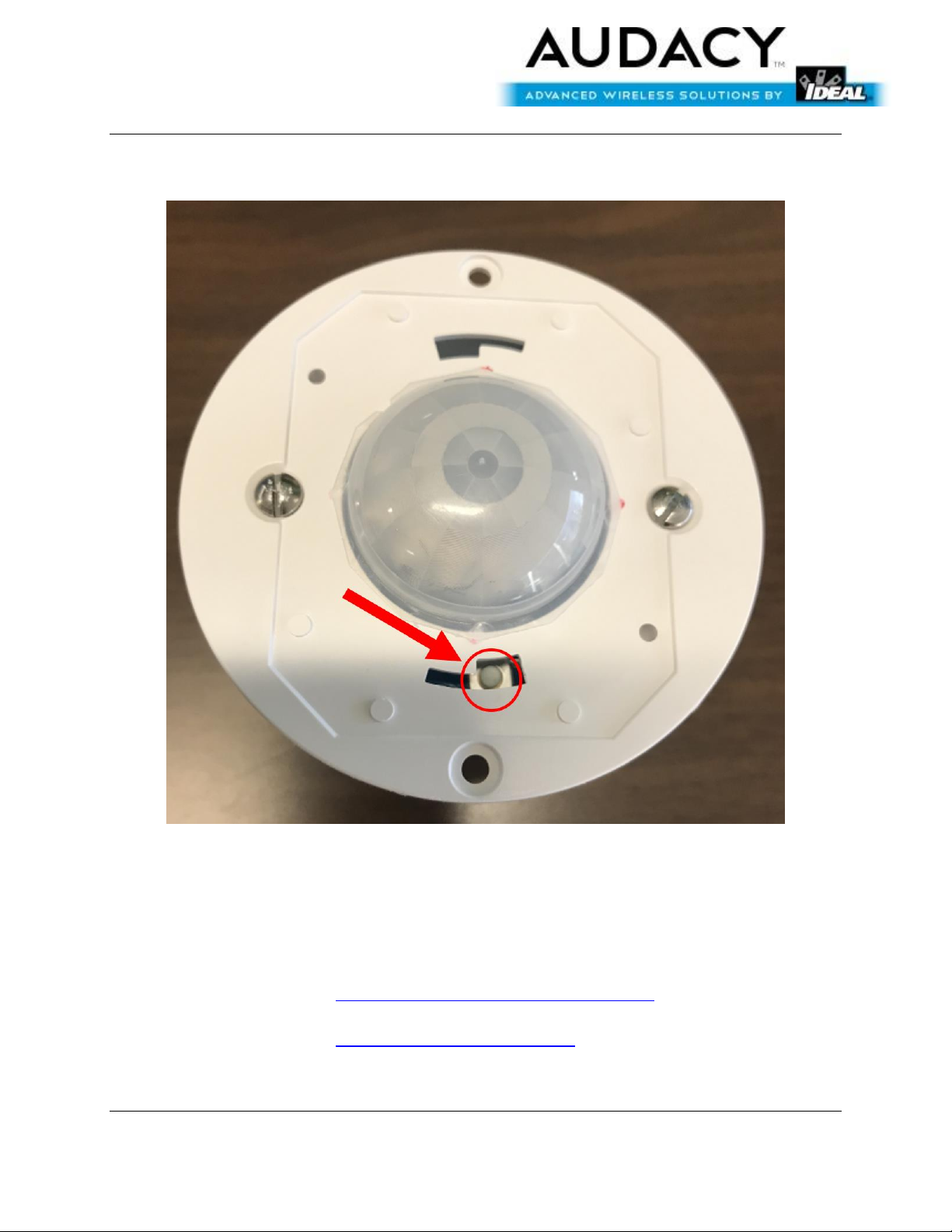

4. Press the button located on the Occ/Vac Sensor VSC1300 to activate device.
5. Install trim ring to cover screw holes.
SPECIFICATIONS
NDXXXX-X 12/2018 Users Manual – VSC1303 Occupancy/Vacancy
Sensor Page 2
www.idealindustries.com
Product Manual
VSC1303 Flush Ceiling Mount Occupancy/Vacancy Sensor
MECHANICAL (SIDE VIEW)
MECHANICAL (TOP VIEW)
*Dimensions in inches
*Dimensions in inches
NDXXXX-X 12/2018 Users Manual – VSC1303 Occupancy/Vacancy
