Ideal LCE20A1000 User Manual

Product Manual

Qty

Description

1

LCE20A-1000 20A Luminaire
Controller

LCE20A-1000 – 20Amp Luminaire Controller 0-10V Dimming

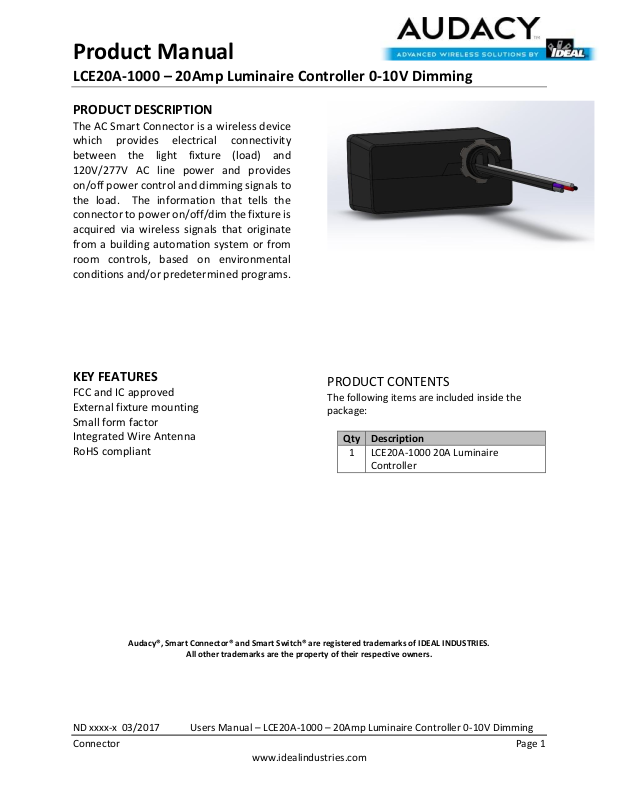

PRODUCT DESCRIPTION

The AC Smart Connector is a wireless device
which provides electrical connectivity
between the light fixture (load) and
120V/277V AC line power and provides
on/off power control and dimming signals to
the load. The information that tells the
connector to power on/off/dim the fixture is
acquired via wireless signals that originate
from a building automation system or from
room controls, based on environmental
conditions and/or predetermined programs.

KEY FEATURES

FCC and IC approved
External fixture mounting
Small form factor
Integrated Wire Antenna
RoHS compliant

PRODUCT CONTENTS

The following items are included inside the
package:

ND xxxx-x 03/2017 Users Manual – LCE20A-1000 – 20Amp Luminaire Controller 0-10V Dimming
Connector Page 1

www.idealindustries.com

Audacy®, Smart Connector® and Smart Switch® are registered trademarks of IDEAL INDUSTRIES.

All other trademarks are the property of their respective owners.

Product Manual

LCE20A-1000 – 20Amp Luminaire Controller 0-10V Dimming

IDEAL Model LCE20A-1000 20Amp Luminaire Controller Installation

Instructions

WARNING: This is a current rated device. Use in applications involving

amperage beyond its rating can be dangerous and cause electrical fires.

Wiring must comply with all applicable electrical codes.
Turn off power before removing or installing connector.

TERMINOLOGY

LINE(Black): Smart Connector power feed to be connected to premise wiring
LOAD(Red): Power output from Smart Connector to ballast AC power input
Neutral(White): Incoming Neutral from premise wiring and outgoing ballast
neutral.
DIM (Purple/Grey): 0-10 VDC dimming control output from Smart Connector to
ballast dimming input

CONNECTING THE WIRES

Input Power
The smart connector LINE(Black) and NEUTRAL(White) wires are 18 AWG solid copper
conductors.

1. Strip wires to 1/2”.

2. Connect Smart Connector Line Input to premise line power feed with appropriate sized
wirenut or push-in connector.

3. Connect Smart Connector Neutral Input to premise neutral feed with appropriately sized
wirenut or push-in connector..

4. For feed-through (i.e., “daisy-chain”) installations, connect the LINE hot feed-through
conductor into the wirenut in step 2. Also, connect the NEUTRAL feet-through conductor
connected without re-installing the wires. into the wirenut in step 3.

ND xxxx-x 03/2017 Users Manual – LCE20A-1000 – 20Amp Luminaire Controller 0-10V Dimming
Connector Page 2

www.idealindustries.com

Product Manual

LCE20A-1000 – 20Amp Luminaire Controller 0-10V Dimming

LOAD
The LOAD(red) and Neutral(White) wire are 18 AWG solid copper conductors.

1. Strip wires to 1/2”.

2. Connect Smart Connector LOAD wire to the ballast hot line with appropriate sized wirenut or
push-in connector if necessary.

3. Connect Smart Connector NEUTRAL Output to the ballast neutral with appropriately sized
wirenut or push-in connector if necessary.

4. For feed-through (i.e., “daisy-chain”) installations, connect the LOAD hot feed-through
conductor into the wirenut in step 2. Also, connect the NEUTRAL Output feed-through
conductor into the wirenut in step 3.

DIM Connector
The DIM wires are18 AWG solid copper conductors.

1. Strip wires to 1/2”.

2. Connect positive/(+)/purple DIM wire from Smart Connector to positive/(+)/purple wire from
dimming ballast with appropriate sized wirenut or push-in connector if necessary.

3. Connect negative/(-)/grey DIM wire from Smart Connector to negative/(-)/grey wire from
dimming ballast with appropriate sized wirenut or push-in connector if necessary.

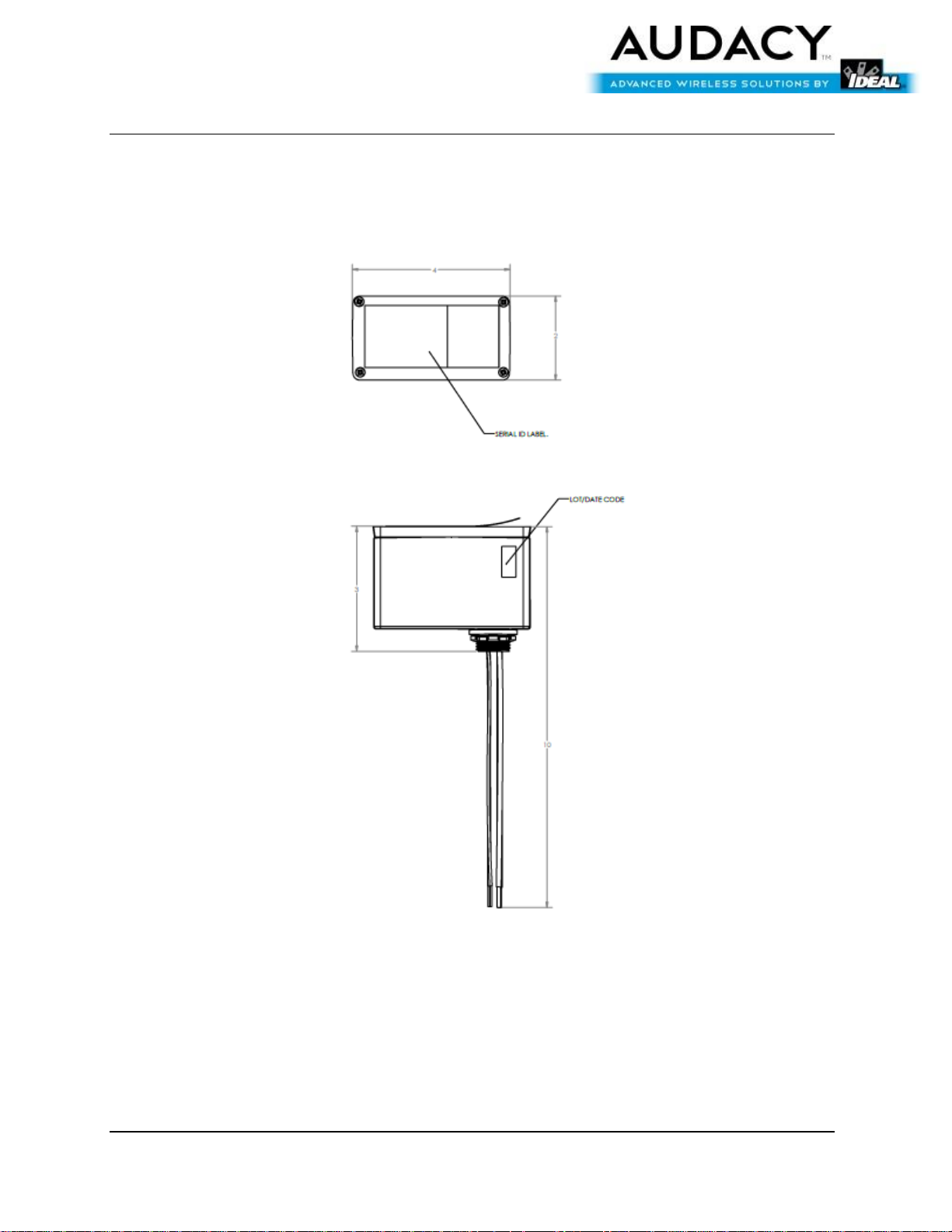

Figure 1 – Typical Installation

ND xxxx-x 03/2017 Users Manual – LCE20A-1000 – 20Amp Luminaire Controller 0-10V Dimming
Connector Page 3
