BASSO36t
Dual-18˝ Band-Pass Compact Multipurpose Subwoofer
BASSO Series models allow the user to choose the most adequate subwoofer for
any given situation from within a family of products with common nish, design
solutions and performance philosophy as well as shared rigging and transport
accessories.
BASSO36t is compact Dual 18” multipurpose high output subwoofer for a very
wide range of congurations of both professional portable sound reinforcement,
touring and premium installations.
Like All IDea Loudspeakers BASSO36t is built with the necessary structural
strength and nish quality required for durable touring use. Its high quality 18 mm
birch plywood enclosure covered with IDEA Aquaforce custom paint solution and a
2 mm steel front grill will keep your equipment safe and brand new after hours of
heavy touring.
BASSO36t features four integrated handles and two 35 mm pole mount
sockets for vertical and horizontal set-ups. Optional wheels kit is also available.
BASSO36t is compatible with optional BASSO rigging frames for ground-stacked
congurations (see instructions for ground-stacked set-ups with BASSO rigging
frames).

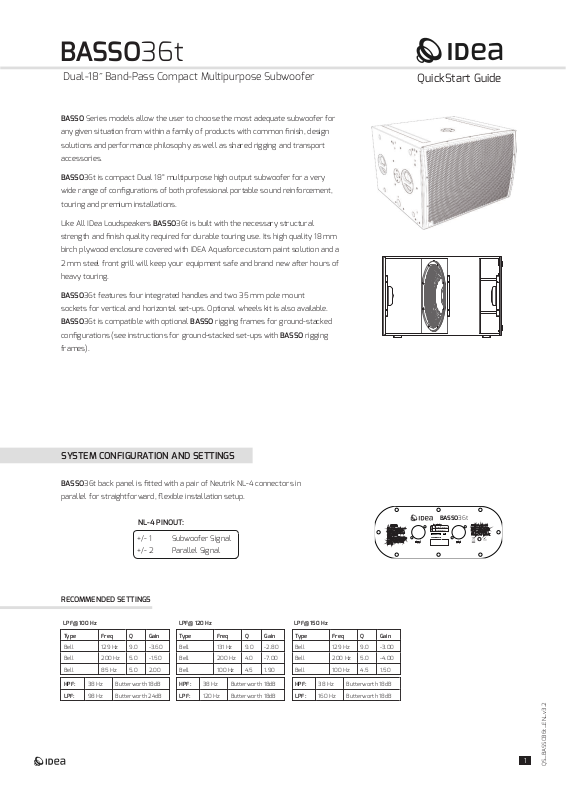

QuickStart Guide
SYSTEM CONFIGURATION AND SETTINGS
BASSO36t back panel is tted with a pair of Neutrik NL-4 connectors in
parallel for straightforward, exible installation setup.
NL-4 PINOUT:
+/- 1 Subwoofer Signal
+/- 2 Parallel Signal
RECOMMENDED SETTINGS
LPF@ 100 Hz
Typ e Freq Q Gain
Bell 129 Hz 9.0 -3.60
Bell 200 Hz 5.0 -1.50
Bell 85 Hz 5.0 2.00
HPF: 38 Hz Butterworth 18dB
LPF: 98 Hz Butterworth 24dB
LPF@ 120 Hz
Typ e Freq Q Gain
Bell 131 Hz 9.0 -2.80
Bell 200 Hz 4.0 -7.00
Bell 100 Hz 4.5 1.90
HPF: 38 Hz Butterworth 18dB
LPF: 120 Hz Butterworth 18dB
LPF@ 150 Hz
Typ e Freq Q Gain
Bell 129 Hz 9.0 -3.00
Bell 200 Hz 5.0 -4.00
Bell 100 Hz 4.5 1.50
HPF: 38 Hz Butterworth 18dB
LPF: 160 Hz Butterworth 18dB
The installation of this product
should be implemented by
qualified professionals
following safe practices and
local regulations.
Refer to the owner's manuals
for rigging instructions, system
components and suspension
hardware intended for this
product.
BASSO36t
NL-4 PINOUT
Subwoofer Signal
Parallel Signal
4 Ω
2500W RMS
89 kg / 196 lbs
INPUT LINK
Designed, engineered
and manufactured by
IDEA in Cedeira (Galicia)
Made in Spain
PRODUCT OF EUROPE
1
QS_BASSO36t_EN_v3.2
TECHNICAL DATA
Enclosure design Symmetrical Air mass Loading 5th order Band-Pass
Transducers 2 x 18˝
RMS Power Handling * 2 500 W
Nominal Impedance 4 Ohm
(Continuous/Peak) 135/141 dB SPL
SPL
Frequency Range (-10 dB) 45 - 120/150/180/200 Hz
Frequency Range (-3 dB) 54 - 100/120/145/160 Hz
Dimensions (WxHxD) 900 x 600 x 850 mm
(35,4 x 23,6 x 33,5 inch)
Weight 89 kg (196,2 lbs)
Connectors
+/-1
+/-2
Cabinet Construction 18 mm Plywood
Grille 2 mm perforated weatherised steel with protective foam
Finish Durable IDEA proprietary Aquaforce paint coating process
Handles 4 integrated handles
Feet/Skates 4 skates (H/V)
Installation Two 36 mm Pole mount sockets (H/V)
Accessories Riggin Frame (RF-900)
2 x Neutrik speakON® NL-4 in Parallel
Input
Link
Riggin Frame adaptor (RF-9060)
Riggin System (RS-BASSO-L)
35 mm Pole (K&M-21338)
*
IEC ltered pink noise with a 6dB crest factor, 2 hours.
**
Frequency range values for recommended factory presets.
TECHNICAL DRAWINGS
600 mm
950 mm 900 mm
BASSO36t
NL-4 PINOUT
Designed, engineered
and manufactured by
Subwoofer Signal
The installation of this product
IDEA in Cedeira (Galicia)
should be implemented by
Parallel Signal
qualified professionals
Made in Spain
following safe practices and
4 Ω
2500W RMS
local regulations.
PRODUCT OF EUROPE
Refer to the owner's manuals
89 kg / 196 lbs
for rigging instructions, system
components and suspension
hardware intended for this
INPUT LINK
product.
2
QS_BASSO36t_EN_v3.2
WARNINGS AND SAFETY GUIDELINES
• Read this document thoroughly, follow all safety warnings and keep it for future reference.
• The exclamation mark inside a triangle indicates that whatever repairing and component replacement operations must be done by quali-
!
ed and authorized personnel.
• No user serviceable parts inside.
• Only use accessories tested and approved by IDEA and supplied by the manufacturer or an authorized dealer.
• Installations, rigging and suspension operations must be done by qualied personnel.
• Only use accessories specied by IDEA, complying with maximum loads specications and following local safety regulations.
• Read the specications and connection instructions before proceeding to connect the system and use only cabling supplied or recom-
mended by IDEA. Connection of the system should be done by qualied personnel.
• Professional sound reinforcement systems can deliver high SPL levels that may result in hearing damage. Do not stand close to the
system while in use.
• Loudspeaker produce magnetic eld even while they are not in use or even when disconnected. Do not place or expose loudspeakers to
any device that is sensitive to magnetic elds such as television monitors or data storage magnetic material.
• Disconnect the equipment during lightning storms and when it is not to be used for a long time.
• Do not expose this device to rain or moisture.
• Do not place any objects containing liquids, such as bottles or glasses, on the top of the unit. Do not splash liquids on the unit.
• Clean with a wet cloth. Do not use solvent-based cleaners.
• Regularly check the loudspeaker housings and accessories for visible signs of wear and tear, and replace them when necessary.
• Refer all servicing to qualied service personnel.
• This symbol on the product indicates that this product should not be treated as household waste. Follow local regulation for recycling of
electronic devices.
• IDEA declines any responsibility from misuse that may result in malfunction or damage of the equipment.
WARRANTY
• All IDEA products are guaranteed against any manufacturing defect for a period of 5 years from date of purchase for acoustical parts
and 2 years from date of purchase for electronic devices.
• The guarantee excludes damage from incorrect use of the product.
• Any guarantee repair, replacement and servicing must be exclusively done by the factory or any of authorized service centres.
• Do not open or intend to repair the product; otherwise servicing and replacement will not be applicable for guarantee repair.
• Return the damaged unit, at shipper’s risk and freight prepaid, to the nearest service centre with a copy of the purchase invoice in order
to claim guarantee service or replacement.
DECLARATION OF CONFORMITY
I MAS D Electroacústica SL
Constitución 5 – 9, 46009 VALENCIA (Spain)
Declares that: BASSO36t
Complies with the following EU Directives:
• RoHS (2002/95/CE) Restriction of Hazardous Substances
• LVD (2006/95/CE) Low Voltage Directive
• EMC (2004/108/CE) Electro-Magnetic Compatibility
• WEEE (2002/96/CE) Waste of Electric and Electronic Equipment
• EN 60065: 2002 Audio, video and similar electronic apparatus. Safety requirements.
• EN 55103-1: 1996 Electromagnetic compatibility: Emission
• EN 55103-2: 1996 Electromagnetic compatibility: Immunity
3
QS_BASSO36t_EN_v3.2
QS_BASSO36t_EN_v3.2
www.ideaproaudio.com
or refer to the following web address: www.ideaproaudio.com/basso36t
IDEA is always in pursuit of better performance, greater reliability and design features.
Technical specications and minor nish details may vary without notice in order to improve our products.
For further information scan the QR Code
©2017 - I MAS D Electroacústica SL
Av. Constitución 5-9 46009 VALENCIA
4
QS_BASSO36t_EN_v3.2
