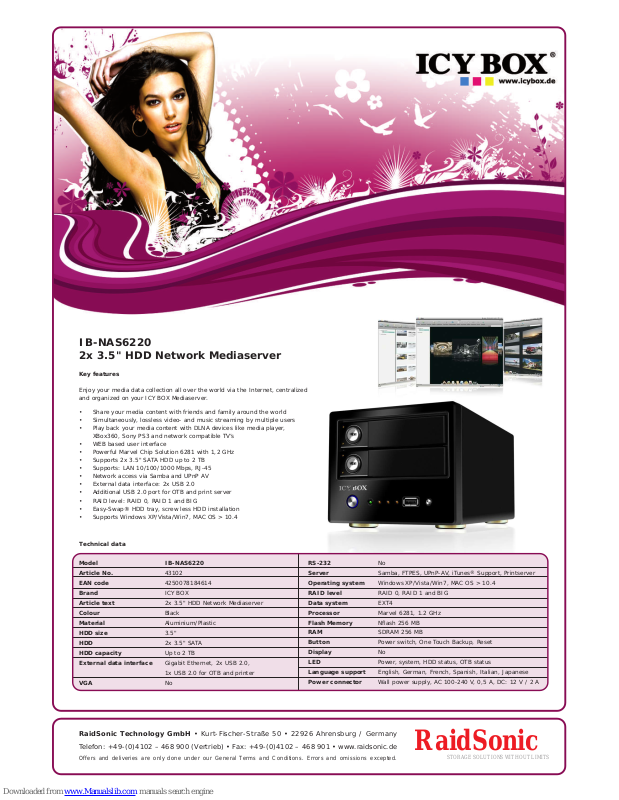

Icy Box IB-NAS6220 Specifications

RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany

Telefon: [phone] – 468 900 (Vertrieb) • Fax: [phone] – 468 901 • www.raidsonic.de

Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.

RaidSonic

STORAGE SOLUTIONS WITHOUT LIMITS

IB-NAS6220
2x 3.5" HDD Network Mediaserver

Technical data

Model IB-NAS6220
Article No. 43102
EAN code 4250078184614
Brand ICY BOX
Article text 2x 3.5" HDD Network Mediaserver
Colour Black
Material Aluminium/Plastic
HDD size 3.5"
HDD 2x 3.5" SATA
HDD capacity Up to 2 TB
External data interface Gigabit Ethernet, 2x USB 2.0,

1x USB 2.0 for OTB and printer

VGA No

RS-232 No
Server Samba, FTPES, UPnP-AV, iTunes® Support, Printserver
Operating system Windows XP/Vista/Win7, MAC OS > 10.4
RAID level RAID 0, RAID 1 and BIG
Data system EXT4
Processor Marvel 6281, 1.2 GHz
Flash Memory Nflash 256 MB
RAM SDRAM 256 MB
Button Power switch, One Touch Backup, Reset
Display No
LED Power, system, HDD status, OTB status
Language support English, German, French, Spanish, Italian, Japanese
Power connector Wall power supply, AC 100-240 V, 0,5 A, DC: 12 V / 2 A

Key features

Enjoy your media data collection all over the world via the Internet, centralized
and organized on your ICY BOX Mediaserver.

• Share your media content with friends and family around the world

• Simultaneously, lossless video- and music streaming by multiple users

• Play back your media content with DLNA devices like media player,
XBox360, Sony PS3 and network compatible TV’s

• WEB based user interface

• Powerful Marvel Chip Solution 6281 with 1,2 GHz

• Supports 2x 3.5" SATA HDD up to 2 TB

• Supports: LAN 10/100/1000 Mbps, RJ-45

• Network access via Samba and UPnP AV

• External data interface: 2x USB 2.0

• Additional USB 2.0 port for OTB and print server

• RAID level: RAID 0, RAID 1 and BIG

• Easy-Swap® HDD tray, screw less HDD installation

• Supports Windows XP/Vista/Win7, MAC OS > 10.4

RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: [phone] – 468 900 (Vertrieb) • Fax: [phone] – 468 901 • www.raidsonic.de

Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.

RaidSonic

STORAGE SOLUTIONS WITHOUT LIMITS

Rear viewFront view

1. Power button 7. OTB button

2. Power LED 8. Removable HDD tray

3. HDD 1 status LED 9. Lockable by key

4. HDD 2 status LED 10. HDD operation LED

5. Backup status LED 11. HDD access LED

6. Front USB interface
(OTB and printer port)

1. 40 mm cooling fan

2. Power supply in

3. USB interface 1 (external drive port)

4. USB interface 2 (external drive port)

5. Gbit LAN interface

6. Reset button

Package content: 1x IB-NAS6220, 1x wall power supply, 1x LAN cable, 1x set of keys, 1x software CD, 1x quick installation guide (multilanguage)

1.

2.

3.

4.

6.5.

7.

8.

10.

11.

2.

3.

4.

6.5.

10.

11.

9. 1.
