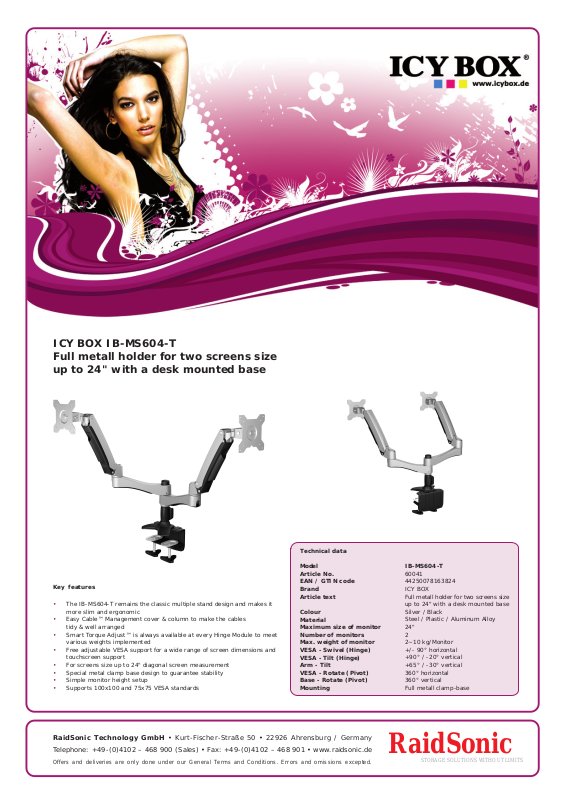

Page 1
ICY BOX IB-MS604-T
Full metall holder for two screens size
up to 24" with a desk mounted base
Key features
• The IB
• Easy Cable™ Management cover & column to make the cables
• Smart Torque Adjust™ is always available at every Hinge Module to meet
• Free adjustable VESA support for a wide range of screen dimensions and
• For screens size up to 24" diagonal screen measurement
• Special metal clamp base design to guarantee stability
• Simple monitor height setup
• Supports 100x100 and 75x75 VESA standards
-MS604-T remains the classic multiple stand design and makes it
more slim and ergonomic
tidy & well arranged
various weights implemented
touchscreen support
Technical data
Model
Article No.
EAN / GTIN code
Brand
Article text
Colour
Material
Maximum size of monitor
Number of monitors
Max. weight of monitor
VESA - Swivel (Hinge)
VESA - Tilt (Hinge)
Arm - Tilt
VESA - Rotate (Pivot)
Base - Rotate (Pivot)
Mounting
IB-MS604-T
60041
44250078163824
ICY BO
X
Full metall holder for two screens size
up to 24" with a desk mounted base
Silver / Black
Steel / Plastic / Aluminum Alloy
24"
2
2~10 kg/Monitor
+/- 90° horizontal
+90° / -20° vertical
+65° / -30° vertical
360° horizontal
360° vertical
Full metall clamp-base
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
T
elephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
Page 2
Measures and rotatibility
360°
360°
360°
Cable management Torque adjustment
Packing content: IB-MS604-T, allen wrench, set of screws, QIG
Logistical data
Packing unit: 1 pcs./carton Dimension/carton: 465x420x144 mm
Total weight: 7.0 kg/carton Dimension of packing box: 465x420x144 mm
Gross weight (incl. packing): 7.0 kg Dimension of article: 150x1150x543 mm
Net weight: 6.0 kg Country of origin: T
360°
65° ~ -30°
543 mm
max
aiwan
1150 mm
max
158 mm
246~375 mm
310 mm
8~50 mm
