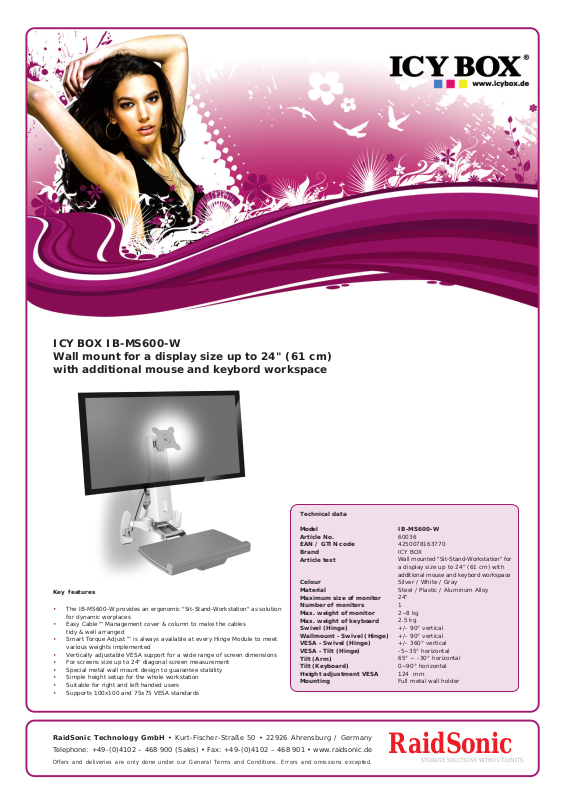

ICY BOX IB-MS600-W
Wall mount for a display size up to 24" (61 cm)
with additional mouse and keybord workspace
Technical data
Model
Article No.
EAN / GTIN code
Brand
Article text
Colour
Key features
• The IB
• Easy Cable™ Management cover & column to make the cables
• Smart Torque Adjust™ is always available at every Hinge Module to meet
• Vertically adjustable VESA support for a wide range of screen dimensions
• For screens size up to 24" diagonal screen measurement
• Special metal wall mount design to guarantee stability
• Simple height setup for the whole workstation
• Suitable for right and left handed users
• Supports 100x100 and 75x75 VESA standards
-MS600-W provides an ergonomic "Sit-Stand-Workstation" as solution
for dynamic worplaces
tidy & well arranged
various weights implemented
Material
Maximum size of monitor
Number of monitors
Max. weight of monitor
Max. weight of keyboard
Swivel (Hinge)
Wallmount - Swivel (Hinge)
VESA - Swivel (Hinge)
VESA - Tilt (Hinge)
Tilt (Arm)
Tilt (Keyboard)
Height adjustment VESA
Mounting
IB-MS600-W
60036
4250078163770
ICY BO
X
Wall mounted "Sit-Stand-W orkstation" for
a display size up to 24" (61 cm) with
additional mouse and keybord workspace
Silver / White / Gray
Steel / Plastic / Aluminum Alloy
24"
1
2~8 kg
2.5 kg
+/- 90° vertical
+/- 90° vertical
+/- 360° vertical
-5~35° horizontal
65° ~ -30° horizontal
0~90° horizontal
124 mm
Full metal wall holder
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
T
elephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
Page 2
Measures and rotatibility
360°
369~548 mm
-5°~35°
255 mm
+90°
Packing content: IB-MS600-W, allen wrench, set of screws, QIG
Logistical data
Packing unit: 1 pcs./carton Dimension/carton: 570x395x200 mm
Total weight: 9.8 kg/carton Dimension of packing box: 570x395x200 mm
Gross weight (incl. packing): 9.8 kg Dimension of article: 333x956x926 mm
Net weight: 9.26 kg Country of origin: T
-30°~45°
Hight adjustable
A mount
VES
aiwan
956 mm
max
360° rotatable
A mount
VES
926 mm
max
210 mm
