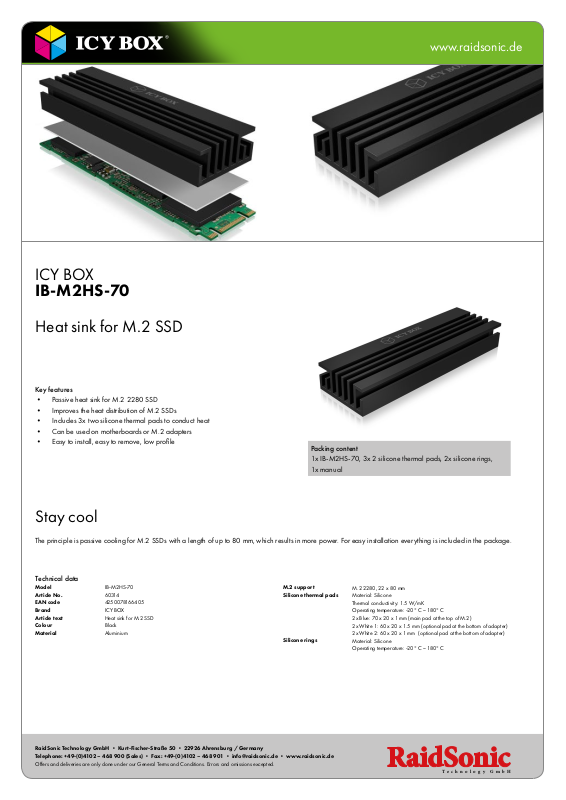

ICY BOX
IB-M2HS-70
Heat sink for M.2 SSD
Key features
• Passive heat sink for M.2 2280 SSD
• Improves the heat distribution of M.2 SSDs
• Includes 3x two silicone thermal pads to conduct heat
• Can be used on motherboards or M.2 adapters
• Easy to install, easy to remove, low profile
Packing content
1x IB-M2HS-70, 3x 2 silicone thermal pads, 2x silicone rings,
1x manual
Stay cool
The principle is passive cooling for M.2 SSDs with a length of up to 80 mm, which results in more power. For easy installation everything is included in the package.
Technical data
Model
Article No.
EAN code
Brand
Article text
Colour
Material
IB-M2HS-70
60314
4250078166405
ICY BOX
Heat sink for M.2 SSD
Black
Aluminium
M.2 support
Silicone thermal pads
Silicone rings
M.2 2280, 22 x 80 mm
Material: Silicone
Thermal conductivity: 1.5 W/mK
Operating temperature: -20° C ~ 180° C
2x Blue: 70 x 20 x 1 mm (main pad at the top of M.2)
2x White 1: 60 x 20 x 1.5 mm (optional pad at the bottom of adapter)
2x White 2: 60 x 20 x 1 mm (optional pad at the bottom of adapter)
Material: Silicone
Operating temperature: -20° C ~ 180° C
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • info@raidsonic.de • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
Technology GmbH
www.raidsonic.de
ICY BOX IB-M2HS-70
Heat sink for M.2 SSD
Silicone rings
Because of the little silicone rings the cooling plates can be fixed on the M.2 SSD. you can remove the
cooling plates any time.
Thermal pads
Thermal plates are just as heat-conduction paste a medium to optimate the derivation of the heat loss of
electronic components.
Cooling plates
The thermal aluminium fins extend the surface to make sure that more heat can be given off to the surrounding area to optimate the performance once again.
Logistical data
Packing unit:
Total weight::
Gross weight: (with packing):
Net weight:
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • info@raidsonic.de • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
pcs./carton
68
kg/carton mm
6.3 27x102x88
kg
0.084
kg
0.018 China
Dimension/Carton:
Dimension (with packing):
Dimension of article:
Country of Origin:
500x220x265
70x22x10
mm
mm
