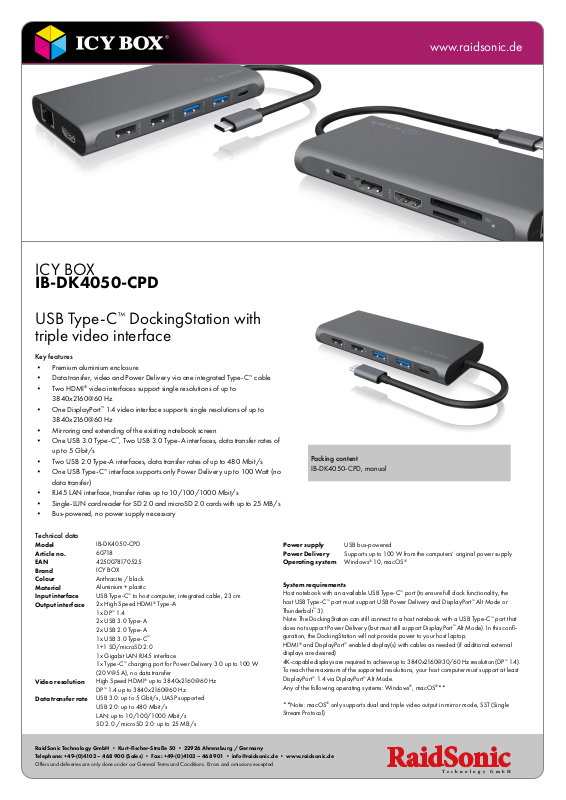

Page 1
Technology GmbH
www.raidsonic.de
ICY BOX
IB-DK4050-CPD
USB Type-C™ DockingStation with
triple video interface
Key features
• Premium aluminium enclosure
• Data transfer, video and Power Delivery via one integrated Type-C™ cable
• Two HDMI® video interfaces support single resolutions of up to
3840x2160@60 Hz
• One DisplayPort™ 1.4 video interface supports single resolutions of up to
3840x2160@60 Hz
• Mirroring and extending of the existing notebook screen
• One USB 3.0 Type-C™, Two USB 3.0 Type-A interfaces, data transfer rates of
up to 5 Gbit/s
• Two USB 2.0 Type-A interfaces, data transfer rates of up to 480 Mbit/s
• One USB Type-C™ interface supports only Power Delivery up to 100 Watt (no
data transfer)
• RJ45 LAN interface, transfer rates up to 10/100/1000 Mbit/s
• Single-LUN card reader for SD 2.0 and microSD 2.0 cards with up to 25 MB/s
• Bus-powered, no power supply necessary
Technical data
Model
Article no.
EAN
Brand
Colour
Material
Input interface
Output interface
Video resolution
Data transfer rate
IB-DK4050-CPD
6 0718
4250078170525
ICY BOX
Anthracite / black
Aluminium + plastic
USB Type-C
2x High Speed HDMI
1x DP
2x USB 3.0 Type-A
2x USB 2.0 Type-A
1x USB 3.0 Type-C
1+1 SD/microSD 2.0
1x Gigabit LAN RJ45 interface
1x Type-C
(20 V@5 A), no data transfer
High Speed HDMI
DP
USB 3.0: up to 5 Gbit/s, UASP supported
USB 2.0: up to 480 Mbit/s
LAN: up to 10/100/1000 Mbit/s
SD 2.0 / microSD 2.0: up to 25 MB/s
™
to host computer, integrated cable, 23 cm
®
™
1.4
™
charging port for Power Delivery 3.0 up to 100 W
™
1.4 up to 3840x2160@60 Hz
Type-A
™
®
up to 3840x2160@60 Hz
Packing content
IB-DK4050-CPD, manual
Power supply
Power Delivery
Operating system
System requirements
Host notebook with an available USB Type-C
host USB Type-C
Thunderbolt
Note: The DockingStation can still connect to a host notebook with a USB Type-C
does not support Power Delivery (but must still support DisplayPort
guration, the DockingStation will not provide power to your host laptop.
HDMI
displays are desired)
4K-capable displays are required to achieve up to 3840x2160@30/60 Hz resolution (DP
To reach the maximum of the supported resolutions, your host computer must support at least
DisplayPort
Any of the following operating systems: Windows
**Note: macOS
Stream Protocol)
™
®
and DisplayPort™ enabled display(s) with cables as needed (if additional external
™
1.4 via DiplayPort™ Alt Mode.
USB bus-powered
Supports up to 100 W from the computers‘ original power supply
®
10, macOS®
Windows
™
™
port must support USB Power Delivery and DisplayPort™ Alt Mode or
3).
®
only supports dual and triple video output in mirror mode, SST (Single
port (to ensure full dock functionality, the
™
Alt Mode). In this confi-
®
, macOS®**
™
port that
™
1.4).
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • [email protected] • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
Page 2
Technology GmbH
www.raidsonic.de
ICY BOX
IB-DK4050-CPD
USB Type-C™ DockingStation with triple video interface
Small interface, big flexibility
DockingStations not only offer users a way to quickly change from one working environment to another via
a single cable, they can also add additional functionality and capabilities to notebooks that are increasingly favoring design over function.
Appearance and performance
This DockingStation perfectly combines high-quality appearance and efficient technology with a very compact size. The premium aluminium enclosure looks good and offers high comfort while using. This solution is
suited for any location such as private or office areas.
Always informed!
Three video interfaces are available, and enable you to connect HDMI® and DP™ devices simultaneously.
Logistical data
Packing unit:
Total weight:
Gross weight: (with packing):
Net weight:
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • [email protected] • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
60 pcs./carton
13.0 kg/carton
0.205 kg
0.136 kg
Dimension/carton:
Dimension (with packing):
Dimension of article:
Country of origin:
440x330x280 mm
100x25x200 mm
355x65x17 mm
China
