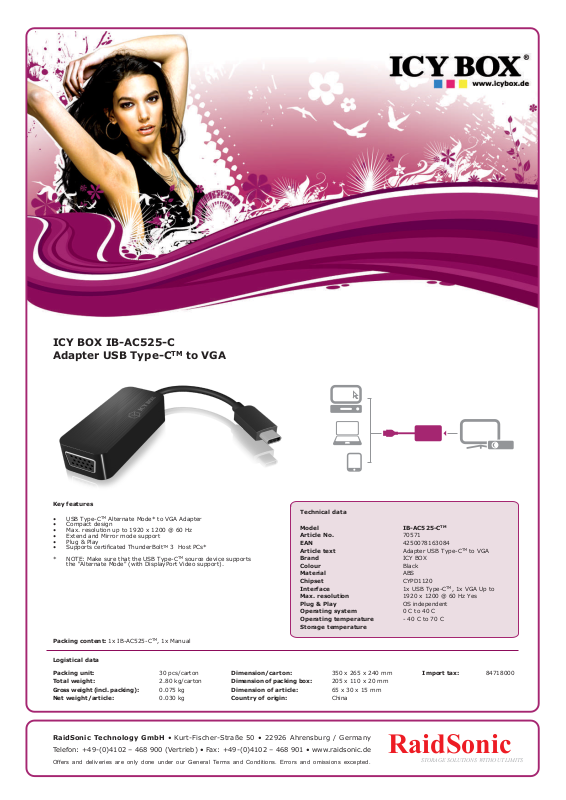

ICYBOX IB-AC525-C Datasheet

ICY BOX IB-AC525-C
Adapter USB Type-CTM to VGA

Key features

• USB Type-CTM Alternate Mode* to VGA Adapter

• Compact design

• Max. resolution up to 1920 x 1200 @ 60 Hz

• Extend and Mirror mode support

• Plug & Play

• Supports certificated ThunderBoltTM 3 Host PCs*

* NOTE: Make sure that the USB Type-CTM source device supports

the "Alternate Mode" (with DisplayPort Video support).

Packing content: 1x IB-AC525-CTM, 1x Manual

Logistical data

Packing unit: 30 pcs/carton Dimension/carton: 350 x 265 x 240 mm Import tax: 84718000
Total weight: 2.80 kg/carton Dimension of packing box: 205 x 110 x 20 mm
Gross weight (incl. packing): 0.075 kg Dimension of article: 65 x 30 x 15 mm
Net weight/article: 0.030 kg Country of origin: China

Technical data

Model
Article No.
EAN
Article text
Brand
Colour
Material
Chipset
Interface
Max. resolution
Plug & Play
Operating system
Operating temperature
Storage temperature

IB-AC525-C

70571
4250078163084
Adapter USB Type-CTM to VGA
ICY BOX
Black
ABS
CYPD1120
1x USB Type-CTM, 1x VGA Up to
1920 x 1200 @ 60 Hz Yes
OS independent
0 C to 40 C

40 C to 70 C

-

TM
