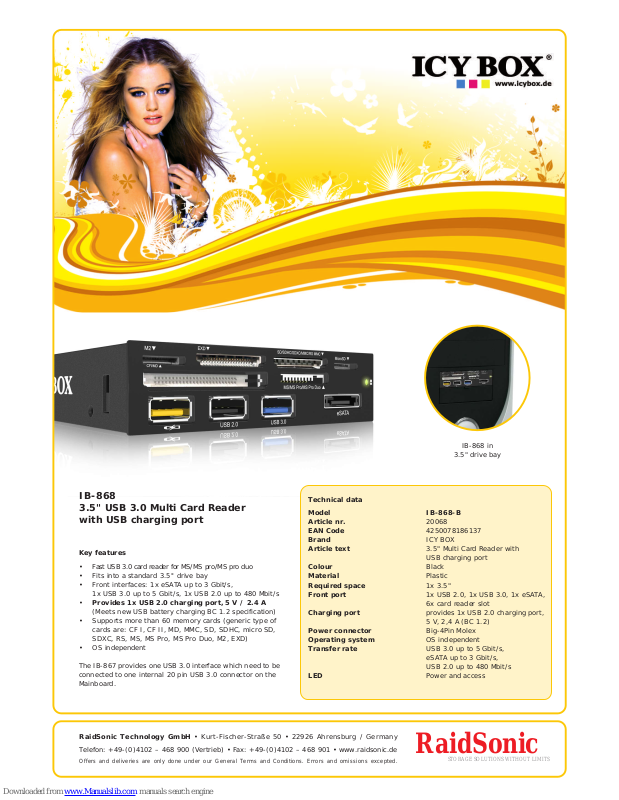

Icy Box IB-867, IB-868, IB-868-B Technical Data Manual

RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany

Telefon: [phone] – 468 900 (Vertrieb) • Fax: [phone] – 468 901 • www.raidsonic.de

Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.

RaidSonic

STORAGE SOLUTIONS WITHOUT LIMITS

Key features

• Fast USB 3.0 card reader for MS/MS pro/MS pro duo

• Fits into a standard 3.5'' drive bay

• Front interfaces: 1x eSATA up to 3 Gbit/s,
1x USB 3.0 up to 5 Gbit/s, 1x USB 2.0 up to 480 Mbit/s

• Provides 1x USB 2.0 charging port, 5 V / 2.4 A
(Meets new USB battery charging BC 1.2 specification)

• Supports more than 60 memory cards (generic type of
cards are: CF I, CF II, MD, MMC, SD, SDHC, micro SD,
SDXC, RS, MS, MS Pro, MS Pro Duo, M2, EXD)

• OS independent

The IB-867 provides one USB 3.0 interface which need to be
connected to one internal 20 pin USB 3.0 connector on the
Mainboard.

IB-868

3.5" USB 3.0 Multi Card Reader

with USB charging port

Technical data
Model IB-868-B

Article nr. 20068
EAN Code 4250078186137
Brand ICY BOX
Article text 3.5" Multi Card Reader with

USB charging port

Colour Black
Material Plastic
Required space 1x 3.5"
Front port 1x USB 2.0, 1x USB 3.0, 1x eSATA,

6x card reader slot

Charging port provides 1x USB 2.0 charging port,

5 V, 2,4 A (BC 1.2)

Power connector Big-4Pin Molex
Operating system OS independent
Transfer rate USB 3.0 up to 5 Gbit/s,

eSATA up to 3 Gbit/s,
USB 2.0 up to 480 Mbit/s

LED Power and access

IB-868 in

3.5" drive bay

RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: [phone] – 468 900 (Vertrieb) • Fax: [phone] – 468 901 • www.raidsonic.de

Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.

RaidSonic

STORAGE SOLUTIONS WITHOUT LIMITS

Logistical data
Packing unit: 10 pcs./carton Dimension/carton: 220x290x385 mm Import tax: 84716070

Total weight: 5.0 kg/carton Dimension of packing box:140x80x200 mm
Gross weight(incl. packing):0.45 kg Dimension of article: 102x24x120 mm
Net weight: 0.32 kg Country of origin: China

Makes the Computer More Sociable

Many peripherals can get in touch due to the multi-port front panel. 60
memory cards fit and can be read. The USB 3.0 port makes super fast
data transfer possible. The USB 3.0 card reader enables a much faster
data transfer. Especially the USB front charging port provides more
convenience by charging smartphones, Tablets and power bank.

Internal USB 2.0 interface for

1x USB 2.0 front interface

Big-4-Pin Molex

20 Pin USB 3.0 connector

for cardreader and USB 3.0

front interface

eSATA

USB 2.0 charging port

(5 V / 2.4 A)
