Key features
• 3x 3.5" SATA or SAS HDD in 2x 5.25" bay
• 4x 3.5" SATA or SAS HDD in 3x 5.25" bay
• 5x 3.5" SATA or SAS HDD in 3x 5.25" bay
• 2x host connector (dual channel) for each SAS HDD
• Hard disk capacity not limited
• SATA host interface 3.0 Gbit/s

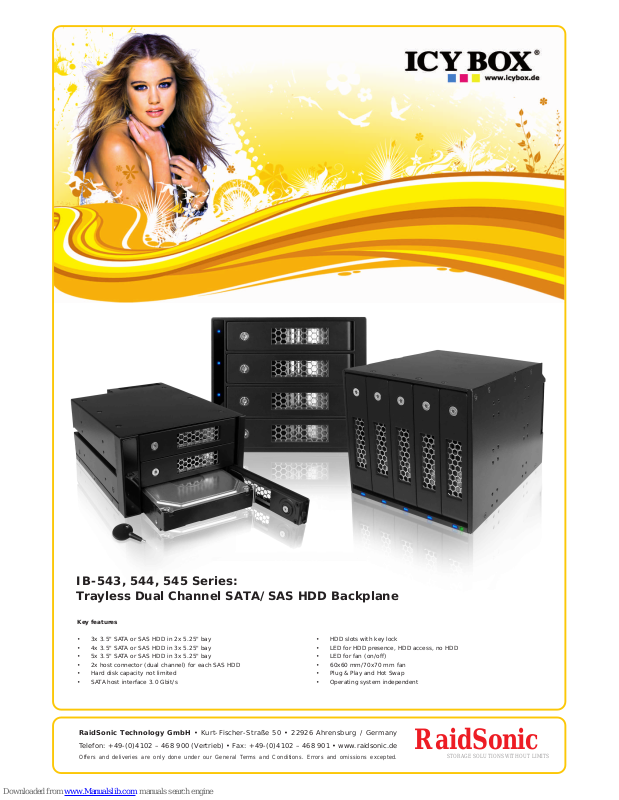

IB-543, 544, 545 Series:
Trayless Dual Channel SATA/SAS HDD Backplane
• HDD slots with key lock
• LED for HDD presence, HDD access, no HDD
• LED for fan (on/off)
• 60x60 mm/70x70 mm fan
• Plug & Play and Hot Swap
• Operating system independent
Page 2
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
Front view IB-545SSK
1. HDD LED 1-5: HDD presence (blue),
HDD access (red flashing), no HDD (no shining)
2. Fan LED: Fan on (green), Fan off (red)
3. HDD tray with key lock
3.
Rear view IB-545SSK
1. 2x 60x60x10 mm fan
2. 2x 4Pin Molex (12 V/5 V)
3. SAS interface 1-5 (yellow)
4. SATA interface 1-5 (black)
3.
Technical Data
Model IB-543SSK IB-544SSK IB-545SSK
Article No. 54103 54104 54105
EAN code 4250078185413 4250078185918 4250078185420
Brand ICY BOX
Article text 3x 3.5" Trayless Dual Channel 4x 3.5" Trayless Dual Channel 5x 3.5" Trayless Dual Channel
SATA/SAS HDD Backplane SATA/SAS HDD Backplane SATA/SAS HDD Backplane
Colour Black
Material Aluminium
Required space 2x 5.25" 3x 5.25" 3x 5.25"
Fan 1x 60x60x10 mm 1x 70x70x15 mm 2x 60x60x10 mm
Fan speed 3.000 rpm (23.3 dBA) 2.050 rpm (17.81 dBA) 3.000 rpm (23.3 dBA)
HDD interface 3x 3.5" SAS/SATA 4x 3.5" SAS/SATA 5x 3.5" SAS/SATA
HDD capacity No limit
Host interface 6x SATA 8x SATA 10x SATA
(Dual Channel) (Dual Channel) (Dual Channel)
Transfer rate Up to 3.0 Gbit/s
Hot Swap Yes
Plug & Play Yes
Lock Yes
Operating system OS independent
Alarm Visual by LED (fan off)
LED HDD LED: HDD presence, HDD access, no HDD, Fan LED: Fan on/off
Power connector 2x 4Pin Molex (12 V/5 V)
1. 2.
4.2.1. 2.
Packing content IB-543SSK: 1x IB-543SSK, 3x SATA cable, 8x screw, 2x key, 1x manual
Packing content IB-544SSK: 1x IB-544SSK, 4x SATA cable, 12x screw, 2x key, 1x manual
Packing content IB-545SSK: 1x IB-545SSK, 5x SATA cable, 12x screw, 2x key 1x manual
Page 3
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
Logistical data IB-543SSK
Packing unit: 6 pcs./carton Dimension/carton: 475x485x310 mm Import tax: 84733080
Total weight: 10.3 kg/carton Dimension of packing box: 287x220x150 mm
Gross weight (incl. packing): 1.713 kg Dimension of article: 145x200x85 mm
Net weight: 1.368 kg Country of origin: Taiwan
Logistical data IB-544SSK
Packing unit: 6 pcs./carton Dimension/carton: 610x480x290 mm Import tax: 84733080
Total weight: 13.4 kg/carton Dimension of packing box: 275x220x195 mm
Gross weight (incl. packing): 2.235 kg Dimension of article: 145x210x130 mm
Net weight: 1.707 kg Country of origin: Taiwan
Logistical data IB-545SSK
Packing unit: 6 pcs./carton Dimension/carton: 650x480x280 mm Import tax: 84733080
Total weight: 14.1 kg/carton Dimension of packing box: 275x225x195 mm
Gross weight (incl. packing): 2.354 kg Dimension of article: 145x190x130 mm
Net weight: 1.93 kg Country of origin: Taiwan

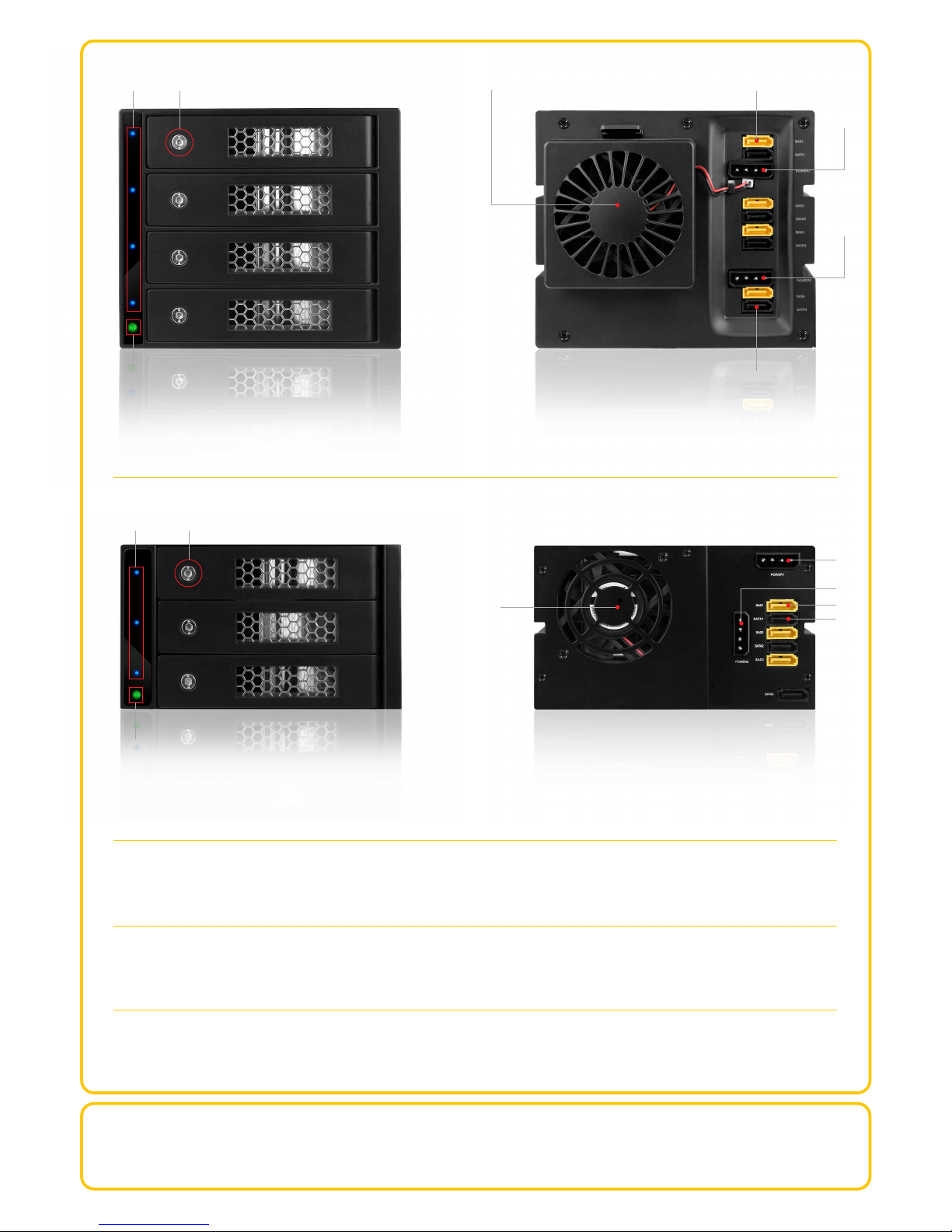

Front view IB-544SSK
3.
Rear view IB-544SSK
3.
2.
4.
1.
2.
2.
1.
4.
1. HDD LED 1-5: HDD presence (blue),
HDD access (red flashing), no HDD (no shining)
2. Fan LED: Fan on (green), Fan off (red)
3. HDD tray with key lock
1. 1x 70x70x15 mm fan (toolless removable)
2. 2x 4Pin Molex (12 V/5 V)
3. SAS interface 1-4 (yellow)
4. SATA interface 1-4 (black)
Front view IB-543SSK
3.
Rear view IB-543SSK
2.
2.
1.
1.
2.
3.
4.
2.
1. HDD LED 1-5: HDD presence (blue),
HDD access (red flashing), no HDD (no shining)
2. Fan LED: Fan on (green), Fan off (red)
3. HDD tray with key lock
1. 1x 60x60x10 mm fan
2. 2x 4Pin Molex (12 V/5 V)
3. SAS interface 1-3 (yellow)
4. SATA interface 1-3 (black)
