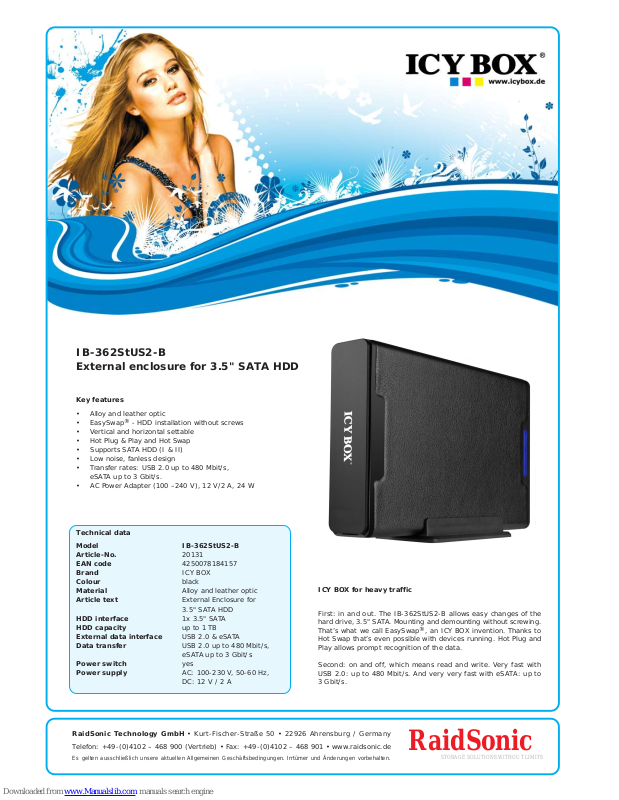

Icy Box IB-362StUS2-B Specifications

RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany

Telefon: [phone] – 468 900 (Vertrieb) • Fax: [phone] – 468 901 • www.raidsonic.de

Es gelten ausschließlich unsere aktuellen Allgemeinen Geschäftsbedingungen. Irrtümer und Änderungen vorbehalten.

RaidSonic

STORAGE SOLUTIONS WITHOUT LIMITS

Key features

• Alloy and leather optic

• EasySwap® - HDD installation without screws

• Vertical and horizontal settable

• Hot Plug & Play and Hot Swap

• Supports SATA HDD (I & II)

• Low noise, fanless design

• Transfer rates: USB 2.0 up to 480 Mbit/s,
eSATA up to 3 Gbit/s.

• AC Power Adapter (100 –240 V), 12 V/2 A, 24 W

IB-362StUS2-B
External enclosure for 3.5" SATA HDD

Technical data
Model IB-362StUS2-B

Article-No. 20131
EAN code 4250078184157
Brand ICY BOX
Colour black
Material Alloy and leather optic
Article text External Enclosure for

3.5" SATA HDD

HDD interface 1x 3.5" SATA
HDD capacity up to 1 TB
External data interface USB 2.0 & eSATA
Data transfer USB 2.0 up to 480 Mbit/s,

eSATA up to 3 Gbit/s

Power switch yes
Power supply AC: 100-230 V, 50-60 Hz,

DC: 12 V / 2 A

ICY BOX for heavy traffic

First: in and out. The IB-362StUS2-B allows easy changes of the
hard drive, 3.5" SAT A. Mounting and demounting without screwing.
That’s what we call EasySwap®, an ICY BOX invention. Thanks to
Hot Swap that’s even possible with devices running. Hot Plug and
Play allows prompt recognition of the data.

Second: on and off, which means read and write. Very fast with
USB 2.0: up to 480 Mbit/s. And very very fast with eSATA: up to
3 Gbit/s.

RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: [phone] – 468 900 (Vertrieb) • Fax: [phone] – 468 901 • www.raidsonic.de

Es gelten ausschließlich unsere aktuellen Allgemeinen Geschäftsbedingungen. Irrtümer und Änderungen vorbehalten.

RaidSonic

STORAGE SOLUTIONS WITHOUT LIMITS

Packing content

1x External case, 1x power adapter and cord, 1x USB cable,
1x eSATA cable, 1x stand foot, 1x key, 1x manual

EasySwap®-Mechanism

HDD installation without screws.

Rearside

USB 2.0

eSATA

Power supply

Power switch

LED Power and Access

Logistical Data
Packing unit: 10 pcs./carton Dimension/Carton: 575x303x382 mm Import tax: 84733080

Total weight: 10.0 kg/carton Dimension (with packing): 290x175x115 mm
Gross weight: 0.93 kg Dimension of article: 196x127x35 mm
Net weight: 0.45 kg Country of Origin: China
