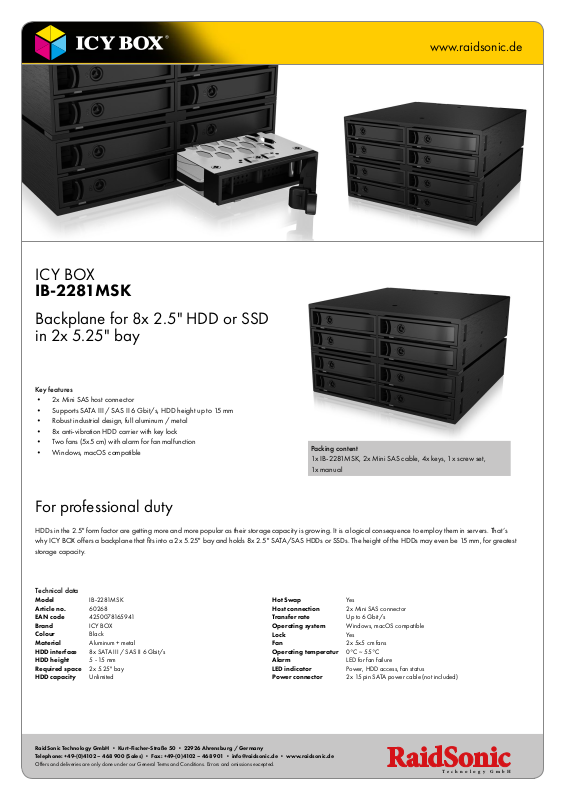

Page 1
Technology GmbH
www.raidsonic.de
ICY BOX
IB-2281MSK
Backplane for 8x 2.5" HDD or SSD
in 2x 5.25" bay
Key features
• 2x Mini SAS host connector
• Supports SATA III / SAS II 6 Gbit/s, HDD height up to 15 mm
• Robust industrial design, full aluminum / metal
• 8x anti-vibration HDD carrier with key lock
• Two fans (5x5 cm) with alarm for fan malfunction
• Windows, macOS compatible
Packing content
1x IB-2281MSK, 2x Mini SAS cable, 4x keys, 1x screw set,
1x manual
For professional duty
HDDs in the 2.5" form factor are getting more and more popular as their storage capacity is growing. It is a logical consequence to employ them in servers. That‘s
why ICY BOX offers a backplane that fits into a 2x 5.25" bay and holds 8x 2.5" SATA/SAS HDDs or SSDs. The height of the HDDs may even be 15 mm, for greatest
storage capacity.
Technical data
Model
Article no.
EAN code
Brand
Colour
Material
HDD interface
HDD height
Required space
HDD capacity
IB-2281MSK
60268
4250078165941
ICY BOX
Black
Aluminum + metal
8x SATA III / SAS II 6 Gbit/s
5 - 15 mm
2x 5.25" bay
Unlimited
Hot Swap
Host connection
Transfer rate
Operating system
Lock
Fan
Operating temperatur
Alarm
LED indicator
Power connector
Yes
2x Mini SAS connector
Up to 6 Gbit/s
Windows, macOS compatible
Yes
2x 5x5 cm fans
0°C ~ 55°C
LED for fan failure
Power, HDD access, fan status
2x 15 pin SATA power cable (not included)
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • [email protected] • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
Page 2
Technology GmbH
www.raidsonic.de
ICY BOX IB-2281MSK
Backplane for 8x 2.5" HDD or SSD in 2x 5.25" bay
Eight times a week!
Eight 2.5" HDDs or SSDs fit into this enclosure and can be installed in 2x 5.25" bay in a PC, server or
similar device. The enclosure is HotSwap capable, so the hard disks can be replaced without having to
remove the enclosure.
Better safe than sorry
The enclosure is made entirely of metal and the trays are provided with a lock that prevents accidental
opening and unauthorized access. An LED also indicates operation and disk access for each storage
medium.
When it’s hot
The aluminum dissipates heat very well and the cooling of the drives during heavy operation is ensured by
two 50 mm fans on the back. An alarm warns of fan failure.
Logistical data
Packing unit:
Total weight:
Gross weight: (with packing):
Net weight:
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • [email protected] • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
8 pcs./carton
15,5 kg/carton
1.774 kg
1.522 kg
Dimension/carton:
Dimension (with packing):
Dimension of article:
Country of origin:
520x380x280 mm
185x213x131 mm
163x145x85 mm
China
