4bay 2.5" Dual Channel SATA/SAS HDD Backplane
IB-2222 Series
1. Model – HDD – Host Interface – Colour
Model HDD Host Interface Colour
IB-2222SSK 4x SATA/SAS 8x SATA Black
2. Package Content
1x IB-2222SSK backplane, 5x case screw, 18x HDD screw, 2x key, 1 set HDD fail signal cable,
4x SATA cable, 1x manual
3. Key Features
• 4 x 2.5" SATA or SAS HDD in 1 x 5.25" bay
• 2x host connector (dual channel) for each SAS HDD
• Hard disk capacity not limited
• Support HDD height 9.5 – 15 mm
• SATA host interface 3.0 Gbit/s
• HDD tray with key lock
• LED for power and HDD access
• 2x 40x40x10 mm cooling fan
• Plug & play and hot swap
• Support all OS systems

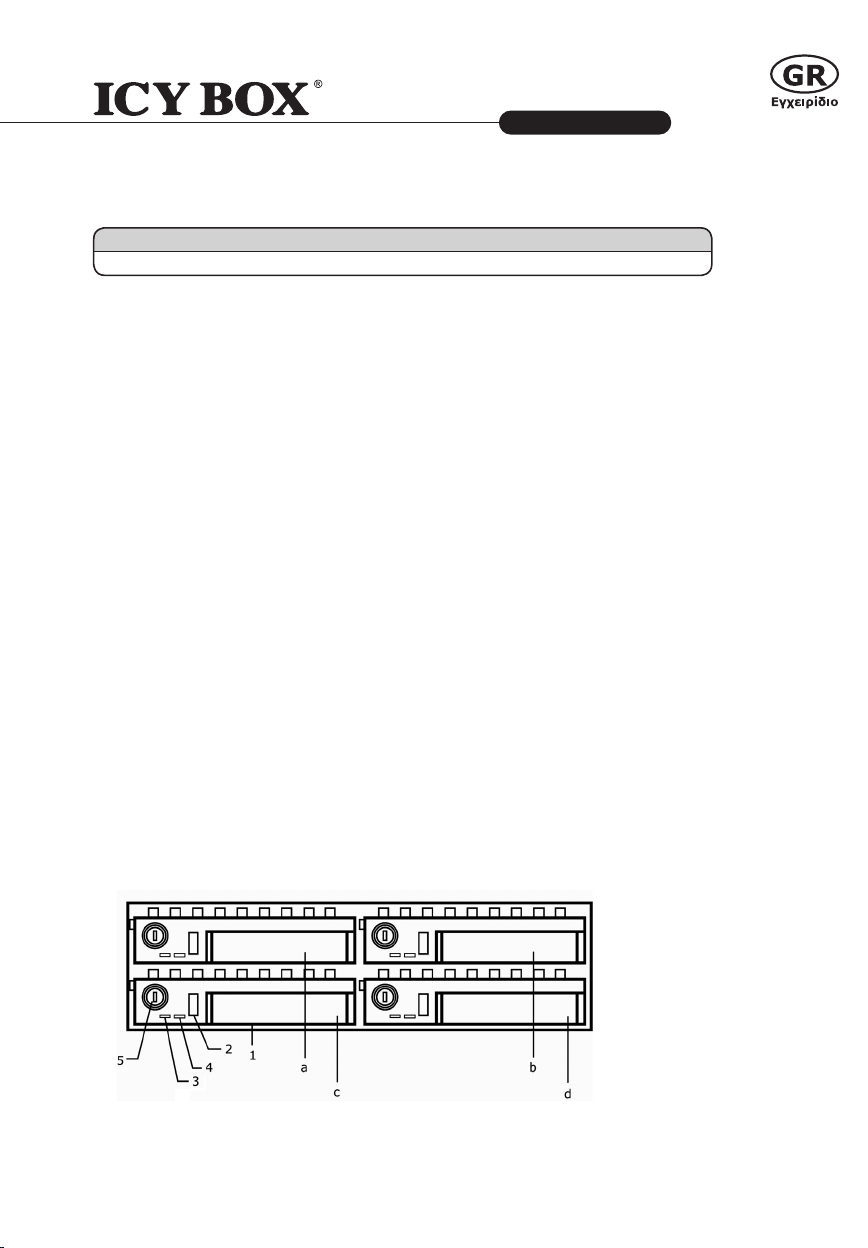

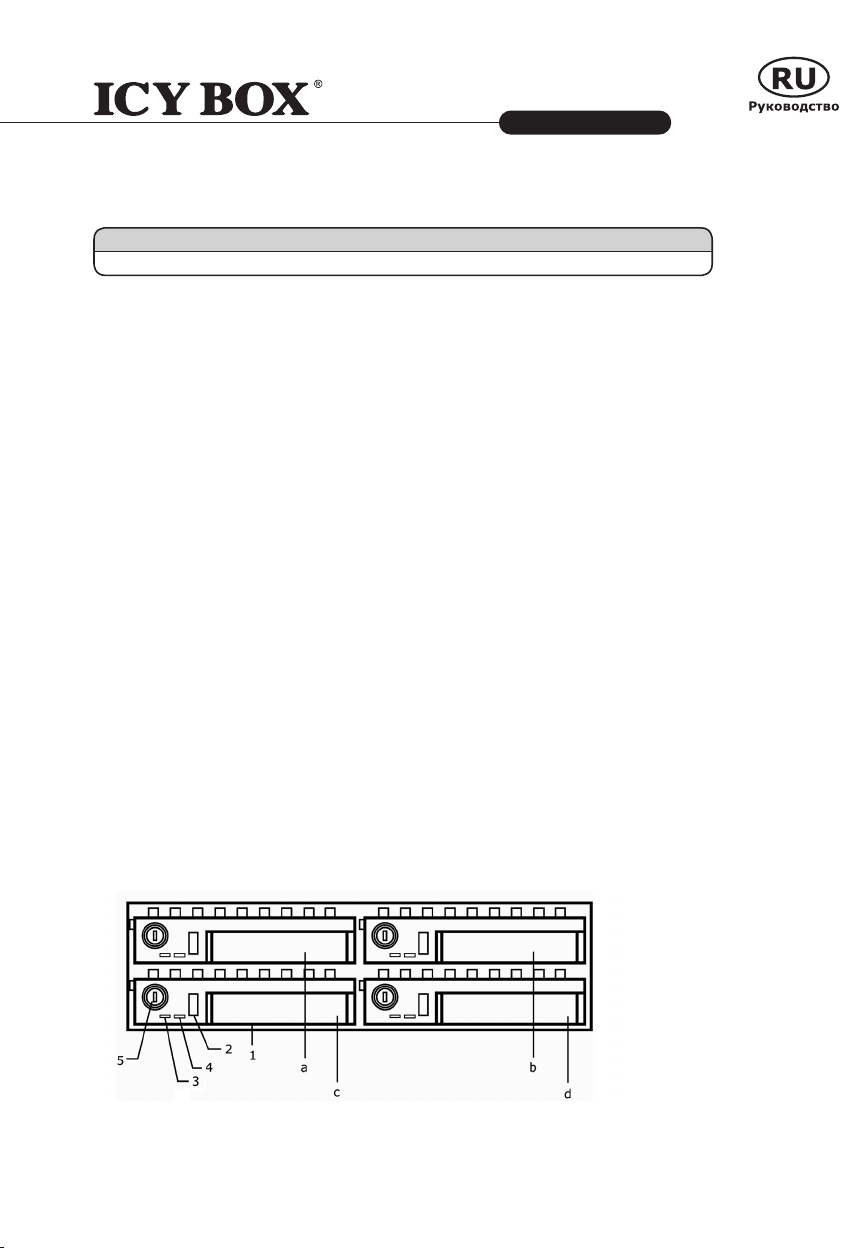

4. Front Panel and Tray Lock
1. HDD Tray handle
2. HDD Tray button
3. HDD LED Power On (Blue)
4. HDD Access (Green) or HDD failure (Red)
5. Tray Key Lock
a. HDD1, b. HDD2, c. HDD3, d. HDD4
The tray lock has no power switching function, it locks only the tray mechanically against improper
operation or sliding out.
4
4
http://www.icybox.de
http://www.icybox.de
4bay 2.5" Dual Channel SATA/SAS HDD Backplane
5. Indication of LED
Action LED Indication
HDD Power on Front-LED-3 shines blue
HDD access Front-LED-4 blinks green
HDD failure Front-LED-4 blinks red
No HDD Front-LED-3 remains off

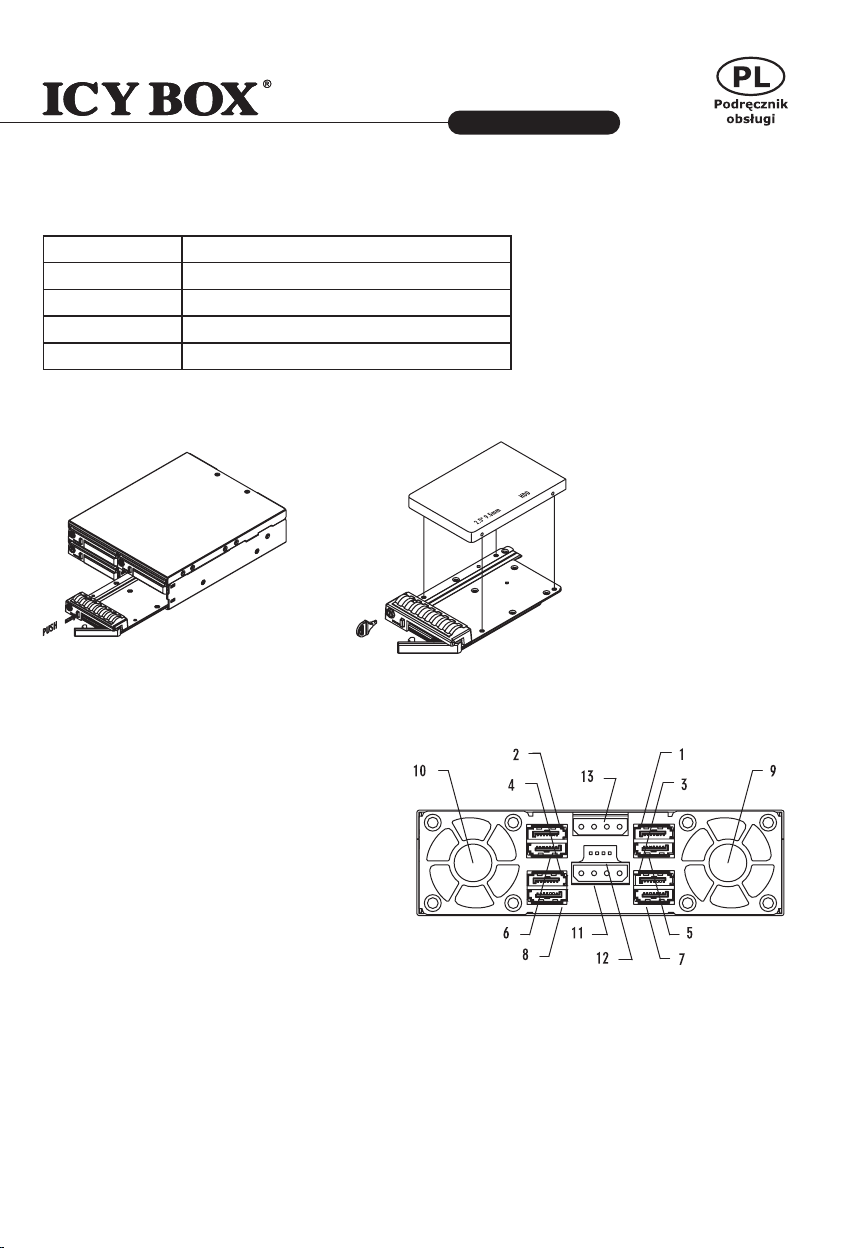

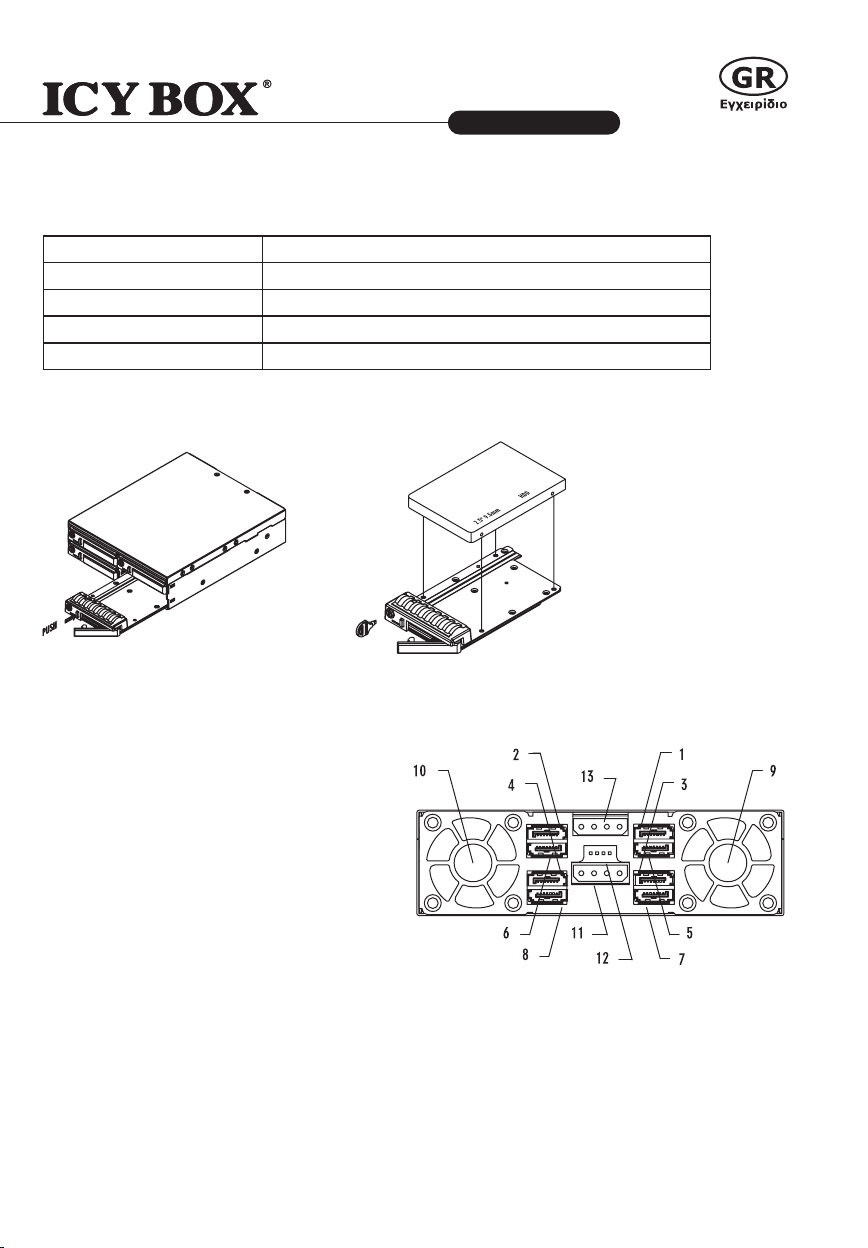

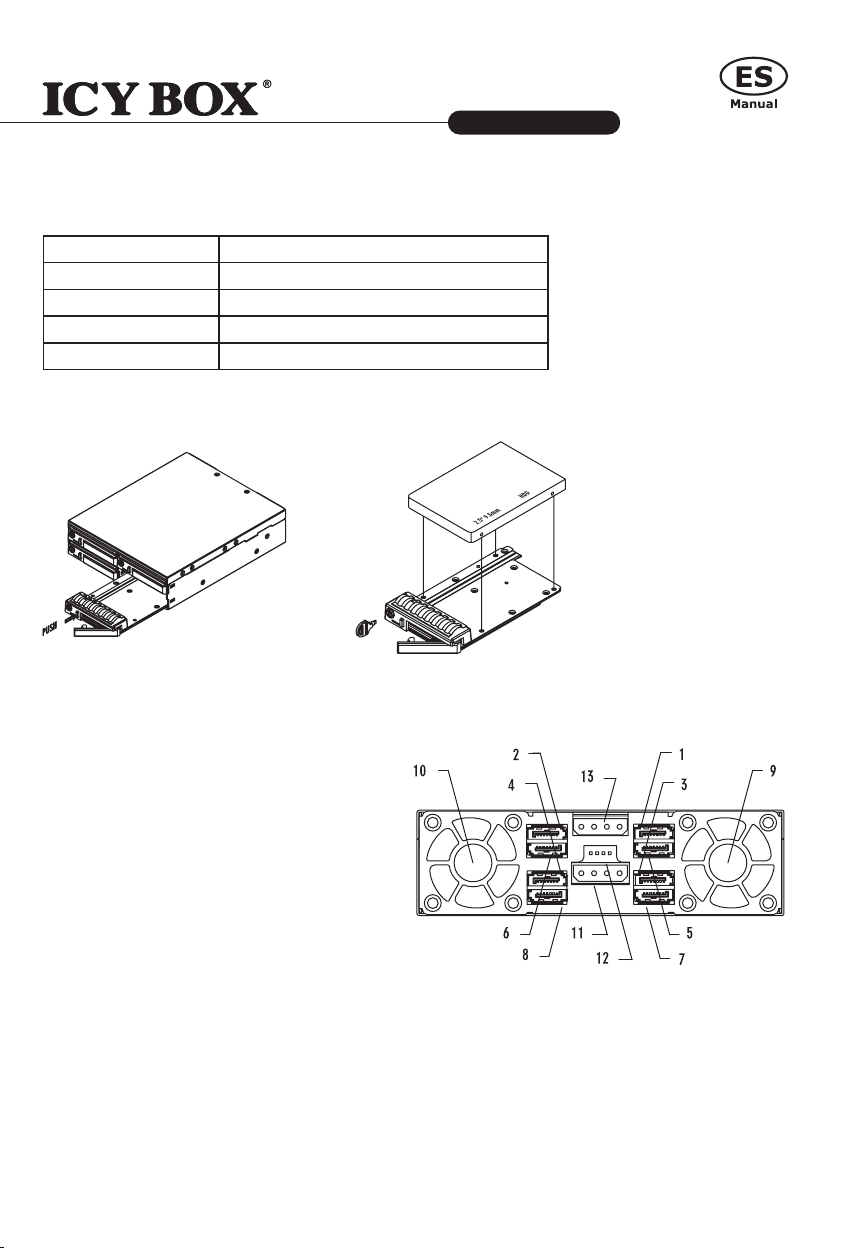

6. HDD assembly
IB-2222 Series
7. Conguration on the Back Panel
A. Location
1~4 – Primary connector
5~8 – Secondary connector
9~10 – 40 mm fan
11, 13 – 5V/12V Power connector
12 – HDD fail signal in
B. Connecting the SATA Cable
Take the primary connector for single channel.
Take the primary and secondary connector for
dual channel.
C. Connecting the HDD Failure Signal Cable
to the Host Controller
If the host controller (e.g. RAID card) has HDD failure signal OUT connectors, you can connect them
with the "HDD Fail Signal In", gure "12" on the back panel of the backplane. So the HDD failure LED will
blink in red color when the HDD fails.
5
5
http://www.icybox.de
7
4fach 2,5" Dual Channel SATA/SAS HDD Backplane
IB-2222 Serie
1. Modell – HDD – Schnittstelle – Farbe
Modell HDD Schnittstelle Farbe
IB-2222SSK 4x SATA/SAS 8x SATA Schwarz
2. Verpackungsinhalt
1x IB-2222SSK Backplane, 5x Gehäuseschrauben, 18x HDD Schrauben, 2x Schlüssel, 1 Satz HDD
Fehler-Signal-Kabel, 4x SATA Kabel, 1x Handbuch
3. Merkmale
• 4 x 2,5" SATA oder SAS HDD in 1 x 5,25" Einbauschächten
• 2x Host Connector (Dual Channel) für jede SAS HDD
• Festplattenkapazität ohne Limit
• Passend für Festplattenhöhe 9,5 – 15mm
• SATA Anschluss 3.0 Gbit/s
• Festplatteneinschub mit Schloss
• LED für Strom und Festplattenzugriff
• 2x 40x40x10 mm Lüfter
• Plug & Play und Hot Swap
• Unterstützt alle Betriebssysteme
4. Frontseite und Trägerschloss
1. HDD Trägergriff
2. HDD Trägerauswurftaste
3. HDD LED Stromzufuhr (Blau)
4. HDD Zugriff (Grün) oder HDD Fehler (Rot)
5. Trägerschloss
a. HDD1, b. HDD2, c. HDD3, d. HDD4
Das Träger-Schloss hat keine elektrische Schaltfunktion, sie sperrt die Trägerschublade nur mechanisch
gegen unbefugte Zugriffe oder Entnahme.
6
