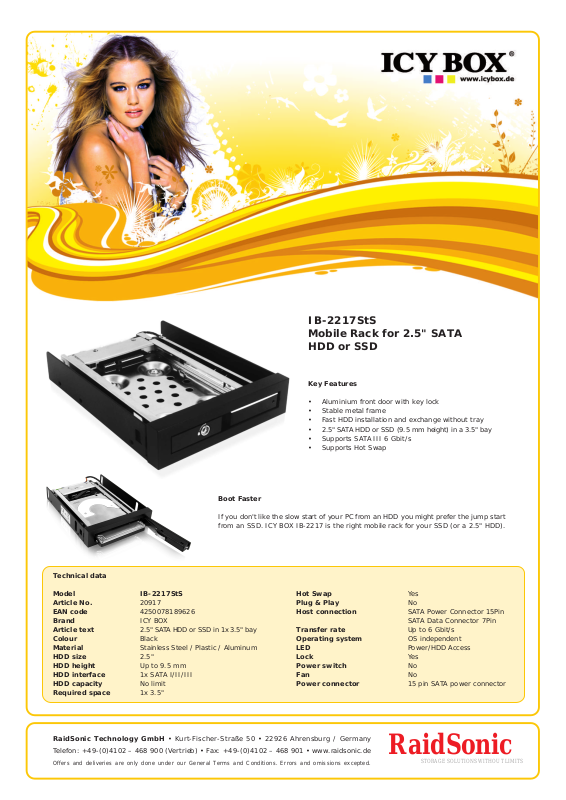

Page 1
Technical data
IB-2217StS
Mobile Rack for 2.5" SATA
HDD or SSD
Key Features
• Aluminium front door with key lock
• Stable metal frame
• Fast HDD installation and exchange without tray
• 2.5" SAT A HDD or SSD (9.5 mm height) in a 3.5" bay
• Supports SATA III 6 Gbit/s
• Supports Hot Swap
Boot Faster
If you don't like the slow start of your PC from an HDD you might prefer the jump start
from an SSD. ICY BOX IB-2217 is the right mobile rack for your SSD (or a 2.5" HDD).
Model IB-2217StS
Article No. 20917
EAN code 4250078189626
Brand ICY BOX
Article text 2.5" SAT A HDD or SSD in 1x 3.5" bay
Colour Black
Material Stainless Steel / Plastic / Aluminum
HDD size 2.5"
HDD height Up to 9.5 mm
HDD interface 1x SATA I/II/III
HDD capacity No limit
Required space 1x 3.5"
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
Hot Swap Yes
Plug & Play No
Host connection SATA Power Connector 15Pin
Transfer rate Up to 6 Gbit/s
Operating system OS independent
LED Power/HDD Access
Lock Yes
Power switch No
Fan No
Power connector 15 pin SATA power connector
SATA Data Connector 7Pin
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
Page 2
Front view
Unlocking HDD
Key lock for HDD
Rear view
LED connectorSATA power
connector
SATA data
connector
Verpackungsinhalt: 1x IB-2217StS, 1x SATA cable, 1x power and LED cable, 4x screw, 1x HDD protection film,
Logistical data
Packing unit: 32 pcs./carton Dimension/carton: 457x372x269 mm Import tax: 84733080
Total weight: 12.2 kg/carton Dimension of packing box: 175x130x55 mm
Gross weight (+packing): 0.323 kg Dimension of article: 135x102x25 mm
Net weight: 0.182 kg Country of origin: China
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
1x manual, 2x keys
