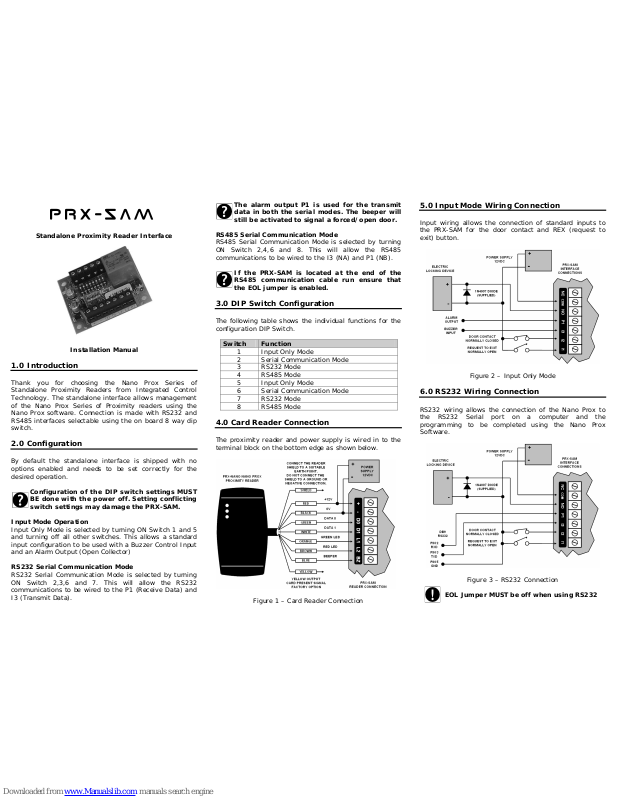

ICT PRX-SAM Installation Manual

PRX-SAM

Standalone Proximity Reader Interface

Installation Manual

1.0 Introduction

Thank you for choosing the Nano Prox Series of
Standalone Proximity Readers from Integrated Control
Technology. The standalone interface allows management
of the Nano Prox Series of Proximity readers using the
Nano Prox software. Connection is made with RS232 and
RS485 interfaces selectable using the on board 8 way dip
switch.

2.0 Configuration

By default the standalone interface is shipped with no
options enabled and needs to be set correctly for the
desired operation.

Configuration of the DIP switch settings MUST
BE done with the power off. Setting conflicting
switch settings may damage the PRX-SAM.

Input Mode Operation

Input Only Mode is selected by turning ON Switch 1 and 5
and turning off all other switches. This allows a standard
input configuration to be used with a Buzzer Control Input
and an Alarm Output (Open Collector)

RS232 Serial Communication Mode

RS232 Serial Communication Mode is selected by turning
ON Switch 2,3,6 and 7. This will allow the RS232
communications to be wired to the P1 (Receive Data) and
I3 (Transmit Data).

The alarm output P1 is used for the transmit
data in both the serial modes. The beeper will
still be activated to signal a forced/open door.

RS485 Serial Communication Mode

RS485 Serial Communication Mode is selected by turning
ON Switch 2,4,6 and 8. This will allow the RS485
communications to be wired to the I3 (NA) and P1 (NB).

If the PRX-SAM is located at the end of the
RS485 communication cable run ensure that
the EOL jumper is enabled.

3.0 DIP Switch Configuration

The following table shows the individual functions for the
configuration DIP Switch.

Switch Function

1 Input Only Mode
2 Serial Communication Mode
3 RS232 Mode
4 RS485 Mode
5 Input Only Mode
6 Serial Communication Mode
7 RS232 Mode
8 RS485 Mode

4.0 Card Reader Connection

The proximity reader and power supply is wired in to the
terminal block on the bottom edge as shown below.

Figure 1 – Card Reader Connection

5.0 Input Mode Wiring Connection

Input wiring allows the connection of standard inputs to
the PRX-SAM for the door contact and REX (request to
exit) button.

Figure 2 – Input Only Mode

6.0 RS232 Wiring Connection

RS232 wiring allows the connection of the Nano Prox to
the RS232 Serial port on a computer and the
programming to be completed using the Nano Prox
Software.

Figure 3 – RS232 Connection

EOL Jumper MUST be off when using RS232

7.0 RS485 Wiring Connection

RS485 wiring allows the connection of the Nano Prox to
the RS232 Serial port over a distance of 900M using an
ACC-485 RS232/RS485 Converter. Programming of the
Nano Prox can then be completed using the Nano Prox
Management Software.

Figure 4 – RS485 Connection

Using the RS485 serial communications
connection allows up to eight Nano Prox
readers to Operate over the same serial
connection.

8.0 Specifications

Power Supply

Voltage 12VDC (11.5 - 14.0VDC)

Current 55mA (Peak, Relay On)

Interface

RS232 EIA / RS232 Standard
Distance 15 Meters (55 feet)

RS485 EIA / RS485 Standard

Distance 900 Meters (2500 feet)

Relay Output

FORM C 5 AMP Resistive

Cable Type

Multi Conductor 22Awg Alpha 5196, 5198
18Awg Alpha 5386, 5388
18Awg Beldon 9553

Temperature

Operating -35˚- +65˚ Celsius

-31˚ - 149˚ Fahrenheit

*Specifications are subject to change without notice,
please visit www.integratedcontroltechnology.com for the
updated information. For information on programming the
Nano Prox Series of Proximity Readers in standalone mode
refer to the appropriate reader installation manual or
download a copy from the ICT website.
