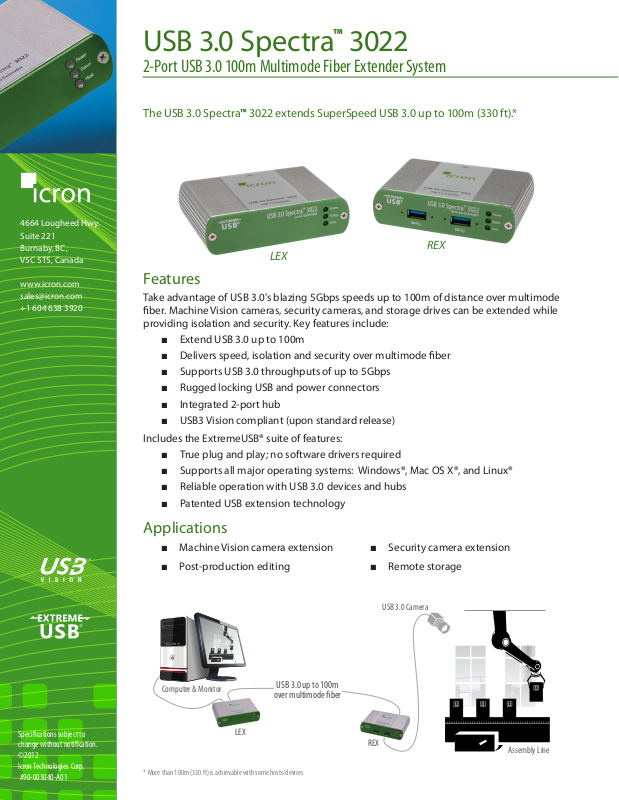

USB 3.0 Spectra™ 3022

2-Port USB 3.0 100m Multimode Fiber Extender System

The USB 3.0 Spectra™ 3022 extends SuperSpeed USB 3.0 up to 100m (330 ft).*

REX

LEX

www.icron.com
[e-mail]
[phone]

Features

Take advantage of USB 3.0's blazing 5Gbps speeds up to 100m of distance over multimode
ber. Machine Vision cameras, security cameras, and storage drives can be extended while
providing isolation and security. Key features include:

■ Extend USB 3.0 up to 100m

■ Delivers speed, isolation and security over multimode ber

■ Supports USB 3.0 throughputs of up to 5Gbps

■ Rugged locking USB and power connectors

■ Integrated 2-port hub

■ USB3 Vision compliant (upon standard release)

Includes the ExtremeUSB® suite of features:

■ True plug and play; no software drivers required

■ Supports all major operating systems: Windows®, Mac OS X®, and Linux®

■ Reliable operation with USB 3.0 devices and hubs

■ Patented USB extension technology

Applications

■ Machine Vision camera extension ■ Security camera extension

■ Post-production editing ■ Remote storage

Specifications subject to
change without notification.
©2012
Icron Technologies Corp.
#90-001040-A01

Computer & Monitor

LEX

* More than 100m (330 ft) is achievable with some hosts/devices

USB 3.0 up to 100m

over multimode ber

USB 3.0 Camera

REX

Assembly Line

USB 3.0 Spectra™ 3022 Specifications

ExtremeLink™ 4500 Product Specifications

RANGE

OM2 Multimode Fiber: Up to 50m (330 ft)

OM3 Multimode Fiber: Up to 100m (330 ft)

SPEEDS

Locking USB Receptacles

Locking Power Connector

*Achievable USB 3.0 Extension by

Multimode Fiber Class

Storage Cameras

OM2 50m 50m

OM3 50m 100m

Specifications subject to change

without notification.

©2012

Icron Technologies Corp.

#90-01040-A01

USB 3.0: Up to 5Gbps

LEX

USB Connector: 1 x USB 3.0 Type B Locking Receptacle

Link Connectors: 2 x LC Connectors

Dimensions: 100mm x 76mm x 26mm (3.94" x 2.99" x 1.02")

Enclosure Material: Anodized Aluminum

REX

USB Connectors: 2 x USB 3.0 Type A Locking Receptacles

Link Connectors: 2 x LC Connectors

Dimensions: 100mm x 76mm x 26mm (3.94" x 2.99" x 1.02")

Enclosure Material: Anodized Aluminum

Available Current: 900mA for each USB Port

Power Supply: 100-240V AC Input, 5V DC Output, Locking

ENVIRONMENTAL

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: -20°C to 70°C (-4°F to 170°F)

Operating Humidity: 20% to 80% relative humidity, non-condensing

Storage Humidity: 10% to 90% relative humidity, non-condensing

COMPLIANCE

EMC: FCC (Class B), CE (Class B)

Environmental: RoHS

Machine Vision: AIA USB3 Vision (upon standard release)

SUPPORT

Warranty: 2 years

*

Ordering Information

The USB 3.0 Spectra™ 3022 system includes a LEX, REX, USB 3.0 cable, Quick Start Guide, one international power adapter
with country specic power cord and two year warranty.

For more information, email [e-mail] or call [phone].

PART # NAME DESCRIPTION

00-00327 USB 3.0 Spectra™ 3022 - NA 2-Port Fiber 100m USB 3.0 Extender System, 100-240V Power Adapter, Locking NA Power Cord

00-00328 USB 3.0 Spectra™ 3022 - EU 2-Port Fiber 100m USB 3.0 Extender System, 100-240V Power Adapter, Locking EU Power Cord

00-00329 USB 3.0 Spectra™ 3022 - UK 2-Port Fiber 100m USB 3.0 Extender System, 100-240V Power Adapter, Locking UK Power Cord

00-00330 USB 3.0 Spectra™ 3022 - AU 2-Port Fiber 100m USB 3.0 Extender System, 100-240V Power Adapter, Locking AU Power Cord

21-00071 5V 3A Locking Power Adapter 100-240V, 2.5mm (ID) locking plug, IEC320-C7/C8 2-pin
