speeCup
Product
Information Guide
2014-04
To get the full capability of your new speeCup, please read
this manual. It's more than just a Bluetooth Speaker!
Press anywhere on the perimeter of speeCup smartControl
Start/Pause music
Interrupt music to answer an incoming call
Hang up a call and resume music
Increase or decrease volume
Pause a movie or video
Other Controls:
Track up/down
Access voice command
Use hand gesture controls
Use only power supply approved for use with this particular
device. The use of any other type will invalidate the
warranty and can be dangerous.
Never try to disassemble or service the by yourself.
Keep speeCup and accessories out of reach from children.
speeCup
product
Do not expose your in an environment temperature
above +55 deg C (+131 deg F). If the product is operated in
cold temperatures, the battery capacity is reduced. Use it in
room temperature for maximum battery capacity.
SPEECUP S INTUITIVE SMARTCONTROL INTERFACE'
CARE AND MAINTENANCE
1.
2.
3.
4.
IMPORTANT
1
2
CHARGING
speeCup has a built-in Li-ion battery (3.7V, 1.6A), so it can be
used without connecting to a power supply. To charge the
battery, follow these steps:
Connect the micro USB connector to the speeCup DC 5V
input.
Plug the USB full-size connector into the 12V accessory car
plug supplied.
AcommonUSBtypeACcharger(DC5V,500mA)canbe
used as well.
speeCup can be charged by plugging the USB connector
into a computer.
1.
3.
2.
4.
When speeCup is charging the LED status indicator will
be RED. When fully charged the RED status indicator
LED will go off.
From fully discharged battery to full charge will take
several hours.
AfullychargedspeeCupwilllastforupto20hoursofuse.
3
SMARTCONTROL INTERFACE
LED status indicator
Microphone
Audio Out
Micro USB jack
smartControl
perimeter
interface
Music track
UP/Down
buttons
Rear view
Top view
Smartphone Voice
Command access
Bottom view
Power ON/OFF switch
Front view
4
If you are using an older phone with Bluetooth, it might
be necessary to enter a password during pairing. The
code to use is 0000 (4 zeros).
The standby time of speeCup is 336 Hours. It is not
necessary to switch speeCup to the OFF position
unless it will not be used for extended periods.
OPERATION
Turning speeCup On or Off
The ON/OFF switch is located and clearly marked on the
bottom of the speeCup.
To u s e sp ee C u p wi th a ny Bl ue t o o t h e na b l e d sm ar t p h o n e or
tablet, you must first pair the device to the speeCup. Once
paired they will always automatically connect to speeCup
when the power is turned to the ON position and Bluetooth is
enabled on your device.
Pairing speeCup with Smartphone or Any
Bluetooth Enabled Music Device
5
Turn the Bluetooth feature of the iPhone to ON. It will then
begin searching for any Bluetooth device within range.
You wil l s ee speeCup on the De vices l is t. Tou ch the
to pair, and you will see that it's .
Make sure the speeCup is turned to the ON position, then
press and hold the smartControl for about 3 seconds until
the orange and blue LED flash alternately.
speeCup Connected
1.
2.
3.
Connecting with iPhone
6
Clear speeCup from iPhone
Touch t h e below, t he n y o u w il l s e e
, touch this option and confirm by the red prompt.
as shown Forget this
Device

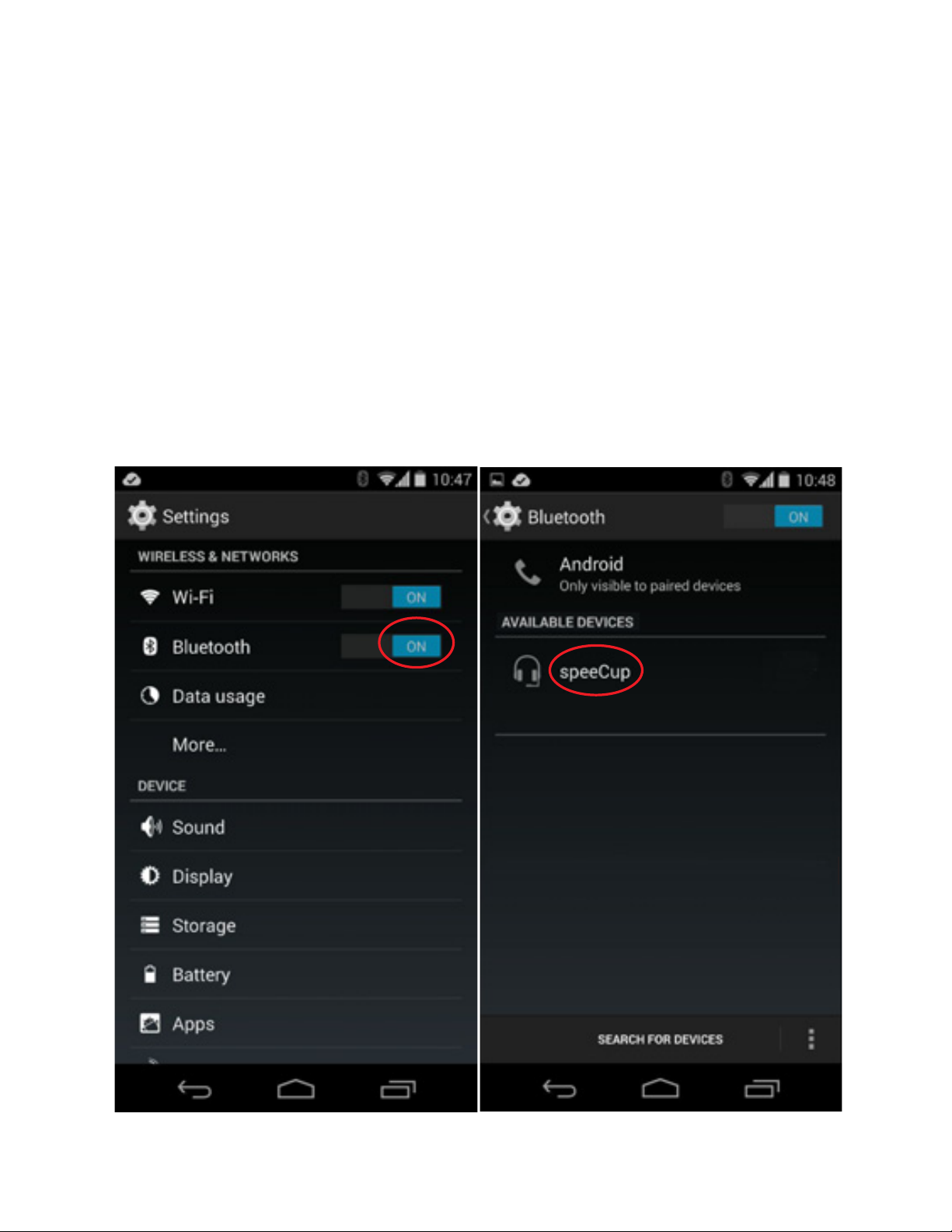

Turn the Bluetooth feature of the Android phone to ON. It will
then begin searching for any Bluetooth device within range.
Touch
the to , and you will see that it's
Make sure the speeCup is turned to the ON position, then
press and hold the smartControl for about 3 seconds until
the orange and blue LED flash alternately.
You will see sp eeCup on t he Ava il ab le d ev ic es lis t.
pair
on the Paired devices list.
speeCup Connected
1.
2.
3.
Connecting with Android phone
7
8
Clear speeCup from Android phone
Touch the below, t hen you will s e e ,
touch this option and confirm.
as shown Unpair
Clear all the devices from speeCup
Turn the speeCup to the ON position, then press and hold
the smartControl for several seconds until you hear a
confirmation beep.
9
10
Voice commands with Siri or S Voice OFF
Voice commands with Siri or S Voice Enabled
Simple voice commands of numbers or contact names can be
given to speeCup by pressing the once briefly in the center
of speeCup and wait to hear the sound indicating voice
command is ready to access.
To a c c e s s v oi c e c ommands p ress t h e once b r i e f l y a nd w ait
to hear the sound indicating voice command is ready to
access. Do NOT press and HOLD the button, but press
briefly once. With a little practice this will become routine.
USING VOICE COMMAND FUNCTIONS
11
1
2
3
. When a call is received, wave left or right in the direction
of the gray arrows to answer it. For details, see the picture
below.
.Toendacall,waveleftorrightagain.
.waveleftorrighttoselectthedesired
track.
While playing music,
The distance between your hand and the speeCup should
be less than 2.4 inches (6cm).
By default the feature is switched off. To switch it on, press
and hold for several seconds until you hear a
confirmation beep .
GESTURE
GESTURE
12
speeCup can also be connected to other audio devices like
your car audio system, home audio system or sound bar
using the 3.5mm audio out cord provided.
Music from the Bluetooth connected device will play on
the audio system connected to speeCup.
Any use of a mobile device for phone calls or voice
commands will pause the music and speeCup will
function normally as a hands free interface to the
Bluetooth connected mobile device.
Whenever your smartphone is in the phone dialing
screen mode speeCup presumes you are using the
smartphone for voice communication and music could
remain on pause even after the call has ended. To
resume playing music, close the phone dial screen on
the smartphone.
AUDIO OUT
STEREO AUDIO OUTPUT TO HOME SYSTEM
Connecting speeCup to a home audio system will provide a
useful way to hold your Bluetooth connected smartphone or
tablet in your hand and let speeCup act as an interface to
your sound system.
Though each audio system is a little different, speeCup’s
3.5mm stereo output can be connected using a variety of
cables and connectors available on-line or at retail stores.
13
ADJUSTING VOLUME
To adjust sp ee C u p ’s v olume, rotate the smartControl
clockwise to increase the volume or counter-clockwise to
decrease it.
Volume can be adjusted by either the smartControl or
the Bluetooth device speeCup is connected to.
LOW BATTERY INDICATION
Apple iOS battery indication: FULL LOW
Other Bluetooth device: may be no indication
By default the sound indication on speeCup is switched off. To
switch it on, press and hold until a confirmation tone occurs.
After that, 3 beeps occur every 5 minutes at approximately 10%
battery power remaining. Press and hold again to switch it off.
14
SPECIFICATIONS
Frequency Range:
Channels:
Modulation
Standby Time:
Charging Time:
Power Supply:
Humidity:
:
2.402GHz - 2.480GHz
75KHz
5V, 500mA
0%~90%
79
0
209*85
: +-
Carrier Power:
Frequency Stability
<2.5mW
GFSK
336Hours
5Hours
Ambient Temperature:
Size(mm):
℃℃~ 45
15
