INSTRUCTION MANUAL Ver 1. 1
Outdoor High Speed Dome Camera
This lightning flash with arrowhead symbol is intended to alert the user to the
presence of un-insulated "dangerous voltage" within the product's enclosure that
may be of sufficient magnitude to constitute a risk of electric shock to persons.
This exclamation point symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
Speed Dome Camera Instruction Manual
2/47
NOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICE
Important Safeguard
1. Read Instructions
Read all of the safety and operating instructions before using the product.
2. Retain Instructions
Save these instructions for future reference.
3. Attachments / Accessories
Do not use attachments or accessories unless recommended by the appliance manufacturer as they may
cause hazards, damage product and void warranty.
4. Installation
Do not place or mount this product in or on an unstable or improperly supported location. Improperly
installed product may fall, causing serious injury to a child or adult, and damage to the product. Use only
with a mounting device recommended by the manufacturer, or sold with the product. To insure proper
mounting, follow the manufacturer's instructions and use only mounting accessories recommended by
manufacturer.
5. Power source
This product should be operated only from the type of power source indicated on the marking label.
Precautions
Operating
z Before using, make sure power supply and others are properly connected.
z While operating, if any abnormal condition or malfunction is observed, stop using the camera
immediately and then contact your local dealer.
Handling
z Do not disassemble or tamper with parts inside the camera.
z Do not drop or subject the camera to shock and vibration as this can damage camera.
z Care must be taken when you clean the clear dome cover. Especially, scratch and dust will ruin your
quality of camera.
Installation and Storage
z Do not install the camera in areas of extreme temperature, which exceed the allowable range.
z Avoid installing in humid or dusty places.
z Avoid installing in places where radiation is present.
z Avoid installing in places where there are strong magnetic fields and electric signals.
z Avoid installing in places where the camera would be subject to strong vibrations.
Speed Dome Camera Instruction Manual
3/47
1
○
Introduction
Features 5
Product & Accessories
Parts Name & Functions
2
○
Installation
DIP Switch Setup 9
Installation using Wall Mount Bracket
Installation using Ceiling Mount Bracket 12
Cabling
3
○
Operation
Checking Before Operation 16
Preset and Pattern Function Pre-Check
Start OSD Menu
Reserved Preset 17
Preset
Swing
Pattern 19
Group
Other Motion Functions
OSD Display of Main Screen 22
4
○
How to use OSD Menu
General Rules of Menu Operation 23
Main Menu 23
Display Menu for Main Screen
Privacy Zone Mask Setup
Camera Module Setup
Motion Setup
Preset Setup
Swing Setup
Pattern Setup
Group Setup
System Initialization
○5 Specifications

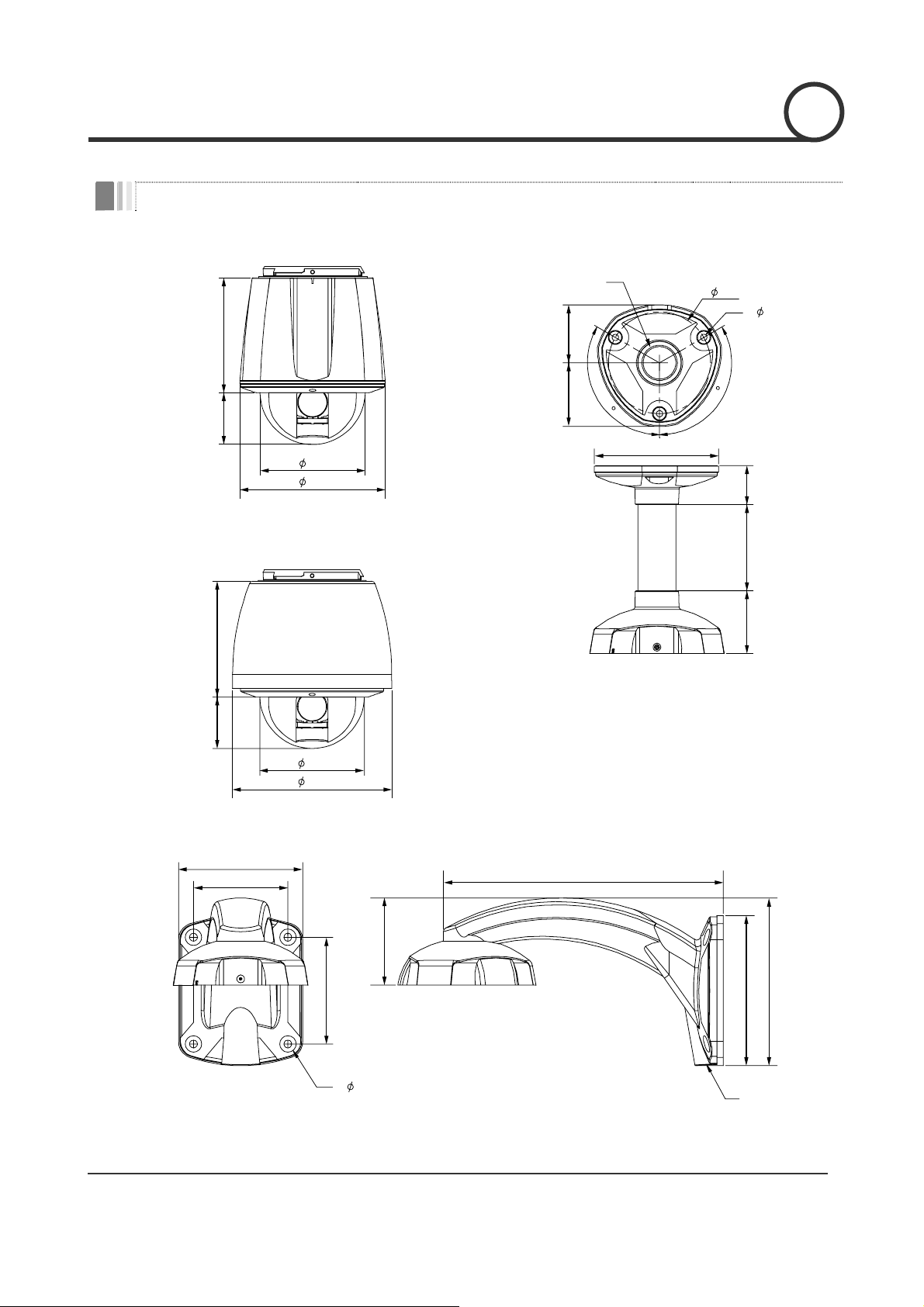

Dimension
CONTENTS
7
8
11
14
16
17
18
18
20
21
24
25
26
34
36
39
40
41
43
44
47
Speed Dome Camera Instruction Manual
4/47
INTRODUCTION
Fe at u re s
Camera Specifications
z CCD Sensor : 1/4" SONY Super HAD CCD → ×22, ×30 Model
1/4" SONY EXView CCD → ×26 Model
z Zoom Magnification : × 22 Optical Zoom, × 10 Digital Zoom (Max × 220 Zoom) → ×22 Model
× 30 Optical Zoom, × 10 Digital Zoom (Max × 300 Zoom) → ×30 Model
× 26 Optical Zoom, × 12 Digital Zoom (Max × 312 Zoom) → ×26 Model
z Day & Night Function
z Various Focus Mode : Auto-Focus / Manual Focus / Semi-Auto Focus.
z Independent & Simultaneous Camera Characteristic Setup in Preset operation
1
Powerful Pan/Tilt Functions
z Max. 360°/sec high speed Pan/Tilt Motion
z Using Vector Drive Technology, Pan/Tilt motions are accomplished in a shortest path. As a result,
time to target view is reduced dramatically and the video on the monitor is very natural to watch.
z For jog operation using a controller, since ultra slow speed 0.05°/sec can be reached, it is very easy
to locate camera to desired target view. Additionally it is easy to move camera to a desired position
with zoom-proportional pan/tilt movement.
Preset, Pattern, Swing, Group, Privacy Mask and More…
z MAX. 127 Presets are assignable and characteristics of each preset can be set up independently,
such as White Balance, Auto Exposure, Label, Digital Outputs and so on.
z Max. 8 set of Swing action can be stored. This enables to move camera repetitively between two
preset positions with designated speed.
z Max. 4 of Patterns can be recorded and played back. This enables to move camera to follow any
trajectory operated by joystick as closely as possible.
z Max. 8 set of Group action can be stored. This enables to move camera repetitively with
combination of Preset or Pattern or Swing. A Group is composed of max. 20 entities of
Preset/Pattern/Swings.
z Privacy Masks are assignable, not to intrude on other’s privacy. (8 Privacy Zones)
→ The availability for Privacy Mask function should be different by models.
PTZ(Pan/Tilt/Zoom) Control
z With RS-485 communication, max. 255 of cameras can be controlled at the same time.
z Pelco-D or Pelco-P protocol can be selected as a control protocol in the current version of firmware.
Speed Dome Camera Instruction Manual
5/47
OSD(On Screen Display) Menu
z OSD menu is provided to display the status of camera and to configure the functions interactively.
z The information such as Camera ID, Pan/Tilt Angle, Alarm I/O and Preset can be displayed on
screen.
Alarm I/O Functions
z 4 alarm sensor Inputs and 2 alarm Output relays are available.
z To reject external electric noise and shock perfectly, alarm sensor Input is decoupled with photo
coupler and the relay is used for alarm output.
z The signal range of sensor input is from DC 5.0 to 12.0 volts to adopt various applications.
Meanwhile, the maximum load of relay contact is AC 250V, 3A or DC 28V, 3A.
z If an external sensor is activated, camera can be set to move to the corresponding Preset position.
Meanwhile, the output relay can be matched to some specific Preset positions to do counteractions
such as turning on the light or sound the alarm.
INTRODUCTION
1
Reserved Presets for Special Purpose
z Most camera characteristics can be set up easily and directly with reserved preset, not entering
into OSD menu. For more information, refer to “Reserved Preset” in this manual.
Easy Installation and Perfect Outdoor Environment Compatibility
z Fans and heaters are built-in in camera for cold and hot temperature environment. Also idealistic
mechanical design protects camera from water and dust. (IP 66)
z It is easy to install and maintain camera with terminal for cable connection in brackets.
Speed Dome Camera Instruction Manual
6/47
Product & Accessories
Product & Accessories
INTRODUCTION
1
Options
z Main Body * z Main Body (Sun-Shield) * z Dome Cover
z Wall mount bracket ** z Ceiling Mount Bracket ** z Screws
z Pole Mount Adapter z Cornor Mount Adapter
Speed Dome Camera Instruction Manual
7/47
k
INTRODUCTION
Parts Name & Functions
Main Body
Cable
DIP Switch
Mold Line
1
Lockup Screw
Cabling
Terminal Bloc
Drop Prevention
Spring
z Main Body z Mount Bracket
Main Body
Connector
Fuse
z Dome Cover Do not detach protection vinyl from dome cover before finishing all
installation process to protect dome cover from scratches or dust.
z DIP Switch Sets up camera ID and protocol.
z Main Body Cable
Main Body Connector
z Drop Prevention Spring
z Lockup Screw After assembling main body to bracket, screw main body to bracket to
Enables signals and power to come and go between main body and
mount bracket.
This part keeps the camera from dropping during installation and
maintenance. After install the Bracket, please, hang the spring to the
drop prevention hook of main body as shown in picture for further
tasks.
protect them from separation by vibration and so on.
z Fuse If the fuse is burnt to protect your came from over-current damage, the
z Cabling Terminal Block During installation, Power, Video, Communication, Alarm I/O cables are
z Mold Line Mark to assemble main body to bracket.
Speed Dome Camera Instruction Manual
fuse have to be replace with new one. The fuse specification is 250V 3A.
However, we recommend consulting with supplier to remove the cause
of over-current.
connected on to this cabling terminal block.
8/47
INSTALLATION
DIP Switch Setup
Before you install the camera, you should set the DIP switches to configure the camera ID, communication
protocol.
Communication
Protocol
Camera ID
2
Camera ID Setup
ON
ON
123456
T0
T1
O
O
R
P
PR
ON ON
PROT
1818
z ID number of camera is set using binary number. The example is
shown bellow.
78
Pin 1 2 3 4 5 6 7 8
ID Value 1 2 4 8 16 32 64 128
ex) ID=5 on off on off off off off off
ex) ID=10 off on off on off off off off
2
0
2ST3
T
T
S
ST1
S
ID0
CAM ID
ID7
Speed Dome Camera Instruction Manual
z The range of ID is 1~255. Do not use 0 as camera ID. Fa ctory
default of Camera ID is 1.
z If you want to control a certain camera, you must match the camera
ID with Cam ID setting of DVR or Controller.
9/47
INSTALLATION
Communication Protocol Setup
z Select the appropriate Protocol with DIP switch combination.
ON
ON
123456
78
P0
(Pin 1)
Switch State
P1
(Pin 2)
P2
(Pin 3)
Protocol/Baud rate
2
Sensor Type Setup
ON
ON
123456
78
OFF OFF OFF PELCO-D, 2400 bps
ON OFF OFF PELCO-D, 9600 bps
OFF ON OFF PELCO-P, 4800 bps
ON ON OFF PELCO-P, 9600 bps
Otherwise Reserved
z If you want to control using DVR or P/T controller, their protocol must
be identical to camera. Otherwise, you can not control the camera.
z If you changed camera protocol by changing DIP S/W, the change
will be effective after you reboot the camera.
z Factory default of protocol is “Pelco-D, 2400 bps”.
z If you want to use Alarm Input, the types of sensor must be selected.
The sensor types are Normal Open and Normal.
~ Normal Open Output Voltage is high state when sensor is
~ Normal Close Output Voltage is high state when sensor is not
Pin No Switch State Sensor Type
ST0 (Pin 4)
ST1 (Pin 5)
ST2 (Pin 6)
ST3 (Pin 7)
z If sensor type is not selected properly, the alarm can be activated
rever sely.
activated.
activated.
ON Sensor 1 : Normal Close Type
OFF Sensor 1 : Normal Open Type
ON Sensor 2 : Normal Close Type
OFF Sensor 2 : Normal Open Type
ON Sensor 3 : Normal Close Type
OFF Sensor 3 : Normal Open Type
ON Sensor 4 : Normal Close Type
OFF Sensor 4 : Normal Open Type
Speed Dome Camera Instruction Manual
10/47
INSTALLATION
Installation using Wall Mount Bracket
① Install Wall Mount Bracket on wall.
③ Hook up “Drop Prevention Spring” on main body
to prevent camera from unexpected drop and
connect Main Body Cable to Main Body
Connector in Wall Mount Bracket.
② Wire cables to terminal blocks on the PCB in Wall
Mount Bracket.
④ Line up the mold lines and assemble main body
to Wall Mount Bracket.
2
⑤ Turn main body on its axis in CW(Clockwise)
direction and, after assembling them, screw main
body to Wall Mount Bracket to protect them from
separation by vibration or others.
Speed Dome Camera Instruction Manual
⑥ In case of using pipe, use the hole located on
lower side of Wall Mount Bracket to fix pipe.
11/47
INSTALLATION
Installation using Ceiling Mount Bracket
① To pass cables to upside of ceiling, please make a
hole with 50~60mm diameter on the ceiling panel
and attach the Ceiling mount bracket on it.
② Wire cables to terminal blocks on the PCB in
Ceiling Mount Bracket.
2
③ Hook up “Drop Prevention Spring” on main body
to prevent camera from unexpected drop and
connect Main Body Cable to Main Body
Connector in Ceiling Mount Bracket.
④ Line up the mold lines and assemble main body
to Ceiling Mount Bracket.
Speed Dome Camera Instruction Manual
12/47
⑤ Turn main body on its axis in CW(Clockwise)
direction and, after assembling them, screw main
body to Ceiling Mount Bracket to protect them
from separation by vibration or others.
INSTALLATION
2
Speed Dome Camera Instruction Manual
13/47
K
INSTALLATION
Cabling
IrDA
Sensor
2
Door
Switch
Sensor
Light
Alarm
Buzzer
Output Devices
COMMON+
SEN1
SEN2
SEN3
SEN4
RELAY1
RELAY2
PWR+
PWR-
VIDEO(+)
VIDEO(-)
RS-485+
RS-485-
Braket Terminal Block
Power
BNC
Moinitor
RS-485
Controller
/ DVR
Power Connection
z Please, check the voltage and current capacity of rated power carefully. Rated power is indicated in the
back of main unit.
Rated Power Input Voltage Range Current Consumption
DC 12V DC 11V ~ 18V 2.5 A
AC 24V AC 17V ~ 29V 1.5 A
Video Connection
z Connect with BNC coaxial cable.
RS-485 Communication
z For PTZ control, connect this line to keyboard and DVR. To control multiple cameras at the same time,
RS-485 communication lines of them is connected in parallel as shown below.
eyboard Controller / DVR
Speed Dome Camera Instruction Manual
RS-485
-
+
-
+
#1
-
+
#2
-
+
#n
14/47
Alarm I/O Connection
z Sensor Input
INSTALLATION 2
Internal
Before connecting sensors, check driving voltage and output signal type of the sensor. Since output
signal types of the sensors are divided into Open Collector and Voltage Output type in general, the
cabling must be done properly after considering these typed. Also, the sensor type, i.e. “Normal Open”
or “Normal Close” in Dip switch in main body of camera must be set properly.
Signal Description
IN COM+ Connect (+) cable of electric power source for Sensors to this port as
IN1−, IN2 −, I N 3−, In4− Connect output of sensors for each port as shown in the circuit above.
IN COM+
IN 1-
IN 4-
shown in the circuit above.
Sensor 1 Output
Sensor 4 Output
+5V~12V
+
+
+
-
-
-
z Relay Output
Internal
Maximum allowable electrical load of relay is shown bellow table.
Drive Power DC Power AC 110V Power AC220V Power
Max. Load DC 28V, 3A AC110V, 3A AC250V, 3A
Speed Dome Camera Instruction Manual
AC or DC
OUT 1
LOAD
AC or DC
OUT 2
LOAD
15/47
OPERATION 3
Check points before operation
z Before power is applied, please check the cables carefully.
z The camera ID of the controller must be identical to that of the target camera. The camera ID can be checked
by reading DIP switch of the camera.
z If your controller supports multi-protocols, the protocol must be changed to match to that of the camera.
z If you changed camera protocol by changing DIP switch, the change will be effective after you reboot the
camera.
z Since the operation method can be different for each controller available, refer to the manual for your
controller if camera can not be controlled properly. The operation of this manual is based on the standard
Pelco® Controller.
Preset and Pattern Function Pre-Check
z Check how to operate preset and pattern function with controller or DVR in advance to operate camera
function fully when using controller or DVR.
z Refer to the following table when using standard Pelco® protocol controller.
< Go Preset > Input [Preset Number] and press [Preset] button shortly.
< Set Preset > Input [Preset Number] and press [Preset] button for more than 2 seconds.
< Run Pattern > Input [Pattern Number] and press [Pattern] button shortly.
< Set Pattern > Input [Pattern Number] and press [Pattern] button for more than 2 seconds.
z If controller or DVR has no pattern button or function, use shortcut keys with preset numbers. For more
information, refer to “Reserved Preset” in this manual.
Speed Dome Camera Instruction Manual
16/47
OPERATION
Starting OSD Menu
z Function Using the OSD menu, Preset, Pattern, Swing, Group and Alarm I/O function can be
configured for each application.
z Enter Menu <Go Preset> [95]
Reserved Preset
z Description Some Preset numbers are reserved to special functions.
z Function <Go Preset> [95] : Enters into OSD menu
<Go Preset> [131~134] : Runs Pattern Function 1 ~ 4
<Go Preset> [141~148] : Runs Swing Function 1 ~
3
<Go Preset> [151~158] : Runs Group Function 1 ~ 8
<Go Preset> [161~162] : Sets Relay Output 1 ~ 2 to OFF
<Set Preset> [161~162] : Sets Relay Output 1 ~ 2 to ON
<Go Preset> [170] : Sets Camera BLC Mode to OFF
<Go Preset> [171] : Sets Camera BLC Mode to ON
<Go Preset> [172] : Sets Camera Flickerless Mode to OFF
<Go Preset> [173] : Sets Camera Flickerless Mode to ON
<Go Preset> [174] : Sets Camera Focus Mode to AUTO
<Go Preset> [175] : Sets Camera Focus Mode to Manual
<Go Preset> [176] : Sets Camera Focus Mode to SEMI-AUTO
<Go Preset> [177] : Sets Day & Night Mode to AUTO
<Go Preset> [178] : Sets Day & Night Mode to NIGHT
<Go Preset> [179] : Sets Day & Night Mode to DAY
<Go Preset> [180] : Sets Line-Lock Mode to OFF
<Go Preset> [181] : Sets Line-Lock Mode to ON
<Go Preset> [190] : Sets OSD Display Mode to AUTO (Except Privacy Mask)
<Go Preset> [191] : Sets OSD Display Mode to OFF (Except Privacy Mask)
<Go Preset> [192] : Setting OSD Display Mode to ON (Except Privacy Mask)
<Go Preset> [193] : Sets all Privacy Mask Display to OFF
<Go Preset> [194] : Sets all Privacy Mask Display to ON
Speed Dome Camera Instruction Manual
17/47
OPERATION
Preset
z Function Max. 127 positions can be stored as Preset position. The Preset number can be assigned
from 1 to 128, but 95 is reserved for starting OSD menu.
Camera characteristics (i.e. White Balance, Auto Exposure) can be set up independently
for each preset. Label should be blank and Relay Outputs should be set to OFF as default.
All characteristics can be set up in OSD menu.
z Set Preset <Set Preset> [1~128]
z Run Preset <Go Preset> [1~128]
z Delete Preset To delete Preset, use OSD menu.
Swing
3
z Function By using Swing function, you can make camera to move between 2 Preset positions
repeatedly. When swing function runs, camera moves from the preset assigned as the 1st
point to the preset assigned as the 2nd point in CW(Clockwise) direction. Then camera
moves from the preset assigned as the 2nd point to the preset assigned as the 1st point in
CCW(Counterclockwise) direction.
1
1st Preset
n
o
i
t
c
e
r
i
D
W
C
D
W
C
C
2
e
r
i
n
o
i
t
c
2nd Preset
In case that the preset assigned as the 1st point is same as the preset assigned as the 2nd
point, camera turns on its axis by 360° in CW(Clockwise) direction and then it turns on its
axis by 360° in CCW(Counterclockwise) direction.
Speed can be set up from 1°/sec to 180°/sec.
z Set Swing To set Swing, use OSD menu.
z Run Swing Method 1) <Run Pattern> [Swing NO.+10]
Method 2) <Go Preset> [Swing NO.+140]
ex) Run Swing 3 : <Run Pattern> [13]
ex) Run Swing 3 : <Go Preset> [143]
z Delete Swing To delete Swing, use OSD menu.
Speed Dome Camera Instruction Manual
18/47
OPERATION
Pattern
z Function Pattern Function is that a camera memorizes the path (mostly curve path) by joystick of
controller for assigned time and revives the path exactly as it memorized.
4 Patterns are available and Maximum 1200 communication commands can be stored in
a pattern.
z Set Pattern Pattern can be created by one of following two methods.
Method 1) <Set Pattern> [Pattern NO.]
{ Pattern editing screen is displayed as bellow.
EDIT PATTERN 1
3
[NEAR:SAVE /FAR:DELETE]
0/0/x1/N
{ Movement by Joystick and preset movement can be memorized in a pattern.
{ The rest memory size is displayed in progress bar.
{ To save the recording, press NEAR key and to cancel, press FAR key.
Method 2) OSD Using OSD Menu: See the section “How to use OSD Menu”.
z Run Pattern Method 1) <Run Pattern> [Pattern NO.]
Method 2) <Go Preset> [Pattern NO.+130]
z Delete Pattern Use OSD menu to delete a Pattern.
ex) Run Pattern 2 : <Run Pattern> [2]
ex) Run Pattern 2: <Go Preset> [132]
Speed Dome Camera Instruction Manual
19/47
OPERATION 3
Group
z Function The group function allows running sequence of Presets, Pattern and/or Swings. Max 8
group can be stored. Each group can have max 20 action entities which can be preset,
pattern or swing. Preset speed can be set up and the repeat number of Pattern & Swing
can be set up in Group setup. Dwell time between actions can be set up also.
Dwell Time
Preset 1 Pattern 1 Swing 1
z Set Group Use OSD Menu to create a Group.
z Run Group Method 1) <Run Pattern> [Group NO.+20]
Method 2) <Go Preset> [Group NO.++150]
z Delete Group Use OSD Menu to delete.
Max 20 Entities
ex) Run Group 7 : <Run Pattern> [27]
ex) Run Group 7 : <Go Preset> [157]
Speed Dome Camera Instruction Manual
20/47
OPERATION
Other Functions
z Power Up Action This function enables to resume the last action executed before power down. Most of
actions such as Preset, Pattern, Swing and Group are available for this function but Jog
actions are not available to resume.
z Auto Flip In case that tilt angle arrives at the top of tilt orbit(90°), zoom module camera turns on
its axis by 180° at the top of tilt orbit and moves to opposite tilt direction (180°) to keep
tracing targets. If this function is set to OFF, tilt movement range is 0 ~ 95°.
z Parking Action This function enables to locate the camera to specific position automatically if operator
doesn’t operate the controller for a while. The Park Time can be defined as a interval
from 1 minute to 4 hours.
z Alarm I/O 4 Alarm Input and 2 Alarm output (Relay output) are used. If an external sensor is
activated, camera can be set to move to corresponding preset position. Also, the output
relay can be matched to some specific preset positions to do counteractions such as
turning on the light or sounding the alarm. It is noted that the latest alarm input is
effective if multiple sensors are activated.
3
z Privacy Zone Mask To protect privacy, MAX. 8 Privacy Masks can be created on the arbitrary position to
hide objects such as windows, shops or private house. With Spherical Coordinates
system, powerful Privacy Zone Mask function is possible. The availability for Privacy
Zone Function should be different by models.
z GLOBAL/LOCAL
Image Setup
z SemiAuto Focus
WB(White Balance) and AE(Auto Exposure) can be set up independently for each
preset. There are 2 modes, "Global" mode & "Local" mode. The Global mode means that
WB or AE can be set up totally and simultaneously for all presets in "ZOOM CAMERA
SETUP" menu. The Local mode means that WB or AE can be set up independently or
separately for each preset in each preset setup menu. Each Local WB/AE value should
activate correspondingly when camera arrives at each preset location.
During jog operation, Global WB/AE value should be applied. All Local WB/AE value
do not change although Global WB/AE value changes.
This mode exchanges focus mode automatically between Manual Focus mode and Auto
Focus mode by operation. Manual Focus mode activates in preset operation and Auto
Focus mode activates during jog operation. With Manual mode at presets, Focus data is
memorized in each preset in advance and camera calls focus data in correspondence
with presets as soon as camera arrives at a preset. It should shorten time to get focuses.
Focus mode changes to Auto Focus mode automatically when jog operation starts.
Speed Dome Camera Instruction Manual
21/47
A
OPERATION
OSD Display of Main Screen
3
Preset Label
Camera ID
LABEL12345 PRESET1
I:1--- O:-2
CAM 1 15/4/x1/N
P/T/Z Information
Action Title
larm Information
z P/T/Z Information Current Pan/Tilt angle in degree, zoom magnification and a compass direction.
z Camera ID Current Camera ID(Address).
z Action Title
Followings are possible Action Titles and their meaning.
"SET PRESET ×××" When Preset ××× is stored
"PRESET ×××" When camera reach to Preset ×××
"PATTERN ×" When Pattern × is in action
"SWG×/PRESET ×××" When Swing × is in action
"UNDEFINED" When undefined function is called to run
z Preset Label The Label stored for specific Preset.
z Alarm Information This information shows current state of Alarm I/O. The character ‘O’ of first line stands
for Output and ‘I’ of second line means Input. If an I/O point is ON state it will show a
number corresponding to each point. If an I/O point is OFF state, '-' will be displayed.
Ex) Point 2 & 3 of inputs are ON and Point 1 of outputs is ON, OSD will show as below
I:-23- O:1-
Speed Dome Camera Instruction Manual
22/47
HOW TO USE OSD MENU
General Rules of Key Operation for Menu
z The menu items surrounded with ( ) always has its sub menu.
z For all menu level, to go into sub menu, press NEAR key.
z To go to up-one-level menu, press FAR key.
z To move from items to item in the menu, use joystick in the Up/Down or Left/Right.
z To change a value of an item, use Up/Down of the joystick in the controller.
z Press NEAR key to save values and Press FAR key to cancel values.
z Specifications and functions should be different by models.
Main Menu
4
SPEED DOME CAMERA
----------------------- <SYSTEM INFORMATION>
<DISPLAY SETUP>
<DOME CAMERA SETUP>
<SYSTEM INITIALIZE>
EXIT
z System Information Displays system information and configuration.
z Display Setup Enable/Disable of OSD display on Main
Screen.
z Dome Camera Setup Configure various functions of this camera.
z System Initialize Initializes system configuration and sets all
data to factory default configuration.
Speed Dome Camera Instruction Manual
23/47
Display Setup
HOW TO USE OSD MENU
4
DISPLAY SETUP
----------------------- CAMERA ID ON
PTZ INFORMATION AUTO
ACTION TITLE AUTO
PRESET LABEL AUTO
ALARM I/O AUTO
<SET NORTH DIRECTION>
<PRIVACY ZONE>
BACK
EXIT
Compass Direction Setup
SET NORTH DIRECTION
------------------------
This menu defines Enable/Disable of OSD display on Main Screen. If an
item is set to be AUTO, the item is displayed only when the value of it is
changed.
z Camera ID [ON/OFF]
z PTZ Information [ON/OFF/AUTO]
z Action Title [ON/OFF/AUTO]
z Preset Label [ON/OFF/AUTO]
z Alarm I/O [ON/OFF/AUTO]
Set North to assign compass direction as criteria. Move camera and
press NEAR button to save.
MOVE TO TARGET POSITION
[NEAR:SAVE /FAR:CANCEL
Speed Dome Camera Instruction Manual
24/47
PRIVACY ZONE MASK Setup
HOW TO USE OSD MENU
This function availability should be different by models.
PRIVACY ZONE
----------------------- MASK NO 1
UNDEFINED
DISPLAY OFF
CLEAR MASK CANCEL
<EDIT MASK>
BACK
EXIT
Select area in image to mask.
z Mask No [1~8]
z Display [ON/OFF]
Select Mask number. If the selected mask has
already data, camera moves as it was set.
Otherwise, “UNDEFINED” will be displayed
under “Mask NO”.
Sets if camera makes mask shows or not on
images.
4
Privacy Zone Area Setup
EDIT MASK 1
------------------------
MOVE TO TARGET POSITION
[NEAR:SELECT/FAR:CANCEL]
Privacy Zone Size Adjustment
EDIT MASK 1
------------------------
z Clear Mask [CANCEL/OK]
Deletes data in the selected mask NO.
Move camera to area to mask. Then the menu to adjust mask size will be
displayed.
Adjust mask size. Use joystick or arrow buttons to adjust mask size.
z (Left/Right) Adjusts mask width.
[ :ADJUST MASK WIDTH]
[ :ADJUST MASK HEIGHT]
[NEAR:SAVE /FAR:CANCEL]
Speed Dome Camera Instruction Manual
z (Up/Down) Adjusts mask height.
25/47
CAMERA SETUP (×22 Model)
HOW TO USE OSD MENU
4
ZOOM CAMERA SETUP
----------------------- FOCUS MODE SEMIAUTO
MAX ZOOM x220
FLICKERLESS OFF
COLOR ON
LINE LOCK OFF
<WHITE BALANCE SETUP>
<AUTO EXPOSURE SETUP>
BACK
EXIT
Setup the general functions of zoom camera module.
z Focus Mode [AUTO/MANUAL/SEMIAUTO]
Sets camera focus mode.
z Max Zoom [×2~×220]
z Flickerless [ON/OFF]
{ SEMIAUTO Mode
This mode exchanges focus mode automatically
between Manual Focus mode and Auto Focus mode.
Manual Focus mode activates in preset operation
and Auto Focus mode activates when jog operation
starts.
With Manual mode at presets, Focus data is
memorized in each preset in advance and camera
calls focus data in correspondence with presets as
soon as camera arrives at a preset.
Sets maximum zoom magnification.
If NTSC type camera is used in 50HZ frequency
circumstance or if PAL type camera is used in 60HZ
frequency circumstance, there should be flicker
(image vibration) on monitor since power frequency
is different from vertical sync frequency of camera.
In these cases, set Flickerless mode to ON to
prevent flicker.
If Flickerless mode is set to ON, Day/Night mode
changes to “Day” and Digital Slow Shutter mode
changes to “OFF” automatically.
Speed Dome Camera Instruction Manual
z Color [ON/OFF]
z Line Lock [ON/OFF]
If Line lock sync is ON, video signal is synchronized
with AC power. Video can be fluctuated after setting
is changed.
26/47
HOW TO USE OSD MENU 4
White Balance Setup
WB SETUP - GLOBAL
----------------------- WB MODE AUTO
RED ADJUST -- BLUE ADJUST ---
BACK
EXIT
z WB Mode [AUTO/MANUAL]
In Manual mode, Red and Blue level can be set
up manually
z Red Adjust [0~255]
z Blue Adjust [0~255]
Speed Dome Camera Instruction Manual
27/47
Auto Exposure Setup
HOW TO USE OSD MENU
AE SETUP - GLOBAL
----------------------- BACKLIGHT OFF
DAY/NIGHT AUTO
SLOW SHUTTER OFF
AE MODE AUTO
IRIS LEVEL -- GAIN LEVEL -- SHUTTER SPD -- BRIGHTNESS 50
BACK
EXIT
z Backlight [ON/OFF]
Sets Backlight Compensation.
z Day/Night [AUTO/DAY/NIGHT]
z Slow Shutter [OFF, 2~128 Field]
Sets Digital Slow Shutter. The number of piled
field can be setup. It is only available when
Day&Night mode is Day.
z AE Mode [AUTO/SHUTTER/IRIS/MANUAL]
Sets AE(Auto Exposure) mode.
Only if Day/Night mode is set to "Day" and
Slow Shutter mode is set to "OFF", AE can be
set.
z IRIS Level [0~255]
If AE mode is set to IRIS mode or Manual mode,
this can be set up.
z GAIN Level [0~255]
If AE mode is set to Manual mode, this can be
set up.
z Shutter Speed [0~27]
If AE mode is set to Shutter Speed mode or
Manual mode, this can be set up.
Refer to the following table for the value in
correspondence with Shutter Speed.
z Brightness [0~96]
If AE mode is not set to Manual mode, this can
be set up.
4
Note) Shutter Speed Table
Va l ue Shutter Va l u e Shutter Va lu e Shutter Va lu e Shutter
0 1/60 sec 7 1/400 sec 14 1/1000 sec 21 1/2000 sec
1 1/125 sec 8 1/450 sec 15 1/1100 sec 22 1/2500 sec
2 1/150 sec 9 1/500 sec 16 1/1200 sec 23 1/3000 sec
3 1/200 sec 10 1/600 sec 17 1/1300 sec 24 1/3500 sec
4 1/250 sec 11 1/700 sec 18 1/1500 sec 25 1/4000 sec
5 1/300 sec 12 1/800 sec 19 1/1600 sec 26 1/6000 sec
6 1/350 sec 13 1/900 sec 20 1/1800 sec 27 1/10000 sec
Speed Dome Camera Instruction Manual
28/47
CAMERA SETUP (×30 Model)
HOW TO USE OSD MENU
4
ZOOM CAMERA SETUP
----------------------- FOCUS MODE SEMIAUTO
MAX ZOOM x300
FLICKERLESS OFF
COLOR ON
LINE LOCK OFF
<WHITE BALANCE SETUP>
<AUTO EXPOSURE SETUP>
BACK
EXIT
Setup the general functions of zoom camera module.
z Focus Mode [AUTO/MANUAL/SEMIAUTO]
Sets camera focus mode.
z Max Zoom [×2~×300]
z Flickerless [ON/OFF]
{ SEMIAUTO Mode
This mode exchanges focus mode automatically
between Manual Focus mode and Auto Focus mode.
Manual Focus mode activates in preset operation and
Auto Focus mode activates when jog operation starts.
With Manual mode at presets, Focus data is
memorized in each preset in advance and camera
calls focus data in correspondence with presets as
soon as camera arrives at a preset.
Sets maximum zoom magnification.
If NTSC type camera is used in 50HZ frequency
circumstance or if PAL type camera is used in 60HZ
frequency circumstance, there should be flicker
(image vibration) on monitor since power frequency
is different from vertical sync frequency of camera. In
these cases, set Flickerless mode to ON to prevent
flicker.
If Flickerless mode is set to ON, Day/Night mode
changes to “Day” and Digital Slow Shutter mode
changes to “OFF” automatically.
Speed Dome Camera Instruction Manual
z Color [ON/OFF]
z Line Lock [ON/OFF]
If Line lock sync is ON, video signal is synchronized
with AC power. Video can be fluctuated after setting
is changed.
29/47
HOW TO USE OSD MENU
White Balance Setup
4
WB SETUP - GLOBAL
----------------------- WB MODE AUTO
RED ADJUST -- BLUE ADJUST ---
BACK
EXIT
Auto Exposure Setup
AE SETUP - GLOBAL
----------------------- BACKLIGHT OFF
DAY/NIGHT AUTO
SLOW SHUTTER OFF
AE MODE AUTO
IRIS LEVEL -- GAIN LEVEL -- SHUTTER SPD -- BRIGHTNESS 50
BACK
EXIT
z WB Mode [AUTO/MANUAL]
In Manual mode, Red and Blue level can be set
up manually
z Red Adjust [0~255]
z Blue Adjust [0~255]
z Backlight [OFF/C1/C2/L1/L2/U1/U2/D1/D2/R1/R2]
Selects the criteria area in image and decide
the Backlight level. Refer to the following table.
z Day/Night [AUTO/DAY/NIGHT]
z Slow Shutter [OFF, 2~128 Field]
Sets Digital Slow Shutter. The number of piled
field can be setup.
z AE Mode [AUTO/SHUTTER/IRIS/MANUAL]
Sets AE(Auto Exposure) mode.
Only if Day/Night mode is set to Day or Night
and Slow Shutter mode is set to OFF, AE can be
set.
z IRIS Level [0~255]
If AE mode is set to IRIS mode or Manual mode,
this can be set up.
z GAIN Level [0~255]
If AE mode is set to Manual mode, this can be
set up.
z Shutter Speed [0~27]
If AE mode is set to Shutter Speed mode or
Manual mode, this can be set up.
Refer to the following table for the value in
correspondence with Shutter Speed.
z Brightness [0~96]
If AE mode is not set to Manual mode, this can
be set up.
Speed Dome Camera Instruction Manual
30/47
Note) Backlight Setting
The compensation rate of Level 1 is higher than that of Level 2.
Va l ue Description Va l ue Description
C1
L1
U1
D1
R1
z Criteria Area : Center of Image
z BLC Level : 1
z Criteria Area : Left of Image
z BLC Level : 1
z Criteria Area : Upper of Image
z BLC Level : 1
z Criteria Area : Down of Image
z BLC Level : 1
z Criteria Area : Right of Image
z BLC Level : 1
HOW TO USE OSD MENU
C2
L2
U2
D2
R2
z Criteria Area : Center of Image
z BLC Level : 2
z Criteria Area : Left of Image
z BLC Level : 2
z Criteria Area : Upper of Image
z BLC Level : 2
z Criteria Area : Down of Image
z BLC Level : 2
z Criteria Area : Right of Image
z BLC Level : 2
4
Note) Shutter Speed Table
Va l ue Shutter Va l u e Shutter Va lu e Shutter Va l u e Shutter
0 1/60 sec 7 1/400 sec 14 1/1000 sec 21 1/2000 sec
1 1/125 sec 8 1/450 sec 15 1/1100 sec 22 1/2500 sec
2 1/150 sec 9 1/500 sec 16 1/1200 sec 23 1/3000 sec
3 1/200 sec 10 1/600 sec 17 1/1300 sec 24 1/3500 sec
4 1/250 sec 11 1/700 sec 18 1/1500 sec 25 1/4000 sec
5 1/300 sec 12 1/800 sec 19 1/1600 sec 26 1/6000 sec
6 1/350 sec 13 1/900 sec 20 1/1800 sec 27 1/10000 sec
Speed Dome Camera Instruction Manual
31/47
CAMERA SETUP (×26 Model)
HOW TO USE OSD MENU 4
ZOOM CAMERA SETUP
----------------------- FOCUS MODE SEMIAUTO
DIGITAL ZOOM ON
FLICKERLESS OFF
COLOR ON
LINE LOCK OFF
<WHITE BALANCE SETUP>
<AUTO EXPOSURE SETUP>
BACK
EXIT
Setup the general functions of zoom camera module.
z Focus Mode [AUTO/MANUAL/SEMIAUTO]
Sets camera focus mode.
{ SEMIAUTO Mode
This mode exchanges focus mode automatically
between Manual Focus mode and Auto Focus mode.
z Digital Zoom [ON/OFF]
z Flickerless [ON/OFF]
Manual Focus mode activates in preset operation
and Auto Focus mode activates when jog operation
starts.
With Manual mode at presets, Focus data is
memorized in each preset in advance and camera
calls focus data in correspondence with presets as
soon as camera arrives at a preset.
Sets digital zoom function to ON/OFF. If this is set to
OFF, optical zoom function runs but zoom function
stops at the end of optical zoom magnification.
If NTSC type camera is used in 50HZ frequency
circumstance or if PAL type camera is used in 60HZ
frequency circumstance, there should be flicker
(image vibration) on monitor since power
frequency is different from vertical sync
frequency of camera. In these cases, set Flickerless
mode to ON to prevent flicker.
Speed Dome Camera Instruction Manual
z Color [ON/OFF]
z Line Lock [ON/OFF]
If Line lock sync is ON, video signal is synchronized
with AC power. When this is set to ON, camera asks
if images show properly or not. Check if image is
displayed properly before setting up this.
32/47
HOW TO USE OSD MENU
White Balance Setup
4
WB SETUP - GLOBAL
----------------------- WB MODE AUTO
RED ADJUST -- BLUE ADJUST ---
BACK
EXIT
Auto Exposure Setup
AUTO EXPOSURE SETUP
----------------------- BACKLIGHT OFF
DAY/NIGHT AUTO
AE MODE AUTO
IRIS LEVEL -- GAIN LEVEL -- SHUTTER SPD -- BRIGHTNESS ---
BACK
EXIT
z WB Mode [AUTO/MANUAL]
In Manual mode, Red and Blue level can be set
up manually
z Red Adjust [0~255]
z Blue Adjust [0~255]
z Backlight [ON/OFF]
Sets Backlight Compensation
z Day/Night [AUTO/DAY/NIGHT]
z AE Mode [AUTO/SHUTTER/IRIS/BRIGHT/MANUAL]
Sets AE(Auto Exposure) mode.
If Flickerless mode is set to ON, AE mode
should be fixed to Shutter Speed mode.
z IRIS Level [CLOSE/F1.6~F28]
If AE mode is set to IRIS mode or Manual mode,
this can be set up.
Speed Dome Camera Instruction Manual
z GAIN Level [-3dB~28dB]
This can be set up when AE mode is set to
Manual mode.
z Shutter Speed [1/1sec~1/10000sec]
If AE mode is set to Shutter Speed mode or
Manual mode, this can be set up.
z Brightness [0~31]
This can be set up when AE mode is set to
Brightness mode.
33/47
Motion Setup
HOW TO USE OSD MENU 4
Setup the general functions of Pan/Tilt motions.
MOTION SETUP
----------------------- MOTION LOCK OFF
PWR UP ACTION ON
AUTO FLIP ON
JOG MAX SPEED 120/SEC
JOG DIRECTION INVERSE
<PARKING ACTION SETUP>
<ALARM ACTION SETUP>
BACK
EXIT
z Motion Lock [ON/OFF]
z Power Up Action [ON/OFF]
If Motion Lock is set to ON, it is impossible to
set up and delete Preset, Swing, Pattern and
Group. It is possible only to run those functions.
To set up and delete those functions, enter into
OSD menu.
Refer to “Other Functions" section.
z Auto Flip [ON/OFF]
Refer to “Other Functions" section.
z Jog Max Speed [1°/sec ~360°/sec]
Sets maximum jog speed. Jog speed is
inversely proportional to zoom magnification.
As zoom magnification goes up, pan/tilt speed
goes down.
z Jog Direction [INVERSE/NORMAL]
If you set this to ‘Inverse’, the view in the
screen is moving same direction with jog
tilting. If ‘Normal’ is selected, the view in the
screen is moving reversely.
z Freeze in Preset [ON/OFF]
At start point of preset movement, camera
starts freezing the image of start point. Camera
keeps displaying the image of start point
during preset movement and does not display
the images which camera gets during preset
movement. As soon as camera stops at preset
end point, camera starts displaying live images
which it gets at preset end point.
Speed Dome Camera Instruction Manual
This function availability should be different by
models.
34/47
HOW TO USE OSD MENU
Parking Action Setup
4
PARKING ACTION SETUP
----------------------- PARK ENABLE OFF
WAIT TIME 00:10:00
PARK ACTION HOME
BACK
EXIT
Alarm Input Setup
ALARM ACTION SETUP
----------------------- ALARM 1 ACT NOT USED
ALARM 2 ACT NOT USED
ALARM 3 ACT NOT USED
ALARM 4 ACT NOT USED
If Park Enable is set to ON, camera runs assigned function automatically
if there is no PTZ command during assigned "Wait Time".
z Park Enable [ON/OFF]
z Wait Time [1 minute ~ 4 hour]
The time is displayed with "hh:mm:ss" format
and you can change this by 1 min unit.
z Park Action [HOME/PRESET/PATTERN/SWING/GROUP]
{ HOME
Camera moves to home position if there is no
PTZ command during assigned "Wait Time".
Match the Alarm sensor input to one of Preset positions. If an external
sensor is activated, camera will move to corresponding preset position
when this item is predefined.
z Alarm × Action [NOT USED/PRESET 1~128]
BACK
EXIT
Speed Dome Camera Instruction Manual
Assign counteraction Preset position to each
Alarm input.
35/47
HOW TO USE OSD MENU
PRESET Setup
4
PRESET SETUP
----------------------- PRESET NO. 1
CLR PRESET CANCEL
<EDIT SCENE>
<EDIT LABEL> LABEL123
<RELAY OUT> 1 CAM ADJUST GLOBAL
BACK
EXIT
z Preset Number [1~128]
If a selected preset is already defined, camera
moves to pre-defined position and preset
characteristics such as Label and Relay Outputs
show on monitor. If a selected preset is not
defined, “UNDEFINED” shows on monitor.
z Clear Preset [CANCEL/OK]
Delete current Preset data
z Edit Preset Scene Redefine current Preset scene position (i.e. PTZ).
z Edit Preset Label Edits Label to show on monitor when preset runs.
MAX. 10 alphabets are allowed.
z Edit Relay Out Define Relay output. If an Output point is ON
state it will show a number corresponding to
each point. Otherwise, '-' will be displayed.
z CAM Adjust [GLOBAL/LOCAL]
WB(White Balance) and AE(Auto Exposure) can
be set up independently for each preset. There
are 2 modes, "Global" mode & "Local" mode. The
Global mode means that WB or AE can be set up
totally and simultaneously for all presets in
"ZOOM CAMERA SETUP" menu.
The Local mode means that WB or AE can be set
up independently or separately for each preset
in each preset setup menu. Each Local WB/AE
value should activate correspondingly when
camera arrives at each preset location. During
jog operation, Global WB/AE value should be
applied.
Speed Dome Camera Instruction Manual
All Local WB/AE value should not change
although Global WB/AE value changes. If “Local’’
is selected, Menu to set WB/AE shows on
monitor.
36/47
HOW TO USE OSD MENU
Edit Preset Scene
EDIT SCENE - PRESET 1
------------------------
MOVE TO TARGET POSITION
[NEAR:SAVE /FAR:CANCEL]
○1 Using Joystick, move camera to desired position.
2
○
By pressing NEAR key, save current PTZ data.
3
○
Press FAR key to cancel.
Edit Preset Label
4
EDIT LABEL - PRESET 1
----------------------- [ ]
--------- 1234567890 OK
ABCDEFGHIJ CANCEL
KLMNOPQRST
UVWXYZabcd
efghijklmn
opqrstuvwx
yz<>-/:.
----------
① Edits label to show on monitor when camera arrives at presets. In
Edit Label menu, a reverse rectangular is cursor. As soon as
finishing selecting alphabet, cursor moves to the next digit.
[ ]
Current Cursor Position
② Using Left/Right/Up/Down of joystick, move to an appropriate
character from the Character set. To choose that character, press
the NEAR key.
---------1234567890
ABCDEFGHIJ
KLMNOPQRST
UVWXYZabcd
efghijklmn
opqrstuvwx
yz<>-/:.
----------
Back Space Char.Space Char.
If you want to use blank, choose Space character (" "). If you want to
delete a character before, use back space character (" ←").
Speed Dome Camera Instruction Manual
③ If you complete the Label editing, move cursor to "OK" and press
NEAR key to save completed label. To abort current change, move
cursor to "Cancel" and press NEAR key.
37/47
HOW TO USE OSD MENU
Relay Out Setup
4
RELAY OUT - PRESET 1
----------------------- RELAY OUT 1 OFF
RELAY OUT 2 OFF
BACK
EXIT
z Relay Out × [ON/OFF]
Sets Relay Outputs for assigned preset.
Speed Dome Camera Instruction Manual
38/47
HOW TO USE OSD MENU
Swing Setup
4
SWING SETUP
----------------------- SWING NO. 1
1ST POS. NOT USED
2ND POS. NOT USED
SWING SPEED 30/SEC
CLEAR SWING CANCEL
BACK
EXIT
z Swing Number [1~8]
z 1st Position
2nd Position
Selects Swing number to edit. If a selected Swing
has not defined, "NOT USED" is displayed in 1st
Position and 2nd Position
[PRESET 1~128]
Set up the 2 position for Swing function. If a
selected preset is not defined, "UNDEFINED" will
be displayed as shown below.
SWING SETUP
----------------------- SWING NO. 1
1ST POS. PRESET5
2ND POS. NOT USED
UNDEFINED
When swing function runs, camera moves from the
preset assigned as the 1st point to the preset
assigned as the 2nd point in CW(Clockwise)
direction. Then camera moves from the preset
assigned as the 2nd point to the preset assigned as
the 1st point in CCW(Counterclockwise) direction.
In case that the preset assigned as the 1st point is
same as the preset assigned as the 2nd point,
camera turns on its axis by 360° in CW direction
and then it turns on its axis by 360° in CCW
direction.
Speed Dome Camera Instruction Manual
z Swing Speed [1°/sec ~180°/sec]
Sets Swing speed from 1°/sec to 180°/sec.
z Clear Swing [CANCEL/OK]
Deletes current Swing data.
39/47
Pattern Setup
HOW TO USE OSD MENU
4
PATTERN SETUP
----------------------- PATTERN NO. 1
UNDEFINED
CLR PATTERN CANCEL
<EDIT PATTERN>
BACK
EXIT
Edit Pattern
EDIT PATTERN 1
------------------------
MOVE TO START POSITION
[NEAR:START /FAR:CANCEL]
EDIT PATTERN 1
z Pattern Number [1~4 ]
Selects Pattern number to edit.
If a selected pattern number is not defined,
"UNDEFINED" will be displayed under
selected pattern number.
z Clear Pattern [CANCEL/OK]
z Edit Pattern Starts editing pattern.
① By using Joystick, move to start position with appropriate zoom. To
start pattern recording, press NEAR key. To exit this menu, press
FAR key.
② Move camera with joystick of controller or run preset function to
memorize the path (mostly curve path) in a selected pattern. The
total memory size and the rest memory size is displayed in the
form of bar. Maximum 1200 communication commands can be
stored in a pattern.
Deletes data in current pattern
[NEAR:SAVE /FAR:DELETE]
0/0/x1/N
Speed Dome Camera Instruction Manual
③ To save data and exit, press NEAR key. To cancel recording and
delete record data, press FAR key.
40/47
HOW TO USE OSD MENU
Group Setup
4
GROUP SETUP
----------------------- GROUP NO. 1
UNDEFINED
CLEAR GROUP CANCEL
<EDIT GROUP>
BACK
EXIT
Edit Group
EDIT GROUP 1
----------------------- NO ACTION ### DWELL OPT
----------------------- 1 NONE
2 NONE
3 NONE
4 NONE
5 NONE
----------------------- BACK
CANCEL [NEAR:EDIT]
z Group Number [1~8]
Selects Group number to edit.
If a selected Group number is not defined,
"UNDEFINED" will be displayed under selected
Group number.
z Clear Group [CANCEL/OK]
Deletes data in current Group
z Edit Group Starts editing Group.
① Press Near key in “NO” list to start Group setup.
EDIT GROUP 1
----------------------- NO ACTION ### DWELL OPT
----------------------- 1 NONE
2 NONE
3 NONE
4 NONE
5 NONE
----------------------- BACK [NEAR:EDIT ACT]
CANCEL [FAR :EDIT END]
EDIT GROUP 1
----------------------- NO ACTION ### DWELL OPT
----------------------- 1 NONE
2 NONE
3 NONE
4 NONE
5 NONE
----------------------- BACK [ :MOVE CURSOR]
CANCEL [ :CHANGE VAL.]
Speed Dome Camera Instruction Manual
② Note that MAX. 20 Functions are allowed in a Group. Move cursor
up/down and press Near key to set up.
③ Set up Action, Dwell time and Option. Note that selected item is
displayed in reverse. Move cursor Left/Right to select items and
move cursor Up/Down to change each value.
z Action ###
[NONE/PRESET/SWING/PATTERN]
z DWELL [0 second ~ 4 minutes]
Sets Dwell Time between functions
z OPT Option. It should be preset speed when
preset is set in Action. It should be the
number of repeat when Pattern or Swing is
selected in Action
41/47
HOW TO USE OSD MENU
4
EDIT GROUP 1
----------------------- NO ACTION ### DWELL OPT
----------------------- 1 NONE
2 NONE
3 NONE
4 NONE
5 NONE
----------------------- BACK [ :MOVE CURSOR]
CANCEL [ :CHANGE VAL.]
EDIT GROUP 1
----------------------- NO ACTION ### DWELL OPT
----------------------- 1 PRESET 1 00:03 360
2 NONE
3 NONE
4 NONE
5 NONE
----------------------- BACK [NEAR:EDIT ACT]
CANCEL [FAR :EDIT END]
EDIT GROUP 1
----------------------- NO ACTION ### DWELL OPT
----------------------- 1 PRESET 1 00:03 360
2 NONE
3 NONE
4 NONE
5 NONE
----------------------- BACK [NEAR:EDIT ACT]
CANCEL [FAR :EDIT END]
④ Set up items such as Action, ###, Dwell and OPT.
⑤ After finishing setting up a Action, press Near key to one-upper-
level menu(Step ②). Move cursor Up/Down to select Action
number and repeat Step ② ~ Step ④ to edit selected Group.
⑥ After finishing setting up all Actions, press FAR key to exit. Then
cursor should be moved to “BACK”. Press Near key to save data.
Speed Dome Camera Instruction Manual
42/47
HOW TO USE OSD MENU
System Initialization
4
SYSTEM INITIALIZE
----------------------- CLEAR ALL DATA NO
CLR DISPLAY SET NO
CLR CAMERA SET NO
CLR MOTION SET NO
CLR EDIT DATA NO
REBOOT CAMERA NO
REBOOT SYSTEM NO
BACK
EXIT
Initial Configuration Table
z Display Configuration z Camera Configuration
Camera ID ON Focus Mode SemiAuto
PTZ Information AUTO Digital Zoom♣ ON
Action Title AUTO Max Zoom ×220♦ / ×300♥
Preset Label AUTO Flickerless OFF
Alarm I/O AUTO Color ON
North Direction Pan 0° Line Lock OFF
Privacy Zone♣ Undefined White Balance AUTO
Backlight OFF
z Motion Configuration Day&Night AUTO
Motion Lock OFF Slow Shutter♦♥ OFF
Power Up Action ON AE Mode AUTO
Auto Flip ON Brightness♦♥ 50
Jog Max Speed 120°/sec
Jog Direction INVERSE z User Defined Data
Freeze in Preset♥ OFF Preset 1~128 Undefined
Park Action OFF Swing 1~8 Undefined
Alarm Action OFF Pattern 1~4 Undefined
Group 1~8 Undefined
z Clear All Data Deletes all configuration data such as display,
camera, motion setup and so on.
z Clear Display Set Initializes Display Configuration
z Clear Camera Set Initializes Camera Configuration
z Clear Motion Set Initializes Motion Configuration
z Clear Edit Data Deletes Preset Data, Swing Data, Pattern Data and
Group Data
z Reboot Camera Reboots Zoom Camera module
z Reboot System Reboots Speed Dome Camera
Note) Applicable Model ♦ : ×22 Model ♥ : ×30 Model ♣ : ×26 Model
Speed Dome Camera Instruction Manual
43/47
SPECIFICATIONS
Specifications
Model ×22 Appearance
Video Signal System NTSC PAL
CCD 1/4'' SONY Super HAD CCD
Max. Pixels 811(H)×508(V) 410K 795(H)×596(V) 470K
Effective Pixels 768(H)×494(V) 380K 752(H)×582(V) 440K
Horizontal Res. 480 TV Line
S/N Ratio 48 dB
Zoom ×22 Optical Zoom, ×10 Digital Zoom
Focal length F1.6, f=3.9(Wide)~85.8(Tele)mm
Camera
Pan/Tilt
General
* Specifications of this product can be subjected to change without notice.
** Users are obligated to check the voltage and current capacity of rated power
carefully.
Min. illumination 1.0 Lux (Day) / 0. 001 Lux (Night)
Day & Night Auto / Day / Night(DSS)
Focus Auto / Manual / SemiAuto
AE Mode Auto / Iris / Shutter / Manual
White Balance Auto / Manual(Red, Blue Gain Adjustable)
BLC On / Off
Flickerless On / Off
Brightness Adjustable
Range Pan 360°(Endless) / Tilt 95°
Preset : 360°/sec
Pan/Tilt Speed
Preset 127 Preset (Label, Camera Image Setting)
Pattern 4 Pattern, 1200 commands(about 5 minute)/Pattern
Swing 8 Swing
Group 8 Group (20 action entities per Group)
Other Functions Auto Flip, Auto Parking, Power Up Action etc.
Communication RS-485
Protocol Pelco-D, Pelco-P selectable
Alarm I/O 4 Input / 2 Output
OSD Menu / PTZ information etc.
Rated Power**
Dimension
Weight about 5 Kg
Operating Temp. -30°C ~ 50°C
Manual : 0.05 ~ 360°/sec (proportional to zoom)
Swing : 1~ 180°/sec
DC Type : DC 12V / 2.5A
AC Type : AC 24V / 1.5A
Dome : ∅149
Housing : ∅206 × 235(H) mm
z Ceiling Mount
z Ceiling Mount(Sun-Shield)
5
Speed Dome Camera Instruction Manual
z Wall Mount
z Wall Mount(Sun-Shield)
44/47

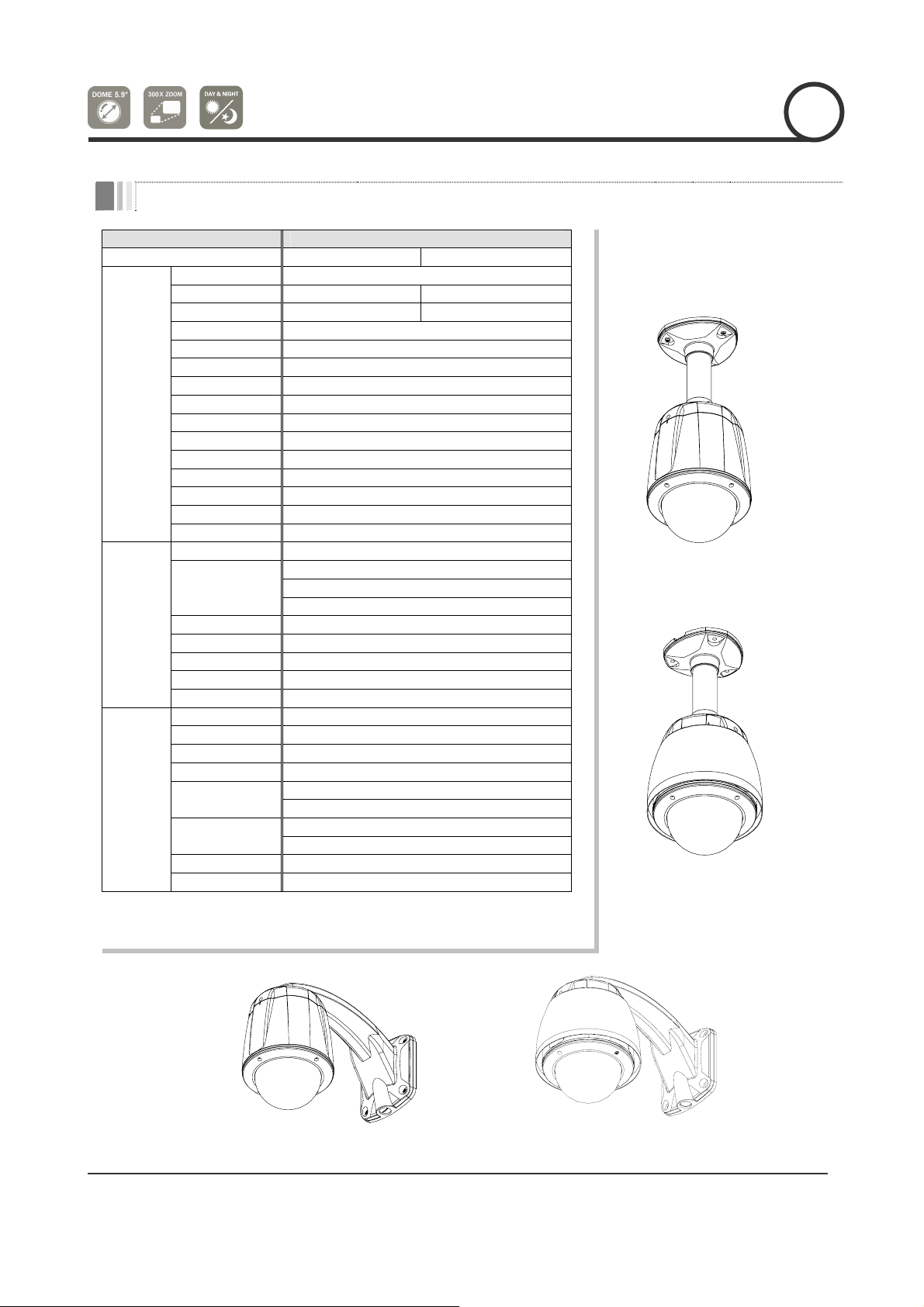

SPECIFICATIONS
Specifications
Model ×30 Appearance
Video Signal System NTSC PAL
CCD 1/4'' SONY Super HAD CCD
Max. Pixels 811(H)×508(V) 410K 795(H)×596(V) 470K
Effective Pixels 768(H)×494(V) 380K 752(H)×582(V) 440K
Horizontal Res. 480 TV Line
S/N Ratio 48 dB
Zoom ×30 Optical Zoom, ×10 Digital Zoom
Focal length F1.6~3.2, f=3.3(Wide)~99(Tele)mm
Camera
Pan/Tilt
General
* Specifications of this product can be subjected to change without notice.
** Users are obligated to check the voltage and current capacity of rated power
carefully.
Min. illumination 1.0 Lux (Day) / 0. 001 Lux (Night)
Day & Night Auto / Day / Night (IR Cut Filter)
Focus Auto / Manual / SemiAuto
AE Mode Auto / Iris / Shutter / Manual
White Balance Auto / Manual(Red, Blue Gain Adjustable)
BLC On / Off
Flickerless On / Off
Brightness Adjustable
Range Pan 360°(Endless) / Tilt 95°
Preset : 360°/sec
Pan/Tilt Speed
Preset 127 Preset (Label, Camera Image Setting)
Pattern 4 Pattern, 1200 commands(about 5 minute)/Pattern
Swing 8 Swing
Group 8 Group (20 action entities per Group)
Other Functions Auto Flip, Auto Parking, Power Up Action etc.
Communication RS-485
Protocol Pelco-D, Pelco-P selectable
Alarm I/O 4 Input / 2 Output
OSD Menu / PTZ information etc.
Rated Power**
Dimension
Weight about 5 Kg
Operating Temp. -30°C ~ 50°C
Manual : 0.05 ~ 360°/sec (proportional to zoom)
Swing : 1~ 180°/sec
DC Type : DC 12V / 2.5A
AC Type : AC 24V / 1.5A
Dome : ∅149
Housing : ∅206 × 235(H) mm
z Ceiling Mount
z Ceiling Mount(Sun-Shield)
5
Speed Dome Camera Instruction Manual
z Wall Mount
z Wall Mount(Sun-Shield)
45/47

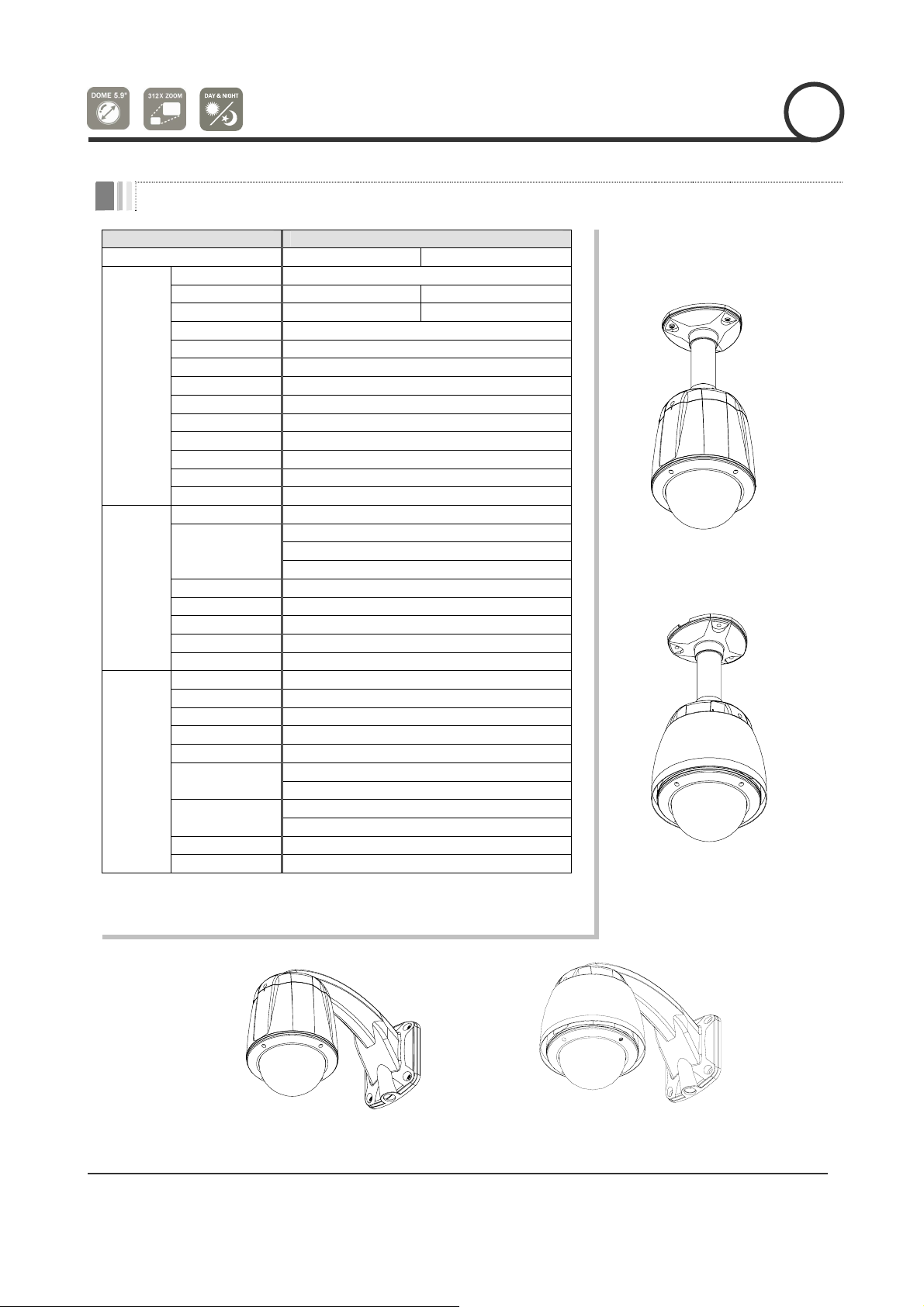

SPECIFICATIONS
Specifications
Model ×26 Appearance
Video Signal System NTSC PAL
CCD 1/4'' SONY EXView CCD
Max. Pixels 768(H)×494(V) 380K 752(H)×582(V) 440K
Horizontal Res. 470 TV Line 460 TV Line
S/N Ratio 50 dB
Zoom ×26 Optical Zoom, ×12 Digital Zoom
Focal length F1.6~3.8, f=2.5(Wide)~91(Tele)mm
Camera
Pan/Tilt
General
* Specifications of this product can be subjected to change without notice.
** Users are obligated to check the voltage and current capacity of rated power
carefully.
Min. illumination 1.0 Lux (Day) / 0. 01 Lux (Night)
Day & Night Auto / Day / Night (IR Cut Filter)
Focus Auto / Manual / SemiAuto
AE Mode Auto / Iris / Shutter / Manual / Brightness
White Balance Auto / Manual(Red, Blue Gain Adjustable)
BLC On / Off
Flickerless On / Off
Range Pan 360°(Endless) / Tilt 95°
Preset : 360°/sec
Pan/Tilt Speed
Preset 127 Preset (Label, Camera Image Setting)
Pattern 4 Pattern, 1200 commands(about 5 minute)/Pattern
Swing 8 Swing
Group 8 Group (20 action entities per Group)
Other Functions Auto Flip, Auto Parking, Power Up Action etc.
Communication RS-485
Protocol Pelco-D, Pelco-P selectable
Alarm I/O 4 Input / 2 Output
Privacy Mask Zone 8 Zone
OSD Menu / PTZ information etc.
Rated Power**
Dimension
Weight about 5 Kg
Operating Temp. -30°C ~ 50°C
Manual : 0.05 ~ 360°/sec (proportional to zoom)
Swing : 1~ 180°/sec
DC Type : DC 12V / 2.5A
AC Type : AC 24V / 1.5A
Dome : ∅149
Housing : ∅206 × 235(H) mm
z Ceiling Mount
z Ceiling Mount(Sun-Shield)
5
Speed Dome Camera Instruction Manual
z Wall Mount
z Wall Mount(Sun-Shield)
46/47
Dimension
z Main Body z Ceiling Mount Bracket
1-1/2" NPT
130
5 SPECIFICATIONS
83-
162.573
149
206
z Main Body (Sun-Shield)
163.773
149
227.2
74.181.5
1
2
0
158.2
0
2
1
5080 110
158
120
136
Speed Dome Camera Instruction Manual
z Wall Mount Bracket
356
111.2
213.7
191
104-
3/4" NPT
Unit (mm)
47/47
Loading...
