Megapixel Indoor Network Camera User’s Manual
Version 1.0.1
i
Welcome
Thank you for purchasing our network camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!
ii
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC or 24V AC in the IEC60950-1. (Refer to general introduction) Please
note: Do not connect two power supplying sources to the device at the same time; it may result
in device damage!
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3．Installation
Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
This series network camera should be installed in a cool, dry place away from direct sunlight,
inflammable, explosive substances and etc.
Please keep it away from the electromagnetic radiation object and environment.
Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
Thunder-proof device is recommended to be adopted to better prevent thunder.
The grounding studs of the product are recommended to be grounded to further enhance the reliability
of the camera.
6. Daily Maintenance
Please shut down the device and then unplug the power cable before you begin daily maintenance
work.
iii
Accessory Name
Amount
Network Camera Unit
1
C/CS Adapter ring
1
Quick Start Guide
1
CD
1
Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens
surface.
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to
dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the
device.
Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.
Dome enclosure is the optical component, do not touch the enclosure when you are installing the
device or clean the enclosure when you are doing maintenance work. Please use professional optical
clean method to clean the enclosure. Improper enclosure clean method (such as use cloth) may result
in poor IR effect of camera with IR function.
7. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
iv
Table of Contents
1 General Introduction .............................................................................................................. 1
1.1 Overview ................................................................................................................... 1
1.2 Feature ...................................................................................................................... 1
1.3 Specifications ........................................................................................................... 2
1.3.1 Performance ...................................................................................................... 2
2 Framework ............................................................................................................................. 5
2.1 Rear Panel ................................................................................................................ 5
2.2 Side Panel................................................................................................................. 8
2.3 Front Panel ............................................................................................................... 9
2.4 Bidirectional talk ....................................................................................................... 9
2.4.1 Device-end to PC .............................................................................................. 9
2.4.2 PC to the Device-end ...................................................................................... 10
2.5 Alarm Setup ............................................................................................................ 10
2.5.1 Alarm Input and Output Connection .............................................................. 10
2.5.2 IR Light Connection ......................................................................................... 11
3 Installation ................................................................................................ ............................ 13
3.1 Lens Installation ..................................................................................................... 13
3.1.1 Auto Aperture Lens ......................................................................................... 13
3.1.2 Manual Lens .................................................................................................... 13
3.1.3 Remove Lens ................................................................................................... 14
3.2 Micro SD Card ........................................................................................................ 14
3.2.1 Installation ........................................................................................................ 14
3.2.2 Remove ............................................................................................................ 15
3.3 I/O Port .................................................................................................................... 15
4 Quick Configuration Tool .................................................................................................... 17
4.1 Overview ................................................................................................................. 17
v
4.2 Operation ................................................................................................................ 17
5 Web Operation ..................................................................................................................... 19
5.1 Network Connection............................................................................................... 19
5.2 Login and Main Interface ....................................................................................... 19
6 FAQ ....................................................................................................................................... 21
Appendix Toxic or Hazardous Materials or Elements ............................................................. 22
1
User
Management
Different user rights for each group, one user belongs to one group.
The user right can not exceed the group right.
Data
Transmission
Support cable network data transmission via Ethernet
Storage
Function
Support central server backup function in accordance with your configuration and
setup in alarm or schedule setting
Support record via Web and the recorded file are storage in the client-end PC.
Support local Micro SD card hot swap. Support short-time storage when encounter
disconnection.
Support network storage such as FTP.
Alarm
Function
Real-time respond to external on-off alarm input, and video detect as user pre-
defined activation setup and generate corresponding message in screen and audio
prompt(allow user to pre-record audio file)
Real-time video detect: motion detect, camera masking.
Network
Monitor
Network camera supports one-channel audio/video data transmit to network
terminal and then decode. Delay is within 300ms (network bandwidth support
needed)
Max supports 20 connections.
Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,
MULTICAST, RTP/RTCP, RTSP and etc.
Support web access.
Network
Management
Realize network camera configuration and management via Ethernet.
Support device management via web.
Support various network protocols.
Peripheral
Equipment
Support peripheral equipment connection via the RS232 port, each peripheral
equipment control protocol and interface can be set freely.
Support serial port (RS232/RS485) transparent data transmission.
Support the on-off alarm device to alarm via the sound or the light.
Power
External power adapter. Support DC 12V/AC 24V power supply.
Warning！
1 General Introduction
1.1 Overview
This series network camera integrates the traditional camera and network video technology. It
adopts audio video data collection, transmission, storage together. It can connect to the network
directly without any auxiliary device.
This series network camera uses standard H.264 video compression technology and PCM,
G.711a/u audio compression technology, which maximally guarantees the audio and video
quality.
This series network camera has mega pixel resolution and supports 12V DC/24V AC power. It
supports the wireless network application, bidirectional talk, digital water mark and etc.
It can be used alone or used in a network area. When it is used lonely, you can connect it to the
network and then use a network client-end. Due to its high definition, multiple functions and
various applications, this series network camera is widely used in many indoor environments and
other important area surveillance.
1.2 Feature
2
Do not connect two power supplying sources to the device at the same time; it
may result in device damage!
PoE
Support Power over Ethernet (PoE). Conform to the IEEE802.3af standard.
Connect the device to the switcher or the router that supports the PoE function to
realize the network power supply.
To guarantee proper performance, please make sure the power sourcing device
can supply at least 10W power.
Assistant
Function
Day/Night mode auto switch (ICR switch.)
Backlight compensation: screen auto split to realize backlight compensation to
adjust the bright.
Support system resource information and running status real-time display. Support
log function.
Support video watermark function to avoid vicious video modification.
Support auto aperture.
Support picture parameter setup such as electronic shutter and gain setup.
Support dual-stream, ACF(Active frame control )
Model
Parameter
ICIP S2000
System
Main
Processor
High performance DSP
OS
Embedded LINUX
System
Resources
Support real-time network, local record, and remote operation at the same
time.
User Interface
Remote operation interface such as WEB, DSS, PSS
System Status
Micro SD card status, bit stream statistics, log, and software version.
Video Parameter
Image Sensor
1/2.8-inch CMOS
Pixel
1920(H)×1080(V)
Day/Night
Mode
Support day/night mode switch and IR-CUT at the same time.
Auto Aperture
Enable
Gain Control
Fixed/Auto
White Balance
Manual/Auto
BLC
On/Off
Electronic
Shutter
Manual/Auto
It ranges from 1/3 to 1/10000.
Video
Compression
Standard
H.264/ H.264H/ MJPEG
Note: Some versions do not support H.264H.
Video Frame
Rate
PAL:
Main stream (1920*1080@25fps)
Extra stream (704*576@25fps)
Main stream (1920*1080@30fps)
Extra stream (704*480@30fps)
1.3 Specifications
1.3.1 Performance
Please refer to the following sheet for network camera performance specification.
3
Video Bit Rate
H.264:32Kbps-8192Kbps, adjustable
MJPEG: 32~12288Kb/s, adjustable
and bit rate is adjustable.
Support customized setup.
H.264:32Kbps-8192Kbps, adjustable
MJPEG: 32~16384Kb/s, adjustable
and bit rate is adjustable.
Support customized setup.
Flip
Support
Mirror
Support
Snapshot
Max 1f/s snapshot. File extension name is JPEG
Privacy Mask
Each channel supports max 4 privacy mask zones
Video Setup
Support parameter setup such as bright, contrast.
Video
Information
Channel title, time title, motion detect, privacy mask.
Lens
Optional
Lens Interface
C/CS optional
Audio
Audio Input
1-channel， 3.5mm JACK LINE IN
Audio Output
1-channel， 3.5mm JACK SPEAK OUT
Bidirectional
Talk Input
Reuse the first audio input channel
Audio Bit Rate
8kbps 16bit
Audio
Compression
Standard
G.711A/G.711Mu/PCM
Video
Motion Detect
396 (18*22) detection zones; sensitivity level ranges from 0 to 100; area
threshold ranges from 0 to 100.
Activation event, alarm device, audio/video storage, image snapshot, log,
email function and etc.
Alarm Input
1-channel input，1-channel output
Record and
Backup
Record
Priority
Manual>External alarm >Video detect>Schedule
Local Storage
Support local Micro SD card hot swap
Storage
Management
Support display local storage status
Network
Wire Network
1-channel wire Ethernet port, 10/100 Base-T Ethernet
Network
Protocol
Standard HTTP, TCP/IP, ARP, IGMP, ICMP, RTSP, RTP, UDP, RTCP, SMTP,
FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour, SNMP, Qos,
IEEE802, Syslog
Remote
Operation
Monitor, PTZ control, system setup, file download, log information,
maintenance , upgrade and etc
AUX
Interface
Video Output
1-channel analog video output，BNC port
Network
Interface
1-channel Ethernet, 10/100 Base-T Ethernet
RS485 port
PTZ control interface. Support various protocols.
General
Parameter
Power
Support AC24V/DC12V power and PoE.
Power
Consumption
<3.5W
Working
Temperature
-20℃~+60℃
Working
Humidify
≤95%
Dimensions
70*63.2*149.5
4
Weight
650g
Installation
Support various installation modes(Enclosure and bracket are optional)
5
Interface Name
Connector
Function
VIDEO OUT
Video output port
BNC
Output analog video
signal. Can connect to
TV monitor to view
video.
AC 24V/ DC 12V
Power port
Power port.
Input 12V DC or
AC 24V
2 Framework
2.1 Rear Panel

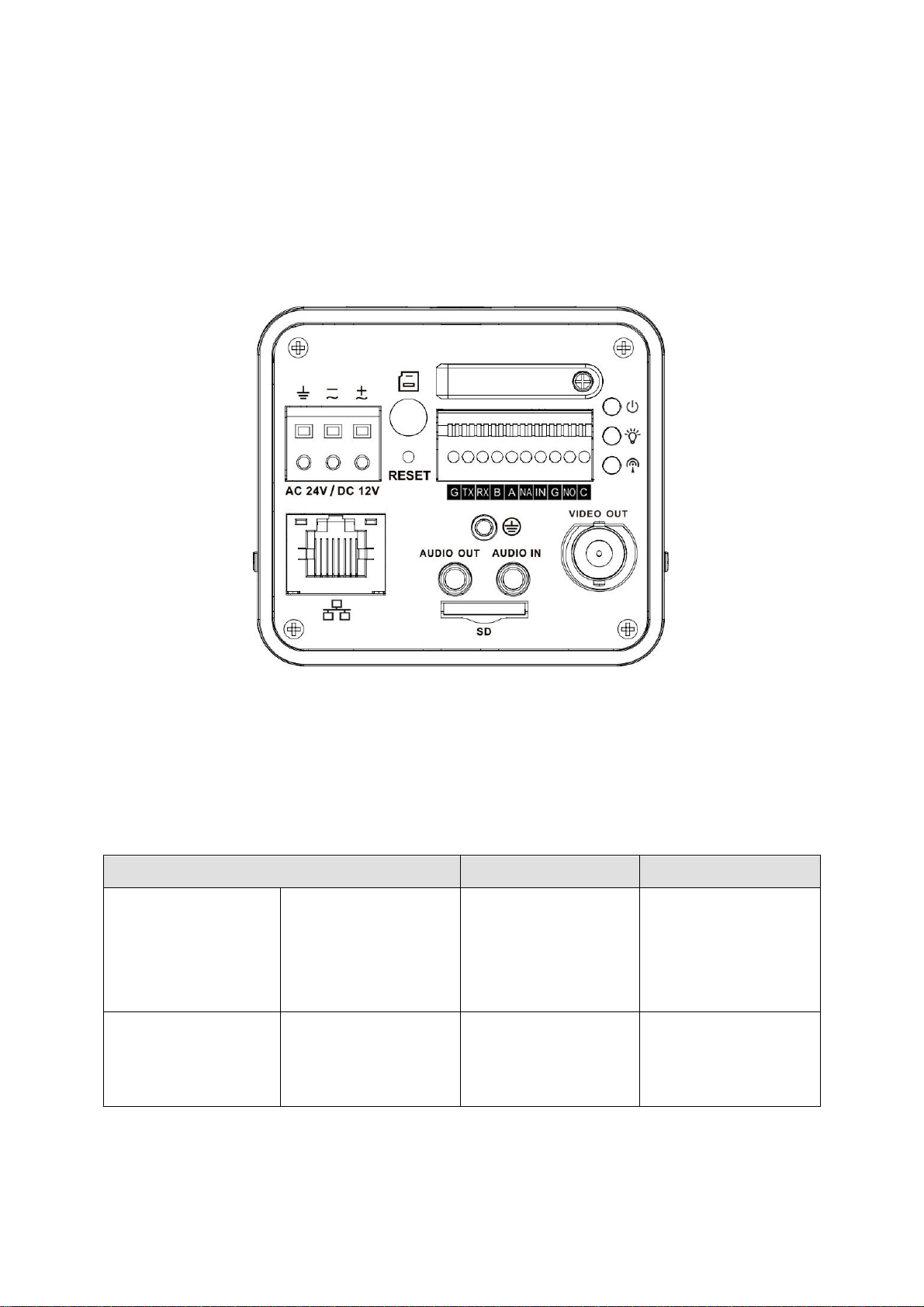

This series network camera rear panel is shown as below. See Figure 2-1.
Figure 2-1 Rear panel
Note: Picture in this chapter is for reference only and actual rear panel may vary.
Please refer to the following sheet for detail information.
6
STATUS
Indication Light
Red light
System boot up-
red light is on
System
upgrades-red light
flashes
System resets-
red light flashes.
Green light
Normal working
status-green light
is on.
Display record
status: Recordgreen light
flashes.
Yellow light
Detect the
wireless deviceyellow light is on.
IN
Alarm input port
I/O port
Alarm input port. To
receive the signal from
the external alarm
device.
NO
Alarm output port
Alarm output port. To
output alarm signal to
the alarm device.
NO: Normal open
alarm output end.
C: Alarm output
public end.
C
G
GND
Alarm input ground
end.
A
RS485 port
RS485_A port, control
external PTZ
B
RS485_B port, control
external PTZ
7
RX
RS232 port
RS232_RX，RS232
receive end.
TX
RS232_TX，RS232
COM send out end.
G
GND
RS232 ground end
NA
IR light port
External IR light signal
control port.
RESET
RESET button
Restore factory default
setup.
When system is
running normally,
press the RESET
button for at least 5
seconds, system can
restore factory default
setup.
AUDIO OUT
Audio output port
Audio output 3.5mm
JACK port.
Output audio signal to
the passive device
such as earphone.
AUDIO IN
Audio input port
Audio input 3.5mm
JACK port.
Input audio signal
from devices such as
pick-up.
LAN
Network port
Ethernet port
Connect to
standard Ethernet
cable.
Support PoE
function.
8
Micro SD
Micro SD card port
Connect to Micro SD
card.
Note
When you install
the Micro SD
card, please
make sure current
card is not in write
mode and then
you can install it
to the camera.
When you
remove the Micro
SD card, please
make sure current
card is not in write
mode. Otherwise
it may result in
data loss or card
damage.
Before hot swap,
please stop
record operation.
GND
Please make sure the
device is securely
earthed to prevent the
thunderstorm strike.
2.2 Side Panel
Please refer to the following interface for side panel dimension information. The unit is mm. See
Figure 2-2.
9
Figure 2-2 Side panel
2.3 Front Panel
Please refer to the following interface for the front panel information. The unit is mm. See Figure
2-3.
Figure 2-3 Front panel
2.4 Bidirectional talk
2.4.1 Device-end to PC Device Connection
Please connect the speaker or the MIC to the audio input port in the device rear panel. Then
connect the earphone to the audio output port in the PC.
Login the Web and then click the Audio button to enable the bidirectional talk function.
You can see the button becomes orange after you enabled the audio talk function.
Click Audio button again to stop the bidirectional talk function.
Listening Operation
At the device end, speak via the speaker or the pickup, and then you can get the audio from the
earphone or sound box at the pc-end.
10
2.4.2 PC to the Device-end Device Connection
Connect the speaker or the MIC to the audio input port in the PC and then connect the earphone
to the audio output port in the device rear panel.
Login the Web and then click the Audio button to enable the bidirectional talk function.
You can see the button becomes orange after you enabled the audio talk function.
Click Audio button again to stop the bidirectional talk function.
Please note the listening operation is null during the bidirectional talk process.
Listening Operation
At the PC-end, speak via the speaker or the pickup, and then you can get the audio from the
earphone or sound box at the device-end.
2.5 Alarm Setup
The alarm interface is shown as in Figure 2-4.
Figure 2-4 Alarm
The alarm setup interface is shown as below.
Step 1. Connect the alarm input device to the IN alarm input port on the rear panel.
Step 2. Connect the alarm output device to the NO alarm output port and C alarm output public
port on the rear panel. The alarm output port supports NO (normal open) alarm device
only.
Step 3. Open the Web, go to the Figure 2-4. Here you can set the alarm input setup and alarm
output setup. Here the alarm input is the alarm input on the rear panel (as IN port). Then
you can select the corresponding type (NO/NC) according to the high/low level type
when an alarm occurs.
Step 4. Set the WEB alarm output. The alarm output 01 is the alarm output port of the device
rear panel (as the NO port).
2.5.1 Alarm Input and Output Connection
Please refer to the following figure for alarm input information. See Figure 2-5.
11
Alarm input: When the input signal is idle or grounded, the device can collect the different
statuses of the alarm input port. When the input signal is connected to the 3.3V or is idle, the
device collects the logic “1”. When the input signal is grounded, the device collects the logic “0”.
Figure 2-5 Alarm input
Please refer to the following figure for alarm output information. See Figure 2-6.
Port NO and Port C composes an on-off button to provide the alarm output.
If the type is NO, this button is normal open. The button becomes on when there is an alarm
output.
If the type is NC, this button is normal off. The button becomes off when there is an alarm output.
Figure 2-6 Alarm output
2.5.2 IR Light Connection
Note:
Device shall have external port for IR function.
Log in Web, select Setup -> Camera -> Day&Night, and select sensor input. If it is not
available, then you do need to set it.
Please refer to the following figure for external IR light information. See Figure 2-7.
IR synchronization input signal. When the external IR light is on, the signal cable from the board
outputs the 3.3V/1mA. It outputs the 0V when the IR light is off.
12
Figure 2-7 IR light connection
13
3 Installation
3.1 Lens Installation
3.1.1 Auto Aperture Lens
Please follow the steps listed below for auto aperture lens installation. The interface is shown as
in Figure 3-1.
Remove the CCD protection cap of the device, and then line up the lens to the proper
installation position. Turn clockwise until the lens is fixed firmly.
Insert the lens cable socket to the auto lens connector in the side panel.
Adjust focus length.
Figure 3-1 Auto aperture lens
3.1.2 Manual Lens
Install C type lens
Remove the CCD protection cap from the device.
Install the C/CS adapter to the camera. Turn clockwise to secure against the focusing ring
firmly.
Line up the C lens to the installation position of the C/CS adapter. Turn clockwise to fix the
lens.
Use slotted screwdriver to fasten the screw near the focusing ring and then turn counter
clockwise to move the focusing ring out for several millimeters. Now you can focus manually
and check the video is clear or not. If you can not see the clear video, you can adjust via the
flange-back.
After you completed the focus setup, use the slotted screwdriver to fix the screw firmly.
Fasten the focusing ring. Now the installation completed.
Install CS type lens
Remove the CCD protection cap from the device.
Line up the CS lens to the lens installation position of camera focusing ring. Turn clockwise
to fix the lens.
Use slotted screwdriver to fasten the screw near the focusing ring and then turn counter
clockwise to move the focusing ring out for several millimeters. Now you can focus manually
14
and check the video is clear or not. If you cannot see the clear video, you can adjust via the
flange-back.
After you completed the focus setup, use the slotted screwdriver to fix the screw firmly.
Fasten the focusing ring. Now the installation completed.
See Figure 3-2.
Figure 3-2 Manual lens
3.1.3 Remove Lens
Please follow the steps listed below to remove lens. The interface is shown as in Figure 3-3.
Turn the lens counter clockwise and then remove it from the camera.
Unplug the auto lens cable socket from the auto lens connector. If you are using the manual
aperture lens, please skip to the following step.
If there is no lens, please put the CCD protection cap back to protect the CCD.
Figure 3-3 Remove lens
3.2 Micro SD Card
3.2.1 Installation
Please see Figure 3-4 to insert Micro SD card into the SD slot. The slot is flexible, so the Micro
SD card can be embedded via lightly pressing.
15
Figure 3-4 Micro SD card installation
3.2.2 Remove
Please see Figure 3-5 to lightly press Micro SD card and it will automatically eject.
Figure 3-5 Remove Micro SD card
3.3 I/O Port
Install Cable
Please follow the steps listed below to install the cable. See Figure 3-6.
Use the small slotted screwdriver to press the corresponding button of cable groove. Insert the
cable into the groove and then release the screwdriver.
Remove Cable
Please follow the steps listed below to remove the cable.
Use the small slotted screwdriver to press the corresponding button of cable groove. Remove the
cable out of the groove and then release the screwdriver.
16
Figure 3-6 I/O port
17
4 Quick Configuration Tool
4.1 Overview
Quick configuration tool can search current IP address, modify IP address. At the same time, you
can use it to upgrade the device.
Please note the tool only applies to the IP addresses in the same segment.
4.2 Operation
Double click the “ConfigTools.exe” icon, you can see an interface is shown as in Figure 4-1.
In the device list interface, you can view device IP address, port number, subnet mask, default
gateway, MAC address and etc.
Figure 4-1 Search interface
Select one IP address and then right click mouse, you can see an interface is shown as in Figure
4-2.
Select the “Open Device Web” item; you can go to the corresponding web login interface.
Figure 4-2 Search interface 2
18
If you want to modify the device IP address without logging in the device web interface, you can
go to the configuration tool main interface to set.
In the configuration tool search interface (Figure 4-1), please select a device IP address and then
double click it to open the login interface. Or you can select an IP address and then click the
Login button to go to the login interface. See Figure 4-3.
In Figure 4-3, you can view device IP address, user name, password and port. Please modify the
corresponding information to login.
Please note the port information here shall be identical with the port value you set in TCP port in
Web Network interface. Otherwise, you cannot login the device.
If you are using device background upgrade port 3800 to login, other setups are all invalid.
Figure 4-3 Login prompt
After you logged in, the configuration tool main interface is shown as below. See Figure 4-4.
Figure 4-4 Main interface
For detailed information and operation instruction of the quick configuration tool, please
refer to the Quick Configuration Tool User’s Manual included in the resources CD.
19
Input your IP
address here
5 Web Operation
This series network camera products support the Web access and management via PC.
Web includes several modules: Monitor channel preview, system configuration, alarm and etc.
5.1 Network Connection
Please follow the steps listed below for network connection.
Make sure the network camera has connected to the network properly.
Please set the IP address, subnet mask and gateway of the PC and the network camera
respectively. Network camera default IP address is 192.168.1.108. Subnet mask is
255.255.255.0. Gateway is 192.168.1.1
Use order ping ***.***.***.***(* network camera address) to check connection is OK or not.
5.2 Login and Main Interface
Open IE and input network camera address in the address bar. See Figure 5- 1.
Figure 5- 1 IP address
The login interface is shown as below. See Figure 5- 2.
Please input your user name and password.
Default factory name is admin and password is admin.
Note: For security reasons, please modify your password after you first login.
20
Figure 5- 2 Web login
After you successfully logged in, please install WEB plug-in unit. Please refer to the Web
Operation Manual included in the resource CD for detailed operation instruction.
See Figure 5- 3.
Figure 5- 3 Web monitoring window
21
Bug
I can not boot up
the device or can
not control the
device.
Please click RESET button for at least five seconds to restore
factory default setup.
Micro SD card hot
swap
Before draw out SD card, please stop record or snapshot first and
then wait for at least 15 seconds to remove the SD card. All the
operations before is to maintain data integrity. Otherwise you can
lose all the data in the SD card!
Micro SD card
write times
Do not set the Micro SD card as the storage media to storage the
schedule record file. It may damage the Micro SD card duration.
I can not use the
disk as the storage
media.
When disk information is shown as hibernation or capacity is 0,
please format it first (Via Web).
I can not upgrade
the device via
network.
The status indication light is shown as red when network upgrade
operation failed. You can use port 3800 to continue upgrade.
Recommended
Micro SD card
brand
Kingston 4GB, Kingston 16GB, Kingston32GB, Transcend 16GB,
SanDisk 4GB, SanDisk 32GB.
Usually we recommend the 4GB (or higher) high speed card in case
the slow speed results in data loss.
Audio function
Please use active device for the audio monitor input, otherwise there
is no audio in the client-end.
6 FAQ
22
Component
Name
Toxic or Hazardous Materials or Elements
Pb
Hg
Cd
Cr VI
PBB
PBDE
Circuit Board
Component
○ ○ ○ ○ ○
○
Case
○ ○ ○ ○ ○
○
Wire and Cable
○ ○ ○ ○ ○
○
Packing
Components
○ ○ ○ ○ ○
○
Accessories
○ ○ ○ ○ ○
○
Appendix Toxic or Hazardous Materials or Elements
O: Indicates that the concentration of the hazardous substance in all homogeneous materials in
the parts is below the relevant threshold of the SJ/T11363-2006 standard.
X: Indicates that the concentration of the hazardous substance of at least one of all
homogeneous materials in the parts is above the relevant threshold of the SJ/T11363-2006
standard. During the environmental-friendly use period (EFUP) period, the toxic or hazardous
substance or elements contained in products will not leak or mutate so that the use of these
(substances or elements) will not result in any severe environmental pollution, any bodily injury or
damage to any assets. The consumer is not authorized to process such kind of substances or
elements, please return to the corresponding local authorities to process according to your local
government statutes.
Note
This user’s manual is for reference only. Slight difference may be found in user
interface.
All the designs and software here are subject to change without prior written notice.
All trademarks and registered trademarks mentioned are the properties of their
respective owners.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Loading...
