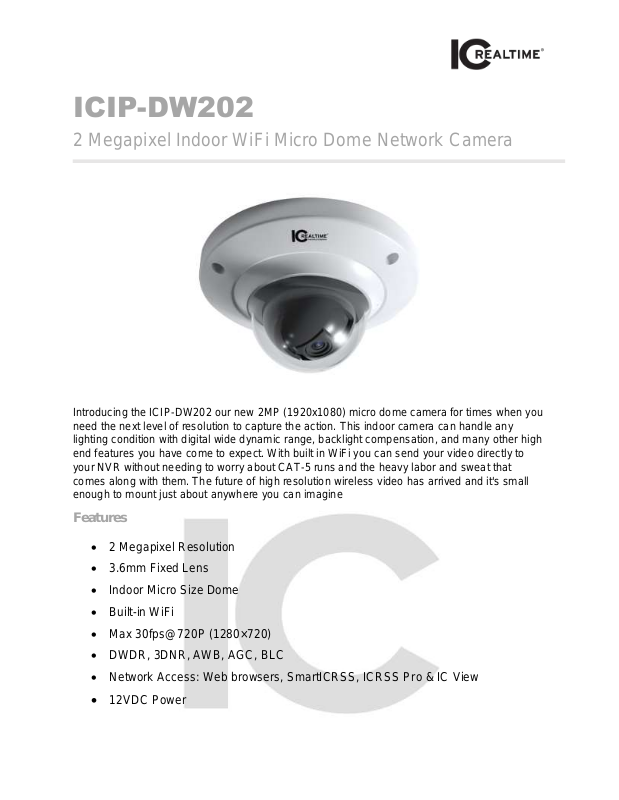

Page 1
ICIP-DW202
2 Megapixel Indoor WiFi Micro Dome Network Camera
Introducing the ICIP-DW202 our new 2MP (1920x1080) micro dome camera for times when you
need the next level of resolution to capture the action. This indoor camera can handle any
lighting condition with digital wide dynamic range, backlight compensation, and many other high
end features you have come to expect. With built in WiFi you can send your video directly to
your NVR without needing to worry about CAT-5 runs and the heavy labor and sweat that
comes along with them. The future of high resolution wireless video has arrived and it's small
enough to mount just about anywhere you can imagine
Features
2 Megapixel Resolution
3.6mm Fixed Lens
Indoor Micro Size Dome
Built-in WiFi
Max 30fps@720P (1280×720)
DWDR, 3DNR, AWB, AGC, BLC
Network Access: Web browsers, SmartICRSS, ICRSS Pro & IC View
12VDC Power
Page 2
Camera
Image Sensor
1/3” 2 Megapixel progressive scan CMOS
Effective Pixels
1920(H)x1080(V)
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3（4）~1/10000
Min. Illumination
0.1Lux/F1.8(color), 0Lux/1.8(IR on)
S/N Ratio
More than 50dB
Video Output
N/A
Camera Features
Max. IR LEDs Length
N/A
Day/Night
Auto(Electronic) / Color / B/W
Backlight Compensation
BLC /HLC /DWDR
White Balance
Auto
Gain Control
Auto/Manual
Noise Reduction
2D
Privacy Masking
Up to 4 areas
Lens
Focal Length
3.6mm
Max Aperture
F1.8
Focus Control
Manual
Angle of View
H:73°
Lens Type
Fixed
Mount Type
Board-in Type
Video
Compression
H.264 / MJPEG
Resolution
1080P(1920× 1080)/720P(1280× 720)/D1(704× 576/704× 480)/
CIF(352× 288/352× 240)
Frame Rate: Main Stream
1080P(1 ~ 25/30fps)
Frame Rate: Sub Stream
D1/CIF(1 ~ 25/30fps)
Bit Rate
H.264: 56K ~ 8192Kbps
Audio
Compression
N/A
Interface
N/A
Network
Ethernet
RJ-45 (10/100Base-T)
Wi-Fi
Wi-Fi(802.11b/g/n)
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP,
IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE,
DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF
ONVIF ,CGI
ICIP-DW102
Specifications
Page 3
Max. User Access
20 users
Smart Phone
iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot
NA
RS485
NA
Alarm
NA
PIR Sensor Range
NA
General
Power Supply
DC12V
Power Consumption
<4W
Working Environment
-30°C~+50°C, Less than 95%RH
Ingress Protection
N/A
Vandal Resistance
N/A
Dimensions
Φ4.3”× 2.13”
Weight
0.55 lb.
Dimensions (mm)
Page 4
MNT-JUNCTION BOX 2
MNT-IPMINIDOME-WALL
ICIP-DW102
Optional Accessories
IC Realtime, LLC
3050 North Andrews Avenue Extension, Pompano Beach, FL 33064
(866) 997-9009
www.icrealtime.com
Designs and specifications subject to change without notice. Copyright 2015 IC Realtime, LLC. All rights reserved.
