HD Network Dome Camera User’s Manual
Version 1.2.3
i
Welcome
Thank you for purchasing our network camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!
ii
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC or 24V AC in the IEC60950-1. (Refer to general introduction) Please
note: Do not connect two power supplying sources to the device at the same time; it may result
in device damage! The product must be grounded to reduce the risk of electronic shock.
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3．Installation
Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
This series network camera should be installed in a cool, dry place away from direct sunlight,
inflammable, explosive substances and etc.
Please keep it away from the electromagnetic radiation object and environment.
Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
Thunder-proof device is recommended to be adopted to better prevent thunder.
The grounding studs of the product are recommended to be grounded to further enhance the reliability
of the camera.
6. Daily Maintenance
Please shut down the device and then unplug the power cable before you begin daily maintenance
work.
iii
Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens
surface.
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to
dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the
device.
Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.
Dome enclosure is the optical component, do not touch the enclosure when you are installing the
device or clean the enclosure when you are doing maintenance work. Please use professional optical
clean method to clean the enclosure. Improper enclosure clean method (such as use cloth) may result
in poor IR effect of camera with IR function.
7. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
Accessory Name
Amount
Network Camera
1
Quick Start Guide
1
Installation Accessories Bag
1
Installation Position Diagram
1
CD
1
iv
Table of Contents
1 General Introduction .................................................................................................................. 1
1.1 Overview ........................................................................................................................ 1
1.2 Features ......................................................................................................................... 1
1.3 Specifications ................................................................................................................ 2
1.3.1 Performance ........................................................................................................... 2
2 Structure ...................................................................................................................................... 5
2.1 Dimensions .................................................................................................................... 5
2.2 Port Description ............................................................................................................ 6
2.3 Listening ......................................................................................................................... 8
2.4 Bidirectional talk............................................................................................................ 9
2.4.1 Device-end to PC-end .......................................................................................... 9
2.4.2 PC-end to the Device-end .................................................................................... 9
2.5 Alarm Setup ................................................................................................................... 9
3 Installation.................................................................................................................................. 12
3.1 Device Installation Introduction ................................................................................ 12
3.2 Device Installation Steps ........................................................................................... 12
3.2.1 General Installation ............................................................................................. 12
3.2.2 Manual Zoom Lens Focus Operation ............................................................... 15
3.2.3 Side Cable Exit .................................................................................................... 16
3.2.4 Cable Connection ................................................................................................ 16
3.3 Micro SD Card Installation ........................................................................................ 17
v
4 Quick Configuration Tool ......................................................................................................... 19
4.1 Overview ...................................................................................................................... 19
4.2 Operation ..................................................................................................................... 19
5 Web Operation .......................................................................................................................... 21
5.1 Network Connection ................................................................................................... 21
5.2 Login and Main Interface ........................................................................................... 21
6 FAQ ............................................................................................................................................ 23
Appendix Toxic or Hazardous Materials or Elements ............................................................... 24
1
1 General Introduction
1.1 Overview
This series network camera combines traditional camera and network video technology into one unit
which integrates A/V data collection and transmission through network without aux devices. It uses
advanced H.264 and MJPEG video compression technology and G.711a audio compression technology,
which maximally guarantee the audio and video quality.
This series network camera enclosure has the strong resistance capacity, which can guarantee the
proper work performance under heavy strike. It supports real-time monitor and listening at the same time.
It supports analog video output and dual-way bidirectional talk.
It can be used alone or used in a network area. When it is used lonely, you can connect it to the network
and then use a network client-end. Due to its multiple functions and various uses, this series network
camera is widely used in many environments such home, office, bank, road monitor and etc.
1.2 Features
User
Management
Different user rights for each group, one user belongs to one group.
The user right shall not exceed the group right.
You can edit each group at anytime.
Storage
Function
Support central server backup function in accordance with your configuration and
setup in alarm or schedule setting
Support record via Web and the recorded file are storage in the client-end PC.
Support built-in Micro SD card.
Support network storage like FTP, support short-time storage when encounter
disconnection.
Alarm
Function
Real-time respond to external local alarm input and video detect as user pre-
defined activation setup and exert corresponding message in screen and audio
prompt(allow user to pre-record audio file)
Real-time video detect: motion detect, tampering.
Can generate an alarm when network abnormal, Micro SD card abnormal event
occurred.
Network
Monitor
Network camera supports one-channel audio/video data transmit to network
terminal and then decode. Delay is within 270ms (network bandwidth support
needed)
Max supports 20 connections.
Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,
MULTICAST, RTP/RTCP, RTSP and etc.
Support web access, widely used in WAN.
Network
Management
Realize network camera configuration and management via Ethernet.
Support device management via web or client-end.
Support various network protocols.
Peripheral
Equipment
Support the on-off alarm device to alarm via the sound or the light.
Power
External power adapter DC12V/AC 24V (Only vandal proof series support AC
24V)
Support PoE.
Warning！
Do not connect two power supplying sources to the device at the same time; it
may result in device damage!
2
Assistant
Function
Log function
Support PAL/NTSC
Day/Night mode auto switch (electromagnetic ICR switch).
Auto iris adjustment
Built-in IR light. Support IR night vision (For IR Series only).
Backlight compensation: screen auto split to realize backlight compensation to
adjust the bright.
Support electronic shutter and gain setup.
Support 3D NR.
Support video watermark function to avoid vicious video modification.
1.3 Specifications
1.3.1 Performance
Please refer to the following sheets for network camera performance specification.
Model
Parameter
ICIP D3000AVIR-M
System
Main
Processor
High performance DSP
OS
Embedded LINUX
System
Resources
Support real-time network monitoring, local record, and remote operation.
User Interface
Remote operation interface such as WEB, DSS, PSS
System Status
Micro SD card status, bit stream statistics, log, and software version.
Video Parameter
Image Sensor
1/3 inch CMOS
Pixel
2048(H)×1536(V)
Day/Night
Mode
Support day/night mode switch and electromagnetic IR-CUT at the same
time.
Auto Iris
DC drive
Gain Control
Manual/Auto
White Balance
Manual/Auto
BLC
On/Off
Electronic
Shutter
Manual/Auto
It ranges from 1/3 to 1/100000.
Video
Compression
Standard
H.264/H.264H/MJPEG
Video Frame
Rate
PAL:
Main stream (2048*1536@20fps)
extra stream 1(704*576@25fps)
extra stream 2(1280*720@1fps)
Main stream (1920*1080@25fps)
extra stream 1(704*576@25fps)
extra stream 2(1280*720@11fps)
NTSC:
Main stream(2048*1536@20fps)
extra stream 1(704*480@20fps)
extra stream 2(1280*720@1fps)
Main stream(1920*1080@20fps)
3
extra stream 1(704*480@30fps)
extra stream 2(1280*720@1fps)
Note:
Extra stream 2’s actual frame depends on device max capacity set which
can be adjusted within its range.
Video Bit Rate
H.264H: 40Kbps-8193Kbps. It is adjustable
MJPEG: 40Kbps-16384Kbps adjustable and bit rate is adjustable.
Support customized setup.
Video Flip
Support mirror.
Support flip function.
Snapshot
Max 1f/s snapshot. File extension name is JPEG.
Privacy Mask
Supports max 4 privacy mask zones
Video Setup
Support parameter setup such as bright, contrast.
Video
Information
Channel title, time title, motion detect, tampering, overlay.
Lens
2.7mm～12mm@F1.4
Lens Interface
¢14. Lens is the default accessories.
Audio
Audio Input
1-channe RCA LINE IN (additional cable required)
Audio Output
1-channe RCA LINE OUT (additional cable required)
Bidirectional
Talk Input
Reuse the first audio input channel
Audio Bit Rate
8kbps 16bit or 16kbps 16bit
Audio
Compression
Standard
G.711a/G.711Mu
Video
Motion Detect
396 (18*22) detection zones; sensitivity level ranges from 0 to 100; area
threshold 0-100.
Activation event, alarm device, audio/video storage, image snapshot, log,
email function and etc.
Privacy Mask
Activation event, alarm device, audio/video storage, image snapshot, log,
email function and etc.
Alarm Input
1-channel input，1-channel output
Record
and
Backup
Record
Priority
Manual>External alarm >Video detect>Schedule
Storage
Management
Support Micro SD card (64G) storage, NAS storage
Network
Wired Network
1-channel wire Ethernet port, 10/100 Base-T Ethernet
Network
Protocol
HTTP,TCP,ARP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS,PP
PoE,IPv4/v6,SNMP,QoS,UPnP,NTP, QoS, 802.1x.
Remote
Operation
Monitor, system setup, log information, maintenance , upgrade and etc
Protocol
PSIA, ONVIF
AUX
Interface
Video Output
1-ch analog output, BNC port (need additional cable)
Reset
Built-in RESET button
IR light
IR distance 20~30 meters (For IR series product only)
General
Parameter
Power
Support AC24V, DC12V and PoE (AC 24V port is inside the device.)
Power
Consumption
General series: below 5W.
IR series: below 7W.
Working
Temperature
-20℃～+60℃
Working
Humidify
≤95%
4
Dimensions(m
m)
¢151×119
Weight
1.25 kg
Installation
Support various installation modes
5
2 Structure
2.1 Dimensions
You can refer to the following figures for dimension information. The Unit is mm. See Figure 2- 1(vandalproof series), Figure 2- 2 (vandal-proof series), Figure 2- 3 (non vandal-proof series) and Figure 2- 4
(non vandal-proof series).
Figure 2- 1 Dimension illustration 1
Figure 2- 2 Dimension illustration 2
6
Figure 2- 3 Dimension illustration 3
Figure 2- 4 Dimension illustration 4
2.2 Port Description
The port is shown as in Figure 2- 5 and Figure 2- 6.
7
Figure 2- 5 Port 1
Figure 2- 6 Port 2
Please refer to the following sheet for external connection port definition information.
SN
Port
Port Name
Connector
Function Description
1
POWER
AC 24V power
port
/
Connect to AC 24V power.
Please note some series need
additional wiring.
2
POWER
DC 12V power
port
/
Connect to DC 12V power.
3
LAN
RJ45 network
port
Ethernet port
Network cable port.
4
I/O
I/O port
/
It includes alarm input/output, audio
and analog output.
5
RESET
Reset button
/
Reset button. It is to restore factory
default setup.
8
6
Micro SD
Micro SD card
slot entry
Micro SD
card
Connect to Micro SD card to realize
local storage.
7
Fan port
/
/
Connect to fan to reduce device
internal problem.
Please note only some series
support this function.
8
Status
indicator
light
/ / Display device status
Please refer to the following sheet for I/O port cable function information.
Port
Name
Cable SN
Cable Port Name
Function Description
I/O Port
1
ALARM_NO
Alarm output port. Output alarm signal to
alarm device.
NO: Normal open alarm output end.
2
ALARM_COM
Alarm output public end.
3
GND
Ground end.
4
ALARM_IN
Alarm input port. It is to receive the on-off
signal from the external alarm source.
5
GND
Ground end.
6
AUDIO_IN/AUDIO_IN
1
Input audio signal. It is to receive the analog
audio signal from the devices such as
pickup.
7
AUDIO_OUT
(optional)
This port may have either of the following
function, depending on model of the device:
Output audio signal to devices such as
loud speaker.
Input audio signal. It is to receive the
analog audio signal from the devices
such as pickup.
AUDIO_IN 2 (optional)
8
GND
Ground end.
9
VIDEO_OUT
Output analog video signal. It can connect
to TV monitor to view video.
Note:
The external connection port above is based on non-IR series which is identical with the external
connection port of IR series.
2.3 Listening
Note:
Some products support listening function only.
Device Connection
Firstly connect the pickup to the audio input port of device, and then connect earphone to the audio
output port of PC. Log in WEB page of the device, click on either one of or both to enable
listening function. When listening function is enabled, the button will become orange. You may click on
the button again to disable listening function.
Listening Operation
9
At the device end, speak via the pickup, and then you can get the audio from the earphone or sound box
at the pc-end.
2.4 Bidirectional talk
2.4.1 Device-end to PC-end
Device Connection
Please connect the speaker to the audio input port of the device. Then connect the earphone to the
audio output port of the PC.
Login the Web and then click the Talk button to enable the bidirectional talk function.
You can see the button becomes orange after you enabled the bidirectional talk function.
Click Talk button again to stop the bidirectional talk function.
Listening Operation
At the device end, speak via the pickup, and then you can get the audio from the earphone or sound box
at the pc-end.
2.4.2 PC-end to the Device-end
Device Connection
Connect the speaker to the audio input port of the PC and then connect the earphone to the audio
output port of the device.
Login the Web and then click the Talk button to enable the bidirectional talk function.
You can see the button becomes orange after you enabled the audio talk function.
Click Talk button again to stop the bidirectional talk function.
Please note the on-site listening operation is null during the bidirectional talk process.
Listening Operation
At the PC-end, speak via the pickup, and then you can get the audio from the earphone or sound box at
the device-end.
2.5 Alarm Setup
The alarm interface is shown as in Figure 2- 7. Please follow the steps listed below for local alarm input
and output connection.
1) Connect the alarm input device to the alarm input port (No.4 pin) of the I/O cable.
2) Connect the alarm output device to the alarm output port (No.1 pin) and alarm output public port (No.2
pin). The alarm output port supports NO (normal open) alarm device only.
3) Open the Web, go to the Figure 2- 7. Please set the alarm input 01 port for the first channel of the I/O
cable (No.4 pin). Then you can select the corresponding type (NO/NC.)
4) Set the WEB alarm output. The alarm output 01 is for the alarm output port of the device. It is the
No.1 pin of the I/O cable.
10
Figure 2- 7 Alarm
Please refer to the following figure for alarm input information. See Figure 2- 8.
Alarm input: When the input signal is idle or grounded, the device can collect the different statuses of the
alarm input port. When the input signal is connected to the 3.3V or is idle, the device collects the logic
“1”. When the input signal is grounded, the device collects the logic “0”.
Figure 2- 8 Alarm input
Please refer to the following figure for alarm output information. See Figure 2- 9.
Port ALARM_C and Port ALARM_NO composes an on-off button to provide the alarm output.
If the type is NO, this button is normal open. The button becomes off when there is an alarm output.
Figure 2- 9 Alarm output
11
12
3 Installation
Important
Before you complete the installation and setup, do not remove the electrostatic attraction
film on the transparent enclosure. Otherwise it may result in injury.
After remove electrostatic attraction film, do not touch dome enclosure in case it may leave
stain.
Before the installation, please make sure the installation surface can sustain at least 3X
weight of the bracket and the camera.
3.1 Device Installation Introduction
Please refer to Figure 3- 1 (vandal-proof series) and Figure 3- 2 (non vandal-proof series) for device
installation space information. You can see there are installation position diagram and installation screws
in the accessories bag for you to install the device conveniently.
Figure 3- 1 Device installation 1
Figure 3- 2 Device installation 2
3.2 Device Installation Steps
3.2.1 General Installation
The general interface is shown as in Figure 3- 3.
13
Figure 3- 3 General installation 1
Step 1
Take the installation position diagram from the accessories bag and then paste it on the installation
ceiling or the wall according to the monitor area. Please dig three bottom holes of the plastic expansion
bolts according to the diagram. Take three expansion bolts from the accessories bag and then insert
them to the holes you just dug and then fix firmly. If you need to dig a hole to pull through the cable, you
need to dig a cable exit hole on the installation surface according to the installation positioning diagram.
Step 2
Remove the dome camera enclosure according to the following steps.
a) For vandal-proof series, use the inner hex wrench from the accessories bag to unfasten the 3 hex
screws on the dome camera enclosure and then remove it
b) For non vandal-proof series, rotate the dome camera enclosure counterclockwise as in Figure 3- 4
until you can remove it.
Figure 3- 4 General installation 2
14
Step 3
Adjust the device chassis and pull the cable through the exit hole. Make fixture hole on chassis face the
three plastic expansion bolts (in Step 1). Take 3 ST3.0 self-tapping screw out from the accessories bag
and fix them on the three plastic expansion bolts to secure the chassis on installation surface.
Note:
Make host GND grounded which can improve device reliability. For outside installation, the host
GND must be grounded.
GND of vandal-proof series locates next to its exit hole. GND of non vandal-proof series locates at
rear of the camera.
Device grounding screw dimension is M3X0.5 with valid depth 5mm.
Step 4
Adjust angle of the lens according to actual need.
a) For the IR series product, you can skip current step and go the step b) directly. For the non-IR
series product, push the port slightly to remove the decoration enclosure from the black plastic
enclosure. See Figure 3- 5.
Figure 3- 5 General installation 3
b) Lens pan rotation angle setup. Please refer to Figure 3- 6 to unfasten the lock screw A and adjust
the pan monitor angle to the proper position. Then fix the lock screw A. The pan angle ranges from
0°~350°.
c) Lens tilt rotation angle. Please refer to Figure 3- 6 to unfasten the lock screw B and lock screw C
and adjust the tilt monitor angle to the proper position. Then fix the lock screw B and lock screw C.
The tilt angle ranges from -20°~+70°.
d). Image pan rotation angle setup. Please refer to Figure 3- 6 to turn lock screw D to adjust the video
pan angle. Then fix the lock screw B and C. The video pan angle ranges from 0°~+350°.
15
Figure 3- 6 General installation 4
e) Please refer to Chapter 3.2.2 for the lens zoom and focus operation of the manual focus series
product.
f) For the IR series product, please skip current step and complete the angle setup directly. For the nonIR series product, please put back the black plastic decoration enclosure to complete the angle setup.
Important
Please note Figure 3- 6 is based on non-IR series. For IR series, the lock screw position and the
lens angle adjustment are the same.
Step 5
Line up the dome camera protection enclosure and follow step 2 reversely to put it back.
Note
Usually we recommend, after the installation, please take the three white static protection gaskets
from the accessories bag and insert them to the screw holes of the protection enclosure. It is to
enhance device reliability.
If you want to install Micro SD card, please refer to chapter 3.3.
3.2.2 Manual Zoom Lens Focus Operation
The manual zoom lens focus interface is shown as in Figure 3- 7.
Lock screw B/C
Adjust lens tilt rotation
angle.
Lock screw D
Adjust lend pan rotation
angle.
Lock Screw A
Adjust lend pan rotation
angle.
16

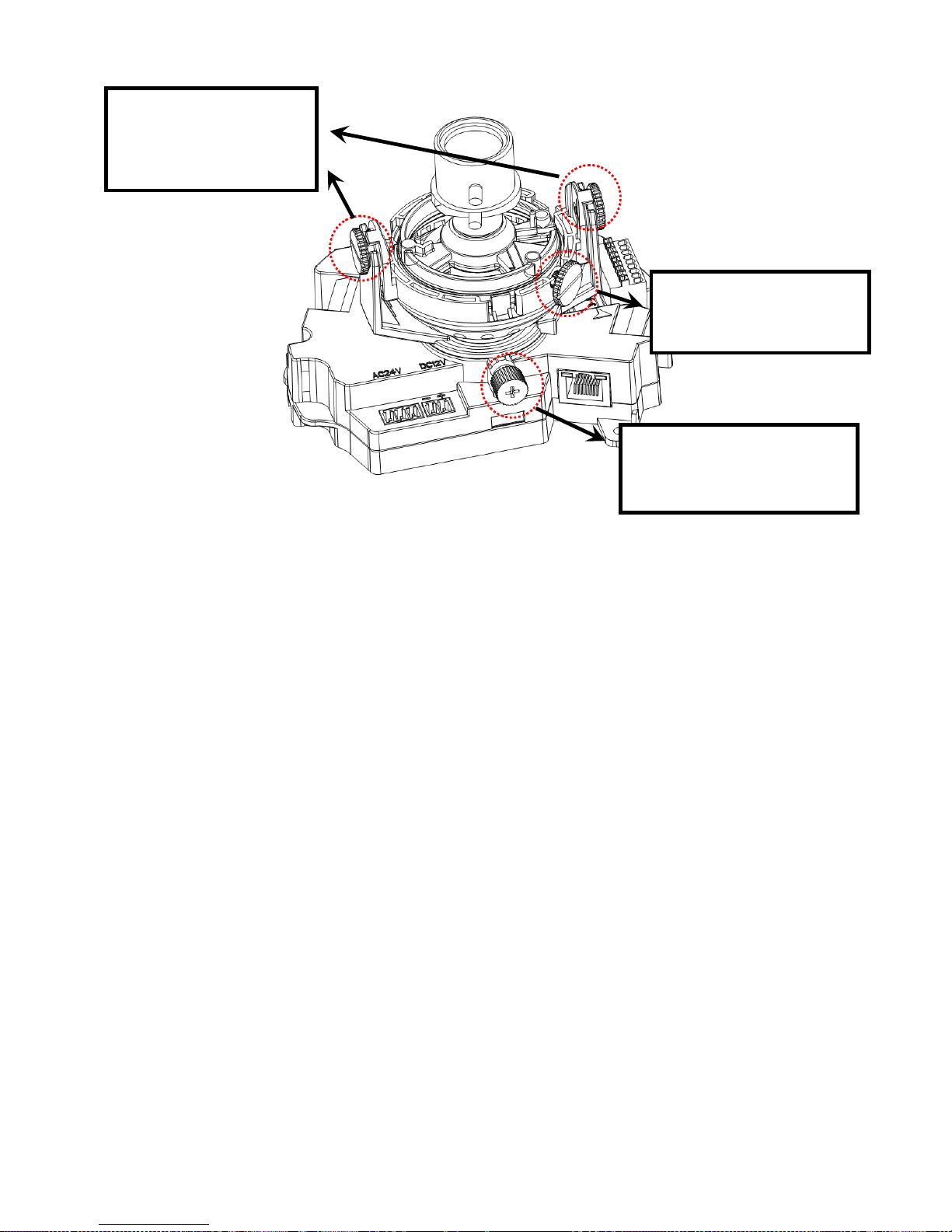

Figure 3- 7 Manual zoom lens
Step 1
Slightly loosen the adjusting screw E and push the adjust screw E to make it swing. Adjust the lens
focus to the proper position according to the displayed video.
Step 2
Slightly loosen the adjusting screw F and push the adjust screw F to make it swing. Adjust the lens to
get the clear video and then fix the adjusting screw firmly.
Step 3
When you are securing the adjusting screw F, you can see the video may become blur. Please push the
adjusting screw E to adjust the video slightly. Please secure the adjust screw E if you get a clear video.
3.2.3 Side Cable Exit
If you adopt side cable exit when you are installing the device, you need to reserve space for the side
cable exit and thirl. For vandal-proof series, it locates on side plastic decoration plug. For non vandalproof series, it locates on side of its enclosure. Use the proper tool to dig through the U-shape slot to
form a cable exit. Pull the cable through the hole.
For some special user, he may need the metal protection tube to protect when he pulls through the
cable from the side cable. For vandal-proof series, PG11 screw thread port is provided. Please remove
the plastic decoration plug from the side panel of the chassis and pull through the cable to the tunnel of
the PG11 screw thread. Now secure the tunnel in the PG11 screw threaded hole of the device.
3.2.4 Cable Connection
The vandal-proof series reserves two cable exits. The pin diameter shall be less than 15mm. One of the
cable exits has M22 screw thread and can work with the default combination cable to remove the risk of
the dragging and pulling of the cable.
The vandal-proof series has two waterproof airproof plugs (One default position is the cable exit of the
chassis of the device and the other is in the accessories bag.). The waterproof airproof plug has two
functions. One is to fill in the cable exit and pull through the cable. It supports the cable whose diameter
Adjusting screw E
Adjusting screw F
17
ranges from 4.0~6.0 mm. It is very convenient for you to do the waterproof work when you pull the cable
through your own exit. Please refer to the steps listed.
Step 1
Take the waterproof airproof plug out, pull the cable (diameter ranges from 4.0 to 6.0 mm) through the
waterproof airproof plug. See Figure 3- 8.
Figure 3- 8 Cable connection
Step 2
Before you go to Step 3 in Chapter 3.2.1, please pull through cable with the waterproof airproof plug to
the device chassis via the installation hole at the bottom of the chassis and then connect the cable pins.
Step 3
Refer to Step 3 in Chapter 3.2.1, install and connect the cable pin to the device and then follow the
proper steps to go on the installation.
For non vandal-proof series, pull the cable through the anti-dust plug on cable exit of the device chassis.
Important
This series product has the power connection pin and I/O connection pin for you to pull through
the signal cable.
3.3 Micro SD Card Installation
Warning!
Please unplug the device power cable and then shutdown the device before you install the Micro
SD card.
Step 1
Please refer to Step 2 in chapter 3.2.1 to open the device protection enclosure.
Step 2
Please find the “SD” mark inside the device and adjust the Micro SD card direction according to prompt
direction. Insert the card to the slot and then install the Micro SD card. See Figure 3- 9.
18
Figure 3- 9 Micro SD card
19
4 Quick Configuration Tool
4.1 Overview
Quick configuration tool can search current IP address, modify IP address. At the same time, you can
use it to upgrade the device.
Please note the tool only applies to the IP addresses in the same segment.
4.2 Operation
Double click the “ConfigTools.exe” icon, you can see an interface is shown as in Figure 4-1.
In the device list interface, you can view device IP address, port number, subnet mask, default gateway,
MAC address and etc.
Figure 4-1 Search interface
Select one IP address and then right click mouse, you can see an interface is shown as in Figure 4-2.
Select the “Open Device Web” item; you can go to the corresponding web login interface.
Figure 4-2 Search interface 2
If you want to modify the device IP address without logging in the device web interface, you can go to
the configuration tool main interface to set.
20
In the configuration tool search interface (Figure 4-1), please select a device IP address and then double
click it to open the login interface. Or you can select an IP address and then click the Login button to go
to the login interface. See Figure 4-3.
In Figure 4-3, you can view device IP address, user name, password and port. Please modify the
corresponding information to login.
Please note the port information here shall be identical with the port value you set in TCP port in Web
Network interface. Otherwise, you cannot login the device.
If you are using device background upgrade port 3800 to login, other setups are all invalid.
Figure 4-3 Login prompt
After you logged in, the configuration tool main interface is shown as below. See Figure 4-4.
Figure 4-4 Main interface
For detailed information and operation instruction of the quick configuration tool, please refer to
the Quick Configuration Tool User’s Manual included in the resources CD.
21
5 Web Operation
This series network camera products support the Web access and management via PC.
Web includes several modules: Monitor channel preview, system configuration, alarm and etc.
5.1 Network Connection
Please follow the steps listed below for network connection.
1. Make sure the network camera has connected to the network properly.
2. Please set the IP address, subnet mask and gateway of the PC and the network camera
respectively. Network camera default IP address is 192.168.1.108. Subnet mask is 255.255.255.0.
Gateway is 192.168.1.1
3. Use order ping ***.***.***.***(* network camera address) to check connection is OK or not.
5.2 Login and Main Interface

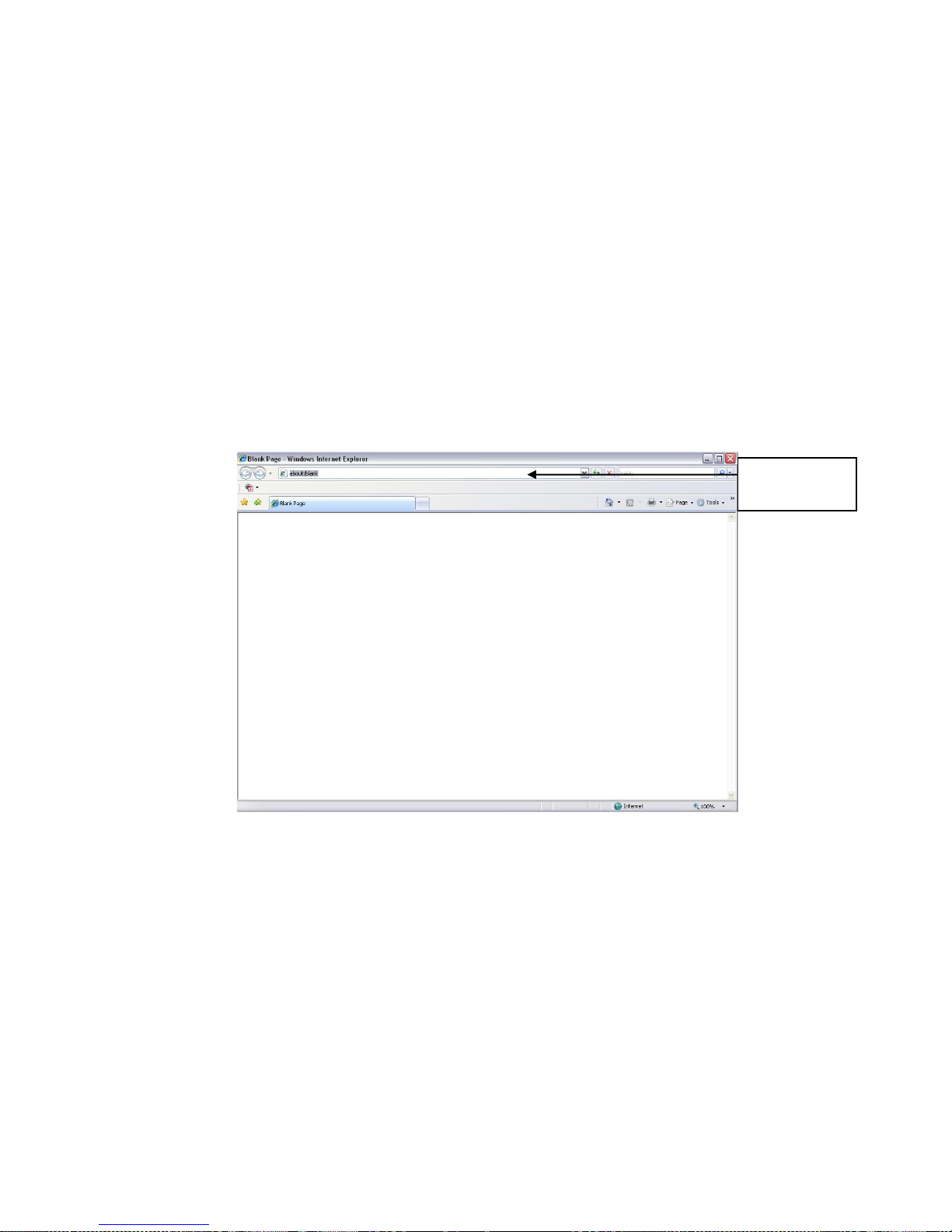

Open IE and input network camera address in the address bar. See Figure 5- 1.
Figure 5- 1 IP address
The login interface is shown as below. See Figure 5- 2.
Please input your user name and password.
Default factory name is admin and password is admin.
Note: For security reasons, please modify your password after you first login.
Input your IP
address here
22
Figure 5- 2 Web login
After you successfully logged in, please install WEB plug-in unit. Please refer to the Web
Operation Manual included in the resource CD for detailed operation instruction.
See Figure 5- 3.
Figure 5- 3 Web monitoring window
23
6 FAQ
Bug
I cannot boot up
the device.
Please click RESET button for at least five seconds to restore
factory default setup.
Micro SD card
write times
Do not set the Micro SD card as the storage media to store the
schedule record file. It may damage the Micro SD card duration.
I cannot use the
disk as the storage
media.
When disk information is shown as hibernation or capacity is 0,
please format it first (Via Web).
I cannot upgrade
the device via
network.
When network upgrade operation failed, you can use port 3800 to
continue upgrading.
Recommended
Micro SD card
brand
Kingston 4GB, Kingston 16GB, Kingston 32GB, Transcend 16GB，
SanDisk 4GB, SanDisk 32GB.
Usually we recommend the 4GB (or higher) or industry-level high
speed card in case the slow speed results in data loss.
Audio function
Please use active device for the audio monitor input, otherwise there
is no audio in the client-end.
The lightproof ring
of the IR device
The lightproof ring of the IR device lens is a necessary component
when it is working. You will be unable to view clear video when the
IR light is on if you remove the lightproof ring.
24
Appendix Toxic or Hazardous Materials or Elements
Component
Name
Toxic or Hazardous Materials or Elements
Pb
Hg
Cd
Cr VI
PBB
PBDE
Circuit Board
Component
○ ○ ○ ○ ○
○
Device Case
○ ○ ○ ○ ○ ○
Wire and Cable
○ ○ ○ ○ ○ ○
Packing
Components
○ ○ ○ ○ ○
○
Accessories
○ ○ ○ ○ ○
○
O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the
parts is below the relevant threshold of the SJ/T11363-2006 standard.
X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous
materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard. During the
environmental-friendly use period (EFUP) period, the toxic or hazardous substance or elements
contained in products will not leak or mutate so that the use of these (substances or elements) will not
result in any severe environmental pollution, any bodily injury or damage to any assets. The consumer
is not authorized to process such kind of substances or elements, please return to the corresponding
local authorities to process according to your local government statutes.
Note
This user’s manual is for reference only. Slight difference may be found in user interface.
All the designs and software here are subject to change without prior written notice.
All trademarks and registered trademarks mentioned are the properties of their respective
owners.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Please visit our website for more information.
Loading...
