HD (IR) Vandal Proof Network Dome Camera User’s Manual
Version 1.1.0
i
Welcome
Thank you for purchasing our network camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!
ii
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC or 24V AC in the IEC60950-1. Please note: Do not connect these two
power supplying sources to the device at the same time; it may result in device damage!
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3．Installation
Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
This series network camera should be installed in a cool, dry place away from direct sunlight,
inflammable, explosive substances and etc.
Please keep it away from the electromagnetic radiation object and environment.
Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
Thunder-proof device is recommended to be adopted to better prevent thunder.
The grounding holes of the product are recommended to be grounded to further enhance the reliability
of the camera.
6. Daily Maintenance
Please shut down the device and then unplug the power cable before you begin daily maintenance
work.
iii
Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens
Accessory Name
Amount
Network Camera
1
Quick Start Guide
1
Installation Accessories Bag
1
CD
1
surface.
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to
dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the
device.
Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.
Dome enclosure is the optical component, do not touch the enclosure when you are installing the
device or clean the enclosure when you are doing maintenance work. Please use professional optical
clean method to clean the enclosure. Improper enclosure clean method (such as use cloth) may result
in poor IR effect.
7. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
iv
Table of Contents
1 General Introduction .................................................................................................................. 1
1.1 Overview ........................................................................................................................ 1
1.2 Features ......................................................................................................................... 1
1.3 Specifications ................................................................................................................ 2
1.3.1 Performance ........................................................................................................... 2
1.3.2 Factory Default Setup ........................................................................................... 4
2 Structure .................................................................................................................................... 11
2.1 Dimensions .................................................................................................................. 11
2.2 Port Description .......................................................................................................... 11
2.3 Bidirectional talk.......................................................................................................... 15
2.3.1 Device-end to PC-end ........................................................................................ 15
2.3.2 PC-end to the Device-end .................................................................................. 16
2.4 Alarm Setup ................................................................................................................. 16
3 Installation.................................................................................................................................. 18
3.1 Device Installation Introduction ................................................................................ 18
3.2 Device Installation Steps ........................................................................................... 18
3.2.1 General Installation ............................................................................................. 18
3.2.2 Manual Zoom Lens Focus Operation ............................................................... 22
3.2.3 Side Cable Exit .................................................................................................... 22
3.2.4 Cable Connection ................................................................................................ 23
3.3 Micro SD Card Installation ........................................................................................ 24
4 Quick Configuration Tool ......................................................................................................... 25
4.1 Overview ...................................................................................................................... 25
4.2 Operation ..................................................................................................................... 25
5 Web Operation .......................................................................................................................... 28
v
5.1 Network Connection ................................................................................................... 28
5.2 Login and Main Interface ........................................................................................... 28
6 FAQ ............................................................................................................................................ 31
Appendix Toxic or Hazardous Materials or Elements ............................................................... 32
1
User
Management
Different user rights for each group, one user belongs to one group.
The user right shall not exceed the group right.
Storage
Function
Support central server backup function in accordance with your configuration and
setup in alarm or schedule setting
Support record via Web and the recorded file are storage in the client-end PC.
Support built-in Micro SD card.
Support local Micro SD card hot swap, support short-time storage when
encounter disconnection.
Alarm
Function
Real-time respond to external local alarm input and video detect as user pre-
defined activation setup and exert corresponding message in screen and audio
prompt(allow user to pre-record audio file)
Real-time video detect: motion detect, camera masking.
Can generate an alarm when network abnormal, Micro SD card abnormal event
occurred.
Network
Monitor
Network camera supports one-channel audio/video data transmit to network
terminal and then decode. Delay is within 270ms (network bandwidth support
needed)
Max supports 20 connections.
Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,
MULTICAST, RTP/RTCP, RTSP and etc.
Support web access, widely used in WAN.
Network
Management
Realize network camera configuration and management via Ethernet.
Support device management via web or client-end.
Support various network protocols.
Peripheral
Equipment
Support the on-off alarm device to alarm via the sound or the light.
Power
External power adapter DC12V/AC 24V
Support PoE.
Warning！
Do not connect these two power supplying sources to the device at the same
1 General Introduction
1.1 Overview
This series network camera integrates the traditional camera and network video technology. It adopts
audio and video data collection, transmission together. It can connect to the network directly without any
auxiliary device.
This series network camera uses standard H.264 video compression technology and G.711a audio
compression technology, which maximally guarantee the audio and video quality.
This series network camera enclosure has the strong resistance capacity, which can guarantee the
proper work performance under heavy strike. It supports real-time monitor and listening at the same time.
It supports analog video output and dual-way bidirectional talk.
It can be used alone or used in a network area. When it is used lonely, you can connect it to the network
and then use a network client-end. Due to its multiple functions and various uses, this series network
camera is widely used in many environments such office, bank, road monitor and etc.
1.2 Features
2
time; it may result in device damage!
Assistant
Function
Log function
Support PAL/NTSC
Support system resource information and running status real-time display.
Day/Night mode auto switch (electromagnetic ICR switch).
Built-in IR light. Support IR night vision (For HDBW Series only).
Backlight compensation: screen auto split to realize backlight compensation to
adjust the bright.
Support electronic shutter and gain setup.
Support video watermark function to avoid vicious video modification.
Model
Parameter
IPC-HDB/HDBW3202 Series
IPC-HDB/HDBW3101 Series
System
Main
Processor
TI Davinci high performance DSP
OS
Embedded LINUX
System
Resources
Support real-time network, local record, and remote operation at the same
time.
User Interface
Remote operation interface such as WEB, DSS, PSS
System Status
Micro SD card status, bit stream statistics, log, and software version.
Video Parameter
Image Sensor
1/3-inch CMOS
Pixel
1920（H）*1080（V）
1280(H)*960(V)
Day/Night
Mode
Support day/night mode switch and electromagnetic IR-CUT at the same
time.
Auto Iris
DC drive
Gain Control
Fixed/Auto
White Balance
Manual/Auto
BLC
Manual/Auto
Electronic
Shutter
Manual/Auto
PAL: It ranges from 1/3 to 1/10000.
NTSC: It ranges from 1/4 to 1/10000.
Motorized
Focus
Support remote motorized focus function.
Video
Compression
Standard
H264/JPEG/MJPEG
Video Frame
Rate
PAL:
Main stream（1920*1080@25fps）
extra stream（704*576@25fps）
NTSC:
Main stream（1920*1080@30fps）
extra stream（704×480@30fps）
PAL:
Main stream（1280*960@25fps）
Extra stream（704*576@25fps）
Main stream（1280*720@25fps）
extra stream（704*576@25fps）
NTSC:
Main stream（1280*960@30fps）
extra stream（704×480@30fps）
Main stream（1280*720@30fps）
extra stream（704×480@30fps）
1.3 Specifications
1.3.1 Performance
Please refer to the following sheet for network camera performance specification.
3
Video Bit Rate
H.264: 56Kbps-8192Kbps. It is adjustable
ＭJPEG: 128Kbps-0480Kbps. It is adjustable and bit rate is adjustable.
Support customized setup.
Video Flip
Support mirror.
Support flip function.
Snapshot
Max 1f/s snapshot. File extension name is JPEG.
Privacy Mask
Supports max 4 privacy mask zones
Video Setup
Support parameter setup such as bright, contrast.
Video
Information
Channel title, time title, motion detect, privacy mask.
Lens
3~9mm@F1.2 motorized zoom
focus lens
2.8~12mm@F1.4
Lens Interface
¢14. Lens is the default accessories.
Audio
Audio Input
1-channe
Audio Output
1-channel
Bidirectional
Talk Input
Reuse the first audio input channel
Audio Bit Rate
16kbps 16bit
Audio
Compression
Standard
G.711a/G.711u/PCM
Video
Motion Detect
396 (18*22) detection zones；sensitivity level ranges from 1 to 6 (The 6th
level has the highest sensitivity)
Activation event, alarm device, audio/video storage, image snapshot, log,
email function and etc.
Video Loss
Activation event, alarm device, audio/video storage, image snapshot, log,
email function and etc.
Alarm Input
1-channel input，1-channel output
Record
and
Backup
Record
Priority
Manual>External alarm >Video detect>Schedule
Local Storage
Support Micro SD card storage
Network
Wire Network
1-channel wire Ethernet port, 10/100 Base-T Ethernet
Network
Protocol
HTTP,TCP,ARP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS,PP
POE,IPv4/v6,SNMP,QoS,UPnP,NTP.
Remote
Operation
Monitor, system setup, log information, maintenance , upgrade and etc
AUX
Interface
Video Output
1-channel analog video output，BNC port, 9-pin port connection
Reset
Built-in RESET button
IR light
IR distance 10 to 20 meters (For HDBW series product only)
General Parameter
Power
Support AC24V/DC12V power. PoE
Power
Consumption
General series: below 5W.
IR series: below 7W.
General series: below 3W.
IR series: below 5W.
Working
Temperature
-10℃~+60℃
Working
Humidify
10%~90%
Dimensions(m
m)
¢151x119
Weight
1.25Kg
Installation
Support various installation modes
4
Function
Setup Type
Item
Default setup
IPCHDB/HDBW320
2 Series
IPCHDB/HDBW31
01 Series
Camera Setup
Conditions
Brightness
50
Contrast
50
Hue
50
Saturation
50
Gain mode
Auto
Gain limit
80
Exposure mode
Auto
Auto iris
Enable
Scene mode
Auto
Day/night mode
Auto
BLC
Off
Flip
Disable
Video
Video bit
stream
Main
stream
Bit stream
type
General
Encode
mode
H.264B
Resolution
1080P
（1920*1080）
720P
(1280*720)
Frame rate
（FPS）
PAL: 25
NTSC:30
Bit stream
type
CBR
Reference bit
rate
3584-8192 Kb/S
Bit rate
8192
I frame
interval
50
Watermark
settings
Enable
Watermark
character
DigitalCCTV
Extra
stream
Enable
Enable
Bit stream
type
General
Encode
mode
H.264B
Resolution
CIF(352×288/35
2×240)
CIF(352×288/3
52×240)
Frame rate
（FPS）
PAL: 25
NTSC:30
1.3.2 Factory Default Setup
Please refer to the following sheet for factory default setup information.
5
Function
Setup Type
Item
Default setup
IPCHDB/HDBW320
2 Series
IPCHDB/HDBW31
01 Series
Bit rate type
CBR
Reference bit
rate
192-1024Kb/S
Bit rate
640
I frame
interval
50
Snapshot
Snap type
General snap
Image size
1080P
（1920*1080）
720P
(1280*720)
Quality
Better
Interval
7s
Overlay
Privacy mask
Enable
Channel title
Enable
Time title
Enable
Path
Snapshot
path
C:\PictureDownload
Record path
C:\RecordDownload
Audio
Main stream
Enable
Enable
Encode
mode
G.711A
Sub(Extra) stream
Enable
Disable
Encode
mode
G.711A
Network setup
TCP/IP
Host name
IPC
Ethernet card
Wire(Default)
Mode
Static
MAC
address
Depends on the device
IP version
IPV4
IP address
192.168.1.168
Subnet mask
255.255.255.0
Default
gateway
192.168.1.1
Preferred
DNS
8.8.8.8
Alternate
DNS
8.8.8.8
Enable
ARP/Pingto
to set IP
address
service
Enable
Connection
Max
connection
10
6
Function
Setup Type
Item
Default setup
IPCHDB/HDBW320
2 Series
IPCHDB/HDBW31
01 Series
TCP port
37777
UDP port
37778
HTTP port
80
RTSP port
554
PPPoE
Enable
Disable
User name
N/A
Password
N/A
DDNS
Server type
Disable ，CN99 DDNS
Server IP
none
Port
80
Domain
name
none
User name
none
Password
N/A
Update
period
5m
IP filter
Trusted sites
Disable
SMTP（email）
SMTP server
none
Port
25
Anonymity
Disable
User name
anonymity
Password
N/A
Sender
none
Authenticatio
n (Encrypt
mode)
N/A
Title
(Subject)
IPC Message
Main
Receiver
N/A
Interval
0s
Health email
Disable ，interval=60m
UPnP
Enable UPnP
Disable
SNMP
SNMP v1
Disable
SNMP v2
Disable
SNMP port
161
Read
community
public
Write
community
private
Trap address
N/A
Trap port
162
7
Function
Setup Type
Item
Default setup
IPCHDB/HDBW320
2 Series
IPCHDB/HDBW31
01 Series
Bonjour
Enable
Enable
Server name
“Device name+SN”.
Depends on the device.
Multicast
Multicast
address
239.255.42.42
Port
36666
Auto register
Enable
Disable
SN 1 Server IP
0.0.0.0
Port
7000
Sub-device
ID
none
WIFI
On(Enable)
Enable
QoS
Real-time
monitor
0
Command
0
Event
management
Video detect
Motion detect
Enable
Disable
Anti-dither
5 seconds
Sensitivity
3
Record
Channel
Enable
Record
Delay
10 seconds
Relay
(Alarm)
output
Enable
Alarm delay
10s
Send email
Disable
Activation
N/A
Address
0
Snapshot
Disable
Video (Camera) masking
Enable
Disable
Record
Channel
Enable
Record
Delay
10 seconds
Relay out
Enable
Record
Delay
10 seconds
Send email
Disable
8
Function
Setup Type
Item
Default setup
IPCHDB/HDBW320
2 Series
IPCHDB/HDBW31
01 Series
Activation
Disable
Address
0
Snapshot
Disable
Alarm setup
Relay (Alarm) activation
Enable
Disable
Relay input
Alarm1
Anti-dither
5s
Sensor type
NO
Record
channel
Enable
Record delay
10s
Relay
(Alarm)
output
Enable
Relay
(Alarm) delay
10s
Send email
Disable
Activation
N/A
Address
0
Snapshot
Disable
Relay (Alarm)
output
1
Abnormity
No SD card
Enable
Disable
Relay
(Alarm)
output
Enable
Relay output
delay
10s
Send email
Disable
Capacity warning
Enable
Disable
Capacity limit
(Space
threshold)
10%
Relay
(Alarm)
output
Enable
Relay output
delay
10s
Send email
Disable
SD card
error
Enable
Disable
Relay
(Alarm)
output
Enable
9
Function
Setup Type
Item
Default setup
IPCHDB/HDBW320
2 Series
IPCHDB/HDBW31
01 Series
Relay output
delay
10s
Send email
Disable
Disconnection
Enable
Disable
Record
Enable
Record delay
10s
Relay
(Alarm)
output
Enable
Relay output
delay
10s
IP conflict
Enable
Disable
Record
Enable
Record delay
10s
Relay
(Alarm)
output
Enable
Relay output
delay
10s
Storage
management
Destination(Storag
e )
FT
P
FTP enable
Disable
Server IP
N/A
Port
21
User name
anonymity
Password
N/A
Remote
storage path
share
Emergency
storage to
local path
Disable
Network storage
NAS enable
Disable
Mode
NFS
Server IP
N/A
Port
21
User name
N/A
Password
N/A
Remote
storage path
N/A
Conditions (Record
control)
Pack
duration
8m
Pre-record
5s
Disk full
Overwrite
Record mode
Auto
10
Function
Setup Type
Item
Default setup
IPCHDB/HDBW320
2 Series
IPCHDB/HDBW31
01 Series
System
management
General setup
Local
setup
Device name
Device factory SN
Language
English
Video
standard
NTSC
NTSC
Date and time
Date format
Y-M-D
Time format
24H
Time zone
GMT+08:00
Current time
Sync PC
DST
Disable
DTS type
Week
Start time
00:00:00 of the first Sunday of the
month
End time
00:00:00 of the second Monday of
the month
Synchronize
with NTP
Disable
NTP server
clock.isc.org
Port
37
Update
period
10m
Auto maintenance
Auto reboot
Enable
Auto delete
old files
Disable
11
2 Structure
2.1 Dimensions
You can refer to the following figures for dimension information. The Unit is mm. See Figure 2-1 and
Figure 2-2.
Figure 2-1
Figure 2-2
2.2 Port Description
For the non-IR series product, the interface is shown as in Figure 2-3 and Figure 2-4.
12
Figure 2-3
Figure 2-4
For the IR motorized zoom lens series product, the interface is shown as in Figure 2-5 and Figure 2-6.
13
Figure 2-5
Figure 2-6
For the IR manual zoom lens series product, the interface is shown as in Figure 2-7 and Figure 2-8.
14
SN
Port
Port Name
Connector
Function Description
1
POWER
AC 24V power
port
/
Connect to AC 24V power.
2
POWER
DC 12V power
port
/
Connect to DC 24V power.
3
Cable exit
of the
/ / Cable exit.
Figure 2-7
Please refer to the following sheet for external connection port definition information.
Figure 2-8
15
external
connected
cable
4
LAN
RJ45 network
port
Ethernet port
Network cable port.
5
I/O
I/O port
/
It includes alarm input/output, audio
and analog output.
6
RESET
Reset button
/
Reset button. It is to restore factory
default setup.
7
AUTO
FOCUS
5-direction button
/
Adjust lens angle of view and
definition.
8
Status
indicator
light
/ / Display device running status.
9
Fan port
/
/
Connect to fan to reduce device
internal problem.
Please note this component is
optional.
10
Micro SD
Micro SD card
slot entry
Micro SD
card
Connect to Micro SD card to realize
local storage.
11
POWER
12V power port
/
The power port of the external
connected cable.
Default input is DC 12V.
12
LAN
Network port
Ethernet port
The network port of the external
connected cable.
Connect to standard Ethernet port.
Support PoE.
Port
Name
Cable SN
Cable Port Name
Function Description
I/O Port
1
ALARM_NO
Alarm output port. Output alarm signal to
alarm device.
NO: Normal open alarm output end.
2
ALARM_COM
Alarm output public end.
3
GND
Ground end.
4
ALARM_IN
Alarm input port. It is to receive the on-off
signal from the external alarm source.
5
GND
Ground end.
6
AUDIO_IN
Input audio signal. It is to receive the analog
audio signal from the devices such as
pickup.
7
AUDIO_OUT
Output audio signal to devices such as
sound box.
8
GND
Ground end.
9
VIDEO_OUT
Output analog video signal. It can connect
to TV monitor to view video.
Please refer to the following sheet for I/O port cable function information.
2.3 Bidirectional talk
2.3.1 Device-end to PC-end
Device Connection
Please connect the speaker or the MIC to the audio input port of the device. Then connect the earphone
to the audio output port of the PC.
16
Login the Web and then click the Talk button to enable the bidirectional talk function.
You can see the button becomes orange after you enabled the bidirectional talk function.
Click Talk button again to stop the bidirectional talk function.
Listening Operation
At the device end, speak via the speaker or the pickup, and then you can get the audio from the
earphone or sound box at the pc-end.
2.3.2 PC-end to the Device-end
Device Connection
Connect the speaker or the MIC to the audio input port of the PC and then connect the earphone to the
audio output port of the device.
Login the Web and then click the Talk button to enable the bidirectional talk function.
You can see the button becomes orange after you enabled the audio talk function.
Click Talk button again to stop the bidirectional talk function.
Please note the on-site listening operation is null during the bidirectional talk process.
Listening Operation
At the PC-end, speak via the speaker or the pickup, and then you can get the audio from the earphone
or sound box at the device-end.
2.4 Alarm Setup
The alarm interface is shown as in Figure 2-9. Please follow the steps listed below for local alarm input
and output connection.
1) Connect the alarm input device to the alarm input port (No.1 pin) of the I/O cable.
2) Connect the alarm output device to the alarm output port (No.4 pin) and alarm output public port (No.3
pin). The alarm output port supports NO (normal open) alarm device only.
3) Open the Web, go to the Figure 2-9. Please set the alarm input 01 port for the first channel of the I/O
cable (No.4 pin). Then you can select the corresponding type (NO/NC.)
4) Set the WEB alarm output. The alarm output 01 is for the alarm output port of the device. It is the
No.1 pin of the I/O cable.
Figure 2-9
17
Please refer to the following figure for alarm input information. See Figure 2-10.
Alarm input: When the input signal is idle or grounded, the device can collect the different statuses of the
alarm input port. When the input signal is connected to the 5V or is idle, the device collects the logic “1”.
When the input signal is grounded, the device collects the logic “0”.
Figure 2-10
Please refer to the following figure for alarm output information. See Figure 2-11.
Port ALARM_COM and Port ALARM_NO composes an on-off button to provide the alarm output.
If the type is NO, this button is normal open. The button becomes on when there is an alarm output.
If the type is NC, this button is normal off. The button becomes off when there is an alarm output.
Figure 2-11
18
3 Installation
Important
Before you complete the installation and setup, do not remove the electrostatic attraction
film on the transparent enclosure. Otherwise it may result in injury.
After remove electrostatic attraction film, do not touch dome enclosure in case it may leave
stain.
Before the installation, please make sure the installation surface can sustain at least 3X
weight of the bracket and the camera.
3.1 Device Installation Introduction
Please refer to Figure 3-1 for device installation space information. You can use screws (diameter is less
than 4.5mm) to secure the device. You can see there are installation position map and installation
screws in the accessories bag for you to install the device conveniently.
Figure 3-1
3.2 Device Installation Steps
3.2.1 General Installation
The general interface is shown as in Figure 3-2.
IR Motorized Zoom Lens Series Non-IR Series IR Manual Zoom Series
19
Figure 3-2
Step 1
Take the installation position map from the accessories bag and then paste it on the installation ceiling
or the wall according to the monitor area. Please dig three bottom holes of the plastic expansion bolts
according to the map. Take three expansion bolts from the accessories bag and then insert them to the
holes you just dug and then fix firmly. If you need to dig a hole to pull through the cable, you need to dig
a cable exit hole (The diameter is more than 28mm) on the installation surface according to the
installation positioning map.
Step 2
Use the inner hex wrench from the accessories bag to unfasten the 3 hex screws on the dome camera
enclosure to open it.
Step 3

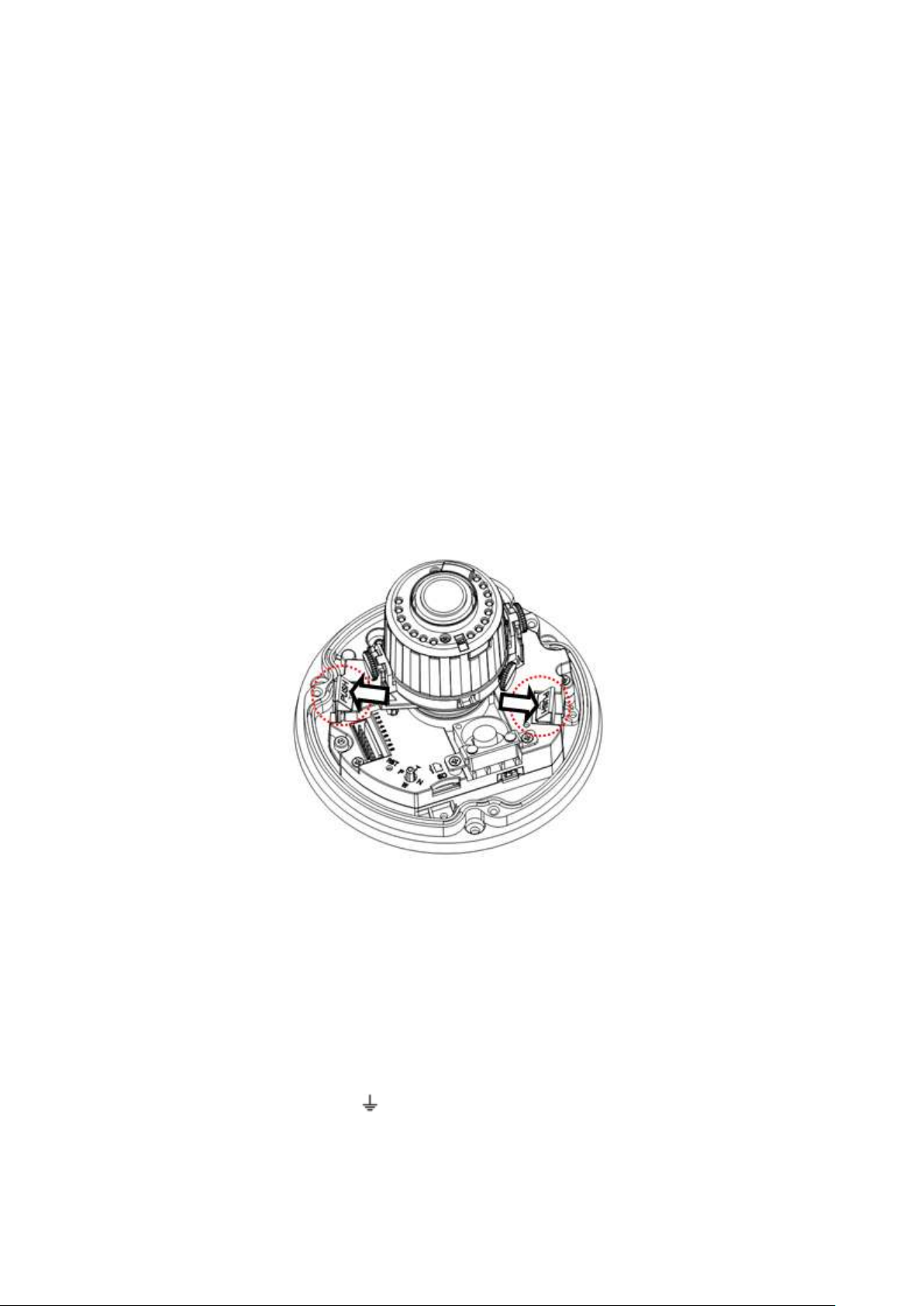

Please remove the device cable (Provided) network port and the power terminal. Use the inner hex
wrench (Provided) to remove the 2 inner hex screws from the dome driver module. Then please follow
the prompt on the device to push the metal hook to two sides. Remove the dome driver module from the
chassis. See Figure 3-3.
Figure 3-3
Step 4
Adjust the chassis of the device to the proper position and pull the cable to the cable exit of the
installation surface. Line up the holes of the chassis to the three expansion bolt holes you dug in Step 1.
Take three ST3.0 self-tapping screws and secure them in the three plastic expansion bolts. Now the
chassis is secure on the installation surface.
Important
Please earth the device GND hole (GND) to enhance the reliability of the device. The GND port
is near the cable exit of the rear panel. The GND screw thread specification is M3-6mm.
20
Figure 3-4
Step 5
Please refer to the Step 3 to put the driver module back to the metal hooks of the chassis. Then use the
inner hex wrench to secure the two inner hex screws to the chassis. Then connect the network cable
and the power terminal.
Step 6
Adjust the lens to the proper angle according to your monitor requirements.
a) For the IR series product, you can skip current step and go the step b) directly. For the non-IR series
product, push the port slightly to remove the decoration enclosure from the black plastic enclosure. See
Figure 3-5.
Figure 3-5
b) Lens pan rotation angle setup. Please refer to Figure 3-6 to unfasten the lock screw A and adjust the
pan monitor angle to the proper position. Then fix the lock screw A. The pan angle ranges from
0°~+350°.
21
Lock Screw A
Adjust lend pan rotation
angle.
Lock screw B/C
Adjust lens tilt rotation
angle.
Lock screw D
Adjust lend pan rotation
angle.
Figure 3-6
c). Lens tilt rotation angle. Please refer to Figure 3-7 to unfasten the lock screw B and lock screw C and
adjust the tilt monitor angle to the proper position. Then fix the lock screw B and lock screw C. The tilt
angle ranges from -23°~+73°.
d). Image pan rotation angle setup. Please refer to Figure 3-7 to turn lock screw D to adjust the video
pan angle. Then fix the lock screw B and C. The video pan angle ranges from 0°~+350°.
e) For the motorized zoom series product, please skip current step. Please refer to chapter 3.2.2 for the
lens zoom and focus operation of the manual focus series product.
f) For the IR series product, please skip current step and complete the angle setup directly. For the nonIR series product, please put back the black plastic decoration enclosure to complete the angle setup.
Important
Figure 3-7
22
Adjusting Screw E
Adjusting Screw F
Please note Figure 3-6 and Figure 3-7 is based on the IR motorized zoom camera. For the IR
manual zoom camera and non-IR series product, the lock screw position and the lens angle
adjustment are the same.
Step 7
Line up the dome camera protection enclosure to the cable exit on the side panel. Put the enclosure
back and then use the inner hex wrench to secure the 3 inner hex screws firmly. Now the installation is
complete.
Note
Usually we recommend, after the installation, please take the three white static protection gaskets from
the accessories bag and insert them to the screw holes of the protection enclosure. It is to enhance
device reliability.
3.2.2 Manual Zoom Lens Focus Operation
The manual zoom lens focus interface is shown as in Figure 3-8.
Step 1
Slightly loosen the adjusting screw E and push the adjust screw E to make it swing. Adjust the lens
focus to the proper position according to the displayed video.
Step 2
Slightly loosen the adjusting screw F and push the adjust screw F to make it swing. Adjust the lens to
get the clear video and then fix the adjusting screw firmly.
Step 3
When you are securing the adjusting screw F, you can see the video may become blur. Please push the
adjusting screw E to adjust the video slightly. Please secure the adjust screw E if you get a clear video.
3.2.3 Side Cable Exit
If you adopt side cable exit when you are installing the device, you need to remove the plastic decoration
plug from the side of the chassis. Use the proper tool to dig through the part specified in Figure 3-9 to
form a cable exit. Put the plastic decoration plug back to the chassis and then pull the cable through the
side panel of the chassis.
Figure 3-8
23
Dig through here
Figure 3-9
For some special user, he may need the metal protection tube to protect when he pulls through the
cable from the side cable. There is PG11screw thread port when you pull through the cable from the
side panel. Please remove the plastic decoration plug from the side panel of the chassis and pull
through the cable to the tunnel of the PG11 screw thread. Now secure the tunnel in the PG11 screw
threaded hole of the device.
3.2.4 Cable Connection
The device reserves two cable exits. The pin diameter shall be less than 15mm. One of the cable exits
has M22 screw thread and can work with the default combination cable to remove the risk of the
dragging and pulling of the cable.
The device has two waterproof airproof plugs (One default position is the cable exit of the chassis of the
device and the other is in the accessories bag.). The waterproof airproof plug has two functions. One is
to fill in the cable exit and pull through the cable. It supports the cable whose diameter ranges from
4.0~6.0. It is very convenient for you to do the waterproof work when you pull the cable through your
own exit. Please refer to the steps listed.
Step 1
Take the waterproof airproof plug out, pull the cable (diameter ranges from 4.0 to 6.0) through the
waterproof airproof plug. See Figure 3-10.
Figure 3-10
24
Step 2
Before you go to the Step 4 in the chapter 3.2.1 installation steps, please pull through cable with the
waterproof airproof plug to the device chassis via the installation hole at the bottom of the chassis and
then connect the cable pins.
Step 3
Refer to Step 4 and Step 5 in the chapter 3.2.1 installation steps to install and connect the cable pin to
the device and then follow the proper steps to go on the installation.
Important
This series product has the power connection pin and I/O connection pin for you to pull through
the signal cable.
3.3 Micro SD Card Installation
Warning!
Please unplug the device power cable and then shutdown the device before you install the Micro
SD card.
Step 1
Please refer to Step2 in chapter 3.2.1 installation steps to open the device protection enclosure.
Step 2
Please find the “SD” mark inside the device and adjust the Micro SD card direction according to prompt
direction. Insert the card to the slot and then install the Micro SD card. See Figure 3-11.
Figure 3-11
Step 3
Please refer to Step 7 in chapter 3.2.1 to put the device protection enclosure back.
25
4 Quick Configuration Tool
4.1 Overview
Quick configuration tool can search current IP address, modify IP address. At the same time, you can
use it to upgrade the device.
Please note the tool only applies to the IP addresses in the same segment.
4.2 Operation
Double click the “ConfigTools.exe”icon, you can see an interface is shown as in Figure 4-1.
In the device list interface, you can view device IP address, port number, subnet mask, default gateway,
MAC address and etc.
Figure 4-1
Select one IP address and then right click mouse, you can see an interface is shown as in Figure 4-2.
Note:
You can set the IP address, subnet mask and gateway for the network camera and PC. Please note
network camera IP address and PC IP address shall be in the same network segment if there is no
router. Network camera default IP address is 192.168.1.108. If there is a router, please set the
corresponding gateway and subnet mask.
The factory default user name is admin and password is admin. For security reasons, please modify
your password after you first login.
For detailed WEB operation, please refer to the Network Camera Web Operation Manual in the resource
CD.
26
Figure 4-2
Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure
4-3.
Figure 4-3
If you want to modify the device IP address without logging in the device web interface, you can go to
the configuration tool main interface to set.
In the configuration tool search interface (Figure 4-1), please select a device IP address and then double
click it to open the login interface. Or you can select an IP address and then click the Login button to go
to the login interface. See Figure 4-4.
In Figure 4-4, you can view device IP address, user name, password and port. Please modify the
corresponding information to login.
Please note the port information here shall be identical with the port value you set in TCP port in Web
Network interface. Otherwise, you can not login the device.
If you are using device background upgrade port 3800 to login, other setups are all invalid.
27
Figure 4-4
After you logged in, the configuration tool main interface is shown as below. See Figure 4-5.
Figure 4-5
For detailed information and operation instruction of the quick configuration tool, please refer to
the Quick Configuration Tool User’s Manual included in the resources CD.
28
Input your IP
address here
5 Web Operation
These series network camera products support the Web access and management via PC.
Web includes several modules: Monitor channel preview, system configuration, alarm and etc.
5.1 Network Connection
Please follow the steps listed below for network connection.
Make sure the network camera has connected to the network properly.
Please set the IP address, subnet mask and gateway of the PC and the network camera
respectively. Network camera default IP address is 192.168.1.108. Subnet mask is 255.255.255.0.
Gateway is 192.168.1.1
Use order ping ***.***.***.***(* network camera address) to check connection is OK or not.
5.2 Login and Main Interface
Open IE and input network camera address in the address bar.
For example, if your camera IP is 192.168.1.108, then please input http:// 192.168.1.108 in IE address
bar. See Figure 5-1.
Figure 5-1
The login interface is shown as below. See Figure 5-2.
Please input your user name and password.
Default factory name is admin and password is admin.
Note: For security reasons, please modify your password after you first login.
29
Figure 5-2
If it is your first time to login in, system pops up warning information to ask you whether install control
webrec.cab or not after you logged in for one minute. Please click OK button, system can automatically
install the control. When system is upgrading, it can overwrite the previous Web too.
If you can’t download the ActiveX file, please check whether you have installed the plug-in to disable the
control download. Or you can lower the IE security level. See Figure 5-3.
Figure 5-3
After you logged in, you can see the main window. See Figure 5-4.
30
Figure 5-4
Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction.
31
Bug
I can not boot up
the device.
Please click RESET button for at least five seconds to restore
factory default setup.
Micro SD card
write times
Do not set the Micro SD card as the storage media to storage the
schedule record file. It may damage the Micro SD card duration.
I can not use the
disk as the storage
media.
When disk information is shown as hibernation or capacity is 0,
please format it first (Via Web).
I can not upgrade
the device via
network.
When network upgrade operation failed, you can use port 3800 to
continue upgrade.
Recommended
Micro SD card
brand
Kingston 4GB, Kingston 1GB, Kingston 16GB, Transcend 16GB，
SanDisk 1G, SanDisk 4G.
Usually we recommend the 4GB (or higher) or industry-level high
speed card in case the slow speed results in data loss.
Audio function
Please use active device for the audio monitor input, otherwise there
is no audio in the client-end.
The lightproof ring
of the IR device
The lightproof ring of the IR device lens is the necessary component
when it works. You can not view the clear video when the IR light is
on if you remove the lightproof ring.
6 FAQ
32
Component
Name
Toxic or Hazardous Materials or Elements
Pb
Hg
Cd
Cr VI
PBB
PBDE
Circuit Board
Component
○ ○ ○ ○ ○
○
Device Case
○ ○ ○ ○ ○ ○
Wire and Cable
○ ○ ○ ○ ○ ○
Packing
Components
○ ○ ○ ○ ○
○
Accessories
○ ○ ○ ○ ○
○
Appendix Toxic or Hazardous Materials or Elements
O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the
parts is below the relevant threshold of the SJ/T11363-2006 standard.
X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous
materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard. During the
environmental-friendly use period (EFUP) period, the toxic or hazardous substance or elements
contained in products will not leak or mutate so that the use of these (substances or elements) will not
result in any severe environmental pollution, any bodily injury or damage to any assets. The consumer
is not authorized to process such kind of substances or elements, please return to the corresponding
local authorities to process according to your local government statutes.
Note
This user’s manual is for reference only. Slight difference may be found in user interface.
All the designs and software here are subject to change without prior written notice.
All trademarks and registered trademarks mentioned are the properties of their respective
owners.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Please visit our website for more information.
Loading...
