IC Realtime ICIPD2000 User Manual
Mini IP Dome Camera User’s Manual
Version 1.0.0
Welcome
Thank you for purchasing our IP camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!
i
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC in the IEC60950-1.
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3．Installation
Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
This series IP camera should be installed in a cool, dry place away from direct sunlight, inflammable,
explosive substances and etc.
Please keep it away from the electromagnetic radiation object and environment.
Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
Thunder-proof device is recommended to be adopted to better prevent thunder.
The grounding holes of the product are recommended to be grounded to further enhance the reliability
of the camera.
6. Daily Maintenance
Please shut down the device and then unplug the power cable before you begin daily maintenance
work.
Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens
surface.
ii
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to
dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the
device.
Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.
7. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
Accessory Name Amount
IPC Unit
Accessories bag
Quick Start Guide
CD
1
1
1
1
iii
Table of Contents
1 General Introduction ..................................................................................................................1
1.1 Overview........................................................................................................................1
1.2 Features.........................................................................................................................1
1.3 Specifications................................................................................................................2
1.3.1 Performance...........................................................................................................2
1.3.2 Factory Default Setup...........................................................................................3
2 Framework...................................................................................................................................9
2.1 Dimensions....................................................................................................................9
2.2 Structure ......................................................................................................................10
3 Installation .................................................................................................................................12

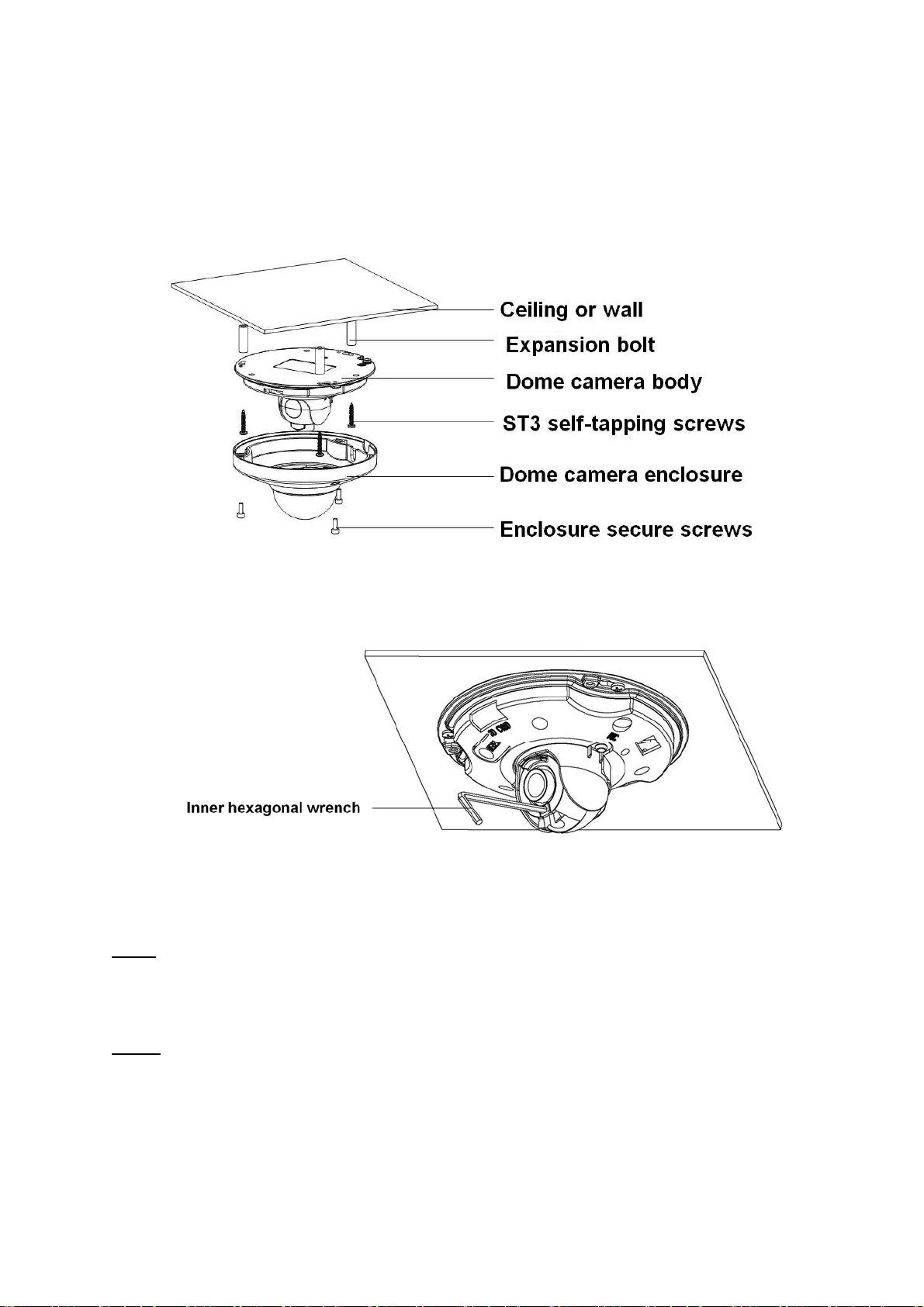

3.1 Device Installation ......................................................................................................12

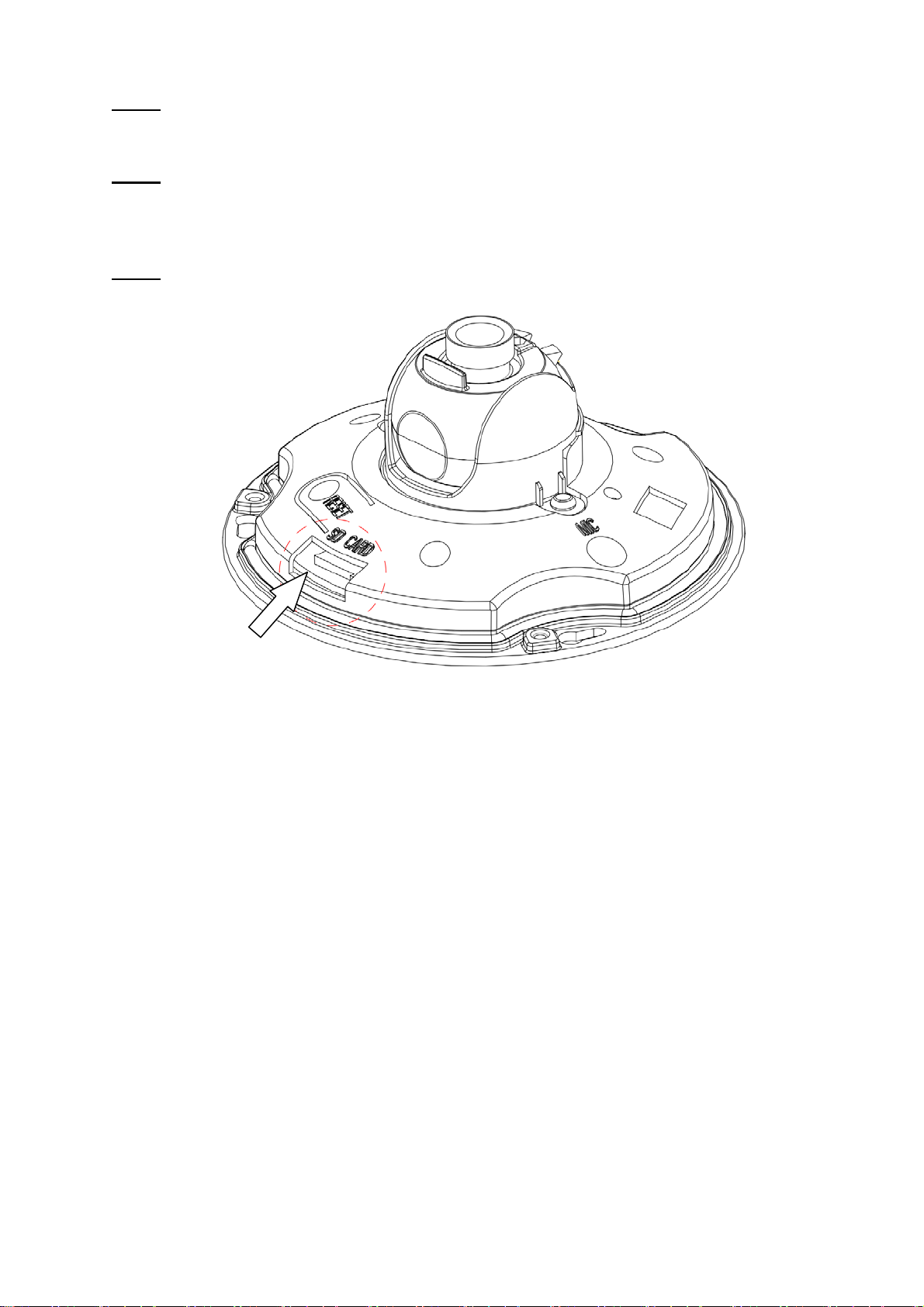

3.2 SD Card Installation ...................................................................................................13
4 Quick Configuration Tool.........................................................................................................15
4.1 Overview......................................................................................................................15
4.2 Operation .....................................................................................................................15
5 Web Operation..........................................................................................................................18

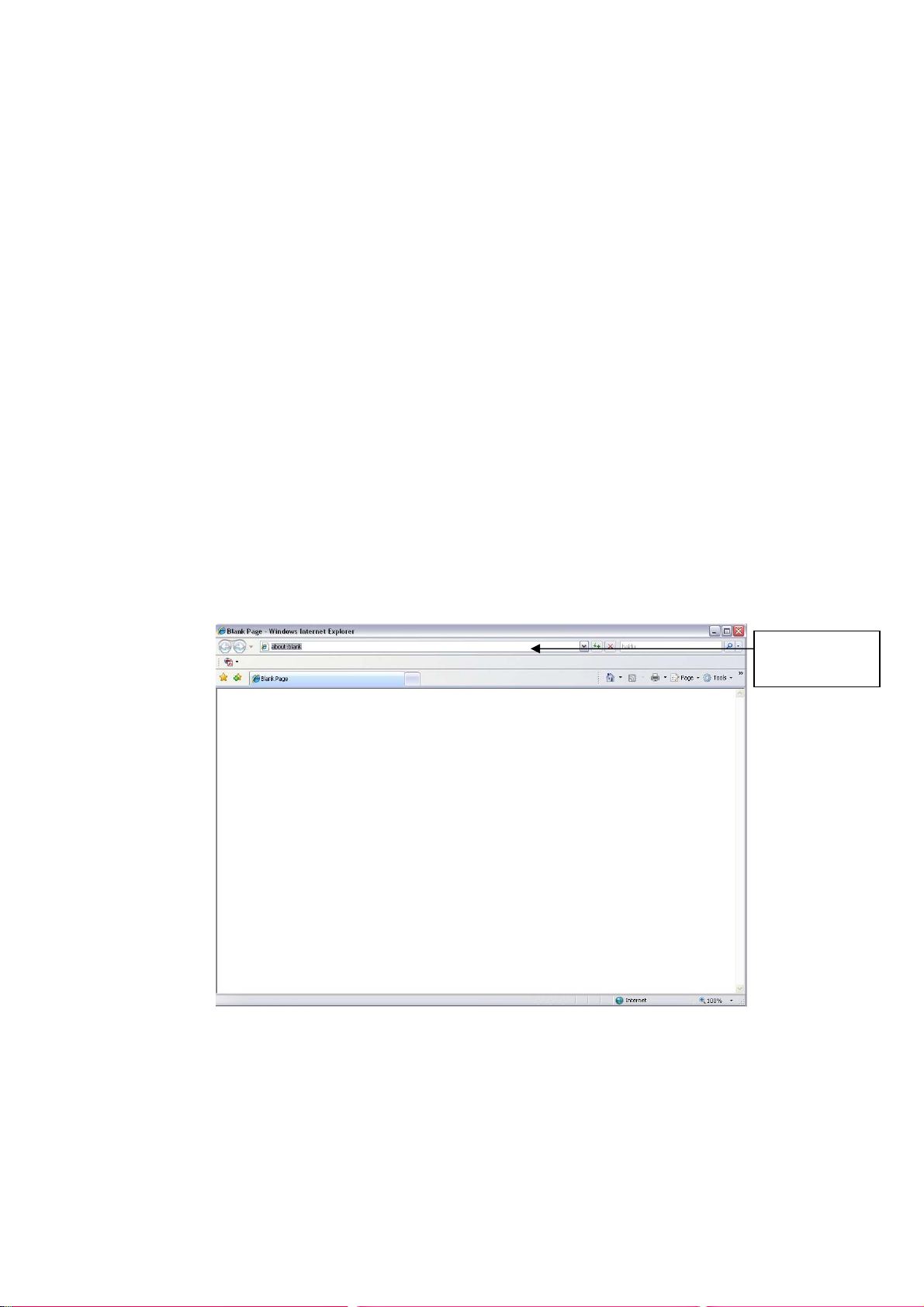

5.1 Network Connection...................................................................................................18

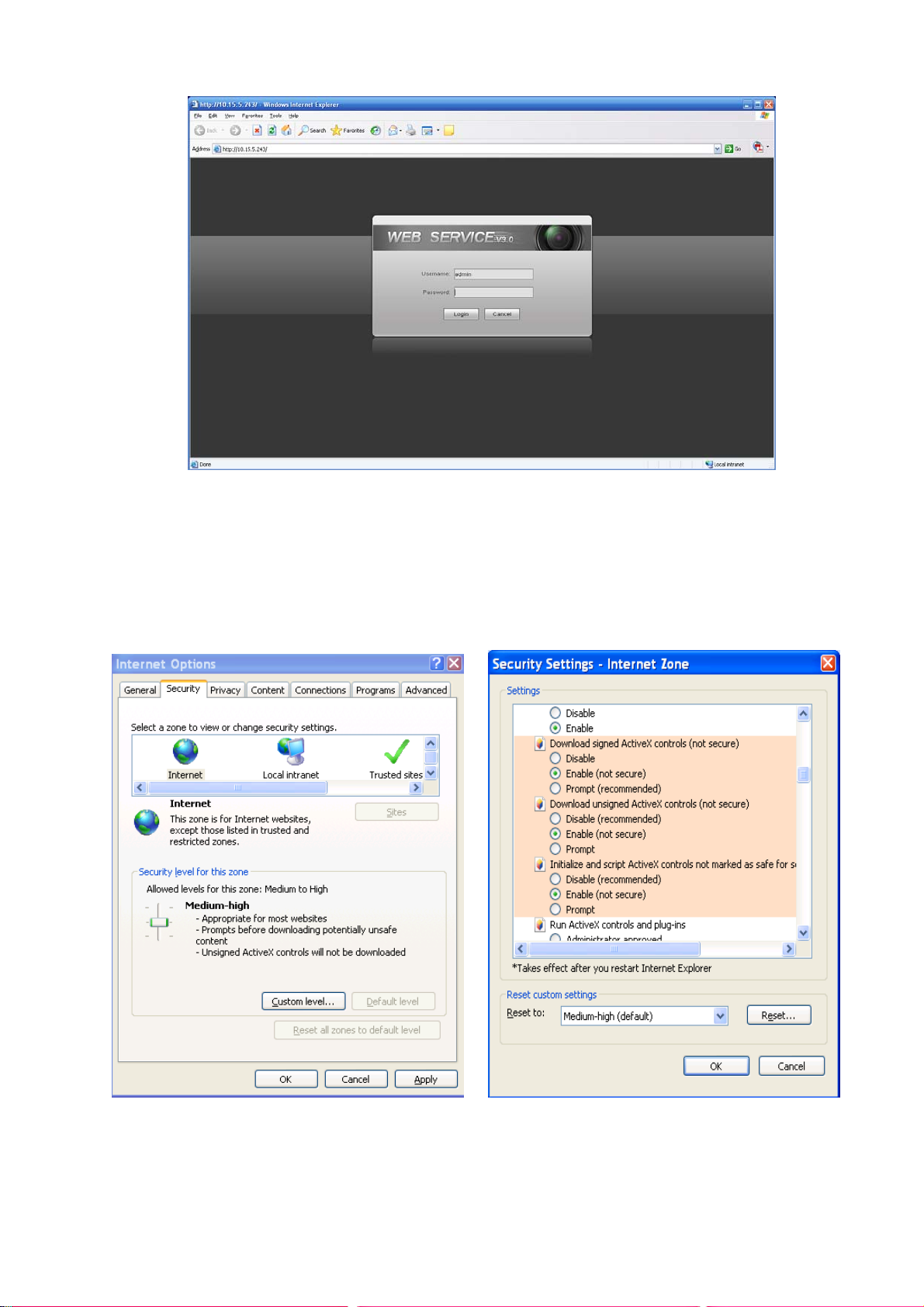

5.2 Login and Main Interface...........................................................................................18
6 FAQ ............................................................................................................................................21
Appendix Toxic or Hazardous Materials or Elements ...............................................................22
iv
1 General Introduction
1.1 Overview
This series IP camera integrates the traditional camera and network video technology. It adopts audio
and video data collection, transmission together. It can connect to the network directly without any
auxiliary device.
This series IPC uses standard H.264 video compression technology and MJPEG audio compression
technology, which maximally guarantee the audio and video quality.
This series IPC enclosure has the strong resistance capacity, which can guarantee the proper work
performance under heavy strike. It supports real-time monitor and motion detect function.
It can be used alone or used in a network area. When it is used lonely, you can connect it to the
network and then use a network client-end. Due to its multiple functions and various uses, this series
IPC is widely used in many environments such office, bank, road monitor and etc.
1.2 Features
User
Management
Storage
Function
Alarm
Function
Network
Monitor
Network
Management
Peripheral
Equipment
z Different user rights for each group, one user belongs to one group.
z The user right shall not exceed the group right.
z Support central server backup function in accordance with your configuration
and setup in schedule setting
z Support record via Web and the recorded file are storage in the client-end
PC.
z Support built-in Micro SD card. Support short-time storage when encounter
disconnection.
z Support network storage such as FTP.
z Real-time respond to video detect as user pre-defined activation setup and
exert corresponding message in screen and audio prompt(allow user to prerecord audio file)
z Real-time video detect: motion detect, camera masking.
z Can generate an alarm when network abnormal, SD card abnormal event
occurred.
z IPC supports one-channel video data transmit to network terminal and then
decode. Delay is within 270ms (network bandwidth support needed)
z Max supports 20 connections.
z Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,
RTP/RTCP, RTSP and etc.
z Support web access, widely used in WAN.
z Realize IPC configuration and management via Ethernet.
z Support device management via web or client-end.
z Support various network protocols.
z Support peripheral equipment connection via the RS232 port, each peripheral
equipment control protocol and interface can be set freely.
z Support serial port (RS232/RS485) transparent data transmission.
Power
Assistant
Function
z External power adapter DC12V
z Support PoE.
z Log function
z Support PAL/NTSC
z Support system resource information and running status real-time display.
1
z Day/Night mode auto switch.
z Backlight compensation: screen auto split to realize backlight compensation
to adjust the bright.
z Support electronic shutter and gain setup.
z Support video watermark function to avoid vicious video modification.
1.3 Specifications
1.3.1 Performance
Please refer to the following sheet for IPC performance specification.
Model
Parameter
System
Main
Processor
OS Embedded LINUX
System
Resources
User Interface Remote operation interface such as WEB, DSS, PSS
System Status SD card status, bit stream statistics, log, and software version.
Video Parameter
Image Sensor
Pixel
Day/Night
Mode
Gain Control Fixed/Auto
TI Davinci high performance DSP
Support real-time network, local record, and remote operation at the
same time.
1/2.9-inch CMOS
1920(H)*1080(V)
Support day/night mode switch.
IPC-HDB3200CP(N) Series
White Balance Manual/Auto
BLC On/off
Electronic
Shutter
Video
Compression
Standard
Video Frame
Rate
Video Bit Rate
Video Flip
Snapshot Max 1f/s snapshot. File extension name is JPEG.
Privacy Mask Supports max 4 privacy mask zones
Video Setup Support parameter setup such as bright, contrast.
Video
Information
Lens 2.8mm/3.6mm/6mm/8mm MP
Lens Interface M12. Lens is the default accessories
Manual/Auto
PAL: It ranges from 1/3 to 1/10000.
NTSC: It ranges from 1/4 to 1/10000.
H264/JPEG/MJPEG
PAL:
Main stream（1920*1080@25fps）
extra stream（704*576@25fps）
NTSC：
Main stream (1920*1080@30fps)
Extra stream (704*480@30fps)
H.264: 56Kbps-8192Kbps.
ＭJPEG: 128-20480Kbps.The bit rate is adjustable.
Support customized setup.
Support mirror function.
Support flip function.
Channel title, time title, motion detect, privacy mask.
2
Video
Motion Detect
Video Loss
Alarm Input
Record
and
Record
Priority
396 (18*22) detection zones；sensitivity level ranges from 1 to 6 (The
6th level has the highest sensitivity)
Activation event: Video storage, image snapshot, log, email SMTP
function and etc.
Activation event: Video storage, image snapshot, log, email SMTP
function and etc.
2-channel input，1-channel output
Manual> Video detect>Schedule
Local Storage
Network
Wire Network 1-channel wire Ethernet port, 10/100 Base-T Ethernet
Network
Protocol
Platform
interface
Standard
Remote
Operation
AUX
Interf
Video Output
Reset Built-in RESET button
General Parameter
Power Support DC12V and PoE
Power
Consumption
Working
Temperature
Working
Humidify
Dimensions(m
m)
Weight
Installation Installed in the places such as wall or the ceiling
Support Micro SD card storage
Standard HTTP, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP,
UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour,
SNMP, NFS.
ONVIF
Monitor, system setup, log information, maintenance , upgrade and etc
1-channel analog video output，BNC port, 9-pin port connection
2.5W MAX
-10℃~+60℃
10%~90%
¢110×54
0.25Kg
1.3.2 Factory Default Setup
Please refer to the following sheet for factory default setup information.
Function
Setup Type
Camera Setup
Item
Conditions
Brightness 50
Contrast 50
Hue 50
Saturation 50
Gain mode Auto
Gain limit 80
Exposure mode Auto
Scene mode Auto
Day/night mode Auto
BLC Off
Mirror Disable
Default setup
IPC-HDB3200CP(N) Series
3
Function
Setup Type
Item
Flip Disable
Video
Main
stream
Video bit
stream
Extra
stream
Bit stream
type
Encode
mode
Resolution 1080P（1920*1080）
Frame rate
（FPS）
Bit stream
type
Reference bit
rate
Bit rate 8192
I frame
interval
Watermark
settings
Watermark
character
Enable Enable
Bit stream
type
Encode
mode
Resolution CIF(352×288/352×240)
Frame rate
（FPS）
Bit rate type CBR
Reference bit
rate
Bit rate 1024
I frame
interval
Snap type General snap
Default setup
IPC-HDB3200CP(N) Series
General
H.264B
PAL: 25
NTSC:30
CBR
3584-8192 Kb/S
50
Enable
DigitalCCTV
General
H.264B
PAL: 25
NTSC:30
192-1024Kb/S
50
Snapshot
Overlay
Path
Image size 1080P（1920*1080）
Quality Better
Interval 1picture/s
Privacy mask Disable
Channel title Enable
Time title Enable
Snapshot
path
Record path C:\RecordDownload
C:\PictureDownload
4
