1.3 Megapixel Indoor Dome IP Camera
QUICK INSTALLATION GUIDE
ELIP-VD13-3.0
Please read this manual carefully before installation and operation of the product.
2
DEAR CUSTOMERS!
The lighting flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of non-insulated dangerous voltage within
the product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
This installation should be made by a qualified service person and should conform to all local codes.
CAUTION
TO REDUCE THE RISK OF ELECTRLC SHOCK,
DO NOT REMOVE THE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
RISK OF ELECTRLC
SHOCK
DO NOT OPEN
CAUTION
By selecting this product, you have decided to use a professional device that guarantees highest
quality and reliability. We would like to thank you very much for your confidence and kindly ask you to
read the following instructions carefully before installation and operation in order to take full advantage
of all quality features regarding this product.
INFORMATION
This equipment has been tested and found to comply with limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at its own expense.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s authority
to operate the equipment.
CAUTION – To prevent electric shock and risk of the fire hazards
Do NOT use power source other than that specified.
Do NOT expose this appliance to rain or moisture.
TRADEMARKS
All names used in this manual for hardware and software are probably registered trademarks of
respective companies.
1
PRECAUTIONS
Please read the manual carefully before the installation in order to set up the camera correctly and
to obtain the best picture quality.
Please keep the manual in good condition for your future reference and service application.
Installation and services should only be carried out by an authorized personnel according to local
safety regulations.
If any liquid or solid matter gets into the housing, immediately disconnect the camera from power
supply and have it checked by your authorized dealer before reusing.
Avoid installing the camera at extremely hot or cold places.
If you are not a certified person, never try to dismantle the camera.
To avoid electric shock, never remove the screws or covers. There are no parts inside that need
maintenance by the user. All maintenance should be carried out by qualified personnel.
Avoid installing the camera at a place of high humidity.
Avoid installing the camera at the place exposed to gas or oil.
Keep the top glass of the lens always clean in order to obtain the best picture quality all the time.
Be careful not to be stained by fingerprint.
Don't face the camera directly toward sunlight or sunlight reflecting area.
IMAGE SENSOR may go defective at this condition.
Please give a special attention to keep the unit from dangerous drop or external shock during the
process of transportation or handling.
Never try to touch the camera in wet hand. It may cause an electric shock.
Do not expose the camera to radioactivity. It causes a serious damage on the IMAGE SENSOR.
LIMITATION OF LIABILITY
This publication is provided “AS IS” without warranty of any kind, either express or implied, including
but not limited to, the implied warranties of merchantability, fitness for any particular purpose, or
non-infringement of the third party's right.
This publication could include technical inaccuracies or typographical errors. Changes are added to
the information herein, at any time, for the improvements of this publication and / or the corresponding
product(s).
DISCLAIMER OF WARRANTY
In no event shall seller be liable to any party or any person, except for replacement or reasonable
maintenance of the product, for the cases, including but not limited to below :
(1) Any damage and loss, including without limitation, direct or indirect, special, consequential or
exemplary, arising out of or relating to the product;
(2) Personal injury or any damage caused by inappropriate use or negligent operation of the user;
(3) Unauthorized disassemble, repair or modification of the product by the user;
(4) Inconvenience or any loss arising when images are not displayed, due to any reason or cause
including any failure or problem of the product;
(5) Any problem, consequential inconvenience, or loss or damage, arising out of the system
combined by the devices of third party.
(6) Any claim or action for damages, brought by any person or organization being photogenic subject,
due to violation of privacy with the result of that surveillance-camera's or video server’s picture,
including saved data, for some reason, becomes public or is used for the purpose other than
surveillance.
2
1. PRODUCT OVERVIEW
CLASSIFICATION
1.3 Megapixel Indoor Dome IP Camera
General
CPU
32-bit ARM9 RISC CPU up to 432MHz
Flash
128 Mbyte
SDRAM
128 Mbyte
Camera
Image Sensor
1.3 Megapixel 1/3" SONY progressive scan CMOS (Ex-mor)
Total Pixels
1312(H) x 1069(V) 1.40 Megapixel
Effective Pixels
1305(H) x 1049(V) 1.37 Megapixel
S/N Ratio
More than 50dB
Min. Illumination
0.1 Lux at F2.0
Lens
3.0mm Megapixel Board Lens
Video
Video
Compression
H.264 High Profile @ 4.0, Motion MJPEG
Resolutions
Up to 1280 x 1024
Frame Rate
H.264 Up to 30fps with 1280 x 1024
MJPEG Up to 30fps with VGA resolution
Video Streaming
Support multi stream with H.264,
MJPEG Adjustable frame rate CVBR / CBR in H.264
Pan / Tilt / Zoom
Digital PTZ
Image Setting
Day & Night
Auto White Balance
Auto Exposure
Privacy Mask
Effect - Color, Sharpness, Mirror / V-Flip, etc.
Network
Security
Password Protection, User access log, HTTPS encryption
Supported
Protocol
HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP,
TCP, UDP, ICMP, DHCP
System
Integration
Intelligent Video
Motion detection up to 1280 x 1024 with 4 x 3 blocks
Alarm Events
File upload via ftp, E-mail, Notification via email, FTP and TCP
Video Buffer
5MB pre-alarm and post-alarm
Recording
Save to Micro SD / SDHC card with event mode and continuous mode
Key Features
1.3 Mega pixel 1/3" SONY progressive scan CMOS image sensor for excellent image quality
(Ex-mor)
Excellent Low light Sensitivity
3.0mm Megapixel Board Lens
Multi-Streaming of H.264 and M-JPEG
Supports image resolution up to 1280 x 1024 (HD)
Supports CBR and CVBR modes
Controllable frame rate
Privacy Masking up to 8 areas
Supports WDR, Defog, 2D + 3DNR. Sense-Up
Digital PTZ
Vandalproof / Tamperproof
IP66 Waterproof
Smooth 3-Axis adjustment
12VDC / IEEE802.3af POE
Conformant with ONVIF (Profile S)
E mark (E-11 Certified) Approval No. 10R-48333
EN50155 / EN45545
Includes Windows based IP Installer and license-free 16 channel NVR (Network Video Recorder)
software
Specification
3
Firmware
Upgrade
Remote upgrade via network
API
CGI Interface document, ActiveX Interface (ocx (dll) + document)
Physical
Power Source
DC12V / 1.5A, PoE (Power over Ethernet) : 802.3af
Power
Consumption
Max. 4.0W
Net Weight
352g
LED's
Power, Network Connection
Dimension
110mm(dia.) x 47.5mm(H)
Environm
ent
Operating
Temperature
-10 °C ~ 50 °C (14F ~ 122F)
Storage
Temperature
-20 °C ~ 60 °C (-4F ~ 140F)
Software
Included
Software
NVR Lite (16 Channel), IP Installer (Windows only)
Package
Package
Contents
Network Camera, Use Manual, External Power Adaptor, Software CD
APPEARANCE
DESCRIPTION
IP Camera x 1
Installation Guide x 1
Drilling Template x 1
Tapping Screws x 3
Sponge x 1
CD x 1
Specifications are subject to change without prior notice to enhance performance and stability.
2. NAME AND FUNCTION OF EACH PART
2.1 Package Contents
4
3. CABLE CONNECTION
Power Connector
Network Connector
Power Connector
Wall
Network Connector
Drilling template
Sponge plate
Bottom case
Tapping screw
PH 3 x 12L (3EA)
Top case
Star Screw
M3 x 8.5L
This IP camera uses 12VDC for power source.
Please make sure to use a UL / CE approved and 12VDC regulated power supply for input power.
NOTE
PoE is not available for VDA50SMTi.
Do not connect PoE device into this product.
4. INSTALLATION
4.1 How to Mount to Ceiling / Wall
Ceiling
5
4.2 Tool-free 3-axis mounting mechanism
Local Access E-Mail / FTP
LAN Switch Router Internet Remote Access
Pan ±20°
Tilt 90°
Rotation 90°
Perfect 3-axis
- Panning axis up to ±20 degree
- Tilting axis up to 90 degree
- Rotation axis up to 90 degree
4.3 INSTALLATION EXAMPLE
4.3.1 Installation Example

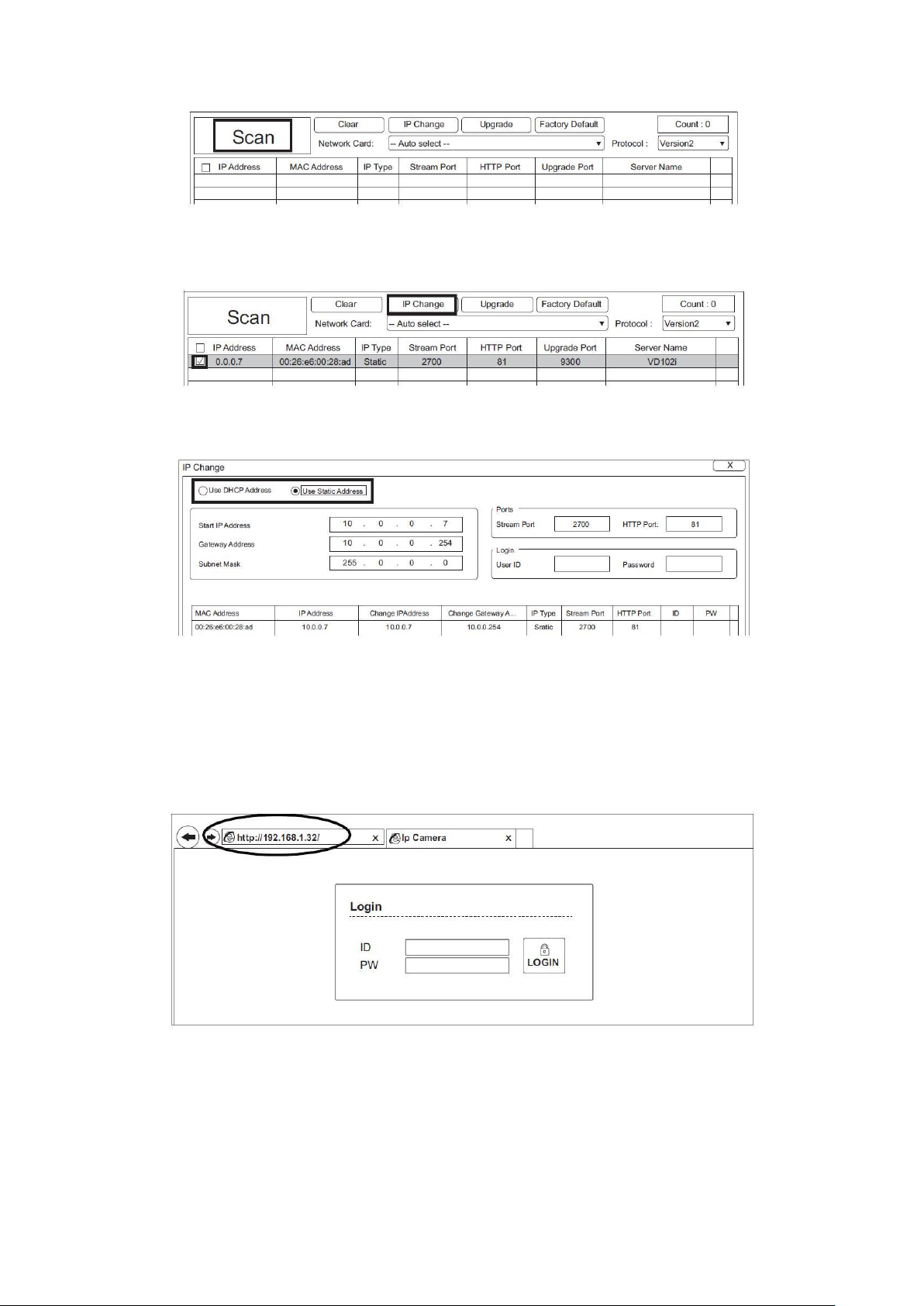

4.3.2 Connecting Network
1) Run IPScan Utility program in the packaged CD.
2) Click “Scan” button. Once IPScan Utility program scanned, the panel shows
every camera or video server connected on the local network.
6
3) The MAC address can be found on the label of the camera or video server.
4) From the cameras or video servers listed, select one and click “IP Change to assign a
new IP address.
5) Select DHCP or STATIC, then change IP address.
Default ID and password are “admin" and “1234” respectively.
4.3.3 Accessing the Camera or video server’s Homepage
1) After you assign IP address to your IP camera or video server and enter that camera or video server
address on the Web Browser, you will be connected to the login page of the camera or video server
as shown below.
2) Enter a ID (username) and password to access the camera or video server.
The default ID and password are “admin” and “1234”.
3) The first time you login to the camera or video server using ActiveX, you are notified that a required
ActiveX control is required. You need to allow the installation of ActiveX by clicking "Yes". It is
normal for this process to take up to 30 seconds.
For more information, see the manual of IP camera or video server in the packaged CD.
7

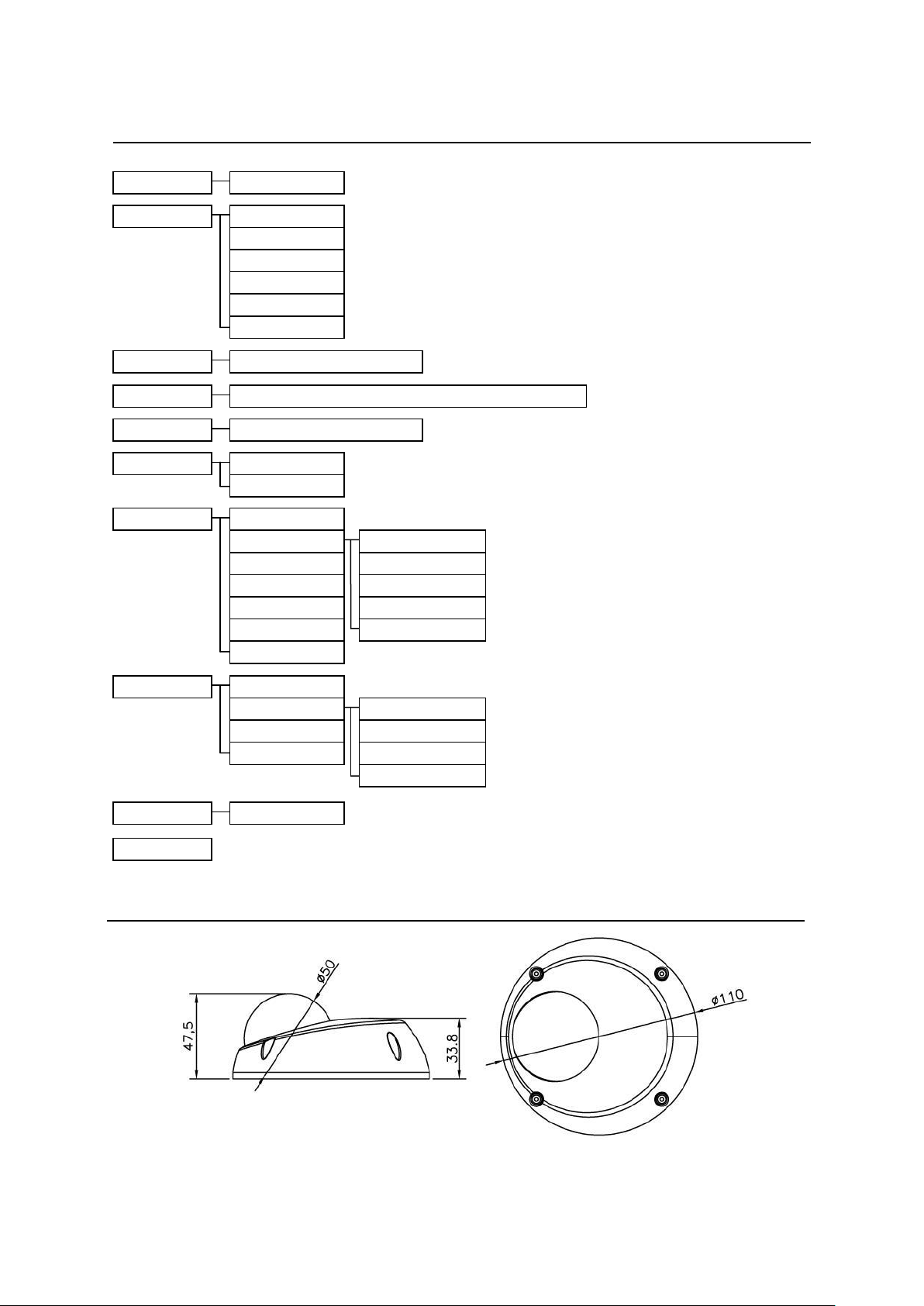

5. OSD Menu Tree
LENS
MANUAL
EXPOSURE
SHUTTER
AGC
SENS-UP
BRIGHTNESS
D-WDR
DEFOG
BACKLIGHT
OFF / WDR / BLC / HSBLC
WHITE BAL
ATW / AWCSET / INDOOR / OUTDOOR / MANUAL / AWB
DAY & NIGHT
AUTO / COLOR / BW
NR
2DNR
3DNR
SPECIAL
CAM TITLE
D-EFFECT
MOTION
PRIVACY
LANGUAGE
DEFECT
VERSION
FREEZE
MIRROR
D-ZOOM
SMART D-ZOOM
NEG. IMAGE
ADJUST
SHARPNESS
MONITOR
LSC
SHUTTER.OUT
GAMMA
ADAPT. LEVEL
BLUE GAIN
RED GAIN
RESET
FACTORY
EXIT
6. DIMENSION (mm)
8
