IC Realtime 4 Channel Forensic Network Video Recorder User Manual

Forensic NVR User’s Manual

Version 2.2.0

Table of Contents

1 FEATURES AND SPECIFICATIONS.................................................................. 1

1.1 Overview .................................................................................................................................................1

1.2 Features..................................................................................................................................................1

1.3 Special Features....................................................................................................................................2

1.4 Specifications .........................................................................................................................................4

2 OVERVIEW AND CONTROLS ........................................................................... 6

2.1 Front Panel .............................................................................................................................................6

2.2 Rear Panel..............................................................................................................................................6

2.3 Connection Sample...............................................................................................................................7

2.4 Remote Control......................................................................................................................................8

2.5 Mouse Control......................................................................................................................................10

2.6 Virtual Keyboard & Front Panel.........................................................................................................12

2.6.1 Virtual Keyboard..............................................................................................................................12

2.6.2 Front Panel ......................................................................................................................................12

3 INSTALLATION AND CONNECTIONS............................................................. 13

3.1 Check Unpacked NVR........................................................................................................................13

3.2 About Front Panel and Real Panel ...................................................................................................13

3.3 HDD Installation...................................................................................................................................13

3.4 Rack Installation ..................................................................................................................................14

3.5 Connecting Power Supply..................................................................................................................14

3.6 Connecting Video Input and Output Devices ..................................................................................14

3.6.1 Connecting Video Input..................................................................................................................14

3.6.2 Connecting Video Output...............................................................................................................15

3.7 Connecting Audio Input & Output, Bidirectional Audio ..................................................................15

3.7.1 Audio Input.......................................................................................................................................15

3.7.2 Audio Output....................................................................................................................................15

3.8 Alarm Input and Output Connection .................................................................................................15

3.8.1 Alarm Input and Output Details.....................................................................................................16

3.8.2 Alarm Input Port ..............................................................................................................................16

3.8.3 Alarm Output Port ...........................................................................................................................17

3.9 RS232....................................................................................................................................................18

3.10 RS485....................................................................................................................................................18

3.11 Other Interfaces ...................................................................................................................................18

4 UNDERSTANDING OF MENU OPERATIONS AND CONTROLS ................... 19

4.1 Login, Logout & Main Menu ...............................................................................................................19

4.1.1 Login .................................................................................................................................................19

4.1.2 Main Menu .......................................................................................................................................20

4.1.3 Logout...............................................................................................................................................20

4.1.4 Auto Resume after Power Failure ................................................................................................21

4.1.5 Replace Button Battery ..................................................................................................................21

4.1.6 Live Viewing.....................................................................................................................................21

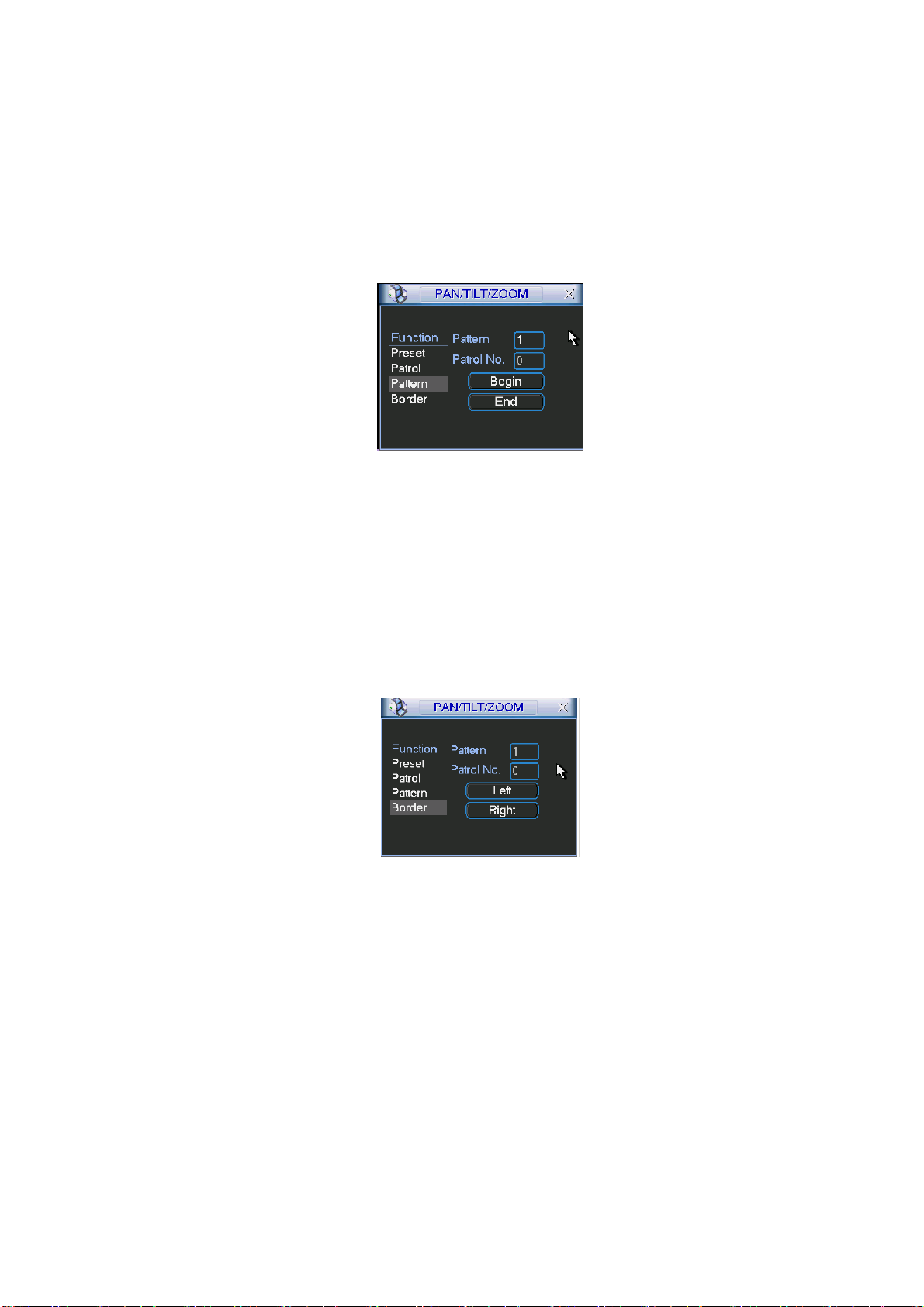

4.1.7 PTZ Control......................................................................................................................................22

4.1.8 PIP Setup .........................................................................................................................................26

4.1.8.1 Video 1-4 PIP.........................................................................................................................26

4.1.8.2 4-window PIP mode ..............................................................................................................27

4.1.9 Real-time Burning and CD Playback ...........................................................................................28

4.1.10 Overlay Temperature/Humidity Information ...........................................................................31

4.1.10.1 RS232 Mode ..........................................................................................................................31

4.1.10.2 RS485 Mode ..........................................................................................................................33

4.1.11 Backup.........................................................................................................................................35

4.1.12 CD Copy ......................................................................................................................................36

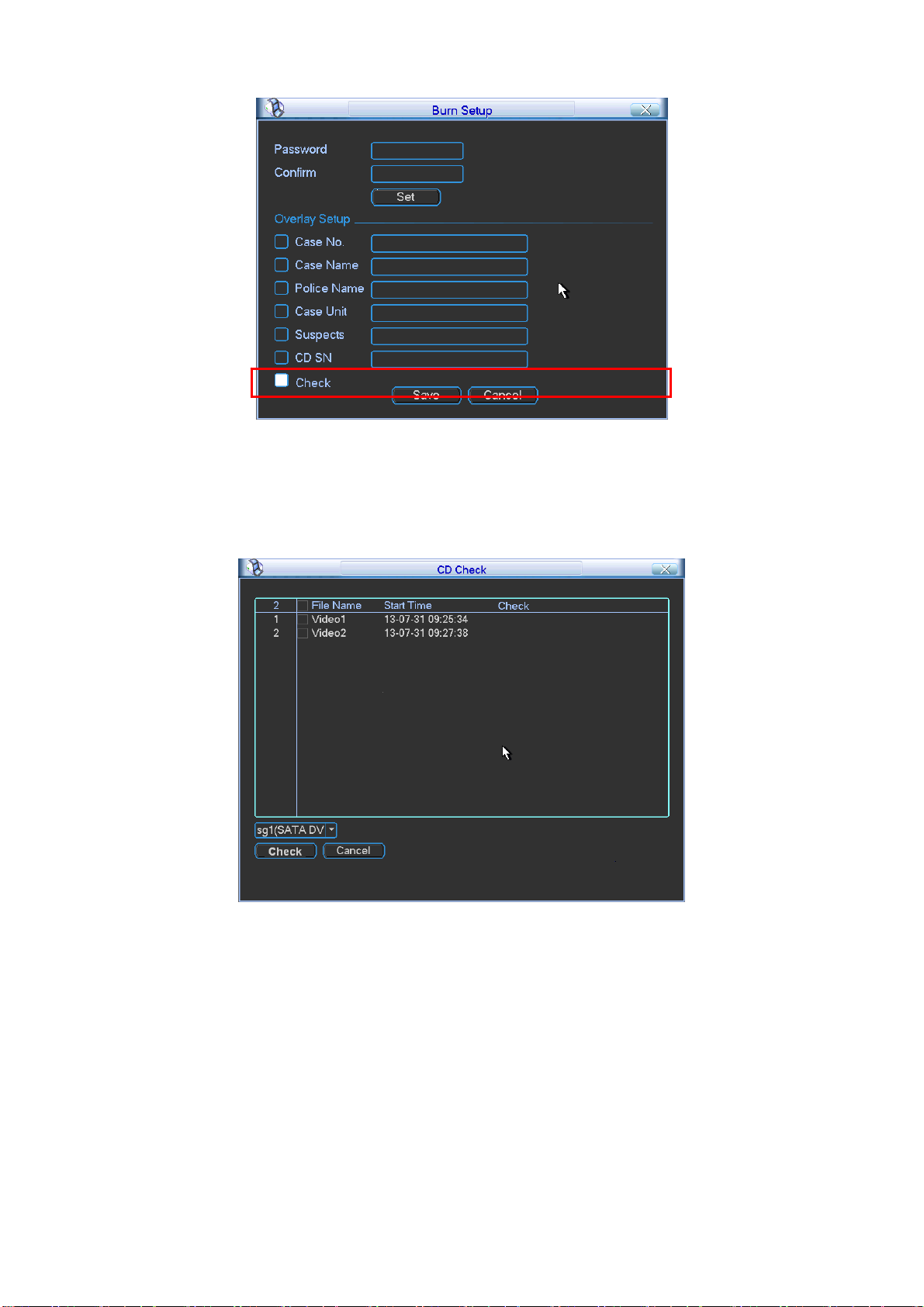

4.1.13 CD Verification............................................................................................................................36

4.2 Understanding of Menu Operations and Controls ..........................................................................38

4.2.1 Menu Tree........................................................................................................................................38

4.2.2 Main Menu .......................................................................................................................................39

4.2.3 Search & Playback .........................................................................................................................40

4.2.3.1 CD Playback ..........................................................................................................................43

4.2.4 Information .......................................................................................................................................44

4.2.4.1 HDD Information....................................................................................................................44

4.2.4.2 BPS .........................................................................................................................................45

4.2.4.3 Log...........................................................................................................................................45

4.2.4.4 Version....................................................................................................................................46

4.2.4.5 Online Users ..........................................................................................................................47

4.2.4.6 Network Device Info..............................................................................................................47

4.2.5 Setting...............................................................................................................................................50

4.2.5.1 General ...................................................................................................................................50

4.2.5.2 Encode ....................................................................................................................................52

4.2.5.3 Schedule.................................................................................................................................54

4.2.5.4 RS232 .....................................................................................................................................56

4.2.5.5 Network...................................................................................................................................57

4.2.5.6 Alarm .......................................................................................................................................63

4.2.5.7 Detect......................................................................................................................................66

4.2.5.8 Pan/Tilt/Zoom.........................................................................................................................70

4.2.5.9 Display ....................................................................................................................................72

4.2.5.10 Default.....................................................................................................................................73

4.2.6 Remote Device................................................................................................................................74

4.2.7 Advanced .........................................................................................................................................75

4.2.7.1 HDD Management ................................................................................................................76

4.2.7.2 Abnormality ............................................................................................................................77

4.2.7.3 Alarm Output ..........................................................................................................................78

4.2.7.4 Manual Record ......................................................................................................................78

4.2.7.5 Account ...................................................................................................................................80

4.2.7.6 Auto Maintenance ................................................................................................................. 82

4.2.7.7 Card Overlay..........................................................................................................................82

4.2.7.8 Config Backup........................................................................................................................85

4.2.8 Backup..............................................................................................................................................86

iii

4.2.8.1 Detect Device.........................................................................................................................86

4.2.8.2 Backup ....................................................................................................................................87

4.2.8.3 Burning....................................................................................................................................88

4.2.9 Shutdown .........................................................................................................................................89

5 WEB OPERATION............................................................................................ 91

5.1 Network Connection............................................................................................................................91

5.2 Login......................................................................................................................................................91

5.2.1 Real-time Monitor............................................................................................................................93

5.2.2 PTZ ...................................................................................................................................................95

5.2.2.1 Direction key and 3D positioning key .................................................................................96

5.2.2.2 Speed......................................................................................................................................96

5.2.2.3 Zoom/Focus/Iris .....................................................................................................................96

5.2.2.4 Auto Scan ...............................................................................................................................97

5.2.2.5 Pattern.....................................................................................................................................97

5.2.2.6 Preset......................................................................................................................................97

5.2.2.7 Auto tour .................................................................................................................................97

5.2.2.8 Assistant .................................................................................................................................97

5.2.2.9 Matrix.......................................................................................................................................97

5.2.2.10 Light and wiper ......................................................................................................................97

5.2.3 Color .................................................................................................................................................98

5.2.4 Picture Path and Record Path ......................................................................................................98

5.3 Configure .............................................................................................................................................. 99

5.3.1 System Information.........................................................................................................................99

5.3.1.1 Version Information...............................................................................................................99

5.3.1.2 HDD information ..................................................................................................................100

5.3.1.3 Log......................................................................................................................................... 100

5.3.2 System Configuration...................................................................................................................102

5.3.2.1 General Setup......................................................................................................................102

5.3.2.2 Encode ..................................................................................................................................103

5.3.2.3 Schedule...............................................................................................................................106

5.3.2.4 RS232 ...................................................................................................................................109

5.3.2.5 Network.................................................................................................................................110

5.3.2.6 Alarm .....................................................................................................................................116

5.3.2.7 Detect....................................................................................................................................118

5.3.2.8 PTZ........................................................................................................................................121

5.3.2.9 Default & Backup.................................................................................................................122

5.3.3 Advanced .......................................................................................................................................123

5.3.3.1 HDD Management ..............................................................................................................123

5.3.3.2 Abnormality ..........................................................................................................................124

5.3.3.3 Alarm I/O...............................................................................................................................126

5.3.3.4 Record...................................................................................................................................127

5.3.3.5 Account .................................................................................................................................127

5.3.3.6 Auto Maintenance ...............................................................................................................130

5.3.3.7 Remote Device ....................................................................................................................130

5.3.4 Additional Function .......................................................................................................................130

5.3.4.1 Preferred DNS ..................................................................................................................... 130

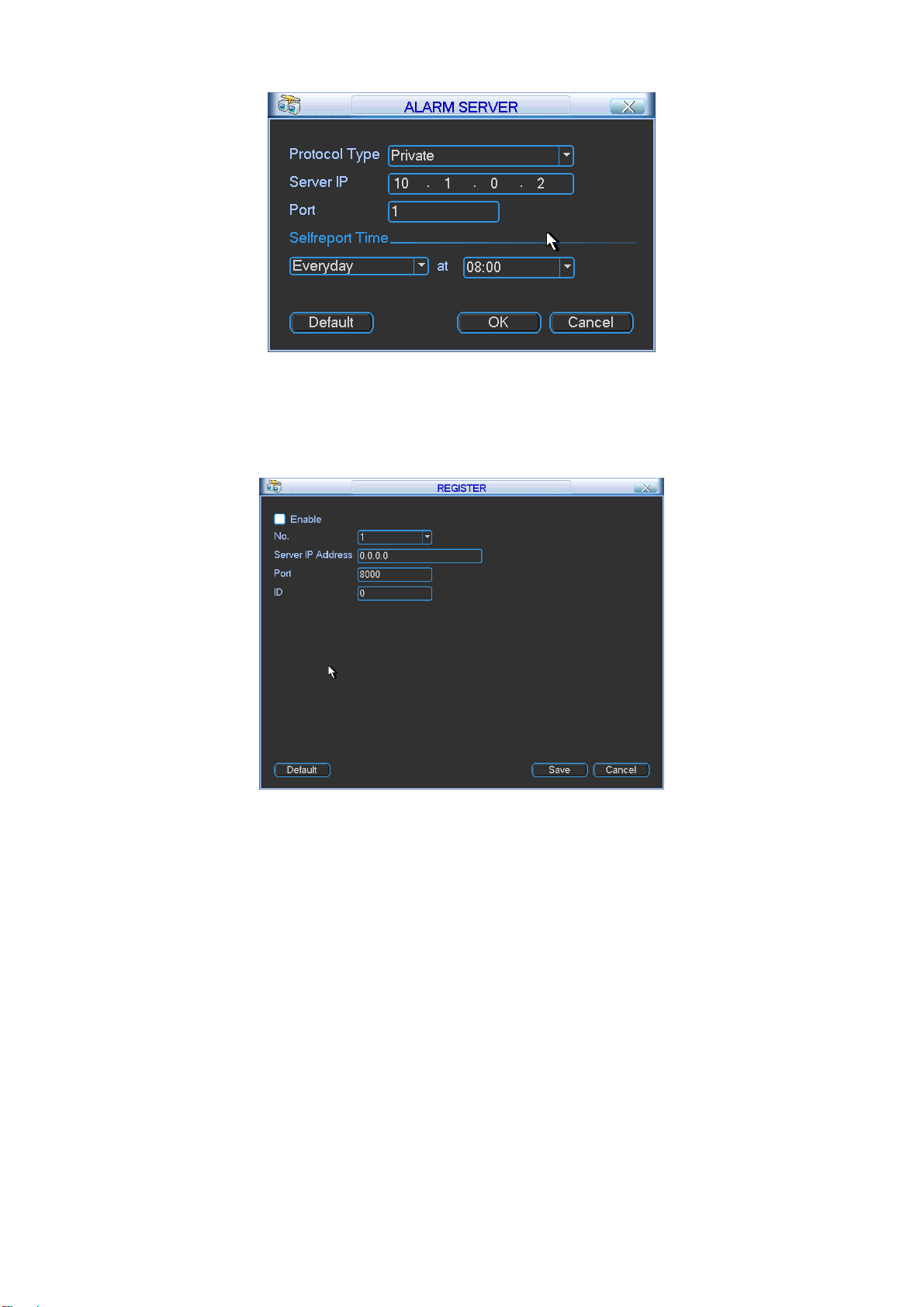

5.3.4.2 Auto Register .......................................................................................................................131

5.4 Search .................................................................................................................................................132

5.5 Alarm ...................................................................................................................................................135

5.6 About ...................................................................................................................................................136

5.7 Log out ................................................................................................................................................137

5.8 Un-install Web Control......................................................................................................................137

6 PROFESSIONAL SURVEILLANCE SYSTEM ................................................ 138

7 FAQ................................................................................................................. 139

APPENDIX A HDD CAPACITY CALCULATION ................................................. 145

APPENDIX B COMPATIBLE BACKUP DEVICE LIST........................................ 146

APPENDIX C COMPATIBLE CD/DVD DEVICE LIST ........................................... 151

APPENDIX D COMPATIBLE DISPLAYER LIST ................................................. 152

APPENDIX E COMPATIBLE SWITCHER LIST .................................................. 153

APPENDIX F COMPATIBLE WIRELESS MOUSE LIST ..................................... 154

APPENDIX G EARTHING.................................................................................... 155

APPENDIX H TOXIC OR HAZARDOUS MATERIALS OR ELEMENTS................ 160

Welcome

Thank you for purchasing our NVR!

This user’s manual is designed to be a reference tool for the installation and operation of your

system.

Here you can find information about this series NVR features and functions, as well as a detailed

menu tree.

Before installation and operation please read the following safeguards and warnings carefully!

vii

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

We assume no liability or responsibility for all the fires or electrical shock caused by improper

handling or installation.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3．Installation

Keep upwards. Handle with care.

Do not apply power to the NVR before completing installation.

Do not place objects on the NVR

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

The NVR should be installed in a cool, dry place away from direct sunlight, inflammable,

explosive substances and etc. This series product shall be transported, storage and used in the environment ranging from 0℃ to 50 ℃

6. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

7. Lithium battery

Improper battery use may result in fire, explosion, or personal injury!

When replace the battery, please make sure you are using the same model!

viii

1 FEATURES AND SPECIFICATIONS

1.1 Overview

This series product is a digital monitor product designed for forensic field. It adopts embedded

Linux OS to maintain reliable operation. Popular H.264 compression algorithm and G.711 audio

compression technology realize high quality, low bit stream. Unique frame by frame play function

is suitable for detailed analysis. It has various functions such as record, playback, monitor at the

same time and can guarantee audio video synchronization. This series product has advanced

control technology and strong network data transmission function.

Now it supports dual-CD burning, dual backup and temperature, humidity overlay, and PIP

function. The several audio input methods can meet the high audio requirements during the

interrogation process.

1.2 Features

This series product has the following features:

z Real-time monitor

It has analog output port, VGA port and HDMI port. You can use monitor or displayer to realize

surveillance function.

System supports TV/VGA/HDMI output at the same time.

z Storage function

Special data format to guarantee data security and can avoid vicious data modification.

z Compression format

Support multiple-channel audio and video. An independent hardware decodes the audio and

video signal from each channel to maintain video and audio synchronization.

z Backup function

Support backup operation via USB port (such as flash disk, portable HDD, burner and etc.).

Client-end user can download the file to local HDD to backup via network.

z Record playback function

Support each channel real-time record independently, and at the same time it can support search,

forward play, record search, download and etc.

Support various playback modes: slow play, fast play, backward play and frame by frame play.

Support time title overlay so that you can view event accurate occurred time

Support specified zone enlargement.

Support playback from compact disc.

z Network operation

Support network remote real-time monitor, remote record search and remote PTZ control.

z Alarm activation function

Several relay alarm outputs to realize alarm activation and on-site light control.

The alarm input port and output has the protection circuit to guarantee device safety.

z Communication port

RS485 port can realize alarm input and PTZ control. Support communication with temperature

and humidity display device.

RS232 port can connect to keyboard to realize central control, and can also connect to PC COM

to upgrade system and realize maintenance, and matrix control.

RS422 port allows the communication with the temperature and humidity display device.

Standard Ethernet port can realize network access function.

Dual Ethernet ports support configuration modes such as multiple access, fault-tolerance and

load balancing.

z PTZ control

Support PTZ decoder via RS485.

Support various decode protocols to allow the PTZ to control the speed dome.

z Intelligent operation

Mouse operation function

In the menu, support copy and paste setup function

z UPnP

It is to establish the mapping relationship between the LAN and the WAN via the UPnP protocol.

1.3 Special Features

z Time information overlay, channel information overlay, temperature and humidity information

overlay

Time information is on the top right corner by default. Channel information is on bottom left

corner by default. Temperature and humidity information is on top left corner by default. Time

information position and channel information position can be modified. You can change channel

name if necessary. Please note, before you overlay temperature and humidity information,

please go to chapter 4.2.7.7 to set corresponding temperature and humidity protocol, set overlay

channel name and position, and set to overlay when preview or encode. The temperature and

humidity device can communicate with NVR via RS232/485 port.

z Sound audio effect

z System adopts G711A compression algorithm. It can lower the noise and enhance definition

and restore vivid original status.

z 48KHz sampling rate, standard CD audio quality.

z Preview PIP

Support PIP (picture in picture) function so that you can view the specified position in detail and

at the same time observe the whole situation.

z PIP mixed audio

For PIP channel, it can mix the corresponding audio.

z Real-time burning

System supports synchronization burning, alternative burning and circle burning.

You can backup current monitor data to the specified DVD (one or several DVDs) and if there are

two channels, system can memorized in PIP mode to CD by default.

 Synchronization burning: The specified device can burn the same data at the same time.

It stops when burning process is over or you can stop manually.

 Alternative burning: System supports several burners to backup in turn. You can insert

the newt CD to continue backup once the current one is full. Please note in order to

guarantee there is no data loss between these two CDs, please make sure current

record function is normal.

 Circle burning: This function is based on alternative backup. When the first CD is full,

burner pops up the CD and you can input a new one to continue. Once the alternative

backup is full, system goes back to the first CD to begin burning.

z Switch CD function

When the CD free space reaches a threshold, system can alert you. (You can specify a value

here. Minimum value is 50M) After you insert the new CD, system reads the previous three to

five minutes data to current CD and then start burning. Please note during the whole process,

you need to make sure manual record is working properly and record is successful.

z CD playback

You can use this function to verify the real-time burning data or backup data. System supports

CD playback only. If you select several channels when you are burning or backup, you can view

the corresponding channel video when you playback from CD. Please note, sometimes one

channel may already be PIP mode.

z Title information

To burn the necessary case information, you can set case information via client-end and then

send it to the NVR. System can display the title information first and then playback the data.

z PC playback

The burned CD can playback in any PC (support PIP mode). System supports channel switch

and mark search. Please note you need to burn the CD player in current CD. If you have

selected several channels and burned or backed up in PIP mode, then system display these

channels in PIP mode when you play on PC.

z Data encryption

You need to input password to begin CD playback if you have input password when burning.

CD watermark function

System can encrypt data when burning. It allows you to check the data have been tampered with

or not.

Slight function differences may be found due to different series.

1.4 Specifications

Parameter 4-channel

Support 4-channel HD video. Transmission speed of each channel

System Resources

OS Embedded Linux real-time OS

Operation Interface Image Decode Type Decode Capability Audio Compression Standard

Video Input

is 8mbps. Support 10 network users to operate at the same time. The delay of each channel is below 500ms.

WEB, local GUI operation

H.264/MPEG4

Max H.264 decode capability is 4-channel *D1. Max MPEG4 decode capability is 1-channel 720p.

G.711a

4-channel network compression video input. Each channel max supports 1080P.

Video Output 1-channel VGA analog video output. 1-channel BNC output.

HD Multiplemedia Output

Audio Input Dual-way bidirectional talk function. 1×Line In.

Audio Output 1-channel bidirectional talk audio output.

Window Split Mode

Multiplechannel Playback

Alarm Input

Alarm Output

Storage

RS232 COM 1 RS232 port for debug and transparent COM data transmission.

1-channel HDMI HD video output.

1/4-window. Support PIP function.

Support 1/2/3/4-channel local HDD playback function. 1-channel

CD-ROM playback.

Playback resolution：720P\D1\CIF\QCIF. 4-channel alarm input. It becomes valid in low voltage. Green wiring

terminal port. 2-channel alarm output. Relay contact (1A@24VDC) ， NO/NC programming. Green wiring terminal port.

4 built-in SATA port. Two for DVD burner and two for SATA HDD.

Support independent eSATAII port.

RS485 COM 1 RS485 port to control external PTZ. Support various protocols.

USB Port 2 external USB port.

Network Port 2 1000M Ethernet ports.

Power Port

Power on-off Button

Power Button 1 power on-off button at the front panel.

1 power socket. AC100～240V 50+2% Hz

1 power on-off button at the rear panel.

IR Receiver 1 remote control receiver at the front panel.

Clock Built-in clock

1 device running status indicator light.

Indicator Light

Power Consumption Working Temperature Working Humidity

4-channel record status indicator light. Network status indicator light. Front-panel power indicator light.

＜40W (Exclude HDD)

0℃～+50℃

10℅～90℅

Air Pressure

Dimensions(m m)

Weight

Installation Mode

86kpa～106kpa

390(W)x145(H)x295(D)

5.5～6.5KG(Exclude HDD)

Portable

2 Overview and Controls

This section provides information about front panel and rear panel. When you install this series

NVR for the first time, please refer to this part first.

2.1 Front Panel

The front panel is shown as in Figure 2-1.

Figure 2-1

Please refer to the following sheet for front panel button information.

Button Name Icon Function

HDD record indicator light Network abnormal indicator light Remote control indicator light Power indicator light

Burning Start/stop

Cancel ESC Exit Microphone

Line audio input Line audio output

USB port

1-4

NET

ACT

REC/ST OP

The corresponding HDD is recording when it is on.

It is to alert you when network is abnormal or no connection. Remote control indicator light

The light is on when power connection is OK.

z REC：Start burning. z STOP：Stop burning.

Microphone port.

Line audio input port.

Line audio output port. Connect to mouse, HDD and etc.

2.2 Rear Panel

The NVR rear panel is shown as below. See Figure 2-2.

Figure 2-2

Please refer to the following sheet for detailed information.

1 Audio output 2 Video output 3 Network port 4 VGA output 5 RS232 port 6 HDMI port 7 USB port 8 eSATA port 9 Alarm input/alarm output/RS485 port 10 Line audio input port 11 Microphone port

2.3 Connection Sample

Please refer to Figure 2-3 for connection sample.

The following figure is based on our dual-Ethernet port series product.

Figure 2-3

2.4 Remote Control

The remote control interface is shown as in Figure 2-4.

Please note remote control is not our standard accessory and it is not included in the accessory

bag.

Figure 2-4

Please refer to the following sheet for detailed information.

Serial Number Name Function 1 Power button Click it to boot up or shut down

the device.

2 Address Click it to input device number,

so that you can control it.

3 Forward Various forward speeds and

normal speed playback.

4 Slow play Multiple slow play speeds or

normal playback.

6 7 Play/Pause

Next record In playback mode, playback the

next video.

Previous record In playback mode, playback the

previous video. In pause mode, click this button to realize normal playback. In normal playback click this button to pause playback. In real-time monitor mode, click this button to enter video search menu.

Reverse/pause

Reverse playback pause mode, click this button to realize normal playback. In reverse playback click this button to pause playback.

10 Record Start or stop record manually

11 Direction keys Switch current activated control,

12 Confirm /menu key go to default button

13 Multiple-window switch Switch between multiple-window

14 Auxiliary key

15 0-9 number key

Cancel Go back to previous menu or

cancel current operation (close upper interface or control)

In record interface, working with the direction buttons to select the record channel. Click this button for at least 1.5 seconds, system can go to the Manual Record interface.

go to left or right. In playback mode, it is to control the playback process bar. Aux function(such as switch the PTZ menu)

go to the menu

and one-window. In 1-ch monitor mode: pop up assistant function：PTZ control and Video color. Switch the PTZ control menu in PTZ control interface. In motion detection interface, working with direction keys to complete setup. Input password, channel or switch channel. Shift is the button to switch the input method.

2.5 Mouse Control

Left click mouse

System pops up password input dialogue box if you have not logged in. In real-time monitor mode, you can go to the main menu. When you have selected one menu item, left click mouse to view menu content. Implement the control operation.

Modify checkbox or motion detection status. Click combo box to pop up drop down list

In input box, you can select input methods. Left click the corresponding button on the panel you can input numeral/English character (small/capitalized). Here ← stands for backspace button. ＿ stands for space button.

In English input mode: _stands for input a backspace icon and ← stands for deleting the previous character.

Double left click mouse

Right click mouse

In numeral input mode: _ stands for clear and ← stands for deleting the previous numeral.

When input special sign, you can click corresponding numeral in the front panel to input. For example, click numeral 1 you can input“/” , or you can click the numeral in the on-screen keyboard directly.

Implement special control operation such as double click one item in the file list to playback the video. In multiple-window mode, double left click one channel to view in full-window. Double left click current video again to go back to previous multiple-window mode. In real-time monitor mode, pops up shortcut menu: one-window, PIP, Pan/Tilt/Zoom, color setting, search, record, alarm input, alarm output, main menu. Among which, Pan/Tilt/Zoom and color setting applies for current selected channel. If you are in multiple-window mode, system automatically switches to the corresponding channel.

Exit current menu without saving the modification. Press middle button

Move mouse Drag mouse Select motion detection zone

In numeral input box: Increase or decrease numeral value.

Switch the items in the check box.

Page up or page down

Select current control or move control

Select privacy mask zone.

2.6 Virtual Keyboard & Front Panel

2.6.1 Virtual Keyboard

The system supports two input methods: numeral input and English character (small and

capitalized) input.

Move the cursor to the text column, the text is shown as blue, input button pops up on the right.

Click that button to switch between numeral input and English input (capitalized and small), Use

> or < to shift between small character and capitalized character.

2.6.2 Front Panel

Move the cursor to the text column. Click Fn key and use direction keys to select number you

wanted. Please click enter button to input.

3 Installation and Connections

Note: All the installation and operations here should conform to your local electric safety rules.

3.1 Check Unpacked NVR

When you receive the NVR from the forwarding agent, please check whether there is any visible

damage. The protective materials used for the package of the NVR can protect most accidental

clashes during transportation. Then you can open the box to check the accessories.

Please check the items in accordance with the list (Remote control is optional). Finally you can

remove the protective film of the NVR.

3.2 About Front Panel and Real Panel

The model label in the front panel is very important; please check according to your purchase

order.

The label in the rear panel is very important too. Usually we need you to represent the serial

number when we provide the service after sales.

3.3 HDD Installation

You can refer to the Appendix for recommended HDD brand.

Please follow the instructions below to install hard disk.

All figures listed here are for reference only.

This series NVR has two SATA HDDs. Please use HDD of 7200rpm or higher.

1. Take the HDD bracket out

of the accessories bag and

then place the four gaskets to

the four holes. .

2. Place the HDD to the holes of

the bracket and then use the screws to fix firmly.

3. Secure the brackets of the two

sides on the HDD.

4. Unfasten the screws of the

rear and side panel of the device.

5. Use special data cable to

connect the HDD cable and power

cable.

6. Place the bracket in line with

the four holes of the device and

then use screws to fix from the

bottom.

7. Put the cover in accordance

with the clip and then place the

upper cover back.

Important

z When there is a bracket, please make sure the installation direction of HDDs is the same.

z Please pay attention to the front cover. It adopts the vertical sliding design. You need to

push the clip first and then put down.

8. Secure the screws in the

rear panel and the side panel.

3.4 Rack Installation

Please note this installation mode is for 1.5U/2U series product.

Please follow the steps listed below.

z Use twelve screws to fix the unit z Please make sure the indoor temperature is below 35℃ (95°f).

z Please make sure there is 15cm (6 inches) space around the device to guarantee sound

ventilation.

z Please install from the bottom to the top.

z If there are more accessories connected in the rack, please take precaution measures in

case the rack power is overload.

3.5 Connecting Power Supply

Please check input voltage and device power button match or not.

We recommend you use UPS to guarantee steady operation, NVR life span, and other peripheral

equipments operation such as cameras.

3.6 Connecting Video Input and Output Devices

3.6.1 Connecting Video Input

The video input interface is BNC. The input video format includes: PAL/NTSC BNC（1.0VB

B75Ω.）.

The video signal should comply with your national standards.

The input video signal shall have high SNR, low distortion; low interference, natural color and

suitable lightness.

Guarantee the stability and reliability of the camera signal:

The camera shall be installed in a cool, dry place away from direct sunlight, inflammable,

explosive substances and etc.

P- P ，

The camera and the NVR should have the same grounding to ensure the normal operation of the

camera.

Guarantee stability and reliability of the transmission line

BTTTB

Please use high quality, sound shielded BNC. Please select suitable BNC model according to the

transmission distance.

If the distance is too long, you should use twisted pair cable, and you can add video

compensation devices or use optical fiber to ensure video quality.

You should keep the video signal away from the strong electromagnetic interference, especially

the high tension current.

Keep connection lugs in well contact

BTTTB

The signal line and shielded wire should be fixed firmly and in well connection. Avoid dry joint,

lap welding and oxidation.

BTTTB

3.6.2 Connecting Video Output

Video output includes a BNC(PAL/NTSC1.0V

System supports BNC, VGA and HDMI output at the same time.

When you are using pc-type monitor to replace the monitor, please pay attention to the following

points:

z To defer aging, do not allow the pc monitor to run for a long time.

z Regular demagnetization will keep device maintain proper status.

z Keep it away from strong electromagnetic interference devices.

Using TV as video output device is not a reliable substitution method. You also need to reduce

the working hour and control the interference from power supply and other devices. The low

quality TV may result in device damage.

，75Ω）output ,a VGA output and HDMI output.

P-P

3.7 Connecting Audio Input & Output, Bidirectional Audio

3.7.1 Audio Input

These series products audio input port adopt BNC port and video compression card.

Due to high impedance of audio input, please use active sound pick-up.

Audio transmission is similar to video transmission. Try to avoid interference, dry joint, loose

contact and it shall be away from high tension current.

3.7.2 Audio Output

The audio output signal parameter is usually over 200mv 1KΩ (BNC). It can directly connect to

low impedance earphone, active sound box or amplifier-drive audio output device.

If the sound box and the pick-up cannot be separated spatially, it is easy to arouse squeaking. In

this case you can adopt the following measures:

z Use better sound pick-up with better directing property.

z Reduce the volume of the sound box.

z Using more sound-absorbing materials in decoration can reduce voice echo and improve

acoustics environment.

z Adjust the layout to reduce happening of the squeaking.

3.8 Alarm Input and Output Connection

Please refer to the following sheet for alarm input and output connection.

There are two alarm input types for you to select: normal open (NO) and normal close (NC).

1. Alarm input

a. Please make sure alarm input mode is grounding alarm input.

b. Grounding signal is needed for alarm input.

c. Alarm input needs the low level voltage signal.

d. Alarm input mode can be either NC (normal Open) or NO (Normal Close)

e. When you are connecting two NVRs or you are connecting one NVR and one other device,

please use a relay to separate them,

2. Alarm output

The alarm output port should not be connected to high power load directly (It shall be less than

1A) to avoid high current which may result in relay damage. Please use the co contactor to

realize the connection between the alarm output port and the load.

3. How to connect PTZ decoder

a. Ensure the decoder has the same grounding with NVR, otherwise you may not control the PTZ.

Shielded twisted wire is recommended and the shielded layer is used to connect to the grounding.

b. Avoid high voltage. Ensure proper wiring and some thunder protection measures. c. For too long signal wires, 120Ω should be parallel connected between A, B lines on the far end

to reduce reflection and guarantee the signal quality.

d. “485 A, B” of NVR cannot parallel connect with “485 port” of other device.

e. The voltage between of A,B lines of the decoder should be less than 5v.

4. Please make sure the front-end device has soundly earthed.

Improper grounding may result in chip damage.

3.8.1 Alarm Input and Output Details

You can refer to the following sheet X for alarm input and output information.

The series product interface is shown as below. See Figure 3-1.

AB cable

connection

Figure 3-1

Please refer to the following sheet and Figure 3-1 for detailed information.

1，2，3，4，

NO1 C1，NO2 C2

485 A/B 485 communication port. They are used to control devices such as

ALARM 1 to ALARM 4. The alarm becomes active in low voltage.

There are two groups of normal open activation output (on/off button) Earth cable.

PTZ. Please parallel connect 120TΩ between A/B cables if there are too many PTZ decoders.

3.8.2 Alarm Input Port

Please refer to the following sheet for more information.

z Normal open or Normal close type.

z Please parallel connect COM end and GND end of the alarm detector (Provide external

power to the alarm detector).

z Please parallel connect the Ground of the NVR and the ground of the alarm detector.

z Please connect the NC port of the alarm sensor to the NVR alarm input(ALARM)

z Use the same ground with that of NVR if you use external power to the alarm device.

Figure 3-2

3.8.3 Alarm Output Port

z Provide power to peripheral alarm device.

z To avoid overloading, please read the following relay parameters sheet carefully.

z RS485 A/B cable is for the A/B cable of the PTZ decoder.

Relay Specification

Model:

Material of the touch

Rating （Resistance Load）

Insulation

Surge voltage

Length of open time

Length of close time

Longevity

Temperature

JRC-27F

Silver

Rated switch capacity 30VDC 2A, 125VAC 1A

Maximum switch power 125VA 160W

Maximum switch voltage 250VAC, 220VDC

Maximum switch currency 1A Between touches with same

polarity

Between touches with different polarity

Between touch and winding 1000VAC 1minute Between touches with same

polarity 3ms max

3ms max

Mechanical 50×106 times (3Hz)

Electrical 200×103 times (0.5Hz)

-40℃ ~+70℃

1000VAC 1minute

1500V (10×160us)

3.9 RS232

You can connect the NVR with POS or Keyboard through RS232.

With POS system, the NVR can communicate through RS232 and network. For the POS system, the

NVR can integrate the text content and even search the record through the info.

The series NVR also support NKB operation. You can operate the NVR from the keyboard controls

instead of using the control pad on the front panel of the unit.

To connect a NKB keyboard to the NVR:

1. Assemble the KBD keyboard according to the instructions in its accompanying installation manual.

2. Connect the KBD keyboard into one of the RS232 ports on the NVR or through network.

3.10 RS485

When the NVR receives a camera control command, it transmits that command up the coaxial cable

to the PTZ device. RS485 is a single-direction protocol; the PTZ device can’t return any data to the

unit. To enable the operation, connect the PTZ device to the RS485 (A,B) input on the NVR. See

X289H289H289HFigure 3-8X.

Since RS485 is disabled by default for each camera, you must enable the PTZ settings first. This

series NVRs support multiple protocols such as Pelco-D, Pelco-P.

To connect PTZ devices to the NVR:

1. Connect RS485 A,B on the NVR rear panel.

2. Connect the other end of the cable to the proper pins in the connector on the camera.

3. Please follow the instructions to configure a camera to enable each PTZ device on the NVR.

3.11 Other Interfaces

There are still other interfaces on the NVR, such as USB ports.

4 Understanding of Menu Operations and Controls

Before operation, please make sure:

z You have properly installed HDD and all the cable connections.

z The provided input power and the device power are matched. z The external power shall be AC100～240V 50+2% Hz.

z Always use the stable current, if necessary UPS is a best alternative measure.

4.1 Login, Logout & Main Menu

4.1.1 Login

After system booted up, system pops up the startup wizard.

Click the Cancel button; you can go to the system login interface.

Click the Next Step button; you can go to the startup wizard interface. Here you can set the

system basic information. See Figure 4-1.

Figure 4-1

The system login interface is shown as in Figure 4-2.

System consists of four accounts:

z Username: admin. Password: admin. (administrator, local and network)

z Username: 888888. Password: 888888. (administrator, local only)

z Username: 666666. Password: 666666(Lower authority user who can only monitor, playback,

backup and etc.)

z Username: default. Password: default(hidden user)

You can use USB mouse, front panel, or keyboard to input. About input method: Click

switch between numeral, English character (small/capitalized) and denotation.

Note:

For security reason, please modify password after you first login.

Within 30 minutes, three times login failure will result in system alarm and six times login failure

will result in account lock!

Figure 4-2

4.1.2 Main Menu

After you logged in, the system main menu is shown as below. See Figure 4-3.

There are total seven icons: search, information, setting, remote device, backup, advanced

and shutdown.

You can move the cursor to highlight the icon, and then double click mouse to enter the sub-

menu.

Figure 4-3

4.1.3 Logout

There are two ways for you to log out.

One is from menu option:

In the main menu, click shutdown button, you can see an interface is shown as below. See

Figure 4-4.

Figure 4-4

There are several options for you. See Figure 4-5.

Figure 4-5

The other ways is to press power button on the front panel for at least 3 seconds, system will

stop all operations. Then you can click the power button in the rear panel to turn off the NVR.

4.1.4 Auto Resume after Power Failure

The system can automatically backup video and resume previous working status after power

failure.

4.1.5 Replace Button Battery

Please make sure to use the same battery model if possible.

We recommend replace battery regularly (such as one-year) to guarantee system time

accuracy.

Note:

Before replacement, please save the system setup, otherwise, you may lose the data

completely!

4.1.6 Live Viewing

After you logged in, the system is in live viewing mode. You can see system date, time and

channel name. If you want to change system date and time, you can refer to general settings

(Main Menu->Setting->General). If you want to modify the channel name, please refer to the

display settings (Main Menu->Setting->Display). You can view there is a volume bar at the

right bottom corner. The volume bar becomes red when it is the max value. It is the mixed

audio volume when system is in PIP mode.

Right click mouse, you can see system pops up the following menu. See Figure 4-6.

Please refer to the following sheet for detailed information.

Recording status

Motion detection

Video loss

Camera lock

Name Function

View PIP

Pan/Tilt/Zoom

Auto focus

Color Setting

Search Search record. Record Remote device

System displays in one-channel. You can select channel 1 to channel 4. System displays in 4-window.

System displays in picture in picture mode. One picture is big and one picture is small. Set PTZ parameter and realize fast positioning.

Click it to adjust auto focus distance.

Set video hue, brightness, contrast, saturation and gain. Please note you need to set a period here and the time format shall be 24H.

Set record mode.

It is the connected IPC setup.

Name Function

Real-time burn Click to go to real-time burn interface. Alarm output Set alarm output mode. Main menu Go to main menu.

Figure 4-6

4.1.7 PTZ Control

Before the operation, please go to chapter 4.2.5.8 to set PTZ protocol first.

In the one-window surveillance mode, right click mouse (click “fn” Button in the front panel or

click AUX key in the remote control). Click Pan/Tilt/Zoom, the interface is shown as below.

See Figure 4-7.

Here you can set the following items:

z Step: value ranges fro 1 to 8.

z Zoom

z Focus

z Iris

Please click icon

and to adjust zoom, focus and iris.

Figure 4-7

In Figure 4-7, please click direction arrows (See Figure 4-8) to adjust PTZ position. There are

total 8 direction arrows.

Figure 4-8

3D Intelligent Positioning Key

In the middle of the eight direction arrows, there is a 3D intelligent positioning key. See Figure

X Please make sure your protocol supports this function and you need to use mouse to control.

4-9.

Click this key, system goes back to the single screen mode. Drag the mouse in the screen to

adjust section size. The dragged zone supports 4X to 16X speeds. It can realize PTZ

automatically. The smaller zone you dragged, the higher the speed.

Figure 4-9

Here is a sheet for you reference.

Name Function

key Zoom Focus Iris

function Shortcut

key Near Near close

│_

W

Function key

function Shortcut

Key Far Far Open



│

►

f

Preset/ Patrol/Pattern/Scan

In Figure 4-7, please click the “set” button. The interface is shown as below. See Figure 4-10.

Here you can set the following items:

z Preset

z Tour

z Pattern

z Border

Figure 4-10

In X328H328H328H Figure 4-7, click page switch button, the interface is shown as in Figure 4-11.

Here you can activate the following functions:

z Preset

z Tour

z Pattern

z Auto scan

z Auto pan

z Flip

z Reset

z Page switch

Figure 4-11

Note:

z Preset, tour and pattern all need the value to be the control parameter. You can define it as

you require.

z You need to refer to your speed dome user’s manual for Aux definition. In some cases, it

can be used for special process.

z The following setups are usually operated in the

Preset Setup

In Figure 4-7, use eight direction arrows to adjust camera to the proper position.

In Figure 4-10, click preset button and input preset number. The interface is shown as in Figure

4-12.

Now you can add this preset to one tour.

X332H332H332HFigure 4-7, Figure 4-10 and Figure 4-11.

Figure 4-12

Activate Preset

In Figure 4-11, please input preset number in the No. blank, and click preset button.

Patrol setup (Tour Setup)

In Figure 4-38, click patrol button. The interface is shown as in Figure 4-13.Input preset number

and add this preset to a patrol (tour). For each patrol (tour), you can input max 80 presets.

Figure 4-13

Activate Patrol (tour)

X341H341H341H Figure 4-10, input patrol (tour) number in the No. blank and click patrol button

Pattern Setup

In Figure 4-10, click pattern button and then click “begin” button. The interface is shown as in

Figure 4-14. Then you can go to Figure 4-7 X to modify zoom, focus, and iris.

Go back to Figure 4-14 and click “end” button. You can memorize all these operations as pattern

Figure 4-14

Activate Pattern Function

X346H346H346H Figure 4-39, input mode value in the No. blank, and click pattern button.

Auto Scan Setup

X347H347H347H Figure 4-38, click border button. The interface is shown as in X348H348H348H Figure 4-43.

Please go to

Then please go to

Repeat the above procedures to set right limit.

X349H349H349H X349H349H349HFigure 4-35, use direction arrows to select camera left limit

X350H350H350H Figure 4-43X and click left limit button

Figure 4-15

Activate Auto Scan

In Figure 4-11, click “Auto Scan” button, the system begins auto scan. Correspondingly, the auto

scan button becomes Stop button. Click stop button to terminate scan operation.

Flip

In Figure 4-11, click page switch button, you can see an interface is shown as below. See Figure

4-16. Here you can set auxiliary function. The aux value has relation ship with the Aux button of

the decoder.

Click page switch button again, system goes back to Figure 4-7.

Figure 4-16

In Figure 4-16，click Page Switch button, you can go to Figure 4-17.(Please note only SD1 and

SD2 protocol can go to the following interface.)

The direction button here ti to control the speed dome menu. The displayed button here may vary

due to different protocol. The button is grey if current protocol does not support this function. Use

up/down button to switch between menu items and use left/right button to change setup. Click

enter/exit menu button to go to or exit speed dome menu. Click Page Switch button, system goes

back to Figure 4-7.

Figure 4-17

4.1.8 PIP Setup

4.1.8.1 Video 1-4 PIP

You can view different channels on the PIP mode. You can follow the steps listed below.

a) From main menu->setting->general, check the navigation bar to enable navigation function.

Close general interface and then left click mouse on the preview interface, you can see an

interface shown as in Figure 4-18.

Figure 4-18

b) In Figure 4-18, click to set a mode and then click . Now system goes to PIP mode.

Tips:

z One the preview interface, right click mouse and then select View PIP mode, then click

on Figure 4-18. You can go to PIP mode.

z The PIP mode uses one channel as the main window. You can select channel 1/23/4

as the main picture.

c) On the PIP interface, click at the top left corner to select a channel you want

to display and then click

Now you can see an interface shown as in Figure 4-19.You can use mouse to drag the PIP

picture to the proper position and drag mouse to zoom in or zoom out.

to save. In mode 1, you can select 2/3/4 as the PIP mode.

Figure 4-19

Note

PIP channel and black channel is the current selected channel.

z On the PIP mode, the volume bar is the mixed audio. For mode 1 to mode 4, system can

mix the audio of the main interface and the PIP interface. It is the audio of the PIP preview

and record audio.

: The grey highlighted channel is the main channel. The white channel is the

4.1.8.2 4-window PIP mode

You can view 4-window on the PIP mode. You can follow the steps listed below.

a) From main menu->setting->general, check the navigation bar to enable navigation function.

Close general interface and then left click mouse on the preview interface, you can see an

interface shown as in Figure 4-20.

Figure 4-20

b) In Figure 4-20, click

PIP mode.

to set a mode and then click . Now system goes to 4-window

c) On the PIP interface, click at the top left corner to select a channel you want to

display. You can select

4-21.

to set mixed audio and then click to save. See Figure

Figure 4-21

Note

the second channel. You can click mixed audio of channel 1 and channel 3. P2 is the mixed audio of channel 2 and channel 4.

During the preview mode, you can not select P1 and P2 at the same time. It is the output

audio of the preview interface, that is to say it is the audio of the channel P on the PIP mode.

z You can use mouse to drag the PIP picture to the proper position and drag mouse to zoom

in or zoom out.

: can only be displayed on the first channel and can only be displayed on

at the top left corner to set mixed audio. P1 is the

4.1.9 Real-time Burning and CD Playback

This series product can burn real-time video to the CD for future reference. You can click the

REC/STOP at the front panel to start or stop burning. Or you can go to the burning interface

via the right-click mouse menu. Please follow the steps listed below.

a) One the preview interface, right click mouse and then select real-time burning. You can

see an interface shown as in Figure 4-22. Please note the record channel needs to set

as P (PIP), otherwise, you can not see the three setup buttons on the right pane.

Figure 4-22

Tips

z Click the REC/STOP at the front panel; you can go to burning interface. Click

REC/STOP for a short time, you can begin or pause burning. If you click REC/STOP for

a long time during the burning process, you can stop burning operation.

z On the left-click mouse menu, select main menu and then click Backup button. Click Burning

button, you can go to Figure 4-22 too.

b) Select a device from the dropdown list and then select a record channel.

c) Now you can set burn setup, mark setup and etc. Please note you can not set during the

burning process.

Click Settings button, you can see the following interface. See Here you can set interrogation time and resolution. Click Save button. System can calculate

the corresponding channel bit stream according to you input information and the CD space.

Figure 4-23.

Figure 4-23

Click Burn setup, system pops up the following interface. See Figure 4-24.Please input

record password twice to confirm and check the corresponding box here to select information

you want to overlay on the burning record. Check the Check button at the bottom of the

interface, system can auto generate verification information during the burning process. You

can use the verification information to check the data has been tampered with or not. For

detailed CD verification information, you can view chapter 4.1.13.

Figure 4-24

You can click Mark setup button if you want to mark during the burning process.

d) Now you can click Start Sync burning on Figure 4-22 to begin burning.

Note

z Start sync burning: You can select one or more CD to burning at the same time. System

burns the same data. System stops burning when it finishes burning. Or you can stop

manually.

z Start tour burning: You need to select several CD to begin circle burning. System begins

burning from the first CD and then auto goes to the second CD until it finishes all CD

burning.

z Change CD: During the CD burning process, you can click it to replace CD manually.

System pops up current CD and then you can input a new one. System begins burning

data from the previous 5 minutes of the previous CD so that there is no missing data

between these two CDs.

z Pause: During the burning process, you can pause current burning if the court is

adjournment. Click continue button, you can begin burning again and all data is on the

same CD.

e) Click OK button on the pop-up dialog box, after you complete the burning.

CD Playback

This function is for you to verify the real-time burning data. You can check the real-time

burning data and backup data.

On the preview interface and then right click mouse, select Search.

Or you can go to the search interface, from main menu-search interface.

In Search interface (Figure 4-39), select Play from CD from the dropdown list and then click

file list switch button Figure 4-41. Here you can view file list from the CD. Double click a file name, you can

playback a file.

(Button 5 in Figure 4-39 ). You can see an interface shown as in

Figure 4-25

Important

Real-time burning and CD playback can not be operated at the same time since these two

functions are both for CD-ROM.

4.1.10 Overlay Temperature/Humidity Information

After you connect device to temperature and humidity device, you need to set corresponding

parameters so that you can overlay temperature humidity information on the monitor video or

record file. You can connect the temperature humidity device via the RS232.

4.1.10.1 RS232 Mode

a) Set COM protocol

On the preview interface, right click mouse and then select main menu, from main menu-

>advanced->card overlay. The interface is shown as in Figure 4-26.

Figure 4-26

Now you can set Sniffer mode as COM and protocol is RC or other protocols. Click COM setting

button, you can see COM setup interface. See Figure 4-27.

Now you can set RS232 information. The COM function is the protocol and the baud rate, data

bit, stop bit shall be the same with the temperature humidity device. Click Save to save you setup.

Figure 4-27

In Figure 4-26, select PIP channel from the dropdown list and then click overlay setup button,

you can see the following interface. See Figure 4-28.

Check the preview or monitor mode after T/H (Temperature/humidity) and then click Set button to

set overlay position. Click Save button to exit.

Figure 4-28

Tips

z In Figure 4-28, click Set button, you can set overlay position.

z Each channel can set its own overlay information. The channel 1-4 encode overlay position

is corresponding to the overlay effect of its own channel during the preview. The PIP overlay

position is corresponding to the 4-window and PIP preview overlay effect.

z Preview means you can overlay temperature humidity information on local preview window.

Monitor means you can overly temperature humidity information on the record file so that

you can view it when playback.

b) Connect the temperature humidity device to the device via the RS232.

Connect the A/B cable of the temperature humidity device to the A/B cable of the 485 to 232 tool.

Connect the RS232 port of the 485 to 232 tool to the RS232 port of the device.

Note:

z Right now the temperature humidity sniffer mode adopts RS485 port. In case it may affect

the RS485 PTZ control of the device, the temperature humidity output shall go through a

RS485-232 tool so that you can connect the RS232 to the RS232 port of the device.

z For some series RS485-232 tool , it may need power supplying. Otherwise, the data may not

stable or there is no data at all. In this situation, device can not overlay information.

4.1.10.2 RS485 Mode

a) Set COM protocol

On the preview interface, right click mouse and then select main menu, from main menu-

>advanced->card overlay. The interface is shown as in Figure 4-26.

Figure 4-29

Now you can set Sniffer mode as COM and protocol is RC or other protocols. Click COM setting

button, you can see COM setup interface. See Figure 4-27.

Now you can set COM information. The COM function is the PTZ matrix and the baud rate, data

bit, stop bit shall be the same with the temperature humidity device. Click Save to save you setup.

Figure 4-30

In Figure 4-26, select the PIP channel (channel P) to overlay temperature/humidity information.

Click overlay setup button, you can see the following interface. See Figure 4-28.

Check the preview or monitor mode and then click Save button.

Figure 4-31

Tips

z In Figure 4-28, click Set button, you can set overlay position. You need to select channel P

(PIP) to overlay information.

z Preview means you can overlay temperature humidity information on local preview window.

Monitor means you can overly temperature humidity information on the record file so that

you can view it when playback.

b) Connect temperature humidity device to the NVR

Connect the A2 and Y2 cable at the rear panel of the NVR to the A (or “+”) cable of the

temperature humidity device.

Connect the B2 and Z2 cable at the rear panel of the NVR to the B (or “-”) cable of the

temperature humidity device.

4.1.11 Backup

NVR support USB device backup and network download. Here we introduce USB backup.

You can refer to Chapter 5 Web Operation for network download backup operation.

a) On the preview interface, right click mouse and then click main menu.

b) Click backup button, the interface is shown as below. See Figure 4-32.

Figure 4-32

c) Select a backup device and then click Backup button. System pops up the following

interface. See Figure 4-33.

d) Select backup device and then set channel, file start time and end time. Click add

button, system begins search. All matched files are listed below. System automatically

calculates the capacity needed and remained.

Important

If you want to backup PIP file, the channel shall be set as P.

Figure 4-33

e) system only backup files with a √ before channel name. You can use Fn or cancel

button to delete √ after file serial number. Click backup button, you can backup

selected files. There is a process bar for you reference. When the system completes

backup, you can see a dialogue box prompting successful backup.

Note

The file name format usually is: SN_CH+channel number+time Y+M+D+H+M+S. In the file

name, the YDM format is the same as you set in general interface. (Main Menu ->Setting -

>General).File extension name is .dav.

4.1.12 CD Copy

This function allows you to copy one CD contents to another CD. Please follow the steps

listed below.

On the preview interface, right click mouse and then click main menu.

Click backup button, you can go to backup interface.

Click CD copy button at the bottom of the interface. You can go to the following interface.

See Figure 4-34. You can see some reference information at the right bottom corner of the

interface. You can see the corresponding dialogue box after the copy operation.

Figure 4-34

Note

z During the backup process, system automatically playback current file.

z Click

z During the copy process, you can implement fast forward/backward, pause and resume

function.

at the left bottom corner during the copy process, you can copy video data only.

4.1.13 CD Verification

If you have checked the verification function when you burn CD, you can use it to see the data

has been tampered with or not. Please follow the steps listed below. See

On preview window, right click mouse and then select real-time burning. Click the burn setup

button, you can go to the following interface. See Figure 4-35.Check the verification box at the

bottom of the interface.

Figure 4-35

After the burning operation, you can check the CD is original or not.

On the preview interface, right click mouse and then select main menu. Click Backup button.

Check CD Check button. You can see CD check interface shown as below. See Figure 4-36.

Figure 4-36

Select a CD from the dropdown list at the bottom of the interface and then check the file(s) you

want to verify.

Now system automatically begins check operation. You can see the check result on the right

column. System displays as success if the file is original. It is shown as failed if the file has no

data, or some data is missing or the data has been tampered with. See Figure 4-37.

Figure 4-37

4.2 Understanding of Menu Operations and Controls

4.2.1 Menu Tree

This series NVR menu tree is shown as below.

Main Menu

Search - Record search and playback function.

Info

Setting

The 1st Menu

HDD Info SATA port status, HDD total space, free space, record

BPS User wave to display bit stream of each channel and HDD

Log Display system important event log and specify the log

Version Display system hardware feature, software version, built

Online users View online user information.

General Basic parameters such as system time, record save

Encode

Schedule Record setup for general record, motion detect, external

RS232 Set RS232 function, baud rate and etc.

Note

start time./end time and etc.

space it uses within one hour.

you want to record.

date and etc.

mode, device No. and etc.

Audio/video encode mode, frame rate, quality and etc.

alarm.

Network Set parameters such as network address, video data

transmission protocol. You can set PPPoE, DDNS and etc function.

Alarm Set external alarm output and record activation parameter

setup.

Detect Set motion detect sensitivity, region and process

modes(Alarm output and enable record function), video loss, camera masking, audio and etc.

Pan/Tilt/Zoom Set communication protocol, baud rate and etc with the

PTZ device.

Main Menu

Advanced

The 1st Menu

Display Menu output, tour monitor parameter setup.

Default Select to restore some or all items to factory default

HDD manager

Abnormality Alarm setup for abnormal events such as no HDD, HDD

Alarm output Generate an alarm output manually.

Note

setup. Account setup does not support default function. HDD management, clear HDD data and etc.

After you change HDD property, system needs to reboot to activate new setup.

error.

Record control Account Maintain user group and user account.

Auto maintenance TV adjust Set TV output region and color.

Text overlay

Config

backup

Backup

Remote

device Shutdown - Logout menu user, shutdown system, restart system,

Backup detect

Remote device

Enable/Disable channel record.

It is to set auto maintain item.

Sniffer, information analysis, text overlay function for special fields. Import/export device configuration.

Detect, backup, erase, and stop operation.

Add/delete remote device.

switch user and etc.

4.2.2 Main Menu

After you logged in, the system main menu is shown as below. See Figure 4-38.

There are total seven icons: search, Information, setting, backup, remote device, advanced and

shutdown. Move the cursor to highlight the icon, then double click mouse to enter the sub-menu.

After completing all the setups please click save button, system goes back to the previous menu.

Please highlight icon

to select the corresponding function.

Figure 4-38

4.2.3 Search & Playback

Click search button in the main menu, search interface is shown as below. See Figure 4-39.

Usually there are three file types:

z N: Regular recording file.

z A: External alarm recording file.

z M: Motion detection recording file.

7 8

12 9

56 10

Figure 4-39

Please refer to the following sheet for more information.

SN Name Function

Display window

zHere is to display the searched picture or file. zSupport 1/4/6-window playback.

3 Calendar

Search type

Playback mode and channel selection pane.

File list switch button

Card number search

zYou can select to play from the read-write HDD, snapshot HDD or CD.

zThe blue highlighted date means there is picture or file. Otherwise, there is no

picture or file.

zIn any play mode, click the date you want to see, you can see the corresponding

record file trace in the time bar.

zPlayback mode：1/4-channel.  In 1-window playback mode: you can select 1-4 channels.  In 4-window playback mode: you can select 4 channels. zThe time bar will change once you modify the playback mode or the channel

option.

zDouble click it, you can view the picture/record file list of current day. zThe file list is to display the first channel of the record file. zThe system can display max 128 files in one time. Use the S/T or the mouse to

view the file. Select one item, and then double click the mouse or click the ENTER button to playback.

zYou can input the period in the following interface to begin accurate search. zFile type：R—regular record； A—external alarm record； M—Motion detect

record.

The card number search interface is shown as below. Here you can view card number/field setup bar. You cam implement advanced search.

Playback control pane.

Play/Pause There are three ways for you to begin playback.

►/

■ Stop

│W/ X│

►



Note: The actual play speed has relationship with the software version.

z The play button z Double click the valid period of the time bar. z Double click the item in the file list.

In slow play mode, click it to switch between play/pause.

Backward play In normal play mode, left click the button, the file begins backward play. Click it again to pause current play. In backward play mode, click ►/ to restore normal play. In playback mode, click it to play the next or the previous section. You can click continuously when you are watching the files from the same channel. In normal play mode, when you pause current play, you can click W│ and │X to begin frame by frame playback. In frame by frame playback mode, click ►/ to restore normal playback.

Slow play In playback mode, click it to realize various slow play modes such as slow play 1, slow play 2, and etc.

Fast forward In playback mode, click to realize various fast play modes such as fast play 1,fast play 2 and etc.

Smart search

The volume of the playback

Click the snapshot button in the full-screen mode, the system can snapshot 1 picture per second.

zIt is to display the record type and its period in current search criteria.

zIn 4-window playback mode, there are corresponding four time bars. In other

playback mode, there is only one time bar.

zUse the mouse to click one point of the color zone in the time bar, system begins

8 Time bar

10 Backup

11 Clip

Time bar unit

Record type

playback. zThe time bar is beginning with 0 o'clock when you are setting the configuration. The time bar zooms in the period of the current playback time when you are playing the file.

zThe green color stands for the regular record file. The red color stands for the

external alarm record file. The yellow stands for the motion detect record file.

●The option includes: 24H, 12H, 1H and 30M. The smaller the unit, the larger the zoom rate. You can accurately set the time in the time bar to playback the record.

zThe time bar is beginning with 0 o'clock when you are setting the configuration. The time bar zooms in the period of the current playback time when you are

playing the file. Select the file(s) you want to backup from the file list. System max supports files from four channels. Then click the backup button, now you can see the backup menu. Click the start button to begin the backup operation. Check the file again you can cancel current selection. System max supports to display 32 files from one channel. zIt is to edit the file.

●Please play the file you want to edit and then click this button when you want to edit. You can see the corresponding slide bar in the time bar of the corresponding channel. You can adjust the slide bar or input the accurate time to set the file end time. Click this button again and then save current contents in a new file. .

In any play mode, the time bar will change once you modify the search type.

Smart search

Click the PAL) and 330(22*15 NTSC) zones. See Figure 4-40.

button, system begins smart search. System supports 396(22*18

Figure 4-40

Click the smart search playback.

Please note:

z When system is playing, you can select a zone in the window to begin motion

, you can go to the smart search playback. Click it again, system stops

detect. Click the motion detect button to begin play.

z Once the motion detect play has begun, click button again will terminate

current motion detect file play.

z The system will take the whole play zone as the motion detect region by

default.

z If you select to play other file in the file list, system switches to motion detect

play pf other file.

z During the motion detect play process, you can not implement operations such

as change time bar, begin backward playback or frame by frame playback. .

Important System does not support motion detect zone setup during the full-screen mode.

Other Functions

Other channel

15 Digital zoom

Note:

All the operations here (such as playback speed, channel, time and progress) have

relationship with hardware version. Some series NVRs do not support some functions or

playback speeds.

synchronization switch to play when playback

When playing the file, click the number button, system can switch to the same period of the corresponding channel to play. When the system is in full-screen playback mode, left click the mouse in the screen. Drag your mouse in the screen to select a section and then left click mouse to realize digital zoom. You can right click mouse to exit.

4.2.3.1 CD Playback

This function is for you to verify the real-time burning data. You can check the real-time

burning data and backup data.

In Search interface (Figure 4-39), select Play from CD from the dropdown list and then click

file list switch button (Button 5 in Figure 4-39 ). You can see an interface shown as in Figure

4-41. Here you can view file list from the CD. Double click a file name, you can playback a

file.

Figure 4-41

Important

Real-time burning and CD playback can not be operated at the same time since these two

functions are both for CD-ROM.

4.2.4 Information

Here is for you to view system information. There are total six items: HDD (hard disk information),

BPS (data stream statistics), log, version, online user and remote device information. See Figure

4-42.

Figure 4-42

4.2.4.1 HDD Information

Here is to list hard disk type, total space, free space, video start time and status. See X391H391H391H See Figure 4-43.○ means current HDD is normal. X means there is error. -

means there is no HDD.

If disk is damaged, system shows as “?”. Please remove the broken hard disk before you add a

new one.

Once there is a hard disk confliction, please check hard disk time and system time is the same or

not. Please go to setting then general to modify system time. At last, reboot the system to solve

this problem.

After system booted up, if there is any confliction, system goes to HDD information interface

directly. Please note, system does not ask you to deal with it forcedly.

When HDD confliction occurs, you can check system time and HDD time are identical or not. If

they are not identical, please go to General (Chapter 4.2.5.1) to adjust system time or go to HDD

Management (Chapter 4.2.7.1) to format HDD and then reboot the NVR.

Figure 4-43

Tips:

Please click Fn button or left click mouse to view HDD record time and HDD type and time.

4.2.4.2 BPS

Here is for you to view current video data stream (KB/s) and occupied hard disk storage (MB/h).

See Figure 4-44.

Figure 4-44

4.2.4.3 Log

Here is for you to view system log file. System lists the following information. See Figure 4-45.

Log types include system operation, system configuration, data management, alarm event,

record operation, log clear, file operation and etc.

z Start time/end time: Pleased select start time and end time, then click search button. You

can view the log files in a list. System max displays 100 logs in one page. It can max save

1024 log files. Please use page up/down button on the interface or the front panel to view

more.

z Backup: Please select a folder you want to save; you can click the backup button to save the

log files. After the backup, you can see there is a folder named Log_time on the backup path.

Double click the folder, you can see the log file

z Details: Click the Details button or double click the log item, you can view the detailed

information. See Figure 4-46. Here you can use rolling bar to view information, or you can

use Page up/Page down to view other log information.

Figure 4-45

Figure 4-46

4.2.4.4 Version

Here is for you to view hardware features, software version, built date, release SN information

and etc. You can also update system here. See Figure 4-47.

z Start: Please insert the USB device that have the update file to the device and then click the

Start button to begin the update.

Important

Please make sure the upgrade file name shall be update.bin.

Figure 4-47

4.2.4.5 Online Users

Here is for you manage online users. See Figure 4-48.

You can disconnect one user or block one user if you have proper system right. Max

disconnection setup is 65535 seconds.

System refreshes current interface every five seconds to detect there is any newly added or

deleted user.

Figure 4-48

4.2.4.6 Network Device Info

In this interface, you can see channel status, connection log, and network test and network load

information.

4.2.4.6.1 Channel Status

Here you can view the IPC status of the corresponding channel such as motion detect, video loss,

camera masking, alarm and etc. See Figure 4-49.

Figure 4-49

4.2.4.6.2 Connection Log

In this interface, you can search the IPC log information of the corresponding channel. It includes

IPC online, offline and etc. See Figure 4-50.

Figure 4-50

4.2.4.6.3 Network Load

Network load is shown as in Figure 4-51. Here you can view the follow statistics of the device

network adapter.

Here you can view information of all connected network adapters. The connection status is

shown as offline if connection is disconnected. Click one network adapter, you can view the flow

statistics such as send rate and receive rate at the top panel

Figure 4-51

4.2.4.6.4 Network Test

Network test interface is shown as in Figure 4-52.

Destination IP: Please input valid IPV4 address and domain name.

Test: Click it to test the connection with the destination IP address. The test results can display

average delay and packet loss rate and you can also view the network status as OK, bad, no

connection and etc.

Network Sniffer backup: Please insert USB2.0 device and click the Refresh button, you can view

the device on the following column. You can use the dropdown list to select peripheral device.

Click Browse button to select the snap path. The steps here are same as preview backup

operation.

You can view all connected network adapter names (including Ethernet, PPPoE, WIFI, and 3G),

you can click the button

Please note system can not Sniffer several network adapters at the same time.

After Sniffer began, you can exit to implement corresponding network operation such as login

WEB, monitor. Please go back to Sniffer interface to click

packets to the specified path. The file is named after “Network adapter name+time”. You can use

software such as Wireshark to open the packets on the PC for the professional engineer to solve

complicated problems.

on the right panel to begin Sniffer. Click the grey stop button to stop.

stop Sniffer. System can save the

Figure 4-52

4.2.5 Setting

In main menu, highlight setting icon and double click mouse. System setting interface is shown

as below. See Figure 4-53.

Figure 4-53

4.2.5.1 General

General setting includes the following items. See X357H357H357HFigure 5-3X.

z System time: Here is for you to set system time

z Date format: There are three types: YYYYY-MM-DD: MM-DD-YYYYY or DD-MM-YYYY.

z Date separator: There are three denotations to separate date: dot, beeline and solidus.

z DST: Here you can set DST time and date. Please enable DST function and then click set

button. You can see an interface is shown as in Figure 4-55. Here you can set start time and

end time by setting corresponding week setup. In Figure 4-55, enable date button, you can

see an interface is shown as in Figure 5-5. Here you can set start time and end time by

setting corresponding date setup.

z Time format: There are two types: 24-hour mode or 12-hour mode.

z Language: System supports various languages: Chinese (simplified), Chinese (Traditional),

English, Italian, Japanese, French, Spanish (All languages listed here are optional. Slight

difference maybe found in various series.)

z HDD full: Here is for you to select working mode when hard disk is full. There are two options:

stop recording or rewrite. If current working HDD is overwritten or the current HDD is full

while the next HDD is no empty, then system stops recording, If the current HDD is full and

then next HDD is not empty, then system overwrites the previous files.

z Pack duration: Here is for you to specify record duration. The value ranges from 1 to 120

minutes. Default value is 60 minutes.

z Device No: When you are using one remote control (not included in the accessory bag) to

control several NVRs, you can give a name to each NVR for your management.

z Video standard: There are two formats: NTSC and PAL.

z Device ID: Please input a corresponding device name here.

z LCD off: System auto turns off screen if it is idle for the specified time. The value ranges

from 0 to 120 minutes. The default setup is 10 minutes. Click the to turn on the screen.

z Auto logout: Here is for you to set auto logout interval once login user remains inactive for a

specified time. Value ranges from 0 to 60 minutes. The default setup is 10 minutes.

z Startup wizard: Once you check the box here, system will go to the startup wizard directly

when the system restarts the next time. Otherwise, it will go to the login interface.

z Device ID: Please input a corresponding device name here.

z LCD shutdown: Here you can set the LCD auto shutdown time after system is invalid for the

specified time.

z Navigation bar: Check the box here, system displays the navigation bar on the interface.

z IPC Time Sync: You can input an interval here to synchronize the NVR time and IPC time.

Note:

Since system time is very important, do not modify time casually unless there is a must!

Before your time modification, please stop record operation first!

After completing all the setups please click save button, system goes back to the previous menu.

button at the front panel

Figure 4-54

Figure 4-55

Figure 4-56

4.2.5.2 Encode

Encode setting includes the following items. See Figure 4-57.

Please note some series do not support extra stream.

z Channel: Select the channel you want.

z Type: Please select from the dropdown list. There are three options: regular/motion

detect/alarm. You can set the various encode parameters for different record types.

z Compression: System supports H.264.

z Resolution: System supports various resolutions, you can select from the dropdown list. The

main stream max supports 1080P and the extra stream max supports D1.

z Frame rate: It ranges from 1f/s to 25f/s in NTSC mode and 1f/s to 30f/s in PAL mode.

z Bit rate type: System supports two types: CBR and VBR. In VBR mode, you can set video

quality.

z Quality: There are six levels ranging from 1 to 6. The sixth level has the highest image

quality.

z Video/audio: You can enable or disable the video/audio.

z Overlay: Click overlay button, you can see an interface is shown in Figure 4-58.

 Cover area (Privacy mask): Here is for you to set privacy mask section. You can drag you

mouse to set proper section size. In one channel video, system max supports 4 zones in one

channel.

 Preview/monitor: privacy mask has two types. Preview and Monitor. Preview means the

privacy mask zone can not be viewed by user when system is in preview status. Monitor

means the privacy mask zone can not be view by the user when system is in monitor status.

 Time display: You can select system displays time or not when you playback. Please click

set button and then drag the title to the corresponding position in the screen.

 Channel display: You can select system displays channel number or not when you playback.

Please click set button and then drag the title to the corresponding position in the screen.

z Copy：After you complete the setup, you can click Copy button to copy current setup to

other channel(s). You can see an interface is shown as in Figure 4-59. You can see current

channel number is grey. Please check the number to select the channel or you can check

the box ALL. Please click the OK button in Figure 4-59 and Figure 4-57 respectively to

complete the setup.

Please highlight icon

to select the corresponding function.

Figure 4-57

Figure 4-58

Figure 4-59

4.2.5.3 Schedule

In the main menu, from setting to schedule, you can go to schedule menu. See Figure 4-60. z Channel: Please select the channel number first. You can select “all” if you want to set for

the whole channels.

z Week day: There are eight options: ranges from Saturday to Sunday and all.

z Pre-record: System can pre-record the video before the event occurs into the file. The value

ranges from 1 to 30 seconds depending on the bit stream.

z Redundancy: System supports redundancy backup function. It allows you backup recorded

file in two disks. You can highlight Redundancy button to activate this function. Please note,

before enable this function, please set at least one HDD as redundant. (Main menu-

>Advanced->HDD Management) Please refer to chapter4.2.5.3.2 for detailed information.

z Record types: There are four types: regular, motion detection (MD), Alarm, MD & alarm.

Please highlight icon to select the corresponding function. After completing all the setups

please click save button, system goes back to the previous menu.

At the bottom of the menu, there are color bars for your reference. Green color stands for

regular recording, yellow color stands for motion detection and red color stands for alarm

recording. The white means the MD and alarm record is valid. Once you have set to record

when the MD and alarm occurs, system will not record neither motion detect occurs nor the

alarm occurs.

Figure 4-60

4.2.5.3.1 Quick Setup

This function allows you to copy one channel setup to another. After setting in channel 1, you can

click paste button and turn to channel 2 and then click copy button. You can finish setting for one

channel and then click save button or you can finish all setup and then click save button to

memorize all the settings.

4.2.5.3.2 Redundancy

Redundancy function allows you to memorize record file in several disks. When there is file

damage occurred in one disk, there is a spare one in the other disk. You can use this

function to maintain data reliability and safety.

In the main menu, from Setting to Schedule, you can highlight redundancy button to enable

this function. See Figure 4-60.

In the main menu, from Advanced to HDD management, you can set one or more disk(s) as

redundant. You can select from the dropdown list. See Figure 4-61. System auto overwrites

old files once hard disk is full.

Please note only read/write disk or read-only disk can backup file and support file search

function, so you need to set at least one read-write disk otherwise you can not record video.

Note

About redundancy setup:

z If current channel is not recording, current setup gets activated when the channel begin

recording the next time.

z If current channel is recording now, current setup will get activated right away, the current file

will be packet and form a file, then system begins recording as you have just set.

After all the setups please click save button, system goes back to the previous menu.

Figure 4-61

Playback or search in the redundant disk.

There are two ways for you to playback or search in the redundant disk.

z Set redundant disk(s) as read-only disk or read-write disk (Main menu->Advanced->HDD

management). See Figure 4-61. System needs to reboot to get setup activated. Now you

can search or playback file in redundant disk.

z Dismantle the disk and play it in another PC.

4.2.5.4 RS232

RS232 interface is shown as below. There are five items. See Figure 4-62.

z Function: There are various devices for you to select. Console is for you to use the COM or

mini-end software to upgrade or debug the program. The control keyboard is for you to

control the device via the special keyboard. Transparent COM (adapter) is to connect to the

PC to transfer data directly. Protocol COM is for card overlay function. Network keyboard is

for you to use the special keyboard to control the device. PTZ matrix is to connect to the

peripheral matrix control.

z Baud rate: You can select proper baud rate.

z Data bit: You can select proper data bit. The value ranges from 5 to 8.

z Stop bit: There are three values: 1/1.5/2.

z Parity: there are five choices: none/odd/even/space/mark.

System default setup is:

z Function: Console

z Baud rate:115200

z Data bit:8

z Stop bit:1

z Parity: None

After completing all the setups please click save button, system goes back to the previous menu.

Figure 4-62

4.2.5.5 Network

Here is for you to input network information.

The dual network adapters’ interface is shown as in Figure 4-63.

z IP address: Here you can input IP address.

z Network Mode: It includes multiple access, fault tolerance, and load balancing.

 Multiple-address mode: eth0 and eth1 operate separately. You can use the services

such as HTTP, RTP service via etho0 or the eth1 usually you need to set one default

card(default setup is etho) to request the auto network service form the device-end such

as DHCP, email ,FTP and etc. In multiple-address mode, system network status is

shown as offline once one card is offline.

 Network fault-tolerance: In this mode, device uses bond0 to communicate with the

external devices. You can focus on one host IP address. At the same time, you need to

set one master card. Usually there is only one running card (master card).System can

enable alternate card when the master card is malfunction. The system is shown as

offline once these two cards are both offline. Please note these two cards shall be in the

same LAN.

 Load balance: In this mode, device uses bond0 to communicate with the external device.

The eth0 and eth1 are both working now and bearing the network load. Their network

load are general the same. The system is shown as offline once these two cards are

both offline. Please note these two cards shall be in the same LAN.

z Default NIC: Please select eth0/eth1/bond0(optional) after enable multiple access

function

z Main Network Card: Please select eth0/eth1 (optional).after enable multiple access

function.

z DHCP: It is to auto search IP. When enable DHCP function, you can not modify IP/Subnet

mask /Gateway. These values are from DHCP function. If you have not enabled DHCP

function, IP/Subnet mask/Gateway display as zero. You need to disable DHCP function to

view current IP information. Besides, when PPPoE is operating, you can not modify

IP/Subnet mask /Gateway.

z TCP port: Default value is 37777. You can change if necessary.

z UDP port: Default value is 37778. You can change if necessary.

z HTTP port: Default value is 80.

z RTSP port: Default value is 554. For the main stream, the RTSP query format is

rtsp://username:password@ip:port/cam/realmonitor?channel=1&subtype=0. For the extra

stream, the RTSP query format is

rtsp://username:password@ip:port/cam/realmonitor?channel=1&subtype=1. Here you need

to input user name, password, device IP and port (default setup is 554. you do not need to

input here if it is the default value.). For standard RTSP protocol, when the encode mode is

MJPEG, the max resolution is 2040*2040.

z Max connection: system support maximal 20 users. 0 means there is no connection limit.

z Preferred DNS server: DNS server IP address.

z Alternate DNS server: DNS server alternate address.

z Transfer mode: Here you can select the priority between fluency/video qualities.

z LAN download: System can process the downloaded data first if you enable this function.

The download speed is 1.5X or 2.0X of the normal speed.

After completing all the setups please click save button, system goes back to the previous menu.

Figure 4-63

4.2.5.5.1 Network Setting

Network setting interface is shown as in Figure 4-64. Please check the box to enable

corresponding function and then double click current item to go to setup interface.

Figure 4-64

4.2.5.5.2 IP Filter

IP filter interface is shown as in Figure 4-65. You can add IP in the following list. The list

supports max 64 IP addresses.

Please note after you enabled this function, only the IP listed below can access current NVR.

If you disable this function, all IP addresses can access current NVR.

Figure 4-65

4.2.5.5.3 NTP Setup

You need to install SNTP server (Such as Absolute Time Server) in your PC first. In Windows XP

OS, you can use command “net start w32time” to boot up NTP service.

NTP setup interface is shown as in Figure 4-66.

z Host IP: Input your PC address.

z Port: This series NVR supports TCP transmission only. Port default value is 123.

z Update interval: minimum value is 1. Max value is 65535. (Unit: minute)

z Time zone: select your corresponding time zone here.

z Manual update: It allows you to synchronize the time with the server manually.

Here is a sheet for your time zone setup.

City /Region Name Time Zone

London GMT+0 Berlin GMT+1 Cairo GMT+2 Moscow GMT+3 New Deli GMT+5 Bangkok GMT+7 Beijing (Hong Kong) GMT+8 Tokyo GMT+9 Sydney GMT+10 Hawaii GMT-10 Alaska GMT-9

Pacific Time(P.T) GMT-8 American Mountain Time(M.T) GMT-7 American Central Time(C.T) GMT-6 American Eastern Time(E.T) GMT-5 Atlantic Time GMT-4 Brazil GMT-3 Middle Atlantic Time GMT-2

Figure 4-66

4.2.5.5.4 Multicast Setup

Multicast setup interface is shown as in Figure 4-67.

Figure 4-67

Here you can set a multiple cast group. Please refer to the following sheet for detailed

information.

z IP multiple cast group address

-224.0.0.0-239.255.255.255

-“D” address space

z The higher four-bit of the first byte=”1110”

z Reserved local multiple cast group address

-224.0.0.0-224.0.0.255

-TTL=1 When sending out telegraph

-For example

224.0.0.1 All systems in the sub-net

224.0.0.2 All routers in the sub-net

224.0.0.4 DVMRP router

224.0.0.5 OSPF router

224.0.0.13 PIMv2 router

z Administrative scoped addressees

-239.0.0.0-239.255.255.255

-Private address space

z Like the single broadcast address of RFC1918

z Can not be used in Internet transmission

z Used for multiple cast broadcast in limited space.

Except the above mentioned addresses of special meaning, you can use other addresses. For

example:

Multiple cast IP: 235.8.8.36

Multiple cast PORT: 3666.

After you logged in the Web, the Web can automatically get multiple cast address and add it to

the multiple cast groups. You can enable real-time monitor function to view the view.

Please note multiple cast function applies to special series only.

4.2.5.5.5 Email

The email interface is shown as below. See Figure 4-68.

z SMTP server: Please input your email SMTP server IP here.

z Port: Please input corresponding SMTP port value here.

z Anonymous: Check the box here to enable anonymous function. In this mode, you do not

need to input user name and password to login the SMTP server.

z User name: Please input the user name to login the sender email box. You do not need to

set user name if you have enabled anonymous function.

z Password: Please input the corresponding password here. You do not need to set password

if you have enabled anonymous function.

z Sender: Please input sender email box here.

z Title: Please input email subject here. System support English character and Arabic number.

Max 32-digit.

z Attachment: Check the box here to enable attachment function.

z Receiver: Please input receiver email address here. System max supports 3 email boxes.

z Encrypt type: The option includes: NONE, SSL, TLS.

z Interval: The send interval ranges from 0 to 3600 seconds. 0 means there is no interval.

z Health email enable: Please check the box here to enable this function. This function allows

the system to send out the test email to check the connection is OK or not.

z Interval: Please check the above box to enable this function and then set the corresponding

interval. System can send out the email regularly as you set here. Click the Test button, you

can see the corresponding dialogue box to see the email connection is OK or not. See

Figure 4-69.

Please note system will not send out the email immediately when the alarm occurs. When the

alarm, motion detection or the abnormity event activates the email, system sends out the email

according to the interval you specified here. This function is very useful when there are too many

emails activated by the abnormity events, which may result in heavy load for the email server.

Figure 4-68

Figure 4-69

4.2.5.5.6 Alarm Centre

It is to set alarm protocol, interval and etc. See Figure 4-70.

Figure 4-70

4.2.5.5.7 Auto Register

The auto register function allows you to access a device in the LAN. You need to input server

IP, port so that the device can register to the server. See Figure 4-71.

Figure 4-71

4.2.5.6 Alarm

Before operation, please make sure you have properly connected alarm devices such as

buzzer.

In the main menu, from Setting to Alarm, you can see alarm setup interface. See Figure 4-72.

z Alarm in: Here is for you to select alarm channel number.

z Event type: There are two types. One is local input and the other is network input.

z Type: normal open or normal close.

z Period: Click set button, you can see an interface is shown as in Figure 4-74. Here you can

set for business day and non-business day. In Figure 4-74, click set button, you can see an

interface is shown as in Figure 4-75. Here you can set your own setup for business day and

non-business day.

z Alarm output: Here you can set alarm output port (Multiple choices). System can activate

corresponding alarm output device(s) when an alarm occurs.

z Latch: When the anti-dither time ended, the channel alarm you select in the alarm output

may last the specified period. The value ranges from 1 to 300 seconds. This function is not

for other alarm activation operations. The latch is still valid even you disable the alarm event

function directly. .

z Show message: System can pop up a message to alarm you in the local host screen if you

enabled this function.

z Alarm upload: System can upload the alarm signal to the network (including alarm centre)

if you enabled current function.

z Send email: System can send out email to alert you when alarm occurs.

z Record channel: you can select proper channel to record alarm video (Multiple choices).

 You need to set alarm record mode as Schedule in Record interface (Main Menu-

>Advanced->Record). Please note the manual record has the highest priority. System

record all the time no matter there is an alarm or not if you select Manual mode.

 Now you can go to the Schedule interface (Main Menu->Setting->Schedule) to set the

record type, corresponding channel number, week and date. You can select the record

type:Regular/MD/Alarm/MD&Alarm. Please note, you can not select the MD&Alarm and

MD(or Alarm) at the same time.

 Now you can go to the Encode interface to select the alarm record and set the encode

parameter (Main Menu->Setting->Encode).

 Finally, you can set the alarm input as the local alarm and then select the record

channel. The select channel begins alarm record when an alarm occurred. Please note

system begins the alarm record instead of the MD record if the local alarm and MD

event occurred at the same time.

z PTZ activation: When an alarm occurred, system can activate the PTZ operation. The PTZ

activation lasts an anti-dither period.

 In the Pan/Tilt/Zoom interface (Main menu->Setting-> Pan/Tilt/Zoom), please set video

channel, speed dome protocol and etc.

 Select the channel of current speed dome as current monitor video and the right click

mouse to select Pan/Tilt/Zoom item. Now you can set preset, tour pattern.

 In Figure 4-72, click “select” button, you can see an interface is shown as in Figure 4-73.

Here you can set the activation operation such as preset tour, pattern and enable.

z Anti-dither: Here you can set anti-dither time. The value ranges from 5 to 600s. The anti-

dither time refers to the alarm signal lasts time. It can be seem as the alarm signal activation

stays such as the buzzer, tour, PTZ activation, snapshot, channel record. The stay time

here does not include the latch time. During the alarm process, the alarm signal can begin

an anti-dither time if system detects the local alarm again. The screen prompt, alarm upload,

email and etc will not be activated. For example, if you set the anti-dither time as 10 second,

you can see the each activation may last 10s if the local alarm is activated. During the

process, if system detects another local alarm signal at the fifth second, the buzzer, tour, PTZ activation, snapshot, record channel will begin another 10s while the screen prompt,

alarm upload, email will not be activated again. After 10s, if system detects another alarm

signal, it can generate an alarm since the anti-dither time is out.

z Record Delay: System can delay the record for specified time after alarm ended. The value

ranges from 10s to 300s.

z Tour: Here you can enable tour function when alarm occurs. System supports one-window

tour. Please go to chapter 5.3.9 Display for tour interval setup.

z Buzzer: Highlight the icon to enable this function. The buzzer beeps when alarm occurs.

Note: The network alarm means the alarm signal from the TCP/IP. You can enable the network

alarm function via the net SDK. The network alarm does not have the device type; anti-dither and

alarm upload function. The rest items are the same.

Please highlight icon

please click save button, system goes back to the previous menu.

to select the corresponding function. After setting all the setups

Figure 4-72

Figure 4-73

Figure 4-74

Figure 4-75

4.2.5.7 Detect

In the main menu, from Setting to Detect, you can see motion detect interface. See Figure

4-76.There is three detection types: motion detection, video loss, camera masking.

z The video loss has no detection region and sensitivity setup and camera masking has no

detection region setup.

z You can see motion detect icon if current channel has enabled motion detect alarm.

z You can drag you mouse to set motion detect region without Fn button. Please click OK

button to save current region setup. Right click mouse to exit current interface.

4.2.5.7.1 Motion Detect

z Event type: From the dropdown list you can select motion detection type.

z Channel: Select a channel from the dropdown list to set motion detect function.

z Enable: Check the box here to enable motion detect function.

z Region: Click select button, the interface is shown as in Figure 4-77. Here you can set

motion detection zone. There are 396(PAL)/330(NTSC) small zones. The green zone is

current cursor position. Grey zone is the motion detection zone. Black zone is the disarmed

zone. You can click Fn button to switch between the arm mode and disarm mode. In arm

mode, you can click the direction buttons to move the green rectangle to set the motion

detection zone. After you completed the setup, please click ENTER button to exit current

setup. Do remember click save button to save current setup. If you click ESC button to exit

the region setup interface system will not save your zone setup.

z Sensitivity: System supports 6 levels. The sixth level has the highest sensitivity.

z Period: Click set button, you can see an interface is shown as in Figure 4-79. Here you can

set for business day and non-business day. In Figure 4-79 click set button, you can see an

interface is shown as in Figure 4-80. Here you can set your own setup for business day and

non-business day.

z Anti-dither: System only memorizes one event during the anti-dither period. The value

ranges from 5s to 600s.

z Alarm output: when a motion detect alarm occurs, system enables peripheral alarm devices.

z Latch: when motion detection complete, system auto delays detecting for a specified time.

The value ranges from 1-300(Unit: second)

z Show message: System can pop up a message to alarm you in the local host screen if you

enabled this function.

z Alarm upload: System can upload the alarm signal to the network (including alarm centre)

if you enabled current function.

z Send email: System can send out email to alert you when alarm occurs.

z Record channel: System auto activates motion detection channel(s) to record once an alarm

occurs. Please make sure you have set MD record in Schedule interface(Main Menu-

>Setting->Schedule) and schedule record in manual record interface(Main Menu-

>Advanced->Manual Record)

z PTZ activation: Here you can set PTZ movement when alarm occurs. You can only go to a

preset when there is a motion detect alarm. Click “select” button, you can see an interface is

shown as in

z Record Delay: System can delay the record for specified time after alarm ended. The value

ranges from 10s to 300s.

z Tour: Here you can enable tour function when alarm occurs. System one-window tour.

Please go to chapter 4.2.5.9 Display for tour interval setup.

z Buzzer: Highlight the icon to enable this function. The buzzer beeps when alarm occurs.

X305H305H305HFigure 4-78X.

Please highlight icon

to select the corresponding function. After all the setups please click

save button, system goes back to the previous menu.

Note:

In motion detection mode, you can not use copy/paste to set channel setup since the video in

each channel may not be the same.

In Figure 4-77, you can left click mouse and then drag it to set a region for motion detection.

Click Fn to switch between arm/withdraw motion detection. After setting, click enter button to exit.

Figure 4-76

Figure 4-77

Figure 4-78

Figure 4-79

Figure 4-80

4.2.5.7.2 Video Loss

In Figure 4-76, select video loss from the type list. You can see the interface is shown as in

Figure 4-81.This function allows you to be informed when video loss phenomenon occurred.

You can enable alarm output channel and then enable show message function.

Tips:

You can enable preset/tour/pattern activation operation when video loss occurs.

Please refer to chapter 4.2.5.7.1 Motion detect for detailed information.

Figure 4-81

4.2.5.7.3 Camera Masking

When someone viciously masks the lens, or the output video is in one-color due to the

environments light change, the system can alert you to guarantee video continuity. Camera

masking interface is shown as in Figure 4-82. You can enable alarm output channel and then

enable show message function.

Tips:

You can enable preset/tour/pattern activation operation when video loss occurs.

Please refer to chapter 4.2.5.7.1 Motion detect for detailed information.

Note:

z In Detect interface, copy/paste function is only valid for the same type, which means you

can not copy a channel setup in video loss mode to camera masking mode.

z About Default function. Since detection channel and detection type may not be the same,

system can only restore default setup of current detect type. For example, if you click

Default button at the camera masking interface, you can only restore default camera

masking setup. It is null for other detect types.

z System only enables camera masking function during the period you set here. It is null

for motion detect or video loss type.

Figure 4-82

4.2.5.7.4 Audio Detect

In this interface, you can set min and max volume. System can generate an alarm when

current setup exceeds the threshold you set here. You can enable alarm output channel and

then enable show message function. Please refer to chapter 4.2.5.7.1 Motion detection for

detailed information.

Figure 4-83

You can view volume bar at the right bottom of each channel. The volume bar is shown as red

when it reaches the highest value.

4.2.5.8 Pan/Tilt/Zoom

The pan/tilt/zoom setup includes the following items. Please select channel first. See Figure 4-84.

z Channel: Select network camera connected channel.

z PTZ type: There are two options: local/remote.

z Protocol: Select corresponding PTZ protocol such as PELCOD.

z Address: input corresponding PTZ address.

z Baud rate: Select baud rate.

z Data bit: Select data bit. Default setup is 8.

z Stop bit: Select stop bit. Default setup is 1.

z Parity: There are three choices: none/odd/even. Default setup is none.

After completed all the setups please click save button, system goes back to the previous menu.

Figure 4-84

If you are connecting to network PTZ, the PTZ type shall be remote. See Figure 4-85.

Figure 4-85

In the one-window surveillance mode, right click mouse (click “fn” Button in the front panel). The

interface is shown as below: See Figure 4-86.

Figure 4-86

Click Pan/Tilt/Zoom, the interface is shown as in Figure 4-87.

Please click icon

and to adjust zoom, focus and Iris.

Figure 4-87

Please refer to chapter 4.1.7 for detailed information.

4.2.5.9 Display

Display setup interface is shown as below. See Figure 4-88.

z Transparency: Here is for you to adjust transparency. The value ranges from 128 to 255.

z Channel name: Click the Modify button here to change channel name. See Figure 4-89. You

can also set PIP channel name. Select remote front the dropdown list you can change

channel remote name. See Figure 4-90.

z Time display: You can select to display time or not when system is playback.

z Channel display: You can select to channel name or not when system is playback.

z Screen calibration: Click it to calibrate screen. z Resolution: There are four options: 1920×1080, 1280×1024(default),1280×720,1024×768.

Please note the system needs to reboot to activate current setup.

z Image enhance: Check the box; you can optimize the margin of the preview video.

z Enable tour: Check the box here to enable tour function.

z Interval: Set tour interval here.

z Tour setup: Here you can activate tour function. System supports 1/4-window.

z Motion tour type/alarm tour type: You can select motion tour type/alarm tout type from the

dropdown list.

z PIP position: You can set the small window position on the screen. The options include: top

left, top right, bottom left, bottom right.

Please highlight icon

After completing all the setups please click save button, system goes back to the previous menu.

to select the corresponding function.

Figure 4-88

4.2.5.10 Default

Figure 4-89

Figure 4-90

Click default icon, system pops up a dialogue box. You can highlight to restore default factory

setup. See X381H381H381HFigure 5-26.

z Select all

z General

z Encode

z Schedule

z RS232

z Network

z Alarm

z Detect

z Pan/tilt/zoom

z Display

z Channel name

z Remote Device

Please highlight icon

After all the setups please click save button, system goes back to the previous menu.

Warning!

System menu color, language, time display mode, video format, IP address, user account will not

maintain previous setup after default operation!

to select the corresponding function.

Figure 4-91

4.2.6 Remote Device

In the main menu, click the Remote Device icon to go to the corresponding interface.

The remote device interface is shown as in Figure 4-92.

z IP search: Click it to search IP address.

z Add: Click it to connect to the selected device and add it to the Added device list. Support

Batch add.

z Show filter: You can use it to display the specified devices from the added device.

z Delete: Please select one device in the Added device list and then click it to remove.

z Manual add: Click it to add the IPC manually. The default port number is 37777 if the

manufacture is Private. The default user name is admin and password is admin.

Figure 4-92

Click the Manual Add button; you can go to the following interface. See Figure 4-93.

This series product supports the IPC from many popular manufactures such as Sony, Hitachi,

Axis, Samsung, and Dahua.

Figure 4-93

4.2.7 Advanced

Double click advanced icon in the main window, the interface is shown as below. See Figure

4-94.There are total eight function keys: HDD management, alarm output, abnormality, manual

record, account, auto maintenance, config backup, and card overlay.

Figure 4-94

4.2.7.1 HDD Management

Here is for you to view and implement hard disk management. See Figure 4-95.

You can see current HDD type, status, capacity and record time. When HDD is working properly,

system is shown as O. When HDD error occurred, system is shown as X.

z Alarm set: Click alarm set button, the interface is shown as below. See Figure 4-96. (This

interface is just like the abnormity setup). Please refer to chapter 5.5.2 for detailed

information.

z HDD operation: You can select HDD mode from the dropdown list such as read-only or you

can erase all data in the HDD. Please note system needs to reboot to get all the modification

activated.

Figure 4-95

Please highlight icon to select the corresponding function.

Figure 4-96

4.2.7.2 Abnormality

Abnormality interface is shown as in Figure 4-97.

z Event type: There are several options for you such as disk error, no disk, disk no space,

net disconnection,, IP conflict, MAC conflict, burning error and etc. (multiple choices)

z Alarm output: Please select alarm activation output port (multiple choices).

z Latch: Here you can set corresponding delaying time. The value ranges from 1s-300s.

System automatically delays specified seconds in turning off alarm and activated output after

external alarm cancelled.

z Show message: system can pop up the message in the local screen to alert you when

alarm occurs.

z Alarm upload: System can upload the alarm signal to the network (including alarm centre)

if you enabled current function.

z Send email: System can send out email to alert you when alarm occurs.

z Buzzer: Highlight the icon to enable this function. The buzzer beeps when alarm occurs.

Figure 4-97

4.2.7.3 Alarm Output

Here is for you to set proper alarm output.

Please highlight icon

If there is any alarm, you can view at the status item.

After all the setups please click OK button, system goes back to the previous menu. See Figure

4-98.

to select the corresponding alarm output.

Figure 4-98

4.2.7.4 Manual Record

Note:

You need to have proper rights to implement the following operations. Please make sure the

HDD has been properly installed.

4.2.7.4.1 Manual record menu

There are two ways for you to go to manual record menu.

z Right click mouse or in the main menu, Advanced->Manual Record.

z In live viewing mode, click record button in the front panel or record button in the remote

control.

Manual record menu is shown as in Figure 4-99.

4.2.7.4.2 Basic operation

There are three statuses: schedule/manual/stop. Please highlight icon“○” to select

corresponding channel.

z Manual: The highest priority. After manual setup, all selected channels will begin ordinary

recording.

z Schedule: Channel records as you have set in recording setup (Main Menu->Setting-

>Schedule)

z Stop: All channels stop recording.

Figure 4-99

4.2.7.4.3 Enable/disable record

Please check current channel status: “○” means it is not in recording status, “●” means it is in

recording status.

You can use mouse or direction key to highlight channel number. See Figure 4-100.

Figure 4-100

4.2.7.4.4 Enable all channel recording

Highlight ○ below All, you can enable all channel recording.

z All channel schedule record

Please highlight “ALL” after “Schedule”. See Figure 4-101.

When system is in schedule recording, all channels will record as you have previously set

(Main menu->Setting->Schedule).

The corresponding indication light in front panel will turn on.

Figure 4-101

z All channel manual record Please highlight “ALL” after “Manual.” See Figure 4-102.

When system is in manual recording, all scheduled set up you have set in will be null ((Main

menu->Setting->Schedule)).

You can see indication light in front panel turns on, system begins manual record now.

Figure 4-102

4.2.7.4.5 Stop all channel recording

Please highlight “ALL” after “Stop”. See Figure 4-103.

System stops all channel recording no matter what mode you have set in the menu (Main

menu->Setting->Schedule)

Figure 4-103

4.2.7.5 Account

Here is for you to implement account management. See Figure 4-104. Here you can:

z Add new user

z Modify user

z Add group

z Modify group

z Modify password.

For account management please note:

z For the user account name and the user group, the string max length is 6-byte. The

backspace in front of or at the back of the string is invalid. There can be backspace in the

middle. The string includes the valid character, letter, number, underline, subtraction sign,

and dot.

z System account adopts two-level management: group and user. No limit to group or user

amount.

z For group or user management, there are two levels: admin and user.

z One user should belong to one group. User right can not exceed group right.

z About reusable function: this function allows multiple users use the same account to login.

After all the setups please click save button, system goes back to the previous menu.

Figure 4-104

4.2.7.5.1 Modify Password

Click password button, the interface is shown as in Figure 4-105.

Here you can modify account password.

Please select the account from the dropdown list, input the old password and then input the new

password twice. Click the Save button to confirm current modification.

For the users of user account right, it can modify password of other users.

Figure 4-105

4.2.7.5.2 Add/Modify Group

Click add group button, the interface is shown as below. See Figure 4-106.

Here you can input group name and then input some memo information if necessary.

There are total 60 rights such as control panel, shut down, real-time monitor, playback, record,

record file backup, PTZ, user account, system information view, alarm input/output setup, system

setup, log view, clear log, upgrade system, control device and etc.

The modify group interface is similar to the Figure 4-106.

Figure 4-106

4.2.7.5.3 Add/Modify User

Click add user button, the interface is shown as in Figure 4-107.

Please input the user name, password and select the group it belongs to from the dropdown list.

Then you can check the corresponding rights for current user.

For convenient user management, usually we recommend the general user right is lower than

the admin account.

The modify user interface is similar to Figure 4-107.

Figure 4-107

When you create a new user, you can input the corresponding MAC address of current user. If

you leave this item in blank, any MAC address user can share this user account to login. Only

the 12-digit 0-f format address can pass the validity verification. System only saves small

character even you input capitalized one. You can see the corresponding prompt if there is any

illegal input.

4.2.7.6 Auto Maintenance

Here you can set auto-reboot time and auto-delete old files setup. You can set to delete the files

for the specified days. See Figure 4-108.

You can select proper setup from dropdown list.

After all the setups please click save button, system goes back to the previous menu.

Figure 4-108

4.2.7.7 Card Overlay

The card overlay function is for financial areas. It includes Sniffer, information analysis and title

overlay function. The Sniffer mode includes COM and network.

4.2.7.7.1 COM Type

The COM interface is shown as below. See Figure 4-109.

z Protocol: Please select from the dropdown list.

z COM Setting: Click COM setting button, the interface is shown as in RS232 interface.

Please refer to Chapter 5.3.4 RS232.

z Overlay setup: Click set button, the interface is shown as in Figure 4-110 if you select PIP

channel. The interface is shown as in Figure 4-111 if you select channel 1/2/3/4.

z Overlay color: You can select overlay color from the dropdown list.

Figure 4-109

Figure 4-110

Figure 4-111

4.2.7.7.2 Network Type

The network type interface is shown as below. See Figure 4-112.

Here we take the ATM/POS protocol to continue.

There are two types: with or without the protocol according to client’s requirements.

With the protocol

For ATM/POS with the protocol, you just need to set the source IP, destination IP (sometimes

you need to input corresponding port number).

Figure 4-112

Without the protocol

For the ATM/POS without the protocol, the interface is shown as in Figure 4-113.

Source IP refers to host IP address that sends out information (usually it is the device host.)

Destination IP refers to other systems that receive information.

Usually you do not need to set source port and target port.

There are total four groups IP. The record channel applies to one group (optional) only.

Six frame ID groups verification can guarantee information validity and legal.

Figure 4-113

Click Data button you can see an interface is shown as in Figure 4-114.

Here you can set offset value, length, title according to your communication protocol and data

package. .

Figure 4-114

4.2.7.8 Config Backup

The configuration file backup interface is shown as below. See Figure 4-115.

This function allows you to import/export system configuration. You can use this function when

there are several devices need the same setup.

z Export: Please connect the peripheral device first and then go to the following interface.

Click Export button, you can see there is a corresponding “Config_Time” folder. Double click

the folder, you can view some backup files.

z Import: Here you can import the configuration files from the peripheral device to current

device. You need to select a folder first. You can see a dialogue box asking you to select a

folder if you are selecting a file. System pops up a dialogue box if there is no configuration

file under current folder. After successfully import, system needs to reboot to activate new

setup.

z Format: Click Format button, system pops up a dialogue box for you to confirm current

operation. System begins format process after you click the OK button.

Note:

z System can not open config backup interface again if there is backup operation in the

process.

z System refreshes device when you go to the config backup every time and set current

directory as the root directory of the peripheral device.

z If you go to the configuration backup interface first and then insert the peripheral device,

please click Refresh button to see the newly added device.

Figure 4-115

4.2.8 Backup

NVR support USB device backup and network download. Here we introduce USB backup.

You can refer to Chapter 5 Web Operation for network download backup operation.

4.2.8.1 Detect Device

Click backup button, you can see an interface is shown as in Figure 4-116. Here is for you to

view devices information.

You can view backup device name and its total space and free space. The device includes

USB burner, flash disk, SD card, and portable HDD.

You can check the box here to select a backup device. Select a device and then click Erase

button you can delete files.

Figure 4-116

4.2.8.2 Backup

Select backup device and then set channel, file start time and end time.

Click add button, system begins search. All matched files are listed below. System

automatically calculates the capacity needed and remained. See Figure 4-117. system only backup files with a √ before channel name. You can use Fn or cancel button to delete √ after file serial number.

Click backup button, you can backup selected files. There is a process bar for you reference.

When the system completes backup, you can see a dialogue box prompting successful

backup.

Figure 4-117

Click backup button, system begins burning. At the same time, the backup button becomes

stop button. You can view the remaining time and process bar at the left bottom. See Figure

4-118.

Figure 4-118

z File format: Click the file format; you can see there are two options: DAV/ASF.

z Picture backup: Please set the corresponding time, channel and then select the type as

PIC from the dropdown list. Please click the Add button and then select the pictures.

Click the Start button; you can copy the specified pictures to the selected portable

devices.

z One key backup: It includes three steps: the search, select all, start the backup. You can

skip the above three steps and then copy all the searched files directly.

z Cancel backup: When you click stop button during the burning process, the stop function

becomes activated immediately. For example, if there are ten files, when you click stop

system just backup five files, system only save the previous 5 files in the device (But you

can view ten file names). During backup process, you can click ESC to exit current

interface for other operation. The system will not terminate backup process.

z PgUp/PgDw: Click it to view more pages.

z Fn: After you search files, all the files in the list are selected to backup. You can use Fn

button to select or cancel.

The file name format usually is: SN_CH+channel number+time Y+M+D+H+M+S. In the file

name, the YDM format is the same as you set in general interface. (Main Menu ->Setting -

>General).File extension name is .dav.

4.2.8.3 Burning

The interface is shown as in Figure 4-119.

z Selected device: Select current burning driver.

z Volume rename: Here you can change CD name (The CD name displays on the PC.).

Please input a new name and then click volume rename button.

z Record channel: Select the data from the corresponding channel. Right now system

supports 2-channel real-time burning (PIP burning).

z Current free space: Here you can set a threshold here. System can generate an alarm to

alert you once the CD free space is below you value you set here. There are four alarm

methods: buzzer/stop burning/alarm output/show message.

z Start sync burning: You can select one or more CD to burning at the same time. System

burns the same data. System stops burning when it finishes burning. Or you can stop

manually.

z Start tour burning: You need to select several CD to begin circle burning. System begins

burning from the first CD and then auto goes to the second CD until it finishes all CD

burning.

z Change CD: During the CD burning process, you can click it to replace CD manually.

System pops up current CD and then you can input a new one. System begins burning

data from the previous 5 minutes of the previous CD so that there is no missing data

between these two CDs.

z Pause: During the burning process, you can pause current burning if the court is

adjournment. Click continue button, you can begin burning again and all data is on the

same CD.

Figure 4-119

4.2.9 Shutdown

Double click shutdown button, system pops up a dialogue box for you to select. See Figure 4-120

z Logout menu user: log out menu. You need to input password when you login the next time.

z Restart application: reboot NVR.

z Shutdown: system shuts down and turns off power.

z Restart system: system begins rebooting.

z Switch user: you can use another account to log in.

Figure 4-120

5 WEB OPERATION

There might be slightly difference in the interface due to different series.

5.1 Network Connection

Before web operation, please check the following items:

z Network connection is right

z NVR and PC network setup is right. Please refer to network setup(main menu->setting-

>network)

z Use order ping ***.***.***.***(* NVR IP address) to check connection is OK or not. Usually

the return TTL value should be less than 255.

z Open the IE and then input NVR IP address.

z System can automatically download latest web control and the new version can overwrite

the previous one.

z If you want to un-install the web control, please run uninstall webrec2.0.bat. Or you can go to

C:\Program Files\webrec to remove single folder. Please note, before you un-install, please

close all web pages, otherwise the un-installation might result in error.

5.2 Login

Open IE and input NVR address in the address column. For example, if your NVR IP is

10.10.3.16, then please input http:// 10.10.3.16 in IE address column. See Figure 5-1.

Input your IP

address here.

Figure 5-1

System pops up warning information to ask you whether install webrec.cab control or not. Please

click yes button.

If you can’t download the ActiveX file, please modify your settings as follows. See Figure 5-2.
