IC Realtime 4-8 H.264E HD SDI High Definition DVR User Manual

N6 Series Standalone DVR User’s Manual

Version 5.1.0

Table of Contents

1 FEATURES AND SPECIFICATIONS.................................................................. 1

1.1 Overview .................................................................................................................................................1

1.2 Features..................................................................................................................................................1

1.3 Specifications .........................................................................................................................................2

1.3.1 General 1U Series ............................................................................................................................2

1.3.2 960H 1U Series.................................................................................................................................6

1.3.3 Full-D1 1.5U Series ..........................................................................................................................9

1.3.4 HD-SDI 1080P 1.5U Series...........................................................................................................12

1.3.5 Simple 1.5 U Series........................................................................................................................15

1.3.6 960H 4HDD 1.5U Series................................................................................................................19

1.3.7 960H 2HDD 1.5U Series................................................................................................................22

1.3.8 General 2U Series ..........................................................................................................................25

1.3.9 HD-SDI 1080P 2U Series ..............................................................................................................28

1.3.10 960H 2U Series ..........................................................................................................................32

2 OVERVIEW AND CONTROLS ......................................................................... 36

2.1 Front Panel ...........................................................................................................................................36

2.1.1 1U series ..........................................................................................................................................36

2.1.2 1.5U series.......................................................................................................................................37

2.1.3 2U series ..........................................................................................................................................39

2.2 Rear Panel............................................................................................................................................42

2.2.1 1U series ..........................................................................................................................................42

2.2.2 960H 1U Series...............................................................................................................................42

2.2.3 Full-D1 1.5U series.........................................................................................................................43

2.2.4 HD-SDI 1080P 1.5U Series...........................................................................................................44

2.2.5 Simple 1.5U Series.........................................................................................................................45

2.2.6 960H 4HDD 1.5U Series................................................................................................................46

2.2.7 960H 2HDD 1.5U Series................................................................................................................46

2.2.8 General 2U Series ..........................................................................................................................47

2.2.9 HD-SDI 1080P 2U Series .............................................................................................................49

2.2.10 960H 2U Series ..........................................................................................................................50

i

2.3 Connection Sample.............................................................................................................................51

2.3.1 General 1U series...........................................................................................................................51

2.3.2 960H 1U Series...............................................................................................................................51

2.3.3 General 1.5U series........................................................................................................................52

2.3.4 HD-SDI 1.5U Series .......................................................................................................................53

2.3.5 960H 4HDD 1.5U Series................................................................................................................54

2.3.6 960H 2HDD 1.5U Series................................................................................................................55

2.3.7 General 2U series...........................................................................................................................56

2.3.4 HD-SDI 1080P 2U Series ...............................................................................................................57

2.3.4 960H 2U Series...............................................................................................................................58

2.4 Remote Control....................................................................................................................................59

2.5 Mouse Control......................................................................................................................................61

2.6 Virtual Keyboard & Front Panel.........................................................................................................63

2.6.1 Virtual Keyboard..............................................................................................................................63

2.6.2 Front Panel ......................................................................................................................................63

3 INSTALLATION AND CONNECTIONS............................................................. 64

3.1 Check Unpacked DVR........................................................................................................................64

3.2 About Front Panel and Real Panel ...................................................................................................64

3.3 HDD Installation...................................................................................................................................64

3.3.1 1U series ..........................................................................................................................................64

3.3.2 1.5U series.......................................................................................................................................65

3.3.3 2U series （HD-SDI series, 960H ）...........................................................................................65

3.4 Rack Installation ..................................................................................................................................66

3.5 Connecting Power Supply..................................................................................................................66

3.6 Connecting Video Input and Output Devices ..................................................................................66

3.6.1 Connecting Video Input..................................................................................................................67

3.6.2 Connecting Video Output...............................................................................................................67

ii

3.7 Connecting Audio Input & Output, Bidirectional Audio ..................................................................67

3.7.1 Audio Input.......................................................................................................................................67

3.7.2 Audio Output....................................................................................................................................67

3.8 Alarm Input and Output Connection .................................................................................................68

3.8.1 Alarm Input and Output Details.....................................................................................................68

3.8.2 Alarm Input Port ..............................................................................................................................74

3.8.3 Alarm Output Port ...........................................................................................................................75

3.9 RS232....................................................................................................................................................75

3.10 RS485....................................................................................................................................................75

3.11 Other Interfaces ...................................................................................................................................76

4 OVERVIEW OF NAVIGATION AND CONTROLS ............................................ 78

4.1 Login, Logout & Main Menu ...............................................................................................................78

4.1.1 Login .................................................................................................................................................78

4.1.2 Main Menu .......................................................................................................................................79

4.1.3 Logout...............................................................................................................................................79

4.1.4 Auto Resume after Power Failure ................................................................................................80

4.1.5 Replace Button Battery ..................................................................................................................80

4.2 Live Viewing .........................................................................................................................................80

4.3 Manual Record.....................................................................................................................................81

4.3.1 Manual record menu ......................................................................................................................81

4.3.2 Basic operation................................................................................................................................81

4.3.3 Enable/disable record.....................................................................................................................82

4.3.4 Enable all channel recording.........................................................................................................82

4.3.5 Stop all channel recording.............................................................................................................83

4.4 Search & Playback ..............................................................................................................................84

4.5 Schedule ...............................................................................................................................................87

4.5.1 Schedule Menu ...............................................................................................................................87

iii

4.5.2 Snapshot ..........................................................................................................................................90

4.5.3 Image FTP .......................................................................................................................................91

4.6 Detect ....................................................................................................................................................92

4.6.1 Go to Detect Menu..........................................................................................................................92

4.6.2 Motion Detect ..................................................................................................................................92

4.6.3 Video Loss .......................................................................................................................................94

4.6.4 Camera Masking.............................................................................................................................95

4.7 Alarm Setup and Alarm Activation ....................................................................................................96

4.7.1 Go to alarm setup interface ...........................................................................................................96

4.7.2 Alarm setup......................................................................................................................................96

4.8 Backup ..................................................................................................................................................99

4.7.1 Detect Device.......................................................................................................................................99

4.8.1 Backup..............................................................................................................................................99

4.9 PTZ Control and Color Setup ..........................................................................................................100

4.8.1 Cable Connection ..............................................................................................................................101

4.8.2 PTZ Setup...........................................................................................................................................101

4.8.3 3D Intelligent Positioning Key..........................................................................................................102

4.10 Preset/ Patrol/Pattern/Scan..............................................................................................................103

4.9.1Preset Setup .......................................................................................................................................104

4.9.2 Activate Preset...................................................................................................................................104

4.9.3 Patrol setup (Tour Setup).................................................................................................................104

4.9.4 Activate Patrol (tour) .........................................................................................................................105

4.9.5 Pattern Setup.....................................................................................................................................105

4.9.6 Activate Pattern Function.................................................................................................................105

4.9.7 Auto Scan Setup ...............................................................................................................................105

4.9.8 Activate Auto Scan............................................................................................................................105

4.11 Flip .......................................................................................................................................................105

5 UNDERSTANDING OF MENU OPERATIONS AND CONTROLS ................. 107

5.1 Menu Tree ..........................................................................................................................................107

5.2 Main Menu ..........................................................................................................................................107

iv

5.3 Setting .................................................................................................................................................108

5.3.1 General...........................................................................................................................................108

5.3.2 Encode ...........................................................................................................................................110

5.3.3 Schedule ........................................................................................................................................112

5.3.4 RS232.............................................................................................................................................112

5.3.5 Network ..........................................................................................................................................113

5.3.6 Alarm...............................................................................................................................................128

5.3.7 Detect .............................................................................................................................................128

5.3.8 Pan/Tilt/Zoom ................................................................................................................................128

5.3.9 Display............................................................................................................................................129

5.3.10 Default........................................................................................................................................130

5.4 Search .................................................................................................................................................131

5.5 Advanced ............................................................................................................................................131

5.5.1 HDD Management........................................................................................................................132

5.5.2 Abnormity .......................................................................................................................................135

5.5.3 Alarm Output..................................................................................................................................136

5.5.4 Manual Record..............................................................................................................................136

5.5.5 Account...........................................................................................................................................136

5.5.6 Auto Maintenance.........................................................................................................................138

5.5.7 TV Adjust........................................................................................................................................139

5.5.8 Video Matrix...................................................................................................................................139

5.5.9 Card Overlay..................................................................................................................................140

5.5.10 Config File Backup...................................................................................................................141

5.6 Information..........................................................................................................................................142

5.6.1 HDD Information ...........................................................................................................................142

5.6.2 BPS.................................................................................................................................................143

5.6.3 Log ..................................................................................................................................................143

5.6.4 Version ...........................................................................................................................................144

5.6.5 Online Users..................................................................................................................................145

5.7 Shutdown............................................................................................................................................145

6 ABOUT AUXILIARY MENU ............................................................................ 147

6.1 Go to Pan/Tilt/Zoom Menu ...............................................................................................................147

6.1.1 3D Intelligent Positioning Key .....................................................................................................147

v

6.2 Preset /Patrol / Pattern /Border Function.....................................................................................148

6.2.1 Preset Setup..................................................................................................................................149

6.2.2 Activate Preset .............................................................................................................................. 149

6.2.3 Patrol Setup ...................................................................................................................................149

6.2.4 Activate Patrol ...............................................................................................................................149

6.2.5 Pattern Setup.................................................................................................................................149

6.2.6 Activate Pattern Function.............................................................................................................150

6.2.7 Border Setup..................................................................................................................................150

6.2.8 Activate Border Function .............................................................................................................150

6.2.9 Flip ..................................................................................................................................................150

7 WEB CLIENT OPERATION ............................................................................ 152

7.1 Network Connection..........................................................................................................................152

7.2 Login....................................................................................................................................................152

7.3 LAN Mode...........................................................................................................................................154

7.3.1 Real-time Monitor..........................................................................................................................155

7.3.2 PTZ .................................................................................................................................................157

7.3.3 Color ...............................................................................................................................................160

7.3.4 Picture Path and Record Path ....................................................................................................160

7.4 WAN Login..........................................................................................................................................161

7.5 Configure ............................................................................................................................................163

7.5.1 System Information.......................................................................................................................163

7.5.2 System Configuration...................................................................................................................166

7.5.3 Advanced .......................................................................................................................................187

7.5.4 Additional Function .......................................................................................................................194

7.6 Search .................................................................................................................................................198

7.7 Alarm ...................................................................................................................................................201

7.8 About ...................................................................................................................................................202

vi

7.9 Log out ................................................................................................................................................202

7.10 Un-install Web Control......................................................................................................................202

8 PROFESSIONAL SURVEILLANCE SYSTEM ................................................ 204

9 FAQ................................................................................................................. 205

APPENDIX A HDD CAPACITY CALCULATION ................................................. 210

APPENDIX B COMPATIBLE BACKUP DEVICE LIST........................................ 211

APPENDIX C COMPATIBLE CD/DVD DEVICE LIST............................................ 215

APPENDIX D COMPATIBLE DISPLAYER LIST ................................................. 216

APPENDIX E COMPATIBLE SWITCHER LIST .................................................. 217

APPENDIX F COMPATIBLE WIRELESS MOUSE LIST ..................................... 218

APPENDIX G EARTHING.................................................................................... 219

APPENDIX H TOXIC OR HAZARDOUS MATERIALS OR ELEMENTS................ 224

vii

Welcome

Thank you for purchasing our DVR!

This user’s manual is designed to be a reference tool for the installation and operation of your

system.

Here you can find information about this series DVR features and functions, as well as a detailed

menu tree.

Before installation and operation please read the following safeguards and warnings carefully!

viii

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

We assume no liability or responsibility for all the fires or electrical shock caused by improper

handling or installation.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3．Installation

Keep upwards. Handle with care.

Do not apply power to the DVR before completing installation.

Do not place objects on the DVR

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

The DVR should be installed in a cool, dry place away from direct sunlight, inflammable,

explosive substances and etc. This series product shall be transported, storage and used in the environment ranging from 0℃ to 55 ℃

6. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

7. Lithium battery

Improper battery use may result in fire, explosion, or personal injury!

When replace the battery, please make sure you are using the same model!

ix

1 FEATURES AND SPECIFICATIONS

1.1 Overview

This series product is an excellent digital monitor product designed for security field. It adopts

embedded Linux OS to maintain reliable operation. Popular H.264 compression algorithm and

G.711 audio compression technology realize high quality, low bit stream. Unique frame by frame

play function is suitable for detail analysis. It has various functions such as record, playback,

monitor at the same time and can guarantee audio video synchronization. This series product

has advanced technology and strong network data transmission function.

This series device adopts embedded design to achieve high security and reliability. It can work in

the local end, and at the same time, when connecting it to the professional surveillance software

(PSS), it can connect to security network to realize strong network and remote monitor function.

This series product can be widely used in various areas such as banking, telecommunication,

electric power, interrogation, transportation, intelligent resident zone, factory, warehouse,

resources, and water conservancy.

1.2 Features

This series product has the following features:

z Real-time monitor

It has analog output port, VGA port and HDMI port. You can use monitor or displayer to realize

surveillance function.

System supports TV/VGA/HDMI output at the same time.

z Storage function

Special data format to guarantee data security and can avoid vicious data modification.

z Compression format

Support multiple-channel audio and video. An independent hardware decodes the audio and

video signal from each channel to maintain video and audio synchronization.

z Backup function

Support backup operation via USB port (such as flash disk, portable HDD, burner).

Client-end user can download the file to local HDD to backup via network.

z Record playback function

Support each channel real-time record independently, and at the same time it can support search,

forward play, network monitor, record search, download and etc.

Support various playback modes: slow play, fast play, backward play and frame by frame play.

Support time title overlay so that you can view event accurate occurred time

Support specified zone enlargement.

z Network operation

1

Support network remote real-time monitor, remote record search and remote PTZ control.

z Alarm activation function

Several relay alarm outputs to realize alarm activation and on-site light control.

The alarm input port and output has the protection circuit to guarantee device safety.

z Communication port

RS485 port can realize alarm input and PTZ control.

RS232 port can connect to keyboard to realize central control, and can also connect to PC COM

to upgrade system and realize maintenance, and matrix control.

Standard Ethernet port can realize network access function.

Dual Ethernet ports support configuration modes such as multiple access, Fault-tolerance and

load balancing.

z PTZ control

Support PTZ decoder via RS485.

Support various decode protocols to allow the PTZ to control the speed dome.

z Intelligent operation

Mouse operation function

In the menu, support copy and paste setup function

z UPnP

It is to establish the mapping relationship between the LAN and the WAN via the UPnP protocol.

Slight function differences may be found due to different series.

1.3 Specifications

1.3.1 General 1U Series

System

Compression Standard

Parameter

Main Processor

OS System

Resources Interface Input

Devices Input Method Shortcut Function Video Compressio n

4-ch 8-ch 16-ch

High-performance industrial embedded micro controller

Embedded LINUX

Multiplex operations: Multiple-channel record, multiple-channel playback and network operation simultaneously User-friendly graphical user interface

Front panel, USB mouse

Arabic number, English character, donation and extension Chinese (optional) Copy/paste operation, USB mouse right-key shortcut menu, double click USB mouse to switch screen.

H.264

2

Audio

G.711A

4-CH composite video input: (NTSC/PAL)

B

BNC (1.0V

P- P,

B75Ω)

1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output. 1-ch VGA output. 1-ch HDMI output. 1-ch matrix output. Support TV/VGA/HDMI video output at the same time.

PAL (625 line, 50f/s), NTSC (525 line, 60f/s)

Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel

Video monitor

Compressio n

Video Input

Video Output

Video Standard

Record Speed

8-CH composite video input: (NTSC/PAL) BNC (1.0VB

P- P,

B75Ω)

16-CH composite video input: (NTSC/PAL) BNC

B

P- P,

B75Ω)

(1.0V

Audio

Video

1/4 windows(Optional) 1/4/8/9 windows 1/4/8/9 /16 windows Partition Monitor Touring

Support monitor tour functions such as alarm, motion detection, and

schedule auto control.

PAL/NTSC

Real-time monitor：

D1 704×576/704×480 Resolution

(PAL/NTSC )

Playback：

1/16-ch: D1 704×576/704×480, HD1 704×288/704×240, 2CIF

352×576/352×480, CIF 352×288/ 352×240 , QCIF 176×144/176×120

Support dual streams: extra stream resolution CIF 352×288/ 352×240,

QCIF 176×144/176×120. Image

6-level image quality (Adjustable) Quality Privacy mask Image Information

Support one privacy mask of user-defined size in full screen.

Support max 4 zones.

Channel information, time information and privacy mask zone.

TV Adjust Adjust TV output zone suitable to anamorphic video.

Channel Lock

Cover secret channel with black screen though system is encoding

normally.

Screen-lock function to prevent unauthorized user seeing secret video. Channel Information

Channel name, recording status, screen lock status, video loss status

and motion detection status are shown on the bottom left of display

screen. Color

Hue, brightness, contrast, saturation and gain setup for each channel. Configuratio n

Audio Input

Audio Output

4-ch 200-2000mv

10KΩ(BNC)

1-ch audio output 200-

3000mv 5KΩ(BNC)

8-ch 200-2000mv 10KΩ(BNC)

1-ch audio output 2003000mv 5KΩ(BNC)

4-ch 2002000mv 10KΩ (BNC)

1-ch audio output 200-3000mv 5KΩ(RCA)

3

1-ch audio talk output

200-3000mv 5KΩ(BNC)

2 built-in SATA port. Support 2 HDDs.

Audio：PCM 28.8MByte/h

Video：56-900MByte/h

Manual recording, motion detection recording, schedule recording and

alarm recording

Priority: Manual recording> alarm recording>motion detection

recording>schedule recording.

1 to 120 minutes single record duration (Default setup is 60 minutes)

When hard disk is full, system can overwrite previous video file.

Various search engines such as time, type and channel.

Various fast play, slow play speeds, manual frame by frame playback

and reverse play mode.

Can switch to previous or next file or any file in current play list.

Can switch to file on other channel of the same time. (If there is a file)

Support file continuous play, when a file is end system auto plays the

next file in the current channel

There is 1/4/9/16-channel playback mode.

(It may vary due to different series.)

Switch between self-adaptive screen/full screen when playback

When in one-window full-screen playback mode, you can select any zone

to activate partial enlargement function.

HDD backup

Support peripheral USB backup device. (Flash disk, portable disk and

etc.)

Support peripheral USB burner.

Support network download and backup

View monitor channel remotely.

DVR configuration through client-end and web browser

Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and

video loss via client.

Support network PTZ lens control

File download backup and playback

Multiple devices share information via corresponding software such as

professional surveillance software (PSS)

Duplex transparent COM

Network alarm input and output

Bidirectional audio.

Zone setup: support 396((PAL 22×18, NTSC 22×15)) detection zones.

Various sensitivity levels.

Alarm can activate record or external alarm or screen message prompt.

Support record activation function or activate external alarm or screen

message in specified period.

Hard disk

Record and playback

Backup function

Network Function

Motion Detection and Alarm

Bidirectional Audio

Hard Disk Hard Disk

Occupation

Recording Mode

Recording Length Playback Repeat Way Record Search Playback Mode Various File Switch Ways

Multichannel Playback Window Zoom Partial Enlargemen t

Backup Mode

Network control

Motion Detection

Video Loss Alarm can activate external alarm or screen message prompt. External Alarm

1-ch audio talk output 200-3000mv 5KΩ(BNC)

1-ch audio talk output 2003000mv 5KΩ (RCA)

4

Manual Alarm Control

Alarm Input

Alarm Output

Alarm Relay

Interface

System Information

User Management

Upgrade

Login, Logout and Shutdown

General Parameter

USB Interface Network connection

RS485

RS232

Hard Disk Information Data Stream Statistics Log statistics

Version

On-line user Display current on-line user

User Manageme nt

Password Authenticati on

Power Power

Consumptio n

Working Temperatur e Working Humidity Air Pressure

Enable or disable alarm input channel

Support analog alarm signal to specific alarm output channel.

4-ch alarm input（You

can set normal open or

normal close type to

select the alarm type. ）

3-channel relay output.

30V DC 2A，125VAC 1A（activation alarm ）

2 USB 2.0 ports.

RJ45 10M/100M/1000M self-adaptable Ethernet port

PTZ control port

Support various PTZ control protocols.

Ordinary COM (Debug),keyboard connection and transparent serial

port(COM input and output via network )

Display HDD current status

Data stream statistics for each channel (in wave mode)

Backup to 1024 log files.

Support various search engines such as time and type.

Display version information: channel amount, alarm input and output

amount, system version and release date.

Multi-lever user management; various management modes

Integrated management for local user, serial port user and network user.

Configurable user power.

Support user /group and its corresponding rights modification.

No limit to the user or group amount.

Password modification

Administrator can modify other user’s password.

Account lock strategy

Five times login failure in thirty minutes may result in account lock.

Web browser, client-end and update tool.

Password login protection to guarantee safety

User-friendly interface when login. Provide the following options: Logout

/shutdown/ restart.

Right authentication when shut down to make sure only those proper

people can turn off DVR

DC 12V

≤25W (With adapter, exclude HDD)

0℃－＋55℃

10%－90%

86kpa－106kpa

8-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

16-ch alarm input （You can set normal open or normal close type to select the alarm type. ）

5

Dimension Weight 1.5-2.5KG(Exclude HDD)

Installation Mode

1U standard industrial case. 375(W) x280 (D) x50mm(H)

Desktop installation

1.3.2 960H 1U Series

System

Parameter

Main Processor

4-ch 8-ch 16-ch

High-performance industrial embedded micro controller

Compression Standard

Video monitor

OS System

Resources Interface

Input Devices

Input Method

Shortcut Function

Video Compression

Audio Compression

Video Input

Video Output

Video Standard

Record Speed

Embedded LINUX

Multiplex operations: Multiple-channel record, multiple-channel playback and network operation simultaneously User-friendly graphical user interface

Front panel, USB mouse, remote control Arabic number, English character, donation and extension Chinese

(optional) Copy/paste operation, USB mouse right-key shortcut menu, double click USB mouse to switch screen.

H.264

G711A, G711U, PCM

4-CH composite video input: (NTSC/PAL) BNC (1.0VB

P- P, B

75Ω)

8-CH composite video input: (NTSC/PAL) BNC (1.0VB

P- P, B

75Ω)

16-CH composite video input: (NTSC/PAL) BNC (1.0VB

P- P, B

75Ω)

1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output. 1-ch VGA output. 1-ch HDMI output. 1-ch matrix output. Support TV/VGA/HDMI video output at the same time.

PAL (625 line, 50f/s), NTSC (525 line, 60f/s)

Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel

Video Partition

Monitor Touring

1/4 windows(Optional) Support monitor tour functions such as alarm, motion detection, and schedule auto control.

1/4/8/9 windows 1/4/8/9 /16 windows

PAL(625TVL, 50f/s)/NTSC(525TVL, 60f/s) Real-time monitor： 960H 960 ×576/960×480

Playback channel 1/16：

Resolution (PAL/NTSC)

960 ×576/960×480 D1 704×576/704×480 、CIF 352×288/ 352×240 、 QCIF 176×144/176×120

Support dual streams. Extra stream resolution: CIF 352×288/ 352×240 QCIF 176×144/176×120

Image Quality

6-level image quality (Adjustable)

Privacy mask Support one privacy mask of user-defined size in full screen.

Support max 4 zones.

6

Image Information

TV Adjust Adjust TV output zone suitable to anamorphic video.

Channel Lock Cover secret channel with black screen though system is encoding

Channel Information

Color Configuration

Audio

Audio Input

Audio Output

Channel information, time information and privacy mask zone.

normally. Screen-lock function to prevent unauthorized user seeing secret video. Channel name, recording status, screen lock status, video loss status and motion detection status are shown on the bottom left of display screen. Hue, brightness, contrast, saturation and gain setup for each channel.

4-ch 200-2000mv 10KΩ(RCA)

1-ch audio output 200-3000mv 5KΩ(RCA)

8-ch 200-2000mv 10KΩ(RCA)

4-ch 2002000mv 10KΩ (RCA)

Hard disk

Record and playback

Bidirectional Audio

Hard Disk Hard Disk

Occupation

Recording Mode

Recording Length Playback Repeat Way

Record Search Various search engines such as time, type and channel.

Playback Mode Various File Switch Ways

Multi-channel Playback

1-ch audio talk input 200-3000mv 10KΩ（RCA） 1-ch audio talk output 200-3000mv 5KΩ(RCA) 2 built-in SATA port. Support 2 HDDs.

Audio：PCM 28.8MByte/h Video：56-900MByte/h Manual recording, motion detection recording, schedule recording and

alarm recording Priority: Manual recording> alarm recording>motion detection recording>schedule recording. 1 to 120 minutes single record duration (Default setup is 60 minutes)

When hard disk is full, system can overwrite previous video file.

Various fast play, slow play speeds, manual frame by frame playback and reverse play mode. Can switch to previous or next file or any file in current play list. Can switch to file on other channel of the same time. (If there is a file) Support file continuous play, when a file is end system auto plays the next file in the current channel There is 1/4/9/16-channel playback mode. (It may vary due to different series.)

Backup function

Network Function

Window Zoom Switch between self-adaptive screen/full screen when playback

Partial Enlargement

Backup Mode

Network control

When in one-window full-screen playback mode, you can select any zone to activate partial enlargement function. HDD backup Support peripheral USB backup device. (Flash disk, portable disk, USB burner and etc.) Support network download and backup View monitor channel remotely.

DVR configuration through client-end and web browser Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and video loss via client. Support network PTZ lens control File download backup and playback

7

Multiple devices share information via corresponding software such as professional surveillance software (PSS) Duplex transparent COM Network alarm input and output Bidirectional audio.

Support dual network cards mode such as multiple-address mode, fault-tolerance, and load balance.

Motion Detection and Alarm

Interface

System Information

User Management

Upgrade Login, Logout and Shutdown

Motion Detection

Video Loss Alarm can activate external alarm or screen message prompt. External Alarm Support record activation function or activate external alarm or screen

Manual Alarm Control

Alarm Input

Alarm Output

Alarm Relay USB Interface 2 USB 2.0 ports. Network

connection

RS485

RS232

Hard Disk Information Data Stream Statistics

Log statistics

Version

On-line user Display current on-line user

User Management

Password Authentication

Zone setup: support 396/330((PAL 22×18, NTSC 22×15)) detection zones. Various sensitivity levels. Alarm can activate record or external alarm or screen message prompt.

message in specified period. Enable or disable alarm input channel Support analog alarm signal to specific alarm output channel. 4-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

3-channel relay output, including one controllable DC +12V output port.

30V DC 2A，125V AC 1A（activation alarm ）

1 RJ45 10M/100M/1000M self-adaptable Ethernet port

PTZ control port Support various PTZ control protocols. Ordinary COM (Debug),keyboard connection and transparent serial port(COM input and output via network ) Display HDD current status

Data stream statistics for each channel (in wave mode)

Backup to 1024 log files. Support various search engines such as time and type. Display version information: channel amount, alarm input and output amount, system version and release date.

Multi-lever user management; various management modes Integrated management for local user, serial port user and network user. Configurable user power. Support user /group and its corresponding rights modification. No limit to the user or group amount. Password modification Administrator can modify other user’s password. Account lock strategy Five times login failure in thirty minutes may result in account lock. Web browser, client-end and update tool.

Password login protection to guarantee safety

User-friendly interface when login. Provide the following options: Logout /shutdown/ restart.

8-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

16-ch alarm input （You can set normal open or normal close type to select the alarm type. ）

8

Right authentication when shut down to make sure only those proper people can turn off DVR

General Parameter

Power Power

Consumption

Working

DC 12V

≤25W (With adapter, exclude HDD)

0℃－＋55℃

Temperature Working

10%－90%

Humidity Air Pressure

Dimension

86kpa－106kpa 1U standard industrial case. 375(W) x280 (D) x50mm(H)

Weight 1.5-2.5KG(Exclude HDD) Installation

Desktop installation

Mode

1.3.3 Full-D1 1.5U Series

System

Parameter

Main Processor

4-ch 8-ch 16-ch

High-performance industrial embedded micro controller

Compression Standard

Video monitor

OS System

Resources Interface Input

Devices Input Method Shortcut Function Video Compressio n Audio Compressio n

Video Input

Video Output

Video Standard

Record Speed

Embedded LINUX

Multiplex operations: Multiple-channel record, multiple-channel playback

and network operation simultaneously

User-friendly graphical user interface

Front panel, USB mouse

Arabic number, English character, donation and extension Chinese

(optional)

Copy/paste operation, USB mouse right-key shortcut menu, double click

USB mouse to switch screen.

H.264

G.711A

4-CH composite video

input: (NTSC/PAL)

B

BNC (1.0V

P- P,

B75Ω)

8-CH composite video input: (NTSC/PAL) BNC (1.0VB

P- P,

B75Ω)

16-CH composite video input: (NTSC/PAL) BNC

B

P- P,

B75Ω)

(1.0V

1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output.

1-ch VGA output.

1-ch HDMI output.

1-ch matrix output.

Support TV/VGA/HDMI video output at the same time.

PAL (625 line, 50f/s), NTSC (525 line, 60f/s)

Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s

per channel

Video Partition Monitor Touring

1/4 windows(Optional) 1/4/8/9 windows 1/4/8/9 /16 windows

Support monitor tour functions such as alarm, motion detection, and

schedule auto control.

9

PAL/NTSC

Real-time monitor：

D1 704×576/704×480 Resolution (PAL/NTSC )

Image Quality Privacy mask Image Information

TV Adjust Adjust TV output zone suitable to anamorphic video.

Playback：

1/16-ch: D1 704×576/704×480 , CIF 352×288/ 352×240 , QCIF

176×144/176×120

Support dual streams: extra stream resolution CIF 352×288/ 352×240,

QCIF 176×144/176×120.

6-level image quality (Adjustable)

Support one privacy mask of user-defined size in full screen.

Support max 4 zones.

Channel information, time information and privacy mask zone.

Audio

Hard disk

Record and playback

Channel Lock

Channel Information

Color Configuratio n

Audio Input

Audio Output

Bidirectional Audio

Hard Disk Hard Disk

Occupation

Recording Mode

Recording Length Playback Repeat Way Record Search Playback Mode Various File Switch Ways

Multichannel Playback Window Zoom

Cover secret channel with black screen though system is encoding

normally.

Screen-lock function to prevent unauthorized user seeing secret video.

Channel name, recording status, screen lock status, video loss status

and motion detection status are shown on the bottom left of display

screen.

Hue, brightness, contrast, saturation and gain setup for each channel.

4-ch 200-2000mv

10KΩ(BNC)

1-ch audio output 200-3000mv 5KΩ(BNC)

1-ch audio talk input 200-3000mv 10KΩ(BNC)

1-ch audio talk output 200-3000mv 5KΩ(BNC)

4 built-in SATA port. Support 4 HDDs.

Audio：PCM 28.8MByte/h

Video：56-900MByte/h

Manual recording, motion detection recording, schedule recording and

alarm recording

Priority: Manual recording> alarm recording>motion detection

recording>schedule recording.

1 to 120 minutes single record duration (Default setup is 60 minutes)

When hard disk is full, system can overwrite previous video file.

Various search engines such as time, type and channel.

Various fast play, slow play speeds, manual frame by frame playback

and reverse play mode.

Can switch to previous or next file or any file in current play list.

Can switch to file on other channel of the same time. (If there is a file)

Support file continuous play, when a file is end system auto plays the

next file in the current channel

There is 1/4/9/16-channel playback mode.

(It may vary due to different series.)

Switch between self-adaptive screen/full screen when playback

4-ch 200-2000mv 10KΩ(BNC)

10

When in one-window full-screen playback mode, you can select any zone

to activate partial enlargement function.

HDD backup

Support peripheral USB backup device. (Flash disk, portable disk, USB

burner and etc.)

Support peripheral eSATA backup device.

Support network download and backup

View monitor channel remotely.

DVR configuration through client-end and web browser

Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and

video loss via client.

Support network PTZ lens control

File download backup and playback

Multiple devices share information via corresponding software such as

professional surveillance software (PSS)

Duplex transparent COM

Network alarm input and output

Bidirectional audio.

Zone setup: support 396/330((PAL 22×18, NTSC 22×15)) detection

zones.

Various sensitivity levels.

Alarm can activate record or external alarm or screen message prompt.

Support record activation function or activate external alarm or screen

message in specified period.

Enable or disable alarm input channel

Support analog alarm signal to specific alarm output channel.

4-ch alarm input（You

can set normal open or

normal close type to

select the alarm type. ）

6-channel relay output, including one controllable DC +12V output port.

30V DC 2A，125V AC 1A（activation alarm ）

2 USB 2.0 ports.

RJ45 10M/100M/1000M self-adaptable Ethernet port

PTZ control port

Support various PTZ control protocols.

Ordinary COM (Debug),keyboard connection and transparent serial

port(COM input and output via network )

Display HDD current status

Data stream statistics for each channel (in wave mode)

Backup to 1024 log files.

Support various search engines such as time and type.

Display version information: channel amount, alarm input and output

amount, system version and release date.

Backup function

Network Function

Motion Detection and Alarm

Interface

System Information

Partial Enlargemen t

Backup Mode

Network control

Motion Detection

Video Loss Alarm can activate external alarm or screen message prompt. External Alarm Manual Alarm Control

Alarm Input

Alarm Output

Alarm Relay USB

Interface Network connection

RS485

RS232

Hard Disk Information Data Stream Statistics Log statistics

Version

On-line user Display current on-line user

8-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

16-ch alarm input （You can set normal open or normal close type to select the alarm type. ）

11

User Management

Upgrade

Login, Logout and Shutdown

General Parameter

User Manageme nt

Password Authenticati on

Power Power

Consumptio n Working Temperatur e Working Humidity Air Pressure

Dimension Weight 4.5-5.5KG(Exclude HDD)

Installation Mode

Multi-lever user management; various management modes

Integrated management for local user, serial port user and network user.

Configurable user power.

Support user /group and its corresponding rights modification.

No limit to the user or group amount.

Password modification

Administrator can modify other user’s password.

Account lock strategy

Five times login failure in thirty minutes may result in account lock.

Web browser, client-end and update tool.

Password login protection to guarantee safety

User-friendly interface when login. Provide the following options: Logout

/shutdown/ restart.

Right authentication when shut down to make sure only those proper

people can turn off DVR

AC90~264V 50+2% Hz （Max 75W）

25W (Exclude HDD)

0℃－＋55℃

10%－90%

86kpa－106kpa

1.5U standard industrial case. 440(W) x410 (D) x70mm(H)

Desktop/rack installation

1.3.4 HD-SDI 1080P 1.5U Series

System

Parameter

Main Processor

4-ch 8-ch 16-ch

High-performance industrial embedded micro controller

Compression Standard

OS System

Resources Interface Input

Devices Input Method Shortcut Function Video Compressio n Audio Compressio n

Video Input

Embedded LINUX

Multiplex operations: Multiple-channel record, multiple-channel playback

and network operation simultaneously

User-friendly graphical user interface

Front panel, USB mouse

Arabic number, English character, donation and extension Chinese

(optional)

Copy/paste operation, USB mouse right-key shortcut menu, double click

USB mouse to switch screen.

H.264

G.711A

4-CH HD-SDI video

input: (NTSC/PAL)

BNC (0.8VP-P，75Ω)

8-CH HD-SDI video input: (NTSC/PAL) BNC (0.8VP-P，75Ω)

16-CH HD-SDI video input: (NTSC/PAL) BNC (0.8VP-P，75Ω)

12

Video monitor

Video Output

Video Standard

Record Speed

Video Partition Monitor Touring

Resolution (PAL/NTSC )

1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output.

1-ch VGA output.

1-ch HDMI output.

Support TV/VGA/HDMI video output at the same time.

720P/25, 720P/30, 720P/50, 720P/60, 1080P/25, 1080P/30, 1080i/50、

1080i/60

Real-time Mode: PAL 1f/s to 25f/s per channel

and NTSC 1f/s to 30f/s per channel

1/4 windows 1/4/8/9 windows 1/4/8/9/16 windows

Support monitor tour functions such as alarm, motion detection, and

schedule auto control.

PAL(50f/s)，NTSC(60f/s)

Real time 1080P(1920*1080)

Recording playback 1/4- channel: 1080P 1920*1080 720P 1280*720

D1 704×576/704×480 ; CIF 352×288/ 352×240;

QCIF 176×144/176×120

Dual-stream supported: Extra stream resolution:

D1 704×576/704×480 ;CIF 352×288/ 352×240 ;

QCIF 176×144/176×120

In non real-time mode: when the resolution of the main stream is 1080P, the 1/5/9/13/channel max supports 25f/s or 30f/s and the resolution of the rest channels support 12f/s or 15f/s.

Audio

Hard disk

Record and playback

Image Quality Privacy mask Image Information

TV Adjust Adjust TV output zone suitable to anamorphic video.

Channel Lock

Channel Information

Audio Input

Audio Output

Bidirectional Audio

Hard Disk Hard Disk

Occupation

Recording Mode

Recording Length

6-level image quality (Adjustable)

Support one privacy mask of user-defined size in full screen.

Support max 4 zones.

Channel information, time information and privacy mask zone.

Cover secret channel with black screen though system is encoding

normally.

Screen-lock function to prevent unauthorized user seeing secret video.

Channel name, recording status, screen lock status, video loss status

and motion detection status are shown on the bottom left of display

screen.

4-ch 200-2000mv

10KΩ(BNC)

1-ch audio output 200-3000mv 5KΩ(BNC)

1-ch audio talk input 200-3000mv 10KΩ(BNC)

1-ch audio talk output 200-3000mv 5KΩ(BNC)

4 built-in SATA ports. Support 4 HDDs.

Audio：PCM 28.8MByte/h

Video：56-3600MByte/h

Manual recording, motion detection recording, schedule recording and

alarm recording

Priority: Manual recording> alarm recording>motion detection

recording>schedule recording.

1 to 120 minutes single record duration (Default setup is 60 minutes)

8-ch 200-2000mv 10KΩ(BNC)

4-ch 200-2000mv 10KΩ(BNC)

13

Playback

When hard disk is full, system can overwrite previous video file.

Various search engines such as time, type and channel.

Various fast play, slow play speeds, manual frame by frame playback

and reverse play mode.

Can switch to previous or next file or any file in current play list.

Can switch to file on other channel of the same time. (If there is a file)

Support file continuous play, when a file is end system auto plays the

next file in the current channel

There is 1/4-channel

playback mode.

Switch between self-adaptive screen/full screen when playback

When in one-window full-screen playback mode, you can select any zone

to activate partial enlargement function.

HDD backup

Support peripheral USB backup device. (Flash disk, portable disk, USB

burner and etc.)

Support peripheral eSATA backup device.

Support network download and backup

View monitor channel remotely.

DVR configuration through client-end and web browser

Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and

video loss via client.

Support network PTZ lens control

File download backup and playback

Multiple devices share information via corresponding software such as

professional surveillance software (PSS)

Duplex transparent COM

Network alarm input and output

Bidirectional audio.

Zone setup: support 396/330((PAL 22×18, NTSC 22×15)) detection

zones.

Various sensitivity levels.

Alarm can activate record or external alarm or screen message prompt.

Support record activation function or activate external alarm or screen

message in specified period.

Enable or disable alarm input channel

Support analog alarm signal to specific alarm output channel.

4-ch alarm input（You

can set normal open

or normal close type to

select the alarm

type. ）

6-channel relay output, including one controllable DC +12V output port.

30V DC 2A，125V AC 1A（activation alarm ）

3 USB 2.0 ports.

RJ45 10M/100M/1000M self-adaptable Ethernet port

Backup function

Network Function

Motion Detection and Alarm

Interface

Repeat Way Record Search Playback Mode Various File Switch Ways

Multichannel Playback Window Zoom Partial Enlargemen t

Backup Mode

Network control

Motion Detection

Video Loss Alarm can activate external alarm or screen message prompt. External Alarm Manual Alarm Control

Alarm Input

Alarm Output

Alarm Relay USB

Interface Network connection

There is 1/4-channel playback mode.

8-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

There is 1/4-channel playback mode.

16-ch alarm input （You can set normal open or normal close type to select the alarm type. ）

14

RS485

RS232

System Information

User Management

Upgrade

Login, Logout and Shutdown

General Parameter

Hard Disk Information Data Stream Statistics Log statistics

Version

On-line user Display current on-line user

User Manageme nt

Password Authenticati on

Power Power

Consumptio n Working Temperatur e Working Humidity Air Pressure

Dimension Weight

Installation Mode

Two RS485 ports. PTZ control port

Support various PTZ control protocols.

Ordinary COM (Debug),keyboard connection and transparent serial

port(COM input and output via network )

Display HDD current status

Data stream statistics for each channel (in wave mode)

Backup to 1024 log files.

Support various search engines such as time and type.

Display version information: channel amount, alarm input and output

amount, system version and release date.

Multi-lever user management; various management modes

Integrated management for local user, serial port user and network user.

Configurable user power.

Support user /group and its corresponding rights modification.

No limit to the user or group amount.

Password modification

Administrator can modify other user’s password.

Account lock strategy

Five times login failure in thirty minutes may result in account lock.

Web browser, client-end and update tool.

Password login protection to guarantee safety

User-friendly interface when login. Provide the following options: Logout

/shutdown/ restart.

Right authentication when shut down to make sure only those proper

people can turn off DVR

AC90~264V 50+2% Hz （Max 220W）

40W (Exclude HDD)

0℃－＋55℃

10%－90%

86kpa－106kpa

1.5U standard industrial case. 440(W) x410 (D) x70mm(H)

4.5－5.5KG (Exclude HDD)

Desktop/rack installation

1.3.5 Simple 1.5 U Series

System

Parameter

Main Processor

4-ch 8-ch 16-ch

High-performance industrial embedded micro controller

OS System

Resources Interface Input

Devices

Embedded LINUX

Multiplex operations: Multiple-channel record, multiple-channel playback

and network operation simultaneously

User-friendly graphical user interface

Front panel, USB mouse

15

Arabic number, English character, donation and extension Chinese

(optional)

Copy/paste operation, USB mouse right-key shortcut menu, double click

USB mouse to switch screen.

H.264

G.711A

4-CH composite video

input: (NTSC/PAL)

B

BNC (1.0V

P- P,

B75Ω)

1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output.

1-ch VGA output.

1-ch HDMI output.

1-ch matrix output.

Support TV/VGA/HDMI video output at the same time.

PAL (625 line, 50f/s), NTSC (525 line, 60f/s)

Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s

per channel

Compression Standard

Video monitor

Input Method Shortcut Function Video Compressio n Audio Compressio n

Video Input

Video Output

Video Standard

Record Speed

8-CH composite video input: (NTSC/PAL)

B

BNC (1.0V

P- P,

B75Ω)

16-CH composite video input: (NTSC/PAL) BNC

B

P- P,

B75Ω)

(1.0V

Video Partition Monitor Touring

Resolution (PAL/NTSC )

Image Quality Privacy mask Image Information

1/4 windows(Optional) 1/4/8/9 windows 1/4/8/9 /16 windows

Support monitor tour functions such as alarm, motion detection, and

schedule auto control.

PAL/NTSC

Real-time monitor：

D1 704×576/704×480

Playback channel 1/16：

D1 704×576/704×480 ;

HD1 704×288/704×240;

2CIF 352×576/352×480;

CIF 352×288/ 352×240;

QCIF 176×144/176×120

Support dual streams.

Extra stream resolution:

CIF 352×288/ 352×240

QCIF 176×144/176×120

6-level image quality (Adjustable)

Support one privacy mask of user-defined size in full screen.

Support max 4 zones.

Channel information, time information and privacy mask zone.

TV Adjust Adjust TV output zone suitable to anamorphic video.

Channel Lock

Cover secret channel with black screen though system is encoding

normally.

Screen-lock function to prevent unauthorized user seeing secret video. Channel Information

Channel name, recording status, screen lock status, video loss status

and motion detection status are shown on the bottom left of display

screen. Color

Hue, brightness, contrast, saturation and gain setup for each channel. Configuratio n

16

Audio

Hard disk

Record and playback

Backup function

Network Function

Motion Detection and Alarm

Audio Input

Audio Output

Bidirectional Audio

Hard Disk Hard Disk

Occupation

Recording Mode

Recording Length Playback Repeat Way

Record Search Playback Mode Various File Switch Ways

Multichannel Playback Window Zoom Partial Enlargemen t

Backup Mode

Network control

Motion Detection

4-ch 200-2000mv

10KΩ(BNC)

1-ch audio output 200-3000mv 5KΩ(BNC) 1-ch audio output

1-ch audio talk output 200-3000mv 5KΩ(BNC) 1-ch audio output

2 built-in SATA port. Support 2 HDDs.

Audio：PCM 28.8MByte/h

Video：56-900MByte/h

Manual recording, motion detection recording, schedule recording and

alarm recording

Priority: Manual recording> alarm recording>motion detection

recording>schedule recording.

1 to 120 minutes single record duration (Default setup is 60 minutes)

When hard disk is full, system can overwrite previous video file.

Various search engines such as time, type and channel.

Various fast play, slow play speeds, manual frame by frame playback

and reverse play mode.

Can switch to previous or next file or any file in current play list.

Can switch to file on other channel of the same time. (If there is a file)

Support file continuous play, when a file is end system auto plays the

next file in the current channel

There is 1/4/9/16-channel playback mode.

(It may vary due to different series.)

Switch between self-adaptive screen/full screen when playback

When in one-window full-screen playback mode, you can select any zone

to activate partial enlargement function.

HDD backup

Support peripheral USB backup device. (Flash disk, portable disk, USB

burner and etc.)

Support peripheral eSATA backup device.

Support network download and backup

View monitor channel remotely.

DVR configuration through client-end and web browser

Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and

video loss via client.

Support network PTZ lens control

File download backup and playback

Multiple devices share information via corresponding software such as

professional surveillance software (PSS)

Duplex transparent COM

Network alarm input and output

Bidirectional audio.

Zone setup: support 396/330((PAL 22×18, NTSC 22×15)) detection

zones.

Various sensitivity levels.

Alarm can activate record or external alarm or screen message prompt.

8-ch 200-2000mv 10KΩ(BNC)

4-ch 200-2000mv 10KΩ (RCA)

200-3000mv 5KΩ(RCA)

17

Video Loss Alarm can activate external alarm or screen message prompt. External Alarm Manual Alarm Control

Alarm Input

Alarm Output

Alarm Relay

Interface

System Information

User Management

Upgrade

Login, Logout and Shutdown

General Parameter

USB Interface Network connection

RS485

RS232

Hard Disk Information Data Stream Statistics Log statistics

Version

On-line user Display current on-line user

User Manageme nt

Password Authenticati on

Power Power

Consumptio n

Working Temperatur e Working Humidity

Support record activation function or activate external alarm or screen

message in specified period.

Enable or disable alarm input channel

Support analog alarm signal to specific alarm output channel.

4-ch alarm input（You

can set normal open or

normal close type to

select the alarm type. ）

3-channel relay output (The upper limit for rated current is 800mA )

30V DC 2A, 125V AC 1A（activation alarm ）

2 USB 2.0 ports.

RJ45 10M/100M/1000M self-adaptable Ethernet port

PTZ control port

Support various PTZ control protocols.

Ordinary COM (Debug),keyboard connection and transparent serial

port(COM input and output via network )

Display HDD current status

Data stream statistics for each channel (in wave mode)

Backup to 1024 log files.

Support various search engines such as time and type.

Display version information: channel amount, alarm input and output

amount, system version and release date.

Multi-lever user management; various management modes

Integrated management for local user, serial port user and network user.

Configurable user power.

Support user /group and its corresponding rights modification.

No limit to the user or group amount.

Password modification

Administrator can modify other user’s password.

Account lock strategy

Five times login failure in thirty minutes may result in account lock.

Web browser, client-end and update tool.

Password login protection to guarantee safety

User-friendly interface when login. Provide the following options: Logout

/shutdown/ restart.

Right authentication when shut down to make sure only those proper

people can turn off DVR

DC 12V

≤25W (Include adapter; Exclude HDD)

0℃－＋55℃

10%－90%

8-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

16-ch alarm input （You can set normal open or normal close type to select the alarm type. ）

18

Air Pressure

Dimension Weight

Installation Mode

86kpa－106kpa

1.5U standard industrial case. 440(W) x410 (D) x70mm(H)

3.9－4.5KG (Exclude HDD)

Desktop

1.3.6 960H 4HDD 1.5U Series

System

Compression Standard

Parameter

Main Processor

OS System

Resources Interface

Input Devices

Input Method

Shortcut Function

Video Compression

4-ch 8-ch 16-ch

High-performance industrial embedded micro controller

Embedded LINUX

Multiplex operations: Multiple-channel record, multiple-channel playback and network operation simultaneously User-friendly graphical user interface

Front panel, USB mouse, remote control Arabic number, English character, donation and extension Chinese

(optional) Copy/paste operation, USB mouse right-key shortcut menu, double click USB mouse to switch screen.

H.264

Video monitor

Audio Compression

Video Input

Video Output

Video Standard

Record Speed

Video Partition

Monitor Touring

Resolution (PAL/NTSC)

Image Quality

G711A, G711U, PCM

4-CH composite video input: (NTSC/PAL) BNC

B

P- P,

B75Ω)

(1.0V

8-CH composite video input: (NTSC/PAL)

B

BNC (1.0V

P- P,

B75Ω)

16-CH composite video input: (NTSC/PAL) BNC

B

P- P,

B75Ω)

(1.0V

1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output. 1-ch VGA output. 1-ch HDMI output. 1-ch matrix output. Support TV/VGA/HDMI video output at the same time.

PAL (625 line, 50f/s), NTSC (525 line, 60f/s)

Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel

1/4

1/4/8/9 windows 1/4/8/9 /16 windows windows(Optional) Support monitor tour functions such as alarm, motion detection, and schedule auto control. PAL(625TVL, 50f/s)/NTSC(525TVL, 60f/s) Real-time monitor： 960H 960 ×576/960×480

Playback channel 1/16： 960 ×576/960×480 D1 704×576/704×480 、CIF 352×288/ 352×240 、 QCIF 176×144/176×120

Support dual streams. Extra stream resolution: CIF 352×288/ 352×240 QCIF 176×144/176×120 6-level image quality (Adjustable)

19

Privacy mask Support one privacy mask of user-defined size in full screen.

Support max 4 zones.

Image Information

TV Adjust Adjust TV output zone suitable to anamorphic video.

Channel Lock Cover secret channel with black screen though system is encoding

Channel Information

Color Configuration

Audio

Audio Input

Audio Output

Channel information, time information and privacy mask zone.

normally. Screen-lock function to prevent unauthorized user seeing secret video. Channel name, recording status, screen lock status, video loss status and motion detection status are shown on the bottom left of display screen. Hue, brightness, contrast, saturation and gain setup for each channel.

4-ch 200-2000mv 10KΩ(BNC)

1-ch audio output 200-3000mv 5KΩ(BNC)

4-ch 200-2000mv 10KΩ(BNC)

4-ch 2002000mv 10KΩ (BNC)

Hard disk

Record and playback

Bidirectional Audio

Hard Disk Hard Disk

Occupation

Recording Mode

Recording Length Playback Repeat Way

Record Search Various search engines such as time, type and channel.

Playback Mode Various File Switch Ways

Multi-channel Playback

1-ch audio talk input 200-3000mv 10KΩ（BNC） 1-ch audio talk output 200-3000mv 5KΩ(BNC) 4 built-in SATA port. Support 4 HDDs.

Audio：PCM 28.8MByte/h Video：56-900MByte/h Manual recording, motion detection recording, schedule recording and

alarm recording Priority: Manual recording> alarm recording>motion detection recording>schedule recording. 1 to 120 minutes single record duration (Default setup is 60 minutes)

When hard disk is full, system can overwrite previous video file.

Various fast play, slow play speeds, manual frame by frame playback and reverse play mode. Can switch to previous or next file or any file in current play list. Can switch to file on other channel of the same time. (If there is a file) Support file continuous play, when a file is end system auto plays the next file in the current channel There is 1/4/9/16-channel playback mode. (It may vary due to different series.)

Backup function

Network Function

Window Zoom Switch between self-adaptive screen/full screen when playback

Partial Enlargement

Backup Mode

Network control

When in one-window full-screen playback mode, you can select any zone to activate partial enlargement function. HDD backup Support peripheral USB backup device. (Flash disk, portable disk, USB burner and etc.) Support peripheral eSATA backup device. Support network download and backup View monitor channel remotely.

DVR configuration through client-end and web browser Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and video loss via client.

20

Support network PTZ lens control File download backup and playback Multiple devices share information via corresponding software such as professional surveillance software (PSS) Duplex transparent COM Network alarm input and output Bidirectional audio.

Support dual network cards mode such as multiple-address mode, fault-tolerance, and load balance.

Motion Detection and Alarm

Interface

System Information

User Management

Upgrade Login, Logout and Shutdown

Motion Detection

Video Loss Alarm can activate external alarm or screen message prompt. External Alarm Support record activation function or activate external alarm or screen

Manual Alarm Control

Alarm Input

Alarm Output

Alarm Relay USB Interface 4 USB 2.0 ports. Network

connection

RS485

RS232

Hard Disk Information Data Stream Statistics

Log statistics

Version

On-line user Display current on-line user

User Management

Password Authentication

Zone setup: support 396/330((PAL 22×18, NTSC 22×15)) detection zones. Various sensitivity levels. Alarm can activate record or external alarm or screen message prompt.

message in specified period. Enable or disable alarm input channel Support analog alarm signal to specific alarm output channel. 4-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

6-channel relay output, including one controllable DC +12V output port.

30V DC 2A，125V AC 1A（activation alarm ）

2 RJ45 10M/100M/1000M self-adaptable Ethernet port

PTZ control port Support various PTZ control protocols. Ordinary COM (Debug),keyboard connection and transparent serial port(COM input and output via network ) Display HDD current status

Data stream statistics for each channel (in wave mode)

Backup to 1024 log files. Support various search engines such as time and type. Display version information: channel amount, alarm input and output amount, system version and release date.

Multi-lever user management; various management modes Integrated management for local user, serial port user and network user. Configurable user power. Support user /group and its corresponding rights modification. No limit to the user or group amount. Password modification Administrator can modify other user’s password. Account lock strategy Five times login failure in thirty minutes may result in account lock. Web browser, client-end and update tool.

Password login protection to guarantee safety

8-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

16-ch alarm input （You can set normal open or normal close type to select the alarm type. ）

21

User-friendly interface when login. Provide the following options: Logout /shutdown/ restart. Right authentication when shut down to make sure only those proper people can turn off DVR

General Parameter

Power Power

Consumption

Working

AC90~264V 50+2% Hz （Max 220W）

25W (Exclude HDD)

0℃－＋55℃

Temperature Working

10%－90%

Humidity Air Pressure

Dimension

86kpa－106kpa

1.5U standard industrial case. 440(W) x410 (D) x70mm(H)

Weight 4.5-5.5KG(Exclude HDD) Installation

Desktop/rack installation

Mode

1.3.7 960H 2HDD 1.5U Series

System

Compression Standard

Parameter

Main Processor

OS System

Resources Interface

Input Devices

Input Method

Shortcut Function

Video Compression

4-ch 8-ch 16-ch

High-performance industrial embedded micro controller

Embedded LINUX

Multiplex operations: Multiple-channel record, multiple-channel playback and network operation simultaneously User-friendly graphical user interface

Front panel, USB mouse, remote control Arabic number, English character, donation and extension Chinese

(optional) Copy/paste operation, USB mouse right-key shortcut menu, double click USB mouse to switch screen.

H.264

Video monitor

Audio Compression

Video Input

Video Output

Video Standard

Record Speed

Video Partition

Monitor Touring

Resolution (PAL/NTSC)

G711A, G711U, PCM

4-CH composite video input: (NTSC/PAL) BNC

B

P- P,

B75Ω)

(1.0V

8-CH composite video

input: (NTSC/PAL)

B

BNC (1.0V

P- P,

B75Ω)

16-CH composite video input: (NTSC/PAL) BNC

B

P- P,

B75Ω)

(1.0V

1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output. 1-ch VGA output. 1-ch HDMI output. 1-ch matrix output. Support TV/VGA/HDMI video output at the same time.

PAL (625 line, 50f/s), NTSC (525 line, 60f/s)

Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel

1/4

1/4/8/9 windows 1/4/8/9 /16 windows windows(Optional) Support monitor tour functions such as alarm, motion detection, and schedule auto control. PAL(625TVL, 50f/s)/NTSC(525TVL, 60f/s) Real-time monitor： 960H 960 ×576/960×480

22

Playback channel 1/16： 960 ×576/960×480 D1 704×576/704×480, CIF 352×288/ 352×240, QCIF 176×144/176×120

Support dual streams. Extra stream resolution: CIF 352×288/ 352×240 QCIF 176×144/176×120

Image Quality Privacy mask Support one privacy mask of user-defined size in full screen.

Image Information

TV Adjust Adjust TV output zone suitable to anamorphic video.

Channel Lock Cover secret channel with black screen though system is encoding

Channel Information

Color Configuration

Audio

Audio Input

Audio Output

6-level image quality (Adjustable)

Support max 4 zones.

Channel information, time information and privacy mask zone.

normally. Screen-lock function to prevent unauthorized user seeing secret video. Channel name, recording status, screen lock status, video loss status and motion detection status are shown on the bottom left of display screen. Hue, brightness, contrast, saturation and gain setup for each channel.

4-ch 200-2000mv 10KΩ(RCA)

1-ch audio output 200-3000mv 5KΩ(RCA)

8-ch 200-2000mv 10KΩ(RCA)

4-ch 2002000mv 10KΩ (RCA

Hard disk

Record and playback

Bidirectional Audio

Hard Disk Hard Disk

Occupation

Recording Mode

Recording Length Playback Repeat Way

Record Search Various search engines such as time, type and channel.

Playback Mode Various File Switch Ways

Multi-channel Playback

1-ch audio talk input 200-3000mv 10KΩ（RCA） 1-ch audio talk output 200-3000mv 5KΩ(RCA) 2 built-in SATA port. Support 2 HDDs.

Audio：PCM 28.8MByte/h Video：56-900MByte/h Manual recording, motion detection recording, schedule recording and

alarm recording Priority: Manual recording> alarm recording>motion detection recording>schedule recording. 1 to 120 minutes single record duration (Default setup is 60 minutes)

When hard disk is full, system can overwrite previous video file.

Various fast play, slow play speeds, manual frame by frame playback and reverse play mode. Can switch to previous or next file or any file in current play list. Can switch to file on other channel of the same time. (If there is a file) Support file continuous play, when a file is end system auto plays the next file in the current channel There is 1/4/9/16-channel playback mode. (It may vary due to different series.)

Window Zoom Switch between self-adaptive screen/full screen when playback

Partial Enlargement

Backup Backup Mode HDD backup

When in one-window full-screen playback mode, you can select any zone to activate partial enlargement function.

23

function

Network Function

Motion Detection and Alarm

Interface

System Information

User Management

Network control

Motion Detection

Video Loss Alarm can activate external alarm or screen message prompt. External Alarm Support record activation function or activate external alarm or screen

Manual Alarm Control

Alarm Input

Alarm Output

Alarm Relay USB Interface 2 USB 2.0 ports. Network

connection

RS485

RS232

Hard Disk Information Data Stream Statistics

Log statistics

Version

On-line user Display current on-line user

User Management

Support peripheral USB backup device. (Flash disk, portable disk, USB burner and etc.) Support peripheral eSATA backup device. Support network download and backup View monitor channel remotely.

DVR configuration through client-end and web browser Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and video loss via client. Support network PTZ lens control File download backup and playback Multiple devices share information via corresponding software such as professional surveillance software (PSS) Duplex transparent COM Network alarm input and output Bidirectional audio.

Support dual network cards mode such as multiple-address mode, fault-tolerance, and load balance. Zone setup: support 396/330((PAL 22×18, NTSC 22×15)) detection zones. Various sensitivity levels. Alarm can activate record or external alarm or screen message prompt.

message in specified period. Enable or disable alarm input channel Support analog alarm signal to specific alarm output channel. 4-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

3-channel relay output, including one controllable DC +12V output port.

30V DC 2A，125V AC 1A（activation alarm ）

1 RJ45 10M/100M/1000M self-adaptable Ethernet port

PTZ control port Support various PTZ control protocols. Ordinary COM (Debug),keyboard connection and transparent serial port(COM input and output via network ) Display HDD current status

Data stream statistics for each channel (in wave mode)

Backup to 1024 log files. Support various search engines such as time and type. Display version information: channel amount, alarm input and output amount, system version and release date.

Multi-lever user management; various management modes Integrated management for local user, serial port user and network user. Configurable user power.

8-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

16-ch alarm input （You can set normal open or normal close type to select the alarm type. ）

24

Support user /group and its corresponding rights modification. No limit to the user or group amount. Password modification

Password Authentication

Administrator can modify other user’s password. Account lock strategy Five times login failure in thirty minutes may result in account lock.

Upgrade

Web browser, client-end and update tool. Password login protection to guarantee safety

User-friendly interface when login. Provide the following options:

Login, Logout and Shutdown

Logout /shutdown/ restart. Right authentication when shut down to make sure only those proper people can turn off DVR

General Parameter

Power Power

Consumption

Working

DC 12V

≤25W (With adapter, exclude HDD)

0℃－＋55℃

Temperature Working

10%－90%

Humidity Air Pressure

Dimension

86kpa－106kpa

1.5U standard industrial case. 440(W) x410 (D) x70mm(H)

Weight 4.5-5.5KG(Exclude HDD) Installation

Desktop/rack installation

Mode

1.3.8 General 2U Series

System

Parameter

Main Processor

4-ch 8-ch 16-ch 24-ch 32-ch

High-performance industrial embedded micro controller

Compression Standard

Video monitor

OS System

Resources Interface

Input Devices

Input Method

Shortcut Function

Video Compression

Audio Compression

Video Input

Embedded LINUX

Multiplex operations: Multiple-channel record, multiple-channel playback and network operation simultaneously User-friendly graphical user interface

Front panel, USB mouse Arabic number, English character, donation and extension Chinese

(optional) Copy/paste operation, USB mouse right-key shortcut menu, double click USB mouse to switch screen.

H.264

G.711A

4-CH composite video input: (NTSC/PAL ) BNC

B

(1.0V

P- P,

B75Ω)

8-CH composite video input: (NTSC/PAL ) BNC

B

(1.0V

P- P,

B75Ω)

16-CH composite video input: (NTSC/PAL ) BNC

B

(1.0V

P- P,

B75Ω)

24H composite video input: (NTSC/PAL ) BNC

B

(1.0V

P- P,

B75Ω)

32H composite video input: (NTSC/PAL ) BNC

B

(1.0V

P- P,

B75Ω)

25

1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output. 1-ch VGA output.

Video Output

Video Standard

Record Speed

1-ch HDMI output. 1-ch matrix output. Support TV/VGA/HDMI video output at the same time.

PAL (625 line, 50f/s), NTSC (525 line, 60f/s)

Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel

1/4

Video Partition

Monitor Touring

Resolution (PAL/NTSC)

Image Quality Privacy mask Support one privacy mask of user-defined size in full screen.

Image Information

TV Adjust Adjust TV output zone suitable to anamorphic video.

windows(O ptional) Support monitor tour functions such as alarm, motion detection, and schedule auto control. PAL/NTSC Real-time monitor： D1 704×576/704×480

Playback channel 1/16： D1 704×576/704×480 CIF 352×288/ 352×240 QCIF 176×144/176×120 Support dual streams.

Extra stream resolution: CIF 352×288/ 352×240 QCIF 176×144/176×120 6-level image quality (Adjustable)

Support max 4 zones.

Channel information, time information and privacy mask zone.

1/4/8/9 windows

1/4/8/9 /16 windows

1/4/8/9 /16/25 windows

1/4/8/9 /16/25/36 windows

Audio

Hard disk

Record and

Channel Lock Cover secret channel with black screen though system is encoding

normally. Screen-lock function to prevent unauthorized user seeing secret video.

Channel Information

Color Configuration

Audio Input

Audio Output

Bidirectional Audio

Hard Disk Hard Disk

Occupation

Recording Mode

Channel name, recording status, screen lock status, video loss status and motion detection status are shown on the bottom left of display screen. Hue, brightness, contrast, saturation and gain setup for each channel.

4-channel 2002000mV 10KΩ （BNC）

1-channel audio output 200-3000mv 5KΩ（BNC） 1-ch audio talk input 200-3000mv 10KΩ（BNC）

1-ch audio talk output 200-3000mv 5KΩ(BNC) 8 built-in SATA port. Support 8 HDDs.

Audio：PCM 28.8MByte/h Video：56-900MByte/h Manual recording, motion detection recording, schedule recording and

alarm recording Priority: Manual recording> alarm recording>motion detection recording>schedule recording.

8-channel 2002000mV 10KΩ （BNC）

16-channel 2002000mV 10KΩ （BNC）

26

playback

Backup function

Network Function

Motion Detection and Alarm

Recording Length Playback Repeat Way

Record Search Various search engines such as time, type and channel.

Playback Mode Various File Switch Ways

Multi-channel Playback

Window Zoom Switch between self-adaptive screen/full screen when playback

Partial Enlargement

Backup Mode

Network control

Motion Detection

Video Loss Alarm can activate external alarm or screen message prompt. External Alarm Support record activation function or activate external alarm or screen

Manual Alarm Control

Alarm Input

1 to 120 minutes single record duration (Default setup is 60 minutes)

When hard disk is full, system can overwrite previous video file.

Various fast play, slow play speeds, manual frame by frame playback and reverse play mode. Can switch to previous or next file or any file in current play list. Can switch to file on other channel of the same time. (If there is a file) Support file continuous play, when a file is end system auto plays the next file in the current channel There is 1/4/9/16-channel playback mode. (It may vary due to different series.)

When in one-window full-screen playback mode, you can select any zone to activate partial enlargement function. HDD backup Support peripheral USB backup device. (Flash disk, portable disk, USB burner and etc.) Support peripheral eSATA backup device. Support network download and backup View monitor channel remotely.

DVR configuration through client-end and web browser Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and video loss via client. Support network PTZ lens control File download backup and playback Multiple devices share information via corresponding software such as professional surveillance software (PSS) Duplex transparent COM Network alarm input and output Bidirectional audio. Zone setup: support 396/330((PAL 22×18, NTSC 22×15)) detection zones. Various sensitivity levels. Alarm can activate record or external alarm or screen message prompt.

message in specified period. Enable or disable alarm input channel Support analog alarm signal to specific alarm output channel. 4-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

8-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

16-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

27

6-channel relay output,

Alarm Output

Alarm Relay

Interface

System Information

User Management

Upgrade

Login, Logout and Shutdown

General Parameter

USB Interface 3 USB 2.0 ports. Network connection

RS485

RS232

Hard Disk Information Data Stream Statistics

Log statistics

Version

On-line user Display current on-line user

User Management

Password Authentication

Power Power

Consumption

Working Temperature Working Humidity

Air Pressure Dimension Weight 6.5-7.5KG(Exclude HDD)

Installation Mode

including one controllable DC +12V output port.

30V DC 2A，125V AC 1A（activation alarm ）

RJ45 10M/100M/1000M self-adaptable Ethernet port

PTZ control port Support various PTZ control protocols. Ordinary COM (Debug),keyboard connection and transparent serial port(COM input and output via network ) Display HDD current status

Data stream statistics for each channel (in wave mode)

Backup to 1024 log files. Support various search engines such as time and type. Display version information: channel amount, alarm input and output amount, system version and release date.

Multi-lever user management; various management modes Integrated management for local user, serial port user and network user. Configurable user power. Support user /group and its corresponding rights modification. No limit to the user or group amount. Password modification Administrator can modify other user’s password. Account lock strategy Five times login failure in thirty minutes may result in account lock. Web browser, client-end and update tool.

Password login protection to guarantee safety

User-friendly interface when login. Provide the following options: Logout /shutdown/ restart. Right authentication when shut down to make sure only those proper people can turn off DVR

AC90~264V 50+2% Hz （Max 220W）

25W (Exclude HDD)

0℃－＋55℃

10%－90%

86kpa－106kpa 2U standard industrial case. 440(W) x460 (D) x89mm(H)

Desktop/rack installation

1.3.9 HD-SDI 1080P 2U Series

6-channel relay output, including one controllable DC +12V output port.

5-channel relay output.， including one controllable DC +12V output port.

5-channel relay output， including one controllable DC +12V output port.

28

System

Parameter

Main Processor

4-ch 8-ch 16-ch

High-performance industrial embedded micro controller

Compression Standard

Video monitor

OS System

Resources Interface Input

Devices Input Method Shortcut Function Video Compressio n Audio Compressio n

Video Input

Video Output

Video Standard

Record Speed

Video Partition Monitor Touring

Embedded LINUX

Multiplex operations: Multiple-channel record, multiple-channel playback and network operation simultaneously User-friendly graphical user interface

Front panel, USB mouse

Arabic number, English character, donation and extension Chinese (optional) Copy/paste operation, USB mouse right-key shortcut menu, double click USB mouse to switch screen.

H.264

G.711A

4-CH HD-SDI video input: (NTSC/PAL) BNC (0.8VP-P，75Ω)

1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output. 1-ch VGA output. 1-ch HDMI output. Support TV/VGA/HDMI video output at the same time.

720P/25, 720P/30, 720P/50, 720P/60, 1080P/25, 1080P/30, 1080i/50、 1080i/60 Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel

1/4 windows 1/4/8/9 windows 1/4/8/9/16 windows

Support monitor tour functions such as alarm, motion detection, and schedule auto control.

8-CH HD-SDI video

input: (NTSC/PAL)

BNC (0.8VP-P，75Ω)

Real-time Mode: PAL

1f/s to 25f/s per

channel and NTSC

1f/s to 30f/s per

channel

16-CH HD-SDI video input: (NTSC/PAL) BNC (0.8VP-P，75Ω)

In non real-time mode: when the resolution of the main stream is 1080P, the 1/5/9/13/channel max supports 25f/s or 30f/s and the resolution of the rest channels support 12f/s or 15f/s.

Resolution (PAL/NTSC )

Image Quality Privacy mask

Real time 1080P(1920*1080) Recording playback channel1/4: 1080P 1920*1080 720P 1280*720 D1 704×576/704×480 ; CIF 352×288/ 352×240; QCIF 176×144/176×120 Dual-stream supported: Extra stream resolution: D1 704×576/704×480 ;CIF 352×288/ 352×240 ; QCIF 176×144/176×120

6-level image quality (Adjustable)

Support one privacy mask of user-defined size in full screen. Support max 4 zones.

29

Image Information

TV Adjust Adjust TV output zone suitable to anamorphic video.

Channel information, time information and privacy mask zone.

Audio

Hard disk

Record and playback

Backup function

Network Function

Channel Lock

Channel Information

Audio Input

Audio Output

Bidirectional Audio

Hard Disk Hard Disk

Occupation

Recording Mode

Recording Length Playback Repeat Way

Record Search Playback Mode Various File Switch Ways

Multichannel Playback Window Zoom Partial Enlargemen t

Backup Mode

Network control

Cover secret channel with black screen though system is encoding normally. Screen-lock function to prevent unauthorized user seeing secret video. Channel name, recording status, screen lock status, video loss status and motion detection status are shown on the bottom left of display screen. 4-ch 200-2000mv 10KΩ(BNC) 1-ch audio output 200-3000mv 5KΩ(BNC)

1-ch audio talk input 200-3000mv 10KΩ(BNC) 1-ch audio talk output 200-3000mv 5KΩ(BNC) 8 built-in SATA port. Support 8 HDDs.

Audio：PCM 28.8MByte/h Video：56-3600MByte/h Manual recording, motion detection recording, schedule recording and

alarm recording Priority: Manual recording> alarm recording>motion detection recording>schedule recording. 1 to 120 minutes single record duration (Default setup is 60 minutes)

When hard disk is full, system can overwrite previous video file.

Various search engines such as time, type and channel.

Various fast play, slow play speeds, manual frame by frame playback and reverse play mode. Can switch to previous or next file or any file in current play list. Can switch to file on other channel of the same time. (If there is a file) Support file continuous play, when a file is end system auto plays the next file in the current channel There is 1/4-channel playback mode.

Switch between self-adaptive screen/full screen when playback

When in one-window full-screen playback mode, you can select any zone to activate partial enlargement function.

HDD backup Support peripheral USB backup device. (Flash disk, portable disk, USB burner and etc.) Support peripheral eSATA backup device. Support network download and backup View monitor channel remotely.

DVR configuration through client-end and web browser Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and video loss via client. Support network PTZ lens control File download backup and playback

8-ch 200-2000mv

10KΩ(BNC)

There is 1/4-channel

playback mode.

16-ch 200-2000mv 10KΩ(BNC)

There is 1/4-channel playback mode.

30

Multiple devices share information via corresponding software such as professional surveillance software (PSS) Duplex transparent COM Network alarm input and output Bidirectional audio.

Motion Detection and Alarm

Interface

System Information

User Management

Upgrade

Login, Logout and Shutdown

Motion Detection

Video Loss Alarm can activate external alarm or screen message prompt. External Alarm Manual Alarm Control

Alarm Input

Alarm Output

Alarm Relay USB

Interface Network connection

RS485

RS232

Hard Disk Information Data Stream Statistics Log statistics

Version

On-line user Display current on-line user

User Manageme nt

Password Authenticati on

Power

Zone setup: support 396/330((PAL 22×18, NTSC 22×15)) detection zones. Various sensitivity levels. Alarm can activate record or external alarm or screen message prompt.

Support record activation function or activate external alarm or screen message in specified period. Enable or disable alarm input channel Support analog alarm signal to specific alarm output channel.

4-ch alarm input（You can set normal open or normal close type to select the alarm type. ） 6-channel relay output, including one controllable DC +12V output port.

30V DC 2A，125V AC 1A（activation alarm ） 4 USB 2.0 ports.

RJ45 10M/100M/1000M self-adaptable Ethernet port

Two RS485 ports. PTZ control port Support various PTZ control protocols. Ordinary COM (Debug),keyboard connection and transparent serial port(COM input and output via network ) Display HDD current status

Data stream statistics for each channel (in wave mode)

Backup to 1024 log files. Support various search engines such as time and type. Display version information: channel amount, alarm input and output amount, system version and release date.

Multi-lever user management; various management modes Integrated management for local user, serial port user and network user. Configurable user power. Support user /group and its corresponding rights modification. No limit to the user or group amount. Password modification Administrator can modify other user’s password. Account lock strategy Five times login failure in thirty minutes may result in account lock. Web browser, client-end and update tool.

Password login protection to guarantee safety

User-friendly interface when login. Provide the following options: Logout /shutdown/ restart. Right authentication when shut down to make sure only those proper people can turn off DVR

AC90~264V 50+2% Hz （Max 220W）

8-ch alarm input（You

can set normal open

or normal close type to

select the alarm

type. ）

16-ch alarm input （You can set normal open or normal close type to select the alarm type. ）

31

General Parameter

Power Consumptio n Working Temperatur e Working Humidity Air Pressure

Dimension Weight

Installation Mode

50W (Exclude HDD)

0℃－＋55℃

10%－90%

86kpa－106kpa

2U standard industrial case. 440(W) x460 (D) x89mm(H)

7.0－8.0KG (Exclude HDD) Desktop/rack installation

1.3.10 960H 2U Series

System

Parameter

Main Processor

4-ch 8-ch 16-ch

High-performance industrial embedded micro controller

Compression Standard

Video monitor

OS System

Resources Interface

Input Devices

Input Method

Shortcut Function

Video Compression

Audio Compression

Video Input

Video Output

Video Standard

Record Speed

Embedded LINUX

Multiplex operations: Multiple-channel record, multiple-channel playback and network operation simultaneously User-friendly graphical user interface

Front panel, USB mouse Arabic number, English character, donation and extension Chinese

(optional) Copy/paste operation, USB mouse right-key shortcut menu, double click USB mouse to switch screen.

H.264

G.711A

4-CH composite video input: (NTSC/PAL) BNC

B

P- P,

B75Ω)

(1.0V

8-CH composite video

input: (NTSC/PAL)

B

BNC (1.0V

P- P,

B75Ω)

16-CH composite video input: (NTSC/PAL) BNC

B

P- P,

B75Ω)

(1.0V

1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output. 1-ch VGA output. 1-ch HDMI output. 1-ch matrix output. Support TV/VGA/HDMI video output at the same time.

PAL (625 line, 50f/s), NTSC (525 line, 60f/s)

Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s per channel

Video Partition

Monitor Touring

Resolution (PAL/NTSC)

1/4

1/4/8/9 windows 1/4/8/9 /16 windows windows(Optional) Support monitor tour functions such as alarm, motion detection, and schedule auto control. PAL(625TVL, 50f/s)/NTSC(525TVL, 60f/s) Real-time monitor： 960H 960 ×576/960×480

32

Playback channel 1/16： 960 ×576/960×480 D1 704×576/704×480 、CIF 352×288/ 352×240 、 QCIF 176×144/176×120

Support dual streams. Extra stream resolution: CIF 352×288/ 352×240 QCIF 176×144/176×120

Image Quality Privacy mask Support one privacy mask of user-defined size in full screen.

Image Information

TV Adjust Adjust TV output zone suitable to anamorphic video.

Channel Lock Cover secret channel with black screen though system is encoding

Channel Information

Color Configuration

Audio

Audio Input

Audio Output

6-level image quality (Adjustable)

Support max 4 zones.

Channel information, time information and privacy mask zone.

normally. Screen-lock function to prevent unauthorized user seeing secret video. Channel name, recording status, screen lock status, video loss status and motion detection status are shown on the bottom left of display screen. Hue, brightness, contrast, saturation and gain setup for each channel.

4-ch 200-2000mv 10KΩ(BNC)

1-ch audio output 200-3000mv 5KΩ(BNC)

8-ch 200-2000mv 10KΩ(BNC)

16-ch 2002000mv 10KΩ (BNC)

Hard disk

Record and playback

Bidirectional Audio

Hard Disk Hard Disk

Occupation

Recording Mode

Recording Length Playback Repeat Way

Record Search Various search engines such as time, type and channel.

Playback Mode Various File Switch Ways

Multi-channel Playback

1-ch audio talk input 200-3000mv 10KΩ（BNC） 1-ch audio talk output 200-3000mv 5KΩ(BNC) 8 built-in SATA port. Support 8 HDDs.

Audio：PCM 28.8MByte/h Video：56-900MByte/h Manual recording, motion detection recording, schedule recording and

alarm recording Priority: Manual recording> alarm recording>motion detection recording>schedule recording. 1 to 120 minutes single record duration (Default setup is 60 minutes)

When hard disk is full, system can overwrite previous video file.

Various fast play, slow play speeds, manual frame by frame playback and reverse play mode. Can switch to previous or next file or any file in current play list. Can switch to file on other channel of the same time. (If there is a file) Support file continuous play, when a file is end system auto plays the next file in the current channel There is 1/4/9/16-channel playback mode. (It may vary due to different series.)

Window Zoom Switch between self-adaptive screen/full screen when playback

Partial Enlargement

Backup Backup Mode HDD backup

When in one-window full-screen playback mode, you can select any zone to activate partial enlargement function.

33

function

Network Function

Motion Detection and Alarm

Interface

System Information

User Management

Network control

Motion Detection

Video Loss Alarm can activate external alarm or screen message prompt. External Alarm Support record activation function or activate external alarm or screen

Manual Alarm Control

Alarm Input

Alarm Output

Alarm Relay USB Interface 3 USB 2.0 ports. Network

connection

RS485

RS232

Hard Disk Information Data Stream Statistics

Log statistics

Version

On-line user Display current on-line user

User Management

Support peripheral USB backup device. (Flash disk, portable disk, USB burner and etc.) Support peripheral eSATA backup device. Support network download and backup View monitor channel remotely.

DVR configuration through client-end and web browser Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and video loss via client. Support network PTZ lens control File download backup and playback Multiple devices share information via corresponding software such as professional surveillance software (PSS) Duplex transparent COM Network alarm input and output Bidirectional audio. Zone setup: support 396/330((PAL 22×18, NTSC 22×15)) detection zones. Various sensitivity levels. Alarm can activate record or external alarm or screen message prompt.

message in specified period. Enable or disable alarm input channel Support analog alarm signal to specific alarm output channel. 4-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

6-channel relay output, including one controllable DC +12V output port.

30V DC 2A，125V AC 1A（activation alarm ）

2 RJ45 10M/100M/1000M self-adaptable Ethernet port

PTZ control port Support various PTZ control protocols. Ordinary COM (Debug),keyboard connection and transparent serial port(COM input and output via network ) Display HDD current status

Data stream statistics for each channel (in wave mode)

Backup to 1024 log files. Support various search engines such as time and type. Display version information: channel amount, alarm input and output amount, system version and release date.

Multi-lever user management; various management modes Integrated management for local user, serial port user and network user. Configurable user power. Support user /group and its corresponding rights modification. No limit to the user or group amount.

8-ch alarm input（You can set normal open or normal close type to select the alarm type. ）

16-ch alarm input （You can set normal open or normal close type to select the alarm type. ）

34

Password modification

Password Authentication

Upgrade

Login, Logout and Shutdown

General Parameter

Power Power

Consumption

Working Temperature Working Humidity

Air Pressure Dimension Weight 6.5-7.5KG(Exclude HDD)

Installation Mode

Administrator can modify other user’s password. Account lock strategy Five times login failure in thirty minutes may result in account lock. Web browser, client-end and update tool.

Password login protection to guarantee safety

User-friendly interface when login. Provide the following options: Logout /shutdown/ restart. Right authentication when shut down to make sure only those proper people can turn off DVR

AC90~264V 50+2% Hz （Max 220W）

25W (Exclude HDD)

0℃－＋55℃

10%－90%

86kpa－106kpa 2U standard industrial case. 440(W) x460 (D) x89mm(H)

Desktop/rack installation

35

2 Overview and Controls

This section provides information about front panel and rear panel. When you install this series

DVR for the first time, please refer to this part first.

2.1 Front Panel

2.1.1 1U series

The front panel is shown as in Figure 2-1.

Figure 2-1

Please refer to the following sheet for front panel button information.

Name Icon Function

Power button

Shift Shift

Up/1 Down/4

Left/2 Right/3

ESC ESC

S、T

W X

Power button, press this button for three seconds to boot up or shut down DVR.

In textbox, click this button to switch between numeral, English(Small/Capitalized),donation and etc.

Activate current control, modify setup, and then move up and down.

Increase/decrease numeral.

Assistant function such as PTZ menu.

In text mode, input number 1/4 (English character G/H/I)

Shift current activated control,

When playback, click these buttons to control playback bar. In text mode, input number 2(English character A/B/C) /3(English character D/E/F)

Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Confirm current operation

Enter ENTER

Record REC

Slow play/8

Assistant Fn

Go to default button

Go to menu

Manually stop/start recording, working with direction keys or numeral keys to select the recording channel.

Multiple slow play speeds or normal playback. In text mode, input number 8 (English character T/U/V).

One-window monitor mode, click this button to display assistant function: PTZ control and image color.

36

Backspace function: in numeral control or text control, press it for 1.5seconds to delete the previous character before the cursor.

In motion detection setup, working with Fn and direction keys to realize setup.

In text mode, click it to switch between numeral, English character(small/capitalized) and etc.

Realize other special functions.

Fast play/7

Play previous/0

Reverse/Pau se/6

Play Next/9

Play/Pause /5

USB port

Network abnormal indication light



W

f

Net

_

f

Various fast speeds and normal playback. In text mode, input number 7 (English character P/Q/R/S).

In playback mode, playback the previous video In text mode, input number 0.

In normal playback or pause mode, click this button to reverse playback In reverse playback, click this button to pause playback. In text mode, input number 6 (English character M/N/O)

In playback mode, playback the next video In menu setup, go to down ward of the dropdown list. In text mode, input number 9 (English character W/X/Y/Z)

In normal playback click this button to pause playback In pause mode, click this button to resume playback. In text mode, input number 5(English character J/K/L).

To connect USB storage device, USB mouse.

Network error occurs or there is no network connection, the light becomes red to alert you.

HDD abnormal indication light

Record light 1-16

IR Receiver IR

Alarm indication light

HDD

Alarm

HDD error occurs or HDD capacity is below specified threshold value, the light becomes red to alert you.

System is recording or not. It becomes on when system is recording.

It is to receive the signal from the remote control.

Here you can view there is external alarm input or not. The light becomes on when there is an external alarm. The light become off when the external alarm stops.

2.1.2 1.5U series

The front panel is shown as below. See Figure 2-2.

37

Figure 2-2

Please refer to the following sheet for front panel button information.

Name Icon Function

Power button

USB port

Up/ Down

S、T

Power button, press this button for three seconds to boot up or shut down DVR.

To connect USB storage device, USB mouse.

Activate current control, modify setup, and then move up and down.

Increase/decrease numeral.

Assistant function such as PTZ menu.

Input number 1/4.

Left/ Right

Enter ENTER

Reverse/Pau se

Play/Pause

Slow play

Fast play

Play previous

W X

W

f



I_

Shift current activated control, and then move left and right.

When playback, click these buttons to control playback bar.

Input number 2/3.

Confirm current operation

Go to default button

Go to menu

In normal playback or pause mode, click this button to reverse Playback Input number 5. In normal playback click this button to pause playback In pause mode, click this button to resume playback. Input number 6.

Multiple slow play speeds or normal playback. Input number 8.

Various fast speeds and normal playback. Input number 7.

In playback mode, playback the previous video. Input number 9.

Play Next

ESC ESC

Assistant Fn

`I

In playback mode, playback the next video Input number 0.

Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

One-window monitor mode, click this button to display assistant function: PTZ control and image color.

38

Backspace function: in numeral control or text control, press it for 1.5 seconds to delete the previous character before the cursor. In motion detection setup, working with Fn and direction keys to realize setup. In text mode, click it to switch between numeral, English character(small/capitalized) and etc. In HDD management interface, you can click it to switch HDD record information and other information (Menu prompt) Realize other special functions.

Shift

Record REC

Remote control indication light



ACT Remote control indication light

In textbox, click this button to switch between numeral, English(Small/Capitalized),donation and etc.

Manually stop/start recording, working with direction keys or numeral keys to select the recording channel.

Status indication light

Power indication light

Record light 1-16

IR Receiver IR

CD-ROM button

Status

Power Power indication light

If there is Fn indication light, current status indication light is null.

System is recording or not. It becomes on when system is recording.

It is to receive the signal from the remote control.

Pop-up or insert the CD.

2.1.3 2U series

The Front panel is shown as follows. See Figure 2-3.

Figure 2-3

Please refer to the following sheet for front panel button information.

Name Icon Function

Power button

Number and Character

0

1,. In text mode, input number 1 and denotation.

Power button, press this button for three seconds to boot up or shut down DVR.

In text mode, input number 0. It is the space button.

39

Shift

Up Down

2ABC

3DEF

4GHI

5JKL In text mode, input number 5(English character J/K/L).

6MNO

7PQRS In text mode, input number 7 (English character P/Q/R/S).

8TUV In text mode, input number 8 (English character T/U/V).

9WXYZ

-/--



S、T

In text mode, input number 2(English character A/B/C)

In text mode, input number 3(English character D/E/F)

In text mode, input number 4 (English character G/H/I)

In text mode, input number 6 (English character M/N/O)

In text mode, input number 9 (English character W/X/Y/Z)

If you want to input a number more than 10, please click this button and then input.

In textbox, click this button to switch between numeral, English(Small/Capitalized),donation and etc.

Activate current control, modify setup, and then move up and down.

Increase/decrease numeral.

Assistant function such as PTZ menu.

Left Right

ESC ESC

Enter ENTER

Record REC

Window switch Mult Click it to switch one-window/multiple-window.

Slow play/8

Assistant Fn

W X

Shift current activated control,

When playback, click these buttons to control playback bar.

Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Confirm current operation

Go to default button

Go to menu

Manually stop/start recording, working with direction keys or numeral keys to select the recording channel.

Multiple slow play speeds or normal playback.

One-window monitor mode, click this button to display assistant function: PTZ control and image color.

Backspace function: in numeral control or text control, press it for 1.5seconds to delete the previous character before the cursor.

In motion detection setup, working with Fn and direction keys to realize setup.

In text mode, click it to switch between numeral, English character(small/capitalized) and etc.

40

Realize other special functions.

Fast play

Play previous

Reverse/Pau se

Play Next

Play/Pause

USB port

Status indication light

HDD abnormal indication

Remote control indication light



_

W

f

f

Status

HDD

ACT Remote control indication light

Various fast speeds and normal playback.

In playback mode, playback the previous video

In normal playback or pause mode, click this button to reverse playback In reverse playback, click this button to pause playback.

In playback mode, playback the next video In menu setup, go to down ward of the dropdown list.

In normal playback click this button to pause playback In pause mode, click this button to resume playback.

To connect USB storage device, USB mouse.

If there is Fn indication light, current status indication light is null.

HDD error occurs or HDD capacity is below specified threshold value, the light becomes red to alert you.

Power indication light

Record light 1-16

IR Receiver IR

Shuttle(outer ring)

Jog(inner dial)

CD-ROM button

Power Power indication light

System is recording or not. It becomes on when system is recording. For this series product, the last 12 lights are null since there is only four channels.

It is to receive the signal from the remote control.

In real-time monitor mode it works as left/right direction key. Playback mode, counter clockwise to forward and clock wise to backward.

Up/down direction key. Playback mode, turn the inner dial to realized frame by frame playback. (Only applies to some special versions.)

Pop-up or insert the CD.

41

2.2 Rear Panel

2.2.1 1U series

The 4/8-channel series DVR rear panel is shown as below. See Figure 2-4.

Figure 2-4

The 16-channel series DVR rear panel is shown as below. See Figure 2-5.

Figure 2-5

Please refer to the following sheet for detailed information.

1 Video input 2 Audio input 3 Video spot output 4 Video CVBS output 5 Bidirectional talk input 6 Audio output 7 Network port 8 USB port 9 HDMI port 10 Video VGA output 11 RS232 port 12 Alarm input/alarm output/RS485 port 13 Power socket

14 GND port 15 On/off button

2.2.2 960H 1U Series

The 8-channel series DVR rear panel is shown as below. See Figure 2-6.

42

Figure 2-6

Please refer to the following sheet for detailed information.

1 Video input 2 Video output 3 Audio input 4 Audio output 5 RS232 port 6 Alarm input/alarm output 7 Video SPOT output 8 Bidirectional talk input 9 Video VGA output 10 HDMI port 11 USB port 12 Network port 13 RS485 port

14 Power input port 15 Power button

16 GND port

2.2.3 Full-D1 1.5U series

The rear panel is shown as in Figure 2-7.

The following figure is based on the 16-channel series product.

Figure 2-7

Please refer to the following sheet for detailed information.

1 GND port 2 Power input port 3 Power button 4 Fan 5 Audio input /Matrix video output/Loop video

output

6 Video input

43

7 Video CVBS output 8 Bidirectional talk input port 9 Bidirectional talk output port 10 Audio output 11 Alarm input/Alarm output/RS485 port 12 Video VGA output

13 HDMI port

14 RS232 port 15 eSATA port

16 USB port

17 Network port

2.2.4 HD-SDI 1080P 1.5U Series

The rear panel of 4/8-channel series product is shown as in Figure 2-8.

Figure 2-8

Please refer to the following sheet for detailed information.

1 GND port 2 Power input port 3 Video input 4 Bidirectional talk input port 5 Video output 6 Network port 7 Video VGA output 8 RS232 port 9 HDMI port 10 eSATA port 11 USB port 12 Power button

13 Fan

14 Audio input 15 Bidirectional talk output port

16 Audio output

17 Alarm input/Alarm output/RS485 port

The rear panel of the 16-channel series product is shown as in Figure 2-9.

44

Figure 2-9

Please refer to the following sheet for detailed information.

1 GND port 2 Power input port 3 Video input 4 Network port 5 Video VGA output 6 RS232 port 7 HDMI port 8 eSATA port 9 USB port 10 Power on/off button 11 Fan 12 Audio input

13 Bidirectional talk input port

14 Bidirectional talk output port 15 Audio output

16 Video output

17 Alarm input/Alarm output/RS485 port

2.2.5 Simple 1.5U Series

This series DVR rear panel is shown as below. See Figure 2-10.

Figure 2-10

Please refer to the following sheet for detailed information.

1 Video input 2 Video spot output 3 Video CVBS output 4 Audio input 5 Bidirectional talk input 6 Audio output

45

7 Network port 8 USB port 9 HDMI port 10 Video VGA output 11 RS232 port 12 Alarm input/alarm output/RS485 port 13 On/off button 14 Power socket 15 GND port

2.2.6 960H 4HDD 1.5U Series

The 16-channel series DVR rear panel is shown as in Figure 2-11.

Figure 2-11

Please refer to the following sheet for detailed information.

1 Power button 2 Power 3 Video input 4 Audio output 5 Bidirectional talk output port 6 Bidirectional talk input port 7 Alarm input/Alarm output/RS485 port 8 GND port 9 Power input port 10 Audio input /Matrix video output/Loop video

output 11 Video SPOT output 12 Video VGA output

13 HDMI port

14 eSATA port 15 USB port

16 RS232 port

17 Network port

2.2.7 960H 2HDD 1.5U Series

This series DVR rear panel is shown as below. See Figure 2-12.

Please note the following figure is based on the 8-channel series product.

46

Figure 2-12

Please refer to the following sheet for detailed information.

1 Video input 2 Video output 3 Audio input 4 Audio output 5 RS232 port 6 Power button 7 Video SPOT output 8 Bidirectional talk input 9 Video VGA output 10 HDMI output 11 USB port 12 Network port 13 RS485 port 14 Power socket 15 Alarm input/alarm output/RS485 port

16 GND port

2.2.8 General 2U Series

This series DVR rear panel is shown as below. See Figure 2-13.

Please note the following figure is based on the 16-channel series product.

Figure 2-13

Please refer to the following sheet for detailed information.

1 GND port 2 Power input port 3 Power button 4 Fan

47

5 DB25 port ( 5th to 16th-channel audio input port) 6 1st to 4th-channel audio input 7 Loop video output 8 Video input 9 Video CVBS output 10 Matrix video output 11 Audio output 12 Bidirectional talk input port

13 Bidirectional talk output port

14 Alarm input/Alarm output/RS485 port HDMI

port 15 Video VGA output

16 HDMI port

17 Video CVBS output RS232 port

18 Video matrix output eSATA port 19 USB port 20 Network port

The 32-channel series DVR rear panel is shown as below. See Figure 2-14.

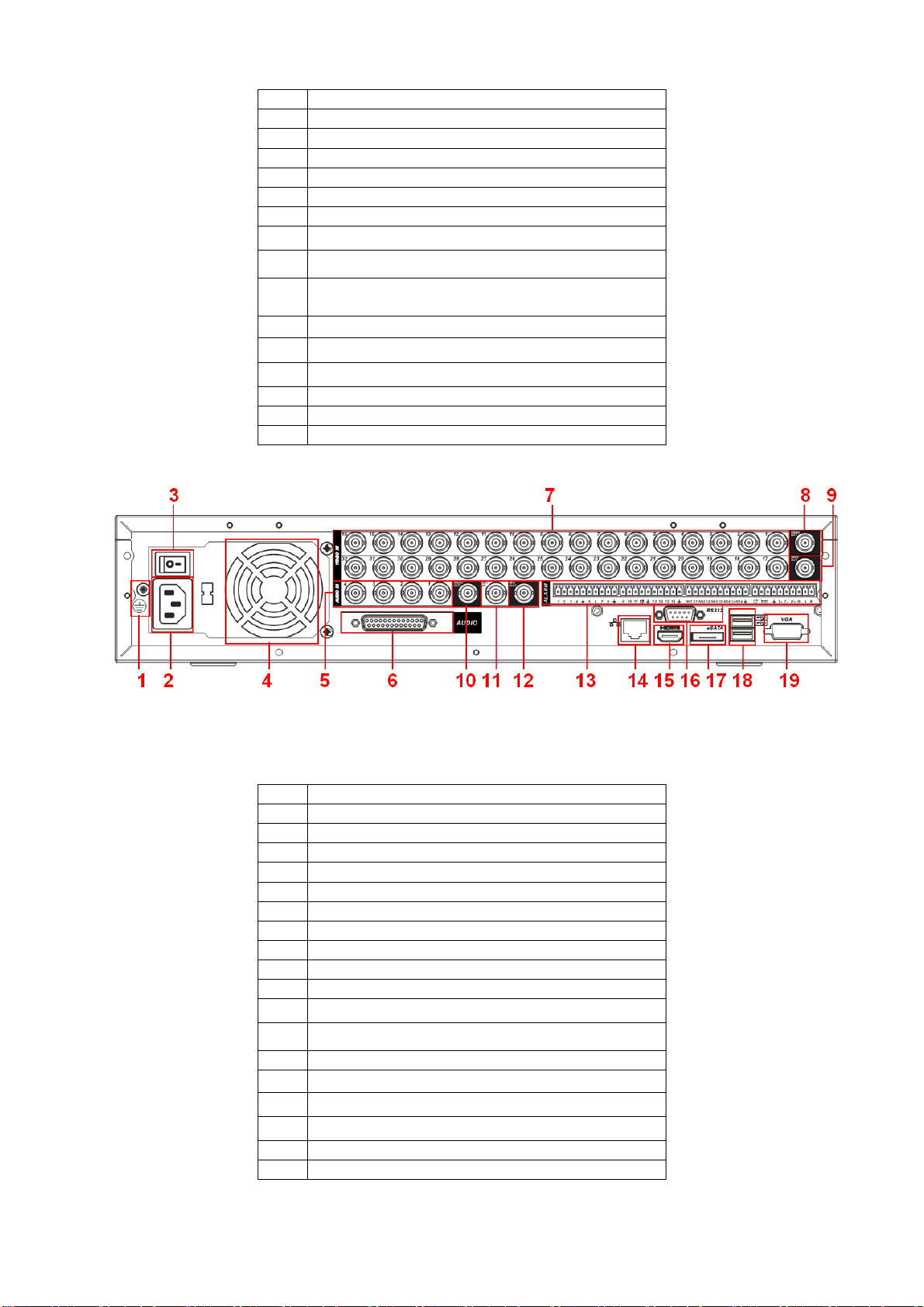

Figure 2-14

Please refer to the following sheet for detailed information.

1 GND port 2 Power input port 3 Power button 4 Fan 5 1st to 4th-channel audio input 6 DB25 port ( 5th to 16th-channel audio input port) 7 Video input 8 Video CVBS output 9 Matrix video output 10 Audio output 11 Bidirectional talk input port 12 Bidirectional talk output port

13 Alarm input/Alarm output/RS485 port

14 Network port 15 HDMI port

16 RS232 port

17 eSATA port

18 USB port 19 Video VGA output

48

2.2.9 HD-SDI 1080P 2U Series

The rear panel 4/8-channel series product is shown as in Figure 2-15.

Figure 2-15

Please refer to the following sheet for detailed information.

1 GND port 2 Power input port 3 Video input 4 Bidirectional talk input port 5 Video output 6 Network port 7 Video VGA output 8 RS232 port 9 HDMI port 10 eSATA port 11 USB port 12 Power button

13 Fan

14 Audio input 15 Bidirectional talk output port

16 Audio output

17 Alarm input/Alarm output/RS485 port

The rear panel of the 16-channel series product is shown as in Figure 2-16.

Figure 2-16

Please refer to the following sheet for detailed information.

1 GND port

49

2 Power input port 3 Video input 4 Bidirectional talk input port 5 Video output 6 Network port 7 Video VGA output 8 RS232 port 9 HDMI port 10 eSATA port 11 USB port 12 Power on/off button

13 Fan

14 Audio input 15 Bidirectional talk output port

16 Audio output

17 Alarm input/Alarm output/RS485 port

2.2.10 960H 2U Series

The rear panel is shown as in Figure 2-17.

Please note the following figure is based on the 16-channel series product.

Figure 2-17

Please refer to the following sheet for detailed information.

1 GND port 2 Power input port 3 Power button 4 Fan 5 DB25 port (5-16 channel audio input) 6 1-4channel audio input 7 Loop video output 8 Video input 9 Video CVBS output 10 Matrix video output 11 Audio output 12 Bidirectional talk input port

13 Bidirectional talk output port

14 Alarm input/Alarm output/RS485 port 15 Video VGA output

16 HDMI port

17 RS-232

18 eSATA port

50

19 USB port 20 Network port

When connect the Ethernet port, please use crossover cable to connect the PC and use the

straight cable to connect to the switcher or router.

2.3 Connection Sample

2.3.1 General 1U series

Please refer to Figure 2-18 for connection sample.

The following figure is based on the 8-channel series product.

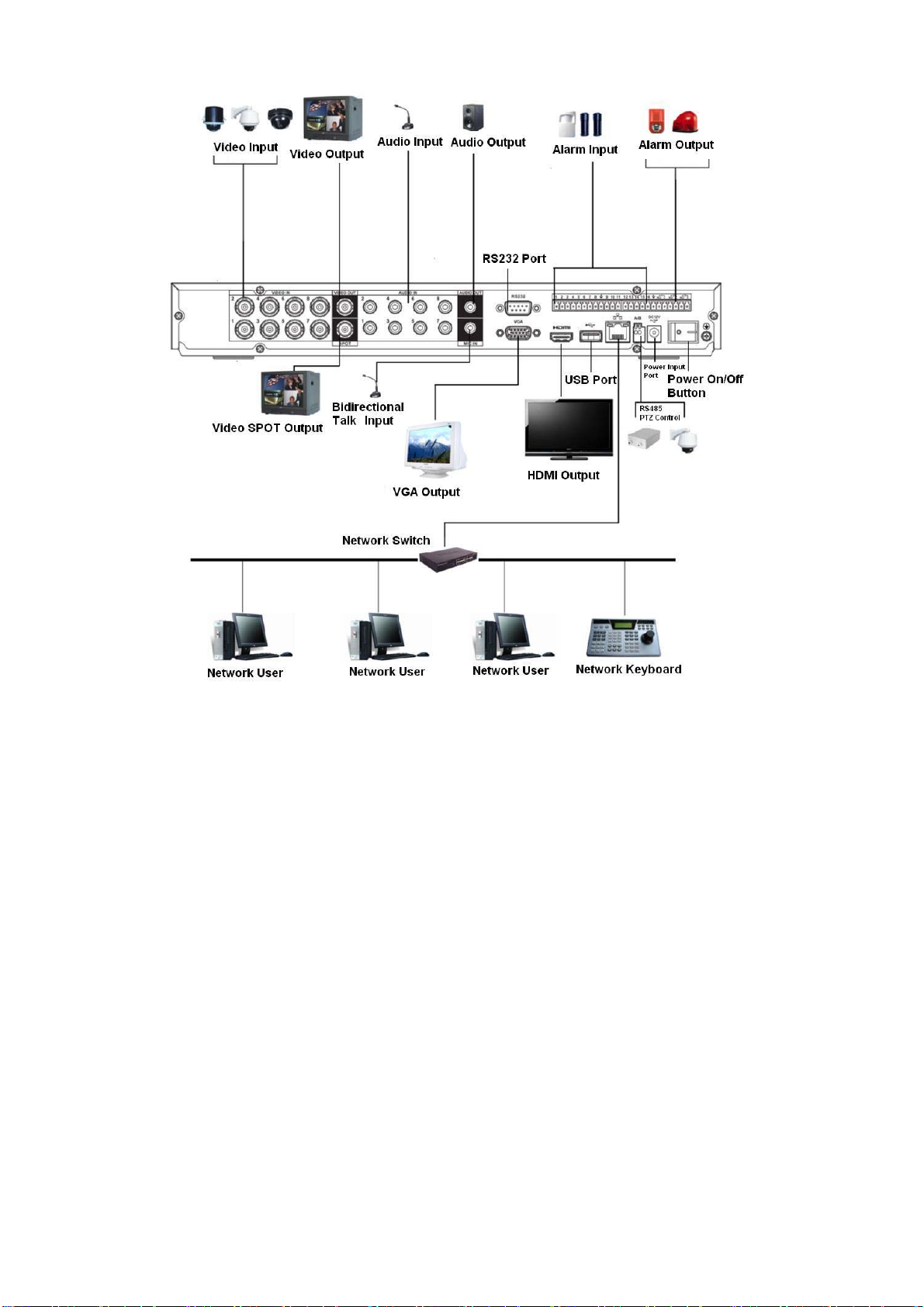

Figure 2-18

2.3.2 960H 1U Series

Please refer to Figure 2-19 for connection sample.

The following figure is based on the 8-channel series product.

51

2.3.3 General 1.5U series

Please refer to Figure 2-20 for connection sample.

Figure 2-19

52

Figure 2-20

Note: There are slight differences for simple 1.5U connection.

2.3.4 HD-SDI 1.5U Series

Please refer to Figure 2-21 for connection sample.

The following figure is based on the 16-channel series product.

53

Figure 2-21

2.3.5 960H 4HDD 1.5U Series

Please refer to Figure 2-22 for connection sample.

The following figure is based on the 16-channel series product.

54

Figure 2-22

2.3.6 960H 2HDD 1.5U Series

Please refer to Figure 2-23 for connection sample.

The following figure is based on the 8-channel series product.

55

Figure 2-23

2.3.7 General 2U series

Please refer to Figure 2-24 for connection sample.

The following figure is based on the 16-channel series product.

56

Figure 2-24

2.3.4 HD-SDI 1080P 2U Series

Please refer to the following figure for detailed information. See Figure 2-25.

The following figure is based on the 4-channel series product.

57

Figure 2-25

2.3.4 960H 2U Series

Please refer to the following figure for detailed information. See Figure 2-26.

The following figure is based on the 16-channel series product.

58

Figure 2-26

2.4 Remote Control

The remote control interface is shown as in Figure 2-27.

Please note remote control is not our standard accessory and it is not included in the accessory

bag.

59

Figure 2-27

Please refer to the following sheet for detailed information.

Serial Number Name Function 1 Power button Click it to boot up or shut down

the device.

2 Address Click it to input device number,

so that you can control it.

3 Forward Various forward speeds and

normal speed playback.

4 Slow play Multiple slow play speeds or

normal playback.

5

6 7 Play/Pause

8

Next record In playback mode, playback the

next video.

Previous record In playback mode, playback the

previous video. In pause mode, click this button to realize normal playback. In normal playback click this button to pause playback. In real-time monitor mode, click this button to enter video search menu.

Reverse/pause

Reverse playback pause mode, click this button to realize normal playback. In reverse playback click this button to pause playback.

60

9

10 Record Start or stop record manually

11 Direction keys Switch current activated control,

12 Confirm /menu key go to default button

13 Multiple-window switch Switch between multiple-window

14 Auxiliary key

15 0-9 number key

Cancel Go back to previous menu or

cancel current operation (close upper interface or control)

In record interface, working with the direction buttons to select the record channel. Click this button for at least 1.5 seconds, system can go to the Manual Record interface.

go to left or right. In playback mode, it is to control the playback process bar. Aux function(such as switch the PTZ menu)

go to the menu

and one-window. In 1-ch monitor mode: pop up assistant function：PTZ control and Video color. Switch the PTZ control menu in PTZ control interface. In motion detection interface, working with direction keys to complete setup. Input password, channel or switch channel. Shift is the button to switch the input method.

2.5 Mouse Control

Left click mouse

System pops up password input dialogue box if you have not logged in. In real-time monitor mode, you can go to the main menu. When you have selected one menu item, left click mouse to view menu content. Implement the control operation.

Modify checkbox or motion detection status. Click combo box to pop up drop down list

61

In input box, you can select input methods. Left click the corresponding button on the panel you can input numeral/English character (small/capitalized). Here ← stands for backspace button. ＿ stands for space button.

In English input mode: _stands for input a backspace icon and ← stands for deleting the previous character.

Double left click mouse

Right click mouse

In numeral input mode: _ stands for clear and ← stands for deleting the previous numeral.

When input special sign, you can click corresponding numeral in the front panel to input. For example, click numeral 1 you can input“/” , or you can click the numeral in the on-screen keyboard directly.

Implement special control operation such as double click one item in the file list to playback the video. In multiple-window mode, double left click one channel to view in full-window. Double left click current video again to go back to previous multiple-window mode. In real-time monitor mode, pops up shortcut menu: one-window, four-window, nine-window and sixteen-window, Pan/Tilt/Zoom, color setting, search, record, alarm input, alarm output, main menu. Among which, Pan/Tilt/Zoom and color setting applies for current selected channel. If you are in multiple-window mode, system automatically switches to the corresponding channel.

Press middle button

Move mouse

Exit current menu without saving the modification. In numeral input box: Increase or decrease numeral value. Switch the items in the check box. Page up or page down Select current control or move control

Select motion detection zone Drag mouse

Select privacy mask zone.

62

2.6 Virtual Keyboard & Front Panel

2.6.1 Virtual Keyboard

The system supports two input methods: numeral input and English character (small and

capitalized) input.

Move the cursor to the text column, the text is shown as blue, input button pops up on the right.

Click that button to switch between numeral input and English input (capitalized and small), Use

> or < to shift between small character and capitalized character.

2.6.2 Front Panel

Move the cursor to the text column. Click Fn key and use direction keys to select number you

wanted. Please click enter button to input.

63

pp

(

y

3 Installation and Connections

Note: All the installation and operations here should conform to your local electric safety rules.

3.1 Check Unpacked DVR

When you receive the DVR from the forwarding agent, please check whether there is any visible

damage. The protective materials used for the package of the DVR can protect most accidental

clashes during transportation. Then you can open the box to check the accessories.

Please check the items in accordance with the list. Finally you can remove the protective film of

the DVR.

3.2 About Front Panel and Real Panel

The model label in the front panel is very important; please check according to your purchase

order.

The label in the rear panel is very important too. Usually we need you to represent the serial

number when we provide the service after sales.

3.3 HDD Installation

You can refer to the Appendix for recommended HDD brand.

Please follow the instructions below to install hard disk.

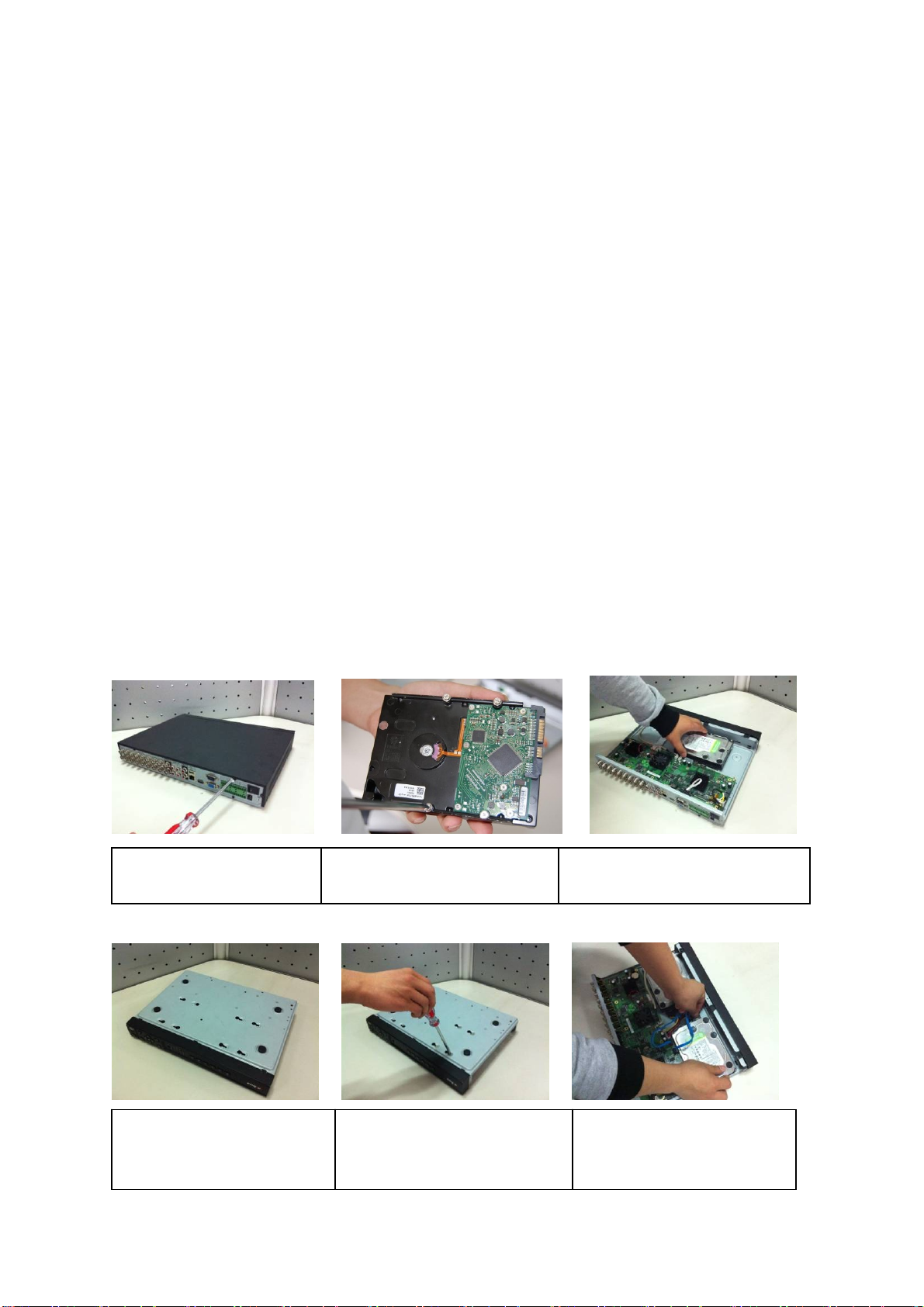

3.3.1 1U series

This series DVR has two SATA HDDs. Please use HDD of 7200rpm or higher.

1. Loosen the screws of the

u

er cover and side panel.

2. Fix four screws in the HDD

Turn just three rounds).

3. Place the HDD in accordance with

the four holes in the bottom.

4. Turn the device upside down

and then turn the screws in

firml

.

5. Fix the HDD firmly.

6. Connect the HDD cable and

power cable.

64

pp

7. Put the cover in accordance

with the clip and then place the

upper cover back.

8. Secure the screws in the

rear panel and the side panel.

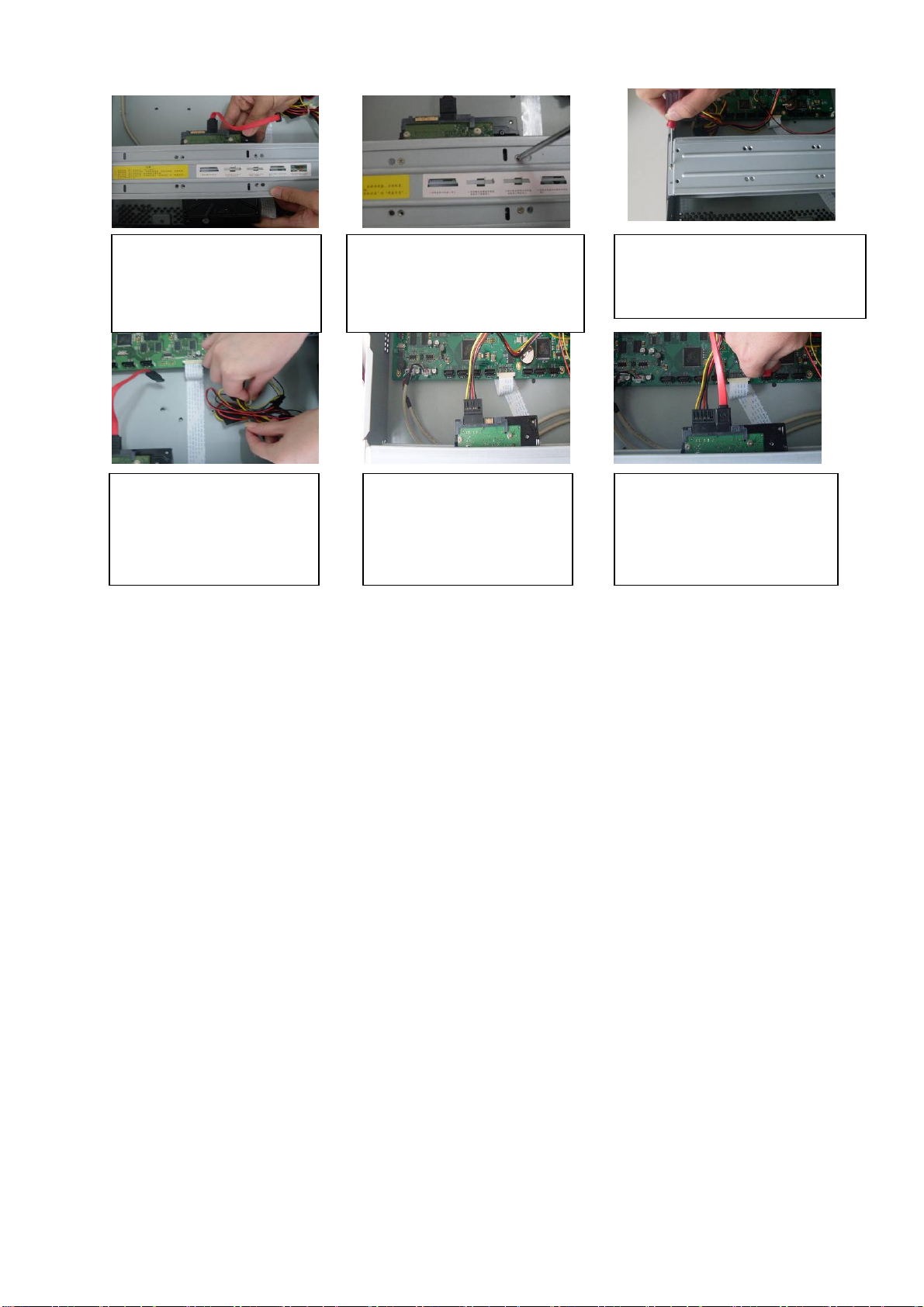

3.3.2 1.5U series

This series DVR has four SATA HDDs. Please use HDD of 7200rpm or higher.

1. Loosen the screws of the

u

er cover.

2. Line up the HDD to the four

holes of the HDD bracket.

3. Use four screws to fix HDD.

4. Unfasten the HDD power

cable.

5. Use the special data cable to

connect the HDD and the SATA

port

6. Insert the HDD power cable.

Close the chassis and fix the

screws to secure firmly.

3.3.3 2U series （HD-SDI series, 960H ）

This series DVR max supports 8 SATA HDDs. Please use HDD of 7200rpm or higher.

1. Loosen the screws of the

u

er cover.

2. Remove the HDD upper

bracket

3. Now you can see the bottom bracket

65

4. Line up the HDD to the

four holes of the HDD bracket.

7. Unfasten the HDD power cable.

Important:

If the HDD amount is less than four, you do not need to install the HDD bracket.

When there is a bracket, please make sure the installation direction of HDDs is the same.

5. Use screws to fix HDD.

8. Insert the HDD power

cable.

6. Install the upper bracket and then

Use screws to fix HDD in the

bracket.

9. Use the special data cable to

connect the HDD and the SATA

port. Close the chassis and fix

the screws to secure firmly.

3.4 Rack Installation

Please note this installation mode is for 1.5U/2U series product.

Please follow the steps listed below.

z Use twelve screws to fix the unit z Please make sure the indoor temperature is below 35℃ (95°f).

z Please make sure there is 15cm (6 inches) space around the device to guarantee sound

ventilation.

z Please install from the bottom to the top.

z If there are more accessories connected in the rack, please take precaution measures in

case the rack power is overload.

3.5 Connecting Power Supply

Please check input voltage and device power button match or not.

We recommend you use UPS to guarantee steady operation, DVR life span, and other peripheral

equipments operation such as cameras.

3.6 Connecting Video Input and Output Devices

66

3.6.1 Connecting Video Input

The video input interface is BNC. The input video format includes: PAL/NTSC BNC（1.0VB

B75Ω.）; For HD-SDI series product: BNC（0.8VP-P，75Ω）

The video signal should comply with your national standards.

The input video signal shall have high SNR, low distortion; low interference, natural color and

suitable lightness.

Guarantee the stability and reliability of the camera signal:

The camera shall be installed in a cool, dry place away from direct sunlight, inflammable,

explosive substances and etc.

The camera and the DVR should have the same grounding to ensure the normal operation of the

camera.

Guarantee stability and reliability of the transmission line

BTTTB

Please use high quality, sound shielded BNC. Please select suitable BNC model according to the

transmission distance.

If the distance is too long, you should use twisted pair cable, and you can add video

compensation devices or use optical fiber to ensure video quality.

You should keep the video signal away from the strong electromagnetic interference, especially

the high tension current.

Keep connection lugs in well contact

BTTTB

The signal line and shielded wire should be fixed firmly and in well connection. Avoid dry joint,

lap welding and oxidation.

BTTTB

P- P ，

3.6.2 Connecting Video Output

Video output includes a BNC(PAL/NTSC1.0V

System supports BNC, VGA and HDMI output at the same time.

When you are using pc-type monitor to replace the monitor, please pay attention to the following

points:

z To defer aging, do not allow the pc monitor to run for a long time.

z Regular demagnetization will keep device maintain proper status.

z Keep it away from strong electromagnetic interference devices.

Using TV as video output device is not a reliable substitution method. You also need to reduce

the working hour and control the interference from power supply and other devices. The low

quality TV may result in device damage.

，75Ω）output ,a VGA output and HDMI output.

P-P

3.7 Connecting Audio Input & Output, Bidirectional Audio

3.7.1 Audio Input

These series products audio input port adopt BNC port.

Due to high impedance of audio input, please use active sound pick-up.

Audio transmission is similar to video transmission. Try to avoid interference, dry joint, loose

contact and it shall be away from high tension current.

3.7.2 Audio Output

The audio output signal parameter is usually over 200mv 1KΩ (BNC). It can directly connect to

low impedance earphone, active sound box or amplifier-drive audio output device.

67

If the sound box and the pick-up cannot be separated spatially, it is easy to arouse squeaking. In

this case you can adopt the following measures:

z Use better sound pick-up with better directing property.

z Reduce the volume of the sound box.

z Using more sound-absorbing materials in decoration can reduce voice echo and improve

acoustics environment.

z Adjust the layout to reduce happening of the squeaking.

3.8 Alarm Input and Output Connection

Please refer to the following sheet for alarm input and output connection.

There are two alarm input types for you to select: normal open (NO) and normal close (NC).

1. Alarm input

a. Please make sure alarm input mode is grounding alarm input.

b. Grounding signal is needed for alarm input.

c. Alarm input needs the low level voltage signal.

d. Alarm input mode can be either NC (normal Open) or NO (Normal Close)

e. When you are connecting two DVRs or you are connecting one DVR and one other device,

please use a relay to separate them,

2. Alarm output

The alarm output port should not be connected to high power load directly (It shall be less than

1A) to avoid high current which may result in relay damage. Please use the co contactor to

realize the connection between the alarm output port and the load.

3. How to connect PTZ decoder

a. Ensure the decoder has the same grounding with DVR, otherwise you may not control the PTZ.

Shielded twisted wire is recommended and the shielded layer is used to connect to the grounding.

b. Avoid high voltage. Ensure proper wiring and some thunder protection measures. c. For too long signal wires, 120Ω should be parallel connected between A, B lines on the far end

to reduce reflection and guarantee the signal quality.

d. “485 A, B” of DVR cannot parallel connect with “485 port” of other device.

e. The voltage between of A,B lines of the decoder should be less than 5v.

4. Please make sure the front-end device has soundly earthed.

Improper grounding may result in chip damage.

3.8.1 Alarm Input and Output Details

You can refer to the following sheet X for alarm input and output information.

Important

Please refer to the specifications for the alarm input and output channel amount. Do not

merely count the alarm input and out channel amount according to the ports on the rear

panel.

3.8.1.1 General 1U Series

The 4/8-channel series product interface is shown as below. See Figure 3-1.

68

AB cable

connection

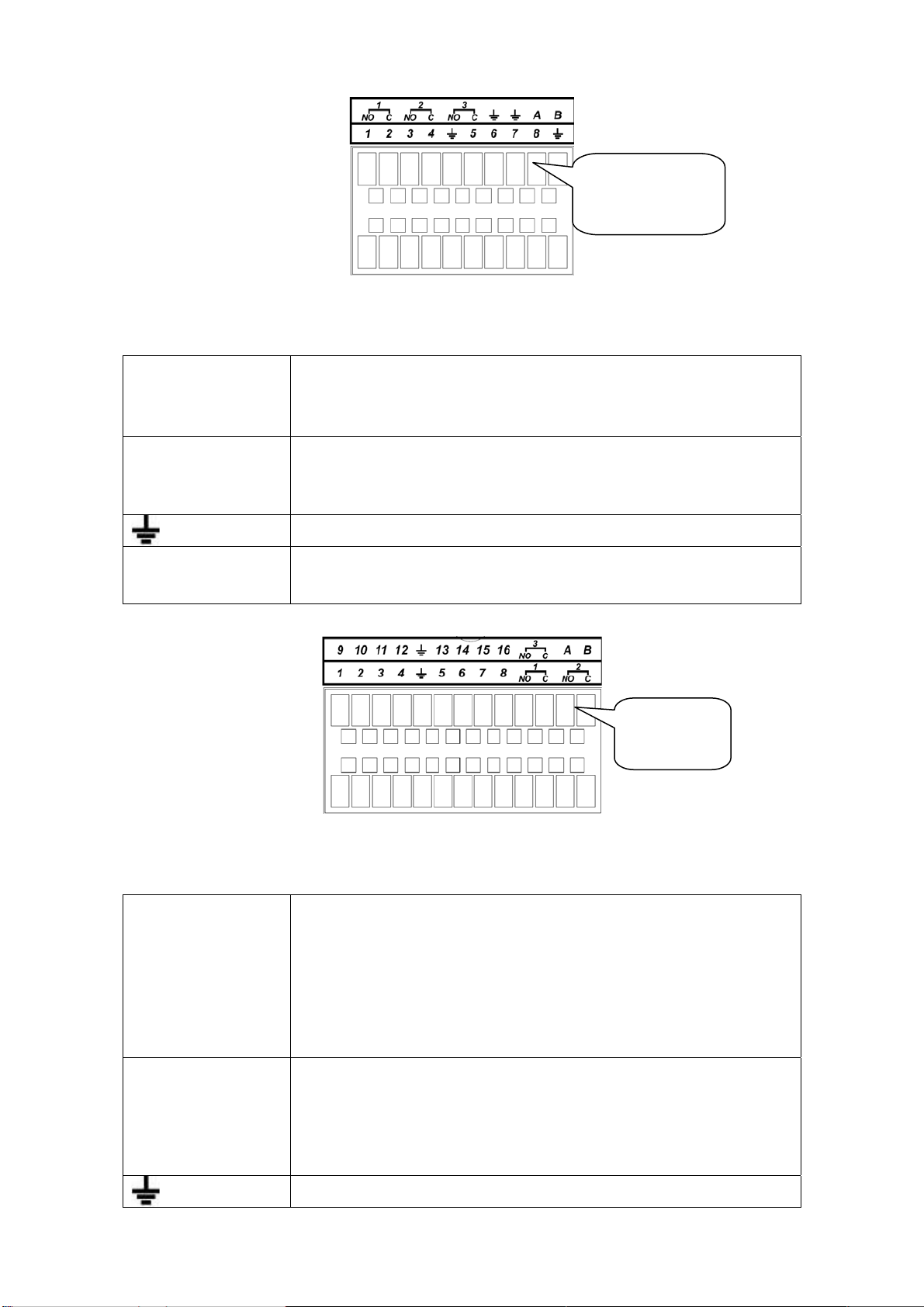

Figure 3-1

Please refer to the following sheet and Figure 3-1 for detailed information.

In the second line, from the left to the right,: 1，2，3，4，

5，6，7，8. In the first line, from

the left to the right: 1-NO C，2-NO C， 3-NO C

485 A/B 485 communication port. They are used to control devices such as

The 16-channel interface is shown as in Figure 3-2.

ALARM 1 to ALARM 8. The alarm becomes active in low voltage.

There are three groups of normal open activation output (on/off button)

Earth cable.

PTZ. Please parallel connect 120TΩ between A/B cables if there are too many PTZ decoders.

AB cable

connection

Figure 3-2

Please refer to the following sheet and Figure 3-2 for detailed information.

In the second line, from the left to the right,: 1，2，3，4，

5，6，7，8.and the first line from the left to the right : 9，10， 11，12，13，14， 15，16 In the first line, from the left to the right: 3-NO C，and the second line from the left to the right 1NO C，2-NO C.

ALARM 1 to ALARM 16. The alarm becomes active in low voltage.

There are three groups of normal open activation output (on/off button)

Earth cable.

69

485 A/B 485 communication port. They are used to control devices such as

PTZ. Please parallel connect 120TΩ between A/B cables if there are too many PTZ decoders.

3.8.1.2 960H 1U Series

The interface is shown as below. See Figure 3-3.

Figure 3-3

Please refer to the following sheet and Figure 3-3 for detailed information.

1，2，3，4，5， 6，7，8，9，10， 11，12，13，14， 15，16 NO1 C1， NO2 C2， NO3 C3

ALARM 1 to ALARM 8. The alarm becomes active in low voltage.

There are three groups of normal open activation output (on/off button)

Earth cable.

3.8.1.3 Full-D1 1.5U and Simple 1.5U Series

The 1.5U series product interface is shown as in Figure 3-4.

Figure 3-4

You can refer to the following sheet and Figure 3-4 for alarm input and output information.

In the first line, from the left to the right,: 1，2，3，4，5，

6，7，8，9，10， 11，12，13，14， 15，16 In the second line,

from the left to the right: NO1 C1，

NO2 C2， NO3 C3， NO4 C4,

NO5 C5 NC5

ALARM 1 to ALARM 16. The alarm becomes active in low voltage.

The first four are four groups of normal open activation output (on/off button) NO5 C5 NC5 is a group of NO/NC activation output (on/off button)

AB cable

connection

70

CTRL 12V Control power output. The power output is off when the alarm is

canceled.

+12V It is rated power output.

Earth cable.

485 A/B 485 communication port. They are used to control devices such as

PTZ. Please parallel connect 120TΩ between A/B cables if there are too many PTZ decoders.

3.8.1.4 HD-SDI 1080P 1.5U Series

The HD-SDI 1080P 1.5U series product interface is shown as in

Figure

3-5.

Figure 3-5

You can refer to the following sheet for alarm input and output information.

1，2，3，4，5， 6，7，8，9，10， 11，12，13，14， 15，16 NO1 C1， NO2 C2， NO3 C3， NO4 C4,

NO5 C5 NC5 CTRL 12V Control power output. The power output is off when the alarm is

+12V It is rated power output.

485 A/B 485 communication port. They are used to control devices such as

T+, T-, R+, R-

3.8.1.5 960H 4HDD 1.5U Series

The 960H 4HDD 1.5U series product interface is shown as in Figure 3-6.

ALARM 1 to ALARM 16. The alarm becomes active in low voltage.

The first four are four groups of normal open activation output (on/off button) NO5 C5 NC5 is a group of NO/NC activation output (on/off button)

canceled.

Earth cable.

PTZ. Please parallel connect 120TΩ between A/B cables if there are too many PTZ decoders.

4-pin full-duplex RS485 port. T+，T- are the output cable and R+， R- are input cable.

71

Figure 3-6

You can refer to the following sheet and Figure 3-4 for alarm input and output information.

1，2，3，4，5， 6，7，8，9，10， 11，12，13，14， 15，16 NO1 C1， NO2 C2， NO3 C3， NO4 C4,

NO5 C5 NC5 CTRL 12V Control power output. The power output is off when the alarm is

+12V It is rated power output.

485 A/B 485 communication port. They are used to control devices such as

ALARM 1 to ALARM 16. The alarm becomes active in low voltage.

The first four are four groups of normal open activation output (on/off button) NO5 C5 NC5 is a group of NO/NC activation output (on/off button)

canceled.

Earth cable.

PTZ. Please parallel connect 120TΩ between A/B cables if there are too many PTZ decoders.

3.8.1.6 960H 2HDD 1.5U Series

The 960H 2HDD 1.5U series product interface is shown as in Figure 3-7.

The following interface is based on the 16-channel series product.

Figure 3-7

You can refer to the following sheet and Figure 3-4 for alarm input and output information.

1，2，3，4，5， 6，7，8，9，10， 11，12，13，14， 15，16 NO1 C1， NO2 C2, NO3 C3，

3.8.1.7 General 2U Series

The general 2U series product interface is shown as in

Figure 3-8.

ALARM 1 to ALARM 16. The alarm becomes active in low voltage.

There are three groups of normal open activation output (on/off button).

Earth cable.

72

Figure 3-8

You can refer to the following sheet for alarm input and output information.

1，2，3，4，5， 6，7，8，9，10， 11，12，13，14， 15，16 NO1 C1， NO2 C2， NO3 C3， NO4 C4,

NO5 C5 NC5 CTRL 12V Control power output. The power output is off when the alarm is

+12V It is rated power output.

485 A/B 485 communication port. They are used to control devices such as

3.8.1.8 HD-SDI 1080P 2U Series

HD-SDI 1080P 2U series interface is shown as below. See Figure 3-9.

ALARM 1 to ALARM 16. The alarm becomes active in low voltage.

The first four are four groups of normal open activation output (on/off button) NO5 C5 NC5 is a group of NO/NC activation output (on/off button)

canceled.

Earth cable.

PTZ. Please parallel connect 120TΩ between A/B cables if there are too many PTZ decoders.

AB cable

connection

Figure 3-9

You can refer to the following sheet for alarm input and output information.

1，2，3，4，5， 6，7，8，9，10， 11，12，13，14， 15，16 NO1 C1， NO2 C2， NO3 C3， NO4 C4,

NO5 C5 NC5 CTRL 12V Control power output. The power output is off when the alarm is

+12V It is rated power output.

485 A/B 485 communication port. They are used to control devices such as

ALARM 1 to ALARM 16. The alarm becomes active in low voltage.

The first four are four groups of normal open activation output (on/off button) NO5 C5 NC5 is a group of NO/NC activation output (on/off button)

canceled.

Earth cable.

PTZ. Please parallel connect 120TΩ between A/B cables if there are too many PTZ decoders.

73

T+, T-, R+, R-

485 A/B 485 communication port. They are used to control devices such as

3.8.1.9 960H 2U Series

960H 2U series product interface is shown as in Figure 3-10.

You can refer to the following sheet for alarm input and output information.

1，2，3，4,, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 NO1 C1， NO2 C2， NO3 C3， NO4 C4, NO5 C5 NC5

4-pin full-duplex RS485 port. T+，T- are the output cable and R+， R- are input cable.

PTZ. Please parallel connect 120TΩ between A/B cables if there are too many PTZ decoders.

Figure 3-10

ALARM 1 to ALARM 16. The alarm becomes active in low voltage.

The first four are four groups of normal open activation output (on/off button) NO5 C5 NC5 is a group of NO/NC activation output (on/off button)

CTRL 12V Control power output. The power output is off when the alarm is

canceled.

+12V It is rated power output.

Earth cable.

T+, T-, R+, R-

485 A/B 485 communication port. They are used to control devices such as

4-pin full-duplex RS485 port. T+，T- are the output cable and R+， R- are input cable.

PTZ. Please parallel connect 120TΩ between A/B cables if there are too many PTZ decoders.

3.8.2 Alarm Input Port

Please refer to the following sheet for more information.

z Normal open or Normal close type.

z Please parallel connect COM end and GND end of the alarm detector (Provide external

power to the alarm detector).

z Please parallel connect the Ground of the DVR and the ground of the alarm detector.

z Please connect the NC port of the alarm sensor to the DVR alarm input(ALARM)

z Use the same ground with that of DVR if you use external power to the alarm device.

74

Figure 3-11

3.8.3 Alarm Output Port

z Provide power to peripheral alarm device.

z To avoid overloading, please read the following relay parameters sheet carefully.

z RS485 A/B cable is for the A/B cable of the PTZ decoder.

Relay Specification

Model:

Material of the touch

Rating （Resistance Load）

Insulation

JRC-27F

Silver

Rated switch capacity 30VDC 2A, 125VAC 1A

Maximum switch power 125VA 160W

Maximum switch voltage 250VAC, 220VDC

Maximum switch currency 1A Between touches with same

polarity

Between touches with different polarity

1000VAC 1minute

Between touch and winding 1000VAC 1minute

Surge voltage

Length of open time

Length of close time

Longevity

Temperature

Between touches with same polarity 3ms max

3ms max

Mechanical 50×106 times (3Hz)

Electrical 200×103 times (0.5Hz)

-40℃ ~+70℃

1500V (10×160us)

3.9 RS232

You can connect the DVR with POS or Keyboard through RS232.

With POS system, the DVR can communicate through RS232 and network. For the POS system, the

DVR can integrate the text content and even search the record through the info.

The series DVR also support NKB operation. You can operate the DVR from the keyboard controls

instead of using the control pad on the front panel of the unit.

To connect a NKB keyboard to the DVR:

1. Assemble the KBD keyboard according to the instructions in its accompanying installation manual.

2. Connect the KBD keyboard into one of the RS232 ports on the DVR or through network.

3.10 RS485

When the DVR receives a camera control command, it transmits that command up the coaxial cable

to the PTZ device. RS485 is a single-direction protocol; the PTZ device can’t return any data to the

unit. To enable the operation, connect the PTZ device to the RS485 (A,B) input on the DVR. See

X289H289H289HFigure 3-8X.

75

Since RS485 is disabled by default for each camera, you must enable the PTZ settings first. This

series DVRs support multiple protocols such as Pelco-D, Pelco-P.

To connect PTZ devices to the DVR:

1. Connect RS485 A,B on the DVR rear panel.

2. Connect the other end of the cable to the proper pins in the connector on the camera.

3. Please follow the instructions to configure a camera to enable each PTZ device on the DVR.

3.11 Other Interfaces

There are still other interfaces on the DVR, such as USB ports. You can refer to the Figure 3-12 for

more information.

1U series

76

1.5U Series

2U Series

Figure 3-12

77

4 Overview of Navigation and Controls

Note:

All the operations listed below are based on the 2U series product.

Before operation, please make sure:

z You have properly installed HDD and all the cable connections.

z The provided input power and the device power are matched.

z The external power shall be DC 12V (For 1U series product only) or AC90~264V 50+2% Hz.

For 1.5U and 2U series product).

z Always use the stable current, if necessary UPS is a best alternative measure.

4.1 Login, Logout & Main Menu

4.1.1 Login

After system booted up, system pops up the startup wizard.

Click the Cancel button; you can go to the system login interface.

Click the Next Step button; you can go to the startup wizard interface. Here you can set the

system basic information. See Figure 4-1.

Figure 4-1

The system login interface is shown as in Figure 4-2.

System consists of four accounts:

z Username: admin. Password: admin. (administrator, local and network)

z Username: 888888. Password: 888888. (administrator, local only)

z Username: 666666. Passwords: 666666(Lower authority user who can only monitor, playback,

backup and etc.)

z Username: default. Password: default(hidden user)

You can use USB mouse, front panel, or keyboard to input. About input method: Click

switch between numeral, English character (small/capitalized) and denotation.

Note:

For security reason, please modify password after you first login.

Within 30 minutes, three times login failure will result in system alarm and six times login failure

will result in account lock!

to

78

Figure 4-2

4.1.2 Main Menu

After you logged in, the system main menu is shown as below. See Figure 4-3.

There are total six icons: search, information, setting, backup, advanced and shutdown.

You can move the cursor to highlight the icon, and then double click mouse to enter the sub-

menu.

Figure 4-3

4.1.3 Logout

There are two ways for you to log out.

One is from menu option:

In the main menu, click shutdown button, you can see an interface is shown as below. See

Figure 4-4.

Figure 4-4

There are several options for you. See Figure 4-5.

Figure 4-5

79

The other ways is to press power button on the front panel for at least 3 seconds, system will

stop all operations. Then you can click the power button in the rear panel to turn off the DVR.

4.1.4 Auto Resume after Power Failure

The system can automatically backup video and resume previous working status after power

failure.

4.1.5 Replace Button Battery

Please make sure to use the same battery model if possible.

We recommend replace battery regularly (such as one-year) to guarantee system time

accuracy.

Note:

Before replacement, please save the system setup, otherwise, you may lose the data

completely!

4.2 Live Viewing

After you logged in, the system is in live viewing mode. You can see system date, time and

channel name. If you want to change system date and time, you can refer to general settings

(Main Menu->Setting->General). If you want to modify the channel name, please refer to the

display settings (Main Menu->Setting->Display).

1

2

Preview Control

The preview control function has the following features.

z Support preview playback.

 In the preview desktop, system can playback previous 5-60 minutes record of

 Support drag and play function. You can use your mouse to select any playback

 Support playback, pause and exit function.

 Right now, system does not support slow playback and backward playback function.

z Support digital zoom function.

z Support real-time backup function.

You can follow the contents listed below for the operation instruction.

Preview control interface

Move you mouse to the top centre of the video of current channel, you can see system pops

up the preview control interface. See Figure 4-6. If your mouse stays in this area for more

than 6 seconds and has no operation, the control bar automatically hides.

Recording status

Motion detection

current channel. Please go to the Main Menu->General to set real-time playback

time.

start time.

1 2 3 4

3

4

Video loss

Camera lock

Figure 4-6

80

You can refer to the following sheet for detailed information.

SN Name Function 1 Realtime playback It is to playback the previous 5-60 minutes

record of current channel. Please go to the Main Menu->General to set real-time playback time. System may pop up a dialogue box if there is no such record in current channel.

2 Digital zoom It is to zoom in specified zone of current

channel. It supports zoom in function of multiplechannel.

The selected area has an icon as

free area is shown as an icon as .

3 Real-time backup

function

It is to backup the video of current channel to the USB device. System can not backup the video of multiple-channel at the same time. Current selected backup channel has an icon as

and the free channel is shown as an icon as

and the

..

Once the backup started, you can see the free

channel is shown as an icon as

4 Exit

Playback control

The playback control has the following features.

z Support play, pause, and exit and drag function.

z During the preview playback process, you can not see the channel title and record status

of current channel. It will display the channel title and the record status once you exit the

preview playback.

z During the preview playback, you can not switch the displayed channel or change

current window-display mode.

z Please note, the tour function has the higher priority than the preview playback. System

automatically exits the preview playback function and its corresponding interface when

the tour function started. You can not control the preview playback until the tour function

ended.

.

4.3 Manual Record

Note:

You need to have proper rights to implement the following operations. Please make sure the

HDD has been properly installed.

4.3.1 Manual record menu

There are two ways for you to go to manual record menu.

z Right click mouse or in the main menu, Advanced->Manual Record.

z In live viewing mode, click record button in the front panel or record button in the remote

control.

Manual record menu is shown as in Figure 4-7.

4.3.2 Basic operation

81

There are three statuses: schedule/manual/stop. Please highlight icon“○” to select

corresponding channel.

z Manual: The highest priority. After manual setup, all selected channels will begin ordinary

recording.

z Schedule: Channel records as you have set in recording setup (Main Menu->Setting-

>Schedule)

z Stop: All channels stop recording.

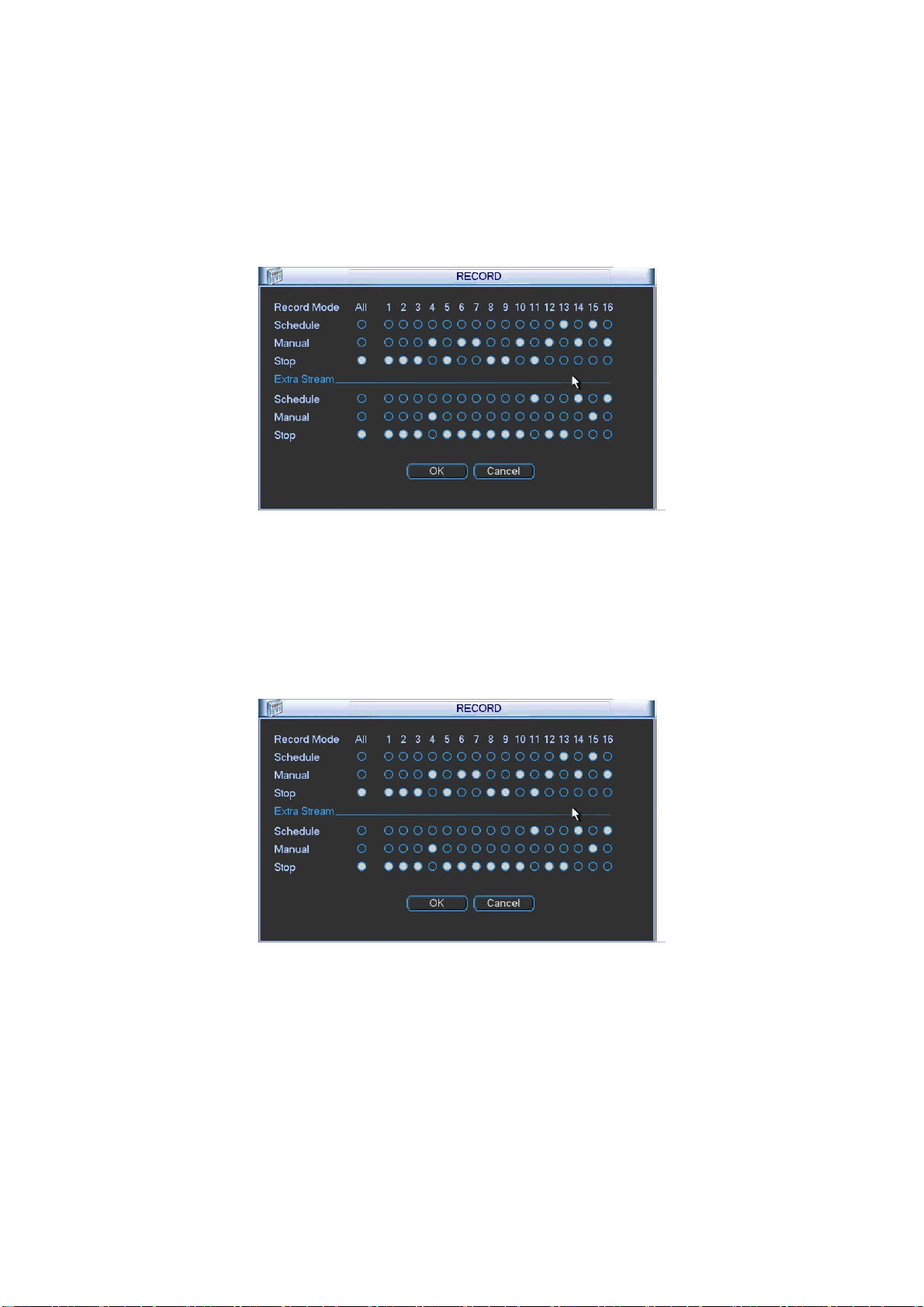

Figure 4-7

4.3.3 Enable/disable record

Please check current channel status: “○” means it is not in recording status, “●” means it is in

recording status.

You can use mouse or direction key to highlight channel number. See Figure 4-8.

Figure 4-8

4.3.4 Enable all channel recording

Highlight ○ below All, you can enable all channel recording.

z All channel schedule record

Please highlight “ALL” after “Schedule”. See Figure 4-9.

When system is in schedule recording, all channels will record as you have previously set

(Main menu->Setting->Schedule).

The corresponding indication light in front panel will turn on.

82

Figure 4-9

z All channel manual record Please highlight “ALL” after “Manual.” See Figure 4-10.

When system is in manual recording, all scheduled set up you have set in will be null ((Main

menu->Setting->Schedule)).

You can see indication light in front panel turns on, system begins manual record now.

Figure 4-10

4.3.5 Stop all channel recording

Please highlight “ALL” after “Stop”. See Figure 4-11.

System stops all channel recording no matter what mode you have set in the menu (Main

menu->Setting->Schedule)

Figure 4-11

83

4.4 Search & Playback

Click search button in the main menu, search interface is shown as below. See Figure 4-12.

Usually there are three file types:

z R: Regular recording file.

z A: External alarm recording file.

z M: Motion detection recording file.

2

1

11

7 8

12 9

Figure 4-12

Please refer to the following sheet for more information.

3

4

56 10

SN Name Function

1

2

3 Calendar

4

Display window

Search type

Playback mode and channel selection pane.

zHere is to display the searched picture or file. zSupport 1/4/9/16-window playback.

zHere you can select to search the picture or the recorded file. zYou can select to play from the read-write HDD or the connected external

device.

zThe blue highlighted date means there is picture or file. Otherwise, there is no

picture or file.

zIn any play mode, click the date you want to see, you can see the corresponding

record file trace in the time bar.

zPlayback mode：1/4/9/16. (It may vary due to different series.)  In 1-window playback mode: you can select 1-16 channels.  In 4-window playback mode: you can select 4 channels according to your

requirement.

 In 9-window playback mode, you can switch between 1-8 and 9-16 channels.  In 16-window playback mode, you can switch between1-16 and 17-32

channels.

zThe time bar will change once you modify the playback mode or the channel

84

option.

zDouble click it, you can view the picture/record file list of current day. zThe file list is to display the first channel of the record file. zThe system can display max 128 files in one time. Use the S/T or the mouse to

view the file. Select one item, and then double click the mouse or click the ENTER button to playback.

zYou can input the period in the following interface to begin accurate search. zFile type：R—regular record； A—external alarm record； M—Motion detect

record.

5

6

7

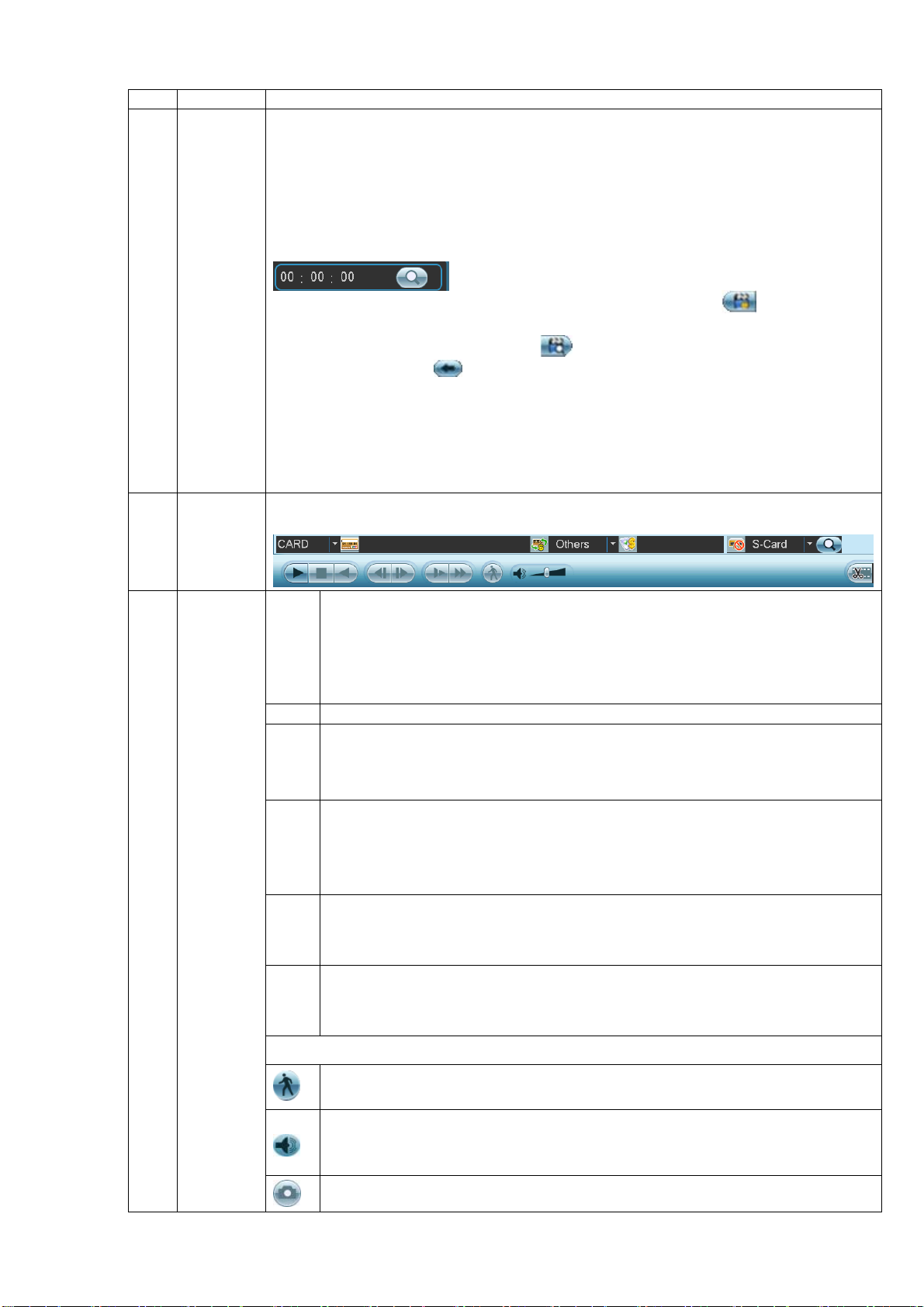

File list switch button

Card number search

Playback control pane.

zLock file. Click the file you want to lock and click the button to lock. The file

you locked will not be overwritten.

zSearch locked file: Click the button zReturn: Click button , system goes back to the calendar and channel setup

interface. Please note: zSystem max locks 16 files. The size of the locked file shall be less than the 1/4 of

the HDD total space. The first 16G of each partition can not be locked. zSystem can only lock one file at one time and can not lock the extra stream. For

the file that is writing or overwriting, it can not be locked. The card number search interface is shown as below. Here you can view card

number/field setup bar. You cam implement advanced search.

Play/Pause There are three ways for you to begin playback.

►/

■ Stop

W

│W/ X│

►



z The play button z Double click the valid period of the time bar. z Double click the item in the file list.

In slow play mode, click it to switch between play/pause.

Backward play In normal play mode, left click the button, the file begins backward play. Click it again to pause current play. In backward play mode, click ►/ to restore normal play. In playback mode, click it to play the next or the previous section. You can click continuously when you are watching the files from the same channel. In normal play mode, when you pause current play, you can click W│ and │X to begin frame by frame playback. In frame by frame playback mode, click ►/ to restore normal playback.

Slow play In playback mode, click it to realize various slow play modes such as slow play 1, slow play 2, and etc.

Fast forward In playback mode, click to realize various fast play modes such as fast play 1,fast play 2 and etc.

to view the locked file.

Note: The actual play speed has relationship with the software version.

Smart search

The volume of the playback

Click the snapshot button in the full-screen mode, the system can snapshot

85

1 picture per second.

zIt is to display the record type and its period in current search criteria.

zIn 4-window playback mode, there are corresponding four time bars. In other

playback mode, there is only one time bar. zUse the mouse to click one point of the color zone in the time bar, system begins

8 Time bar

9

10 Backup

11 Clip

12

Time bar unit

Record type

playback.

zThe time bar is beginning with 0 o'clock when you are setting the configuration.

The time bar zooms in the period of the current playback time when you are

playing the file. zThe green color stands for the regular record file. The red color stands for the

external alarm record file. The yellow stands for the motion detect record file.

●The option includes: 24H, 12H, 1H and 30M. The smaller the unit, the larger the zoom rate. You can accurately set the time in the time bar to playback the record.

zThe time bar is beginning with 0 o'clock when you are setting the configuration.

The time bar zooms in the period of the current playback time when you are

playing the file. Select the file(s) you want to backup from the file list. System max supports files from four channels. Then click the backup button, now you can see the backup menu. Click the start button to begin the backup operation. Check the file again you can cancel current selection. System max supports to display 32 files from one channel. zIt is to edit the file.

●Please play the file you want to edit and then click this button when you want to edit. You can see the corresponding slide bar in the time bar of the corresponding channel. You can adjust the slide bar or input the accurate time to set the file end time. Click this button again and then save current contents in a new file. .

In any play mode, the time bar will change once you modify the search type.

13

Smart search

Click the PAL) and 330(22*15 NTSC) zones. See Figure 4-13.

button, system begins smart search. System supports 396(22*18

Figure 4-13

Click the , you can go to the smart search playback. Click it again, system stops smart search playback.

Please note:

z When system is playing, you can select a zone in the window to begin motion

detect. Click the motion detect button to begin play.

z Once the motion detect play has begun, click button again will terminate

current motion detect file play.

z The system will take the whole play zone as the motion detect region by

86

default.

z If you select to play other file in the file list, system switches to motion detect

play pf other file.

z During the motion detect play process, you can not implement operations such

as change time bar, begin backward playback or frame by frame playback. .

Important System does not support motion detect zone setup during the full-screen mode.

Other Functions

Other channel

14

15 Digital zoom

Note:

All the operations here (such as playback speed, channel, time and progress) have

relationship with hardware version. Some series DVRs do not support some functions or

playback speeds.

synchronization switch to play when playback

When playing the file, click the number button, system can switch to the same period of the corresponding channel to play. When the system is in full-screen playback mode, left click the mouse in the screen. Drag your mouse in the screen to select a section and then left click mouse to realize digital zoom. You can right click mouse to exit.

4.5 Schedule

After system booted up, it is in default 24-hour regular mode. You can set record type and

time in schedule interface.

4.5.1 Schedule Menu

In the main menu, from setting to schedule, you can go to schedule menu. See Figure 4-14. z Channel: Please select the channel number first. You can select “all” if you want to set for

the whole channels.

z Week day: There are eight options: ranges from Saturday to Sunday and all.

z Pre-record: System can pre-record the video before the event occurs into the file. The value

ranges from 1 to 30 seconds depending on the bit stream.

z Redundancy: System supports redundancy backup function. It allows you backup recorded

file in two disks. You can highlight Redundancy button to activate this function. Please note,

before enable this function, please set at least one HDD as redundant. (Main menu-

>Advanced->HDD Management) Please refer to chapter 4.5.1.2 for detailed information.

Please note this function is null if there is only one HDD. The 4/8-channel HD-SDI

1080P 1.5U series product and the 4/8-channel HD-SDI 2U series product do not

support redundancy function.

z Snapshot: You can enable this function to snapshoot image when alarm occurs.

z Record types: There are four types: regular, motion detection (MD), Alarm, MD & alarm.

z Holiday setting: Click it you can see an interface shown as in Figure 4-15. Here you can set

holiday date. Check the box, it means current channel shall record as your holiday setup.

Please go to the Period interface to set the holiday date record setup.

Please highlight icon

please click save button, system goes back to the previous menu.

to select the corresponding function. After completing all the setups

87

At the bottom of the menu, there are color bars for your reference. Green color stands for

regular recording, yellow color stands for motion detection and red color stands for alarm

recording. The white means the MD and alarm record is valid. Once you have set to record

when the MD and alarm occurs, system will not record neither motion detect occurs nor the

alarm occurs.

Figure 4-14

Figure 4-15

4.5.1.1 Quick Setup

Copy function allows you to copy one channel setup to another. After setting in channel 1, click

Copy button, you can go to interface Figure 4-16. You can see current channel name is grey

such as channel 1. Now you can select the channel you wan to paste such as channel 5/6/7. If

you wan to save current setup of channel 1 to all channels, you can click the first box “ALL”. Click

the OK button to save current copy setup. Click the OK button in the Encode interface, the copy

function succeeded.

Please note, if you select ALL in Figure 4-16, the record setup of all channels are the same and

the Copy button becomes hidden.

88

Figure 4-16

4.5.1.2 Redundancy

Redundancy function allows you to memorize record file in several disks. When there is file

damage occurred in one disk, there is a spare one in the other disk. You can use this

function to maintain data reliability and safety.

In the main menu, from Setting to Schedule, you can highlight redundancy button to enable

this function. See Figure 4-14.

In the main menu, from Advanced to HDD management, you can set one or more disk(s) as

redundant. You can select from the dropdown list. See Figure 4-17. System auto overwrites

old files once hard disk is full.

Please note only read/write disk or read-only disk can backup file and support file search

function, so you need to set at least one read-write disk otherwise you can not record video.

Note

About redundancy setup:

z If current channel is not recording, current setup gets activated when the channel begin

recording the next time.

z If current channel is recording now, current setup will get activated right away, the current file

will be packet and form a file, then system begins recording as you have just set.

After all the setups please click save button, system goes back to the previous menu.

Figure 4-17

Playback or search in the redundant disk.

There are two ways for you to playback or search in the redundant disk.

89

z Set redundant disk(s) as read-only disk or read-write disk (Main menu->Advanced->HDD

management). See Figure 4-17.System needs to reboot to get setup activated. Now you can

search or playback file in redundant disk.

z Dismantle the disk and play it in another PC.

4.5.2 Snapshot

4.5.2.1 Schedule Snapshot

In Encode interface, click snapshot button to input snapshot mode, size, quality and

frequency. See the interface on the left of Figure 4-18.

Note:

The HD-SDI 1080P 1.5U series product and the HD-SDI 2U series product support 1080P,

720P, D1, HD1, 2CIF, CIF, QCIF resolution.

The 960H supports 960H, D1, HD1, 2CIF, CIF, QCIF resolution.

In FTP (Main Menu->Network->Network Setting) interface, please input upload interval. See

the interface in the middle of Figure 4-18.

In Schedule interface, please enable snapshot function. See interface on the right of Figure

4-18.

Please refer to the following figure for detailed information. See Figure 4-18.

Figure 4-18

4.5.2.2 Activation Snapshot

Please follow the steps listed below to enable the activation snapshot function. After you

enabled this function, system can snapshot when the corresponding alarm occurred.

90
