ICP Electronics PCISA-3717EVT User Manual

PCISA-3717EVT

CeleronTM , Pentium® III Processor

With Ethernet , VGA ( Dual Display ),

TV–Out and Audio Board

©Copyright 2001 by ICP Electronics Inc. All Rights Reserved. Manual first
edition January.15, 2001.

The information in this document is subject to change without prior notice
in order to improve reliability, design and function and does not represent
a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability to
use the product or documentation, even if advised of the possibility of such
damages.

This document contains proprietary information protected by copyright. All
rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.

Trademarks

PCISA-3717EVT is a registered trademark of ICP Electronics Inc. IBM PC
is a registered trademark of International Business Machines Corporation.
Intel is a registered trademark of Intel Corporation. AWARD is a registered
trademark of Award Software Internation, Inc. Other product names
mentioned herein are used for identification purposes only and may be
trademarks and/or registered trademarks of their respective companies.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

1

Contents

1. Introduction ........................................................ 4

1.1 Specifications.................................................................................. 5

1.2 What You Have............................................................................... 7

2. Installation.......................................................... 8

2.1 PCISA-3717EVT Layout ................................................................. 9

2.2 PCISA-3717EVT Dimension ........................................................ 10

2.3 Unpacking Precautions………………………………………………. 11

2.4 Setting the CPU of PCISA-3717EVT ............................................ 12

2.5 Clear CMOS Setup ....................................................................... 12

2.6 CompactFlashDisk™ Flash Disk Setting ..................................... 13

3. Connection ....................................................... 14

3.1 Floppy Disk Drive Connector ........................................................ 14

3.2 PCI E-IDE Disk Drive Connector .................................................. 15

3.3 Parallel Port .................................................................................. 15

3.4 Serial Ports ................................................................................ ... 16

3.5 Keyboard/Mouse Connector ......................................................... 17

3.6 External Switches and Indicators.. ................................................ 18

3.7 USB Port Connector ..................................................................... 18

3.8 IrDA Infrared Interface Port .......... ................................................ 19

3.9 VGA ( Dual Display ) Connector.................................................. 19

3.10 LAN RJ45 Connector ................................................................... 21

3.11 Fan Connector.. .............................................................. .............. 21

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

2

3.12 Temperature Sensor Connector ................................................... 22

3.13 Audio CD IN Connector ................................................................ 22

3.14 Audio Line OUT Connector........................................................... 22

3.15 Speaker OUT Connector .............................................................. 23

3.16 Audio Panel Connector................................................................. 23

3.17 Compact Flash Connector........................................................... 23

3.18 Power Connector.......................................................................... 25

4. AWARD BIOS Setup........................................ 26

4.1 Introduction................................................................................... 26

4.2 Starting Setup ............................................................................... 26

4.3 Using Setup .................................................................................. 27

4.4 Getting Help.................................................................................. 28

4.5 Main Menu.................................................................................... 29

4.6 Standard CMOS Setup ................................................................. 32

4.7 Advanced BIOS Features Setup................................................... 36

4.8 Advanced Chipset Features Setup ............................................... 40

4.9 Integrated Peripherals Setup ........................................................ 47

4.10 Power Management Setup .......................................................... 52

4.11 PnP/PCI Configuration Setup ....................................................... 56

4.12 PC Health Status Setup…………….. ............................................ 58

4.13 Frequency / Voltage Control Setup ……………............................ 60

4.14 Defaults Menu Setup …………….. ............................................... 61

4.15 Change Supervisor/User Password……………............................ 62

4.16 Exit Selection …………….. ........................................................... 63

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

3

Appendix A. WatchDog Timer.......................................... 64

Appendix B. POST Messages .......................................... 66

Appendix C.

DMA , IRQ , 1st MB Memory and I/O Address Map ... 72

Appendix D. How to Upgrade a New BIOS .................... 74

Appendix E. ATX Power Supply ..................................... 77

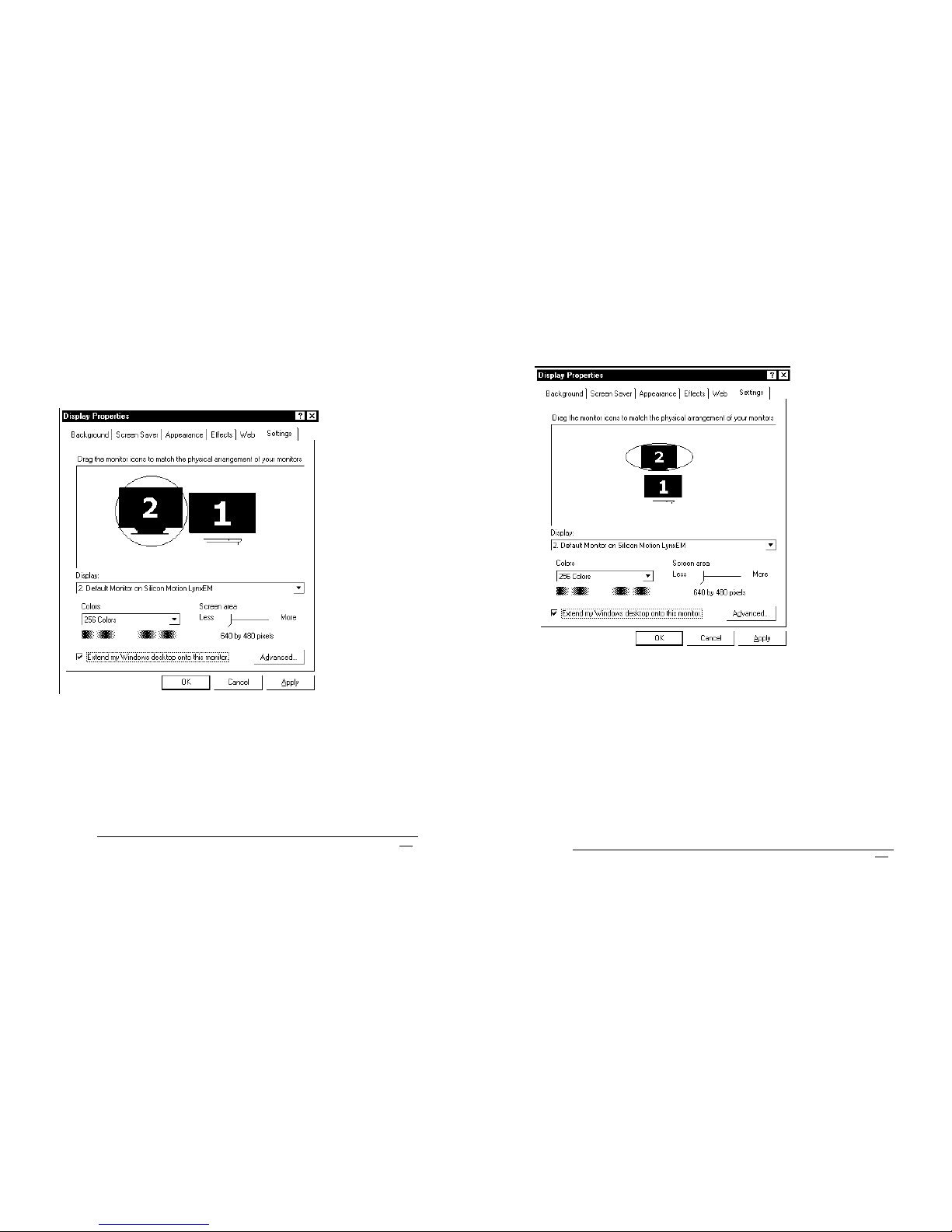

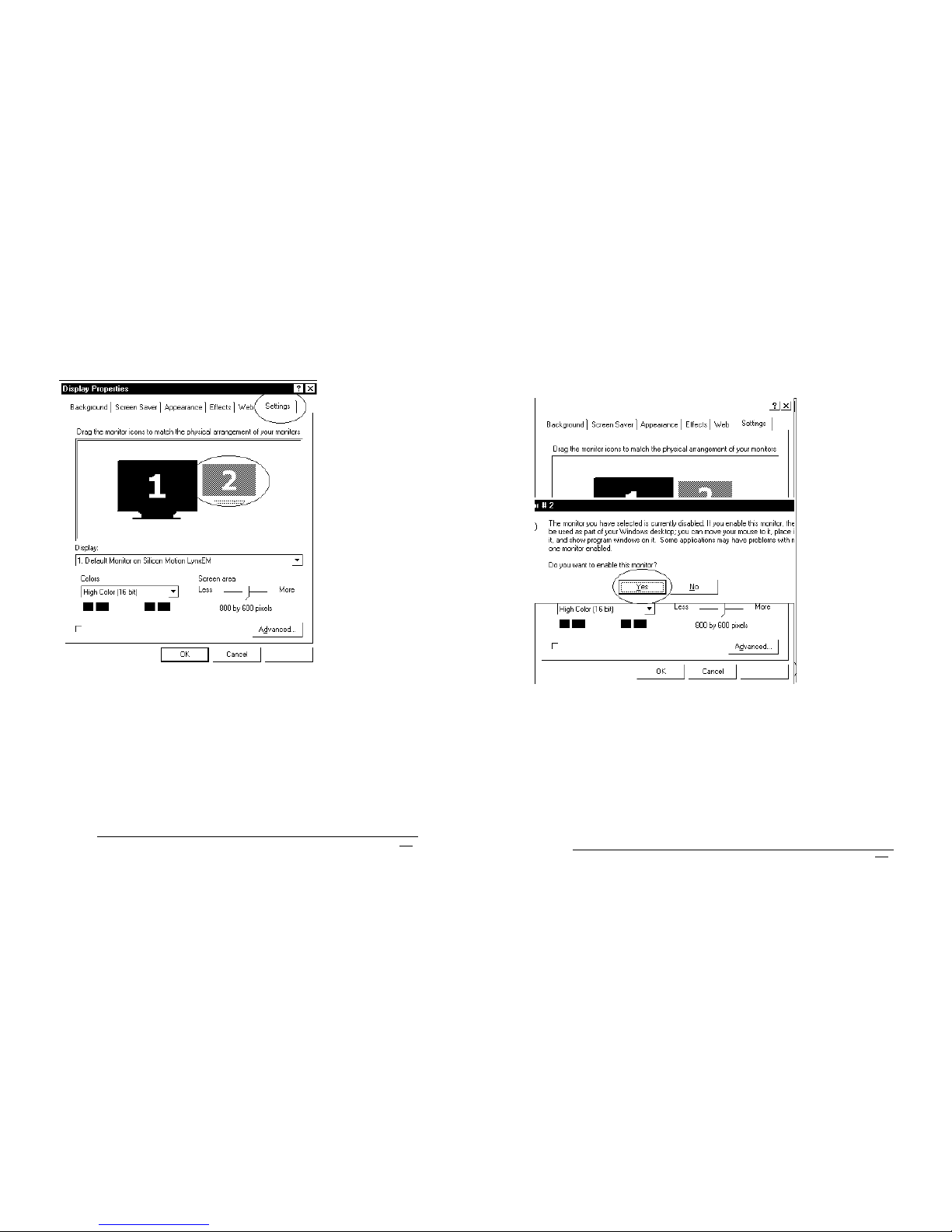

Appendix F. Dual View Setup ........................................ 79

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

4

1

Introduction

Welcome to the PCISA-3717EVT Socket 370 Celeron® , Pentium

III

®

(FC-PGA) with one 10/100Mbps Ethernet , VGA ( Dual
Display ) , TV-Out , Audio Board. It is equipped with high
performance Intel

®

Celeron up to 677MHz( or above ) , Pentium
III ( FC-PGA ) 500-933MHz ( or above ) Processor and
advanced high performance multi-mode I/O, designed for the
system manufacturers, integrators, or VARs that want to provide
all the performance, reliability, and quality at a reasonable price.

This board has a built-in IDE Interface CompactFlash™ Disk
( Type II ) for embedded application. The CompactFlash™ Disk
is 100% compatible to hard disk. User can use any DOS
command without any extra software utility. The Flash Disk
currently is available from 128MB to 1GB.

One advanced high performance LPC super I/O chip – ITE
( IT8705F ) is used in the PCISA-3717EVT board. The on-chip
UARTs are compatible with the NS16C550. The parallel port and
FDD interface are compatible with IBM PC/AT architecture.

PCISA-3717EVT uses the advanced SIS SIS630 Chipset which
is 100% PCI compatible chipset with PCI 2.1 standard. In
addition, this board provides one 168-pin socket for its on-board
DRAM. The DIMM module is 3.3V SDRAM and max. 512MB for
each module.

The VGA chip ( on chip sis300) used on PCISA-3717EVT
supports 3D function and Dual Display .

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

5

1.1 Specifications :

•

CPU

: support Intel Celeron

®

up to 677 MHz or above, Pentium III
( FC-PGA ) 500-933 MHz (or Above ) Processor. Supports 66MHz,
100MHz and 133 MHz FSB.

•

Expansion

Bus

: PCISA bus( ISA and PCI bus), expansion to

support PCI and ISA ( ** Slave mode only ) bus signal

•

DMA channels

: 7

•

Interrupt levels

: 15

•

Chipset

: SIS630 66/100/133MHz CPU / DRAM Clock

•

DRAM

: One 168-pin DIMM socket ,supports SDRAM RAM module,

up to 512MB.

•

AGP VGA Controller

: On chip SIS300 3D function ( Share

memory up to 64MB RAM)

and Dual Display SIS 301 Support

secondary CRT , TV out .

AGP bus speed : 66MHz

VESA Standard Super High Resolution Graphic Mode up to

1600 x 1200 256/32K colors 100 Hz

1280 x 1024 256/32K/64K/16M colors 120 Hz

1024 x 768 256/32K/64K/16M colors 120 Hz

800 x 600 16/256/32K/64K/16M colors 120 Hz

640 x 480 16/256/32K/64K/16M colors 120 Hz

•

10/100Mbps Ethernet Controller

: One Ethernet -SIS900
( embedded in SIS630 chipset ), Auto-sensing interface to 10Mbps,
100Mbps Network , RJ45 connector for 10BASE-TX and 100BASE­TX , Full Duplex capability , Full Software driver support

•

Ultra DMA/66 (Enhanced PCI IDE Interface)

: Supports two PCI
Enhance IDE hard drives. The Ultra DMA/66 IDE can handle data
transfer up to 66MB/s. The best of all is that this new technology is
compatible with existing ATA-2 IDE specifications. So, there is no
need to do any change for customer’s current accessory.

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

6

•

Multi-I/O Chip

: IT8705Fl I/O , setup by BIOS

Two 16C550 RS-232C Ports , One EPP/ECP Parallel Port, Floppy

Port.

•

Floppy disk drive interface

: Two 2.88 MB, 1.44MB, 1.2MB, 720KB,

or 360KB floppy disk drives.

•

Two high speed Serial ports

: NS16C550 compatible UARTs

•

Bi-directional Parallel Port :

One parallel port support , IEEE1284

compatible .

•

IrDA port :

Support Infrared and Amplitude Shift Keyed IR(ASKIR)

interface.

•

USB port :

Support Two USB ports for future expansion, USB 1.2

compatible .

•

Watchdog timer

: Supports resolution of 1 second and period of 1 –
255 seconds . Reset is generated when CPU does not periodically
trigger the timer. You can uses IO port 443H to control the watch-dog .

•

CompactFlash

™ Disk –

Type II CompactFlash™ Disk : The Flash

Disk provides 100% compatibility with IDE hard disk.

Besides it can

accept type II IBM MicroDriver .

•

SIS7018 PCI Audio Chipset:

Sound Blaster compatible and Roland

MPU401 compatible ( AC97 )

•

Support ATX Power function

•

Mouse & Keyboard Connector

: PS/2 Mouse Port Expansion

Keyboard.

•

Power Consumption

: +5V : 7.5A (Pentium III 933MHz, 256MB

SDRAM ) +12V : 0.3A

•

Operating Humidity

: 5 ~ 95 % , non-condensing

•

Operating Temperature

: 0° ~ 55° C ( CPU needs Cooler)

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

7

1.2 What You Have

In addition to this User's Manual, the PCISA-3717EVT package
includes the following items:

•

PCISA-3717EVT Socket 370 Celeron

®

, Pentium III VIA Cyrix®

Ⅲ

with

Ethernet

, VGA ( Dual display ) , TV-Out , Audio

Board

•

FDD/HDD ( 1x2.54mm and 1x2.54mm Support DMA66)Cable

( 32200-000017 / 32200-000052 )

•

Keyboard / Mouse Adapter Y Cable

( 32000-000138 )

•

Printer / Serial Port ( 1x RS232 ) Cable

( 32200-000039 )

•

Audio ( Line In ,Line Out ,Mic In ) / Serial Port ( 1xRS232 )

Cable

( 19800-000004 )

•

VGA ( Secondary Display ) / TV-Out S-Video ( Secondary

Display ) Cable

( 19800-000005)

If any of these items is missing or damaged, contact the dealer
from whom you purchased the product. Save the shipping
materials and carton in case you want to ship or store the product
in the future.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

8

2

Installation

This chapter describes how to install the PCISA-3717EVT. The
layout of PCISA-3717EVT is shown on the next page and the
Unpacking Precautions that you should be careful with are
described on the following page. Also included is the jumpers
and switches setting for this board’s configuration, such as: CPU
type selection, system clock setting and Watchdog timer.

2.1 PCISA-3717EVT 's Layout

< please, refer to the next page >

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

9

2.1 PCISA-3717EVT 's Layout

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

10

2.2 PCISA-3717EVT 's Dimensions ( Unit :mm )

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

11

2.3 Unpacking Precautions

Some components on PCISA-3717EVT are very sensitive to static
electric charges and can be damaged by a sudden rush of power.
To protect it from unintended damage, be sure to follow these
precautions:

 Ground yourself to remove any static charge before touching your

PCISA-3717EVT. You can do it by using a grounded wrist strap at
all times or by frequently touching any conducting materials that is
connected to the ground.



Handle your PCISA-3717EVT by its edges. Don’t touch IC chips,
leads or circuitry if not necessary.



Do not plug any connector or jumper while the power is on.

 Do not put your PCISA-3717EVT unprotected on a flat surface

because it has components on both sides.

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

12

2.4 Setting the CPU of PCISA-3717EVT

•

JP1,2,3,4 : CPU & DRAM FREQUENCY SETTING ( H/W )

2
1

CPU/DRAM JP1 JP2 JP3 JP4

66/66 O O O C
100/100 O O C O
133/133 C C C O

O : Open
C : Close

2.5 Clear CMOS Setup

If you forget the CMOS password, you can clear or reset it by
closing the

JP5

. After JP5(1-2) is closed, turn on the power for
about 3 seconds then turn it off and open the JP5(1-2). Now,
the password has been cleared from your CMOS.

•

JP5 : Clear CMOS Setup

1
2
3

PIN NO. DESCRIPTION

2-3 Normal Operation

1-2 Clear CMOS Setup








PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

13

2.6 CompactFlash™ Disk Setting

The CompactFlash™ Disk is 100% compatible to IDE hard disk.
It is just “plug and play”, easy and reliable. The
CompactFlash™ Disk is available from 128MB to 1GB. Besides
it can accept type II IBM MicroDriver .

•

JP7: CompactFlash™ Disk IDE Master & Slave Setting

1 * CompactFlash™ Disk Use Secondary
2 IDE Channel

PIN NO. DESCRIPTION

Open Slave

Short Master




PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

14

3

Connection

This chapter describes how to connect peripherals, switches and
indicators to the PCISA-3717EVT board.

3.1 Floppy Disk Drive Connector

PCISA-3717EVT board is equipped with a 34-pin daisy-chain
driver connector cable.

•

CN14 : FDD CONNECTOR

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 D4IRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE GATE#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT#
33 GROUND 34 DISK CHANGE#

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

15

3.2 PCI E-IDE Disk Drive Connector

You can attach two IDE (Integrated Device Electronics) hard disk
drives to the PCISA-3717EVT IDE controller .The maximal data
transfer rate is 66MB/s. In this case ,cable total length shall not
exceed 0.46m ( 18in ).

CN13 ( 40Pin 2.54mm IDE) : Primary IDE Connector

•

CN13 : IDE Interface Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RESET# 2 GND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GND 20 N/C
21 IDE DRQ 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 IDE CHRDY 28 GND
29 IDE DACK 30 GND
31 INTERRUPT 32 N/C
33 SA 1 34 N/C
35 SA 0 36 SA 2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GND

3.3 Parallel Port

This port is usually connected to a printer, The PCISA-3717EVT
includes an on-board parallel port, accessed through a 26-pin flat-

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

16

cable connector CN15.

•

CN15 : ( LPT1 ) Parallel Port Connector

Pin Description Pin Description

1 STROBE# 2 AUTO FORM FEED #
3 DATA 0 4 ERROR#
5 DATA 1 6 INITIALIZE
7 DATA 2 8 PRINTER SELECT LN#

9 DATA 3 10 GND
11 DATA 4 12 GND
13 DATA 5 14 GND
15 DATA 6 16 GND
17 DATA 7 18 GND
19 ACKNOWLEDGE 20 GND
21 BUSY 22 GND
23 PAPER EMPTY 24 GND
25 PRINTER SELECT 26 N/C

3.4 Serial Ports

The PCISA-3717EVT offers Two high speed NS16C550
compatible UARTs with Read/Receive 16 byte FIFO serial ports
(COM1/COM2).

•

CN12 : Serial Port 2x5 pin header Connector (COM1)

Pin No. Description Pin No. Description
1 DCD 2 DSR

3 RXD 4 RTS
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

17

•

CN16 : Serial Port 2x10 pin header Connector (COM2)

Pin No. Description Pin No. Description

1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC

3.5 Keyboard/Mouse Connector

The PCISA-3717EVT provides one external keyboard &
mouse ,one mouse and one keyboard connectors.

•

CN28 : Extended Keyboard & PS/2 Mouse 6-pin Mini Din

Connector

PIN NO. DESCRIPTION

1 KB DATA
2 MS DATA
3 GND
4 VCC
5 KB CLOCK
6 MS CLOCK

•

CN26 : 5-pin Header Keyboard Connector

PIN NO. DESCRIPTION

1 KB CLOCK
2 KB DATA
3 N/C
4 GND

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

18

5 +5V

3.6 External Switches and Indicators

There are several external switches and indicators for monitoring
and controlling your CPU board. All the functions are in the CN17
connector.

•

CN17 : Multi Panel

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1. SPEAKER - 11 POW ER-LED +

2. N/C 12 N/C

3. N/C 13 POW ER-LED -

4. SPEAKER +5V 14 KEYLOCK+

5. RESET SW 15 KEYLOCK -

6. RESET SW GND 16 GND

7. IDE LED - 17 N/C

8. IDE LED+ 18 ATX POWER PSON#

9. ATX POW ER
BUTTON +

19 ATX 5VSB

10. ATX POW ER
BUTTON GND

20 ATX 5VSB

3.7 USB Port Connector

The PCISA-3717EVT has built-in two USB ports for the future
new I/O bus expansion.

• CN6,7: Pin Header USB Connectors

PIN NO. Description

1 VCC
2 USBD0-

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

19

3 USBD0+
4 GND

4 3 2 1 CN7 ( USB 0 )

   
   

1 2 3 4 CN6 ( USB 1 )

3.8 IrDA Infrared Interface Port

PCISA-3717EVT built-in IrDA port supports Serial Infrared (SIR)
or Amplitude Shift Keyed IR (ASKIR) interface. If you want to use
the IrDA port, you have to configure the FIR or ASKIR model in
the BIOS’s Peripheral Setup’s COM2. Then the normal RS-232
COM2 will be disabled.

•

CN11 : IrDA Connector

PIN NO. DESCRIPTION

1 VCC
2 N/C
3 IR-RX
4 GND
5 IR-TX

3.9 VGA Connector

The built-in 15-pin D-Type and 10-pin 2x5 pin header VGA
connector support dual display can be connected directly to your
monochrome CRT monitor as well as high resolution color CRT
monitor.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

20

• CN23 : 15-pin Female VGA Connector
( Primary Display )

1 RED 2 GREEN
3 BLUE 4 N/C
5 GND 6 GND
7 GND 8 GND

9 VCC 10 GND
11 N/C 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDC CLK

• CN33 : 10-pin Pin Header VGA Connector
( Secondary Display )

1 RED 2 DDC DAT

3 GREEN 4 DDC CLK

5 BLUE 6 GND

7 HSYNC 8 GND

9 VSYNC 10 GND

•

CN34 : TV Connector (S-video)

( Secondary Display )

Pin No. Description Pin No. Description

1 TV-Y 2 GND
3 GND 4 TV-C

•

CN35 : TV Connector (Composite AV )

( Secondary Display )

Pin No. Description Pin No. Description

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

21

1 TV-CVBS 2 GND
3 GND

3.10 LAN RJ45 Connector

PCISA-3717EVT is equipped with one 10/100Mbps Ethernet
Controller. You can connect it to your LAN through RJ45
connector. The pin assignments are as follows.

• CN24 : LAN RJ45 Connector

1 TX+ 5. N/C
2 TX- 6. RX-

3. RX+ 7. N/C

4. N/C 8. N/C

On chip SIS 300 LAN

•

CN32 : Active LED Connector For on chip SIS300 LAN

Pin No. Description Pin No. Description

1 VCC 2 LAN ACT.



On Chip SIS300 LAN Support Active LED Only

3.11 Fan Connector

The PCISA-3717EVT provides one CPU cooling fan connector
and one system fan connectors. These connectors can supply
12V/500mA to the cooling fan.

•

CN2 : CPU Fan Connector

PIN NO. DESCRIPTION

1 GND
2 +12V

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

22

3 Fan Sensor

3.12 Temperature Sensor Connector

You can connect external temperature sensor to this connector.

•

CN10 : Temperature Sensor Connector
** Use 10K Ohm Temperature register
sensor

Pin No. Description Pin No. Description

1 THER-DA 2 GND

3.13 Audio CD IN

This is used to connect to the CD-Out from CD-ROM player.

• CN21 : Audio CD IN ( 2.54mm )

Pin No. Description Pin No. Description
1 CD IN_R 2 GND

3 GND 4 CD IN_L

3.14 Audio Line OUT

This output normally support direct line-out from audio chip.
It will only provide 6W output when the optional amplifiers is
installed .

• CN25 : Left/Right Audio Output Connector for

Headphone or By optional amplifier Speaker
Output .

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

23

1. GROUND

2. LEFT SIGNAL ( SPK LEFT )

3. NC

4. RIGHT SIGNAL ( SPK RIGHT )

5. NC

3.15 Speaker OUT ( Reserved )

• CN20 : Optional Speaker out .
( Two 6W stereo power amplifiers )

1. RIGHT SIGNAL

2. GND

3. GND

4. LEFT SIGNAL

3.16 Audio Panel

One line-out ( 2 different pin assignments ),one line-in and one
mic-in are supported. All these output are from audio chip
without being amplified.

•

CN22 : Audio Panel

Pin Description Pin Description

1 Line Out R 2 GND
3 Line Out L 4 GND
5 Line Out R 6 Line Out L
7 GND 8 GND

9 Line In R 10 Line In L
11 GND 12 GND
13 NC 14 NC

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

24

15 MIC In 16 GND

3.17 CompactFlash™ Storage Card Socket

The PCISA-3717EVT configures CompactFlash™ Storage Card in
IDE Mode.
It will use IDE Secondary channel when CompactFlash™ card
is plugged in.

•

CN31 : CompactFlash™ Storage Card Socket pin assignment

PIN NO DESCRIPTION PIN NO DESCRIPTION

1 GROUND 26 CARD DETECT1
2 D3 27 D11
3 D4 28 D12
4 D5 29 D13
5 D6 30 D14
6 D7 31 D15
7 CS1# 32 CS3#
8 N/C 33 N/C

9 GROUND 34 IOR#
10 N/C 35 IOW#
11 N/C 36 OBLIGATORY TO PULL HIGH
12 N/C 37 IRQ15
13 VCC 38 VCC
14 N/C 39 MASTER/SLAVE
15 N/C 40 N/C
16 N/C 41 RESET#
17 N/C 42 IORDY
18 A2 43 N/C
19 A1 44 OBLIGATORY TO PULL HIGH
20 A0 45 ACTIVE#
21 D0 46 PDIAG#
22 D1 47 D8
23 D2 48 D9
24 N/C 49 D10
25 CARD DETECT2 50 GROUND

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

25

3.17 Power Connector

The PCISA-3717EVT can work without back-plane , while
attaching external power to this connector .

• CN1: Power Supply Connector

1. +5V

2. GND

3. GND

4. +12V

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

26

4

AWARD BIOS SETUP

4.1 Introduction

This manual discusses Award's Setup program built into the ROM BIOS. The
Setup program allows users to modify the basic system configuration. This
special information is then stored in battery-backed RAM so that it retains the
Setup information when the power is turned off.

4.2 Starting Setup

The Award BIOS is immediately activated when you first power on the computer.
The BIOS reads the system information contained in the CMOS and begins the
process of checking out the system and configuring it. When it finishes, the
BIOS will seek an operating system on one of the disks and then launch and turn
control over to the operating system.
While the BIOS is in control, the Setup program can be activated in one of two
ways:

1. By pressing <Del> immediately after switching the system on, or

2. by pressing the <Del> key when the following message appears briefly at
the bottom of the screen during the POST (Power On Self Test).

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

27

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup,
restart the system to try again by turning it OFF then ON or pressing the
"RESET" button on the system case. You may also restart by simultaneously
pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the
correct time and the system does not boot, an error message will be displayed
and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

4.3 Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select,
use the PageUp and PageDown keys to change entries, press <F1> for help and
press <Esc> to quit. The following table provides more detail about how to
navigate in the Setup program using the keyboard.

Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item in the left hand
Right arrow Move to the item in the right hand
Esc key Main Menu -- Quit and not save changes into

CMOS
Status Page Setup Menu and Option Page
Setup Menu -- Exit current page and return to

Main Menu
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes
F1 key General help, only for Status Page Setup Menu

and Option Page Setup Menu
(Shift)F2 key Change color from total 16 colors. F2 to select

color forward, (Shift) F2 to select color backward
F3 key Calendar, only for Status Page Setup Menu

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

28

F4 key Reserved

F5 key Restore the previous CMOS value from CMOS, only

for Option Page Setup Menu

F6 key Load the default CMOS value from BIOS default

table, only for Option Page Setup Menu
F7 key Load the default
F8 key Reserved
F9 key Reserved
F10 key Save all the CMOS changes, only for Main

Menu

4.4 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to
use and the possible selections for the highlighted item. To exit the Help
Window press <Esc> or the F1 key again.

If, after making and saving system changes with Setup, you discover that your
computer no longer is able to boot, the Award BIOS supports an override to the
CMOS settings which resets your system to its defaults.
The best advice is to only alter settings which you thoroughly understand. To
this end, we strongly recommend that you avoid making any changes to the
chipset defaults. These defaults have been carefully chosen by both Award and
your systems manufacturer to provide the absolute maximum performance and
reliability. Even a seemingly small change to the chipset setup has the potential
for causing you to use the override.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

29

4.5 Main Menu

Once you enter the AwardBIOS™ CMOS Setup Utility, the Main Menu
will appear on the screen. The Main Menu allows you to select from
several setup functions and two exit choices. Use the arrow keys to
select among the items and press <Enter> to accept and enter the sub­menu.

CMOS Setup Utility - Copyright ( C ) 1984-1998

Standard CMOS Feature

Advanced BIOS Feature

Advanced Chipset Feature

Integrated Peripherals

Power Management Setup

PnP/PCI Configurations

PC Health Status

Frequency/Voltage Control

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Esc : Quit ↑ ↓ ← → : Select Item

F10 : Save & Exit Setup

Time, Date, Hard Disk Type….

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

30

Note that a brief description of each highlighted selection appears at the
bottom of the screen.

The main menu includes the following main setup categories. Recall that
some systems may not include all entries.

Standard CMOS Features

Use this menu for basic system configuration. See Section 4.6 for the
details.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.
See Section 4.7 for the details.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize
your system's performance. See section 4.8 for the details.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals. See
section 4.9 for t he details.

Power Management Setup

Use this menu to specify your settings for power management. See
section 4.10 for the details.

PnP / PCI Configuration

This entry appears if your system supports PnP / PCI. See section 4.11
for the details.

PC Health Status

Use this menu to monitor your hardware. See section 4.12 for the details.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

31

Frequency/Voltage Control

Use this menu to specify your settings for frequency/voltage control. See
section 4.13 for the details.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for the minimal/stable
performance for your system to operate. See section 4.14 for the details.

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory settings
for optimal performance system operations. While Award has designed
the custom BIOS to maximize performance, the factory has the right to
change these defaults to meet their needs. See section 4.14 for the
details.

Supervisor / User Password

Use this menu to set User and Supervisor Passwords. See section 4.15
for the details.

Save & Exit Setup

Save CMOS value changes to CMOS and exit setup. See section 4.16
for the details.

Exit Without Save

Abandon all CMOS value changes and exit setup. See section 4.16 for
the details.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

32

4.6 Standard CMOS Setup

The items in Standard CMOS Setup Menu are divided into 10 categories.
Each category includes no, one or more than one setup items. Use the
arrow keys to highlight the item and then use the <PgUp> or <PgDn>
keys to select the value you want in each item.

.

Standard CMOS Features

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

33

Date: Mon, Feb 8 1999
Time: 16:19:20

 IDE Primary Master 2557 MB
 IDE Primary Slave None
 IDE Secondary Master None
 IDE Secondary Slave None

Drive A 1.44M, 3.5 in.

Drive B None

Halt On All Errors

Based Memory 640K
Extended Memory 64512K
Total Memory 65536K

Item Help

Menu Level 

Change the day, month,
year and century

↑↓←→

Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

Figure 1: The Main Menu

Main Menu Selections

Item Options Description

Date MM DD YYYY Set the system date.
Time HH : MM : SS Set the system time
IDE
Primary Master

Options are in its sub
menu
(described in Table 3)

Press <Enter> to enter
the sub menu of detailed
options

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

34

IDE
Primary Slave

Options are in its sub
menu
(described in Table 3)

Press <Enter> to enter
the sub menu of detailed

options
IDE
Secondary Master

Options are in its sub
menu
(described in Table 3)

Press <Enter> to enter

the sub menu of detailed

options
IDE
Secondary Master

Options are in its sub
menu
(described in Table 3)

Press <Enter> to enter

the sub menu of detailed

options
Drive A
Drive B

None
360K, 5.25 in

1.2M, 5.25 in
720K, 3.5 in

1.44M, 3.5 in

2.88M, 3.5 in

Select the type of floppy

disk drive installed in your

system

Halt On All Errors

No Errors
All, but Keyboard
All, but Diskette
All, but Disk/Key

Select the situation in

which you want the BIOS

to stop the POST

process and notify you

Base Memory N/A Displays the amount of

conventional memory

detected during boot up
Extended Memory N/A Displays the amount of

extended memory

detected during boot up
Total Memory N/A Displays the total

memory available in the

system

Table 2 Main Menu Selections

IDE Adapters

The IDE adapters control the hard disk drive. Use a separate sub menu
to configure each hard disk drive.
Figure 2 shows the IDE primary master sub menu.

CMOS Setup Utility – Copyright © 1984-1998 Award Software

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

35

IDE Primary Master

IDE HDD Auto-Detection Press Enter

IDE Primary Master Auto 2557 MB
Access Mode Auto

Cylinder 4956
Head 16
Precomp 0
Landing Zone 4955
Sector 63

Item Help

Menu Level 

To auto-detect the HDD’s
size, head... on this
channel

↑↓←→Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

Figure 2 IDE Primary Master sub menu

Use the legend keys to navigate through this menu and exit to
the main menu. Use Table 3 to configure the hard disk.

Item Options Description

IDE HDD Auto-detection Press Enter Press Enter to auto-detect

the HDD on this channel. If
detection is successful, it fills
the remaining fields on this
menu.

IDE Primary Master None

Auto
Manual

Selecting ‘manual’ lets you
set the remaining fields on
this screen. Selects the type
of fixed disk. "User Type"
will let you select the number
of cylinders, heads, etc.
Note: PRECOMP=65535
means NONE !

Capacity Auto Display Disk drive capacity

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

36

your disk drive
size

(Approximated). Note that
this size is usually slightly
greater than the size of a
formatted disk given by a
disk checking program.

Access Mode Normal

LBA
Large
Auto

Choose the access mode for
this hard disk

The following options are selectable only if the ‘IDE Primary Master’ item is
set to ‘Manual’
Cylinder Min = 0

Max = 65535

Set the number of cylinders
for this hard disk.

Head Min = 0

Max = 255

Set the number of read/write
heads

Precomp Min = 0

Max = 65535

****

Warning

: Setting a
value of 65535 means no
hard disk

Landing zone Min = 0

Max = 65535

****

Sector Min = 0

Max = 255

Number of sectors per track

Table 3 Hard disk selections

4.7 Advanced BIOS Features

This section allows you to configure your system for basic operation.
You have the opportunity to select the system’s default speed, boot-up
sequence, keyboard operation, shadowing and security.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

37

CMOS Setup Utility – Copyright © 1984 – 1998 Award Software

Advanced BIOS Features
Virus Warning Enabled
CPU Internal Cache Enabled
External Cache Enabled
CPU L2 Cache ECC Checking Enabled
Quick Power On Self Test Disabled
First Boot device Floppy
Second Boot device HDD-0
Third Boot device Floppy
Boot other device Disabled
Swap Floppy Drive Disabled
Boot Up Floppy Seek Disabled
Boot Up NumLock Status Off
Gate A20 Option Normal
Typematic Rate Setting Disabled
Typematic Rate (Chars/Sec) 6
Typematic Delay (Msec) 250
Security Option Setup
OS Select For DRAM > 64MB Non-OS2
Report NO FDD For Win 95 No

Item Help
_______________________
____________

Menu Level 

Allows you to choose the
VIRUS warning feature for
IDE Hard Disk boot sector
protection. If this function is
enabled and someone
attempt to write data into
this area, BIOS will show a
warning message on screen
and alarm beep

↑↓←→Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

Virus Warning

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot
sector protection. If this function is enabled and someone attempt to

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

38

write data into this area, BIOS will show a warning message on screen
and alarm beep.

Enabled Activates automatically when the system boots up

causing a warning message to appear when anything
attempts to access the boot sector or hard disk partition
table.

Disabled No warning message will appear when anything

attempts to access the boot sector or hard disk partition
table.

CPU Internal Cache/External Cache

These two categories speed up memory access. However, it depends
on CPU/chipset design.

Enabled Enable cache
Disabled Disable cache

CPU L2 Cache ECC Checking

This item allows you to enable/disable CPU L2 Cache ECC checking.
The choice: Enabled, Disabled.

Processor Number Feature

Some of the new generation of socket-370 processors are installed with
a unique processor number. This number may be used for verification in
internet transactions and e-commerce. If you prefer not to use or
distribute the unique processor number , use this item to suppress the
processor number. The Choice : Enable , Disable.

Quick Power On Self Test

This category speeds up Power On Self Test (POST) after you power up
the computer. If it is set to Enable, BIOS will shorten or skip some check
items during POST.

Enabled Enable quick POST
Disabled Normal POST

First/Second/Third/Other Boot Device

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

39

The BIOS attempts to load the operating system from the devices in the
sequence selected in these items.
The Choice: Floppy, LS/ZIP, HDD, SCSI, CDROM, Disabled.

Swap Floppy Drive

If the system has two floppy drives, you can swap the logical drive name
assignments.

The choice: Enabled/Disabled.

Boot Up Floppy Seek

Seeks disk drives during boot up. Disabling speeds boot up.

The choice: Enabled/Disabled.

Boot Up NumLock Status

Select power on state for NumLock.
The choice: Enabled/Disabled.

Gate A20 Option

Select if chipset or keyboard controller should control GateA20.

Normal A pin in the keyboard controller controls

GateA20

Fast Lets chipset control GateA20

Typematic Rate Setting

Key strokes repeat at a rate determined by the keyboard controller.
When enabled, the typematic rate and typematic delay can be selected.
The choice: Enabled/Disabled.

Typematic Rate (Chars/Sec)

Sets the number of times a second to repeat a key stroke when you hold
the key down.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

40

The choice: 6, 8, 10, 12, 15, 20, 24, 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before it begins to repeat
the keystroke.
The choice: 250, 500, 750, 1000.

Security Option

Select whether the password is required every time the system boots or
only when you enter setup.

System The system will not boot and access to Setup will be

denied if the correct password is not entered at the
prompt.

Setup The system will boot, but access to Setup will be denied if

the correct password is not entered at the prompt.

Note: To disable security, select PASSWORD SETTING at Main Menu
and then you will be asked to enter password. Do not type anything and
just press <Enter>, it will disable security. Once the security is disabled,

the system will boot and you can enter Setup freely.

OS Select For DRAM > 64MB

Select the operating system that is running with greater than 64MB of
RAM on the syst em.

The choice: Non-OS2, OS2.

Report No FDD For Win 95

Whether report no FDD for W in 95 or not.

The choice: Yes, No.

Video BIOS Shadow

This item allows the video BIOS to be copied to system memory for
faster performance.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

41

The Choice : Enable , Disable.

4.8 Advanced Chipset Features

CMOS Setup Utility – Copyright © 1984 – 1998 Award Software

Advanced Chipset Features
Advanced DRAM Control 1 Press Enter
Advanced DRAM Control 2 Press Enter

System BIOS Cacheable Disabled
Video BIOS Cacheable Disabled
Memory Hole At 15M-16M Enabled
AGP Aperture Size 64MB
Graphic Window WR Combin Enable
Concurrent function ( MEM ) Enabled
Concurrent function ( PCI ) Enabled
CPU Pipeline Control Enabled
PCI Delay Transaction Enabled
Power-supply Type AT
Memory Parity Check Enabled

Item Help
_______________________
____________
Menu Level 

↑↓←→

Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

This section allows you to configure the system based on the specific
features of the installed chipset. This chipset manages bus speeds and
access to system memory resources, such as DRAM and the external
cache. It also coordinates communications between the conventional
ISA bus and the PCI bus. It must be stated that these items should
never need to be altered. The default settings have been chosen
because they provide the best operating conditions for your system.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

42

Advanced DRAM Control 1 / 2 Settings

The first chipset settings deal with CPU access to dynamic random
access memory (DRAM). The default timings have been carefully
chosen and should only be altered if data is being lost. Such a scenario
might well occur if your system had mixed speed DRAM chips installed
so that greater delays may be required to preserve the integrity of the
data held in the slower memory chips.

Auto Configuration

This item will automatically configure the chipset timing. . You may select
'manual' to set up following gray items by your specific need.

The choice: Manual, Auto, 100MHZ, 133MHZ.

SDRAM RAS Active Time

This item defines SDRAM ACT to PRE command period.

The Choice: 6T, 7T, 5T, 4T.

SDRAM RAS Precharge Time

This item defines SDRAM PRE to ACT command period.

The Choice: 3T, 2T, 4T, Reserved.

RAS to CAS Delay

This item defines SDRAM ACT to Read/Write command period.
The choice: 3T, 2T, 4T, Reserved.

Dram Backgroud Command

This item is lead-off time control for DRAM background command. When select
'Delay 1T' , background commands are issued 1 clock behind memory address
(MA) been issued. When select 'Normal', background command and MA are
issued at the same time.

The choice: Delay 1T, Normal.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

43

LD-Off Dram RD/WR Cycles

The item is lead-off time control for DRAM Read/Write Cycles. When select
'Delay 1T' , memory read/write command is issued 1 clock behind memory
address (MA) been issued. When select 'Normal', read/write command amd MA
are issued at the same time.

The choice: Delay 1T, Normal.

Write Recovery Time

This item defines the Data-in to PRE command period.

The choice: 1T, 2T

VCM REF To ACT/REF Delay

This item defines VCM REF to REF/ACT command period.

The choice: 10T, 9T.

VCM ACCT To ACT/REF Delay

This item defines VCM ACT to ACT/REF command period.

The choice: 10T, 9T, 8T, Reserved.

Early CKE Delay 1T Cntrl

When this item is enabled, CKE is driven out from flip-flop. It is used when
system operates under low frequency and CKE delay adjustment method
defined in the 'Early CKE Delay Adjustment' which can not meet setup time and
hold time requirement.

The choice: Normal, Delay 1T.

Early CKE Delay Adjust

This item controls the timing for CKE. Various delay options are provided to
ensure that CKE can meet SDRAM setup time and hold time specification when
CKE is driven out.

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

44

The Choice: 1ns, 2ns, 3ns, 4ns, 5ns, 6ns, 7ns, 8ns.

Mem Command Output Time

This item is to control the timing to drive memory command onto memory bus.

The choice: Normal, Delay 1T.

SDRAM/VCM CAS Latency

When synchronous DRAM is installed, the number of clock cycles of CAS
latency depends on the DRAM timing.
The Choice: 2, 3 , SPD

SDRCLK Control

This item controls the phase of SDRCLK that lags behind SDCLK.

The choice: Enabled, Disabled.

SDWCLK Control CS#/CKE

This item controls the phase of SDWCLK used for chip set select signals pin that
lags ahead SDCLK.

The choice: Enabled, Disabled.

SDWCLK Control MA/SRAS

This item controls the phase of SDWCLK used for MA/ SRAS signals that lags
ahead SDCLK.

The choice: +5.0ns~-2.5ns (Default 0.0ns)

SDWCLK Control DQM/MD

This item controls the phase of SDWCLK used for DQM/MD signals that lags
ahead SDCLK.

The choice: +5.0ns~-2.5ns (Default 0.0ns)

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

45

EGMRCLK Control

This item controls the phase of EGMRCLK that lags behind SDCLK.

The choice: -1.0ns~+6.5ns (Default 0.0ns)

EGMWCLK Control

This item controls the phase of EGMWCLK that lags ahead SDCLK.

The choice: +5.0ns~-2.5ns (Default 0.0ns)

System BIOS Cacheable

Selecting

Enabled

allows caching of the system BIOS ROM at F0000h-FFFFFh,
resulting in better system performance. However, if any program writes to this
memory area, a system error may result.

The choice: Enabled, Disabled.

Vedio RAM Cacheable

Select Enabled allows caching of the video RAM , resulting in better system
performance. However, if any program writes to this memory area, a system
error may result.

The choice: Enabled, Disabled.

Memory Hole at 15M-16M

You can reserve this area of system memory for ISA adapter ROM. When this
area is reserved, it cannot be cached. The user information of peripherals that
need to use this area of system memory usually discusses their memory
requirements.

The Choice: Enabled, Disabled.

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

46

AGP Aperture Size

Select the size of Accelerated Graphics Port (AGP) aperture. The aperture is a
portion of the PCI memory address range dedicated for graphics memory
address space. Host cycles that hit the aperture range are forwarded to the AGP
without any translation.

The Choice: 4M, 8M, 16M, 32M, 64M, 128M, 256M.

Graphic Window WR Combin

Use this item to enable or disable CPU support for WR Combin.

The Choice : Enable , Disable .

Concurrent Function ( MEM )

This item is CPU & PCI Masters Concurrently Access Memory Function. Select
enabled allows CPU access memory cycles and PCI masters access memory
cycles concurrently issued onto host bus and PCI bus, respectively, and then the
memory access cycles will be rearranged by SiS630 to memory sequentially.

The choice: Enabled, Disabled

Concurrent Function ( PCI )

This item is CPU & PCI Masters Concurrently Access PCI Bus Function. Select
enabled allows CPU access PCI bus cycle and PCI masters access memory
cycles concurrently issued onto host bus and PCI bus, respectively.

The choice: Enabled, Disabled.

CPU Pipeline Control

When enabled this item, only one pending cycle is allowed at one time.
When disabled, there might be more than two pending cycles at one time
depends on the CPU behaviour.
The choice: Enabled, Disabled.

PCI Delay Transaction

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

47

If the chipset has an embedded 32-bit write buffer to support delay
transaction cycles, you can enable this item to provide compliance with
PCI Ver.2.1 specifications. We recommend that you leave this item at
the default value.
The choice : Enable, Disable.

Power-Supply Type

This item controls the power-supply type to AT or ATX.
The choice: AT,ATX.

Memory Parity Check

Enabled this item to test the boot-up memory. .

The choice: Enabled, Disabled.

4.9 Integrated Peripherals

CMOS Setup Utility – Copyright © 1984 – 1998 Award Software

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

48

Integrated Peripherals

SIS 630 OnChip IDE Device Press Enter
SIS 630 OnChip PCI Device Press Enter
Super I/O Device Press
Enter

USB Controller Enabled

USB Keyboard Support Enabled
Init Display First PCI Slot
IDE HDD Block Mode Enabled
System Share Memory 8MB

SIS 301 Display Type Auto

Item Help
______________________
_____________
Menu Level 
If your IDE hard drive
supports block mode select
Enabled for automatic
detection of the optimal
number of block read/write
per sector the drive can
support

↑↓←→ Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

SIS 630 OnChip IDE Device

Internal PCI / IDE

This chipset contains an internal PCI IDE interface with support for two
IDE channels. The choice: Primary, Secondary, Both.

IDE Primary Master/Slave PIO

The four IDE PIO (Programmed Input / Output) fields let you set a PIO
mode (0-4) for each of the four IDE devices that the onboard IDE
interface supports. Modes 0 through 4 provide successively increased
performance. In Auto mode, the system automatically determines the
best mode for each device.

The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, and Mode 4.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

49

Primary Master/Slave UltraDMA

UDMA (Ultra DMA) is a DMA data transfer protocol that utilizes ATA commands
and the ATA bus to allow DMA commands to transfer data at a maximum burst
rate of 66 MB/s. When you select

Auto

in the four IDE UDMA fields (for each of
up to four IDE devices that the internal PCI IDE interface supports), the system
automatically determines the optimal data transfer rate for each IDE device.

The choice: Auto, Disabled.

IDE Burst Mode

Selecting Enabled reduces latency between each drive read/write cycle,
but may cause instability in IDE subsystems that cannot support such
fast performance. If you are getting disk drive errors, try setting this
value to Disabled. This field does not appear when the Internal PCI/IDE
field, above, is Disabled.

The choice: Enabled, Disabled.

SIS 630 OnChip PCI Device

SIS-7018 AC97 AUDIO

Select Enabled to support AC97 Audio.
The choice: Enabled, Disabled.

SIS-900 10/100M ETHERNET

This item provides a total communication solution including 10/100Mb
Fast Ethernet for Office requirement .
The choice: Enabled, Disabled.

Super I/O Device

Onboard FDC Controller

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

50

Select Enabled if your system has a floppy disk controller (FDC) installed
on the system board and you wish to use it. If you install and-in FDC or
the system has no floppy drive, select Disabled in this field.

The choice: Enabled, Disabled.

Onboard Serial Port 1/ Port 2

Select an address and corresponding interrupt for the first and second
serial ports.

The choice: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto.

UART Mode Select

This item allows you to select UART mode.

The choice: Enabled, Disabled.

UR2 Duplex Mode

This item allows you to select the IR half/full duplex funcion.

The choice: Half, Full.

Onboard Parallel Port 1

This item allows you to determine access onboard parallel port controller
with which I/O address.

The choice: 3BC/IRQ7, 378/IRQ7, 278/IRQ5, Disabled.

Parallel Port Mode

Select an operating mode for the onboard parallel (printer) port. Select
Normal, Compatible, or SPP unless you are certain your hardware and
software both support one of the other available modes.

The choice: SPP, EPP, ECP, ECP+EPP.

ECP Mode Use DMA

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

51

Select a DMA channel for the parallel port for use during ECP mode.

The choice: 3, 1.

USB Controller

Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have USB peripherals.

Choices are: Enabled, Disabled.

USB Keyboard Support

Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB keyboard.

Choices are: Enabled, Disabled.

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple
sector read/write. If your IDE hard drive supports block mode (most new
drives do), select Enabled for automatic detection of the optimal number
of block read/writes per sector the drive can support.

The choice: Enabled, Disabled.

Init Display First

This item allows you to decide to active which bus first (PCI Slot or AGP
first).
The choice: PCI Slot, AGP.

System Share Memory Size

This item defines the System Share Memory Size for video.
The choice:2MB,4MB,8MB,16MB, 32MB, 64MB

SIS 301 Display Type

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

52

This item defines the Dual Display Type for SIS 301 chip .

The Choice : Auto , CRT1 Only , CRT1 + LCD Scaling , LCD Scaling
Only , CRT1 + A-V PAL O-Scan , CRT1 + A-V PAL U-Scan , CRT1 + A­V NTSC O-Scan , CRT1 + A-V NTSC U-Scan , A-V PAL O-Scan Only ,
A-V PAL U-Scan Only , A-V NTSC O-Scan Only , A-V NTSC U-Scan
Only , CRT1 + S-V PAL O-Scan , CRT1 + S-V PAL U-Scan ,
CRT1 + S-V NTSC O-Scan , CRT1 + S-V NTSC U-Scan , S-V PAL O­Scan Only , S-V PAL U-Scan Only , S-V NTSC O-Scan Only ,
S-V NTSC U-Scan Only , CRT1 + SCART , SCART Only , CRT1 + Hi­TV , Hi-TV Only , CRT1 + CRT2 , CRT2 Only .

4.10 Power Management Setup

The Power Management Setup allows you to configure you system to
most effectively save energy while operating in a manner consistent with
your own style of computer use.

CMOS Setup Utility – Copyright © 1984 – 1998 Award Software

Power Management Setup

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

53

ACPI function Enabled
ACPI Suspend Type S3(STR)
Video Off Option Susp,Stby -> Off
Video Off Method V/H SYNC_Blank
Switch Function Break/W ake

Hot Key Function As Power Off
HDD Off After Disable
Power Button Override Instant Off
KB Power On Password Disable
PM Wake Up Events Press Enter
Power Up by Alarm Press Enter

Item Help
_______________________
____________
Menu Level 

↑↓←→Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

ACPI Function

This item allows you to enable/disable the Advanced Configuration and
Power Management (ACPI).
The choice: Enabled, Disabled.

ACPI Suspend Type

This item allows you to S1(Power ON Suspend)/S3(Suspend To RAM)
the Advanced Configuration and Power Management (ACPI).
The choice: S1(POS), S3(STR).

Video Off Option

When enabled, this feature allows the VGA adapter to operate in a power saving
mode.

Always On Monitor will remain on during power saving modes.

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

54

Suspend --> Off Monitor blanked when the systems enters the Suspend

mode.

Susp,Stby -->
Off

Monitor blanked when the system enters either Suspend or
Standby modes.

All Modes -->
Off

Monitor blanked when the system enters any power saving
mode.

Video Off Method

This determines the manner in which the monitor is blanked.

V/H
SYNC+Blank

This selection will cause the system to turn off the vertical
and horizontal synchronization ports and write blanks to the

video buffer.
Blank Screen This option only writes blanks to the video buffer.
DPMS Select this option if your monitor supports the Display

Power Management Signaling (DPMS) standard of the

Video Electronics Standards to select video power

management values.

Switch Function

You can choose whether or not to permit your system to enter complete
Suspend mode. Suspend mode offers greater power savings, with a
correspondingly longer awakening period..

The choice: Break/Wake, Disabled.

Hot Key Function As

Select

Enabled

if your system has a hot key for soft power off.

The choice: Enabled, Disabled.

HDD Off After

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

55

By default, this item is Disabled, meaning that no matter the mode the rest of the
system, the hard drive will remain ready. Otherwise, you have a range of choices
from 1 to 15 minutes or Suspend. This means that you can elect to have your
hard disk drive be turned off after a selected number of minutes or when the rest
of the system goes into a Suspend mode.

Power Button Over Ride

You could press the power button for more than 4 seconds forces the system to
enter the Soft-Off state when the system has “hung.”

The choice: Soft-Off, Delay 4 Sec.

PM Wake Up Events

IRQ [3-7,9-15],NMI

The following is a list of IRQ’s, Interrupt ReQuests, which can be exempted
much as the COM ports and LPT ports above can. When an I/O device wants to
gain the attention of the operating system, it signals this by causing an IRQ to
occur. When the operating system is ready to respond to the request, it
interrupts itself and performs the service.
As above, the choices are On and

Off.

When set On, activity will neither prevent the system from going into a power
management mode nor awaken it.

•

IRQ [ 3-7, 9-15], NMI

•

IRQ 8 Break Suspend :

You can

Enable

or

Disable

monitoring of IRQ8 (the

Real Time Clock) so it does not awaken the system from Suspend mode.

Ring / PCIPME Power Up Control

When you select

Enabled,

a signal from ring / PCIPME returns the system to Full

On state.

The choice: Enabled, Disabled.

KB Power On Password

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

56

This item can be used to prompt the used for a password when the system
power is resumed by keyboard action .

The choice: Disable , Enable.

Power Up by Alarm

When you select

Enabled,

the following fields appear. They let you set the alarm

that returns the system to Full On state.

Date ( of Month ) Alarm lets you select a day from 1 to 31 . Time Alarm lets you
select a time for the alarm in hours , minutes , and seconds .

The choice: Enabled, Disabled.

4.11 PnP/PCI Configuration Setup

This section describes configuring the PCI bus system. PCI, or Personal
C

omputer Interconnect, is a system which allows I/O devices to operate
at speeds nearing the speed the CPU itself uses when communicating
with its own special components. This section covers some very
technical items and it is strongly recommended that only experienced
users should make any changes to the default settings.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

57

CMOS Setup Utility – Copyright © 1984-1998 Award Software

PnP/PCI Configurations

Reset Configuration Data Disabled

Resources Controlled By Auto(ESCD)

 IRQ Resources Press Enter

PCI/VGA Palette Snoop Disabled

Item Help

------------------------­Menu Level 

Default is Disabled.
Select Enabled to reset
Extended System
Configuration
Data(ESCD) when you
exit Setup if you have
installed a new add-on
and the system
reconfiguration has
caused such a serious
conflict that the OS
cannot boot

↑↓←→Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset
Extended System Configuration Data (ESCD) when you exit Setup if you
have installed a new add-on and the system reconfiguration has caused
such a serious conflict that the operating system can not boot.
The choice: Enabled, Disabled .

Resource controlled by

The Award Plug and Play BIOS has the capacity to automatically
configure all of the boot and Plug and Play compatible devices. However,
this capability means absolutely nothing unless you are using a Plug and
Play operating system such as Windows95. If you set this field to

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

58

“manual” choose specific resources by going into each of the sub menu
that follows this field (a sub menu is preceded by a “”).
The choice: Auto(ESCD), Manual.

IRQ Resources

When resources are controlled manually, assign each system interrupt a
type, depending on the type of device using the interrupt.

IRQ3/4/5/7/9/10/11/12/14/15 assigned to

This item allows you to determine the IRQ assigned to the ISA bus and is
not available to any PCI slot. Legacy ISA for devices compliant with the
original PC AT bus specification, PCI/ISA PnP for devices compliant with
the Plug and Play standard whether designed for PCI or ISA bus
architecture.
The Choice: Legacy ISA and PCI/ISA PnP.

PCI/VGA Palette Snoop

Leave this field at Disabled.

Choices are Enabled, Disabled.

4.12 PC Health Status

This section helps you to get more information about your system including CPU
temperature, FAN speed and voltages. It is recommended that you contact with
your motherboard supplier to get proper value about your setting of the CPU
temperature.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

59

CMOS Setup Utility – Copyright © 1984-1998 Award Software

PC Health Status
Vcore 1.65V
+2.5V 2.49V
+3.3V 3.37V
+5V 4.97V
+12V 11.96V
+3VSB 3.29V
+5VSB 4.65V

Temperature1 - 55℃
Temperature2 40℃
Temperature3 79℃

FAN 1 Speed 4153 RPM

Item Help

------------------------­Menu Level 

↑↓←→ Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

Voltage Monitoring

The chipset reserves 7 inputs for monitoring working voltages
from various sources in the system. These voltages may
includes CPU voltage, power pins of the ATX power (+/-12V, +/­5V, 3.3V...) and others.

Generic names (Voltage Name) are given to these items
because where these pins are connected depends on different
platforms you are using.

Temperature 1/2/3

The chipset reserves 3 inputs for monitoring temperatures that
are typically the CPU & system temperatures.

Generic names are given for the same reason as Voltage 0-7.

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

60

Fan 1 Speed

The chipset reserves 1 inputs for monitoring FAN speeds in the
system. Usually, one FAN is applied to cool down the CPU and
the other one is applied by different purpose.

Generic names are given for the same reason as Voltage monitoring.

4.13 Frequency/Voltage Control

CMOS Setup Utility – Copyright © 1984-1998 Award Software

Frequency/Voltage Control

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

61

Auto Detect DIMM/PCI Clk Disabled
Spread Spectrum Disabled
CPU HOST/SDRAM/PCI Clock Default
CPU Clock Ratio By H/W

Item Help

------------------------­Menu Level 

↑↓←→ Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

Auto Detect DIMM/PCI CLK

This item allows you to enable/disable auto detect DIMM/PCI Clock.
The choice: Enabled, Disabled.

Spread Spectrum

This item allows you to enable/disable the spread spectrum modulate.
The choice: Enabled, Disabled.

CPU Host/DRAM/PCI Clock

This item allows you to select CPU/PCI frequency.
The choice: Default, 66/66/33MHz, 133/133/33MHz, 100/100/33MHz.

CPU Clock Ratio

This item allows you to select CPU clock ratio.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

62

The choice: By H/W 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8.

4.14 Defaults Menu

Selecting “Defaults” from the main menu shows you two options
which are described below

Load Fail-Safe Defaults
When you press <Enter> on this item you get a confirmation
dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing ‘Y’ loads the BIOS default values for the most stable,
minimal-performance system operations.

Load Optimized Defaults

When you press <Enter> on this item you get a confirmation
dialog box with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing ‘Y’ loads the default values that are factory settings for
optimal performance system operations.

4.15 Supervisor/User Password Setting

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

63

You can set either supervisor or user password, or both of then. The
differences between are:

supervisor password :

can enter and change the options of the setup menus.

user password

:
just can only enter but do not have the right to change the options of the
setup menus. When you select this function, the following message will
appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:
Type the password, up to eight characters in length, and press <Enter>.
The password typed now will clear any previously entered password from
CMOS memory. You will be asked to confirm the password. Type the
password again and press <Enter>. You may also press <Esc> to abort
the selection and not enter a password.
To disable a password, just press <Enter> when you are prompted to
enter the password. A message will confirm the password will be
disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it
every time you try to enter Setup. This prevents an unauthorized person
from changing any part of your system configuration.
Additionally, when a password is enabled, you can also require the BIOS
to request a password every time your system is rebooted. This would
prevent unauthorized use of your computer.
You determine when the password is required within the BIOS Features
Setup Menu and its Security option (see Section 3). If the Security
option is set to password will be required both at boot and at entry to
Setup. If set to “Setup”, prompting only occurs when trying to enter
Setup.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

64

4.16 Exit Selecting

Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

Save to CMOS and EXIT (Y/N)? Y

Pressing “Y” stores the selections made in the menus in
CMOS – a special section of memory that stays on after you turn
your system off. The next time you boot your computer, the
BIOS configures your system according to the Setup selections
stored in CMOS. After saving the values the system is restarted
again.

Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing in CMOS any
change. The previous selections remain in effect. This exits the
Setup utility and restarts your computer.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

65

Appendix A. Watch-Dog Timer

The Watchdog Timer is a device to ensure that standalone systems can
always recover from abnormal conditions that cause the system to crash.
These conditions may result from an external EMI or a software bug.
When the system stops working, hardware on the board will perform
hardware reset (cold boot) to bring the system back to a known state.

Three I/O ports control the operation of W atch-Dog Timer.

443 (hex) Write Set Watchdog Time period
443 (hex) Read Enable the refresh the Watchdog Timer.
043/843 (hex) Read Disable the Watch-Dog Timer.

Prior to enable the Watch-Dog Timer, user has to set the time-out period.
The resolution of the timer is 1 second and the range of the timer is from
1 sec to 255 sec. You need to send the time-out value to the I/O port –
443H, and then enable it by reading data from the same I/O port – 443H.
This will activate the timer that will eventually time out and reset the CPU
board. To ensure that this reset condition won’t occur, the Watch-Dog
Timer must be periodically refreshed by reading the same I/O port 443H.
This must be done within the time-out period, please refer to the example
program. Finally, we have to disable the Watch-Dog timer by reading the
I/O port -- 843H or 043H. Otherwise the system could reset
unconditionally.

A tolerance of at least 5% must be maintained to avoid unknown routines
in the operating system (DOS), such as disk I/O that can be very time­consuming. Therefore if the time-out period has been set to 10 seconds,
the I/O port 443H must be read within 7 seconds.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

66

Example assembly program:

TIMER_PORT = 443H
TIMER_START = 443H
TIMER_STOP = 843H

;;INITIAL TIMER COUNTER

MOV DX, TIMER_PORT
MOV AL, 8

;;8 seconds

OUT DX, AL
MOV DX, TIMER_START
IN AL, DX.

;;start counter

W_LOOP:
MOV DX, TIMER_STOP
IN AL, DX
MOV DX, TIMER_START
IN AL, DX

;;restart counter

;;ADD YOUR APPLICATION HERE

CMP EXIT_AP, 0
JNE W_LOOP
MOV DX, TIMER_STOP
IN AL, DX

;;EXIT AP

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

67

Appendix B. POST Messages

POST Messages

During the Power On Self Test (POST), if the BIOS detects an error requiring
you to do something to fix, it will either sound a beep code or display a message.
If a message is displayed, it will be accompanied by:
PRESS F1 TO CONTINUE, CTRL-ALT-ESC OR DEL TO ENTER SETUP

POST Beep

Currently there are two kinds of beep codes in BIOS. This code indicates that a
video error has occurred and the BIOS cannot initialize the video screen to
display any additional information. This beep code consists of a single long
beep followed by three short beeps. The other code indicates that your DRAM
error has occurred. This beep code consists of a single long beep repeatedly.

Error Messages

One or more of the following messages may be displayed if the BIOS detects an
error during the POST. This list includes messages for both the ISA and the
EISA BIOS.

CMOS BATTERY HAS FAILED

CMOS battery is no longer functional. It should be replaced.

CMOS CHECKSUM ERROR

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

68

Checksum of CMOS is incorrect. This can indicate that CMOS has become
corrupt. This error may have been caused by a weak battery. Check the
battery and replace if necessary.

DISK BOOT FAILURE, INSERT SYSTEM DISK AND PRESS ENTER

No boot device was found. This could mean that either a boot drive was not
detected or the drive does not contain proper system boot files. Insert a system
disk into Drive A: and press <Enter>. If you assumed the system would boot
from the hard drive, make sure the controller is inserted correctly and all cables
are properly attached. Also be sure the disk is formatted as a boot device. Then
reboot the system.

DISKETTE DRIVES OR TYPES MISMATCH ERROR - RUN SETUP

Type of diskette drive installed in the system is different from the CMOS
definition. Run Setup to reconfigure the drive type correctly.

DISPLAY SWITCH IS SET INCORRECTLY

Display switch on the motherboard can be set to either monochrome or color.
This indicates the switch is set to a different setting than indicated in Setup.
Determine which setting is correct, and then either turn off the system and
change the jumper, or enter Setup and change the VIDEO selection.

DISPLAY TYPE HAS CHANGED SINCE LAST BOOT

Since last powering off the system, the display adapter has been changed. You
must configure the system for the new display type.

EISA Configuration Checksum Error
PLEASE RUN EISA CONFIGURATION UTILITY

The EISA non-volatile RAM checksum is incorrect or cannot correctly read the
EISA slot. This can indicate either the EISA non-volatile memory has become
corrupt or the slot has been configured incorrectly. Also be sure the card is
installed firmly in the slot.

EISA Configuration Is Not Complete
PLEASE RUN EISA CONFIGURATION UTILITY

The slot configuration information stored in the EISA non-volatile memory is
incomplete.

Note: When either of these errors appear, the system will
boot in ISA mode, which allows you to run the EISA
Configuration Utility.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

69

ERROR ENCOUNTERED INITIALIZING HARD DRIVE

Hard drive cannot be initialized. Be sure the adapter is installed correctly and all
cables are correctly and firmly attached. Also be sure the correct hard drive type
is selected in Setup.

ERROR INITIALIZING HARD DISK CONTROLLER

Cannot initialize controller. Make sure the cord is correctly and firmly installed in
the bus. Be sure the correct hard drive type is selected in Setup. Also check to
see if any jumper needs to be set correctly on the hard drive.

FLOPPY DISK CNTRLR ERROR OR NO CNTRLR PRESENT

Cannot find or initialize the floppy drive controller. make sure the controller is
installed correctly and firmly. If there are no floppy drives installed, be sure the
Diskette Drive selection in Setup is set to NONE.

Invalid EISA Configuration
PLEASE RUN EISA CONFIGURATION UTILITY

The non-volatile memory containing EISA configuration information was
programmed incorrectly or has become corrupt. Re-run EISA configuration utility
to correctly program the memory.

NOTE: When this error appears, the system will boot in ISA
mode, which allows you to run the EISA Configuration Utility.

KEYBOARD ERROR OR NO KEYBOARD PRESENT

Cannot initialize the keyboard. Make sure the keyboard is attached correctly and
no keys are being pressed during the boot.
If you are purposely configuring the system without a keyboard, set the error halt
condition in Setup to HALT ON ALL, BUT KEYBOARD. This will cause the BIOS
to ignore the missing keyboard and continue the boot.

Memory Address Error at ...

Indicates a memory address error at a specific location. You can use this
location along with the memory map for your system to find and replace the bad
memory chips.

Memory parity Error at ...

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

70

Indicates a memory parity error at a specific location. You can use this location
along with the memory map for your system to find and replace the bad memory
chips.

MEMORY SIZE HAS CHANGED SINCE LAST BOOT

Memory has been added or removed since the last boot. In EISA mode use
Configuration Utility to reconfigure the memory configuration. In ISA mode enter
Setup and enter the new memory size in the memory fields.

Memory Verify Error at ...

Indicates an error verifying a value already written to memory. Use the location
along with your system's memory map to locate the bad chip.

OFFENDING ADDRESS NOT FOUND

This message is used in conjunction with the I/O CHANNEL CHECK and RAM
PARITY ERROR messages when the segment that has caused the problem
cannot be isolated.

OFFENDING SEGMENT:

This message is used in conjunction with the I/O CHANNEL CHECK and RAM
PARITY ERROR messages when the segment that has caused the problem has
been isolated.

PRESS A KEY TO REBOOT

This will be displayed at the bottom screen when an error occurs that
requires you to reboot. Press any key and the system will reboot.

PRESS F1 TO DISABLE NMI, F2 TO REBOOT

When BIOS detects a Non-maskable Interrupt condition during boot, this will
allow you to disable the NMI and continue to boot, or you can reboot the system
with the NMI enabled.

RAM PARITY ERROR - CHECKING FOR SEGMENT ...

Indicates a parity error in Random Access Memory.

Should Be Empty But EISA Board Found
PLEASE RUN EISA CONFIGURATION UTILITY

A valid board ID was found in a slot that was configured as having no board ID.

NOTE; When this error appears, the system will boot in ISA
mode, which allows you to run the EISA Configuration Utility.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

71

Should Have EISA Board But Not Found
PLEASE RUN EISA CONFIGURATION UTILITY

The board installed is not responding to the ID request, or no board ID has been
found in the indicated slot.

NOTE: W hen this error appears, the system will boot in
ISA mode, which allows you to run the EISA Configuration
Utility.

Slot Not Empty

Indicates that a slot designated as empty by the EISA Configuration Utility
actually contains a board.

NOTE: When this error appears, the system will boot in ISA
mode, which allows you to run the EISA Configuration Utility.

SYSTEM HALTED, (CTRL-ALT-DEL) TO REBOOT ...

Indicates the present boot attempt has been aborted and the system must be
rebooted. Press and hold down the CTRL and ALT keys and press DEL.

Wrong Board In Slot
PLEASE RUN EISA CONFIGURATION UTILITY

The board ID does not match the ID stored in the EISA non-volatile memory.

NOTE: When this error appears, the system will boot in ISA
mode, which allows you to run the EISA Configuration Utility.

FLOPPY DISK(S) fail (80) → Unable to reset floppy subsystem.

FLOPPY DISK(S) fail (40) → Floppy Type dismatch.

Hard Disk(s) fail (80) → HDD reset failed

Hard Disk(s) fail (40) → HDD controller diagnostics failed.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

72

Hard Disk(s) fail (20) → HDD initialization error.

Hard Disk(s) fail (10) → Unable to recalibrate fixed disk.

Hard Disk(s) fail (08) → Sector Verify failed.

Keyboard is locked out - Unlock the key.

BIOS detect the keyboard is locked. P17 of keyboard controller is pulled
low.

Keyboard error or no keyboard present.

Cannot initialize the keyboard. Make sure the keyboard is attached
correctly and no keys are being pressed during the boot.

Manufacturing POST loop.

System will repeat POST procedure infinitely while the P15 of keyboard
controller is pull low. This is also used for M/B burn in test.

BIOS ROM checksum error - System halted.

The checksum of ROM address F0000H-FFFFFH is bad.

Memory test fail.

BIOS reports the memory test fail if the onboard memory is tested error.

Appendix C.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

73

DMA, IRQ and 1st MB Memory

I/O Address Map

DMA Channel Assignments:

DMA Channel # Description

0 Available
1 Available
2 Floppy Disk (8-bit transfer)
3 Available
4 Cascade for DMA controller 1
5 Sound
6 Available
7 Available

IRQ Mapping Chart

IRQ0 System Timer IRQ8 RTC Clock
IRQ1 Keyboard IRQ9 USB
IRQ2 Cascade to IRQ Controller IRQ10 LAN1
IRQ3 (COM2) IRQ11 LAN2
IRQ4 (COM1) IRQ12 PS/2 Mouse
IRQ5 Sound IRQ13 FPU
IRQ6 FDC IRQ14 Primary IDE
IRQ7 LPT1 IRQ15 Secondary IDE

Note: All IRQs have been assigned to the listed devices, so if you want to
add any additional device , you must free the unused IRQ first. For
example, if you don’t use USB K/B or Mouse, then IRQ9 may be set free.

1

st

MB Memory Address Map

Memory Address Description

00000-9FFFF System Board extension for ACPI BIOS

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

74

A0000-CFFFF SIS630
D0000-DFFFF Free
F0000-FFFFF System Board extension for ACPI BIOS

I/O Address Map
I/O Address
Range

Description

000-01F DMA Controller #1
020-021 Interrupt Controller #1, Master
040-05F 8254 Timer
060-06F 8042 (Keyboard Controller)
070-07F Real Time Clock, NMI Mask
080-09F DMA Page Register
0A0-0BF Interrupt Controller #2
0C0-0DF DMA Controller #2
0F0 Clear Math Coprocessor Busy
0F1 Reset Math Coprocessor
0F8-0FF Math Coprocessor
170-177
1F0-1F7

Fixed Disk

2F8-2FF Serial Port 2 (COM2)
378-37F Parallel Printer Port 1 (LPT1)
380-38F SDLC, Bisynchronous 2
3A0-3AF Bisynchronous 1
3B0-3BB SIS 630
3C0-3DF SIS 630
3F0-3F7 Diskette Controller
3F8-3FF Serial Port 1 (COM1)
443, 843 Watch-dog timer

Appendix D.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

75

How to Upgrade a New BIOS

You can install an upgrade BIOS for the PCISA-3717EVT that you
can download from the manufacturer’s web site ( www.e-

icp.com.tw ). New BIOS may provide support for new

peripherals ,improvements in performance or fixes to addressed
known bugs.

BIOS Update Procedure:

1. Make a boot disk. Go to the DOS command prompt in MS-DOS
or Windows 9x and, with an available floppy disk in "A", type
"format A: /s" That will format the floppy and transfer the needed
system files to it.

NOTES:
A. This procedure will erase any prior data on that floppy, so
please Proceed accordingly.
B. Typically four files will be transferred, only COMMAND.COM
being visible when running a simple directory listing.
C. Please leave the diskette UN-write protected for the balance of
this procedure.

2. Download the BIOS upgrade file and awdflash.exe utility from a
ICP web site to a temp directory on your hard drive, or directly to
the floppy you made in step 1..

3. Copy ( BIOS file and awdflash.exe )two files to the boot floppy.

4. Reboot the system to the DOS command prompt using the
boot diskette you just made.

5. At the DOS command prompt, type "awdflash filename.xxx",
where filename.xxx is the file name of the BIOS file . Hit enter.

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

76

6. Your first option, in sequence, will be to save the old BIOS. We
recommend that you do that in case, for whatever reason, you
decide you don't wish to use the new version once it is installed.
NOTES:
A. If you decide to save the old BIOS, PLEASE make sure you do
NOT save it to the same file name as the new BIOS - if you use
the same BIOS name the old file will be written over the new file
with NO warning prompt. A simple file name to save the old BIOS
to is OLDBIOS.BIN.
B. If you do NOT decide to save the old BIOS, PLEASE at least
write down the version number of the old BIOS and store that
information with your important computer documents. Enter N (for
"no") and skip to step 9.

7. To save the old BIOS, hit Y (for "yes")

8. Enter a name for the OLD BIOS file and hit enter.
NOTE:PLEASE be sure you do NOT save the old BIOS file to the
same file name as the new BIOS - if you use the same BIOS
name, the old file will write over the new BIOS file WITHOUT a
warning prompt. A simple file name for saving the old BIOS to is
OLDBIOS.BIN.

9. Your second option, in sequence, will be whether you want to
flash your BIOS. Enter Y (for "yes").
NOTE: This is the critical step. Once you kit the enter key, do
NOT touch the keyboard, the reset button, or power switch while
the flashing is in progress. There will be bar progressing across
the screen while the flashing is progressing.

10. When the flashing process is complete, you will be asked to
reset or power off the system. Remove the floppy diskette from

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

77

the floppy drive and either hit the reset button or the power button.

11. Reboot the system and note that the BIOS version on the
initial boot-up screen has changed to the new BIOS version. Your
BIOS upgrade is now complete.

Recovering Your Old BIOS:

1. Assuming you have the floppy made during the upgrade
procedure noted above, boot the system with that diskette in the
floppy drive. If you do not have floppy made during the upgrade
procedure noted above, you will need to repeat steps 1 though 3
(above) for the version of the BIOS you wish to recover to.

2. Complete steps 4, 5, 6B, 9, 10, and 11 (above) substituting the
name of the BIOS you wish to recover for the upgrade BIOS at
step 5.

Install screen :

Appendix E. ATX Power Supply

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

78

The following notes show how to connect ATX Power Supply to the
backplanes and / or the ISBC card.

A. For backplanes with ATX Connector

1. Please, disconnect the AC cord of the Power Supply from the AC
source to prevent sudden electric surge to the board.

2. Please, check the type of your CPU board. All CPU board listed on
the next page support ATX power supply but has two types of power
switch connection:

2.1. PCISA-3717EVT (through Power Button & +5VSB):

Connect the ATX power supply switch to the pin 9 (power button)
and pin 19,20 (+5VSB) of CN17 on the board.

If you wish to turn off the power supply, please push the ATX
power switch button for about 4 sec. And to turn ON the system,
simply push the button once.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

79

B. For the backplanes with ATX power supply

connector

For some SBC without ATX power ON/OFF function, then you can
control the ATX power supply through backplane’s PS ON connector.
Refer to the figure below: for the backplanes with ATX connector,
the connection can be made simply as following:

1. Connect the ON/OFF (ordinary one) switch to Pin 2 (PS ON) and

Pin 3 (GND) of connector ATX

2. You may now turn the power ON/OFF by the power switch

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

80

Appendix F. Dual View Setup

The PCISA-3717EVT is equipped with a OnChip SIS300 VGA
chip which supports dual view function. It allows you to run two
applications on two monitors respectively. The following will
describe how to enable the dual-view function in WINDOWS.

1. Select “Display” in Control Panel and enter “Display Properties”.

2. Select the item “Settings” and click on the “Advanced” button

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

81

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

82

3. Select the item “Display Modes” and click on the “Advanced”
button

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

83

4. Select the item “Multimonitor” in “Driver Mode” and select the
Display combination of primary and secondary display .
Secondary display can select VGA2 or TV-Out type .

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

84

5. After everything is set up, you need to restart your computer to
make the new setting take effect.

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

85

6. Re-enter “Display Properties” and go to the item “Setting”. You
will be able to see two monitors showing on the screen.

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

86

7. Click on the second monitor icon and Window will ask you if
you want to enable the second monitor. Click “Yes” to enable the
second monitor .

8. After you enable the second monitor, you could see image on

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

87

the second monitor. Then you can drag the monitor icons to
arrange the display of your monitors in the way of left-right or up­down alignment. The screen below is left-and-right alignment.

PCISA-3717EVT Socket 370 CeleronTM & Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out ,Audio Board

88

9. Up-and-down alignment.

10. If you want to disable the dual-view function, just click on the

PCISA-3717EVT Socket 370 Celeron

TM

& Pentium III ®
with Ethernet , VGA( Dual Di splay ) ,
TV-Out , Audio Board

89

item “Extend my Windows desktop onto this monitor”. The mark
before this item will be canceled and the dual-view function is
disabled.
