ICP Electronics NOVA-7895 User Manual

NOVA-7895

Celeron TM (Tualatin), Pentium® III Processor

Multimedia & Dual Ethernet, IEEE1394

Embedded Board

PCB Version 1.0

©Copyright 2002 by ICP Electronics Inc. All Rights Reserved.
Manual Revision 1.1
Sep 01, 2002.

The information in this document is subject to change without prior notice in
order to improve reliability, design and function and does not represent a
commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability to
use the product or documentation, even if advised of the possibility of such
damages.

This document contains proprietary information protected by copyright. All
rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.

Trademarks

NOVA-7895 is a registered trademark of ICP Electronics Inc. IBM PC is a
registered trademark of International Business Machines Corporation. Intel
is a registered trademark of Intel Corporation. AWARD is a registered
trademark of Award Software International, Inc. Other product names
mentioned herein are used for identification purposes only and may be
trademarks and/or registered trademarks of their respective companies.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

1

Contents

1.Introduction........................................................ 4

1.1 Specifications:................................................................................. 5

1.2 Package Contents........................................................................... 8

2.Installation.......................................................... 9

2.1 NOVA-7895 Layout............................................................................. 9

2.1 NOVA-7895 Layout.......................................................................... 10

2.2 NOVA-7895 Dimensions ( Unit : mm ) .............................................. 11

2.3 Unpacking Precautions..................................................................... 12

2.4 Clear CMOS Setup........................................................................... 12

2.5 COM2 RS-232/422,485 Selection..................................................... 13

2.6 COM Port RI and Voltage Selection ................................................. 13

2.8 LCD Panel power Setup ................................................................... 15

2.9 LCD Panel Type Selection................................................................ 15

2.10 CompactFlash™ Disk Setting......................................................... 16

2.11 AT or ATX POWER Setting .......................................................... 16

2.12 PC104 PLUS VIO power Setup ..................................................... 17

3.Connection ....................................................... 18

3.1 Floppy Disk Drive Connector ........................................................ 18

3.2 PCI E-IDE Disk Drive Connector................................................... 19

3.3 Parallel Port .................................................................................. 20

3.4 Serial Ports ................................................................................... 21

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

2

3.5 Keyboard/Mouse Connector ........................................................ 23

3.6 External Switches and Indicators .................................................. 23

3.7 USB Port Connector ...................................................................... 24

3.8 IrDA Infrared Interface Port............................................................ 25

3.9 VGA/TV-OUT Connector (CN1/CN38/CN37) ................................ 25

3.10 LAN RJ45 Connector..................................................................... 26

3.11 Fan Connector............................................................................... 27

3.12 Temperature Sensor Connector .................................................... 27

3.13 Audio CD IN................................................................................... 28

3.14 Audio Speaker OUT ( Reserved )................................................. 28

3.15 Audio Panel ................................................................................... 28

3.16 CompactFlash Storage Card Socket............................................. 29

3.17 Power Connector.......................................................................... 30

3.18 IEEE1394 Connector.................................................................... 30

3.19 Digital Input / Output..................................................................... 30

3.20 LCD Panel Connector................................................................... 31

3.21 PCI 104 PLUS Connector............................................................. 32

4. AWARD BIOS Setup ....................................... 33

4.1 Introduction ................................................................................... 33

4.2 Starting Setup ............................................................................... 33

4.3 Using Setup .................................................................................. 34

4.4 Getting Help.................................................................................. 35

4.5 Main Menu .................................................................................... 35

4.6 Standard CMOS Setup ................................................................. 38

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

3

4.7 Advanced BIOS Features Setup................................................... 42

4.8 Advanced Chipset Features Setup ............................................... 46

4.9 Integrated Peripherals Setup ........................................................ 53

4.10 Power Management Setup ........................................................... 55

4.11 PnP/PCI Configuration Setup........................................................ 58

4.12 PC Health Status Setup…………….. ............................................ 61

4.13 Frequency / Voltage Control Setup …………….. .......................... 62

4.14 Defaults Menu Setup …………….................................................. 63

4.15 Change Supervisor/User Password…………….. .......................... 64

4.16 Exit Selection …………….. ........................................................... 65

Appendix A. Watch-Dog Timer........................................67

Appendix B. POST Messages.........................................69

Appendix C.

DMA, IRQ and 1

st

MB Memory and I/O Address Map.... 75

Appendix D........................................................................77

How to Upgrade a New BIOS ...........................................77

Appendix E. Digital Input / Output.................................. 80

Appendix F. Flat Panel Connection Module...............81

Appendix G. Dual View Setup.........................................84

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

4

1

Introduction

Thank you for purchasing the NOVA-7895 Socket 370 Celeron®,

Pentium III

®

(FC-PGA) with two 10/100Mbps Ethernet ports,
VGA, IEEE1394 and Audio Board. It is equipped with a high
performance Intel

®

Celeron up to 1.4GHz, Pentium III (FC-PGA)
1 GHz (or above) Processor and an advanced high performance
multi-mode I/O, designed for system manufacturers, integrators,
or VARs looking to combine excellent performance, reliability
and quality at a reasonable price.

This board has a built-in IDE Interface CompactFlash™ Disk
(Type II) for embedded applications. The CompactFlash™ Disk
is 100% compatible with all hard drives. Users can use any DOS
command without installing any extra software utility. The Flash
Disk is currently available from 128MB to 1GB.

Two advanced high performance LPC super I/O chips – ITE
(IT8705F) and NS (NS87366) are used in the NOVA-7895 board.
The on-chip UARTs are compatible with NS16C550. The parallel
port and FDD interface are compatible with IBM PC/AT
architecture.

NOVA-7895 uses the advanced SIS SIS630STT Chipset which
is a 100% PCI compatible chipset (PCI 2.1 standard). In addition,
this board provides one 168-pin socket for on-board DRAM.
Each DIMM module is 3.3V SDRAM with max. 512MB.

The VGA chip (On chip SIS300) used on NOVA-7895 supports
dual view functions which can display simultaneously on two
monitors under WINDOWS 9X/ME. In general, this function is
achieved by two VGA chips.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

5

1.1 Specifications:

•

CPU

: support Intel Celeron

®

up to 566MHz(or above) , Pentium III
(FC-PGA) 500-1000Hz (or above), Tualatin 1.26GHz,1.4GHz (or
above), processors. Supports 66MHz, 100MHz and 133 MHz FSB.

•

Expansion

Bus: PCI & PC104 Plus bus, expansion to support PCI

bus signal

•

DMA channels

: 7

•

Interrupt levels

: 15

•

Chipset

: SIS630STT 66/100/133MHz CPU / DRAM Clock

•

DRAM

: One 168-pin DIMM socket, supports SDRAM RAM module,

up to 512MB.

•

AGP VGA Con tro ller

:

On chip SIS300 3D (Share memory up to

64MB RAM)

AGP bus speed: 66MHz

VESA Compatible Resolution Graphic Mode up to:

1600 x 1200 256/32K colors 100 Hz

1280 x 1024 256/32K/64K/16M colors 120 Hz

1024 x 768 256/32K/64K/16M colors 120 Hz

800 x 600 16/256/32K/64K/16M colors 120 Hz

640 x 480 16/256/32K/64K/16M colors 120 Hz

•

Support 3.3V & 5V Flat Panel.

•

Support 24bit TFT wide range flat panel.

•

Optional (LVDS-01) One Channel LVDS module.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

6

•

TV-OUT:

On board SiS 301(optional), supports both NTSC and PAL.

Display mode support:

Two CRT output (Dual View & Dual Display)

One

CRT & One TV-OUT output (Dual View & Dual Display)

One CRT & One LCD output (Dual View)

•

10/100Mbps Ethernet Controller

: Two Ethernet - Realtek 8100 or
Intel 82559, Auto-sensing interface to 10/100Mbps Network, RJ45
connector for 10BASE-T and 100BASE-TX, Full Duplex capability,
Full Software driver support

•

Ultra DMA/66/100 (Enhanced PCI IDE Interface)

: Supports two PCI
Enhanced IDE hard drives. The Ultra DMA/66/100 IDE can handle
data transfer up to 66,100MB/s. Best of all, this new technology is
compatible with existing ATA-2 IDE specifications so there is no need
to make any changes to customer’s current accessory.

•

Multi-I/O Chip

: IT8705F, NS87366, all I/O setup by BIOS
Three 16C550 RS-232C Ports, One RS-232 or RS-422/485 Port, One
EPP/ECP Parallel Port, Floppy Port. The RS485 features auto­direction control, ensuring that no additional direction control is
needed.

•

Floppy disk drive interface: Two 2.88 MB, 1.44MB, 1.2MB, 720KB,

or 360KB floppy disk drives.

•

Four high-speed Serial ports

: NS16C550 compatible UARTs

•

Bi-directional Parallel Port:

One parallel port support, IEEE 1284

compatible.

•

IrDA port:

Supports Infrared and Amplitude Shift Keyed IR (ASKIR)

interface.

•

USB port:

Supports Four USB ports for future expansion. USB V1.2

compatible.

•

Watchdog timer

: Supports resolution of 1 sec and period of 1-255
secs. Reset is generated when CPU does not periodically trigger the
timer. IO port – 443H can be used to control the watch-dog .

•

CompactFlash Disk –

Type II CompactFlash™ Disk . The Flash Disk

provides 100% compatibility with IDE hard disk.

•

Digital I/O

: Isolated 4 Digital Input and 4 Digital Output channels

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

7

•

SIS7018 PCI Audio Chipset:

Sound Blaster and Roland MPU401

compatible ( AC97 )

•

Supports ATX Power function

•

Dual View Function

•

Mouse & Keyboard Connector

: PS/2 Mouse Port Expansion

Keyboard.

•

TI TSB43AB22 IEEE1394 Controller: The TSB43AB22 offers digital

and analog transceiver functions to implement a two-port node in a
cable-based IEEE 1394. It also provides two P1394a fully compliant
cable ports at 100/200/400 megabits per second (Mbits/s).

•

Power Consumption : +5V : 7.5A (Celeron 1.4GHz, 256MB

SDRAM ) +12V : 0.3A

•

Operating Humidity

: 5 ~ 95 % , non-condensing

•

Operating Temperature

: -10° ~ 60° C (CPU needs Cooler)

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

8

1.2 Package Contents

In addition to this User's Manual, the NOVA-7895 package
includes the following items:

•

NOVA-7895 Socket 370 Celeron

®

, Pentium III & Dual

Ethernet

,

IEEE1394 ,VGA , Audio

Board

•

FDD/HDD ( 1x2.54mm and 1x2.54mm Support DMA66)Cable

( 32200-000017 / 32200-000052 )

•

Keyboard / Mouse Adapter Mini Dim Cable x1

( 32000-000075 / 32000-000153 )

•

Printer / Serial Port ( 1x RS232 ) Cable x1

( 32000-000004 / 322000-000015 )

•

Serial Port ( 14Pin 1xRS232/RS422,RS485 / 20Pin 2xRS232 )

Cable x1

( 32200-000063 / 32200-000003 )

•

Audio Cable x1

( 32000-000035 )

•

VGA Cable x1

( 32000-033800 )

If any of these items are missing or damaged, please contact the
dealer from whom you purchased this product. Be sure to save
the shipping materials and carton in case you want to ship or store
the product in the future.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

9

2

Installation

This chapter describes how to install the NOVA-7895. The layout
of the NOVA-7895 is shown on the next page and the Unpacking
Precautions are described on the following one. Also included is
the setting for the jumpers and switches on this board’s
configuration, such as CPU type selection, system clock setting
and Watchdog timer.

2.1 NOVA-7895 Layout

< please, refer to the next page >

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

10

2.1 NOVA-7895 Layout

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

11

2.2 NOVA-7895 Dimensions ( Unit : mm )

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

12

2.3 Unpacking Precautions

Some of the components on the NOVA-7895 are very sensitive to
static electric charges and can be damaged by a sudden rush of
power. To protect them from accidental damage, please be sure to
follow these precautions:

 Ground yourself to remove any static charge before touching your

NOVA-7895. You can do it by using a grounded wrist strap at all
times or by frequently touching any conducting materials that are
connected to the ground.

 Handle your NOVA-7895 at the edges. Don’t touch IC chips, leads

or circuitry if not necessary.



Do not plug in any connector or jumper while the power is on.

 Do not put your NOVA-7895 unprotected on a flat surface as it has

sensitive components on both sides.

2.4 Clear CMOS Setup

If you forget the CMOS password, you can clear or reset it by
closing the

JP6

. After JP6 (1-2) is closed, turn on the power for
about 3 seconds then turn it off and re-open the JP6 (1-2). Now,
the password has been cleared from your CMOS.

•

JP6 : Clear CMOS Setup

1
2
3

PIN NO. DESCRIPTION

2-3 Normal Operation

1-2 Clear CMOS Setup





NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

13

2.5 COM2 RS-232/422,485 Selection

•

JP8 : COM2 Mode Selection

3
2
1

JP8 DESCRIPTION

1-2 RS232
2-3 RS422/RS485

** 2-3 RS422 / RS485 ( Optional )

2.6 COM Port RI and Voltage Selection

•

JP16, JP15: Set pin 9 of COM1 as signal RI or voltage

source

1
2
3

JP16 DESCRIPTION

2-3 COM1 RI Pin Use RI
1-2

COM1 RI Pin Use Voltage

JP15 DESCRIPTION

2-3 COM1 RI Pin Use Voltage +12V
1-2

COM1 RI Pin Use Voltage +5V

* If JP16 uses ( 2-3 ) then JP15 does not need any specific
setting.

•

JP14, JP13: Set pin 9 of COM2 as signal RI or voltage

source









NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

14

1
2
3

JP14 DESCRIPTION

2-3 COM2 RI Pin Use RI
1-2

COM2 RI Pin Use Voltage

JP13 DESCRIPTION

2-3 COM2 RI Pin Use Voltage +12V
1-2

COM2 RI Pin Use Voltage +5V

* If JP14 uses ( 2-3 ) then JP13 does not need any specific
setting.

•

JP11, JP12:Set pin 9 of COM3 as signal RI or voltage

source

1
2
3

JP11 DESCRIPTION

2-3 COM3 RI Pin Use RI
1-2

COM3RI Pin Use Voltage

JP12 DESCRIPTION

2-3 COM3 RI Pin Use Voltage +12V
1-2

COM3RI Pin Use Voltage +5V

* If JP11 uses ( 2-3 ) then JP12 does not need any specific
setting.

•

JP9, JP10: Set pin 9 of COM4 as signal RI or voltage

source









NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

15

3
2
1

JP9 DESCRIPTION

2-3 COM4 RI Pin Use RI
1-2

COM4RI Pin Use Voltage

JP10 DESCRIPTION

2-3 COM4 RI Pin Use Voltage +12V
1-2

COM4RI Pin Use Voltage +5V

* If JP9 uses ( 2-3 ) then JP10 does not need any specific
setting.

2.7 LCD Panel power Setup

To set the operating voltage for the LCD Panel.

•

JP5 : LCD Power Setting

1
2
3

JP5 DESCRIPTION

2-3 +3.3V
1-2

+5V

* Set to +5V is NOT standard

2.8 LCD Panel Type Selection

NOVA-7895 can support up to 24 bit LCD.

•

JP17,18,19,20 : LCD Panel Type Selection ( H/W )









NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

16

Now support LCD Type:

1. IMES M121-SOHR ( 800x600 TFT)

2. LG LM151X2 ( 1024x768 TFT )

3. SAMSUNG LT121S1-153 ( 800x600 TFT )

4. SAMSUNG LT121S1-106 ( 800x600 TFT )

  

3 2 1

JP17 JP18 JP19 JP20 DESCRIPTION

2-3 2-3 1-2 2-3 1024X768 TFT
2-3 2-3 2-3 2-3 800X600 TFT

2.9 CompactFlash™ Disk Setting

The CompactFlash™ Disk is 100% compatible to IDE hard disk
and because it is “plug and play”, it is also easy and reliable.
The CompactFlash™ Disk is available from 128MB to 1GB.
Additionally, it can accept type II IBM Micro Driver .

•

JP21: CompactFlash™ Disk IDE Master & Slave Setting

1 * CompactFlash™ Disk Use Secondary
2 IDE Channel

PIN NO. DESCRIPTION

Open Slave

Short Master

2.10 AT or ATX POWER Setting

•

JP22: POWER AT or ATX Setting




NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

17

PIN NO. DESCRIPTION

Open ATX

Short AT

2.11 PC104 PLUS VIO power Setup

To set the operating voltage for the PC104 Plus interface Vio.

•

JP30 : PC104 PLUS VIO Power Setting

JP30 DESCRIPTION

1-2 +3.3V
2-3

+5V

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

18

3

Connection

This chapter describes how to connect peripherals, switches and
indicators to the NOVA-7895 board.

3.1 Floppy Disk Drive Connector

NOVA-7895 board is equipped with a 34-pin daisy-chain driver
connector cable.

•

CN26 : FDD CONNECTOR

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 D4IRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE GATE#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT#
33 GROUND 34 DISK CHANGE#

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

19

3.2 PCI E-IDE Disk Drive Connector

You can attach two IDE (Integrated Device Electronics) hard disk
drives to the NOVA-7895 IDE controller. The maximal data
transfer rate is 66M B/s . In this case, the total cable length may
not exceed 0.46 m ( 18in ).

CN3 ( 40Pin 2.54mm IDE) : Primary IDE Connector

•

CN3 : IDE Interface Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RESET# 2 GND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GND 20 N/C
21 IDE DRQ 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 IDE CHRDY 28 GND
29 IDE DACK 30 GND
31 INTERRUPT 32 N/C
33 SA 1 34 N/C
35 SA 0 36 SA 2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GND

CN36 ( 44Pin 2.0mm IDE) : Secondary IDE Connector

•

CN36 : IDE Interface Connector(Default without)

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

20

PIN
NO.

DESCRIPTION

PIN

NO.

DESCRIPTION

1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 IDE DRQ 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 IDE CHRDY 28 GROUND
29 IDE DACK 30 GROUND–DEFAULT
31 INTERRUPT 32 N/C
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND
41 VCC 42 VCC
43 GROUND 44 N/C

3.3 Parallel Port

This port is usually connected to a printer. The NOVA-7895
includes an on-board parallel port, accessed via a 26-pin flat-cable
connector CN18.

•

CN18 : ( LPT1 ) Parallel Port Connector

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

21

Pin Description Pin Description

1 STROBE# 2 AUTO FORM FEED #
3 DATA 0 4 ERROR#
5 DATA 1 6 INITIALIZE
7 DATA 2 8 PRINTER SELECT LN#

9 DATA 3 10 GND
11 DATA 4 12 GND
13 DATA 5 14 GND
15 DATA 6 16 GND
17 DATA 7 18 GND
19 ACKNOWLEDGE 20 GND
21 BUSY 22 GND
23 PAPER EMPTY 24 GND
25 PRINTER SELECT 26 N/C

3.4 Serial Ports

The NOVA-7895 is equipped with four high speed NS16C550
compatible UART’s with Read/Receive 16 byte FIFO serial ports
(COM1/COM2/COM3/COM4).

•

CN29 : Serial Port 2x5 pin header Connector (COM1)

Pin No. Description Pin No. Description
1 DCD 2 DSR

3 RXD 4 RTS
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC

•

CN31 : Serial Port 2x7 pin header Connector (COM2)

COM2 Support Three Mode : RS232, RS422/RS485
( For 2x7 pin header Connector )
RS232 Mode

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

22

Pin No. Description Pin No. Description

1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTX
7 DTR 8 RI
9 GND 10 NC

RS422 / RS485 Mode ( Option )
( For 2x7 pin header Connector )
RS422 Mode

Pin No. Description Pin No. Description

1 2
3 4
5 6
7 8

9 10
11 TX+ 12 TX­13 RX+ 14 RX-

( For 2x7 pin header Connector )
RS485 Mode

Pin No. Description Pin No. Description

1 2

3 4

5 6

7 8

9 10
11 TX+ 12 TX­13 14

•

CN21 : Serial Port 2x10 pin header Connector (COM3 / 4)
( For 2x10 pin header Connector )
COM3 : CN21 PIN 1 - 10
COM4 : CN21 PIN 11 – 20

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

23

Pin No. Description Pin No. Description

1 DCD3 2 DSR3
3 RXD3 4 RTS3
5 TXD3 6 CTX3
7 DTR3 8 RI3

9 GND 10 N/C
11 DCD4 12 DSR4
13 RXD4 14 RTS4
15 TXD4 16 CTX4
17 DTR4 18 RI4
19 GND 20 N/C

3.5 Keyboard/Mouse Connector

The NOVA-7895 provides the following connectors: one internal,
one mouse and one keyboard.

•

CN27 : 5-pin Header Mouse Connector

PIN NO. DESCRIPTION

1 MS DATA
2 N/C
3 GND
4 VCC
5 MS CLOCK

•

CN30 : 5-pin Header Keyboard Connector

PIN NO. DESCRIPTION

1 KB CLOCK
2 KB DATA
3 N/C
4 GND
5 +5V

3.6 External Switches and Indicators

There are several external switches and indicators for monitoring

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

24

and controlling your CPU board. All functions are in the CN5
connector.

•

CN5 : Multi Panel

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1. SPEAKER 11 POWER-LED +

2. N/C 12 N/C

3. N/C 13 POWER-LED -

4. SPEAKER +5V 14 KEYLOCK+

5. RESET SW 15 KEYLOCK -

6. RESET SW GND 16 GND

7. IDE LED - 17 N/C

8. IDE LED+ 18 ATX POWER PSON#

9. ATX POWER
BUTTON

19 ATX 5VSB

10. ATX POWER
BUTTON GND

20 ATX 5VSB

3.7 USB Port Connector

The NOVA-7895 has two built-in USB ports for the future I/O bus
expansion.

• CN9 : Pin Header USB Connectors

PIN NO. Description

1 VCC
2 USBD2­3 USBD2+
4 GND
5 GND
6 USBD3+
7 USBD3­8 VCC

4 3 2 1 CN9 ( USB 2 )

   
  



NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

25

8 7 6 5 ( USB 3 )

• CN32 : Pin Header USB Connectors

PIN NO. Description

1 VCC
2 USBD0­3 USBD0+
4 GND
5 GND
6 USBD1+
7 USBD1­8 VCC

5 6 7 8 CN32 ( USB 0 )

   
   

1 2 3 4 ( USB 1 )

3.8 IrDA Infrared Interface Port

NOVA-7895 built-in IrDA port supports a Serial Infrared (SIR) or
Amplitude Shift Keyed IR (ASKIR) interface. To use the IrDA port,
the user has to configure the FIR or ASKIR model in the BIOS’s
Peripheral Setup’s COM2. In this case, the normal RS-232
COM2 will be disabled.

•

CN23 : IrDA Connector

PIN NO. DESCRIPTION

1 VCC
2 N/C
3 IR-RX
4 GND
5 IR-TX

3.9 VGA/TV-OUT Connector (CN1/CN38/CN37)

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

26

The NOVA-7895FWT has a built-in 10-pin Header VGA(CN1)
connector, which directly connects to your CRT monitor, and a
pin header 10pin (CN38) which provides secondary CRT output .

The primary CRT output is provided by the SIS630ST. The
secondary CRT output comes from the SIS301. Both support
dual-view function.

The SIS301 also offers additional TV-OUT functions with the
ability to perform simultaneous actions, such as a dual-view
combination, like CRT1/CRT2 , CRT1/TV-OUT.

• CN1 : 10-pin Header VGA Connector(Primary CRT by
Chipset )

1 RED 2 SMCLK
3 GREEN 4 SMDATA
5 BLUE 6 GND
7 H-SYNC 8 GND
9 V-SYNC 10 GND

• CN38 : 10-pin Header VGA Connector(Second CRT by
SiS301)

1 RED 2 SMCLK
3 GREEN 4 SMDATA
5 BLUE 6 GND
7 H-SYNC 8 GND
9 V-SYNC 10 GND

• CN37 : TV-OUT Connector (2x3_2.00mm)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 Y/Luminance
3 GROUND 4 C/Chrominance

5 GROUND 6 CVBS/Composite

3.10 LAN RJ45 Connector

NOVA-7895 is equipped with two10/100Mbps Ethernet Controllers.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

27

You can connect them to your LAN via RJ45 connectors. The pin
assignments are as follows.

• CN12,19 : LAN RJ45 Connector

1 TX+ 5. N/C
2 TX- 6. RX-

3. RX+ 7. N/C

4. N/C 8. N/C

CN12 ,CN19 : PCI BUS Realtek 8100B LAN

CN12 Ethernet LED setup

LED Description
CN6 Speed
CN7 Active

CN19 Ethernet LED setup

LED Description
CN13 Speed
CN14 Active

3.11 Fan Connector

The NOVA-7895 provides one CPU cooling fan connector and
one system fan connector, which can supply 12V/500mA to the
cooling fan.

•

CN4 : CPU Fan Connector

PIN NO. DESCRIPTION

1 GND
2 +12V
3 Fan Sensor

3.12 Temperature Sensor Connector

You can connect an external temperature sensor to this connector.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

28

•

CN8 : Temperature Sensor Connector
** Use 10K Ohm Temperature register
sensor

Pin No. Description Pin No. Description

1 THER-DA 2 GND

3.13 Audio CD IN

This is used to connect to CD-Out from the CD-ROM player.

• CN25 : Audio CD IN ( 2.54mm )

Pin No. Description Pin No. Description
1 CD IN_R 2 GND

3 GND 4 CD IN_L

3.14 Audio Speaker OUT ( Reserved )

• CN24 : Left/Right Audio SPK Output Connector

via optional amplifier Speaker Output .
(Two 6W stereo power amplifiers )

1. ( SPK Right Out)

2. GND

3. GND

4. ( SPK Left Out)

3.15 Audio Panel

One line-out ( 2 different pin assignments ), one line-in and one
mic-in are supported via and un-amplified audio chip.

•

CN28 : Audio Panel

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

29

Pin Description Pin Description

1 Line Out R 2 GND
3 Line Out L 4 GND
5 Line Out R 6 Line Out L
7 GND 8 GND

9 Line In R 10 Line In L
11 GND 12 GND
13 NC 14 NC
15 MIC In 16 GND

3.16 CompactFlash Storage Card Socket

The NOVA-7895 configures CompactFlash Storage Card in IDE
Mode. It will use IDE Secondary / Slave channel when CompactFlash
card is plugged in.

•

CN20 : CompactFlash Storage Card Socket pin assignment

PIN NO DESCRIPTION PIN NO DESCRIPTION

1 GROUND 26 CARD DETECT1
2 D3 27 D11
3 D4 28 D12
4 D5 29 D13
5 D6 30 D14
6 D7 31 D15
7 CS1# 32 CS3#
8 N/C 33 N/C

9 GROUND 34 IOR#
10 N/C 35 IOW#
11 N/C 36 OBLIGATORY TO PULL HIGH
12 N/C 37 IRQ15
13 VCC 38 VCC
14 N/C 39 MASTER/SLAVE
15 N/C 40 N/C
16 N/C 41 RESET#
17 N/C 42 IORDY
18 A2 43 N/C
19 A1 44 OBLIGATORY TO PULL HIGH
20 A0 45 ACTIVE#

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

30

21 D0 46 PDIAG#
22 D1 47 D8
23 D2 48 D9
24 N/C 49 D10
25 CARD DETECT2 50 GROUND

3.17 Power Connector

The NOVA-7895 can work without back-plane , when external
power is attached.

• CN22,34: Power Supply Connector

1. +5V

2. GND

3. GND

4. +12V

3.18 IEEE1394 Connector

•

CN35 : IEEE1394 Connector

Pin Description Pin Description

1 +12 VCC 9 +12 VCC
2 GND 10 GND
3 TPB1- 11 TPB0­4 TPB1+ 12 TPB0+
5 TPA1- 13 TPA0­6 TPA1+ 14 TPA0+
7 CASE 15 CASE
8 CASE 16 CASE

3.19 Digital Input / Output

NOVA-7895 provides you with an isolated digital input/output.
You will find a detailed explanation of use in appendix G.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

31

•

CN11 : Digital Input / Output

Pin Description Pin Description

1 Input 0 2 Input 1
3 Input 2 4 Input 3
5 Output 0 6 Output 1
7 Output 2 8 Output 3
9 Ext-GND 10 Ext-VCC

3.20 LCD Panel Connector

•

CN2 : LCD Panel Connector

Pin Description Pin Description

1 NC 2 NC
3 NC 4 NC
5 NC 6 NC
7 NC 8 NC

9 NC 10 NC
11 NC 12 NC
13 NC 14 P21
15 P23 16 P22
17 P16 18 P20
19 P17 20 P18
21 P19 22 P14
23 P13 24 P12
25 P15 26 P11
27 P7 28 P10
29 VDD 30 VDD
31 P9 32 P8
33 P4 34 P6
35 P3 36 P5
37 P2 38 P1
39 M 40 P0

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

32

41 SHFCLK 42 ENABLK
43 FPVDD 44 FLM
45 FPVEE 46 LP
47 GND 48 GND
49 +12V 50 +12V

3.21 PCI 104 PLUS Connector

•

CN15 : PCI 104 Plus Connector

A B C D
1 GND SIRQ +5V AD0
2 104VIO AD2 AD1 +5V
3 AD5 GND AD4 AD3
4 C/BE0# AD7 GND AD6
5 GND AD9 AD8 GND
6 AD11 104VIO AD10
7 AD14 AD13 GND AD12
8 3.3V C/BE1# AD15 3.3V
9 SERR# GND PAR

10 GND PERR# 3.3V
11 STOP# 3.3V GND
12 3.3V TRDY# GND DEVSEL#
13 FRAME# GND IRDY# 3.3V
14 GND AD16 3.3V C/BE2#
15 AD18 3.3V AD17 GND
16 AD21 AD20 GND AD19
17 3.3V AD23 AD22 3.3V
18 IDSEL0(AD20) GND IDSEL1(AD21) IDSEL2(AD22

)

19 AD24 C/BE3# 104VIO IDSEL3(AD23

)
20 GND AD26 AD25 GND
21 AD29 +5V AD28 AD27
22 +5V AD30 GND AD31
23 REQ0# GND REQ1# 104VIO
24 GND REQ2# +5V GNT0#
25 GNT1# 104VIO GNT2# GND
26 +5V CLK0 GND CLK1

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

33

27 CLK2 +5V CLK3 GND
28 GND INTD# +5V PCIRST#
29 +12V INTA# INTB# INTC#
30 REQ3# GNT3B GND

4

AWARD BIOS SETUP

4.1 Introduction

This section of the manual discusses Award's Setup program built into the ROM
BIOS. The Setup program allows users to modify the basic system configuration.
This special information is then stored in battery-backed RAM so that it retains
the Setup information when the power is turned off.

4.2 Starting Setup

The Award BIOS is immediately activated when the computer is first powered up.
The BIOS reads the system information contained in the CMOS and begins the
process of checking out the system and configuring it. Once complete, the BIOS
will seek an operating system on one of the disks and then launch and turn
control over to the operating system.
While the BIOS is in control, the Setup program can be activated in one of two
ways:

1. By pressing <Del> immediately after switching the system on, or

2. by pressing the <Del> key when the following message appears briefly at the
bottom of the screen during the POST (Power On Self Test).

Press DEL to enter SETUP.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

34

If the message disappears before you respond and you still wish to enter Setup,
restart the system to try again by turning it OFF then ON or pressing the "RESET"
button on the system case. You may also restart by simultaneously pressing the
<Ctrl>, <Alt>, and <Delete> keys. If you do not press all three keys at the correct
time and the system does not boot, an error message will be displayed and the
following will appear on your screen:

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

4.3 Using Setup

In general, by using the arrow keys, items can be highlighted, whereas pressing
<Enter> will select the highlighted option. Use the PageUp and PageDown keys
to change entries, press <F1> for help and <Esc> to quit. The following table
provides more details about how to navigate in the Setup program using the
keyboard.

Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item in the left hand
Right arrow Move to the item in the right hand
Esc key Main Menu -- Quit without saving changes into CMOS

Status Page Setup Menu and Option Page Setup

Menu -- Exit current page and return to Main Menu
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes
F1 key General help, only for Status Page Setup Menu and

Option Page Setup Menu
(Shift)F2 key Change color from total 16 colors. F2 to select color

forward, (Shift) F2 to select color backward
F3 key Calendar, only for Status Page Setup Menu
F4 key Reserved
F5 key Restore the previous CMOS value from CMOS, only

for Option Page Setup Menu
F6 key Load the default CMOS value from BIOS default

table, only for Option Page Setup Menu

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

35

F7 key Load the default
F8 key Reserved
F9 key Reserved
F10 key Save all the CMOS changes, only for Main Menu

4.4 Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to
use and the possible selections for the highlighted item. To exit the Help Window
press <Esc> or the F1 key again.

If, after making and saving system changes with Setup, you discover that your
computer no longer is able to boot, the Award BIOS supports an override to the
CMOS settings which resets your system to its defaults.
The best advice is to only alter settings which you thoroughly understand. To this
end, we strongly recommend that you avoid making any changes to the chipset
defaults. These defaults have been carefully chosen by both Award and your
systems manufacturer to provide the absolute maximum performance and
reliability. Even a seemingly small change to the chipset setup has the potential
to cause the override to kick in.

4.5 Main Menu

Once you enter the AwardBIOS™ CMOS Setup Utility, the Main Menu
will appear on the screen. This allows you to select from several setup
functions and two exit choices. Use the arrow keys to select among the
items and press <Enter> to accept and enter the sub-menu.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

36

Note that a brief description of each highlighted selection appears at the
bottom of the screen.

The main menu includes the following main setup categories. It is
important to remember that some systems may not include all entries.

Standard CMOS Features

Use this menu for basic system configuration. See Section 4.6 for details.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.
See Section 4.7 for details.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize
system performance. See section 4.8 for details.

Integrated Peripherals

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

37

Use this menu to specify your settings for integrated peripherals. See
section 4.9 for details.

Power Management Setup

Use this menu to specify your power management settings. See section

4.10 for details.

PnP / PCI Configuration

This entry appears if your system supports PnP / PCI. See section 4.11
for details.

PC Health Status

Use this menu to monitor your hardware. See section 4.12 for details.

Frequency/Voltage Control

Use this menu to specify frequency/voltage control settings. See section

4.13 for details.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for minimal/stable
performance for your system to operate. See section 4.14 for details.

Load Optimized Defaults

Use this menu to load the factory BIOS default values for optimal
performance system operations. While Award has designed the custom
BIOS to maximize performance, the factory has the right to change these
defaults to meet their needs. See section 4.14 for details.

Set Password

Use this menu to set User and Supervisor Passwords. See section 4.15
for details.

Save & Exit Setup

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

38

Save CMOS value changes to CMOS and exit setup. See section 4.16
for details.

Exit Without Save

Abandon all CMOS value changes and exit setup. See section 4.16 for
details.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

39

4.6 Standard CMOS Setup

The items in Standard CMOS Setup Menu are divided into 10 categories.
Each category includes no, one or more than one setup items. Use the
arrow keys to highlight the item and then use the <PgUp> or <PgDn>
keys to select the value you want in each item.

Phoenix-AwardBIOS CMOS Setup Utility

Standard CMOS Features

Date: Mon, Jul 15 2002
Time: 16:19:20

 IDE Primary Master 2557 MB
 IDE Primary Slave None
 IDE Secondary Master None
 IDE Secondary Slave None

Drive A 1.44M, 3.5 in.
Drive B None

LCD&CRT Both
Panel : Hardware
Setting
Halt On All Errors

Based Memory 640K
Extended Memory 64512K
Total Memory 65536K

Item Help

Menu Level 

Change the day, month,
year and century

↑↓←→Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

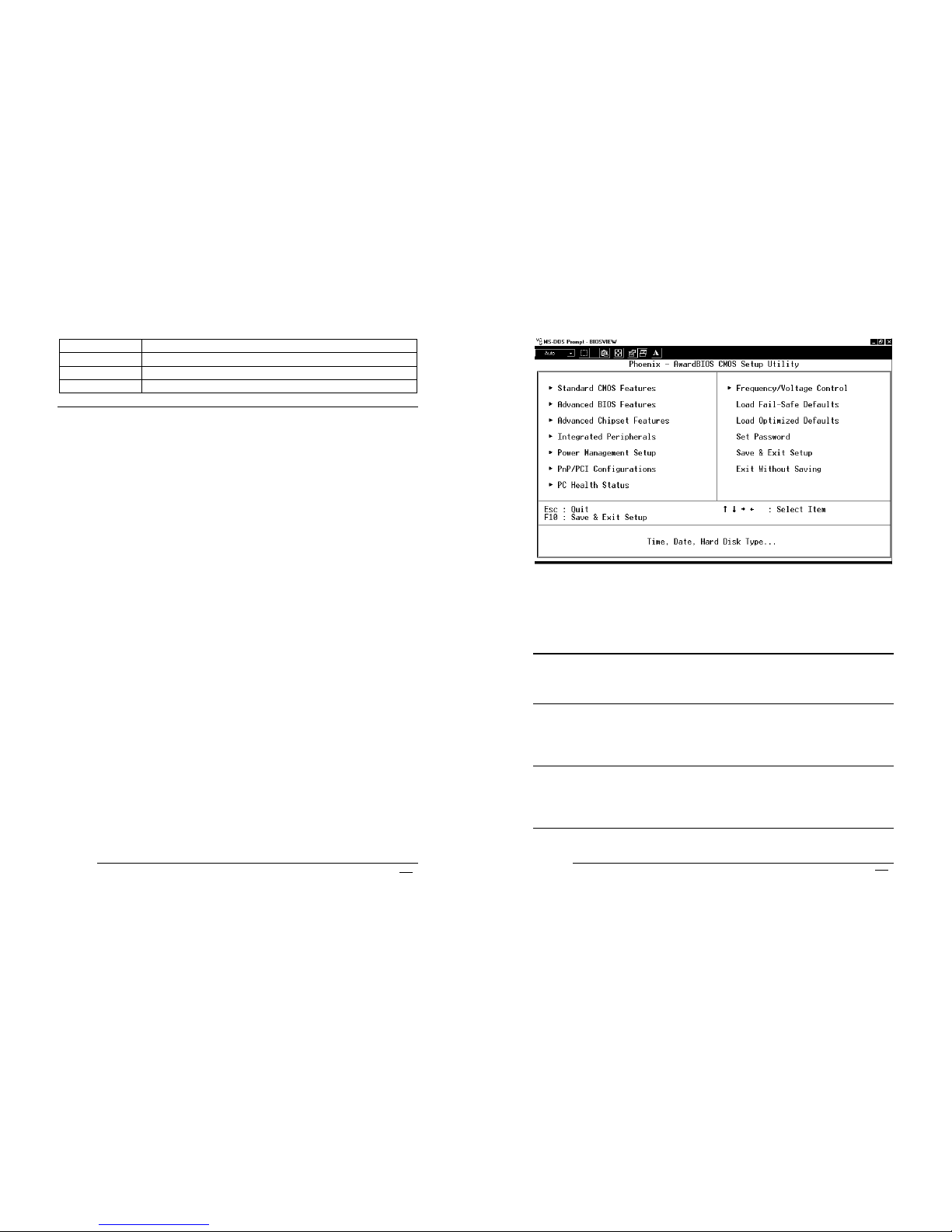

Figure 1: The Main Menu

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

40

Main Menu Selections

Item Options Description

Date MM DD YYYY Set system date.
Time HH : MM : SS Set system time
IDE
Primary Master

Options are in its sub
menu
(described in Table 3)

Press <Enter> to enter
the sub menu of detailed

options
IDE
Primary Slave

Options are in its sub
menu
(described in Table 3)

Press <Enter> to enter

the sub menu of detailed

options
IDE
Secondary Master

Options are in its sub
menu
(described in Table 3)

Press <Enter> to enter

the sub menu of detailed

options
IDE
Secondary Master

Options are in its sub
menu
(described in Table 3)

Press <Enter> to enter

the sub menu of detailed

options
Drive A
Drive B

None
360K, 5.25 in

1.2M, 5.25 in
720K, 3.5 in

1.44M, 3.5 in

2.88M, 3.5 in

Select the type of floppy

disk drive installed in your

system

LCD&CRT Both

CRT

Select LCD & CRT

Display
Panel Hardware Setting

800x600 TFT1
800x600 TFT2
1024x768 18bit TFT1
1024x768 18bit TFT2
1024x768 18bit TFT3
1024x768 18bit TFT4
1024x768 24bit TFT

Select Panel Type. Every

type is predefined with a

special timing. You may

try each setting according

to your LCD. However,

not every kind of LCD will

be supported.

Halt On All Errors

No Errors
All, but Keyboard
All, but Diskette
All, but Disk/Key

Select the situation in

which you want the BIOS

to stop the POST

process and notify you

Base Memory N/A Displays the amount of

conventional memor

y

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

41

detected during boot up

Extended Memory N/A Displays the amount of

extended memory
detected during boot up

Total Memory N/A Displays the total

memory available in the
system

Table 2 Main Menu Selections

IDE Adapters

The IDE adapters control the hard disk drive. Use a separate sub menu
to configure each hard disk drive.
Figure 2 shows the IDE primary master sub menu.

Phoenix-AwardBIOS CMOS Setup Utility

CMOS Setup Utility – Copyright © 1984-2001 Award Software

IDE Primary Master

IDE HDD Auto-Detection Press Enter

IDE Primary Master Auto
Access Mode Auto

Capacity 2557 MB
Cylinder 4956

Head 16
Precomp 0
Landing Zone 4955
Sector 63

Item Help

Menu Level 

To auto-detect the HDD’s
size, head... on this
channel

↑↓←→

Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

Figure 2 IDE Primary Master sub menu

Use the legend keys to navigate through this menu and exit to
the main menu. Use Table 3 to configure the hard disk.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

42

Item Options Description

IDE HDD Auto-

detection

Press Enter Press Enter to auto-detect

the HDD on this channel. If
detection is successful, it fills
the remaining fields on this
menu.

IDE Primary Master None

Auto
Manual

Selecting ‘manual’ lets you
set the remaining fields on
this screen. Selects the type
of fixed disk. "User Type"
will let you select the number
of cylinders, heads, etc.
Note: PRECOMP=65535
means NONE !

Capacity Auto Display

your disk drive
size

Disk drive capacity
(Approximate). Note that
this size is usually slightly
greater than the size of a
formatted disk given by a
disk checking program.

Access Mode Normal

LBA
Large
Auto

Choose the access mode for
this hard disk

The following options are selectable only if the ‘IDE Primary Master’ item is
set to ‘Manual’
Cylinder Min = 0

Max = 65535

Set the number of cylinders
for this hard disk.

Head Min = 0

Max = 255

Set the number of read/write
heads

Precomp Min = 0

Max = 65535

****

Warning

: Setting a
value of 65535 means no
hard disk

Landing zone Min = 0

Max = 65535

****

Sector Min = 0

Max = 255

Number of sectors per track

Table 3 Hard disk selections

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

43

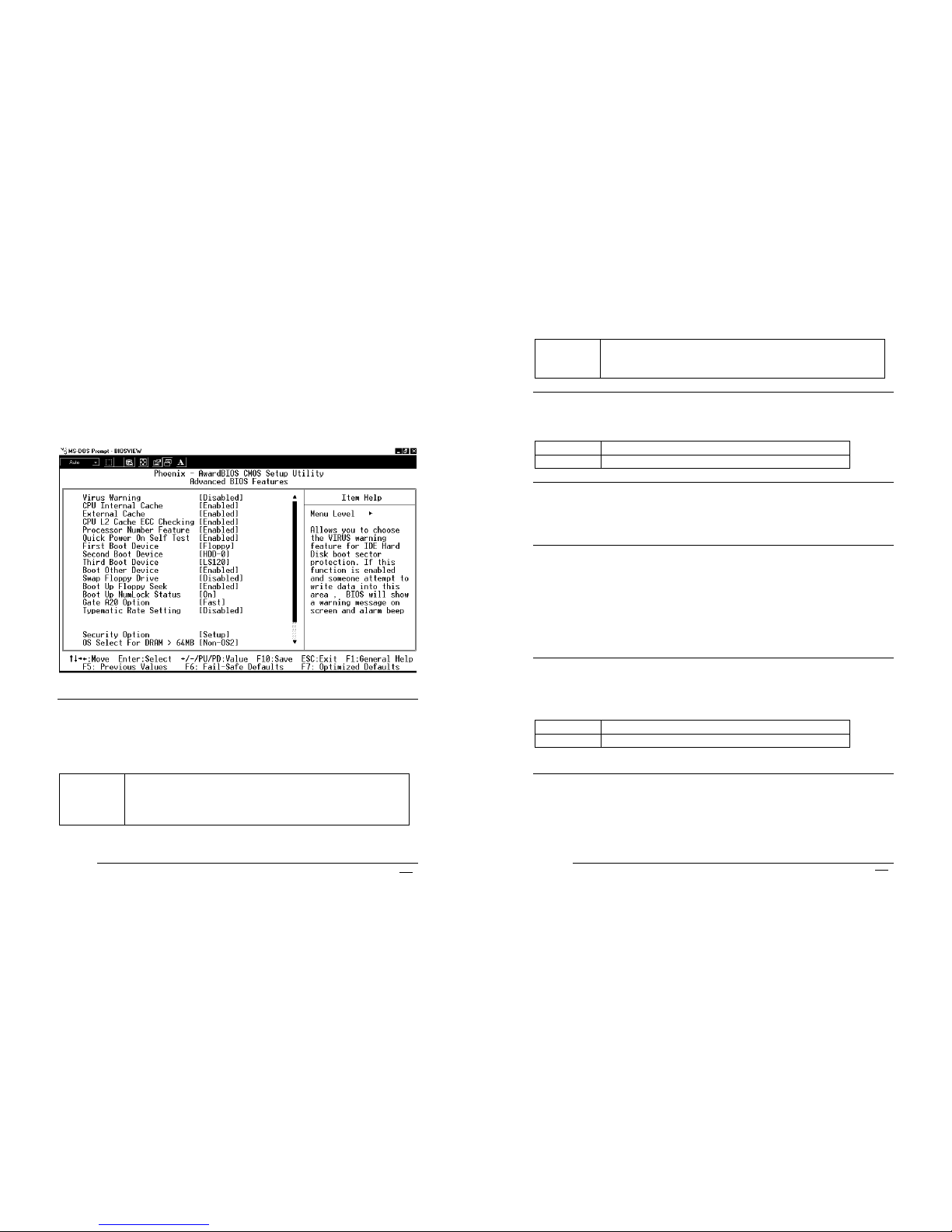

4.7 Advanced BIOS Features

This section allows you to configure your system for basic operation.
You have the opportunity to select the system’s default speed, boot-up
sequence, keyboard operation, shadowing and security.

Virus Warning

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot
sector protection. If this function is enabled and someone attempts to
write data into this area, BIOS will show a warning message on the
screen and an audible alarm will sound.

Enabled Activates automatically when the system boots up

causing a warning message to appear when anything
attempts to access the boot sector or hard disk partition
table.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

44

Disabled No warning message will appear when anything

attempts to access the boot sector or hard disk partition
table.

CPU Internal Cache/External Cache

These two categories speed up memory access. However, memory
access speed depends on the CPU/chipset design.

Enabled Enable cache
Disabled Disable cache

CPU L2 Cache ECC Checking

This item allows you to enable/disable CPU L2 Cache ECC checking.
The choice: Enabled, Disabled.

Processor Number Feature

Some of the new generation of socket-370 processors are installed with
a unique processor number. This number may be used for verification in
Internet transactions and e-commerce. If you prefer not to use or
distribute the unique processor number, use this item to suppress the
processor number. The Choice: Enable, Disable.

Quick Power On Self Test

This category speeds up Power On Self Test (POST) after you power up
the computer. If it is set to Enable, BIOS will shorten or skip some check
items during POST.

Enabled Enable quick POST
Disabled Normal POST

First/Second/Third/Other Boot Device

The BIOS attempts to load the operating system from the devices in the
sequence selected in these items.
The Choice: Floppy, LS/ZIP, HDD, SCSI, CDROM, Disabled.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

45

Swap Floppy Drive

If the system has two floppy drives, you can swap the logical drive name
assignments.

The choice: Enabled/Disabled.

Boot Up Floppy Seek

Seeks disk drives during boot up. Disabling speeds boot up.

The choice: Enabled/Disabled.

Boot Up NumLock Status

Select power on state for NumLock.
The choice: Enabled/Disabled.

Gate A20 Option

Select if chipset or keyboard controller should control GateA20.

Normal A pin in the keyboard controller controls Gate

A20

Fast Lets chipset control GateA20

Typematic Rate Setting

Key strokes repeat at a rate determined by the keyboard controller.
When enabled, the typematic rate and typematic delay can be selected.
The choice: Enabled/Disabled.

Typematic Rate (Chars/Sec)

Sets the number of times a second to repeat a key stroke when you hold
the key down.
The choice: 6, 8, 10, 12, 15, 20, 24, 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before it begins to repeat
the keystroke.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

46

The choice: 250, 500, 750, 1000.

Security Option

Select whether the password is required every time the system boots or
only when you enter setup.

System The system will not boot and access to Setup will be

denied if the correct password is not entered at the
prompt.

Setup The system will boot, but access to Setup will be denied if

the correct password is not entered at the prompt.

Note: To disable security, select PASSWORD SETTING at Main Menu
and then you will be asked to enter password. By not typing anything
and just pressing <Enter>, security will be disabled. Once security is
disabled, the system will boot and you can enter Setup freely.

OS Select For DRAM > 64MB

Select the operating system that is running with greater than
64MB of RAM on the system.

The choice: Non-OS2, OS2.

Report No FDD For Win 95

Asks if a report for no FDD for Win 95 is required.

The choice: Yes, No.

Video BIOS Shadow

This item allows the video BIOS to be copied to the system memory for
faster performance.

The Choice : Enable , Disable.

Small Logo (EPA) Show

The Choice : Enable , Disable.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

47

4.8 Advanced Chipset Features

This section allows you to configure the system based on the specific
features of the installed chipset. This chipset manages bus speeds and
access to system memory resources, such as DRAM and the external
cache. It also coordinates communications between the conventional
ISA bus and the PCI bus. It must be stated that these items should
never need to be altered. The default settings have been chosen
because they provide the best operating conditions for your system.

Advanced DRAM Control 1 / 2 Settings

The first chipset settings deal with CPU access to dynamic random
access memory (DRAM). The default timings have been carefully chosen
and should only be altered if data is being lost. Such a scenario might
well occur if your system had mixed speed DRAM chips installed so that
greater delays may be required to preserve the integrity of the data held
in the slower memory chips.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

48

Auto Configuration

This item will automatically configure the chipset timing. You may select 'manual'
to set up following gray items by your specific need.

The choice: Manual, Auto, 100MHZ, 133MHZ.

SDRAM RAS Active Time

This item defines SDRAM ACT to PRE command period.

The Choice: 6T, 7T, 5T, 4T.

SDRAM RAS Precharge Time

This item defines SDRAM PRE to ACT command period.

The Choice: 3T, 2T, 4T, Reserved.

RAS to CAS Delay

This item defines SDRAM ACT to Read/Write command period.
The choice: 3T, 2T, 4T, Reserved.

Dram Background Command

This item is lead-off time control for DRAM background command. When 'Delay
1T' is selected, background commands are issued 1 clock behind memory
address (MA). When 'Normal' is selected, background command and MA are
issued at the same time.

The choice: Delay 1T, Normal.

LD-Off Dram RD/WR Cycles

The item is lead-off time control for DRAM Read/Write Cycles. When select
'Delay 1T' , memory read/write command is issued 1 clock behind memory
address (MA) been issued. When select 'Normal', read/write command and MA
are issued at the same time.

The choice: Delay 1T, Normal.

Write Recovery Time

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

49

This item defines the Data-in to PRE command period.

The choice: 1T, 2T

VCM REF To ACT/REF Delay

This item defines VCM REF to REF/ACT command period.

The choice: 10T, 9T.

VCM ACCT To ACT/REF Delay

This item defines VCM ACT to ACT/REF command period.

The choice: 10T, 9T, 8T, Reserved.

Early CKE Delay 1T Control

This option is used when the system operates under low frequency and CKE
delay adjustment method defined in the 'Early CKE Delay Adjustment' which can
not meet setup time and hold time requirement.

The choice: Normal, Delay 1T.

Early CKE Delay Adjust

This item controls the timing for CKE. Various delay options are provided to
ensure that CKE can meet SDRAM setup time and hold time specification when
CKE is driven out.

The Choice: 1ns, 2ns, 3ns, 4ns, 5ns, 6ns, 7ns, 8ns.

Mem. Command Output Time

This item is to control the timing to drive memory command onto the memory bus.

The choice: Normal, Delay 1T.

SDRAM/VCM CAS Latency

When synchronous DRAM is installed, the number of clock cycles of CAS latency
depends on the DRAM timing.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

50

The Choice: 2, 3 , SPD

SDRCLK Control

This item controls the phase of SDRCLK that lags behind SDCLK.

The choice: Enabled, Disabled.

SDWCLK Control CS#/CKE

This item controls the phase of SDWCLK used for chip set select signals pin that
lags ahead SDCLK.

The choice: Enabled, Disabled.

SDWCLK Control MA/SRAS

This item controls the phase of SDWCLK used for MA/ SRAS signals that lags
ahead SDCLK.

The choice: +5.0ns~-2.5ns (Default 0.0ns)

SDWCLK Control DQM/MD

This item controls the phase of SDWCLK used for DQM/MD signals that lags
ahead SDCLK.

The choice: +5.0ns~-2.5ns (Default 0.0ns)

EGMRCLK Control

This item controls the phase of EGMRCLK that lags behind SDCLK.

The choice: -1.0ns~+6.5ns (Default 0.0ns)

EGMWCLK Control

This item controls the phase of EGMWCLK that lags ahead SDCLK.

The choice: +5.0ns~-2.5ns (Default 0.0ns)

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

51

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh,
resulting in better system performance. However, if any program writes to this
memory area, a system error may result.

The choice: Enabled, Disabled.

Video RAM Cacheable

Select Enabled allows caching of the video RAM , resulting in better system
performance. However, if any program writes to this memory area, a system
error may result.

The choice: Enabled, Disabled.

AGP Aperture Size

Select the size of the Accelerated Graphics Port (AGP) aperture. The aperture is
a portion of the PCI memory address range dedicated to graphics memory
address space. Host cycles that hit the aperture range are forwarded to the AGP
without any translation.

The Choice: 4M, 8M, 16M, 32M, 64M, 128M, 256M.

Graphic Window WR Combin

Use this item to enable or disable CPU support for WR Combin.

The Choice : Enable , Disable .

Concurrent Function ( MEM )

This item is CPU & PCI Masters Concurrently Access Memory Function. Select
enabled allows CPU access memory cycles and PCI masters access memory
cycles concurrently issued onto host bus and PCI bus, respectively, and then the
memory access cycles will be rearranged by SiS630 to memory sequentially.

The choice: Enabled, Disabled

Concurrent Function ( PCI )

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

52

This item is CPU & PCI Masters Concurrently Access PCI Bus Function. Select
enabled allows CPU access PCI bus cycle and PCI masters access memory
cycles concurrently issued onto host bus and PCI bus, respectively.

The choice: Enabled, Disabled.

CPU Pipeline Control

When enabled this item, only one pending cycle is allowed at one time.
When disabled, there might be more than two pending cycles at one time
depends on the CPU behaviour.
The choice: Enabled, Disabled.

PCI Delay Transaction

If the chipset has an embedded 32-bit write buffer to support delay
transaction cycles, you can enable this item to provide compliance with
PCI Ver.2.1 specifications. However, we recommend that you leave this
item at the default value.
The choice : Enable, Disable.

Power-Supply Type

This item controls the power-supply type to AT or ATX.
The choice: AT,ATX.

Memory Parity Check

Enabled this item to test the boot-up memory. .

The choice: Enabled, Disabled.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

53

4.9 Integrated Peripherals Setup

SIS 630 OnChip IDE Device

Internal PCI / IDE

This chipset contains an internal PCI IDE interface with support for two
IDE channels.

The choice: Primary, Secondary, Both.

IDE Primary Master/Slave PIO

The four IDE PIO (Programmed Input / Output) fields let you set a PIO
mode (0-4) for each of the four IDE devices that the onboard IDE
interface supports. Modes 0 through 4 provide successively increased
performance. In Auto mode, the system automatically determines the
best mode for each device.

The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, and Mode 4.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

54

Primary Master/Slave UltraDMA

UDMA (Ultra DMA) is a DMA data transfer protocol that utilizes ATA commands
and the ATA bus to allow DMA commands to transfer data at a maximum burst
rate of 33 MB/s. When you select Auto in the four IDE UDMA fields (for each of
up to four IDE devices that the internal PCI IDE interface supports), the system
automatically determines the optimal data transfer rate for each IDE device.

The choice: Auto, Disabled.

IDE Burst Mode

Selecting Enabled reduces latency between each drive’s read/write cycle,
but may cause instability in IDE subsystems that cannot support such
fast performance. If you are getting disk drive errors, try setting this
value to Disabled. This field does not appear when the Internal PCI/IDE
field, above, is Disabled.

The choice: Enabled, Disabled.

SIS 630 OnChip PCI Device

SIS-7018 AC97 AUDIO

Select Enabled to support AC97 Audio.
The choice: Enabled, Disabled.

Super I/O Device

Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC) installed
on the system board and you wish to use it. If you uninstall the FDC or
the system has no floppy drive, select Disabled in this field.

The choice: Enabled, Disabled.

Onboard Serial Port 1/ Port 2 / Port 3 / Port 4

Select an address and corresponding interrupt for the first and second
serial ports.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

55

The choice: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto.

UART Mode Select

This item allows you to select UART mode.

The choice: Enabled, Disabled.

UR2 Duplex Mode

This item allows you to select the IR half/full duplex function.

The choice: Half, Full.

Onboard Parallel Port 1 / Port 2

This option allows you to determine access onboard parallel port
controller with a corresponding I/O address.

The choice: 3BC/IRQ7, 378/IRQ7, 278/IRQ5, Disabled.

Parallel Port Mode

Select an operating mode for the onboard parallel (printer) port. Select
Normal, Compatible or SPP unless you are certain both your hardware
and software support one of the other available modes.

The choice: SPP, EPP, ECP, ECP+EPP.

ECP Mode Use DMA

Select a DMA channel for the parallel port for use during ECP mode.

The choice: 3, 1.

USB Controller

Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have USB peripherals.

Choices are: Enabled, Disabled.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

56

USB Keyboard Support

Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB keyboard.

Choices are: Enabled, Disabled.

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple
sector read/write. If your IDE hard drive supports block mode (most new
drives do), select Enabled for automatic detection of the optimal number
of block read/writes per sector the drive can support.

The choice: Enabled, Disabled.

Init Display First

This item allows you to decide whether to first activate the PCI Slot or the
AGP.
The choice: PCI Slot, AGP.

System Share Memory Size

This item defines the System Share Memory Size for video.
The choice: 2MB, 4MB, 16MB, 32MB, 64MB, 2+2MB,
4+4MB, 8+8MB, 16+16MB, 32+32MB

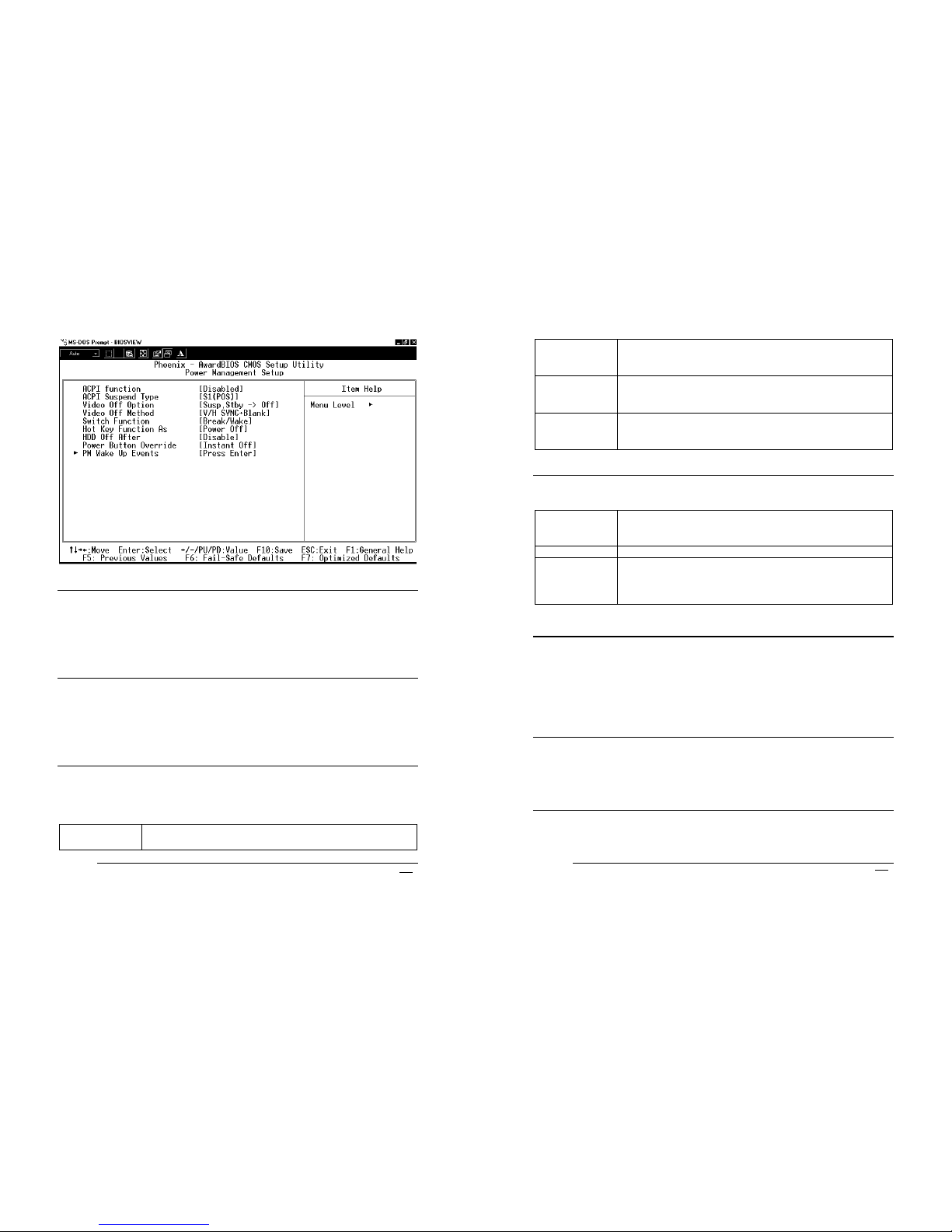

4.10 Power Management Setup

The Power Management Setup allows you to configure your system to
most effectively save energy while operating in a manner consistent with
your own style of computer use.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

57

ACPI Function

This item allows you to enable/disable the Advanced Configuration and
Power Management (ACPI).
The choice: Enabled, Disabled.

ACPI Suspend Type

This item allows you to S1(Power ON Suspend) the Advanced
Configuration and Power Management (ACPI).
The choice: S1(POS)

Video Off Option

When enabled, this feature allows the VGA adapter to operate in a power saving
mode.

Always On Monitor will remain on during power saving modes.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

58

Suspend --> Off Monitor blanked when the systems enters the Suspend

mode.

Susp,Stby -->
Off

Monitor blanked when the system enters either Suspend or
Standby modes.

All Modes -->
Off

Monitor blanked when the system enters any power saving
mode.

Video Off Method

This determines the manner in which the monitor is blanked.

V/H
SYNC+Blank

This selection will cause the system to turn off the vertical
and horizontal synchronization ports and write blanks to the

video buffer.
Blank Screen This option only writes blanks to the video buffer.
DPMS Select this option if your monitor supports the Display

Power Management Signalling (DPMS) standard of the

Video Electronics Standards to select video power

management values.

Switch Function

You can choose whether or not to permit your system to enter complete Suspend
mode. Suspend mode offers greater power savings, with a correspondingly
longer awakening period.

The choice: Break/Wake, Disabled.

Hot Key Function As

Select Enabled if your system has a hot key for soft power off.

The choice: Enabled, Disabled.

HDD Off After

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

59

By default, this item is Disabled, meaning that no matter what the status is of the
rest of the system, the hard drive will remain ready. Otherwise, you have a range
of choices from 1 to 15 minutes or Suspend. This means that you can elect to
have your hard disk drive turned off after a selected number of minutes or when
the rest of the system goes into Suspend mode.

Power Button Over Ride

Pressing the power button for more than 4 seconds forces the system to enter the
Soft-Off state when the system has “hung.”

The choice: Soft-Off, Delay 4 Sec.

PM Wake Up Events

IRQ [3-7,9-15],NMI

The following is a list of IRQ’s, Interrupt ReQuests, which can be exempted in the
same way as the COM ports and LPT ports above can. When an I/O device
wants to gain the attention of the operating system, it signals this by starting an
IRQ. When the operating system is ready to respond to the request, it interrupts
itself and performs the service.
As above, the choices are On and Off.
When set On, activity will neither prevent the system from going into a power
management mode nor awaken it.

•

IRQ [ 3-7, 9-15], NMI

•

IRQ 8 Break Suspend :

You can Enable or Disable monitoring of IRQ8 (the

Real Time Clock) so it does not awaken the system from Suspend mode.

Ring / PCIPME Power Up Control

When you select Enabled, a signal from ring / PCIPME returns the system to Full
On state.

The choice: Enabled, Disabled.

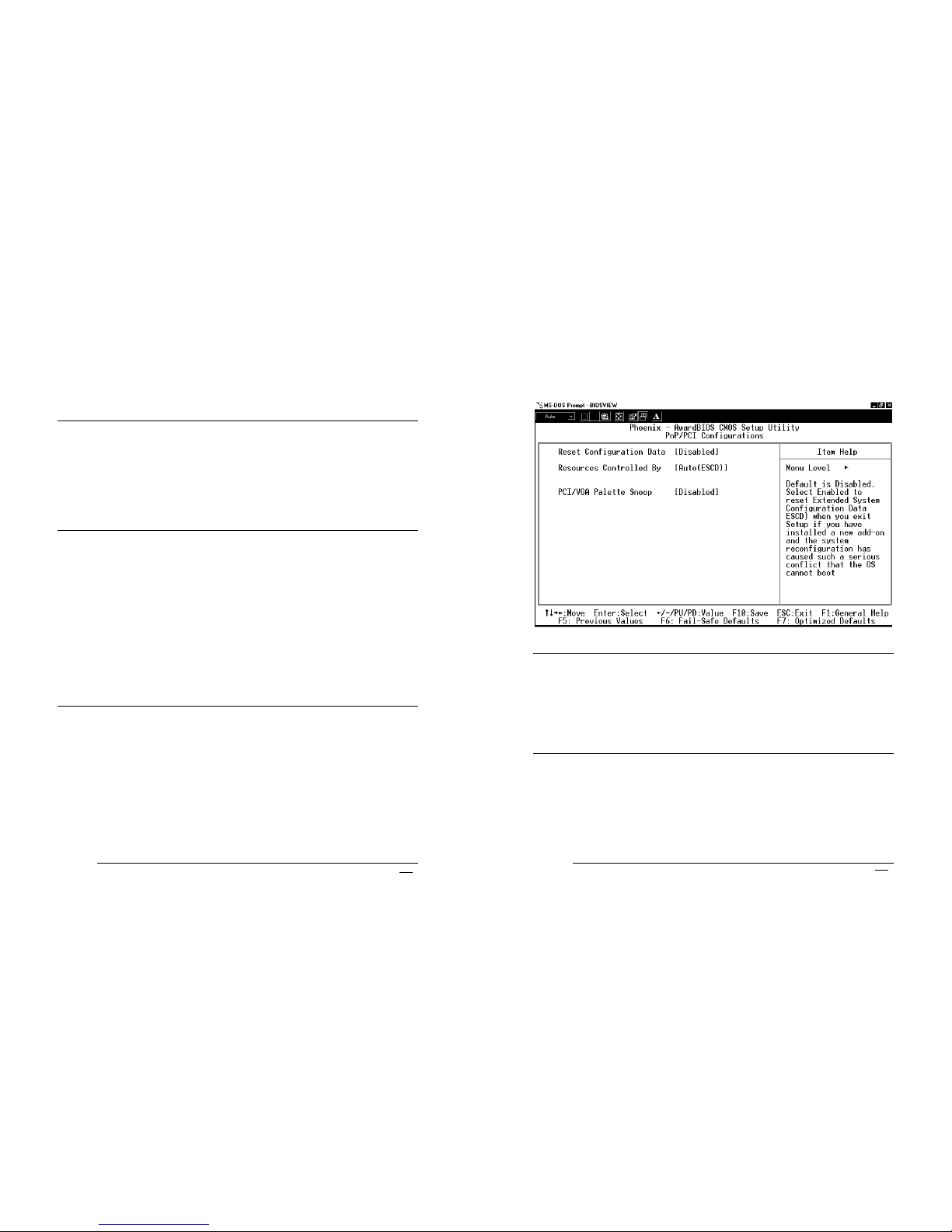

4.11 PnP/PCI Configuration Setup

This section describes how to configure the PCI bus system. PCI, or

P

ersonal Computer Interconnect, is a system which allows I/O devices to

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

60

operate at speeds close to the speed the CPU itself uses when
communicating with its own special components. This section covers
some very technical items and it is strongly recommended that only
experienced users make any changes to the default settings.

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset Extended
System Configuration Data (ESCD) when you exit Setup if you have
installed a new add-on and the system reconfiguration has caused such
a serious conflict that the operating system can not boot.
The choice: Enabled, Disabled .

Resource controlled by

The Award Plug and Play BIOS has the capacity to automatically
configure all of the boot and Plug and Play compatible devices. However,
this capability means absolutely nothing unless you are using a Plug and
Play operating system such as Windows95. By setting this field to
“manual” the user can choose specific resources by going into each of
the sub menus that follow this field (a sub menu is preceded by a “”).

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

61

The choice: Auto (ESCD), Manual.

IRQ Resources

When resources are controlled manually, assign each system interrupt a
type, depending on the type of device using the interrupt.

IRQ3/4/5/7/9/10/11/12/14/15 assigned to

This item allows you to determine the IRQ assigned to the ISA bus and is
not available to any PCI slot. Legacy ISA for devices compliant with the
original PC AT bus specification, PCI/ISA PnP for devices compliant with
the Plug and Play standard whether designed for PCI or ISA bus
architecture.
The Choice: Legacy ISA and PCI/ISA PnP.

PCI/VGA Palette Snoop

We strongly recommend that you leave this field on Disabled.

Choices are Enabled, Disabled.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

62

4.12 PC Health Status

This section helps you to get more information about your system including CPU
temperature, FAN speed and voltages. It is recommended that you contact your
motherboard supplier to get proper value about the CPU temperature setting.

Phoenix-AwardBIOS CMOS Setup Utility

PC Health Status

Vcore 1.40V

2.5V 2.49V

3.3V 3.37V
+5V 4.97V
+12V 11.96V
3VSB 3.29V

Temperature1 - 55℃

Temperature2 40℃

FAN 1 Speed 4153 RPM

Item Help

------------------------­Menu Level 

↑↓←→ Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

Voltage Sensor

The chipset reserves 6 inputs for monitoring working voltages
from various sources in the system. These voltages include
CPU voltage, power pins of the ATX power (+12V, +5V, 3.3V...)
and others.

Temperature 1/2/

The chipset reserves 2 inputs for monitoring temperatures that
are typically the CPU & system temperatures.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

63

Fan 1 Speed

The chipset reserves 1 inputs for monitoring FAN speeds in the
system. Usually, one FAN is applied to cool down the CPU.

4.13 Frequency/Voltage Control

Phoenix-AwardBIOS CMOS Setup Utility

Frequency/Voltage Control
Auto Detect DIMM/PCI Clk Disabled
Spread Spectrum Disabled
CPU HOST/SDRAM/PCI Clock Default
CPU Clock Ratio By H/W

Item Help

------------------------­Menu Level 

↑↓←→ Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

Auto Detect DIMM/PCI CLK

This item allows you to enable/disable auto detect DIMM/PCI Clock.
The choice: Enabled, Disabled.

Spread Spectrum

This item allows you to enable/disable the spread spectrum modulate.
The choice: Enabled, Disabled.

CPU Host/DRAM/PCI Clock

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

64

This item allows you to select CPU/PCI frequency.
The choice: Default, 66/66/33MHz, 133/133/33MHz, 100/100/33MHz.

CPU Clock Ratio

This item allows you to select CPU clock ratio.
The choice: By H/W 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8.

4.14 Defaults Menu

Selecting “Defaults” from the main menu shows you two options
which are described below

Load Fail-Safe Defaults
When you press <Enter> on this item you get a confirmation
dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing ‘Y’ loads the BIOS default values for the most stable,
minimal-performance system operations.

Load Optimized Defaults

When you press <Enter> on this item you get a confirmation
dialog box with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing ‘Y’ loads the default values that are factory settings for
optimal performance system operations.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

65

4.15 Supervisor/User Password Setting

You can set either supervisor or user password, or both of them. The
differences between the two are:

supervisor password :

can enter and change the options of the setup menus.

user password

:
users may enter but do not have the right to change the options of the
setup menus. When you select this function, the following message will
appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:
Type the password, up to eight characters in length, and press <Enter>.
The password typed now will clear any previously entered password from
CMOS memory. You will be asked to confirm the password. Type the
password again and press <Enter>. You may also press <Esc> to abort
the selection and not enter a password.
To disable a password, just press <Enter> when you are prompted to
enter the password. A message will confirm the password will be
disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it
every time you try to enter Setup. This prevents an unauthorized user
from changing any part of your system configuration.
Additionally, when a password is enabled, you can also require the BIOS
to request a password every time your system is rebooted. This prevents
unauthorized use of your computer.
You determine when the password is required within the BIOS Features
Setup Menu and its Security option (see Section 3). If the Security option
is set to password, then the password will be required both at boot and at
entry to Setup. If set to “Setup”, prompting only occurs when trying to
enter Setup.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

66

4.16 Exit Selecting

Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

Save to CMOS and EXIT (Y/N)? Y

Pressing “Y” stores the selections made in the menus in
CMOS – a special section of memory that stays on after you turn
your system off. The next time you boot your computer, the BIOS
configures your system according to the Setup selections stored
in CMOS. After saving the values the system is restarted again.

Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing in CMOS any
change. The previously saved selections remain in effect. This
exits the Setup utility and restarts your computer.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

67

Appendix A. Watch-Dog Timer

The Watchdog Timer is a device to ensure that standalone systems can
always recover from abnormal conditions that cause the system to crash.
These conditions may result from an external EMI or a software bug.
When the system stops working, hardware on the board will perform a
hardware reset (cold boot) to bring the system back to a known state.

Three I/O ports control the operation of Watch-Dog Timer.

443 (hex) Write Set Watchdog Time period
443 (hex) Read Enable the refresh the Watchdog Timer.
043/843 (hex) Read Disable the Watch-Dog Timer.

Prior to enabling the Watch-Dog Timer, the user should set the time-out
period. The resolution of the timer is 1 second and the range of the timer
is from 1 to 255 sec. You need to send the time-out value to the I/O
port – 443H, and then enable it by reading data from the same I/O port –
443H. This will activate the timer that will eventually time out and reset
the CPU board. To ensure that this reset condition does not occur, the
Watch-Dog Timer must be periodically refreshed by reading the same I/O
port 443H. This must be done within the time-out period, please refer to
the example program. Finally, be sure to disable the Watch-Dog timer by
reading the I/O port -- 843H or 043H, otherwise the system could reset
unconditionally.

A tolerance of at least 5% must be maintained to avoid unknown routines
in the operating system (DOS), such as disk I/O that can be very time­consuming. Therefore if the time-out period has been set to 10 seconds,
the I/O port 443H must be read within 7 seconds.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

68

Example assembly program:

TIMER_PORT = 443H
TIMER_START = 443H
TIMER_STOP = 843H

;;INITIAL TIMER COUNTER

MOV DX, TIMER_PORT
MOV AL, 8

;;8 seconds

OUT DX, AL
MOV DX, TIMER_START
IN AL, DX.

;;start counter

W_LOOP:
MOV DX, TIMER_STOP
IN AL, DX
MOV DX, TIMER_START
IN AL, DX

;;restart counter

;;ADD YOUR APPLICATION HERE

CMP EXIT_AP, 0
JNE W_LOOP
MOV DX, TIMER_STOP
IN AL, DX

;;EXIT AP

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

69

Appendix B. POST Messages

POST Messages

During the Power On Self Test (POST), if the BIOS detects an error requiring you
to fix something, it will either sound a beep code or display a message.
If a message is displayed, it will be accompanied by:
PRESS F1 TO CONTINUE, CTRL-ALT-ESC OR DEL TO ENTER SETUP

POST Beep

Currently there are two kinds of beep codes in BIOS. This code indicates that a
video error has occurred and the BIOS cannot initialize the video screen to
display any additional information. This beep code consists of a single long beep
followed by three short beeps. The other code indicates that a DRAM error has
occurred. This beep code consists of a single long beep repeatedly.

Error Messages

One or more of the following messages may be displayed if the BIOS detects an
error during the POST. This list includes messages for both the ISA and the EISA
BIOS.

CMOS BATTERY HAS FAILED

CMOS battery is no longer functional. It should be replaced.

CMOS CHECKSUM ERROR

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

70

Checksum of CMOS is incorrect. This could mean that CMOS has become
corrupt. This error may have been caused by a weak battery. Check the battery
and replace if necessary.

DISK BOOT FAILURE, INSERT SYSTEM DISK AND PRESS ENTER

No boot device was found. This could mean that either a boot drive was not
detected or the drive does not contain proper system boot files. Insert a system
disk into Drive A: and press <Enter>. If you assumed the system would boot from
the hard drive, make sure the controller is inserted correctly and all cables are
properly attached. Also be sure the disk is formatted as a boot device. Then
reboot the system.

DISKETTE DRIVES OR TYPES MISMATCH ERROR - RUN SETUP

Type of diskette drive installed in the system is different from the CMOS definition.
Run Setup to reconfigure the drive type correctly.

DISPLAY SWITCH IS SET INCORRECTLY

Display switch on the motherboard can be set to either monochrome or color.
This indicates the switch is set to a setting different to the one indicated in Setup.
Determine which setting is correct, and then either turn off the system and
change the jumper, or enter Setup and change the VIDEO selection.

DISPLAY TYPE HAS CHANGED SINCE LAST BOOT

Since last powering off the system, the display adapter has been changed. You
must configure the system for the new display type.

EISA Configuration Checksum Error
PLEASE RUN EISA CONFIGURATION UTILITY

The EISA non-volatile RAM checksum is incorrect or cannot correctly read the
EISA slot. This can indicate either the EISA non-volatile memory has become
corrupt or the slot has been configured incorrectly. Also be sure the card is
installed firmly in the slot.

EISA Configuration Is Not Complete
PLEASE RUN EISA CONFIGURATION UTILITY

The slot configuration information stored in the EISA non-volatile memory is
incomplete.

Note: When either of these errors appear, the system will
boot in ISA mode, which allows you to run the EISA
Configuration Utility.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

71

ERROR ENCOUNTERED INITIALIZING HARD DRIVE

Hard drive cannot be initialized. Be sure the adapter is installed correctly and all
cables are correctly and firmly attached. Also be sure the correct hard drive type
is selected in Setup.

ERROR INITIALIZING HARD DISK CONTROLLER

Cannot initialize controller. Make sure the cord is correctly and firmly installed in
the bus. Be sure the correct hard drive type is selected in Setup. Also check to
see if any jumper needs to be set correctly on the hard drive.

FLOPPY DISK CNTRLR ERROR OR NO CNTRLR PRESENT

Cannot find or initialize the floppy drive controller. make sure the controller is
installed correctly and firmly. If there are no floppy drives installed, be sure the
Diskette Drive selection in Setup is set to NONE.

Invalid EISA Configuration
PLEASE RUN EISA CONFIGURATION UTILITY

The non-volatile memory containing EISA configuration information was
programmed incorrectly or has become corrupt. Re-run EISA configuration utility
to correctly program the memory.

NOTE: When this error appears, the system will boot in ISA
mode, which allows you to run the EISA Configuration Utility.

KEYBOARD ERROR OR NO KEYBOARD PRESENT

Cannot initialize the keyboard. Make sure the keyboard is attached correctly and
no keys are being pressed during the boot.
If you are purposely configuring the system without a keyboard, set the error halt
condition in Setup to HALT ON ALL, BUT KEYBOARD. This will cause the BIOS
to ignore the missing keyboard and continue the boot.

Memory Address Error at ...

Indicates a memory address error at a specific location. You can use this location
along with the memory map for your system to find and replace the bad memory
chips.

Memory parity Error at ...

Indicates a memory parity error at a specific location. You can use this location
along with the memory map for your system to find and replace the bad memory
chips.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

72

MEMORY SIZE HAS CHANGED SINCE LAST BOOT

Memory has been added or removed since the last boot. In EISA mode use
Configuration Utility to reconfigure the memory configuration. In ISA mode enter
Setup and enter the new memory size in the memory fields.

Memory Verify Error at ...

Indicates an error verifying a value already written to memory. Use the location
along with your system's memory map to locate the bad chip.

OFFENDING ADDRESS NOT FOUND

This message is used in conjunction with the I/O CHANNEL CHECK and RAM
PARITY ERROR messages when the segment that has caused the problem
cannot be isolated.

OFFENDING SEGMENT:

This message is used in conjunction with the I/O CHANNEL CHECK and RAM
PARITY ERROR messages when the segment that has caused the problem has
been isolated.

PRESS A KEY TO REBOOT

This will be displayed at the bottom of the screen when an error occurs that
requires you to reboot. Press any key and the system will reboot.

PRESS F1 TO DISABLE NMI, F2 TO REBOOT

When BIOS detects a Non-maskable Interrupt condition during boot, this will
allow you to disable NMI and continue to boot, or you can reboot the system with
NMI enabled.

RAM PARITY ERROR - CHECKING FOR SEGMENT ...

Indicates a parity error in the RAM (Random Access Memory).

Should Be Empty But EISA Board Found
PLEASE RUN EISA CONFIGURATION UTILITY

A valid board ID was found in a slot that was configured as having no board ID.

NOTE; When this error appears, the system will boot in ISA
mode, which allows you to run the EISA Configuration Utility.

Should Have EISA Board But Not Found
PLEASE RUN EISA CONFIGURATION UTILITY

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

73

The board installed is not responding to the ID request, or no board ID has been
found in the indicated slot.

NOTE: When this error appears, the system will boot in
ISA mode, which allows you to run the EISA Configuration
Utility.

Slot Not Empty

Indicates that a slot designated as empty by the EISA Configuration Utility
actually contains a board.

NOTE: When this error appears, the system will boot in ISA
mode, which allows you to run the EISA Configuration Utility.

SYSTEM HALTED, (CTRL-ALT-DEL) TO REBOOT ...

Indicates the present boot attempt has been aborted and the system must be
rebooted. Press and hold down the CTRL and ALT keys and press DEL.

Wrong Board In Slot
PLEASE RUN EISA CONFIGURATION UTILITY

The board ID does not match the ID stored in the EISA non-volatile memory.

NOTE: When this error appears, the system will boot in ISA
mode, which allows you to run the EISA Configuration Utility.

FLOPPY DISK(S) fail (80) → Unable to reset floppy subsystem.

FLOPPY DISK(S) fail (40) → Floppy Type dismatch.

Hard Disk(s) fail (80) → HDD reset failed

Hard Disk(s) fail (40) → HDD controller diagnostics failed.

Hard Disk(s) fail (20) → HDD initialization error.

Hard Disk(s) fail (10) → Unable to recalibrate fixed disk.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

74

Hard Disk(s) fail (08) → Sector Verify failed.

Keyboard is locked out - Unlock the key.

BIOS has detected the keyboard is locked. P17 of keyboard controller is
pulled low.

Keyboard error or no keyboard present.

Cannot initialize the keyboard. Make sure the keyboard is attached
correctly and no keys are being pressed during the boot.

Manufacturing POST loop.

System will repeat POST procedure infinitely while the P15 of keyboard
controller is low. This is also used for M/B burn-in test.

BIOS ROM checksum error - System halted.

The checksum of ROM address F0000H-FFFFFH is bad.

Memory test fail.

BIOS reports the memory test fail if the onboard memory detects an error.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

75

Appendix C.

DMA, IRQ and 1

st

MB Memory

I/O Address Map

DMA Channel Assignments:

DMA Channel # Description

0 Available
1 Available
2 Floppy Disk (8-bit transfer)
3 Available
4 Cascade for DMA controller 1
5 Sound
6 Available
7 Available

IRQ Mapping Chart

IRQ0 System Timer IRQ8 RTC Clock
IRQ1 Keyboard IRQ9 USB
IRQ2 Cascade to IRQ Controller IRQ10 LAN1
IRQ3 (COM2) IRQ11 LAN2
IRQ4 (COM1) IRQ12 PS/2 Mouse
IRQ5 Sound IRQ13 FPU
IRQ6 FDC IRQ14 Primary IDE
IRQ7 LPT1 IRQ15 Secondary IDE

Note: All IRQs have been assigned to the listed devices, so if you want to
add any additional device interface, you must free the unused IRQ first. For
example, if you don’t use USB K/B or Mouse, then IRQ9 may be set free.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

76

1st MB Memory Address Map

Memory Address Description

00000-9FFFF System Board extension for ACPI BIOS
A0000-CFFFF SIS630
D0000-DFFFF Free
F0000-FFFFF System Board extension for ACPI BIOS

I/O Address Map

I/O Address
Range

Description

000-01F DMA Controller #1
020-021 Interrupt Controller #1, Master
040-05F 8254 Timer
060-06F 8042 (Keyboard Controller)
070-07F Real Time Clock, NMI Mask
080-09F DMA Page Register
0A0-0BF Interrupt Controller #2
0C0-0DF DMA Controller #2
0F0 Clear Math Coprocessor Busy
0F1 Reset Math Coprocessor
0F8-0FF Math Coprocessor
170-177
1F0-1F7

Fixed Disk

2F8-2FF Serial Port 2 (COM2)
378-37F Parallel Printer Port 1 (LPT1)
380-38F SDLC, Bisynchronous 2
3A0-3AF Bisynchronous 1
3B0-3BB SIS 630
3C0-3DF SIS 630
3F0-3F7 Diskette Controller
3F8-3FF Serial Port 1 (COM1)
443, 843 Watch-dog timer

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

77

Appendix D.

How to Upgrade a New BIOS

You can install an upgrade BIOS for the CPU Board after
downloading from the manufacturer’s web site ( www.iei.com.tw

).
New BIOS may provide support for new peripherals,
improvements in performance or fixes to addressed known bugs.

BIOS Update Procedure:

1. Make a boot disk. Go to the DOS command prompt in MS-DOS
or Windows 9x and, with an available floppy disk in "A", type
"format A: /s" That will format the floppy and transfer the needed
system files to it.

NOTES:
A. This procedure will erase any prior data on that floppy, so
please proceed accordingly.
B. Typically four files will be transferred, only COMMAND.COM
being visible when running a simple directory listing.
C. Please leave the diskette UN-write protected for the balance of
this procedure.

2. Download the BIOS upgrade file and awdflash.exe utility from
an ICP web site to a temp directory on your hard drive, or directly
to the floppy you made in step 1..

3. Copy ( BIOS file and awdflash.exe) two files to the boot floppy.

4. Reboot the system to the DOS command prompt using the boot
diskette you just made.

5. At the DOS command prompt, type "awdflash filename.xxx",

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

78

where filename.xxx is the file name of the BIOS file. Press enter.

6. Your first option, in sequence, will be to save the old BIOS. We
recommend that you do that in case, for whatever reason, you
decide you don't wish to use the new version once it is installed.
NOTES:
A. If you decide to save the old BIOS, PLEASE make sure you do
NOT save it to the same file name as the new BIOS - if you use
the same BIOS name the old file will be written over the new file
with NO warning prompt. A simple file name to save the old BIOS
under is OLDBIOS.BIN.
B. If you do NOT decide to save the old BIOS, PLEASE at least
write down the version number of the old BIOS and store that
information with your important computer documents. Enter N (for
"no") and skip to step 9.

7. To save the old BIOS, hit Y (for "yes")

8. Enter a name for the OLD BIOS file and hit enter.
NOTE:PLEASE be sure you do NOT save the old BIOS file to the
same file name as the new BIOS - if you use the same BIOS name,
the old file will write over the new BIOS file WITHOUT a warning
prompt. A simple file name for saving the old BIOS under is
OLDBIOS.BIN.

9. Your second option, in sequence, will be whether or not you
want to flash your BIOS. Enter Y (for "yes").
NOTE: This is a critical step. Once you press the enter key, do
NOT touch the keyboard, the reset button, or the power switch
while the flashing is in progress. There will be bar progressing
across the screen while the flashing is taking place.

10. When the flashing process is complete, you will be asked to
reset or power off the system. Remove the floppy diskette from the

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

79

floppy drive and either hit the reset button or the power button.

11. Reboot the system and note that the BIOS version on the initial
boot-up screen has changed to the new BIOS version. Your BIOS
upgrade is now complete.

Recovering Your Old BIOS:

1. Assuming you have made a back-up of the old BIOS on the
floppy during the upgrade procedure noted above, boot the system
with that diskette in the floppy drive. If you have not backed up to a
floppy during the upgrade procedure noted above, you will need to
repeat steps 1 though 3 (above) for the version of the BIOS you
wish to recover to.

2. Complete steps 4, 5, 6B, 9, 10, and 11 (above) substituting the
name of the BIOS you wish to recover for the upgrade BIOS at
step 5.

Install screen :

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

80

Appendix E. Digital Input / Output

NOVA-7895 has a 4-bit IN and 4-bit OUT built-in digital I/O connector. An
external power supply to the connector’s pin-9 and pin-10 is needed to
activate the digital I/O circuit. The external power supply’s DC output
should be connected with NOVA-7895’s power supply at either 5V, 12V
or GND to isolate NOVA-7895 main system and the external I/O device.
Should you not be able to find any external power supply to activate the
digital I/O, the 5V or 12V of the system’s power supply can be used.
Under this condition, the digital I/O is not isolated.

•

Digital Input / Output Address

•

Read port 709 : Digital Input

Bit Value

0 – 3 0 – F

•

Write port 708 : Digital Output

Bit Value

4 – 7 0 – F

External Voltage Input : 0V – 20V
( CN11 Pin 10 )
External Power GND Pin
( CN11 PIN 9 )

Digital Input specifications

( If External Voltage is 5V )
Logic 0 Level : +1V Max
Logic 1 Level : +4V Min

( If External Voltage is 12V )

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

81

Logic 0 Level : +1V max
Logic 1 Level : +11V min

Input Impedance : 2.7KΩ, 0.5 W

Digital Output specifications:

Open Drain to 20V Max
Output Current : 700mA Max ( per channel )

( External Power Input is 5V )

Output Current : 700mA Max ( per channel )

( External Power Input is 12V )

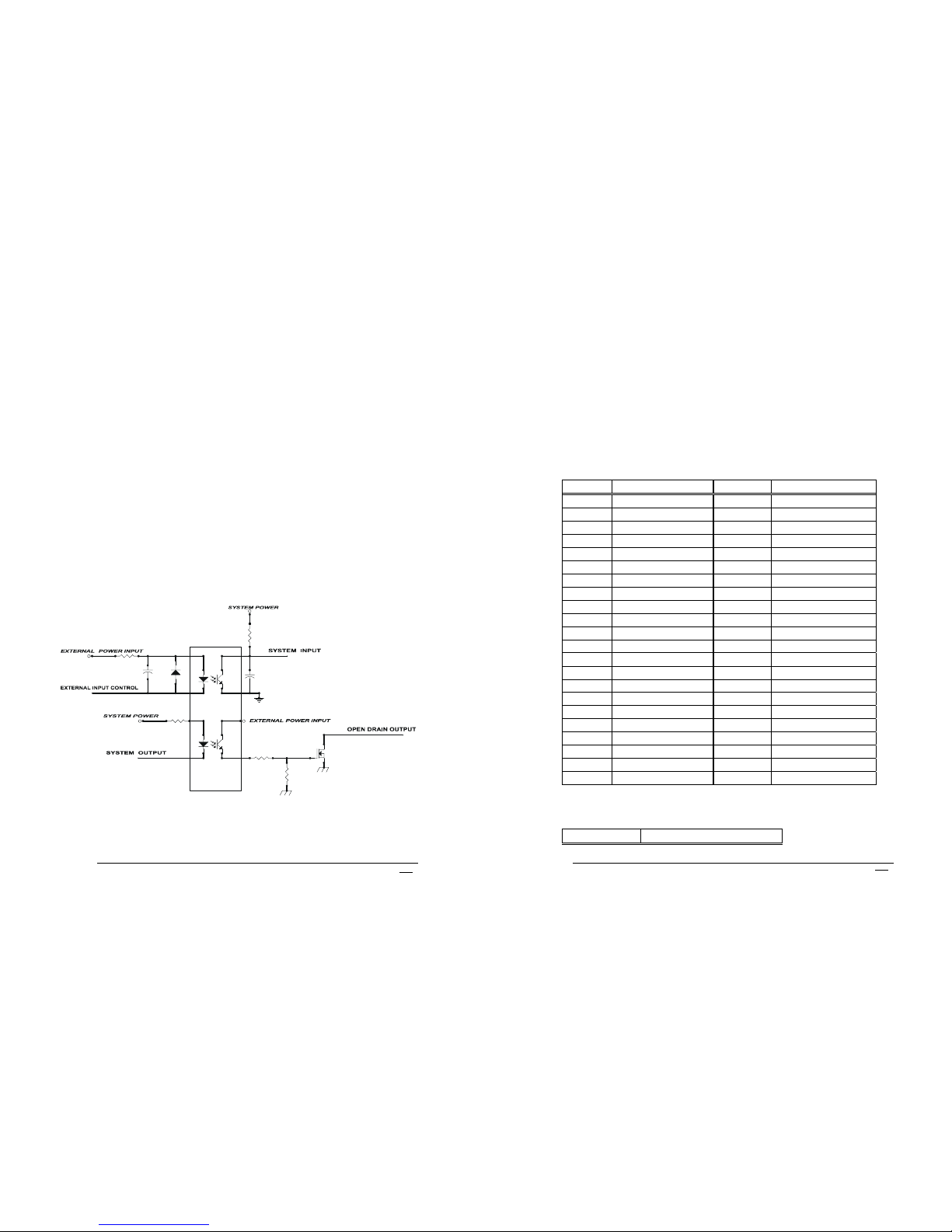

Digital Input / Output Circuit Diagram

Appendix F.

ISOLATED

120

4.7K

390

0.1U

0.1U

2.7K / 0.5W

PC357

12

43

PC357

12

43

1N4148

A K

6030L

G

DS

10K

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

82

Flat Panel Connection Module

The FP24-02 V1.0 connection module is installed on the NOVA­7895 as standard. The FP24-02 V1.0 converts NOVA-7895’s on
board 50pin LCD interface signal to the 44-pin LCD connectors.
The 44-pin connector will only support a 24-bit flat panel. The major
function of FP24-02 V1.0 is to enhance the drive strength of LCD
signal to provide NOVA-7895 with a better connection.

•

J3 : 44-pin LCD Interface Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 +12V 2 +12V
3 GND 4 GND
5 3.3V 6 3.3V
7 FPVEE 8 GND

9 P0 10 P1
11 P2 12 P3
13 P4 14 P5
15 P6 16 P7
17 P8 18 P9
19 P10 20 P11
21 P12 22 P13
23 P14 24 P15
25 P16 26 P17
27 P18 28 P19
29 P20 30 P21
31 P22 32 P23
33 GND 34 GND
35 SHFCLK 36 FLM
37 M 38 LP
39 GND 40 ENABKL
41 NC 42 NC
43 FPVDD 44 3.3V

•

J2 : LCD Backlight Power Connector

PIN NO. DESCRIPTION

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

83

1 N/C
2 GND
3 +12V
4 GND
5 FPVEE Inverter Enable

FP24-02-V V1.0 Dimension ( Unit : mm )

J2

J3

FP24-02-V V1.0

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

84

Appendix G. Dual View Setup

The NOVA-7895 is equipped with an OnChip SIS300 VGA chip
which supports dual view function. It allows you to run two
applications on two monitors respectively. The following will
describe how to enable the dual-view function in WINDOWS.

1. Select “Display” in Control Panel and enter “Display Properties”.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

85

2. Select the item “Settings” and click on the “Advanced” button

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

86

3. Select the item “Display Modes” and click on the “Advanced”
button

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

87

4. Select the item “Multimonitor” in “Driver Mode” and select the
Display combination of primary and secondary display.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

88

5. After everything is set up, you need to restart your computer in
order for the new settings to take effect.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

89

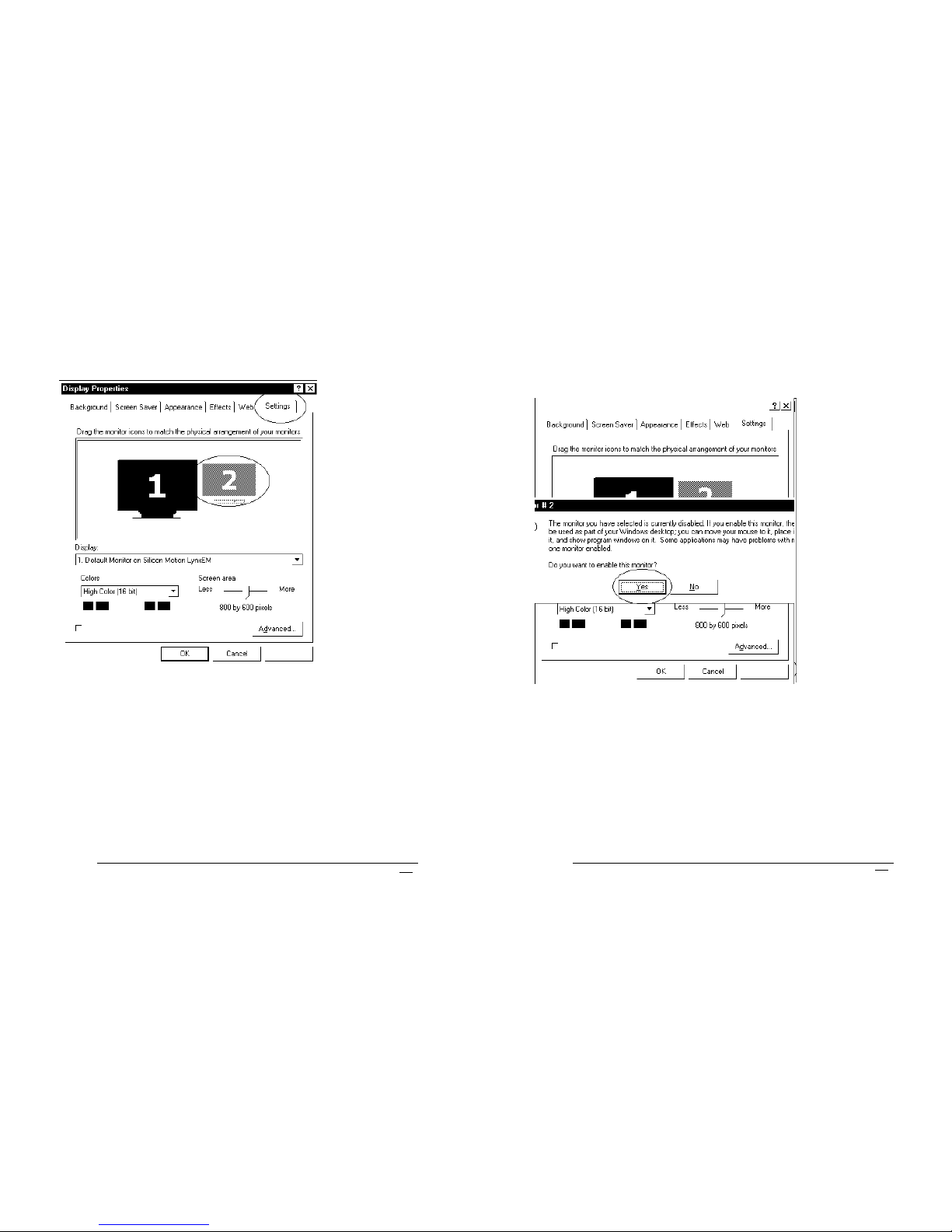

6. Re-enter “Display Properties” and go to the item “Settings”. You
will be able to see two monitors on the screen.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

90

7. Click on the second monitor icon and Windows will ask you if
you want to enable the second monitor. Click “Yes” to enable the
second monitor .

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

91

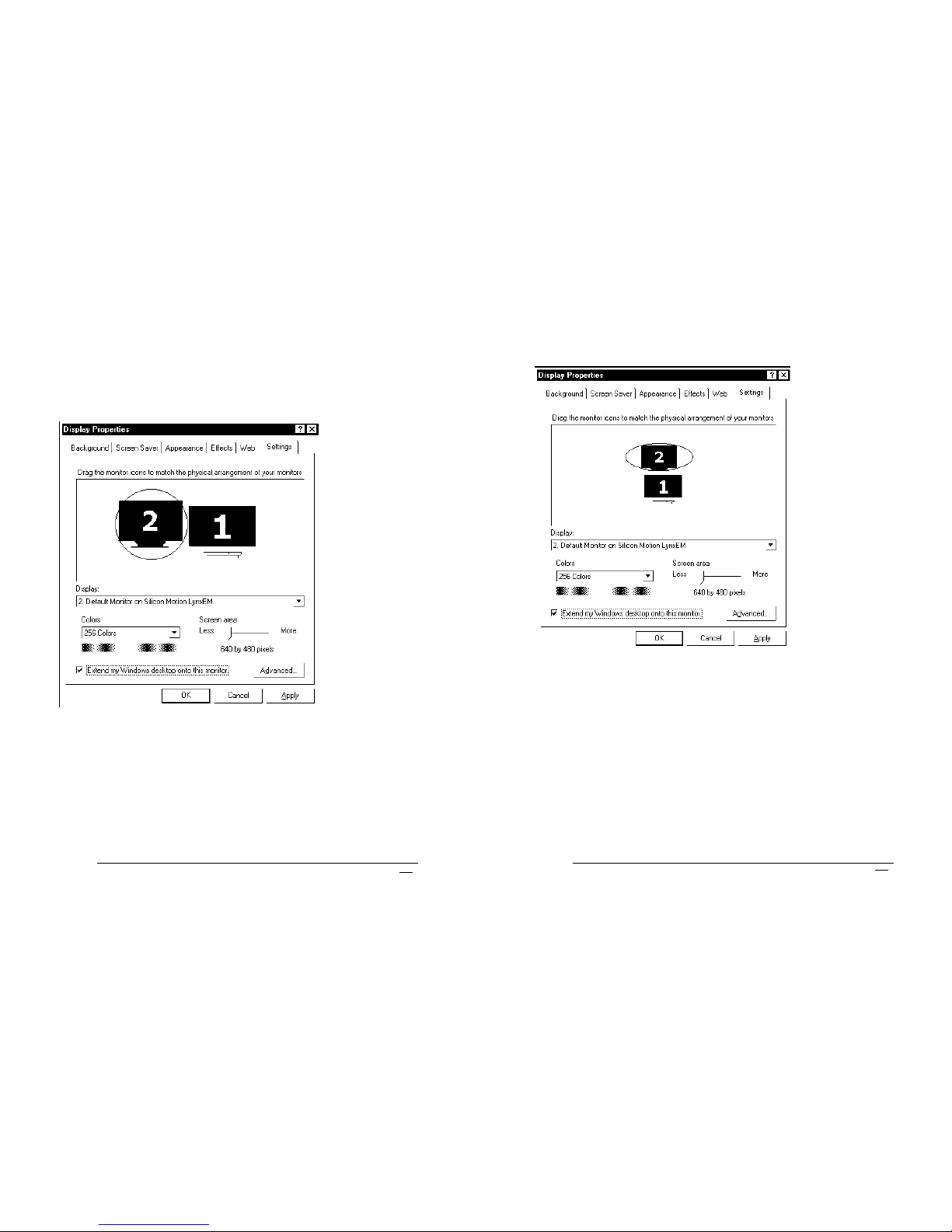

8. After enabling the second monitor, you will be able to see an
image on the second monitor. Then you can drag the monitor
icons to arrange the display of your monitors in the way of left-right
or up-down alignment. The screen below is left-and-right alignment.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

92

9. Up-and-down alignment.

NOVA-7895 Socket 370 Celeron

TM

& Pentium III ®

Multimedia & Dual Ethernet ,IEEE1394, Embedded Board

93

10. If you want to disable the dual-view function, just click on the
item “Extend my Windows desktop onto this monitor”. The mark
before this item will be cancelled and the dual-view function is
disabled.
