1. Introduction

The VXC series multi-port serial card enables user to install additional communication ports on the PC. It’s the best choice for time-critical and reliably communications and controls on the industrial environment. For example: Communicates to PLC, FAB machine, meter, console management of devices, laboratory instruments and Modem link, etc. In harsh industrial environments, the onboard surge protection protects the computer and other equipment from being damaged by high potential voltages.

COM-Selector:

The VXC series cards equip a COM-Selector (dip switch) for the COM port number selection (automatically or manually). It’s an important and innovative feature of the VXC cards. It has the following advantages:

• Simplifies the COM port number selection without using configuration utility programs.

• Users specify the COM port number exactly what they want, no matter which PCI slot

is using.

• Automatically select an available COM port number is supported by setting the COMSelector (dip switch) to 0 (default).

• Needn’t to install configuration utility for different OS, and needn’t to study operations of the utility.

• Prevents confusion. Other PnP COM port devices always confusing users by using a dynamic COM port number.

• Replacing an existing card is very easy, just setting the COM-Selector (dip switches) to the same.

• It’s great for mass system installation, just setting the COM-Selector (dip switches) to use the same COM port number in systems.

Up To 128KB Software FIFO:

The VXC card driver for Windows features a maximums 128KB software

FIFO for each port (default is 4KB). It’s practical for large file transmission.

Self-Tuner:

The RS-485 ports of VXC cards equip a “Self-Tuner” chip, which controls the sending/receiving direction, baud rate and data format automatically and reduces the software loading for such controls.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----3

1.1 Features

VXC-112A VXC-142 VXC-142i VXC-182i Common Features

RS-422/485 - 2-Port 2-Isolated 1-Isolated RS-232 2-Port - - 1-Port Self-tuner - Yes Yes Yes Isolated - - 3KV 3KV

 5V PCI Bus add-on card  COM-Selector  Provides surge protection  LED diagnostic indicators  16-byte UART FIFO

1.2 Specifications

VXC-112A VXC-142 VXC-142i VXC-182i Data bit Stop bit

Parity

Speed

Connectors

UART

Isolation

Operating

Temperature

Storage

Temperature

Humidity

Dimensions

(mm)

5, 6, 7, 8

1, 1.5, 2

None, Even, Odd, Mark, Space

50~115.2Kbps

2 x DB9 (Male)

2 x 16C550 Compatible

- - 3 KV 3 KV (RS-422/485)

0~50

-20 to 70

0~90% non-condensing

140 x 95 130 x 105 140 x 95 140 x 95

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----4

1.3 Product Check List

In addition to this manual, the package includes the following items:

• One VXC-112A, VXC-142/142i or VXC-182i card

• One ICP DAS floppy diskette or CD

• One copy of the release notes

Before continuing, it is recommended that you read the release notes,

which contain the following important information:

1. The location of the software driver & utility

2. How to install the software & utility

3. The location of the diagnostic program

Attention! If any of these items are missing or damaged, contact the dealer from whom you purchased the product. Save all shipping materials and the carton in case you need to ship or store the product in the future.

1.4 Ordering Information

 VXC-112A: 2-port RS-232 Communication Board  VXC-142: 2-port RS-422/485 Communication Board  VXC-142i: 2-port Isolated RS-422/485 Communication Board  VXC-182i: 1-port isolated RS-422/485 and 1-port RS-232 Communication

Board

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----5

1.5 Options

Item Description

CA-0903

9-pin Female D-sub & 5-wire RS-232 cable, 30cm

CA-0910

9-pin Female D-sub & 3-wire RS-232 cable, 1M

CA-0910F

9-pin Female-Female D-sub Cable, 1M

DN-09-2F

I/O Connector Block with DIN-Rail Mounting and two 9-pin Male Header. Includes: CA-0910F x 2 (9-pin FemaleFemale D-sub Cable, 1M)

VXC-112A

√

VXC-142

VXC-142i

√ √

VXC-182i

√

CA-090910

CA-PC09F

CA-0915

9-pin Female D-sub & (9-wire) RS-422 Cable, 1M

9-pin Female D-sub connector with plastic cover

9-pin Male-Female D-sub cable, 1.5M

√

√ √

√

√ √

√

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----6

2. Hardware configuration

2.1 Board Layout

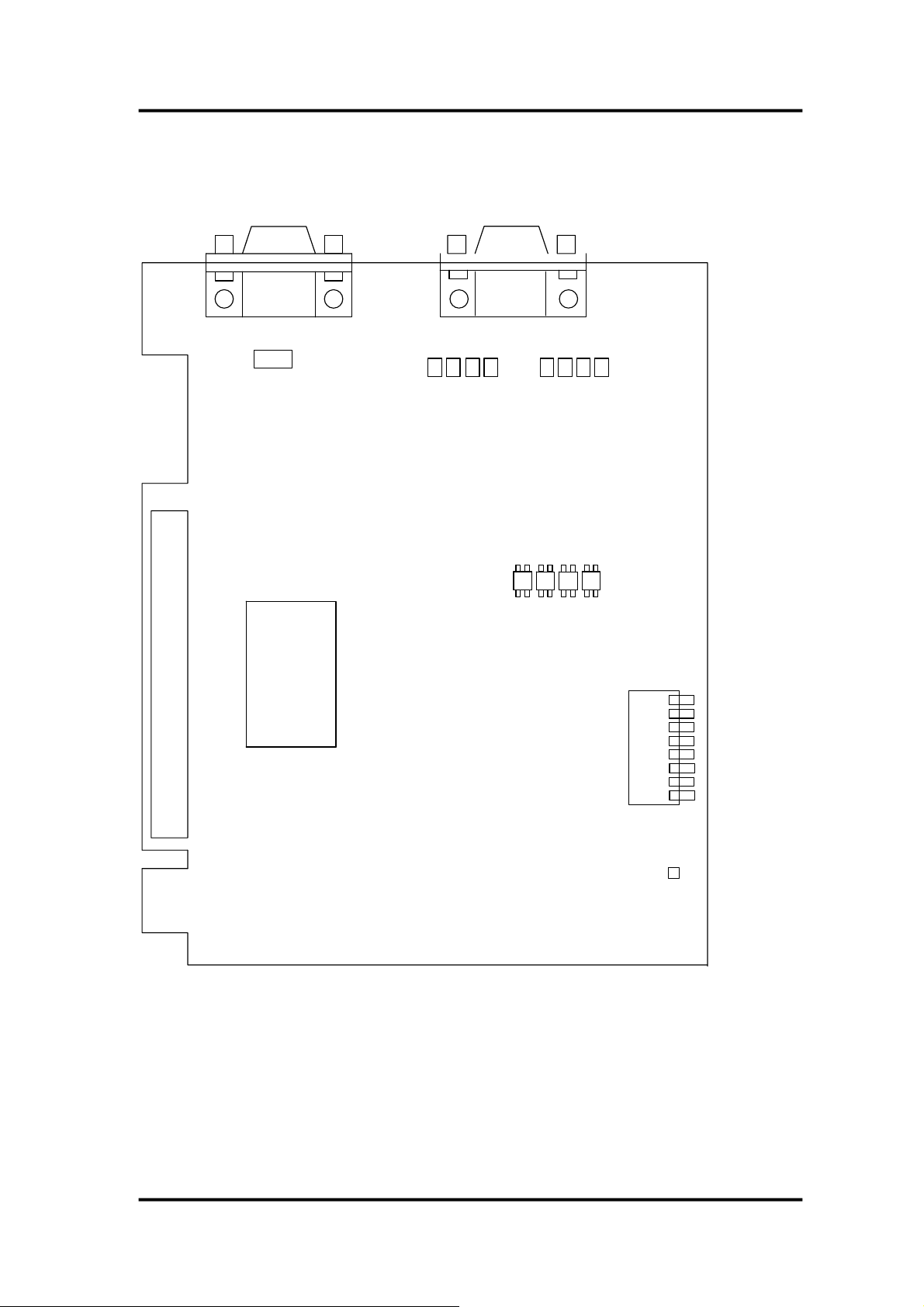

 Board layout of the VXC-112A

CO N2

CON1

SW1

PCI controller

PCI BUS

12345678

Note: CN1/2 => RS-232 Port

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----7

LED

 Board layout of the VXC -142

CN2

CN1

PCI controller

PCI BUS

12345678

LED

Note: CN1/2 => Non-Isolated RS-422/485 port

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----8

Board layout of the VXC-142i



CN2

CN1

PCI controller

PCI BUS

Note: CN1/2 => Isolated RS-422/485 port

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----9

12345678

LED

Board layout of the VXC-182i



CN2

CN1

PCI controller

PCI BUS

Note: CN1 => Isolated RS-422/485 port

CN2 => RS-232 port

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----10

12345678

LED

2.2 COM Port Mapping and Board ID

The Board ID and COM port mapping are the same, which is set by the S1

DIP switch. The S1 DIP switch has different functions under different OS.

For DOS users, the S1 DIP switch acts as Board ID. When there are two or

more multi-port serial cards in a single system, it is difficult to identify individual card number. For easier identification, the VXC series card includes a Board ID function.

For Windows users, the S1 DIP switch acts as COM port number selector

and the COM port number is depending on the Board ID. If the Board ID is 0, then the driver finds a valid number for each port. If the Board ID is not 0, then the driver uses the “Board ID” to be the first COM port number and uses the “Board ID +1” to be the next COM port number and so on.

Note: It’s recommended to select a unique COM port number (Board ID) by users. This helps users to identify and fix these cards and ports in a system without confuses.

Note: The port will not work if the COM port number is conflicted under Windows or Linux system. In that case, users should try other COM port numbers.

number selector.

Usually, the COM1 and COM2 are reserved by systems. And it’s recommended to reserve the COM3 and COM4 if you will have othe Plug&Play serial ports in the future. This prevents confliction.

For Linux users, it’s the same as Windows users but for TTY device

The configuration examples are as follows.

8 7 6 5 4 3 2 1

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----11

S1 DIP Switch 8 7 6 5 4 3 2 1

Board ID=0x00 (Default) COM = Auto-defined

Board ID=0x03 COM = 3/4

Board ID=0x05 COM = 5/6

Board ID=0x07 COM = 7/8

Board ID=0x09 COM = 9/10

Board ID=0x14 COM = 20/21

Board ID=0x1E COM = 30/31

Board ID=0x28 COM = 40/41

OFF OFF OFF OFF OFF OFF OFF OFF

OFF OFF OFF OFF OFF OFF

OFF OFF OFF OFF OFF

OFF OFF OFF OFF

OFF OFF OFF

OFF OFF

ON ON ON ON

OFF

ON ON ON

OFF OFF

OFF OFF OFF

ON ON

OFF

OFF OFF

OFF

Board ID=0x32 COM = 50/51

Board ID=0x3C COM = 60/61

Board ID=0x64 COM = 100/101

Board ID=0x96 COM = 150/151

Board ID=0xC8 COM = 200/201

．．．

Board ID=0xFF COM = 255/256

OFF OFF

OFF

ON ON

OFF OFF

ON ON

OFF OFF

ON ON ON ON

OFF OFF

OFF

ON ON

OFF OFF OFF

OFF OFF

OFF

ON ON ON ON ON ON ON ON

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----12

2.3 Pin Assignment and Cable Wiring

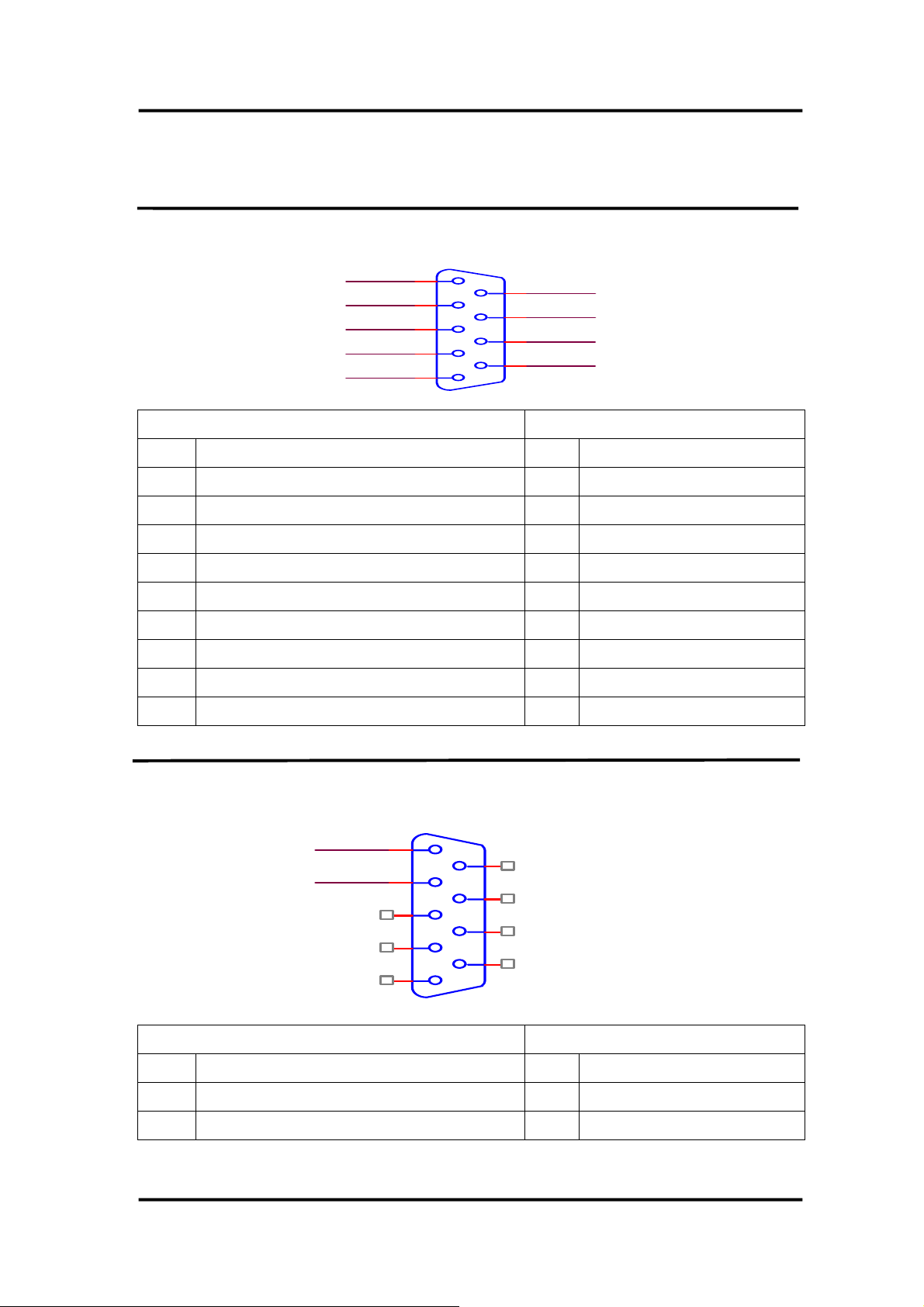

2.3.1 RS-422 Cable Wiring

TxDTxD+ RxD+ RxDGND

VXC-142/142i, VXC-182i DTE (MALE DB-9) Terminal DTE (DB-9)

PIN Signal PIN Signal

1 TxD- 4 RxD2 TxD+ 3 RxD+

CH1~ 2

DB9(M)

RTSRTS+ CTS+ CTS-

3 RxD+ 2 TxD+ 4 RxD- 1 TxD5 GND 5 GND 6 RTS- 9 CTS7 RTS+ 8 CTS+ 8 CTS+ 7 RTS+ 9 CTS- 6 RTS-

2.3.2 RS-485 Cable Wiring

CH1~ 2

DATADATA+

DB9(M)

VXC-142/142i, VXC-182i DTE (MALE DB-9) Terminal DTE (DB-9)

PIN Signal PIN Signal

1 DATA - 1 DATA 2 DATA + 2 DATA +

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----13

2.3.3 RS-232 Cable Wiring

CH2

CD RxD TxD DTR GND

DSR

RTS

CTS

DB9(M)

VXC-112A, VXC-182i (Male DB-9) Null Modem Cable Wiring System 1 Pin Pin System 2 TX 3 2 RX RX 2 3 TX RTS 7 1 DCD CTS 8 - DSR 6 4 DTR DCD 1 7 RTS

- 8 CTS DTR 4 6 DSR

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----14

2.4 Hardware Installation

Warning: Static electricity can easily damage computer equipment.

Ground yourself by touching the chassis of the computer before touching any boards.

To install your VXC series cards, complete the following steps:

1. Turn off your computer

2. Remove all covers from the computer

3. Select an unused PCI slot

4. Remove the PCI slot cover from the PC

5. Carefully insert your VXC card into the PCI slot, and attach the cable to the connector

6. Replace the PC cover

7. Turn on your PC and refer to Chapter 3 for information regarding software installation

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----15

3. Software Inst allation

ICP DAS provides following device drivers for most operation systems such as MS-DOS, Windows NT 4.0 and Windows 2000/XP/2003. These Windows drivers provide full interrupt-driven, buffered I/O for each COM ports. And also supports the Plug & Play mechanism for easy installation.

VxCard DOS Lib: Programming library files and sample programs for DOS. VxCard Driver NT: COM port driver for Windows NT 4.0. VxCard Driver 2K: COM port driver for Windows 2000/XP/2003. VxCard Driver Linux: tty driver for Linux.

Note: VxCard Driver 2K also supports Windows XP and Windows

Server 2003.

For Windows users to access COM ports, please refer to the “Serial Communications in Win32” article for programming information. Which can be found by searching on the

This chapter shows you the detail steps to install these drivers.

Note: For more information about COM port number selection, please refer to Section 2.2 “COM Port Mapping & Board ID”.

http://msdn.microsoft.com.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----16

3.1 DOS Lib

Microsoft provides standard Win32 APIs for Windows 9x/NT/2K/XP/2003 users to access the COM ports. But DOS did not have such standard APIs, thus ICP DAS provides library functions under DOS for the VXC cards. Which provides easy programming interfaces and sample programs (include source code) that written in Turbo C.

These sample programs (include source code) show you …

1. To find out all VXC cards.

2. To get the I/O address and IRQ number of the card.

3. To get the Board ID of the card.

4. To Send/receive data to/from the COM ports.

5. To control the LED On/Off of the card.

3.1.1 Installation

Please refer to the “Release Note” paper that shows you the location of the software on the CD. Run the “install.bat” batch file to install the software into your c: disk.

If you like to install the software into a different location, you can specify the

parameter after the “install.bat” file. For example:

Install d:\MyProj <Enter>

Or, you can copy the folder into your project directory manually.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----17

3.2 Windows NT 4.0

3.2.1 Installation

Please refer to the “Release Note” paper to see the software location and

refer to the following steps to complete it.

1. Launch the “VxCardNT.exe” setup program, and then click the “Next >”

2. When prompted, click the “Next >” button to start installation. Or click the

3. After the driver is installed, click the “Finish” button.

4. When prompted, select the “Yes, I want to restart my computer now.”

Note: It’s recommended to install the software first, and then the hardware. This reduces the reboot times of your computer.

button.

“Change…” button to select a new folder first for the installation.

option, and then click the “Finish” button to reboot the computer.

Note: After the installation is completed, users must restart the computer to start the driver.

3.2.2 Verification

ICP DAS provides a ”VxCard Utility” program (VxCardUtil.exe) for users to see all the COM ports on the system. It shows COM ports in two gorups, one for VXC Card and one for others. So, users can check if any confliction occurred between COM ports.

To launch the utility, just double-click on the ”VxCard Utility” short-cut on your desktop.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----18

Note: When the hardware and software are well installed, the driver turns off the LED on the card. If there is something error, such as driver not work or COM port number conflicted, the LED keeps lighting.

3.2.3 Configuration

If need, users can change the input buffer size (default is 4KB for each port, up to 128KB) by setting the “SW FIFO” scroll-bar on the VxCard Utility.

To change the COM port mappings, users should restart the driver by rebooting the computer, or launch a DOS box and run … “Net Stop VxCarSer” command to stop the driver, then run “Net Start VxCarSer” command to start the driver again.

3.2.4 Uninstallation

1. Select the “Start / Settings / Control Panel” and double-click the

“Add/Remove Programs” icon.

2. Select the “VxCard Driver NT” and click the “Add/Remove” button.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----19

3.3 Windows 2000

3.3.1 Installation

1. Launch the VxCard2K.exe to install the driver and register the related

2. Power off the computer and install the VxCard into the PC.

3. Power on your computer, Windows 2000 should find the new card and load

Note: It’s recommended to install the software first, and then the hardware. This reduces the configuration procedures.

information onto the system.

the driver automatically. (Sometimes Win2K pops up few confirm dialog box,

just click “next” or “OK” to finish it.)

3.3.2 Verification

To verify the installation, please complete the following steps:

1. Select ”Start/Settings/Control Panel” and double-click the ”System” icon.

2. Click the ”Hardware” tab and then click the ”Device Manager” button.

The VXC Card is listed under the ”VXC Multi-port serial Card” class, and each Communications Port is listed under the ”Ports (VxCard – RS- 232/422/485)” class.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----20

3.3.3 Configuration

If need, users can change the input buffer size (default is 4KB for each port, up to 128KB) by setting the “SW FIFO” scroll-bar on the VxCard Utility. The utility’s short cut is placed on the desktop after installation.

To change the COM port mappings, users should restart the driver by rebooting the computer, or re-install the “VXC Card” hardware in the “Device

Manager” by un-install card and then scan new hardware.

3.3.4 Uninstallation

Before removing the card from your computer, it’s recommended to uninstall the device from the ”Device Manager”. This removes unused hardware information from the database (registry) of Windows.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----21

3.4 Windows XP/2003

3.4.1 Installation

1. Launch the VxCard2K.exe to install the driver and register the related

2. Power off the computer and install the VxCard into the PC.

3. Power on your computer, Windows XP/2003 should find the new card and

Note: It’s recommended to install the software first, and then the hardware. This reduces the configuration procedures.

information onto the system. (Win2K driver also works on XP/Server 2003.)

load the driver automatically. (WinXP/2003 may pop up few confirm dialog

box, just click “next” or “OK” to finish it.)

3.4.2 Verification

To verify the installation, please complete the following steps:

1. Select ”Start/Settings/Control Panel” and double-click the ”System” icon.

2. Click the ”Hardware” tab and then click the ”Device Manager” button.

The VXC Card is listed under the ”VXC Multi-port serial Card” class, and each Communications Port is listed under the ”Ports (VxCard – RS- 232/422/485)” class.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----22

3.4.3 Configuration

To change the COM port mappings, users should restart the driver by rebooting the computer, or re-install the “VXC Card” hardware in the “Device

Manager” by un-install card and then scan new hardware.

3.4.4 Uninstallation

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----23

3.5 Linux

This section describes VXC Card Linux driver’s features and how to compile and install into a general Linux system. The VXC Card Linux driver is modified from Linux kernel source and supports most of popular PC-based Linux distributions.

3.5.1 Driver Features

 Device file.  Dynamic device allocation.  Dynamic major number.  One major number for multiple devices.  Use the GNU configure and build system.

3.5.2 Installation

Please refer to the following steps to complete it.

1. Download or copy the IxCOM package to a directory that you have access to.

2. Extract the package.

For example, the package's file name is "ixcom-0.05.0.tar.gz" and its path related to your current working directory is../pkg, then the extraction command would be

gunzip -c ../pkg/ixcom-0.05.0.tar.gz | tar xvf –

tar -zxvf ../pkg/ixcom-0.05.0.tar.gz

An ixcom-0.05.0 directory is created after extraction.

3. For convenient access, it is a good idea to put a symbol-link on it. ln -s ixcom-0.05.0 ixcom

4. Change to the ixcom working directory you just made, type

./configure to create proper Makefiles.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----24

5. Once the configuring has done successfully, type “make” to build all.

Note: If you like to install files to system directory, the make install will

do it for you. However, install files to system directory is not necessary for further operation. You will need the root privilege for that.

Script “./ixcom.inst” loads modules automatically. Script “./ixcom.remove” removes the loaded modules. The root privilege is required when installing or removing these kernel modules.

3.5.3 Access To VXC Serial Port

Script “ixcom.inst” will establish unused device major number dynamically

and create correspond device node for access VXC serial port.

# ./ixcom.inst IxCOM Installer 0.4.0 Check kernel version... 2.4 Use proc-file /proc/icpdas/ixcom Load module ixcom

Use “dmesg” command to inspect the driver output message.

dmesg ……… ……… ICPDAS VXC multi-serial card Serial driver version 5.05c

(2001-07-08) with HUB-6 MANY_PORTS MULTIPORT

SHARE_IRQ SERIAL_PCI enabled vxc major = 254 vxc aux_major = 253 PCI: Found IRQ 5 for device 00:13.0 ttySV0 at port 0xe0c0 (irq = 5) is a 16550A ttySV1 at port 0xe0e0 (irq = 5) is a 16550A

The script “ixcom.inst” had loaded module into kernel and find a VXC card

that have two serial port, ttySV0 and ttySV1.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----25

The “ixcom.inst” script will use major number 254 to create correspond

device on the /dev.

# ls -la /dev/ttySV? crw-rw-rw- 1 root root 254, 64 Jul 14 10:13 /dev/ttySV0 crw-rw-rw- 1 root root 254, 65 Jul 14 10:13 /dev/ttySV1 crw-rw-rw- 1 root root 254, 66 Jul 14 10:13 /dev/ttySV2 crw-rw-rw- 1 root root 254, 67 Jul 14 10:13 /dev/ttySV3 crw-rw-rw- 1 root root 254, 68 Jul 14 10:13 /dev/ttySV4 crw-rw-rw- 1 root root 254, 69 Jul 14 10:13 /dev/ttySV5 crw-rw-rw- 1 root root 254, 70 Jul 14 10:13 /dev/ttySV6 crw-rw-rw- 1 root root 254, 71 Jul 14 10:13 /dev/ttySV7 crw-rw-rw- 1 root root 254, 72 Jul 14 10:13 /dev/ttySV8 crw-rw-rw- 1 root root 254, 73 Jul 14 10:13 /dev/ttySV9

To remove VXC driver from system use script “./ixcom.remove” to

removes the loaded modules.

3.5.4 Access to VXC Auxiliary Serial Port

Each port of the VXC card has a corresponding auxiliary device named cuaV. The auxiliary device cuaV behave is very similar to serial device ttySV except DCD signal identify.

A serial port will fails to open when the DCD signal is OFF and closing automatically when DCD signal is OFF. But the auxiliary serial device will not to check the status of DCD signal if ON when open serial port and not closing serial port automatically when DCD signal is OFF. The auxiliary serial device will be useful with dialing-out modem that fails to assert DCD signal when there is no one called into it and there is no carrier. The cuaV device was once used for dialing-out and ttySV used for dialing-in purpose traditionally.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----26

Each ttySV device of VXC serial card has a corresponding auxiliary device cuaV with the same minor number but different major number that create by script ixcom.inst automatically.

# ls -la /dev/cuaV? crw-rw-rw- 1 root root 253, 64 Jul 14 10:13 /dev/cuaV0 crw-rw-rw- 1 root root 253, 65 Jul 14 10:13 /dev/cuaV1 crw-rw-rw- 1 root root 253, 66 Jul 14 10:13 /dev/cuaV2 crw-rw-rw- 1 root root 253, 67 Jul 14 10:13 /dev/cuaV3 crw-rw-rw- 1 root root 253, 68 Jul 14 10:13 /dev/cuaV4 crw-rw-rw- 1 root root 253, 69 Jul 14 10:13 /dev/cuaV5 crw-rw-rw- 1 root root 253, 70 Jul 14 10:13 /dev/cuaV6 crw-rw-rw- 1 root root 253, 71 Jul 14 10:13 /dev/cuaV7 crw-rw-rw- 1 root root 253, 72 Jul 14 10:13 /dev/cuaV8 crw-rw-rw- 1 root root 253, 73 Jul 14 10:13 /dev/cuaV9

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----27

4. Programming Reference

4.1 Determining the I/O Address

The plug & play BIOS will assign the correct I/O address to each VXC

series card during the power-up process. The fixed IDs of each VXC series card is as follows:

Item Vendor ID Device ID

Sub-

Vendor ID

VXC-112A 0xe159 0x0001 0x1D61 0x0000 0x00

VXC-142 0xe159 0x0001 0x0061 0x0000 0x00

VXC-142i 0xe159 0x0001 0x0161 0x0002 0x00 VXC-182i 0xe159 0x0001 0x0161 0x0001 0x00

Sub-

Device ID

Sub-Aux

All necessary functions are provided as follows:

1. PIO_DriverInit(&wBoard, wSubVendor, wSubDevice, wSubAux)

2. PIO_GetConfigAddressSpace(wBoardNo,*wBase,*wIrq, *wSubVendor, *wSubDevice, *wSubAux, *wSlotBus, *wSlotDevice)

3. Show_PIO_PISO(wSubVendor, wSubDevice, wSubAux)

All functions are defined in PIO.H. The important driver information is as follows:

1. Resource-allocated information:

• wBase : BASE address mapping in the PC

• wIrq: The IRQ channel number allocated in the PC

2. VXC identification information:

• wSubVendor: The subVendor ID of the board

• wSubDevice: The subDevice ID of the board

• wSubAux: The subAux ID of the board

3. PC’s physical slot information:

• wSlotBus: The slot position of hardware slot ID1 in the PC

• wSlotDevice: The slot position of hardware slot ID2 in the PC

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----28

The PIO_PISO.EXE utility program will detect and display all VXC cards

installed in the PC.

4.1.1 PIO_DriverInit

PIO_DriverInit(&wBoards, wSubVendor, wSubDevice, wSubAux)

• wBoards [OUT] number of boards found in this PC

• wSubVendor [IN] Sub-vendor ID of the board to be determined

• wSubDevice [IN] Sub-device ID of the board to be determined

• wSubAux [IN] Sub-aux ID of the board to be determined

Note: The “[IN]” symbolic indicates that the parameter should assign a value by users, while the “[OUT]” symbolic indicates that the parameter will return a value after calling the function.

The PIO_DriverInit function detects all VXC series cards in the system, and is implemented based on the PCI plug & play mechanism. All VXC series cards installed in this system will be detected and the resources will be saved in the library.

Sample program 1: Determine the resources for all VXC-142 cards in the PC

wSubVendor=0x61; wSubDevice=0x00; wSubAux=0x00; /* for VXC-142 */

wRetVal=PIO_DriverInit(&wBoards, wSubVendor,wSubDevice,wSubAux); printf("There are %d VXC-142 card(s) in this PC\n",wBoards);

/* Step 2: save the resources of all cards installed in the PC */ for (i=0; i<wBoards; i++) { PIO_GetConfigAddressSpace(i,&wBase,&wIrq,&wID1,&wID2,&wID3, &wID4,&wID5); printf("\nCard_%d: wBase=%x, wIrq=%x", i,wBase,wIrq);

wConfigSpace[i][0]=wBaseAddress; /* save all resources of this card */ wConfigSpace[i][1]=wIrq; /* save all resources of this card */ }

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----29

Sample program 2: Identify all VXC cards in the PC

wRetVal=PIO_DriverInit(&wBoards,0xff,0xff,0xff); /* identify all VXC cards */ printf("\nThere are %d VXC Cards in this PC",wBoards); if (wBoards==0 ) exit(0);

printf("\n-----------------------------------------------------"); for(i=0; i<wBoards; i++) { PIO_GetConfigAddressSpace(i,&wBase,&wIrq,&wSubVendor, &wSubDevice,&wSubAux,&wSlotBus,&wSlotDevice);

printf("\nCard_%d:wBase=%x,wIrq=%x,subID=[%x,%x,%x], SlotID=[%x,%x]",i,wBase,wIrq,wSubVendor,wSubDevice, wSubAux,wSlotBus,wSlotDevice); printf(" --> "); ShowPioPiso(wSubVendor,wSubDevice,wSubAux); }

4.1.2 PIO_GetConfigAddressSpace

PIO_GetConfigAddressSpace(wBoardNo,*wBase,*wIrq, *wSubVendor,

*wSubDevice,*wSubAux,*wSlotBus, *wSlotDevice)

• wBoardNo

• wBase [OUT] The base address of this board.

•

wIrq [OUT] The IRQ channel number allocated to this board.

•

wSubVendor [OUT] The sub-vendor ID for this board.

• wSubDevice [OUT] The sub-device ID for this board.

• wSubAux [OUT] The sub-aux ID for this board.

• wSlotBus [OUT] The hardware slot ID1 for this board.

• wSlotDevice [OUT] The hardware slot ID2 for this board.

The PIO_GetConfigAddressSpace function can be used to save the resource information for all VXC cards installed in the system. The application program can then directly control the functions of each VXC series card.

A sample program source is as follows:

[IN] Board index number which between 0 and total boards –1.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----30

/* Step 1: detect all VXC-142 cards */

wSubVendor=0x61; wSubDevice=0x00; wSubAux=0x00;/* for VXC-142 */ wRetVal=PIO_DriverInit(&wBoards, wSubVendor,wSubDevice,wSubAux); printf("There are %d VXC-142 cards in this PC\n",wBoards);

/* Step 2: save the resources for each VXC-142 card installed in the PC */

for (i=0; i<wBoards; i++) { PIO_GetConfigAddressSpace(i,&wBase,&wIrq,&t1,&t2,&t3,&t4,&t5); printf("\nCard_%d: wBase=%x, wIrq=%x", i,wBase,wIrq); wConfigSpace[i][0]=wBaseAddress; /* save all resources for this card */ wConfigSpace[i][1]=wIrq; /* save all resources for this card */ }

/* Step 3: directly control the VXC-142 */

wBase=wConfigSpace[0][0]; /* get the base address of card_0 */ outport(wBase,1); /* enable all D/I/O operations for card_0 */ wBase=wConfigSpace[1][0]; /* get the base address of card_1 */ outport(wBase,1); /* enable all D/I/O operations for card_1 */

4.1.3 Show_PIO_PISO

Show_PIO_PISO(wSubVendor,wSubDevice,wSubAux)

• wSubVendor [IN] the subVendor ID of the board to be determined

• wSubDevice [IN] the subDevice ID of the board to be determined

• wSubAux [IN] the subAux ID of the board to be determined

The Show_PIO_PISO function will display a text string to identify the special

subIDs. The text string is the same as that defined in PIO.H

A demo program is as follows:

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----31

wRetVal=PIO_DriverInit(&wBoards,0xff,0xff,0xff); /*find all VXC*/ printf("\nThere are %d VXC Cards in this PC",wBoards); if (wBoards==0 ) exit(0);

printf("\n-----------------------------------------------------"); for(i=0; i<wBoards; i++)

{ PIO_GetConfigAddressSpace(i,&wBase,&wIrq,&wSubVendor, &wSubDevice,&wSubAux,&wSlotBus,&wSlotDevice);

printf("\nCard_%d:wBase=%x,wIrq=%x,subID=[%x,%x,%x], SlotID=[%x,%x]",i,wBase,wIrq,wSubVendor,wSubDevice, wSubAux,wSlotBus,wSlotDevice); printf(" --> "); ShowPioPiso(wSubVendor,wSubDevice,wSubAux); }

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----32

4.2 I/O Address Mapping

The I/O address of the VXC series card is automatically assigned by the

main-board ROM BIOS. The I/O address can also be re-assigned by the user. It

is strongly recommended that user does not change the I/O address. The plug & play BIOS will assign the correct I/O address to each VXC series card.

The table below indicates the I/O address of the VXC-112A, VXC-142/142i

and VXC-182i series cards:

Address Read Write

wBase+0 Same RESET\ control register wBase+2 Same Aux control register wBase+3 Same Aux data register wBase+5 N/A INT mask control register wBase+7 Aux pin status register Same wBase+0x2a N/A INT polarity control register

wBase+0xc0 Read Data from Port 1 Write Data to Port 1 wBase+0xe0 Read Data from Port 2 Write Data to Port 2 wBase+0xdc High/low speed mode of Port 1 wBase+0xfc High/low speed mode of Port 2

Note. Refer to Sec. 4.1 for more information regarding wBase.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----33

4.2.1 RESET\ Control Register

(Read/Write): wBase+0

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Reserved Reserved Reserved Reserved Reserved Reserved Reserved

Note. Refer to Sec. 4.1 for more information regarding wBase.

When the PC is first powered-on, the RESET\ signal is in the Low state. This

will disable all D/I/O operations. The user must set the RESET\ signal to the

High state before sending any D/I/O commands.

outportb(wBase,1); /* RESET\ = High  all D/I/O are now enabled */ outportb(wBase,0); /* RESET\ = Low  all D/I/O are now disabled */

RESET\

4.2.2 AUX Control Register

(Read/Write): wBase+2

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Aux7 Aux6 Aux5 Aux4 Aux3 Aux2 Aux1 Aux0

Note. Refer to Sec. 4.1 for more information regarding wBase.

Aux n=0 the Aux is used as an input. Aux n=1 the Aux is used as an output. n=0~7

When the PC is first powered-on, all Aux n signals are in the Low state.

Each Aux n is designed as an input for all VXC series cards.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----34

4.2.3 AUX data Register

(Read/Write): wBase+3

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Aux7 Aux6 Aux5 Aux4 Aux3 Aux2 Aux1 Aux0

Note. Refer to Sec. 4.1 for more information regarding wBase.

This register is designed for LED controls. Before controlling LED state,

users have to configure the related Aux? to be an output.

Aux5: For VXC-112A LED controls. Aux7: For VXC-142/142i and VXC-182i LED controls.

outportb(wbase+2,0x80); /* Set Aux7 is used as an output*/ outportb(wBase+3,0); /* turns the LED off */ outportb(wBase+3,0x80); /* turns the LED on */

4.2.4 INT Mask Control Register

(Read/Write): wBase+5

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0 0 0 0

Note. Refer to Sec. 4.1 for more information regarding wBase.

EN0~EN1 (INT_CH0 ~ INT_CH1): (CH0 offset = 0)

EN3 EN2 EN1 EN0

For VXC-142/142i and VXC-182i Interrupt Mask.

EN2~EN3 (INT_CH0 ~ INT_CH1): (CH0 offset = 2)

For VXC-112A Interrupt Mask.

EN? =0 disables INT_CHAN_? as an interrupt signal (default) EN? =1 enables INT_CHAN_? as an interrupt signal

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----35

outportb(wBase+5, 0); /* disables all interrupts */ outportb(wBase+5,0x03); /* enables INT ch0 and ch1 for VXC-142 */ outportb(wBase+5,0x0B); /* enables INT ch0 and ch1 for VXC-112A */

4.2.5 Aux Status Register

(Read/Write): wBase+7

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Aux7 Aux6 Aux5 Aux4 Aux3 Aux2 Aux1 Aux0

Note. Refer to Sec. 4.1 for more information regarding wBase.

Aux0=INT_CHAN_0, Aux1=INT_CHAN_1:

For VXC-142/142i and VXC-182i card.

Aux2=INT_CHAN_0, Aux3=INT_CHAN_1:

For VXC-112A card.

Aux0~3 are used as interrupt sources. The interrupt service routine must

read this register to perform interrupt source identification.

4.2.6 Interrupt Polarity Control Register

(Read/Write): wBase+0x2A

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0 0 0 0

Note. Refer to Sec. 4.1 for more information regarding wBase.

INV0~INV1: For VXC-142/142i and VXC-182i card. INV2~INV3: For VXC-112A card.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----36

INV3 INV2 INV1 INV0

INV? =0 selects the inverted signal from INT_CHAN_? INV? =1 selects the non-inverted signal from INT_CHAN_?

outportb(wBase+0x2a,0);

/* selects the inverted input from all 8 channels */

outportb(wBase+0x2a,0xFF); /* selects the non-inverted input from all 8 channels */

// For VXC-142/142i and VXC-182i

outportb(wBase+0x2a,0x2); /* selects the inverted input of INT_CHAN_0 */ /* selects the non-inverted input of INT_CHAN_1 */

// For VXC-112A

outportb(wBase+0x2a,0x8); /* selects the inverted input of INT_CHAN_0 */ /* selects the non-inverted input of INT_CHAN_1 */

4.2.7 Speed selection

(Read/Write): wBase+0xdc/0xfc

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

N/A N/A N/A N/A N/A N/A

Speed

N/A

Mode Clock Rate Baud Rate Remark

Low Speed (0) 1,843,200Hz 50 bps ~115.2K bps (Default) High Speed (2) 14,745,600Hz 400 bps ~ 921.6K bps

Note. Refer to Sec. 4.1 for more information regarding wBase.

outportb(wAddr+0xdc, 0); /* low speed mode for port 1 */ outportb(wAddr+0xfc, 0); /* low speed mode for port 2 */

outportb(wAddr+0xdc, 2); /* high speed mode for port 1 */ outportb(wAddr+0xfc, 2); /* high speed mode for port 2 */

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----37

4.3 Interrupt Operation

There are two interrupt sources in the VXC cards. They are named as INT0 and INT1. Their signal sources are as follows:

INT0: UART 0 interrupt output INT1: UART 1 interrupt output

If only one interrupt signal source is used, the interrupt service routine doesn’t need to identify the interrupt source.

If there is more than one interrupt source, the interrupt service routine needs to identify the active signals by:

1. Reading the new status of all interrupt signal sources

2. Servicing it if INT0 is active

3. Servicing it if INT1 is active

Note:

If the interrupt signal is too short, the interrupt service routine cannot identify which interrupt source is active. Therefore, the interrupt signal must be in the hold_active state long enough for the interrupt service routine to be executed. The hold_time is different for different Operating Systems. The hold_time can be as short as a microsecond or as long as a whole second. In general, 20mS is a long enough to for successful execution under any OS.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----38

4.3.1 VXC Card Interrupt Block Diagram

INT\

Level_trigger

INT_CHAN_0

The interrupt output signal of the VXC card, INT\, is Level-Trigger and Active_Low. If INT\ generates a low_pulse, the VXC card will send an interrupt signal to the PC only once. If INT\ is fixed in low_level, the VXC card will send an interrupt signal to the PC continuously. Therefore, INT_CHAN_0/1 must be

controlled as a pulse_type signal, which must normally be fixed in a low_level state and should generate a high_pulse when sending an interrupt signal to the PC.

The INT_CHAN_0/1 priority is the same as the above. If both signals are active at the same time, then INT\ will activate only once. The interrupt service routine must read the status of all interrupt channels for multi-channel interrupts.

(to PCI slot)

INT_CHAN_1

initial_low

active_high

If only one interrupt source is used, the interrupt service routine doesn’t need to read the status of the interrupt source.

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----39

4.3.2 INT_CHAN_0/1

INT_CHAN_0/1

The INT_CHAN_0 and INT_CHAN_1 architecture is shown in the above figure. The only difference between INT0 and INT1 is that the INT_CHAN_0 signal source comes from the UART 0 interrupt output, and the INT_CHAN_1 signal source comes from the UART 1 interrupt output.

INT_CHAN_0/1 must be fixed in a low level state normally and should generate a high_pulse when sending an interrupt signal to the PC.

INT0/1

Inverted/Noninverted

select

(INV0/1)

Enable/Disable select

(EN0/1)

The EN0/1 can be used to enable/disable the INT_CHAN_0/1 as follows: (Refer to Sec.4.2.4) (Note: VXC-112A using EN2/3.)

EN0/1 = 0 → INT_CHAN_0/1 = disabled EN0/1 = 1 → INT_CHAN_0/1 = enabled

INV0/1 can be used to invert/non-invert the INT0/1 as follows: (Refer to Sec.4.2.6) (Note: VXC-112A using INV2/3.)

INV0/1 = 0 → INT_CHAN_0/1 = inverted state of INT0/1 INV0/1 = 1 → INT_CHAN_0/1 = non-inverted state of INT0/1

As mentioned above, if INT\ is fixed in a low level state, the VXC card

will continuously send interrupt signals to the PC. The interrupt service routine should use INV0/1 to invert/non-invert INT0/1 and so generate a high_pulse. (Note: VXC-112A using INV2/3.)

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----40

5. Appendix

 UART Register Mapping

This section describes the UART register mapping for VXC cards. For more information, please refer to the TI 16C550 datasheet.

wBase+0xC0: Port 0 Receiver Buffer Register (RBR) wBase+0xE0: Port 1 Receiver Buffer Register (RBR)

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0

wBase+0xC0: Port 0 Transmitter Holding Register (THR) wBase+0xE0: Port 1 Transmitter Holding Register (THR)

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0

wBase+0xC4: Port 0 Interrupt Enable Register (IER) wBase+0xE4: Port 1 Interrupt Enable Register (IER)

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0 0 0 0

wBase+0xC8: Port 0 FIFO Control Register (FCR) wBase+0xE8: Port 1 FIFO Control Register (FCR)

Enable

Modem

Status

Interrupt

Enable

Receiver

Line Status

Interrupt

Enable

Transmitter

Holding

Empty

Interrupt

Enable

Received

Data

Available

Interrupt

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Receiver

Trigger

(MSB)

Receiver

Trigger

(LSB)

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----41

Reserved Reserved DMA

Mode

Select

Transmitter

FIFO

Reset

Receiver

FIFO

Reset

FIFO

Enable

wBase+0xCC: Port 0 Line Control Register (LCR) wBase+0xEC: Port 1 Line Control Register (LCR)

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Divisor

Latch

Access

Bit

Break

Control

Stick

Parity

Even

Parity

Select

Parity

Enable

Number

Stop Bits

Word

Length

Select

Bit 1

Length

wBase+0xD0: Port 0 Modem Control Register (MCR) wBase+0xF0: Port 1 Modem Control Register (MCR)

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0 0

utoflow

Control

Loop OUT2 OUT1 Request

to Send

Terminal

Enable

Word

Select

Bit 0

Data

Ready

wBase+0xD4: Port 0 Line Status Register (LSR) wBase+0xF4: Port 1 Line Status Register (LSR)

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Error in

RCVR

FIFO

Transmitter

Empty

Transmitter

Holding

Break

Interrupt

Framing

Error

Parity

Error

Overrun

Error

Ready

wBase+0xD8: Port 0 Modem Status Register (MSR) wBase+0xF8: Port 1 Modem Status Register (MSR)

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Data

Carrier

Detect

Ring

Indicator

Data

Set

Ready

Clear to

Send

Delta Data

Carrier

Detect

Trailing

Edge

Ring

Indicator

Delta

Data

Set

Ready

Delta

Clear to

Send

Data

wBase+0xDC: Port 0 Scratch Register (SCR) wBase+0xFC: Port 1 Scratch Register (SCR)

VXC Cards User’s Manual (Ver. 1.1, 06/09.2005, pmh-012-01) -----42

ICPDAS VXC-142, VXC-112A, VXC-142i, VXC-182i User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

The PIO_DriverInit function detects all VXC series cards in the system, and is implemented based on the PCI plug & play mechanism. All VXC series cards installed in this system will be detected and the resources will be saved in the library.

The PIO_GetConfigAddressSpace function can be used to save the resource information for all VXC cards installed in the system. The application program can then directly control the functions of each VXC series card.

INT_CHAN_0/1
