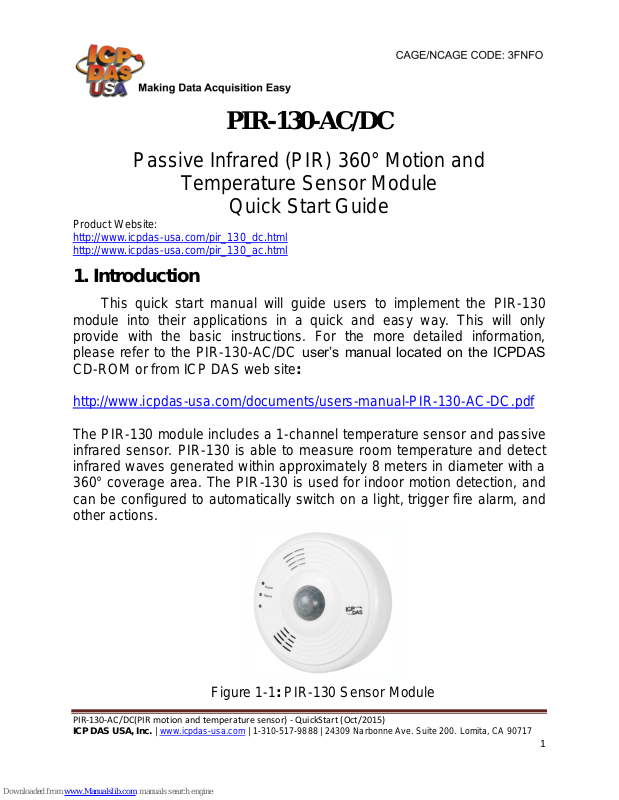

PIR-130-AC/DC
Passive Infrared (PIR) 360° Motion and
Temperature Sensor Module
Quick Start Guide
Product Website:
http://www.icpdas-usa.com/pir_130_dc.html
http://www.icpdas-usa.com/pir_130_ac.html
1. Introduction
This quick start manual will guide users to implement the PIR-130
module into their applications in a quick and easy way. This will only
provide with the basic instructions. For the more detailed information,
please refer to the PIR-130-AC/DC user’s manual located on the ICPDAS
CD-ROM or from ICP DAS web site:
http://www.icpdas-usa.com/documents/users-manual-PIR-130-AC-DC.pdf
The PIR-130 module includes a 1-channel temperature sensor and passive
infrared sensor. PIR-130 is able to measure room temperature and detect
infrared waves generated within approximately 8 meters in diameter with a
360° coverage area. The PIR-130 is used for indoor motion detection, and
can be configured to automatically switch on a light, trigger fire alarm, and
other actions.
PIR-130-AC/DC(PIR motion and temperature sensor) - QuickStart (Oct/2015)
ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

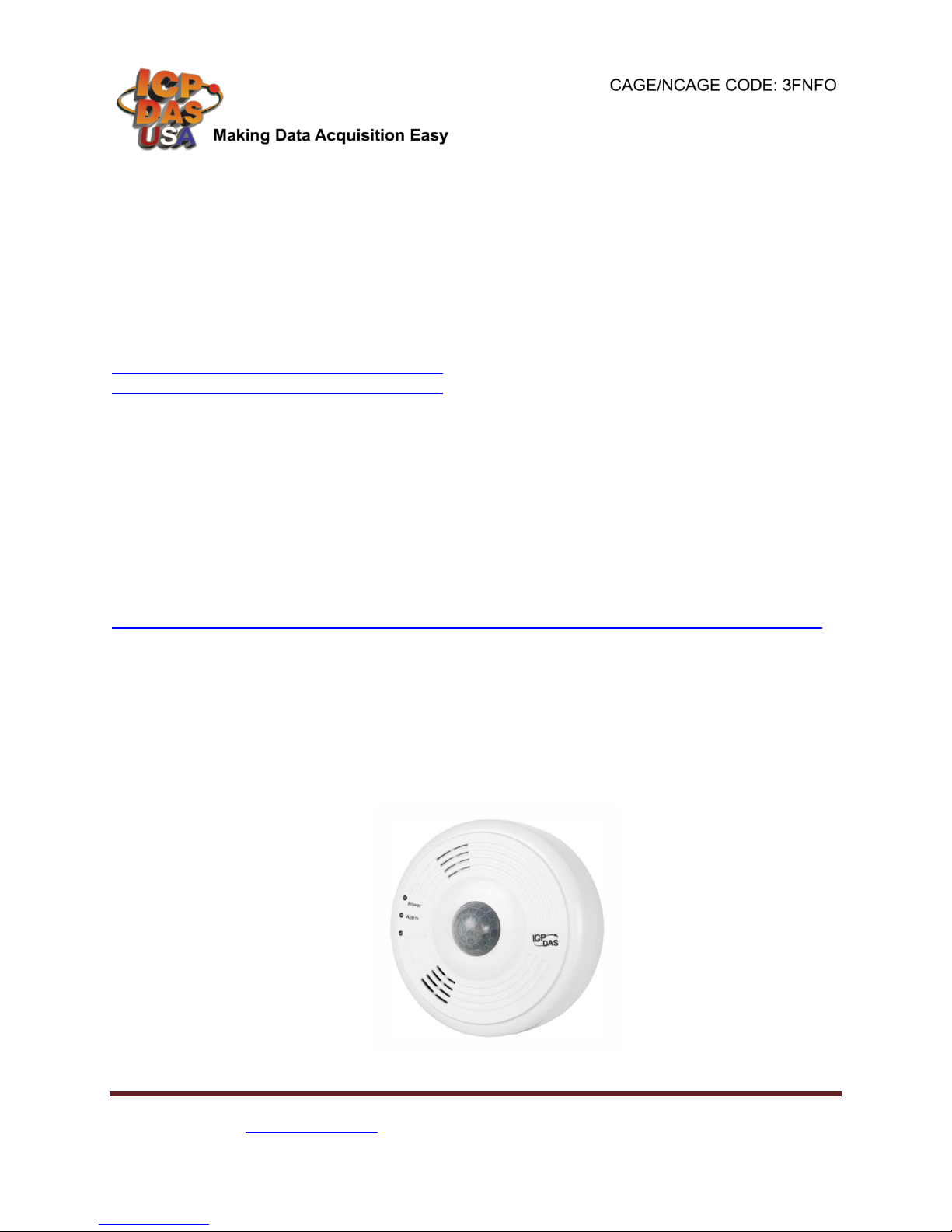

Figure 1-1: PIR-130 Sensor Module
1
Page 2
2. Installation
Step 1: Hardware Wiring

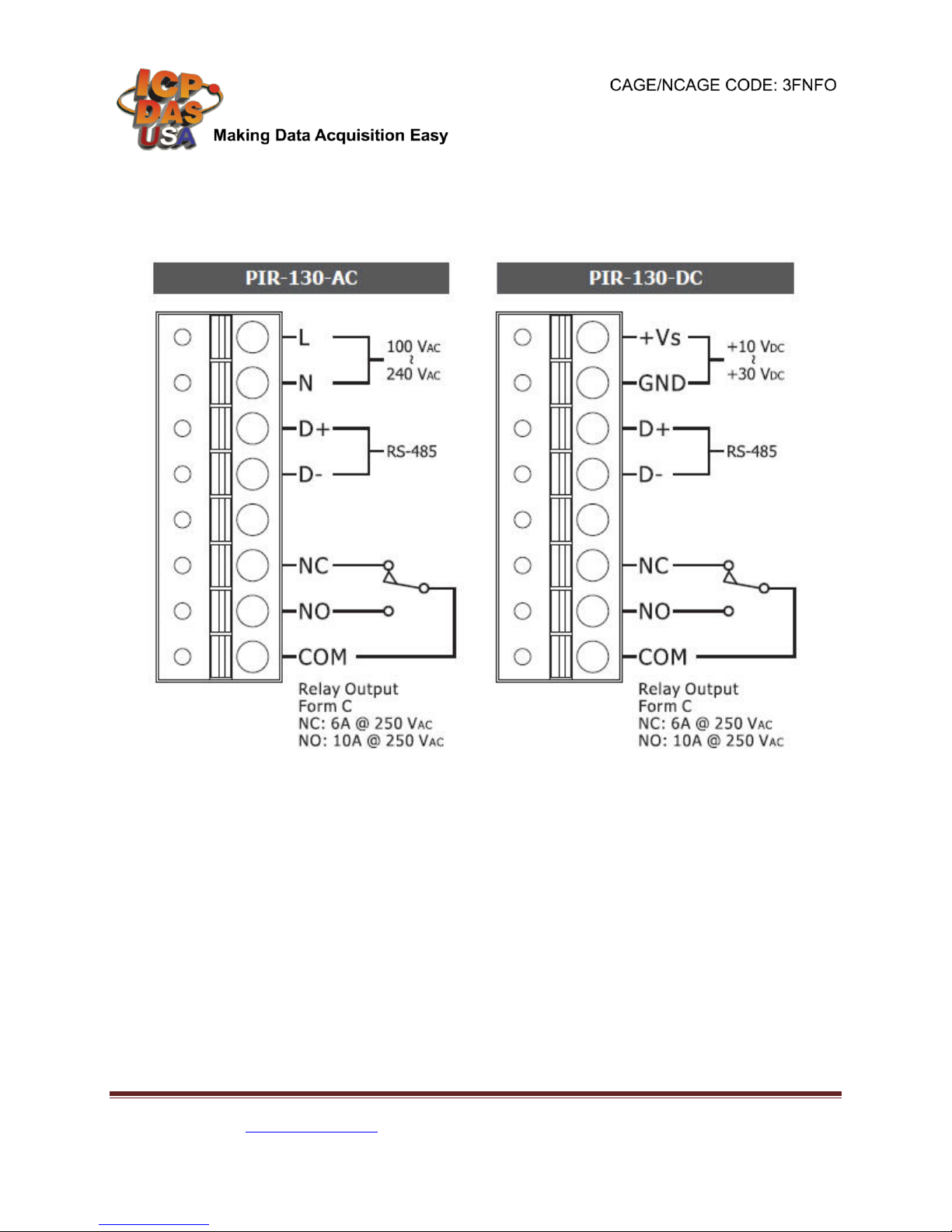

Wire power, RS-485 serial port, and relay output of PIR-130 as figure 2-1.
Figure 2-1: PIR-130 Wiring Diagram
PIR-130-AC/DC(PIR motion and temperature sensor) - QuickStart (Oct/2015)
ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
2
Page 3
Step 2: Hardware Installation

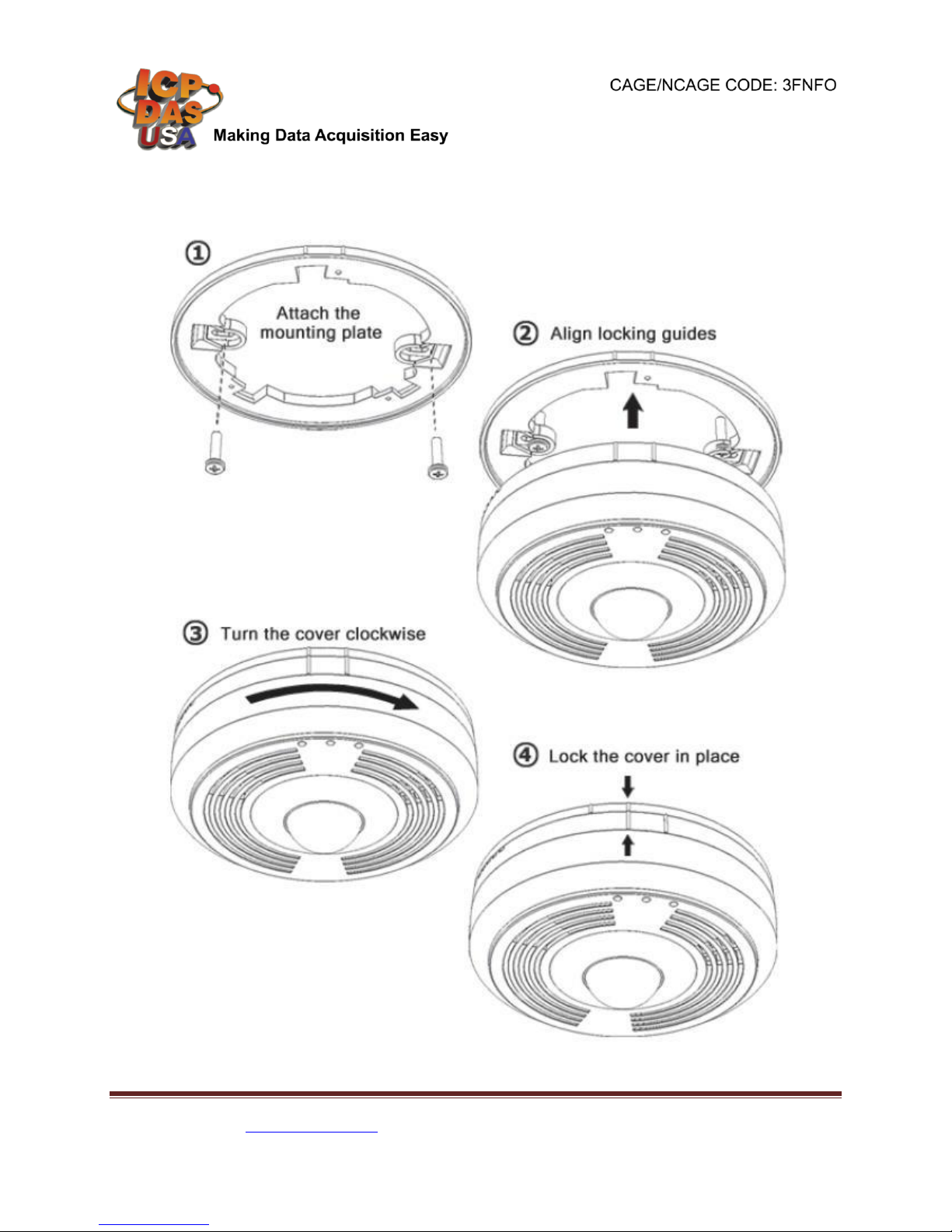

Mount PIR-130-AC/DC sensor module on the ceiling as figure 2-2.
Figure 2-2: PIR-130 Mounting Instruction
PIR-130-AC/DC(PIR motion and temperature sensor) - QuickStart (Oct/2015)
ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
3
Page 4
Step 3: Switch Setting

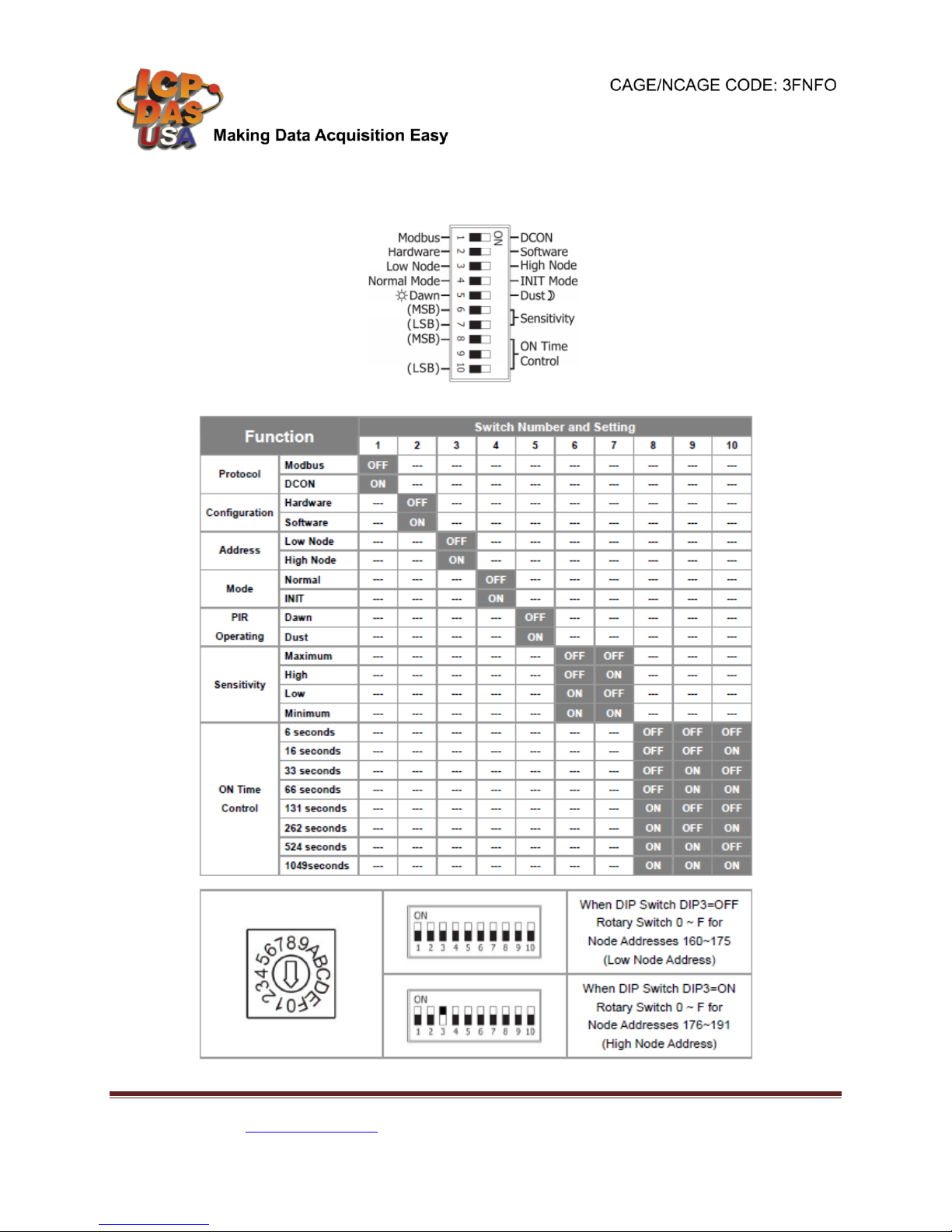

Configure dip switch and rotary switch.
Figure 2-3: PIR-130 DIP switch
Figure 2-4: PIR-130 Switch Description
